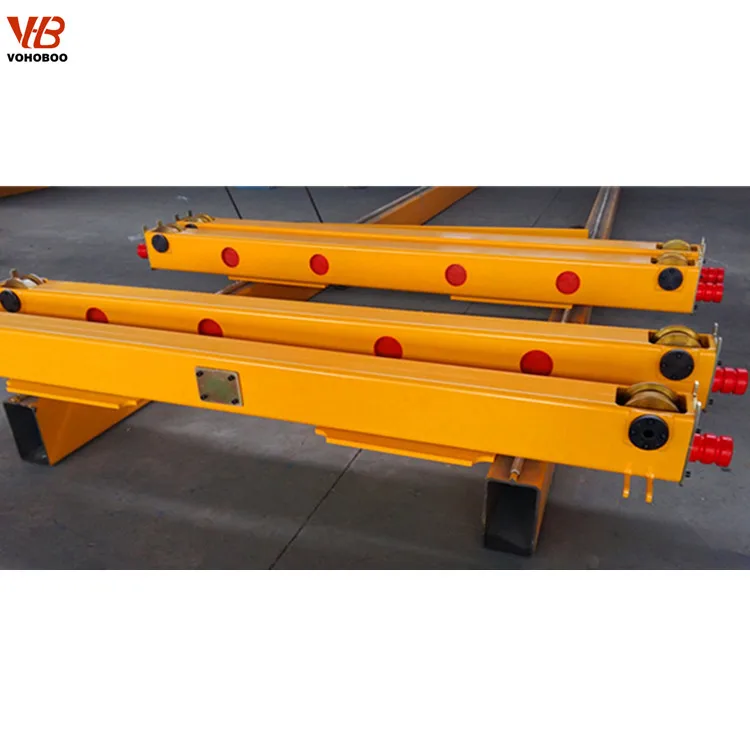

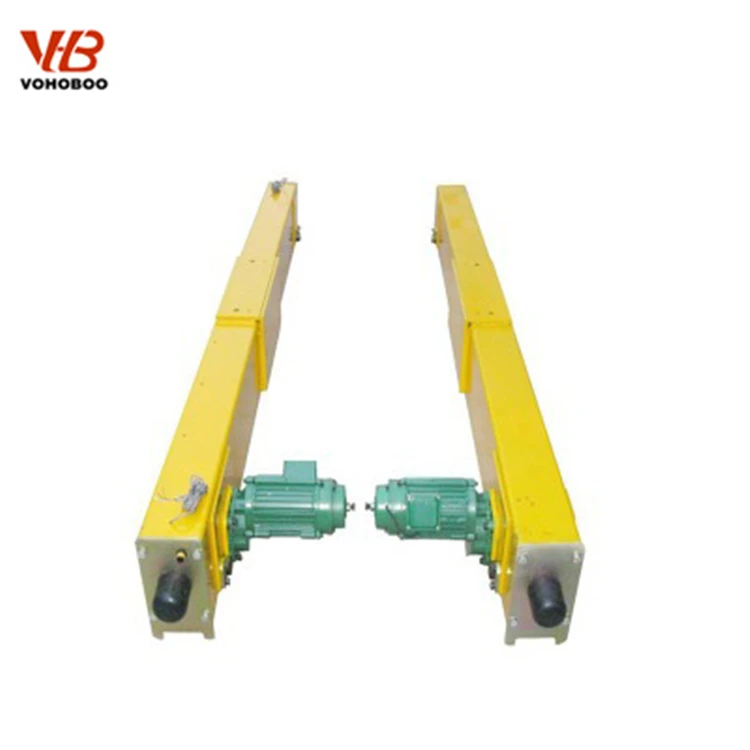

5 Ton 10 Ton Electrical Bridge Crane Travelling Motor Crane End Carriage Beam

Share on (1601027528962):


Price:

Quantity:


Product Overview

Description



Product Description






Product Advantages








Specification

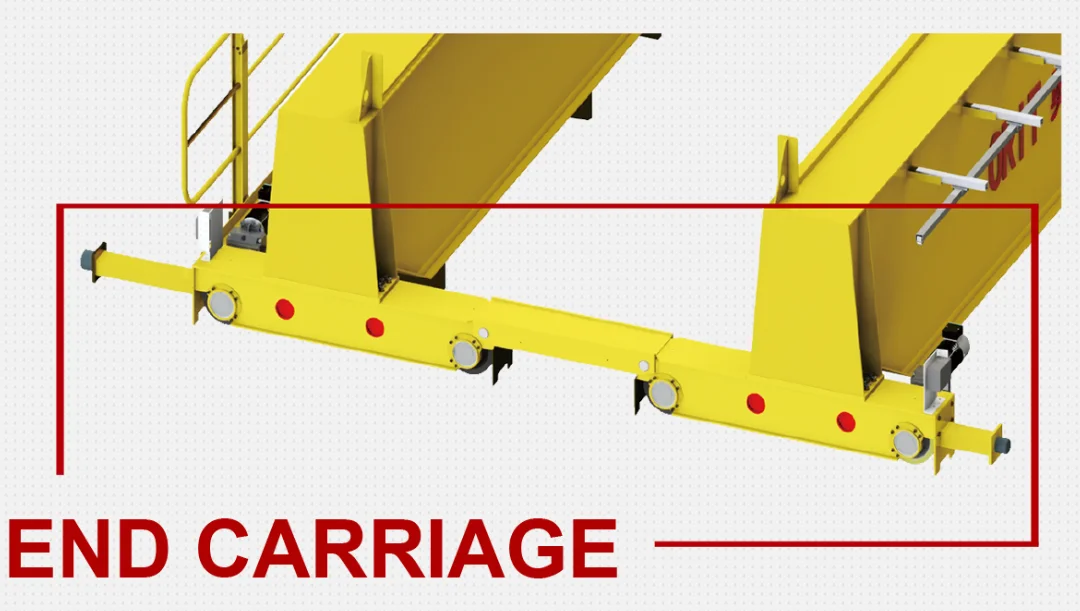

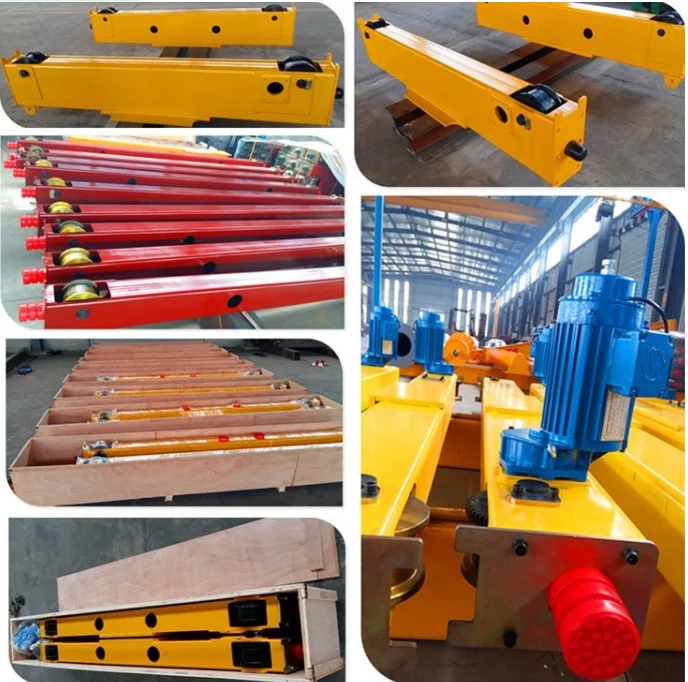

Open pinion Type End Carriage
The open pinion end carriage are mainly for single girder cranes with a capacity less than 16 ton and span less than 31.5 meters, double girder overhead crane with a capacity less than 32 ton and span less than 31.5 meters. It has simple structure, light weight, easy installation and easy maintenance, low cost features.

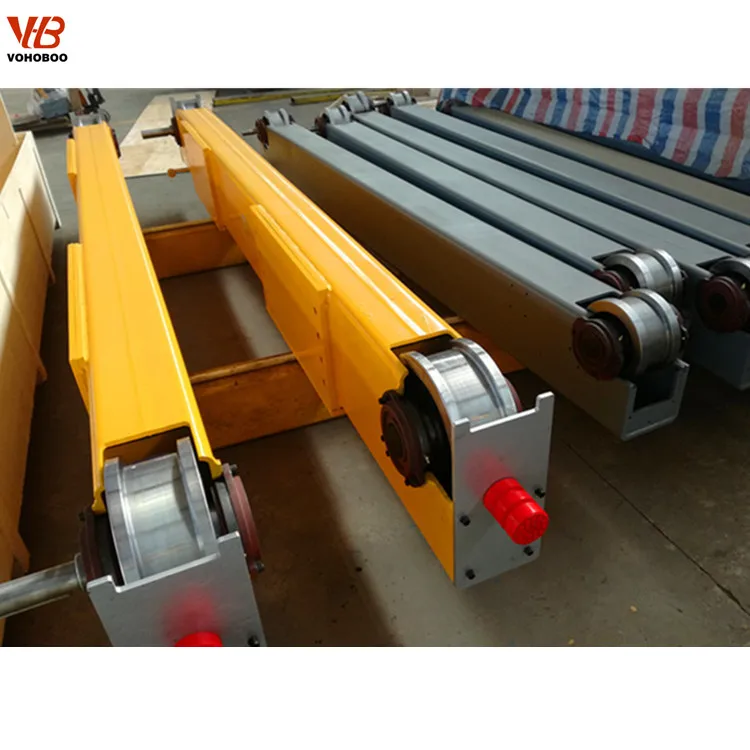

The wheel is made of steel #45, hobbing on the wheel rim, with soft three-in-one gear motor, can achieve soft start or use variable frequency control to achieve two speed; the structure uses the national standard rectangular tube.


End carriage model
Application of crane model
Rectanglar steel tube
Wheel size
Motor power
L125-10
3t-7.5m
150*150*6
0.37kw*2
w125-60
L125-14
3t-10.5m
150*150*6
0.37kw*2
w125-60
L125-18
3t-13.5m
150*150*6
0.37kw*2
w125-60
L125-22
3t-16.5m
200*150*8
0.37kw*2
w125-60
L125-27
2t-19.5m
200*150*8
0.37kw*2
w125-60
L125-31
2t-22.5m
250*150*8
0.37kw*2
w125-60
L125-38
2t-28.5m
250*150*8
0.37kw*2
w125-60
L160-10
6.3t-7.5m
150*150*6
0.40kw*2
w160*70
L160-14
6.3t-10.5m
200*150*8
0.40kw*2
w160*70
L160-18
5t-13.5m
200*150*8
0.40kw*2
w160*70
L160-22
5t-16.5m
200*150*8
0.40kw*2
w160*70
L160-27
3t-19.5m
250*150*8
0.40kw*2
w160*70
L160-31
3t-22.5m
250*150*8
0.40kw*2
w160*70
L160-38
3t-28.5m
300*200*8
0.40kw*2
w160*70
L200-10
8t-7.5m
250*150*8
0.75kw*2
w200*70
L200-14
8t-10.5m
250*150*8
0.75kw*2
w200*70
L200-18
6.3t-13.5m
250*150*8
0.75kw*2
w200*70
L200-22
6.3t-16.5m
250*150*8
0.75kw*2
w200*70
L200-27
5t-19.5m
250*150*8
0.75kw*2
w200*70
L200-31
5t-22.5m
250*150*8
0.75kw*2
w200*70
L200-38
5t-28.5m
300*200*8
0.75kw*2
w200*70
L200-42
3t-31.5m
300*200*8
0.75kw*2
w200*70
L250-10
12.5t-7.5m
300*200*8
0.75kw*2
w250-80
L250-14
12.5t-10.5m
300*200*8
0.75kw*2
w250-80
L250-18
10t-13.5m
300*200*8
0.75kw*2
w250-80
L250-22
10t-16.5m
300*200*8
0.75kw*2
w250-80
L250-27
10t-19.5m
300*200*8
0.75kw*2
w250-80
L250-31
10t-22.5m
350*200*8
0.75kw*2
w250-80
L250-38
8t-28.5m
350*200*8
0.75kw*2
w250-80
L250-42
6.3t-31.5m
350*200*8
0.75kw*2
w250-80
L315-10
16t-7.5m
350*200*8
1.1kw*2
w315*90
L315-14
16t-10.5m
350*200*8
1.1kw*2
w315*90
L315-18
16t-13.5m
350*200*8
1.1kw*2
w315*90
L315-22
16t-16.5m
350*200*8
1.1kw*2
w315*90
L315-27
12.5t-19.5m
350*200*8
1.1kw*2
w315*90
L315-31
12.5t-22.5m
350*200*8
1.1kw*2
w315*90
L315-38
12.5t-28.5m
400*200*8
1.1kw*2
w315*90
L315-42
12.5t-31.5m
400*200*12
1.1kw*2
w315*90

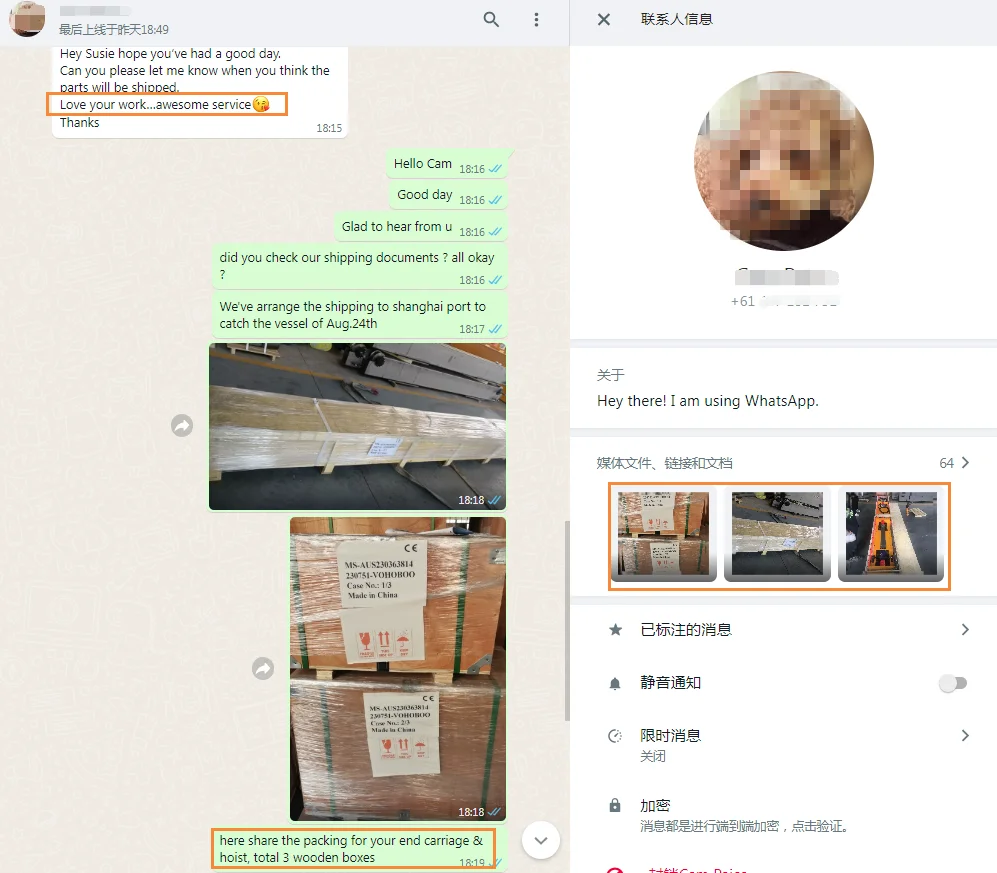

Feedback

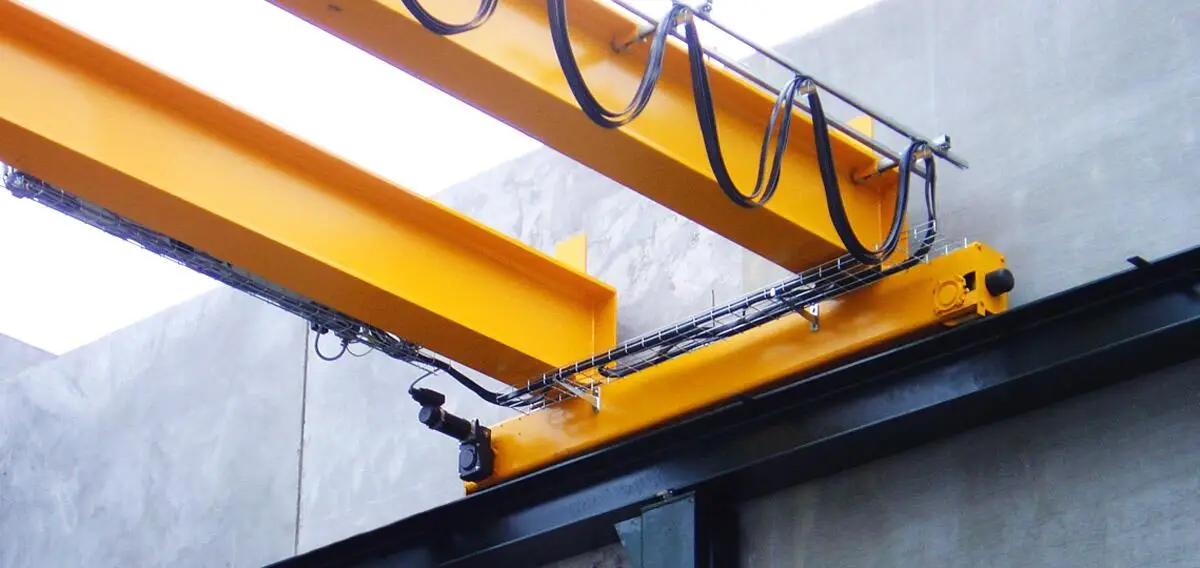

Product Application

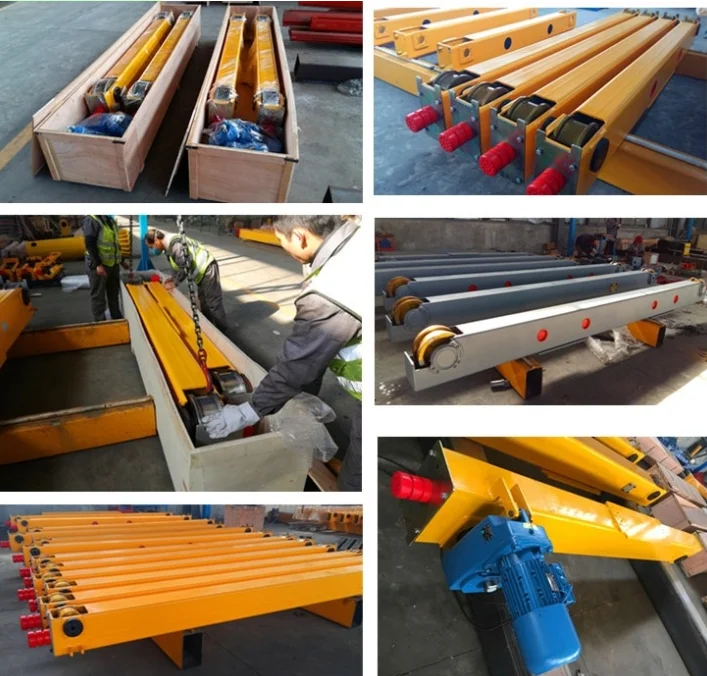

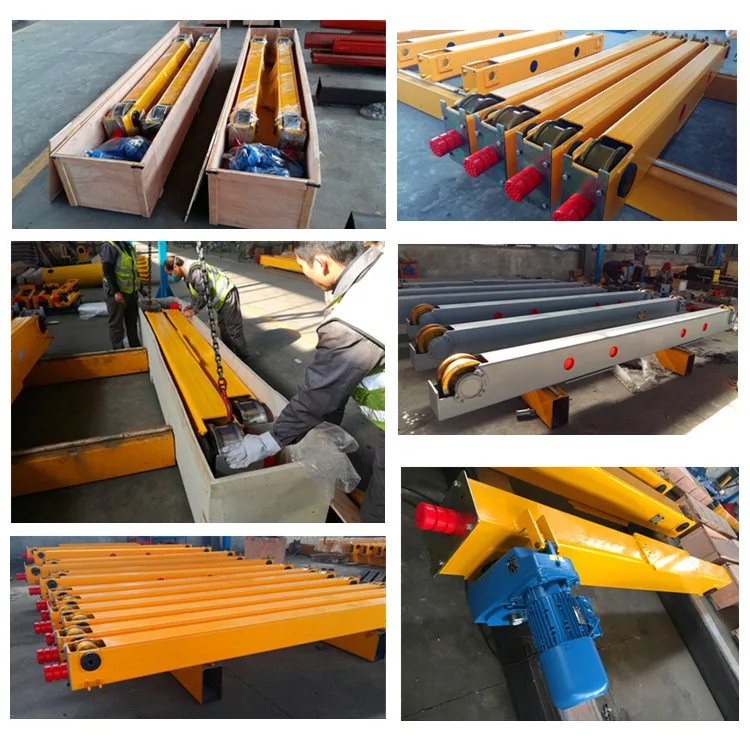

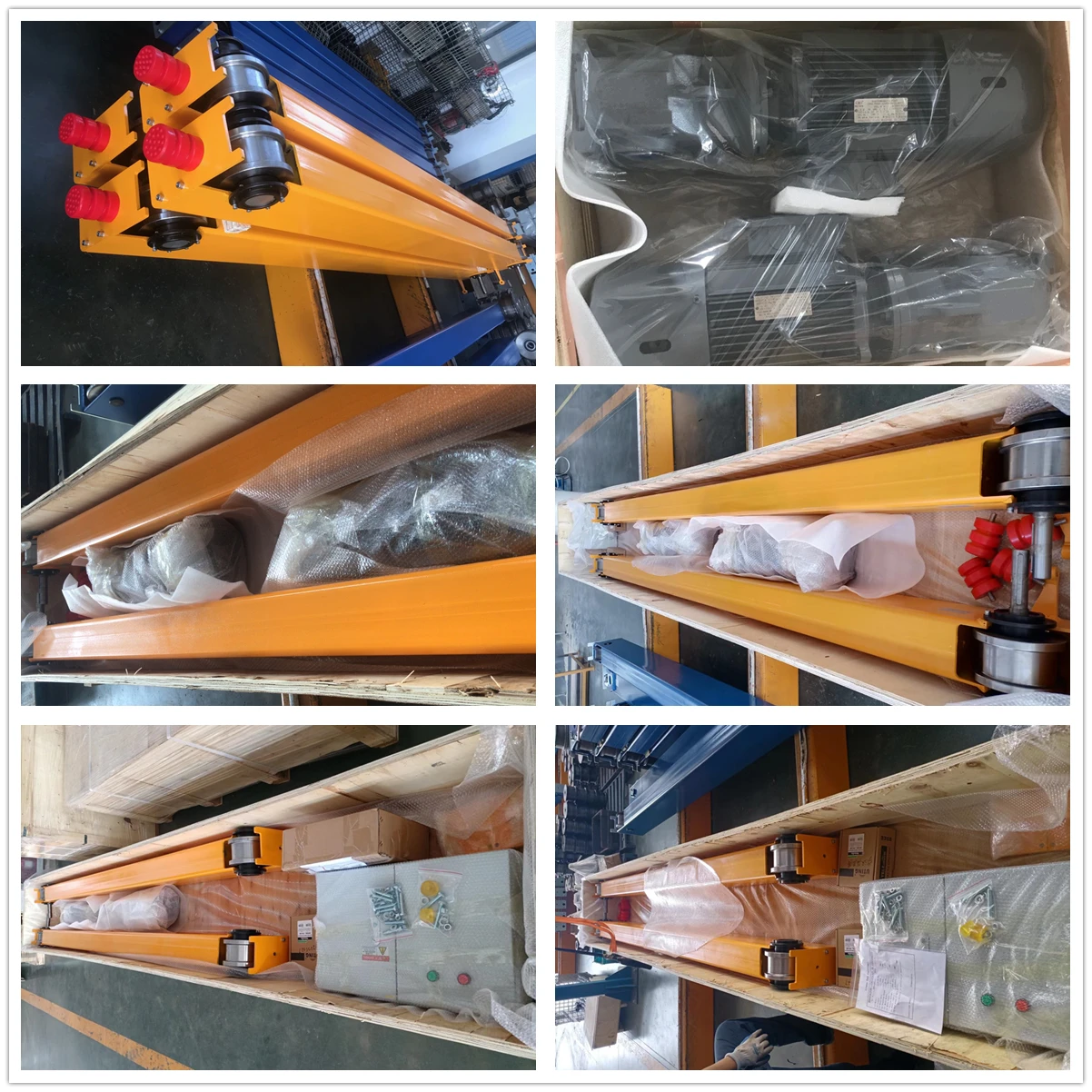

Packing & Delivery








Standard export packing

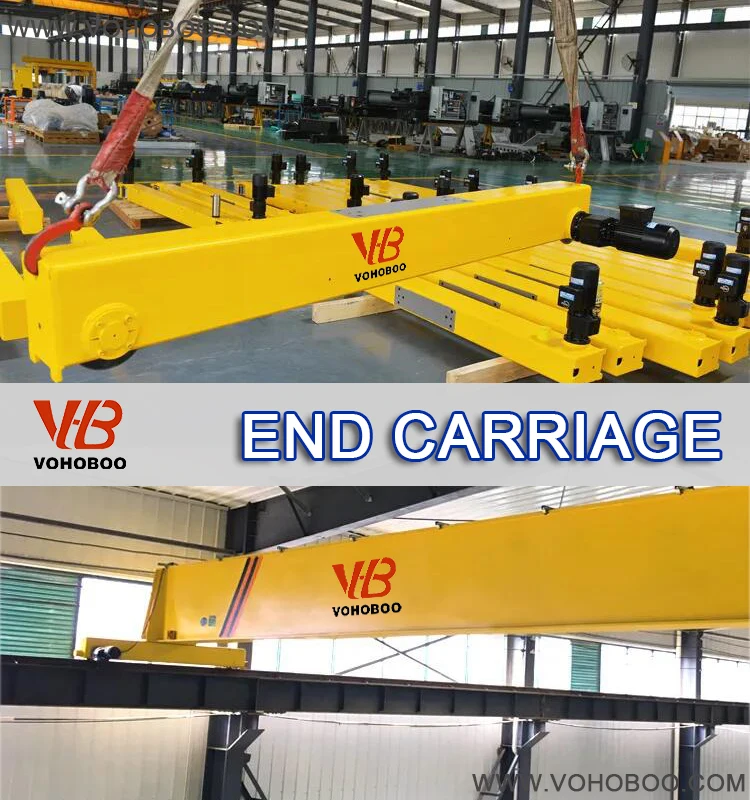

Hot-sell production






Company Profile


Wuhan Vohoboo Import & Export Trade Co., Ltd is a modern high technology enterprise integrated R&D, manufacture and sales since 2011,the main products are crane, hoist and related accessories.
They are mainly used in wind power, manufacturing, machinery, equipment, ships, bridges, equipment installation, petroleum, metallurgy, petrochemical, chemical, rescue, aircraft manufacturing, mining and other industries.

After years of hard work, it has had excellent products for lifting industry and established its own brand, "Vohoboo". As a production supplier of excellent lifting products, we have always been adhering to the business philosophy of "quality first, credit standing", constantly refine design ideas, strive for excellence, continue to develop in the development of excellent lifting products.

Now Our products has been exported to Europe, America, Asia, Oceania, East Asia, Southeast Asia, South Asia, Central Asia and other international markets as well as China's northeast, north, south, northwest and other domestic markets. High quality products and reliable services have won good reputation in the industry and received many positive feedbacks.
