Product Overview
Description
Product Description

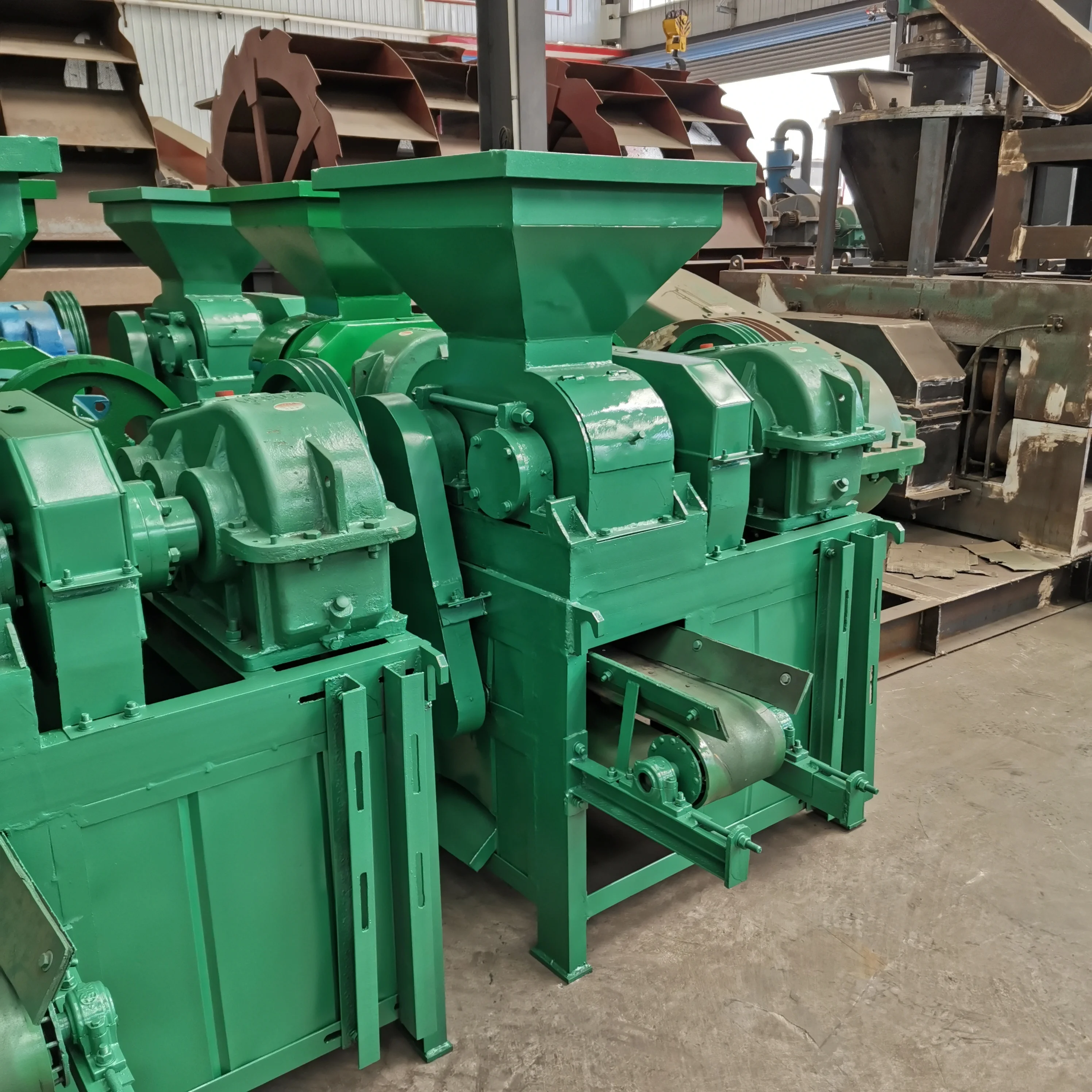

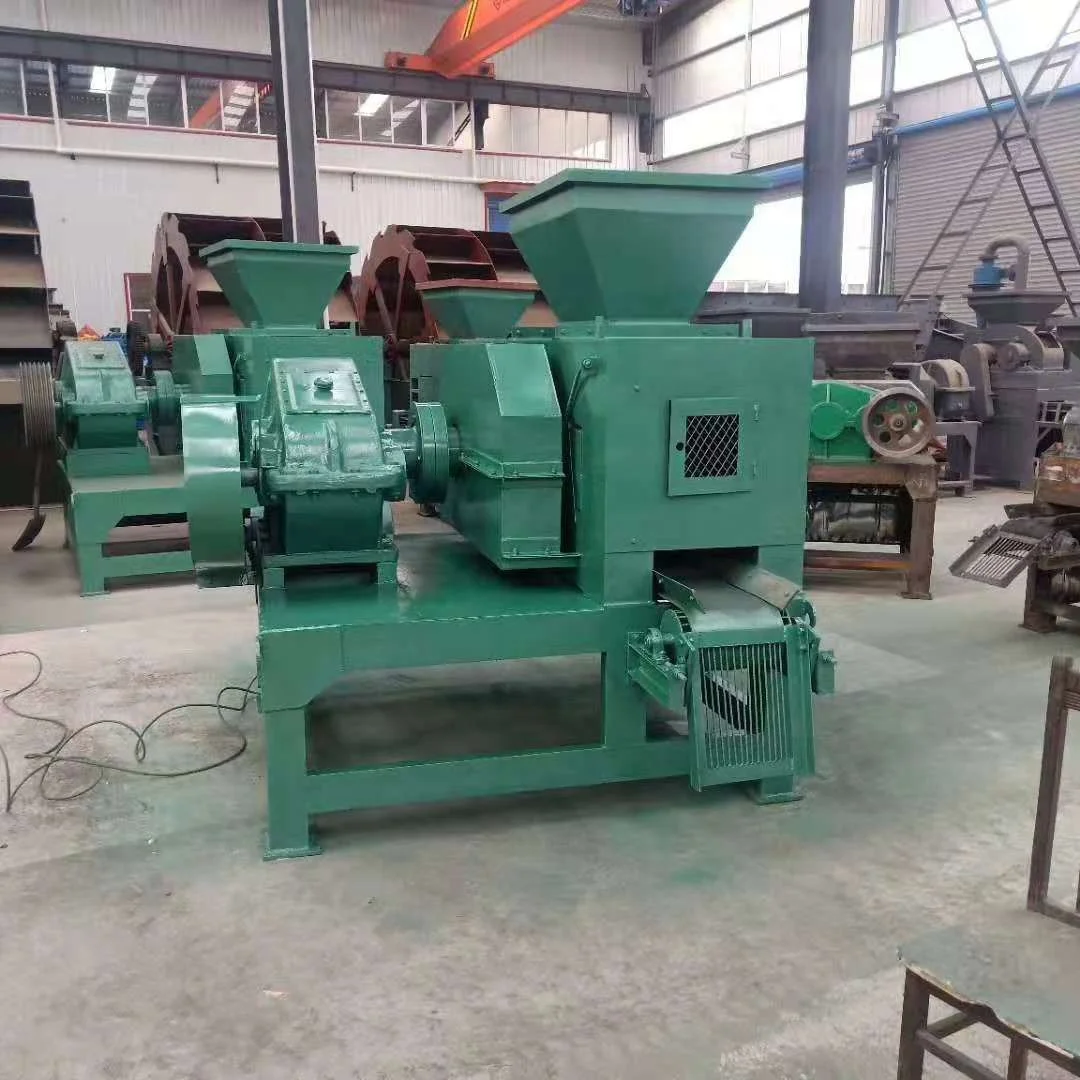

Charcoal ball briquitte machine:
Ball pressing machine can be used to press pulverized coal, iron powder, coke coal, aluminum powder, iron filings, iron oxide, carbon powder, charcoal powder, slag, gypsum, tailings, sludge, kaolin, activated carbon, coke and other powder, powder, waste, waste slag, widely used in resistant materials, power plants, metallurgy, chemical industry, energy, transportation, heating and other industries, after the ball pressing mechanism for forming materials, energy saving and environmental protection, It is convenient for transportation, improves the utilization rate of waste materials, and has good economic and social benefits.
Raw materials requirements：
coal powder, charcoal powder, metallic powder (FeSi powder), iron scale, iron sludge, precipitator dust, iron concentrate, raw material powder, manganese ore fines, slime peat, fireproof material, desulfurized gypsum,etc
Raw materials requirements：
coal powder, charcoal powder, metallic powder (FeSi powder), iron scale, iron sludge, precipitator dust, iron concentrate, raw material powder, manganese ore fines, slime peat, fireproof material, desulfurized gypsum,etc
Product Parameter
Model | Power | Capacity | Diameter of roller | Width of roller | Size | Weight(kg) |
SFD-290 | 5.5 kw | 1-3 t/h | 290 mm | 200mm | 1.24x1.07x1.44 m | 1300 |
SFD-360 | 7.5 kw | 4-6 t/h | 360 mm | 250mm | 1.3x1.15x2.05 m | 1850 |
SFD-400 | 11kw | 6-7 t/h | 400mm | 300mm | 1.65x1.50x2.40 m | 4000 |
SFD-450 | 15kw | 8 t/h | 450mm | 300mm | 1.65x1.50x2.40 m | 4200 |
SFD-500 | 18.5kw | 8-10 t/h | 500mm | 350mm | 1.75x1.60x2.60 m | 4500 |
SFD-650 | 30kw | 10-15 t/h | 650mm | 380mm | 2.2x2.2x2.8 m | 5000 |
SFD-850 | 55kw | 15-20 t/h | 650850mm | 650mm | 3.5x3.5x3 m | 10000 |
SFD-1000 | 75kw | 20-30 t/h | 1000mm | 850mm | 4.5x4.5x3 m | 15000 |
Product Details

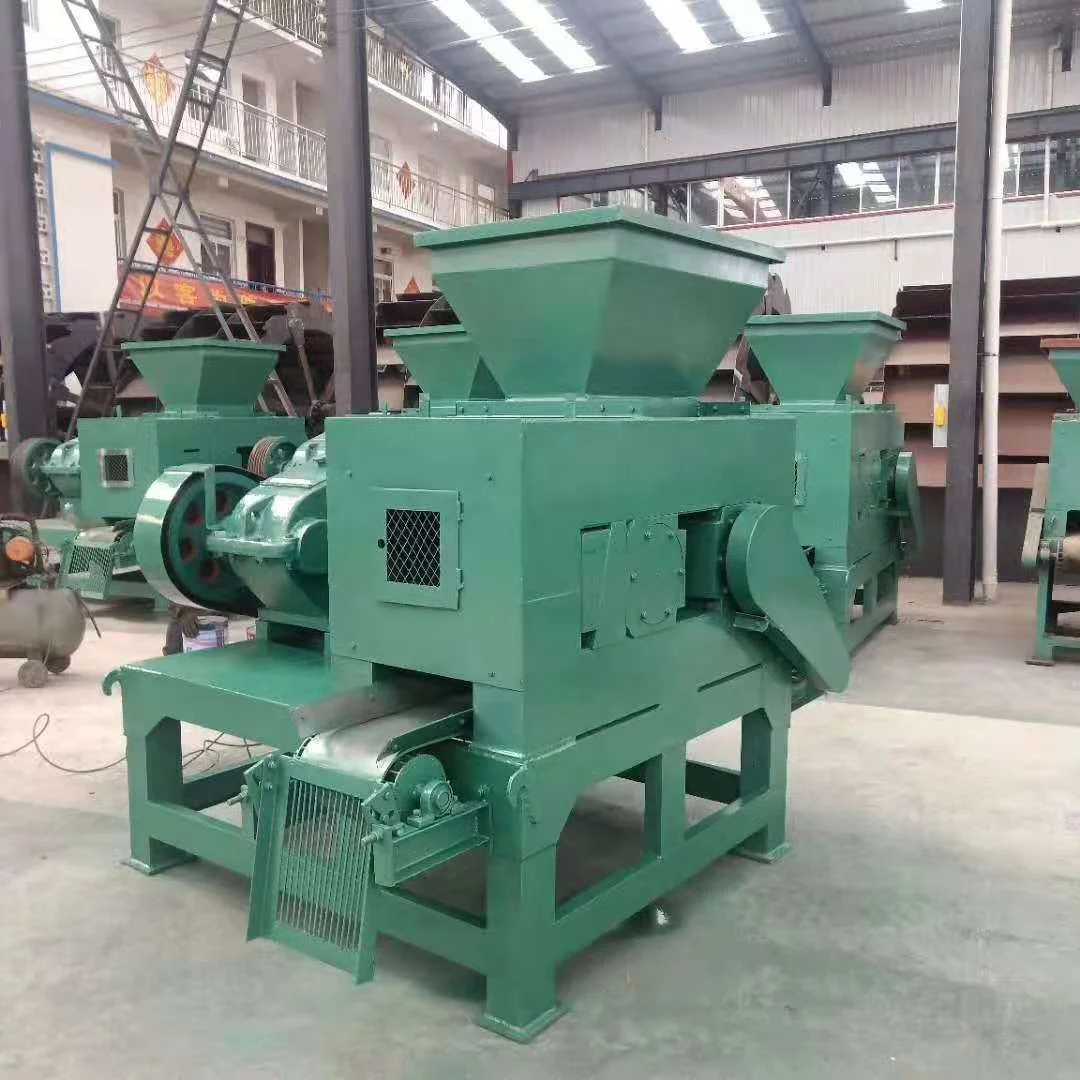

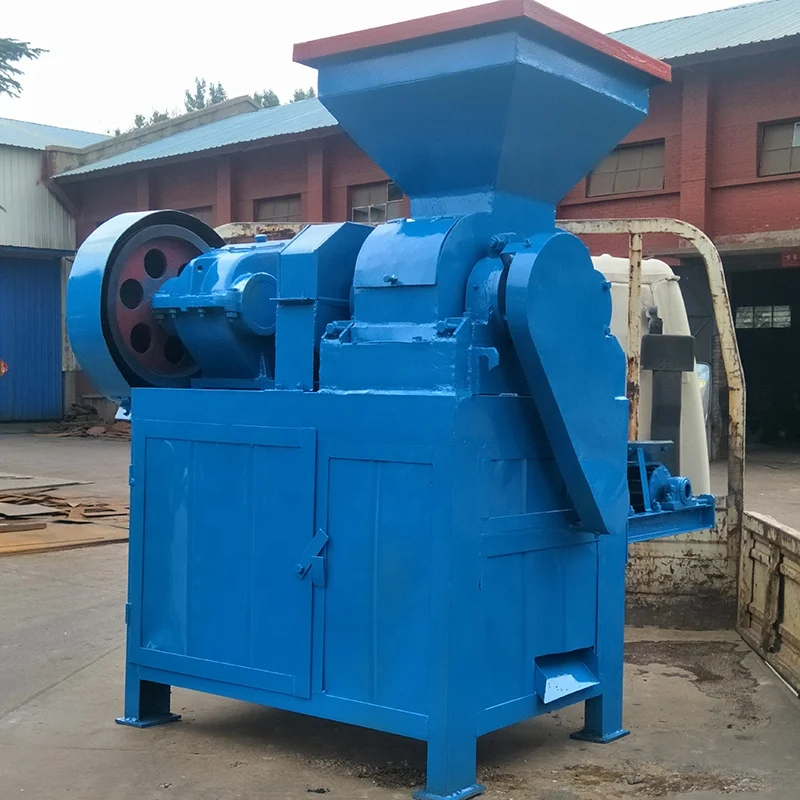

Briquette Charcoal Making Machine:
Ball press roller is cast with 65 manganese. After special heat treatment, the hardness can reach more than 58 degrees. The roller is assembled in combination and can be replaced after wear. The ball press of mineral powder has a buffer device, which can better protect the equipment from the impact of hard objects. Mineral powder ball press is designed with ball bowl adjustable device so that the two roller ball bowl is always within the adjustable range, never dislocation.
Production Flow
Working principle of charcoal ball briquitte machine:
From the storage silo, the material is fed into the molding machine hopper evenly by the quantitative device. Then the regulation board on the hopper make the materal evenly enter into the middle of the roller; the reverse operating roller compress the material and the forming pressure increases gradually, at the centerline of the roll the forming pressure reaches its maximum value, once the material through the line, the molding pressure rapidly decrease so that the material forms into ball shape and smoothly discharge the ball.

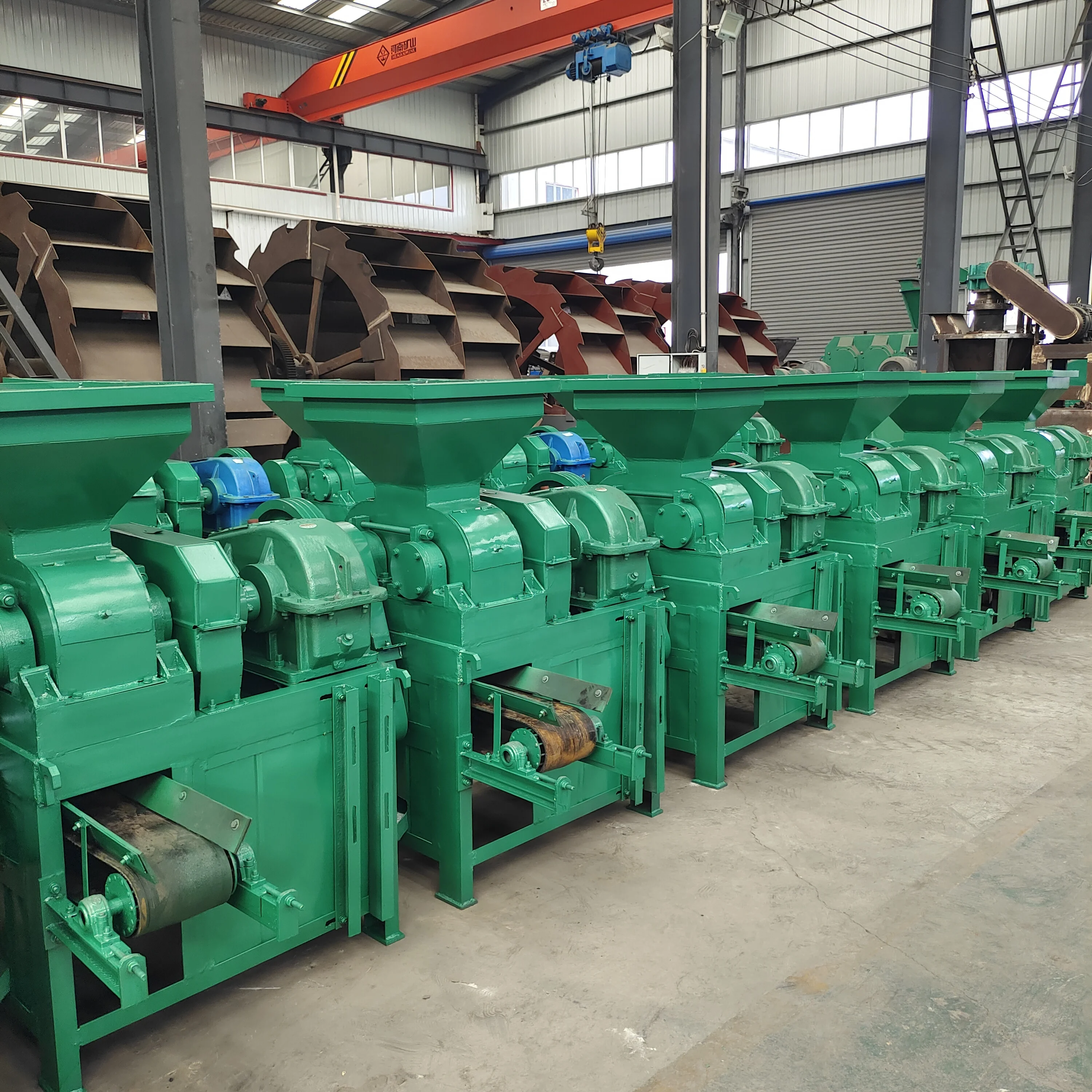

Delivery site
Company Profile
Certificate
Customer and Feedback

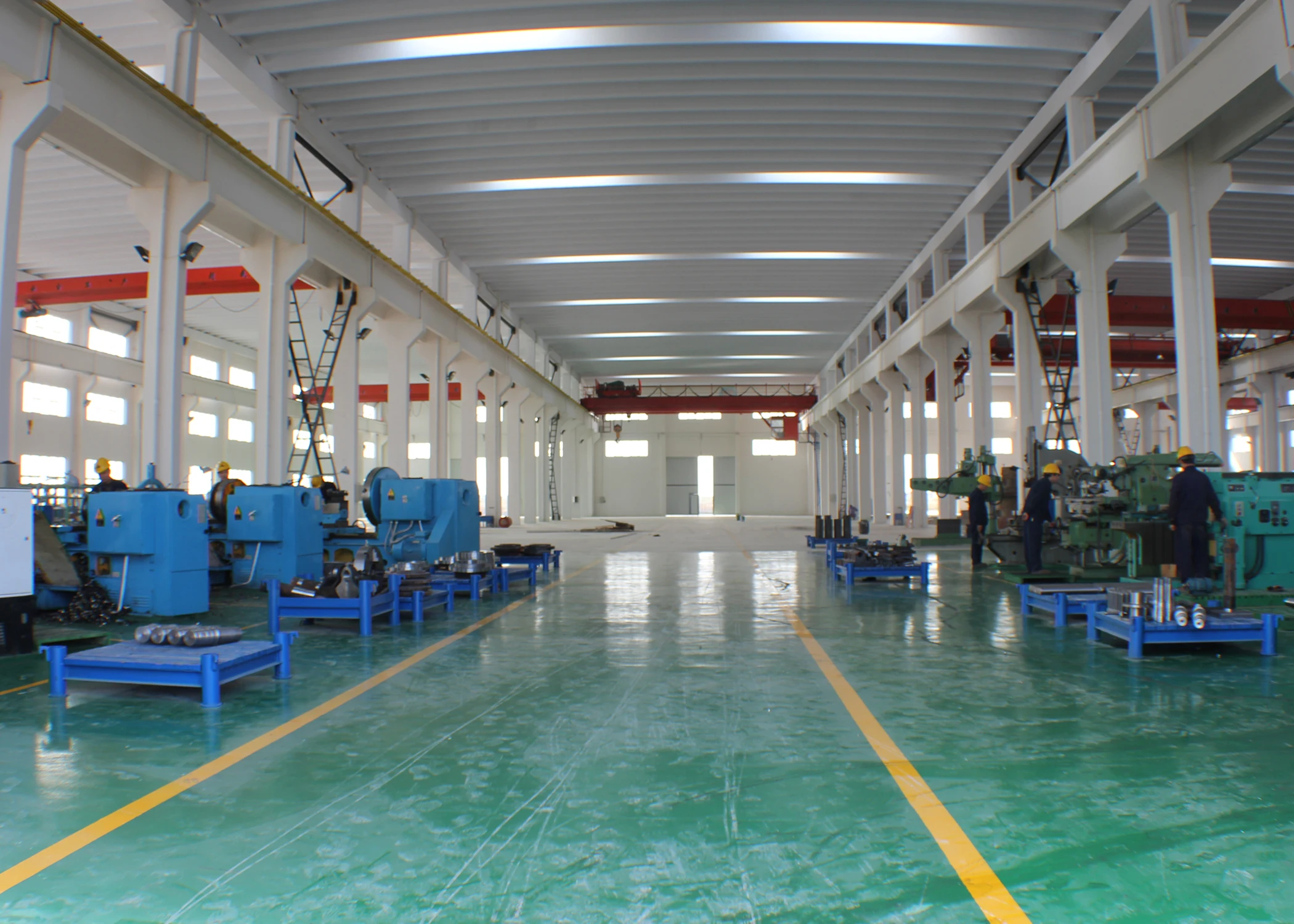

Company Profile
Zhengzhou Safed Machinery Equipment Co.,Ltd. is a company integrating science, industry and trade.Based in Zhengzhou, our company possesses the independent developing and manufacturing capacity and also it has independent R&D center and production base. In the past few years, As an import and export trading company we also provide supply chain solutions and procurement execution services for local and overseas projects from all over the world.
At the same time, compared with other companies in the same industry, preferential and perfect services are our obvious
advantages. We support on-site inspection of our products, and engineers are also available at any time. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South Africa, Korea,Pakistan,Vietnam and other countries.
At the same time, compared with other companies in the same industry, preferential and perfect services are our obvious
advantages. We support on-site inspection of our products, and engineers are also available at any time. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South Africa, Korea,Pakistan,Vietnam and other countries.
FAQ
Q1：Does your company provide training？
Yes, we provide a series of instructional videos and after-sales service videos, supporting Chinese, English, French, Spanish, and Arabic.
Yes, we provide a series of instructional videos and after-sales service videos, supporting Chinese, English, French, Spanish, and Arabic.
Q2：What's your company after-sales service?
Our machine will be checked three times before shipment to ensure that the machine itself has no problems. If the machine has some problems under incorrect operation:
1. improper operation problem, we will solve all the usage problems by video call.
2. machine parts problem, we will send you accessories to ensure the normal use of the machine. 3.In addition, our engineers go abroad every year to help customers solve problems they cannot solve. Give customers the best quality machine, the best service, Is the standard of our company .
Q3：About after-sales service?
One year warranty. Frankly speaking, The quality of our machines is very stable. The machine will be tested three times before leaving the factory to ensure that the machine is in the best condition when it arrives at your address. Some minor problems of the machine are usually caused by incorrect operation by novices, so we provide a full set of English instruction videos and common problem solving videos, To help users better understand it. On the other hand, we put a set of spare parts in the toolbox of the machine in advance. During your use, if you need any spare parts, we can send it to you via UPS, and it only takes 5-7 days to arrive at your door. During use, if you have any questions, we can make a video call at any time.
Q4: How to transport without customs clearance experience ？
Our machine will be checked three times before shipment to ensure that the machine itself has no problems. If the machine has some problems under incorrect operation:
1. improper operation problem, we will solve all the usage problems by video call.
2. machine parts problem, we will send you accessories to ensure the normal use of the machine. 3.In addition, our engineers go abroad every year to help customers solve problems they cannot solve. Give customers the best quality machine, the best service, Is the standard of our company .
Q3：About after-sales service?
One year warranty. Frankly speaking, The quality of our machines is very stable. The machine will be tested three times before leaving the factory to ensure that the machine is in the best condition when it arrives at your address. Some minor problems of the machine are usually caused by incorrect operation by novices, so we provide a full set of English instruction videos and common problem solving videos, To help users better understand it. On the other hand, we put a set of spare parts in the toolbox of the machine in advance. During your use, if you need any spare parts, we can send it to you via UPS, and it only takes 5-7 days to arrive at your door. During use, if you have any questions, we can make a video call at any time.
Q4: How to transport without customs clearance experience ？
We have reliable forwarder agent which can ship items to you by sea/air/Express to your home. We will help you choose the most suitable shipping service.
