Small Size Light Weight 12v 150Ah Battery Lead Acid 6Fm Battery VRLA
- Category: >>>
- Supplier: Panailo Smart Technology Co. Ltd.
Share on (1601027556383):
Product Overview
Description

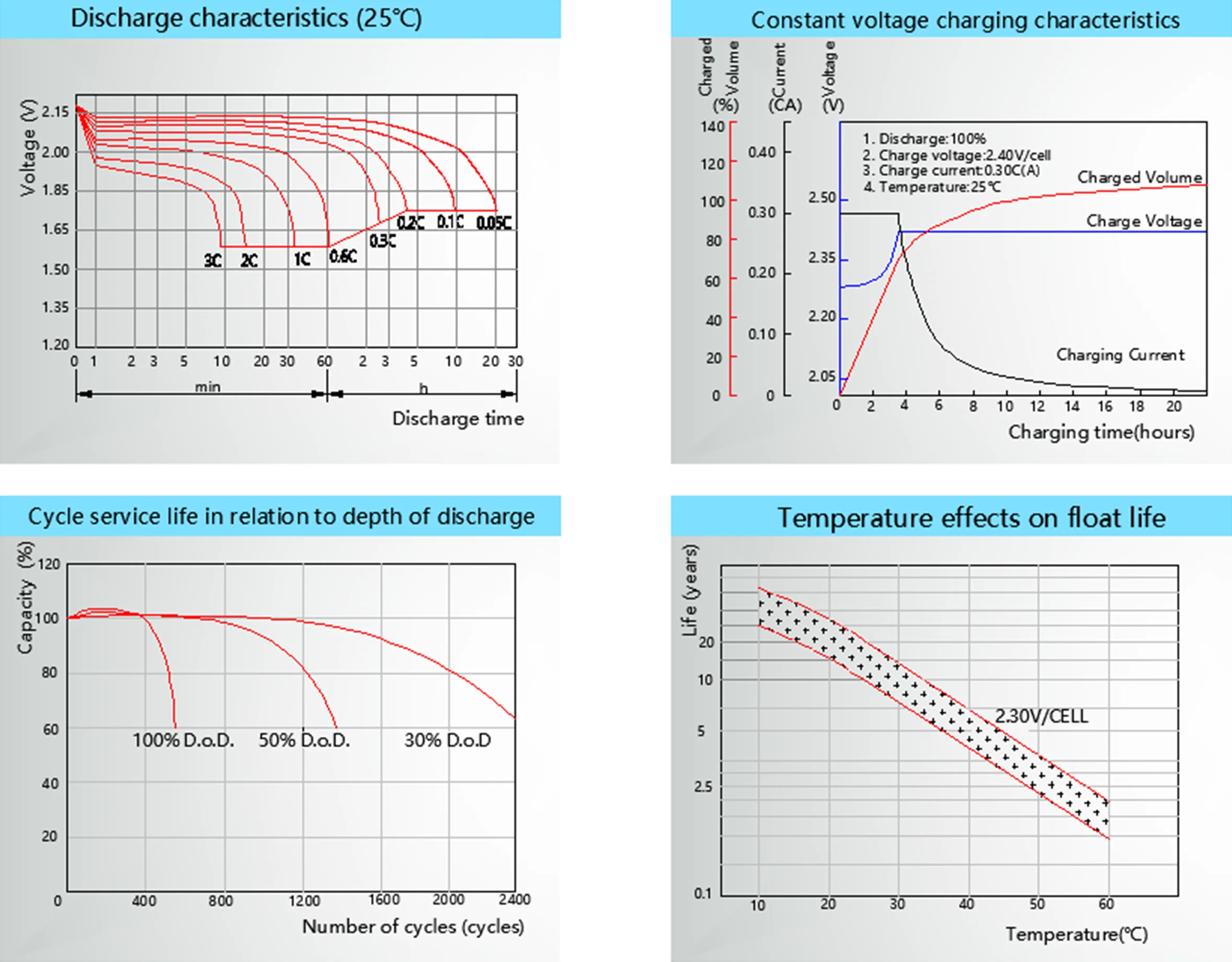

Constant Current Discharge Characteristics (A,25℃) | ||||||||||||
F.V/TIME | 10min | 15min | 30min | 60min | 2h | 3h | ||||||
1.60V | 1650 | 1350 | 900 | 009 | 365 | 260 | ||||||
1.65V | 1601 | 1318 | 882 | 591 | 363 | 259 | ||||||
1.70V | 1535 | 1269 | 855 | 576 | 360 | 257 | ||||||
1.75V | 1469 | 1226 | 834 | 565 | 355 | 255 | ||||||
1.80V | 1386 | 1161 | 804 | 547 | 346 | 247 | ||||||
Constant Current Discharge Characteristics (A,25℃) | ||||||||||
F.V/TIME | 4h | 5h | 6h | 8h | 10h | |||||
1.60V | 209 | 182 | 156 | 122 | 102 | |||||
1.65V | 208 | 180 | 155 | 122 | 102 | |||||
1.70V | 206 | 179 | 154 | 121 | 101 | |||||
1.75V | 205 | 178 | 153 | 120 | 101 | |||||
1.80V | 199 | 173 | 148 | 116 | 100 | |||||
Constant Power Discharge Characteristics(Watt,25℃) | ||||||||||||
F.V/TIME | 10min | 15min | 30min | 60min | 2h | 3h | ||||||
1.60V | 2970 | 2471 | 1683 | 1140 | 705 | 510 | ||||||
1.65V | 2881 | 2411 | 1649 | 1123 | 701 | 507 | ||||||
1.70V | 2762 | 2322 | 1599 | 1094 | 695 | 503 | ||||||
1.75V | 2643 | 2243 | 1560 | 1073 | 684 | 500 | ||||||
1.80V | 2495 | 2125 | 1503 | 1040 | 667 | 485 | ||||||
Constant Power Discharge Characteristics(Watt,25℃) | ||||||||||
F.V/TIME | 4h | 5h | 6h | 8h | 10h | |||||
1.60V | 410 | 358 | 307 | 244 | 203 | |||||
1.65V | 407 | 356 | 306 | 242 | 202 | |||||
1.70V | 405 | 353 | 304 | 240 | 202 | |||||
1.75V | 402 | 351 | 301 | 239 | 200 | |||||
1.80V | 390 | 340 | 292 | 232 | 199 | |||||
Q1:Are you a factory or a trading company?
A: Yes, we are manufacturer of solar street lights for 15 years, has the capacity of R & D, accept OEM and ODM.
Q2:Can I have a sample order for solar products?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3:When you will make the delivery?
A: 10-15 days after receiving customers payment.
Q4:If I want to use high lumen or change the led driver ,is it possible?
A: Of course we have CREE/Philips 3030chips or 5050chips as optional, Moso，Meanwell, Philips, Inventronics are Optional.
A: Yes, we are manufacturer of solar street lights for 15 years, has the capacity of R & D, accept OEM and ODM.
Q2:Can I have a sample order for solar products?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3:When you will make the delivery?
A: 10-15 days after receiving customers payment.
Q4:If I want to use high lumen or change the led driver ,is it possible?
A: Of course we have CREE/Philips 3030chips or 5050chips as optional, Moso，Meanwell, Philips, Inventronics are Optional.
Q5:Do you offer guarantee for the products?
A: Yes, we offer 3 or 5 years warranty for our products.
A: Yes, we offer 3 or 5 years warranty for our products.
