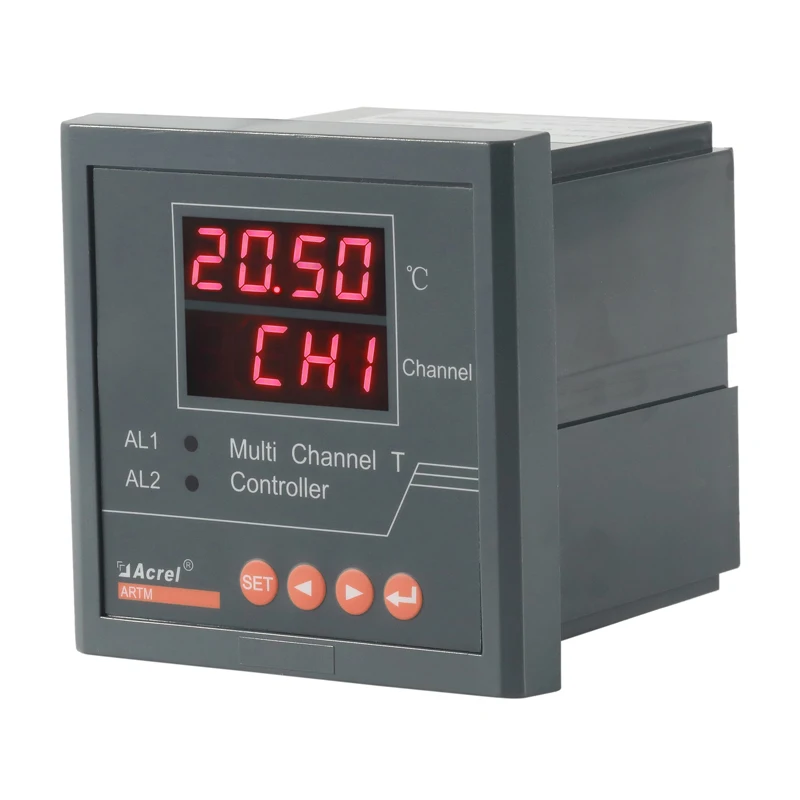

ARTM 8 Rs485 Modbus RTU 8 Channel PT100 Sensor Temperature Display Controller with Alarms Output for Power Distribution Cabinet
- Category: >>>
- Supplier: Acrel E-Business (shanghai) Co. Ltd.
Share on (1601027589771):
Product Overview
Description
Solutions & Applications
Electrical Equipment Temperature and Humidity Solutions

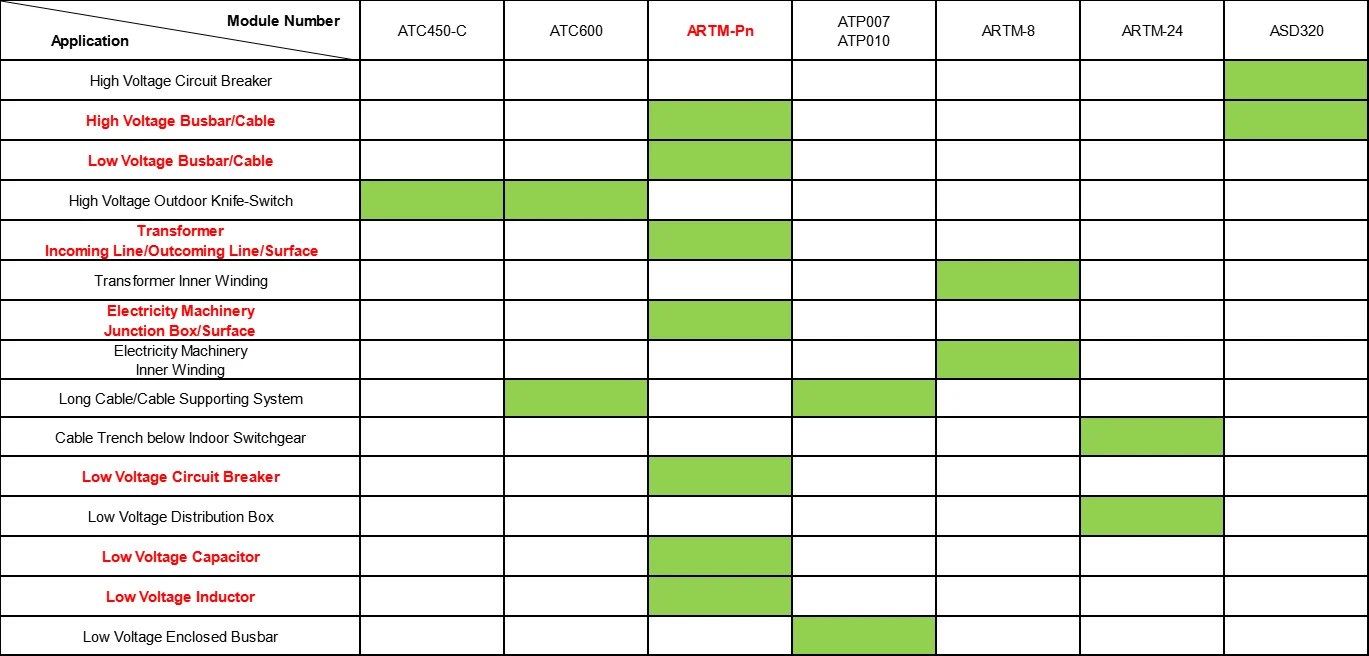

Solutions and Related Produtcs
1. Wireless temperature measurement of electrical contacts in high and low voltage cabinets

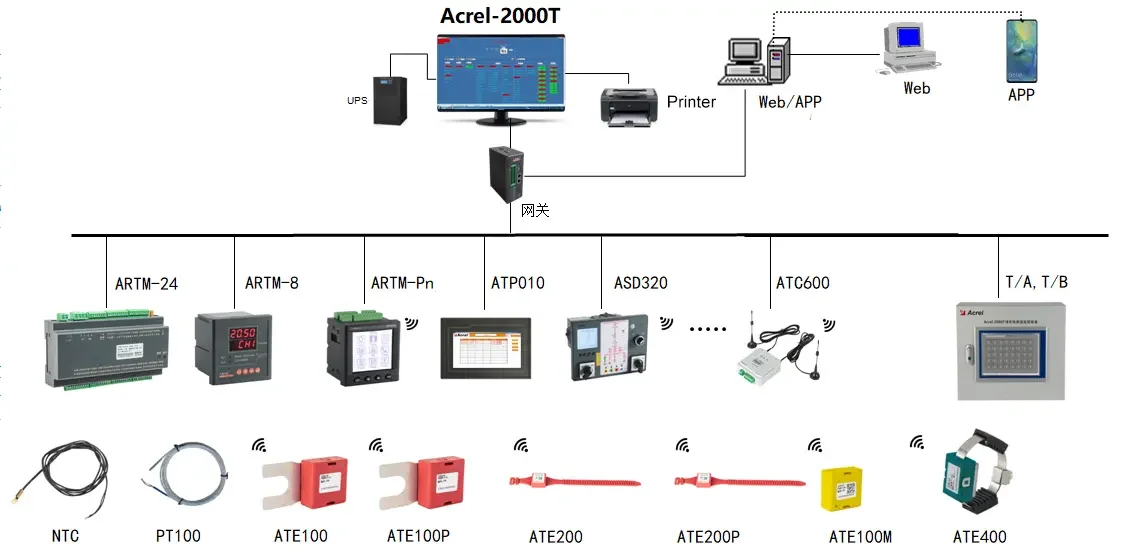

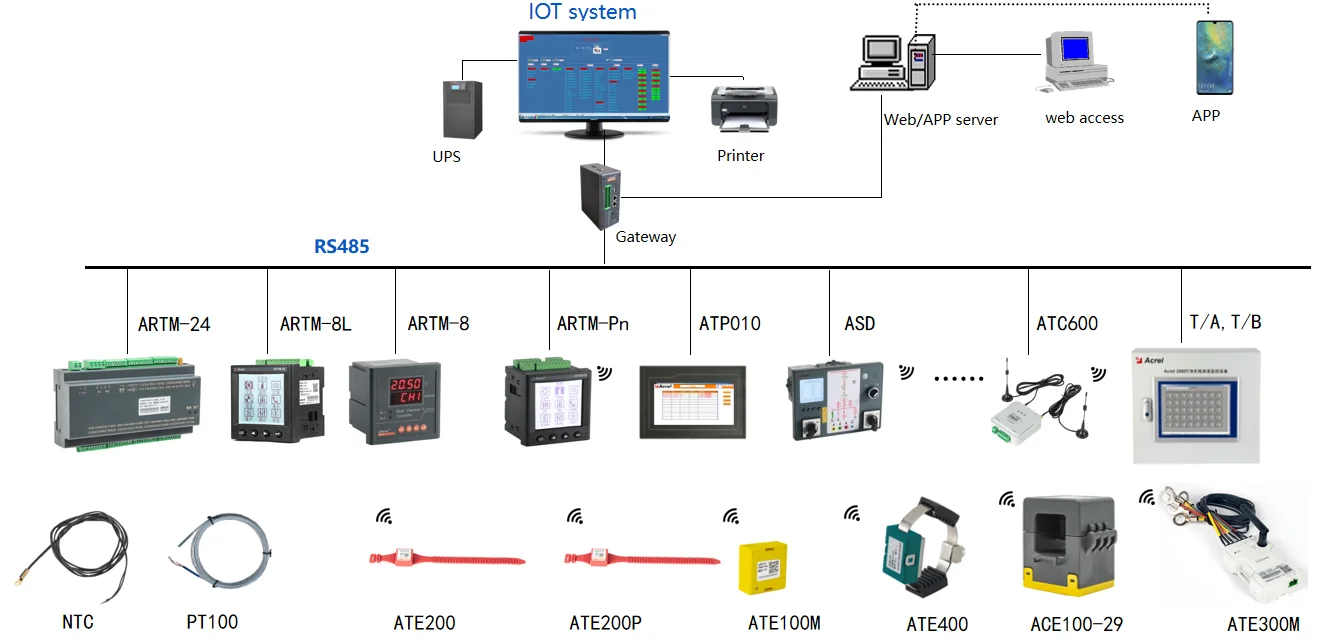

2. Wireless temperature monitoring system-IOT system

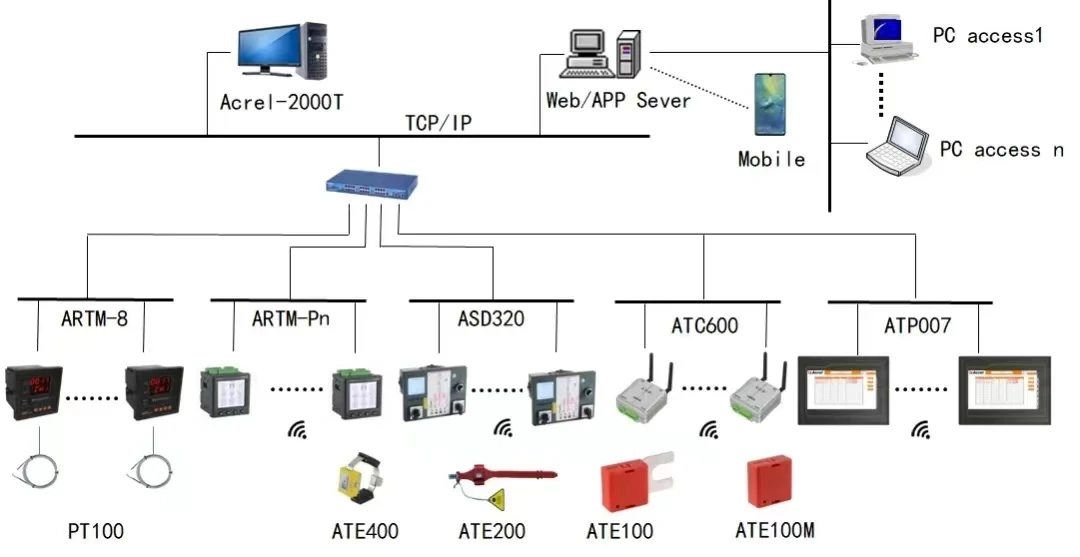

Application Overview

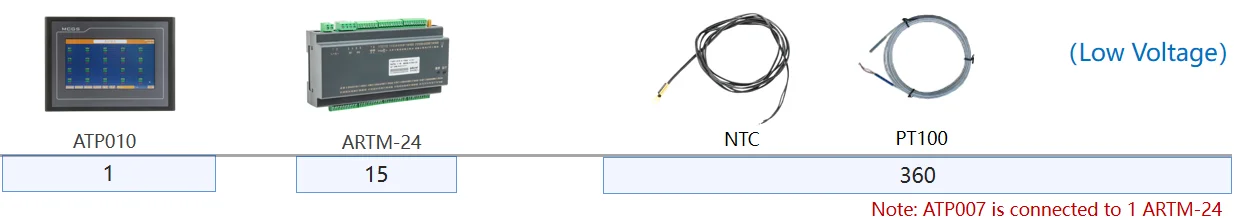

Practical Application Sample
Products Description

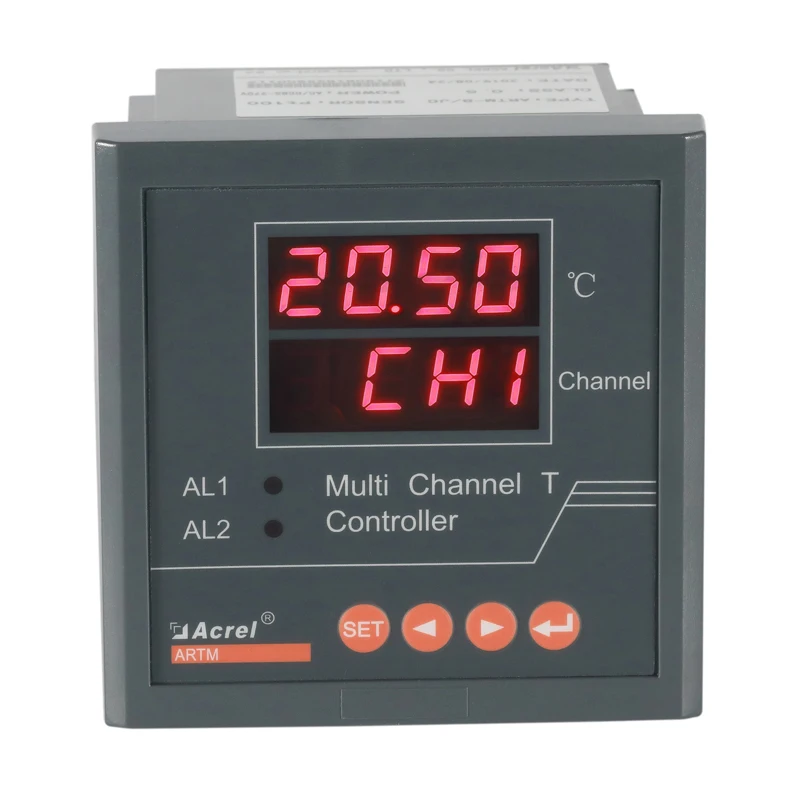

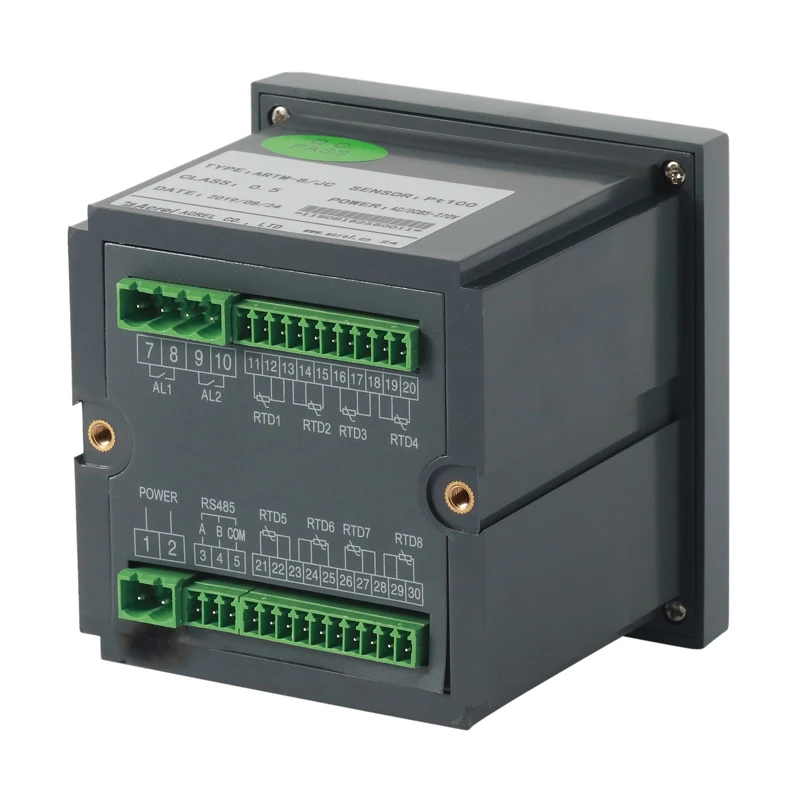

ARTM-8 multi channel temperature controller
ARTM-8 series multi-input temperature controller can measure and control multi temperature signals. It is mainly applied to temperature survey and control in thermal power plant and water power plant.
1,Back Ground
The ARTM series electrical contact on-line temperature measuring device is suitable for temperature monitoring at cable joints/circuit breaker contacts/knife switches/high-voltage cable intermediate heads, dry-type transformers, low-voltage high-current equipment, etc. in high and low voltage switch cabinets to prevent them from running If the contact resistance of the contacts is too large due to oxidation, looseness, dust and other factors, heat generation becomes a safety hazard. This improves equipment safety, timely, continuous and accurate reflection of equipment operation status, and reduces equipment accident rate.
The ARTM series electrical contact on-line temperature measuring device is suitable for temperature monitoring at cable joints/circuit breaker contacts/knife switches/high-voltage cable intermediate heads, dry-type transformers, low-voltage high-current equipment, etc. in high and low voltage switch cabinets to prevent them from running If the contact resistance of the contacts is too large due to oxidation, looseness, dust and other factors, heat generation becomes a safety hazard. This improves equipment safety, timely, continuous and accurate reflection of equipment operation status, and reduces equipment accident rate.

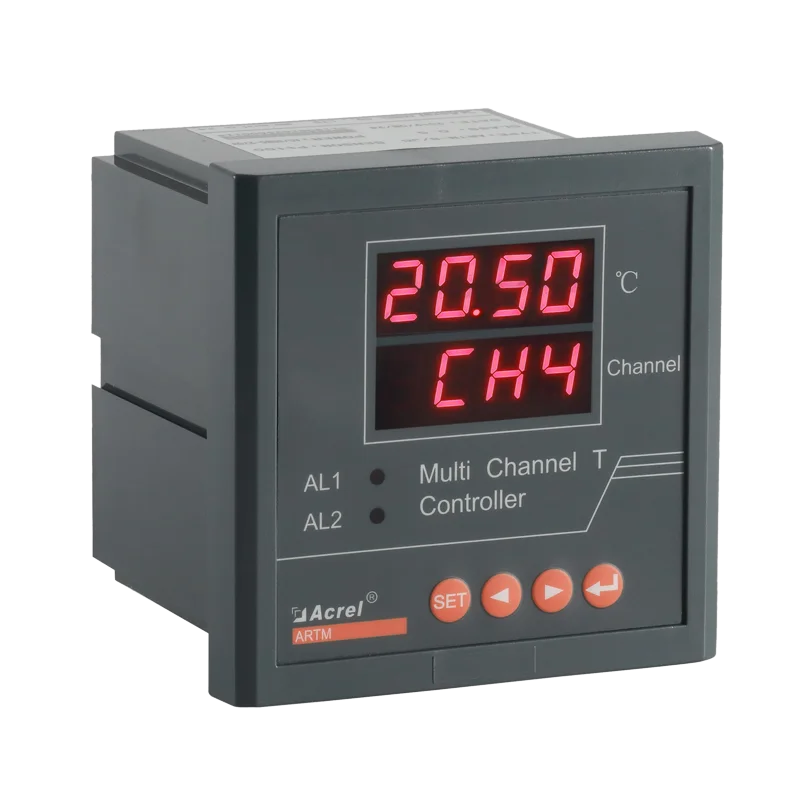

1.ARTM-8 temperature controller
function description:
function description:
● 8 PT100 measurement;
● 2 Alarm relays；
● LED display;
● Auxiliary power supply adapts with AC220V, DC220V, DC110V;
● 1 RS485 serial communication, Modbus-RTU;
● Standard&Certificate: CE

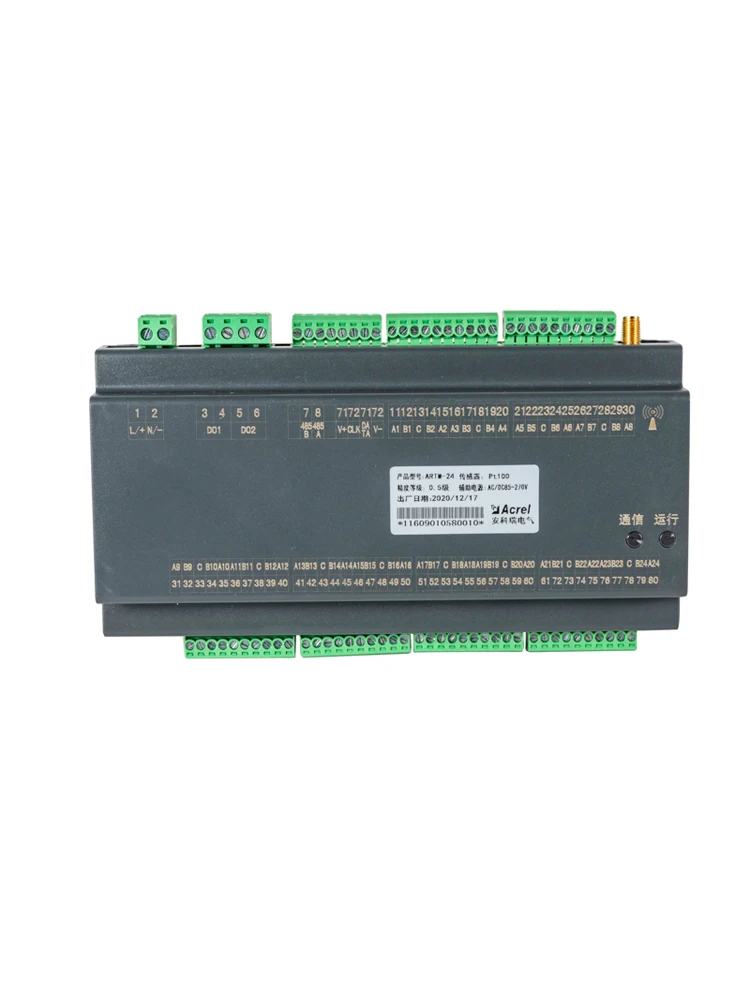

2、ARTM-24 temperature controller
Function Description
ARTM-24 temperature detector can access NTC, PT100/PT1000, thermocouple sensors, mainly used in low-voltage electrical nodes, transformer windings, motor windings and other places to measure temperature.
Function & Parameter
Acrel Model | ARTM-8 | ||
Channels | 8 | ||
Termal resistance | PT100 sensor | ||
Accuracy | 0.5 | ||
Voltage | AC85-265V, DC100-350V | ||
Consumption | ≤2W | ||
Capacity | AC250V/5A; DC30V/5A | ||
Baud rate(bps) | Can choose 1200, 2400, 4800, 9600,19200 | ||
Isolation | 2kV/1min Ac effective value | ||
Communication | RS485-MOBUS(C) | ||
Cut-out | 88*88mm | ||
Temperature | Working: -10℃~+55℃, Storage: -25℃~+70℃ | ||
Humidity | ≤95%(without condensation) | ||
Altitude | <2000m | ||

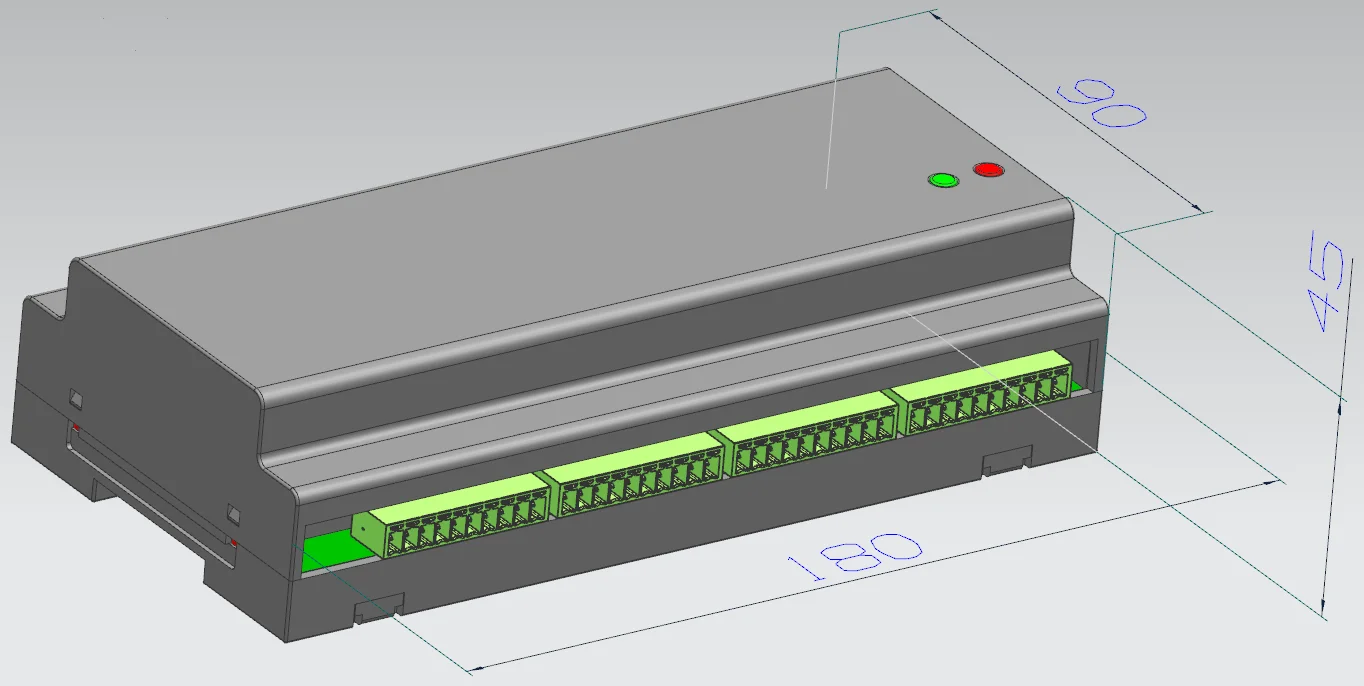

Dimension & Installation
Wiring Illustration

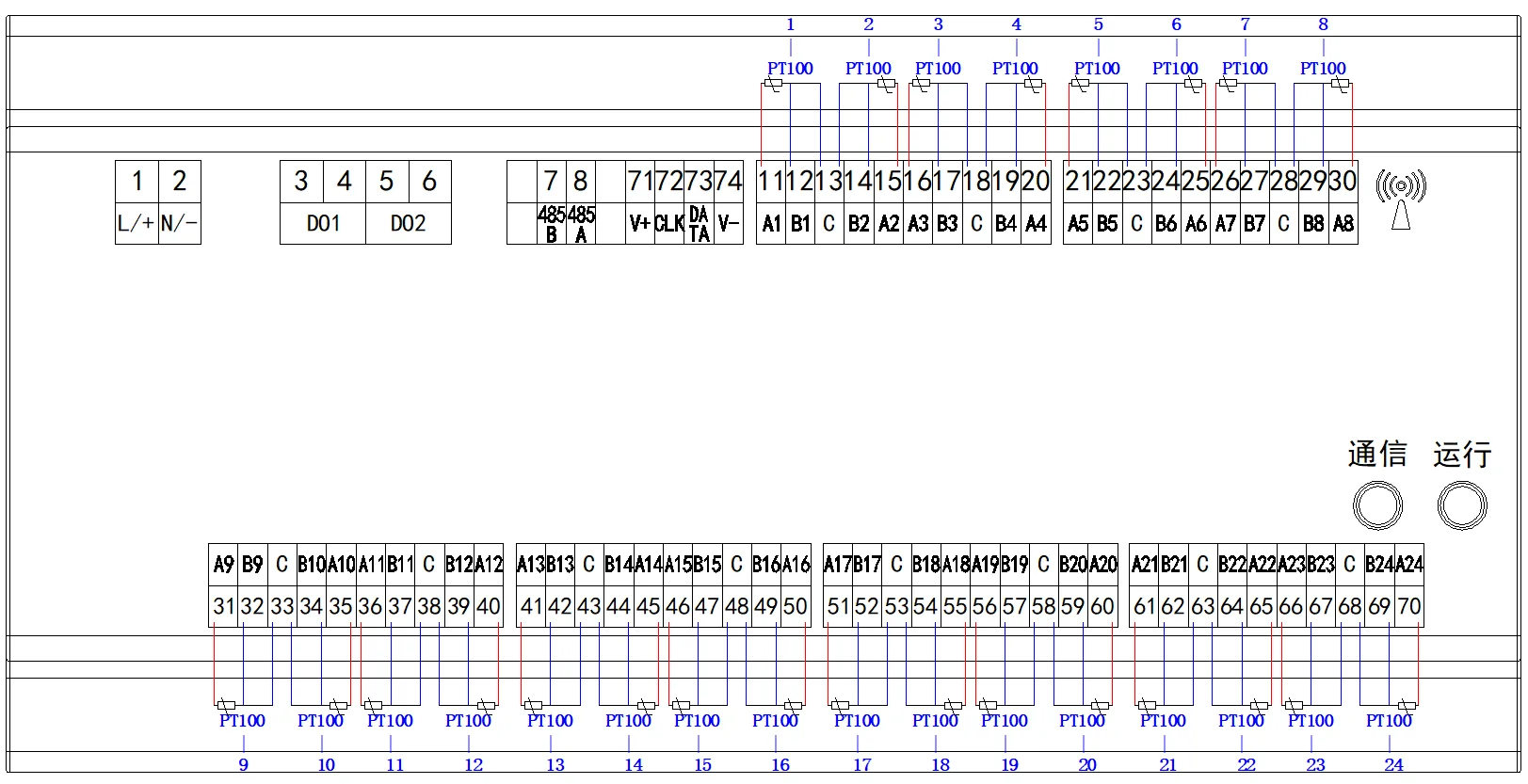

PT100 input

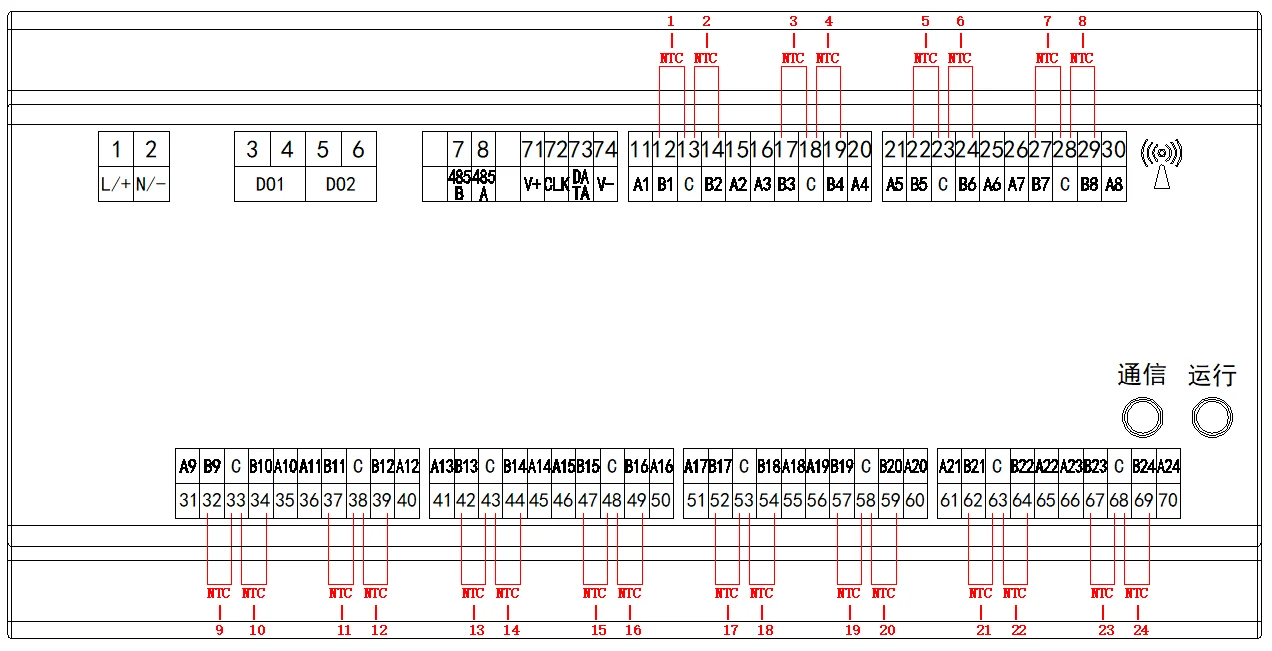

NTC input

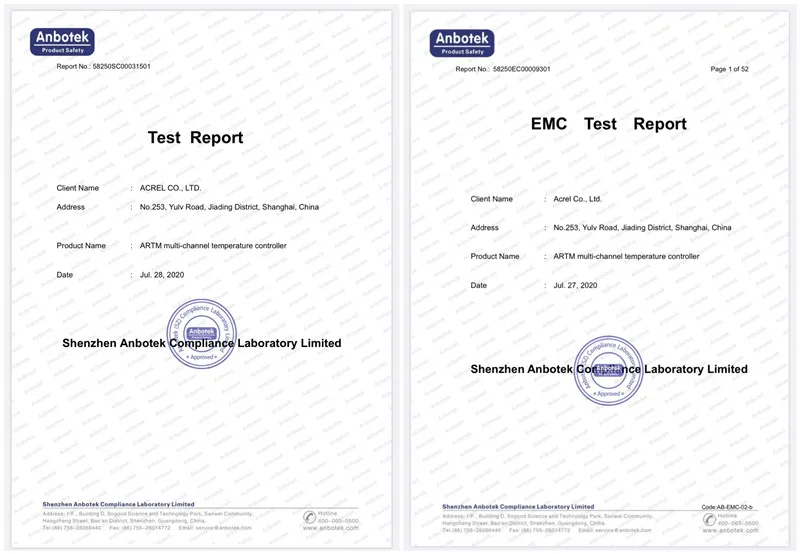

Certification
Company Profile
Acrel Co., Ltd. [Stock Code : 300286. SZ] is a high-tech enterprise concentrating on research, production, sales and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. ‘Acrel’ is equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets systemic solutions used in China to help users to realize energy visual management ,supply energy data services and improve electrical efficiency and safety. ‘Acrel’ has maintained steady growth since its listing in 2012. The company will adhere to the concept of ‘innovation,high-efficiency,unity and honesty’ and it provides more high-quality solutions,products and service for power system users and micro-grid.
Payment & Delivery
1.Payment: T/T 100% in advance, credit card, western union, in cash and etc. T/T 30% as deposit and the balance before shipment or against copy of B/L is acceptable with enough MOQ.
2.Delivery Arriving Time: in 3-7 working days after payment received.
3.Ways of Delivery: By sea, air, train or international courier like Fedex, TNT, DHL and UPS.
