30KW SYSTEM CONFIGURATION | ||||||||
Numbe | Product name | Specification model | Unit | Quantity | ||||

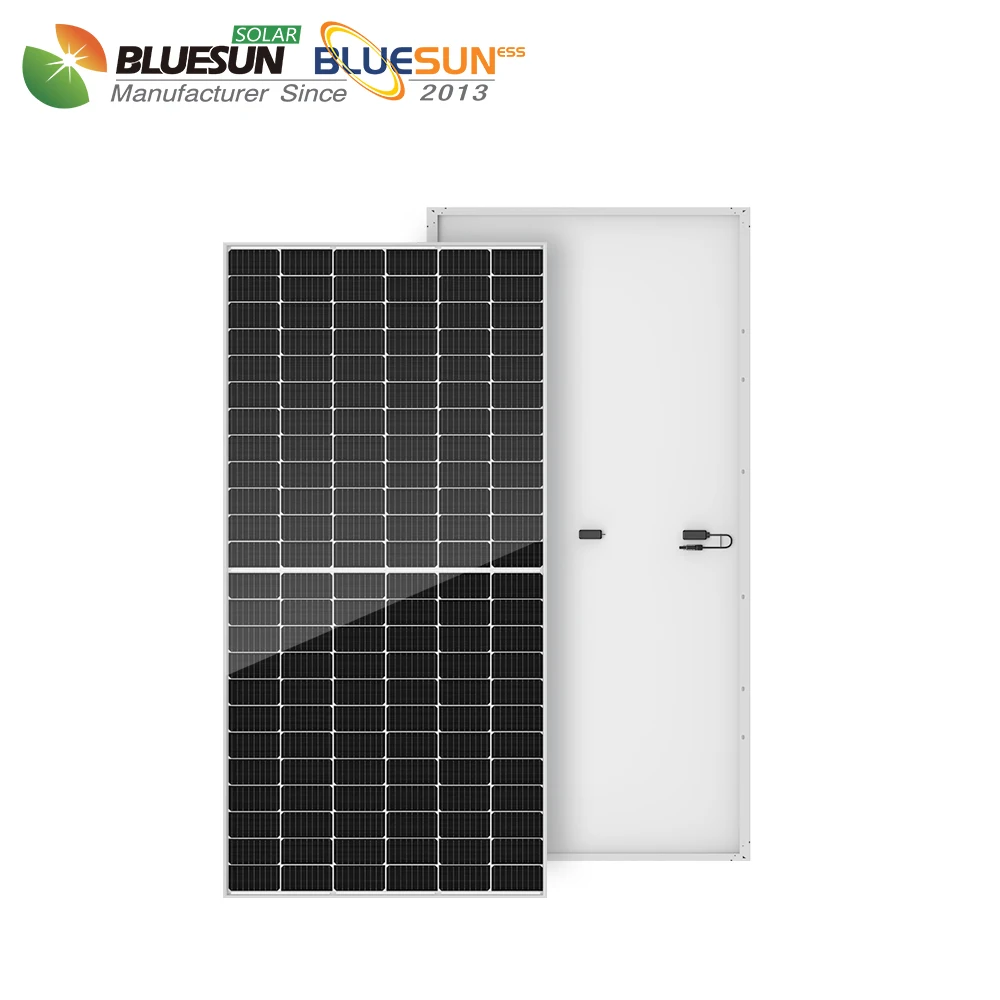

1 | Photovoltaic module | BSM565M10-72HPH | block | 64 | ||||
2 | Dc combiner box | 4 input and 4 output | piece | 1 | ||||
3 | Hybrid inverter | BSE30KH3 | piece | 1 | ||||
4 | Lithium battery | 51.2V106Ah(including BMU/Collecting harness power cable) | pack | 10 | ||||
5 | High voltage control box | piece | 1 | |||||
6 | Battery Rack | set | 1 | |||||
7 | Remote monitoring | WiFimonitoring | set | 1 | ||||
8 | MC4 connecto | The type of a one-to-one correspondence | pair | 16 | ||||
9 | Photovoltaic calble | PV1-F 1*4mm2 | meter | 400 | ||||
10 | Support | Support for 64 photovoltaic modules | set | 1 | ||||

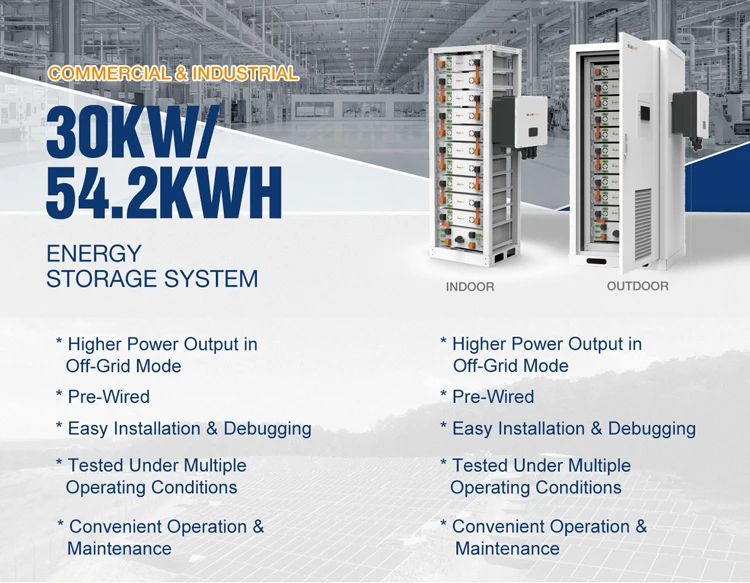

Model | BSE30KH3-54KWH |
SYSTEM PARAMETER | |
Rated output power | 30KW |
System capacity | 54.2KWH |
Battery type | LIFEPO4 |
Class of protection | P311P56(outdoor) |
Quality quarantee | 5 years |

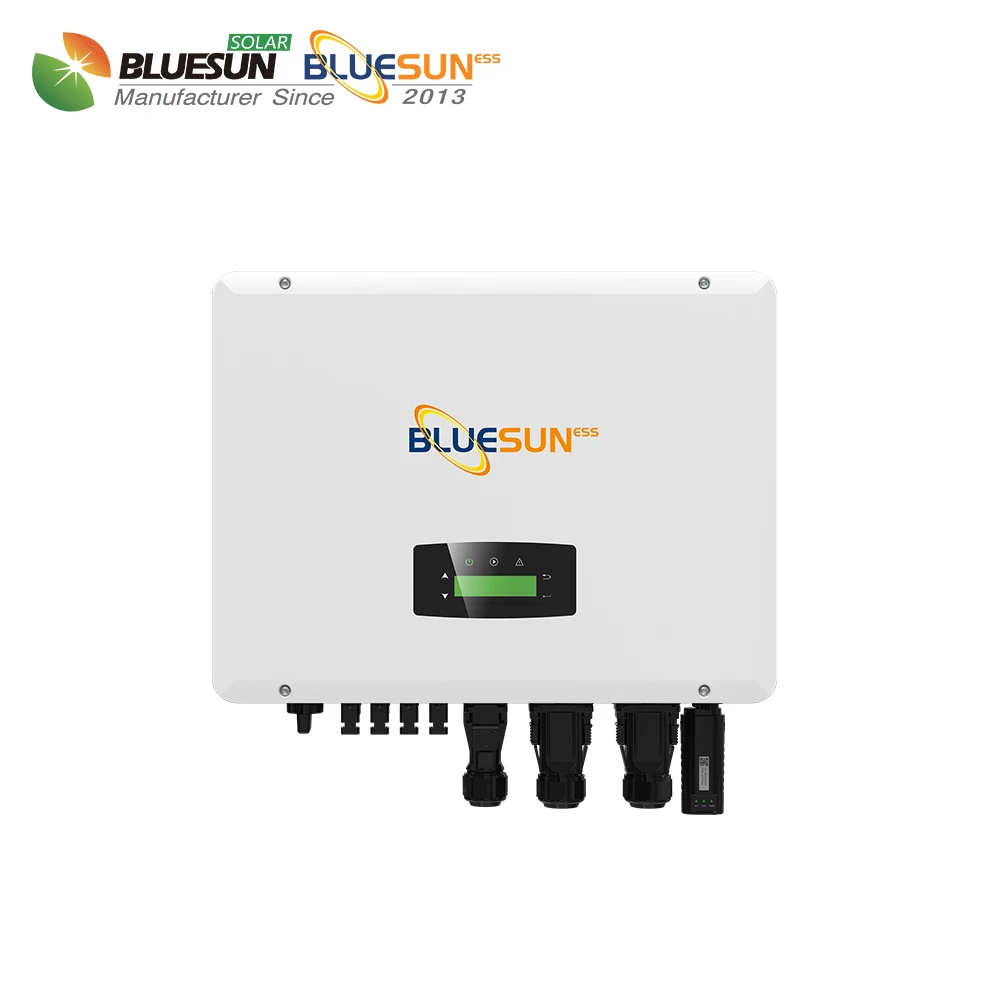

INVERTER TECHNICAL PARAMETERS | |
Model mumber | BSE30KH3 |
Maximum photovoltaic input power | 45KW |
Maximum photovoltaic input curent | 40*2A |
Maximum photovoltaic input voltage | 1000V |
Number of MPPT number of strings per route | 2/4 |
MPPTvoaaT*EE | 150-1000V |
Maximum photovoltaic shart circuit current | 60*1A |
Maximum charge and discharge current | 60A |
Maximum charge and discharge power | 30kw |
Rated grid frequency | 50.60Hz |
Rated output voltage | 230/400V |
Phase number | 3 |
Backup power supply | 30KW |
Commerication mode | Wi-F/GPRS/4G |
Starting voltege | 150V |
Humidres | 0-100% |
Dimensions (HxWxD) | 558*535*260 mm |
Weight | 36kg |

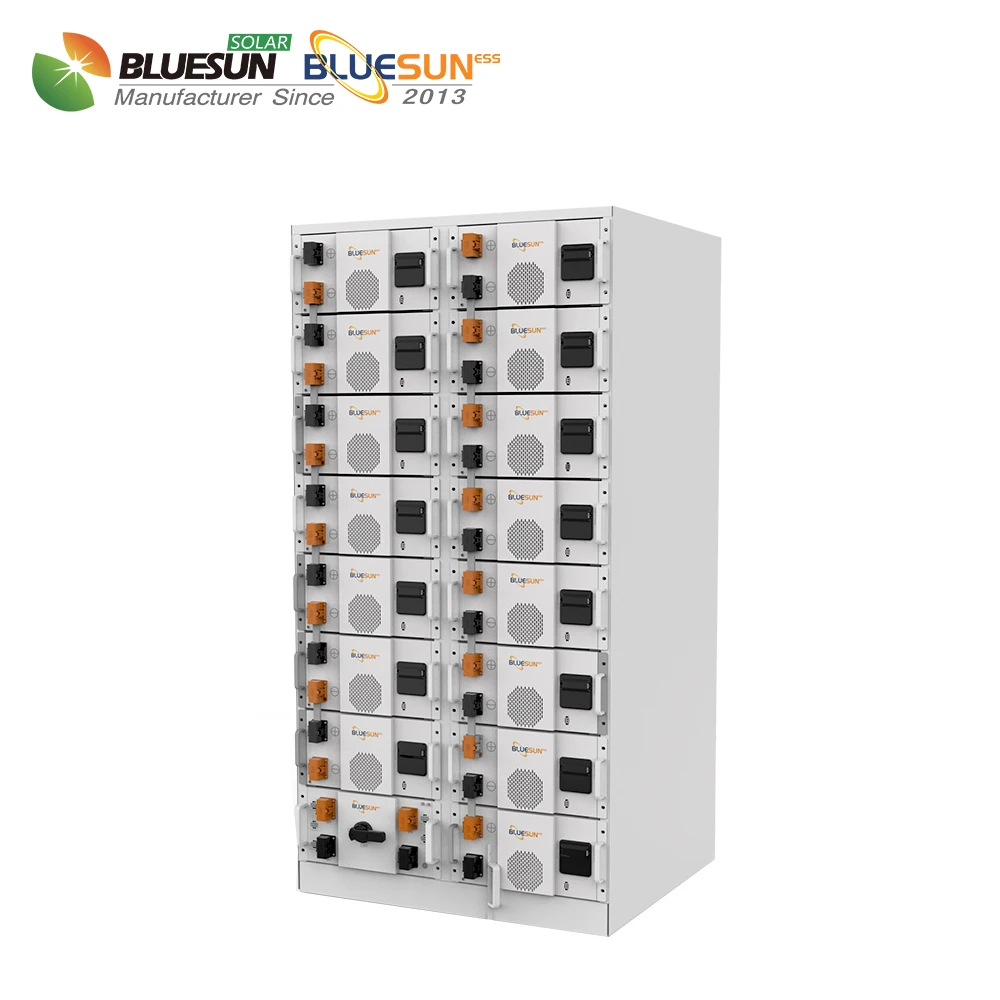

BATTERY TECHNICAL PARAMETERS | |
Battary module model | 51.2V 106AH |
MgAule capacity | 5.4KWH |
Alable capacit; | 4.86KWH |
Diucharge deph | 90% |
Rrad voltege | 512V |
Maximum charge and discharge current | 100A |
Operzting temperzture range | 0~551-10~55(outdocr) |
Cycle mumber | 36000 |



PaymentTerm | T/T | EXW | 30%T/Tin advance, paid the balance beforeshipment | |||
FOB | ||||||
CFR(C&F) | 30%T/Tin advance, paid the balance againstcopy of B/L | |||||
CIF | ||||||
L/C | L/C amount above 50, 000usd, we can accept L/Cat sight | |||||
West Union | Amount lower than 5000usd | |||||
West Union | ||||||
Delivery Time | 7~ 10 days after receiving payment for one container | |||||

New products from manufacturers at wholesale prices
