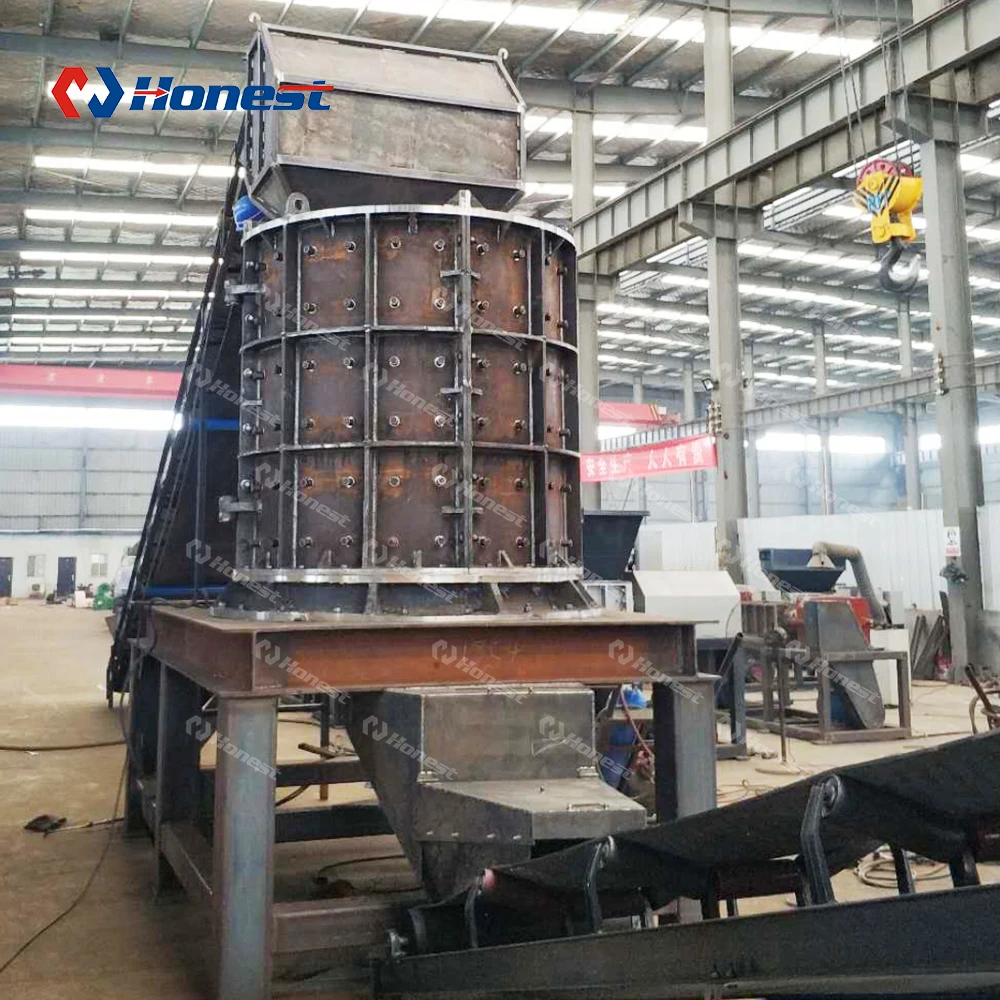

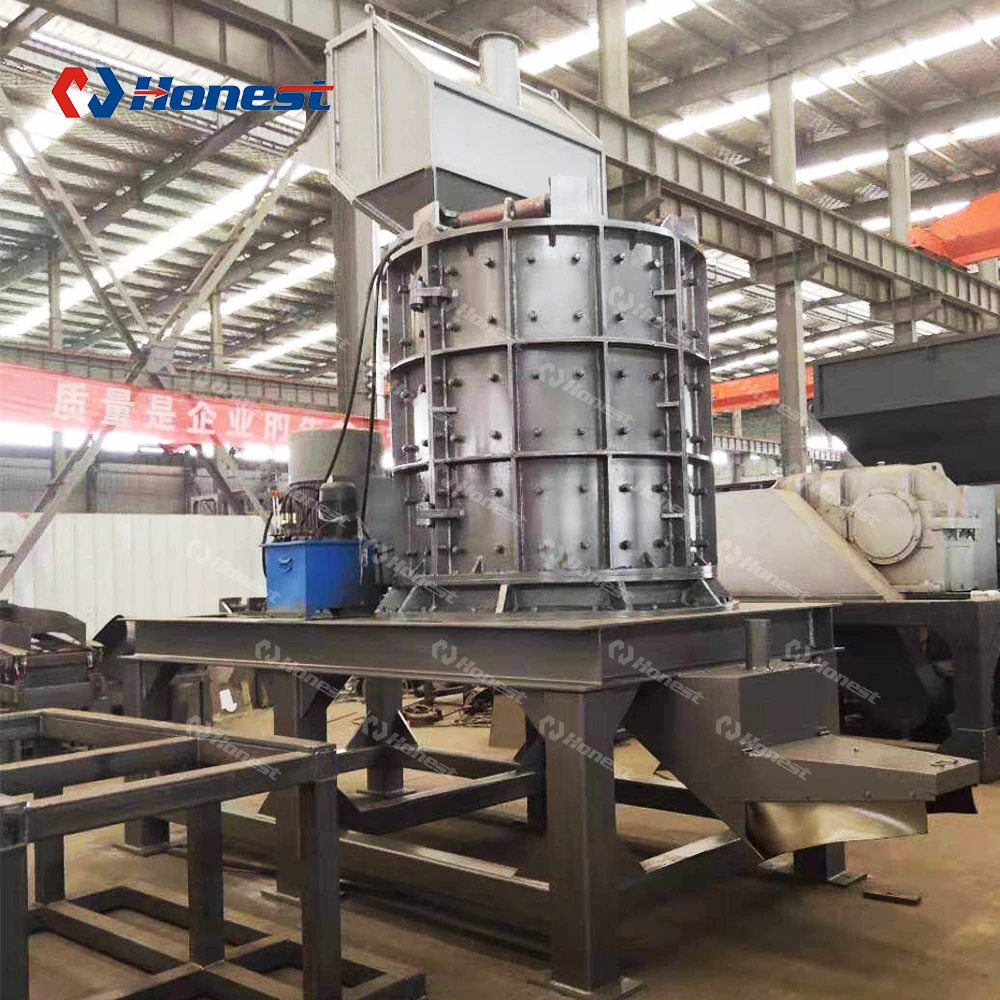

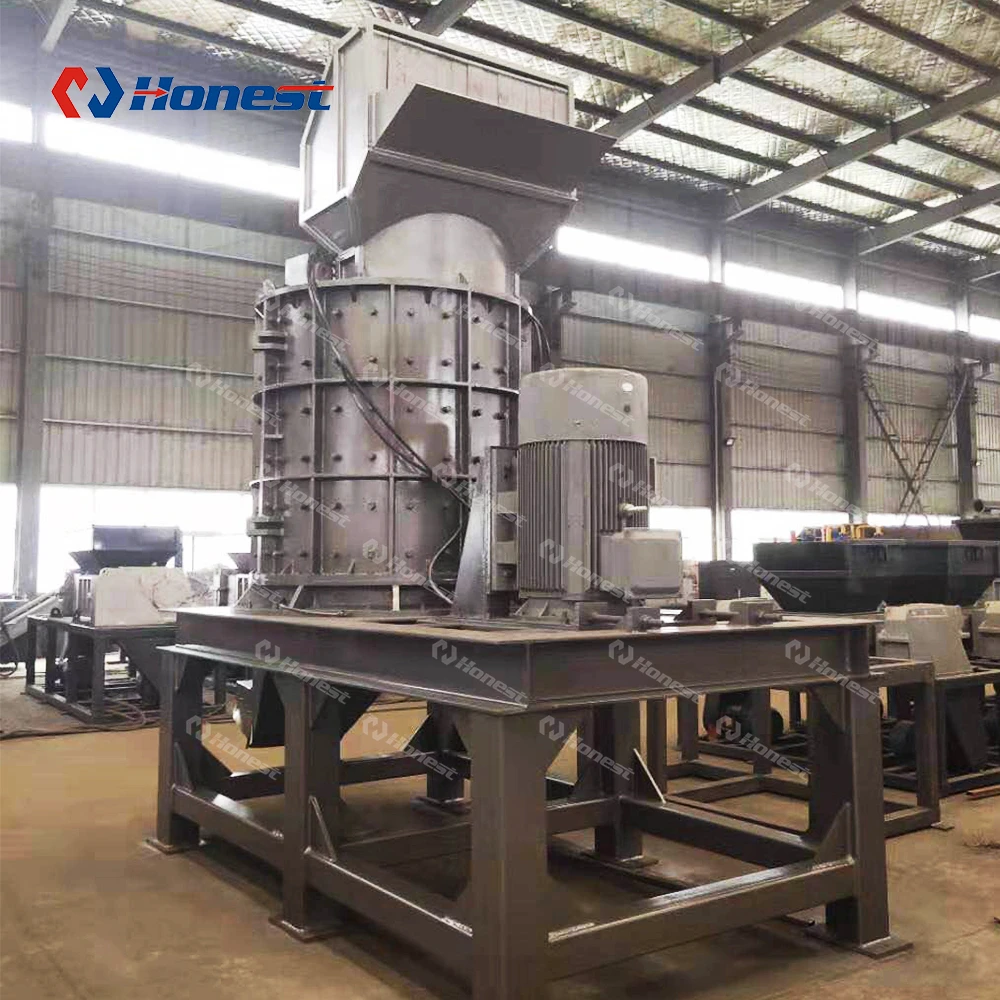

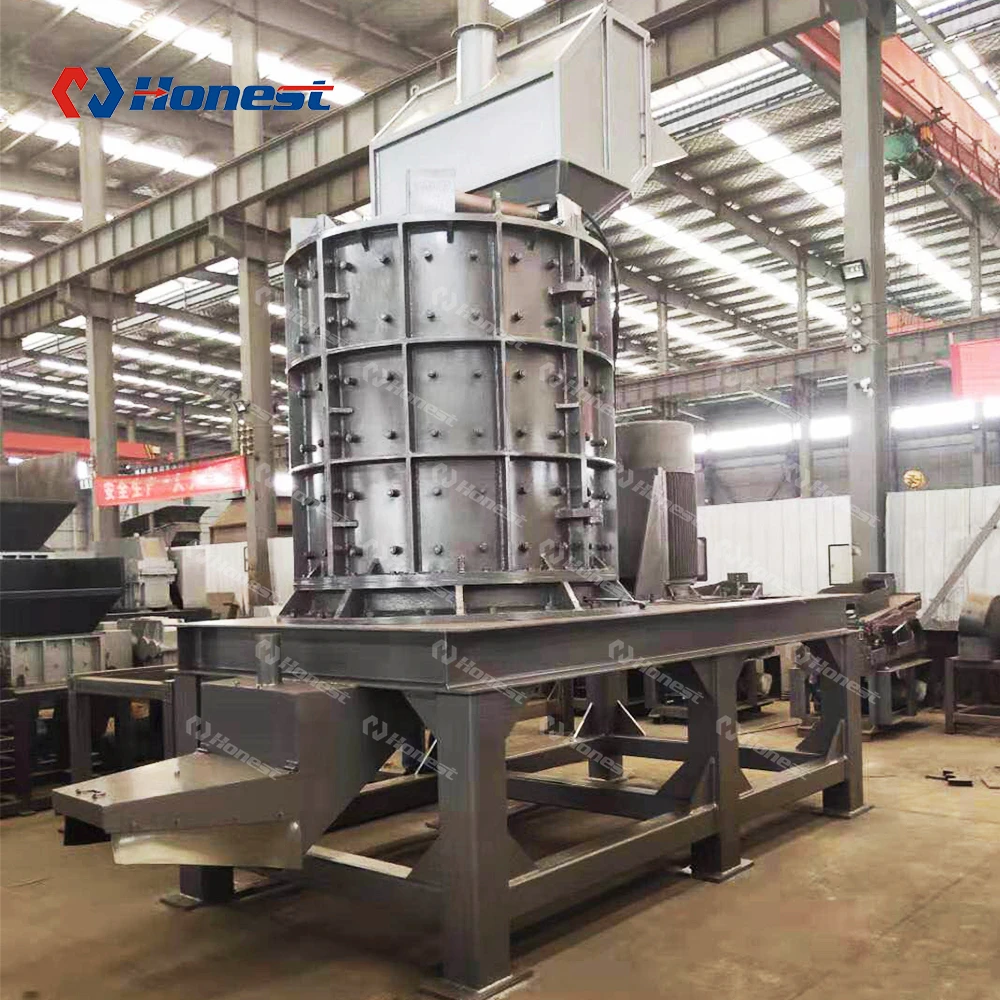

Scrap Stator Metal Vertical Hammer Mill Crusher Machine Hammer Crusher Recycling Machine
- Category: >>>
- Supplier: Henan Honest Heavy Machinery Co. Ltd.
Share on (1601027637608):
Product Overview
Description
Technical Parameters
Model | HN1000 | HN1200 | HN1500 |
Capacity(kg/h) | 800-1000 | 1500-2000 | 2000-3000 |
Power(kw) | 75kw*2 | 90kw*2 | 132kw*2 |
Spindle speed(rpm) | 650 | 650 | 672 |
Rotating diameter(mm) | 1000mm | 1500mm | 1500mm |
Number of hammers | 2pcs | 4pcs | 2pcs |
Unit weight of hammer head | 20kg | 25kg | 30kg |
Number of Hobs | 36pcs | 36pcs | 36pcs |
Unit weight of hob | 40kg | 40kg | 42kg |
kicking device | Active type | Active type | Active type |
Power of hydraulic station | 2.2kw | 2.2kw | 2.2kw |
Hammer head material | High manganese alloy steel | High manganese alloy steel | High manganese alloy steel |
Equipment weight(tons) | 9t | 12t | 18t |
Equipment size(mm) | 1200* 1200*3000 | 1500* 1500*3200 | 1800* 1800*3500 |
Structure
The vertical metal crusher mainly uses the upper hammer structure to break materials by rotating at high speed. In the process of material automatic falling, the material is finely crushed and rolled by the gap between the lower hob and the crushing cavity.Meet the discharge requirements. Vertical crusher is characterized by its structure, high crushing speed, high efficiency and easy maintenance.
Application

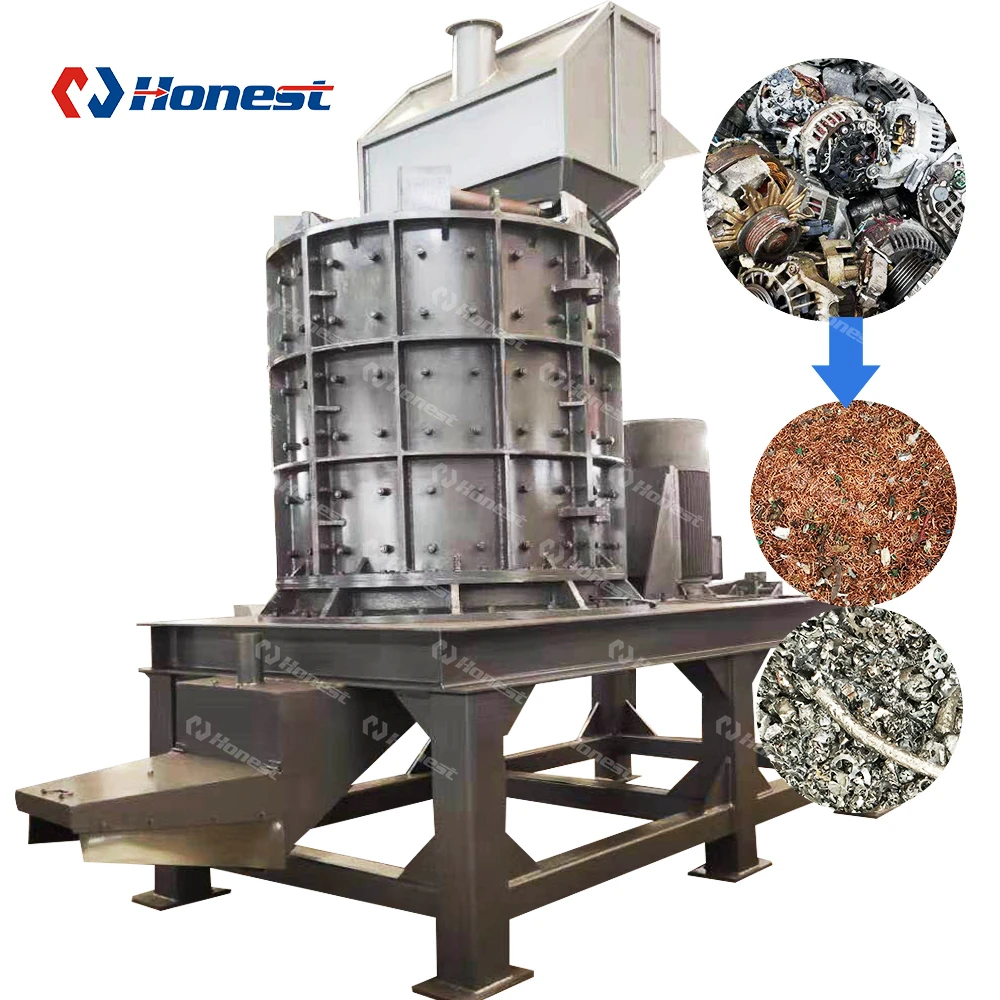

The main application materials are: scrap metal, aluminum profile, motor stator, rotor and other waste mixed metal materials.
Customer Worksite
Our vertical metal broken gold is sold to many countries and regions around the world. Get unanimous praise from customers. If you want to get accurate equipment configuration and recycling plan acording to your own materials and output, please contact us
directly.
directly.
Why Choose Us
Our customers from over 30 countries and regions
Delivery
Quality Assurance
Company Show
Our Company has advanced technology, professional R&D team and perfect sales service system. Besides, we possess several patents and domestically-leading technologies. Our advanced equipment have been currently exported to USA, Spain, Turkey, Italy, Vietnam,Hungary, Australia, Korea, Malaysia, Singapore, India, Philippines, Ireland, Saudi Arabia, Dubai etc.
