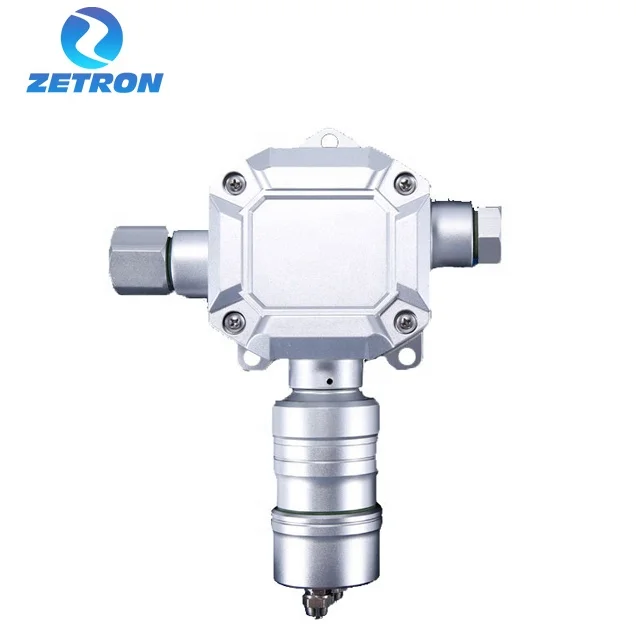

ZETRON MIC300 Fixed Gas Analyzer for Carbon Monoxide Oxygen Depletion Carbon Dioxide Ammonia LEL EX H2S NH3 With Multiple Alarms
- Category: >>>
- Supplier: Beijing Zetron Technology Co. Ltd.
Share on (1601027667145):
Product Overview
Description
Product Description

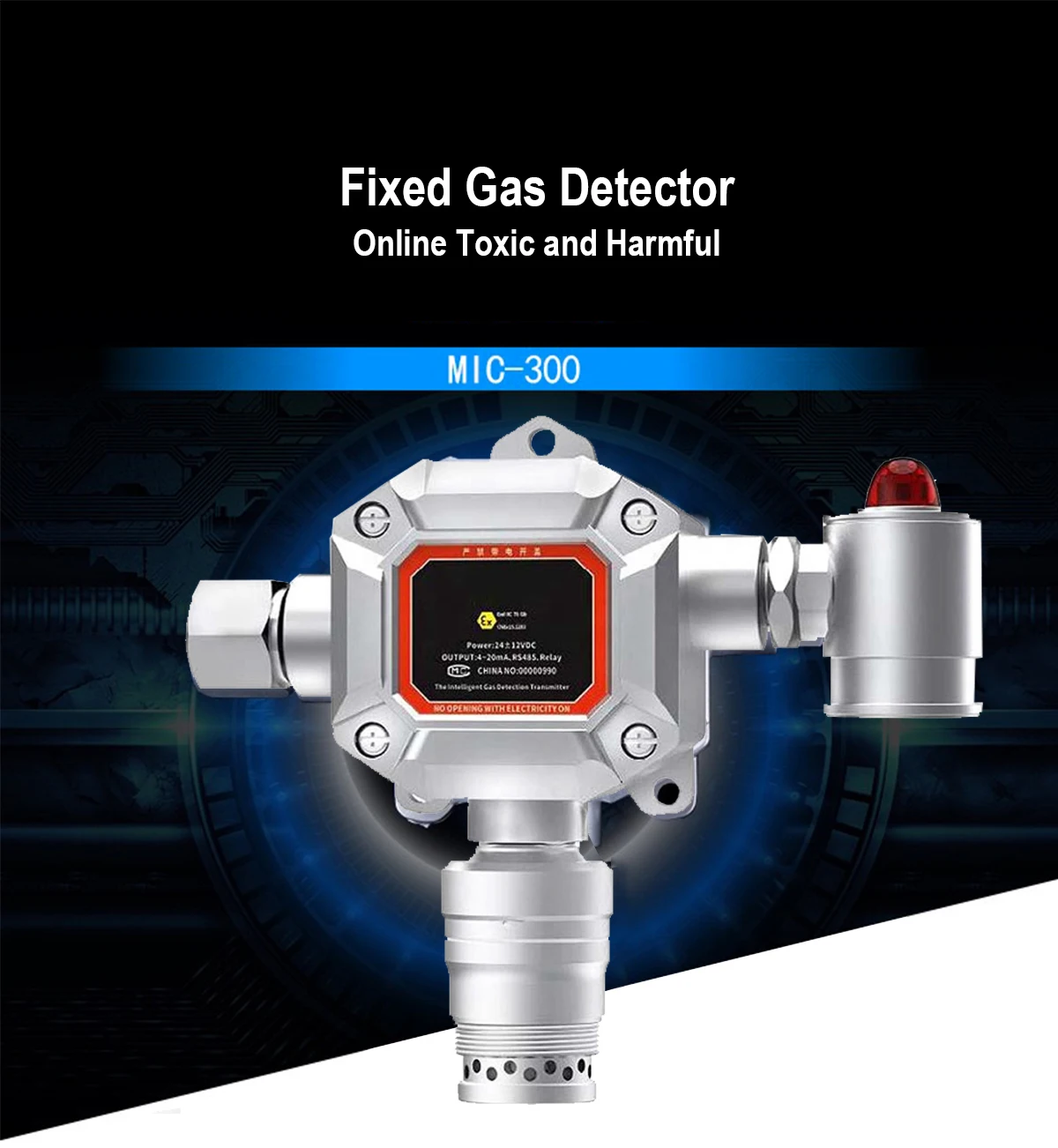

Zetron Explosion Proof Fumigation Gas Detector MIC300
PH3 Gas Residual Monitor 24V DC Working Voltage

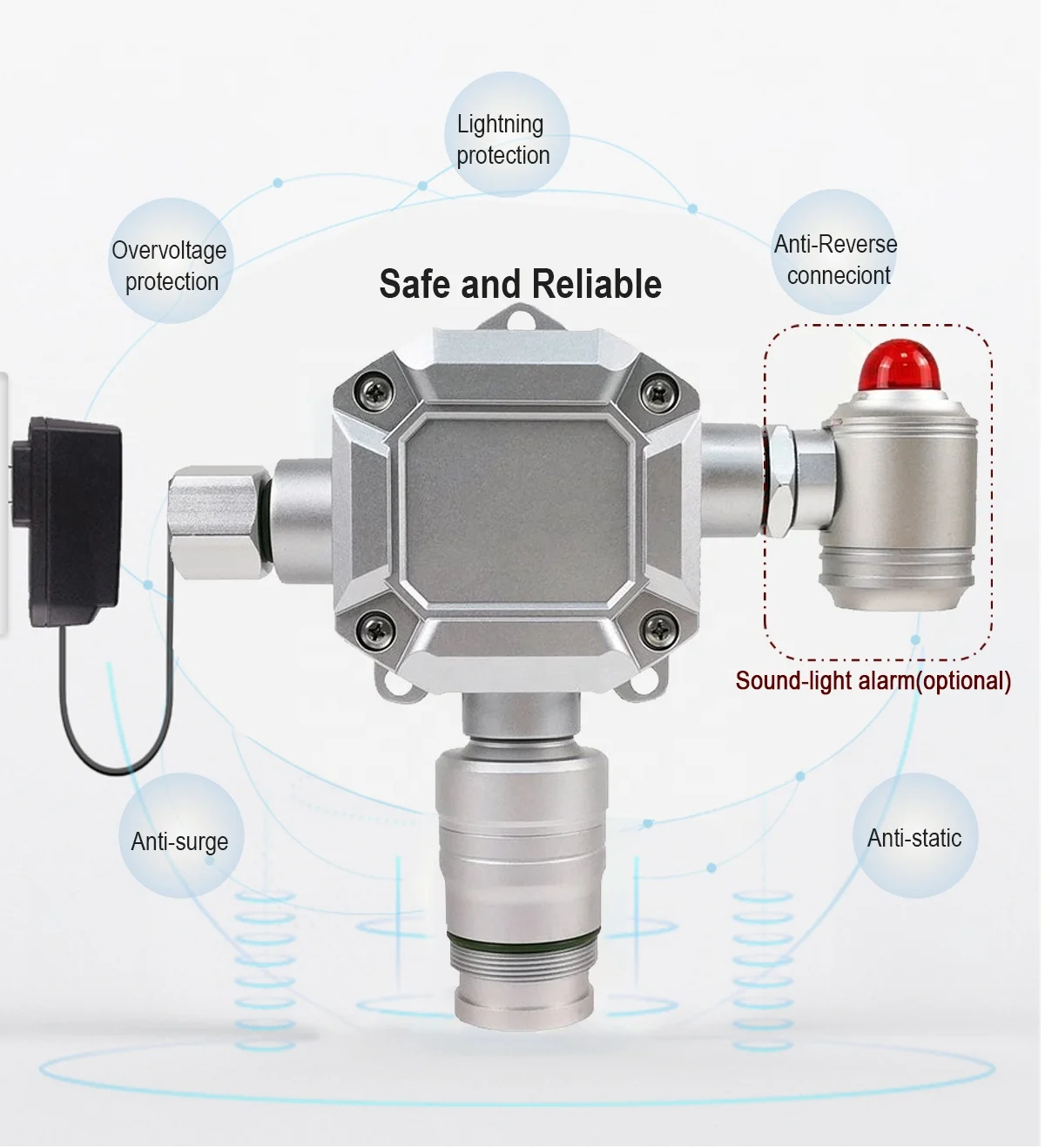

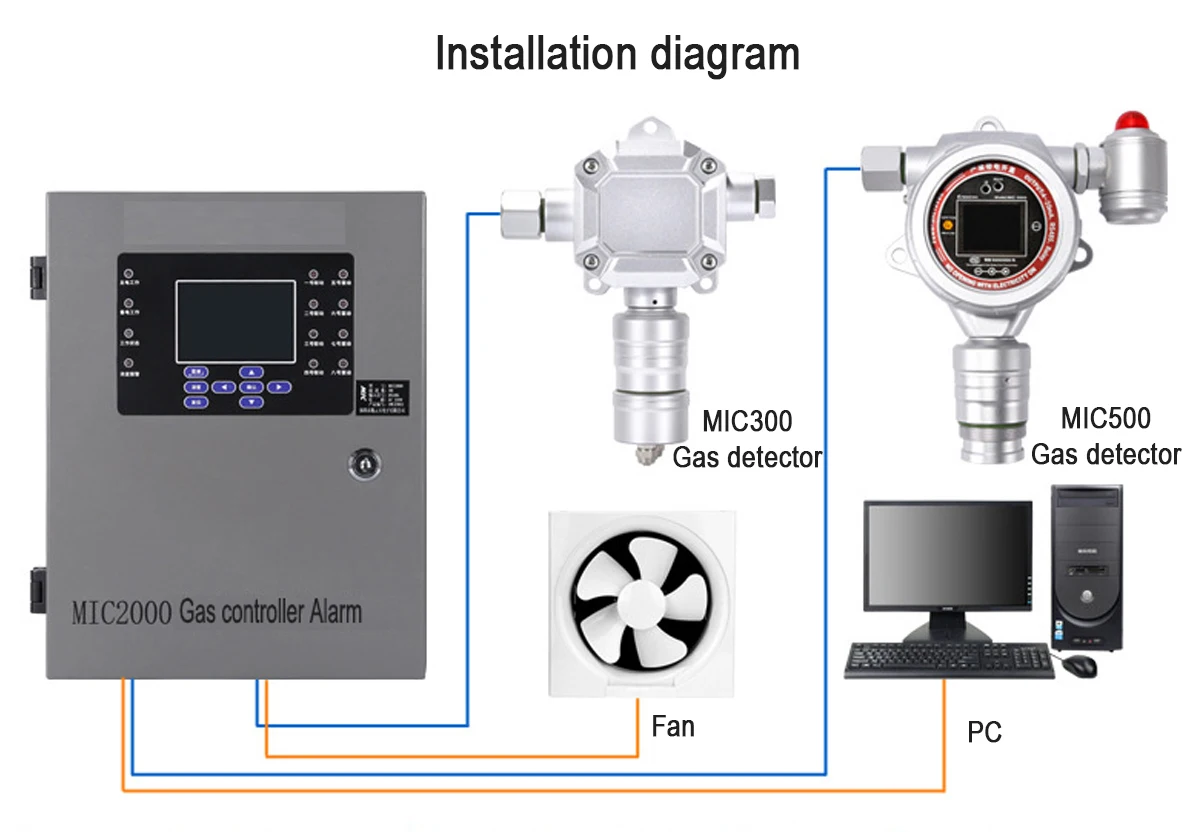

It is possible for the real-time monitoring via the wired or remote wireless transmission, and network transmission; three-wire system 4 ~ 20mA standard signal and standard bus RS485 (modbus-RTU) simultaneous output; it is compatible with secondary instrument, data acquisition module, PLC,DCS system, and it is possible to drive the related equipment. Data recovery function; in case of mis-operation, it is possible to select partial or full recovery. Multiple alarm modes, and multi-directional and three-dimensional indication alarm states. It includes: 2 sets of relay switch output, sound & light alarm (optional configuration). Alarm types include: concentration alarm, and failure alarm.
item | value |
Warranty | 2 years |
Type | gas detector |
Customized support | OEM |
Place of Origin | China |
Beijing | |
Brand Name | Zetron |
Model Number | MIC300 |
Product name | MIC300 |
Detecting Gas | Combustible Gas/H2S/CO/O2 (Can be Customized) |
Alarm Type | LED Display+Sound+Light Alarm |
Sensor | Imported High-precision Sensor |
Certificate | ISO9001 CNEx CE ATEX |
Response time | T90<20s |
Sampling method | Depending on the type of gas |
Working voltage | 24V |
Range | 0 - 10/100/1000ppm/1%/25% |
Degree of Protection | IP67 |
Specification
Type | Fixed Gas Detector | ||||||||
Detection range | 0~ 10ppm 0~ 20ppm 0~50ppm 0~100ppm Other ranges can be customized | ||||||||
Resolution | 0.01ppm or 0.001ppm (0 ~ 10 ppm); 0.01ppm (0 ~ 100 ppm), Other ranges can be customized | ||||||||

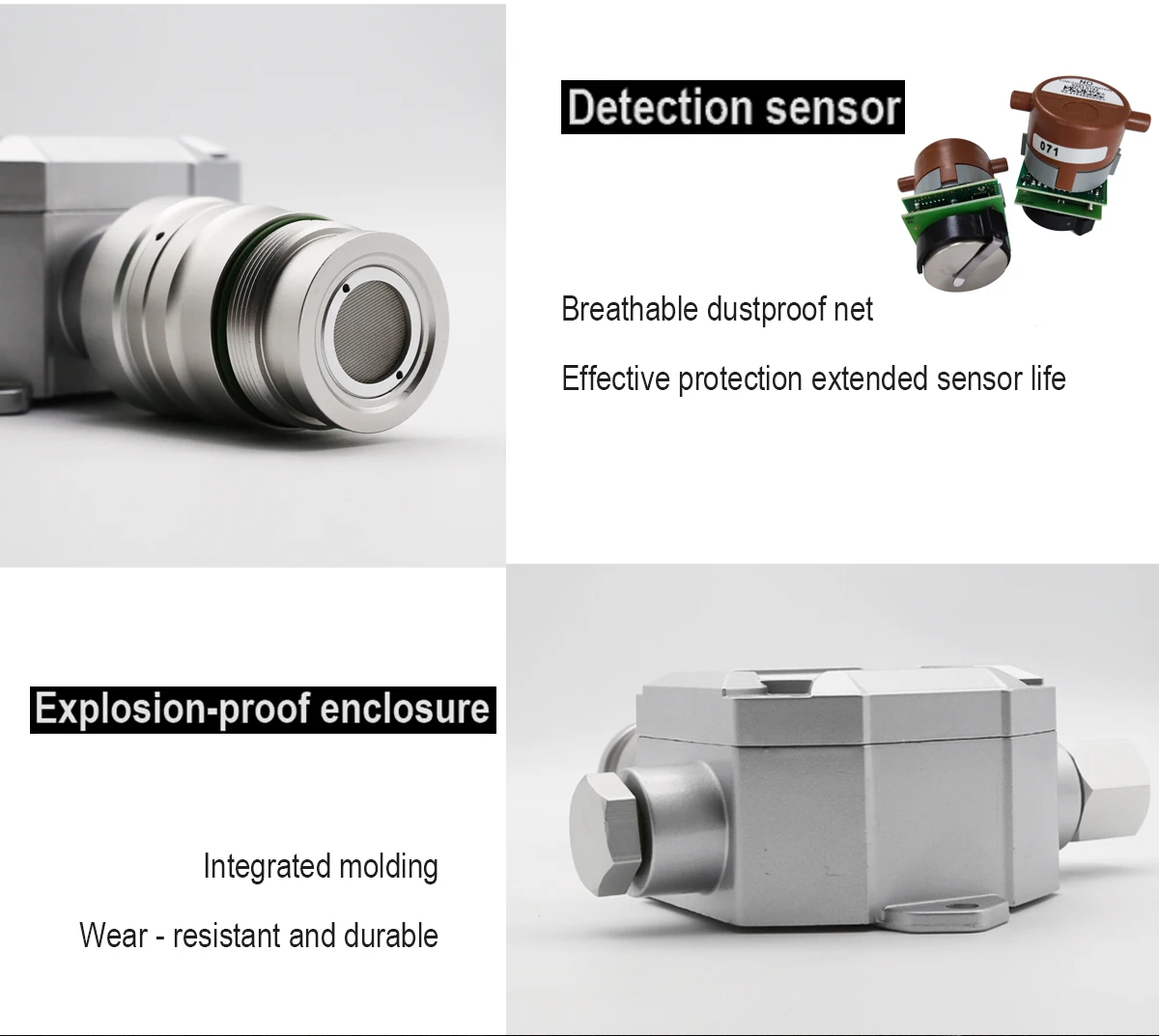

Detection principle | Electrochemical, infrared, thermal conductivity, PID photoionization, and so on.Depending on the type of gas, range, field environment and user demand, Sensor can be customized | ||||||||
Sensor service life | Electrochemical principle: 2 ~ 3 years; Infrared principle: 5 ~ 10 years; Thermal conductivity: 5 years | ||||||||
Allowable error | ≤±3% F.S (other or higher precision levels can be customized) | ||||||||
Linearity | ≤±2% | Repeatability | ≤±2% | Uncertainty | ≤±2% | ||||
Response time | T90≤30 seconds | Recovery time | ≤30 seconds | ||||||
Working environment | Temperature: -40 ℃ ~ + 70 ℃, humidity: ≤10 ~ 95% RH (regular) | ||||||||
Working voltage | 12 ~ 30VDC direct current the standard power supply for a single equipment is 24V, DC stabilized voltage switching power supply of 1A or greater than 1A | ||||||||
Power supply reference | 24V, 2.1A is possible to drive 40 units of toxic gas detector, or 15 units of flammable, infrared gas detector. | ||||||||

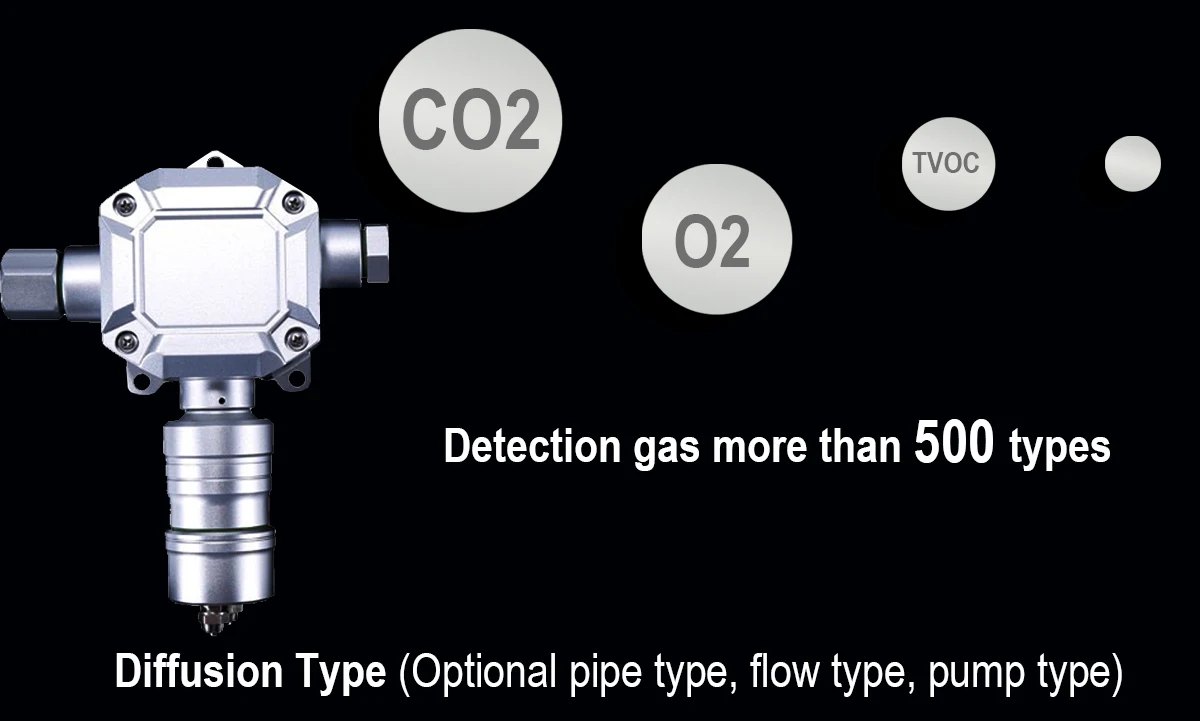

Working method | Fixed type installation, online detection, diffusion type measurement | ||||||||

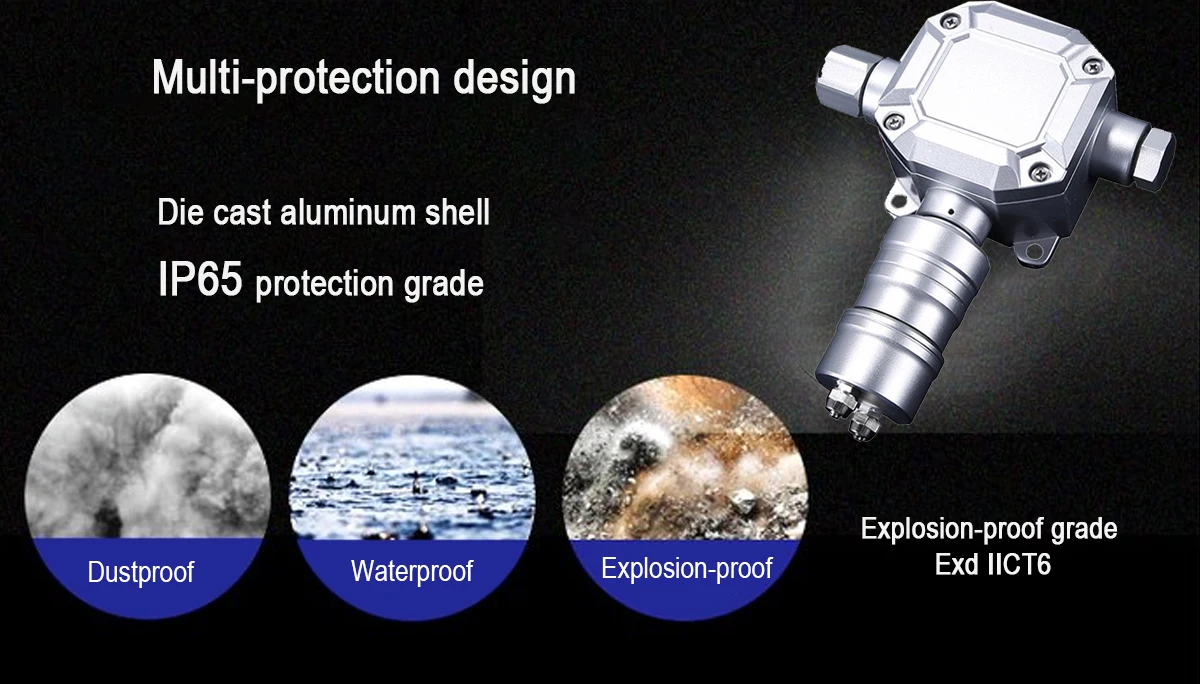

Protection level | IP65 | ||||||||
Explosion-proof mark | ExdⅡCT6, certificate number: CNEx15.1283 | ||||||||
Exterior dimensions | 233×205×65mm (L×H×W) | ||||||||
Weight | 1.0 Kg | ||||||||

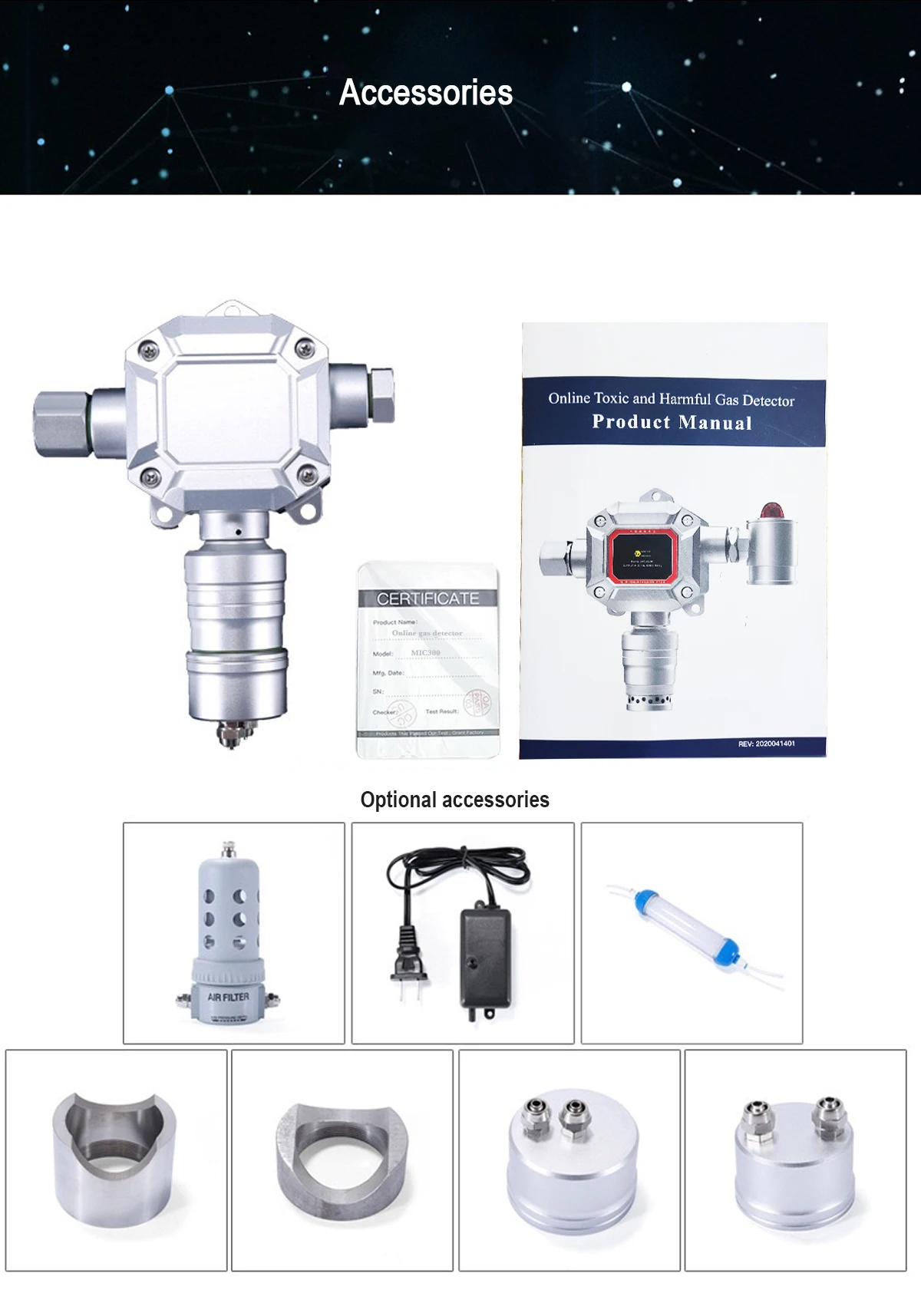

Standard accessories | Manual, qualification certificate, warranty card, outer packaging box | ||||||||
Detected Gases | Range | Minimum Reading | Detected Gases | Range | Minimum Reading |
VOCs(VOC) | 0-20ppm | 0.01ppm | Ethylene oxide (ETO) | 0- 100%LEL | 0. 1%LEL |
VOCs(VOC) | 0-200ppm | 0. 1ppm | Phosgene(COCL2) | 0- 1ppm | 0.001ppm |
VOCs(VOC) | 0-2000ppm | 1ppm | Phosgene(COCL2) | 0- 10ppm | 0.01ppm |
VOCs(VOC) | 0- 10000ppm | 1ppm | Silane(SiH4) | 0- 1ppm | 0.001ppm |
Gas (EX) | 0- 1000ppm | 1ppm | Silane(SiH4) | 0-50ppm | 0.01ppm |
Gas (EX) | 0- 100%LEL | 0. 1%LEL | Fluorine gas (F2) | 0- 1ppm | 0.001ppm |
Gas (EX) | 0- 100%VOL | 0.01%VOL | Fluorine gas (F2) | 0- 10ppm | 0.001ppm |
Methane (CH4) | 0- 100%LEL | 0. 1%LEL | Fluorine gas(F2) | 0- 100ppm | 0.01ppm |
Methane (CH4) | 0- 100%VOL | 0.01%VOL | Hydrogen Fluoride (HF) | 0- 10ppm | 0.01ppm |
Oxygen (O2) | 0-30%VOL | 0.01%VOL | Hydrogen Fluoride (HF) | 0-50ppm | 0.01ppm |
Oxygen (O2) | 0- 100%VOL | 0.01%VOL | Hydrogen Bromide(HBr) | 0-50ppm | 0.01ppm |
Carbon Monoxide (CO) | 0- 100ppm | 0.01ppm | Ethylborane(B2H6) | 0- 10ppm | 0.001ppm |
Carbon Monoxide (CO) | 0- 1000ppm | 0. 1ppm | Arsine(AsH3) | 0- 1ppm | 0.001ppm |
Carbon Monoxide (CO) | 0-2000ppm | 1ppm | Arsine(AsH3) | 0- 10ppm | 0.001ppm |
Carbon Monoxide (CO) | 0-5000ppm | 1ppm | Germanium(GeH4) | 0- 1ppm | 0.001ppm |
Carbon Monoxide (CO) | 0- 10000ppm | 1ppm | Germanium(GeH4) | 0- 10ppm | 0.001ppm |
Carbon dioxide (CO2) | 0-5000ppm | 1ppm | Germanium(GeH4) | 0-50ppm | 0.01ppm |
Carbon dioxide (CO2) | 0-50000ppm | 1ppm | Hydrazine, hydrazine hydrazide (N2H4) | 0- 1ppm | 0.001ppm |
Carbon dioxide (CO2) | 0-5%VOL | 0.01%VOL | Hydrazine, hydrazine hydrazide (N2H4) | 0-300ppm | 0. 1ppm |
Carbon dioxide (CO2) | 0-20%VOL | 0.01%VOL | Tetrahydrothiophene (THT) | 0-50mg/m3 | 0.01 mg/m3 |
Carbon dioxide (CO2) | 0- 100%VOL | 0.01%VOL | Bromine (Br2) | 0- 10ppm | 0.01ppm |
Formaldehyde (CH2O) | 0- 10ppm | 0.01ppm | Bromine gas (Br2) | 0-50ppm | 0.01ppm |
Formaldehyde (CH2O) | 0-50ppm | 0.01ppm | Sulfur dioxide (SO2) | 0-20ppm | 0.01ppm |
Formaldehyde (CH2O) | 0- 100ppm | 0.01ppm | Sulfur dioxide (SO2) | 0- 100ppm | 0.01ppm |
Formaldehyde (CH2O) | 0- 1000ppm | 1ppm | Sulfur Dioxide(SO2) | 0- 1000ppm | 0. 1ppm |
Ozone (O3) | 0- 1ppm | 0.001ppm | Sulfur dioxide (SO2) | 0-5000ppm | 1ppm |
Ozone (O3) | 0- 10ppm | 0.01ppm | Nitric oxide (NO) | 0-20ppm | 0.01ppm |
Ozone (O3) | 0- 100ppm | 0.01ppm | Nitric Oxide (NO) | 0- 100ppm | 0.01ppm |
Ozone (O3) | 0-2000ppm | 1ppm | Nitric Oxide (NO) | 0- 1000ppm | 0. 1ppm |
Hydrogen Sulfide (H2S) | 0- 10ppm | 0.01ppm | Nitric Oxide (NO) | 0-5000ppm | 1ppm |
Hydrogen sulfide (H2S) | 0- 100ppm | 0.01ppm | Nitrogen Dioxide (NO2) | 0-20ppm | 0.01ppm |
Hydrogen sulfide (H2S) | 0-500ppm | 0. 1ppm | Nitrogen dioxide | 0- 100ppm | 0.01ppm |
Hydrogen sulfide (H2S) | 0-2000ppm | 1ppm | Nitrogen dioxide | 0- 1000ppm | 0. 1ppm |
Hydrogen Cyanide(HCN) | 0- 100ppm | 0.01ppm | Nitrogen Dioxide (NO2) | 0-2000ppm | 1ppm |
Hydrogen Chloride(HCL) | 0-20ppm | 0.01ppm | Nitrogen Oxides (NOX) | 0- 100ppm | 0.01ppm |
Hydrogen chloride (HCL) | 0-200ppm | 0. 1ppm | Nitrogen Oxides (NOX) | 0-500ppm | 0. 1ppm |
Phosphine (PH3) | 0-5 ppm | 0.001ppm | Nitrogen oxides (NOX) | 0-2000ppm | 1ppm |
Phosphine (PH3) | 0-20 ppm | 0.01ppm | Chlorine (CL2) | 0-20ppm | 0.01ppm |
Phosphine(PH3) | 0-2000 ppm | 1ppm | Chlorine (CL2) | 0-200ppm | 0. 1ppm |
Chlorine dioxide (CLO2) | 0- 1ppm | 0.001ppm | Ammonia (NH3) | 0- 10ppm | 0.01ppm |
Chlorine dioxide (CLO2) | 0- 10ppm | 0.01ppm | Ammonia (NH3) | 0- 100ppm | 0.01ppm |
Chlorine dioxide (CLO2) | 0- 100ppm | 0.01ppm | Ammonia(NH3) | 0- 1000ppm | 0. 1ppm |
Ethylene oxide (ETO) | 0- 100ppm | 0.01ppm | Ammonia gas (NH3) | 0-5000ppm | 1ppm |
Ethylene oxide (ETO) | 0- 1000ppm | 0. 1ppm | Ammonia(NH3) | 0- 100%LEL | 0. 1%LEL |
Note: Not all gases and range are listed, if you need more information, please contact us.
Company Profile
Beijing Zetron Technology Co., Ltd. currently has a R&D and manufacturing base in Shenzhen and a sales center in Beijing, focusing on the development, production and sales of gas monitoring equipment and systems. With "gas detector" as the core product, we have formed series products and targeted solutions for different industries, scales and applications, such as petroleum, chemical, storage, fire protection, environmental protection, electronics,biochemical medicine, energy and electricity, forestry and household appliances. We have been plowing for 15 years, holding on to our strength, remembering our mission, innovating, and actively creating greater social value, and our products have been widely used and recognized by our customers, becoming a leading enterprise in technological innovation in the domestic gas detection industry.
So far, we have customers/buyers from over 20 countries/regions like Bulgaria, Brazil, Canada, China, Colombia, Germany, Iraq, Japan, Philippines, Russian Federation, Singapore, Taiwan, Thailand, Uruguay, United States, Ukraine, Vietnam, etc.
The list of countries still expanding.....!!
Local and International Distributors, Dealers and Resellers are Welcomed! Please contact us at the homepage.
