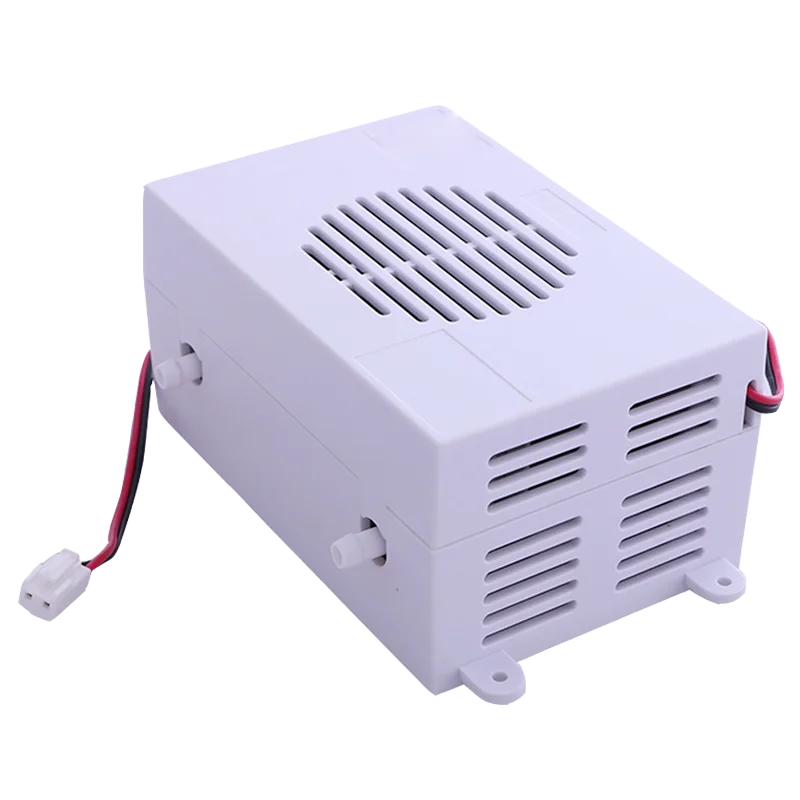

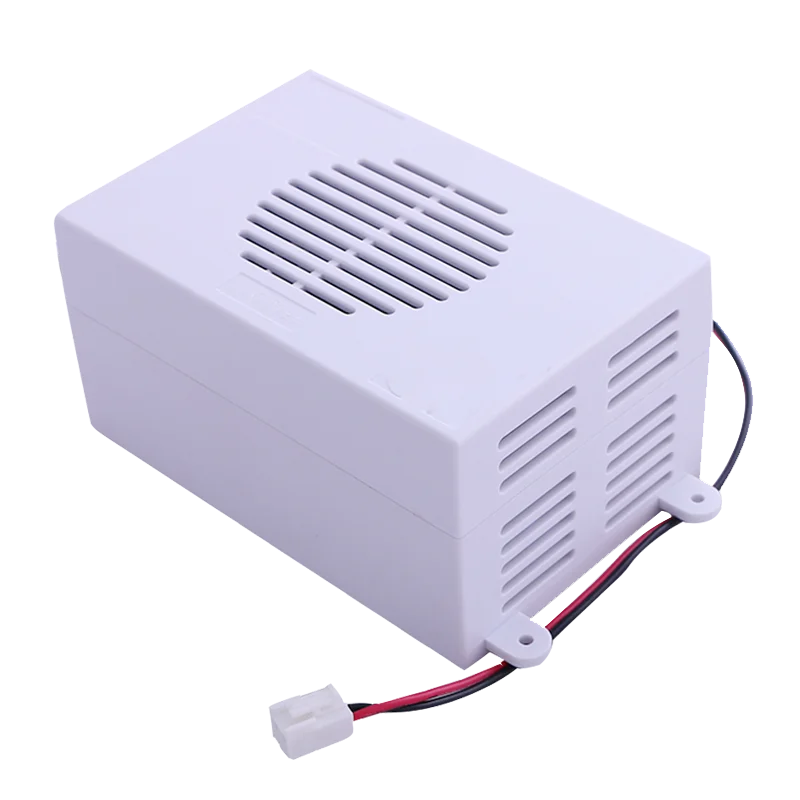

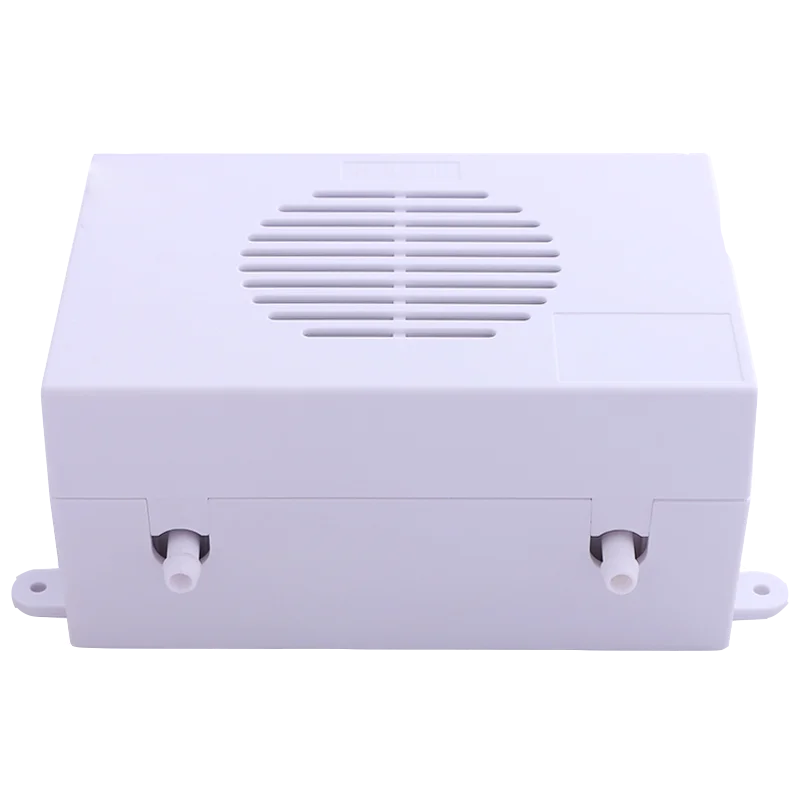

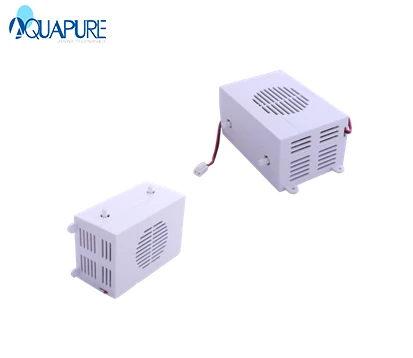

AQUAPURE ozone tube 500mg/h with dry air High Quality Quartz Tube Type Ozone Cell Parts Core Ozone Generating Module
- Category: >>>
- Supplier: Aquapure (Shenzhen) Ozone Technology Co. Ltd.
Share on (1601027668455):
Product Overview
Description
Product Description
Aquapure ozone module was developed from German office which use the latest corona discharge technology. With a high performance, we use accurate quartz tube and 316SS/Titanium electrode for the generator part, we sure a stable unit will help you win more business.
Advantage:
1. High performance and compact size
2. Very stable performance
3. Very easy installation with very reasonable design
4. Fan cooIing mode with a big cooling fins area
5. Quartz tube can be easily cleaned, should it become contaminated.
6. High ozone concentration with dry air source
7.100% check ozone concentration
8.100% burn-in test
9.100% 316 S.S and ozone compatible material
10.Suitable for water/air/medical treatment
11.500mg/h ozone output available
Function:
1. Ozone output: 500mg/h with dry air, 400mg/h with normal air
2. Ozone generator: Quartz Tube and 316 SS electrode (Titanium electrode optional)
3. High ozone concentration: > 5.0 mg/L at 1.0 L/min gas flow
4. Weight: only 0.55 Kg
5. Technology: German corona discharge
6. Low power consumption: 12W
7.Voltage: 12V DC
8.High voltage: 4.12Kv
9.High frequency: 24KHz
10. Life span: >10,000 hours non stop working

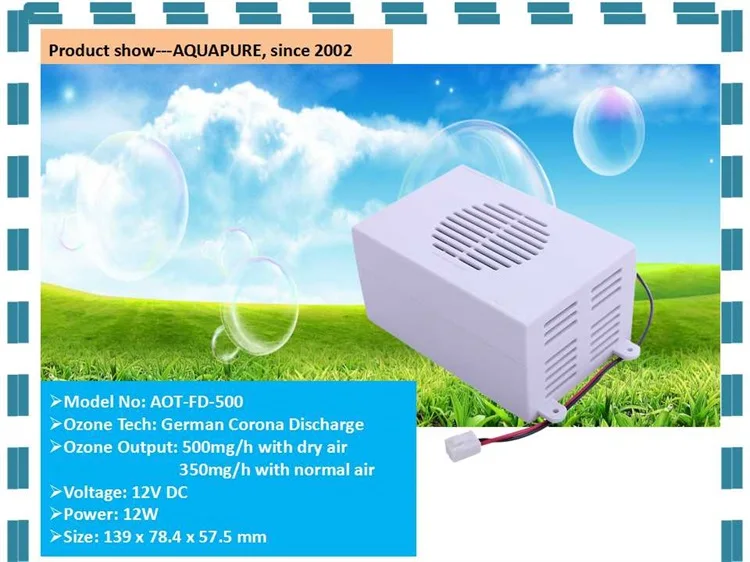

Specification | ||||||
Ozone output | 500mg/h at 2.5L/min dry air and normal air flow | |||||
Ozone concentration | >5mg/L at 1L/min flow | |||||
Gas source | Oxygen / dry air/ ambient air | |||||
Continuous operation | 24 h/day with inside cooling system | |||||
Cooling system | Air cooling with cooling fans | |||||
Ozone generating method | German corona discharge | |||||
Input voltage | 12V DC | |||||
Power | 12W | |||||
Weight | 0.55KG | |||||
Size(L×W×H) | Size: 139 x 78.4x 57.5mm | |||||
Package | 32PCS/carton | |||||
Material | Quartz tube and 316SS electrode (Titanium electrode optional) | |||||
Life span | > 10,000 hours (non-stop working) | |||||

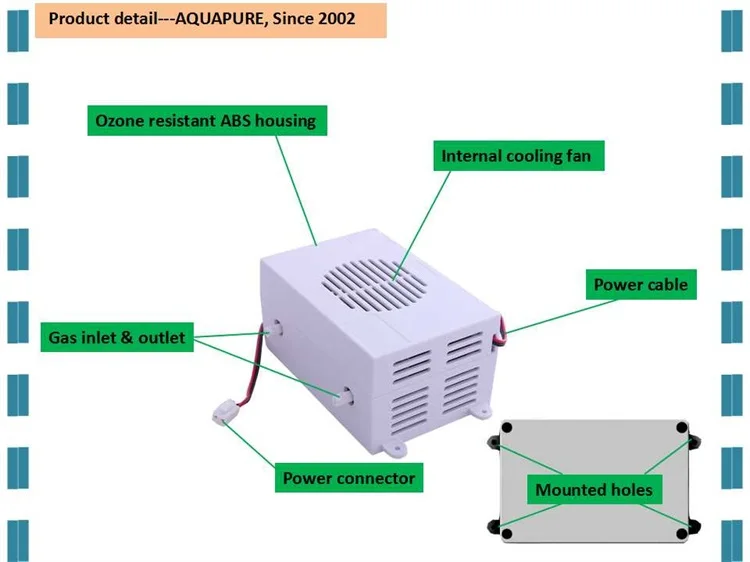

Generator :
Made in accurate quartz tube and 316 S.S electrode (Titanium electrode optional) , a proper cooling fins area would help to make the product with a long lifespan.
Electronic:
Use latest German technology to keep the high frequency stable which would make the whole unit performs well. A potted design to prevent high humidity from the environment around.

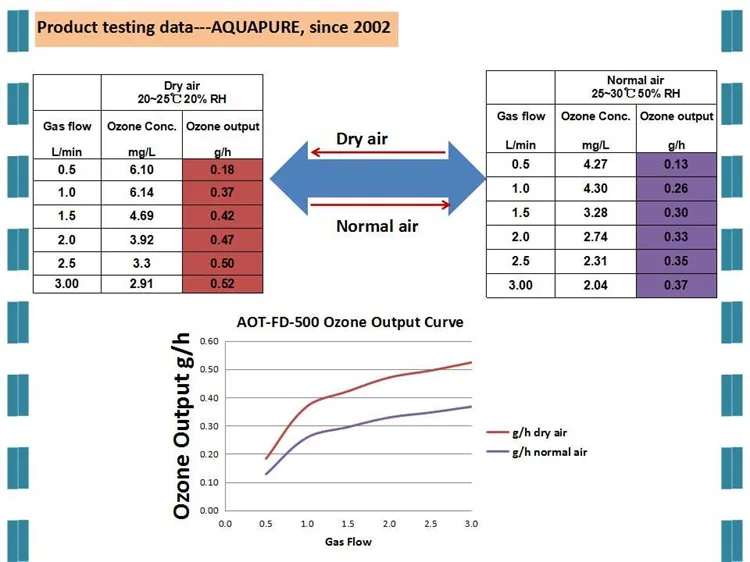

Dry Air Test Data
Normal Air Test Data

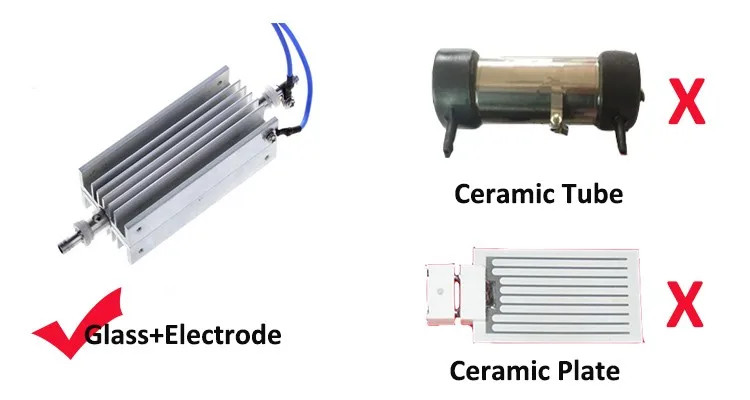

Glass&Electrode Tube:
Competitive price
Durable quality
Accurate air gap
Stable ozone output
More than 10,000 hours life
German technology
Ceramic Tube:
Cheap price
Short life
Low quality
Not safe
Low tech
Waste money
Ceramic Plate:
Cheap Price
Low concentration
Short life
Low quality
Can not use for water treatment
Low tech

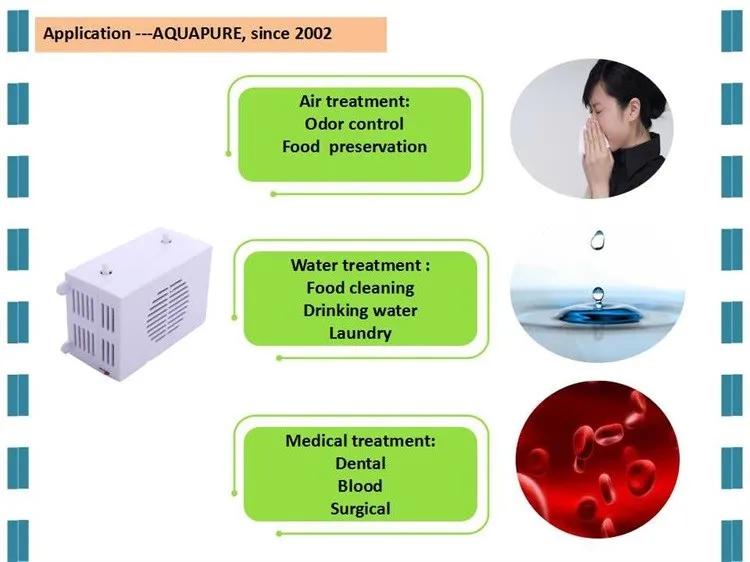

Application
Air Purification
Medical Therapy
Water Treatment
Related Products

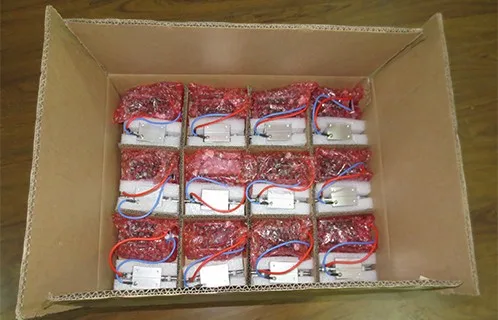

Packing & Delivery
Company Profile
About us
AQUAPURE’s core technology is from Germany and was invested by German since 2002. We are mainly manufacture ozone generators,
plasma generators and anion generators in China. We Committed to the standardization of the ozone market, Our group is making
great effort in the high quality and stable performance.
plasma generators and anion generators in China. We Committed to the standardization of the ozone market, Our group is making
great effort in the high quality and stable performance.
Why choose AQUAPURE:
Select material:
In order to produce high performance Ozone product with competitive price, We select material supplier in person.
Attention to detail:
To ensure the constant quality of products, AQUAPURE is strict in testing system to make sure ozone products are in good system.
Quality guarantee:
Committed to the standradization of the ozone market , AQUAPURE make strict control of every step from assembling to packing.
In order to produce high performance Ozone product with competitive price, We select material supplier in person.
Attention to detail:
To ensure the constant quality of products, AQUAPURE is strict in testing system to make sure ozone products are in good system.
Quality guarantee:
Committed to the standradization of the ozone market , AQUAPURE make strict control of every step from assembling to packing.
FAQ
Q. Which certification do you have for the products ?
A.CE EMC LVD UL, let us know if need extra certificate.
Q. Whether the order can be OEM ?
A. Of course , but MOQ is needed, contact us if you want to know more the OEM service.
Q. What kind of ozone product do your company supply ?
A. We have various models for your choice : ozone module, portable ozone generator, commercial ozone generator, ozone water purifier, medical ozone generator , etc.
Q. What's the normal payment terms ?
A. 100% pay before ship .
Q. How is your payment terms?
A. T / T, credit card, western union, paypal, etc;
Q: What shipping method I can choose?
A:We can ship by Sea and air cargo for bulk order ;
B: DHL, FEDEX, UPS, TNT, ARAMEX,EMS and some other special line express with competitive price are optional, it takes 5-10 days to get the parcel based on your area.
Q: When will you ship after I pay?
A:Normally we can ship within 5 days for sample order, 5-10 days for small order, please confirm the actual delivery time with our sales according to your quantity .
Q. What's your after sales service?
A:We offer one year warranty and also provide technical support even exceed the warranty period.
