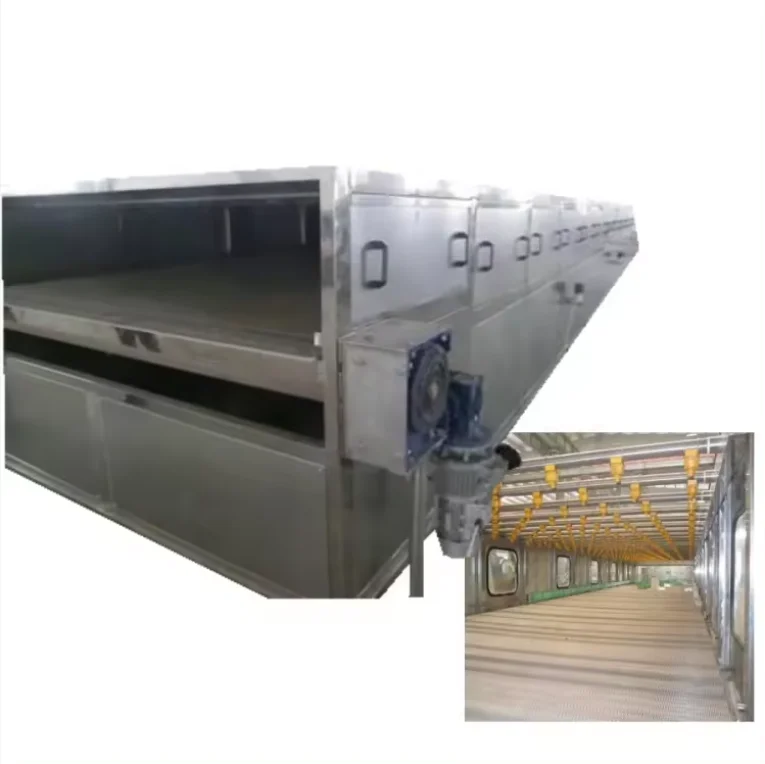

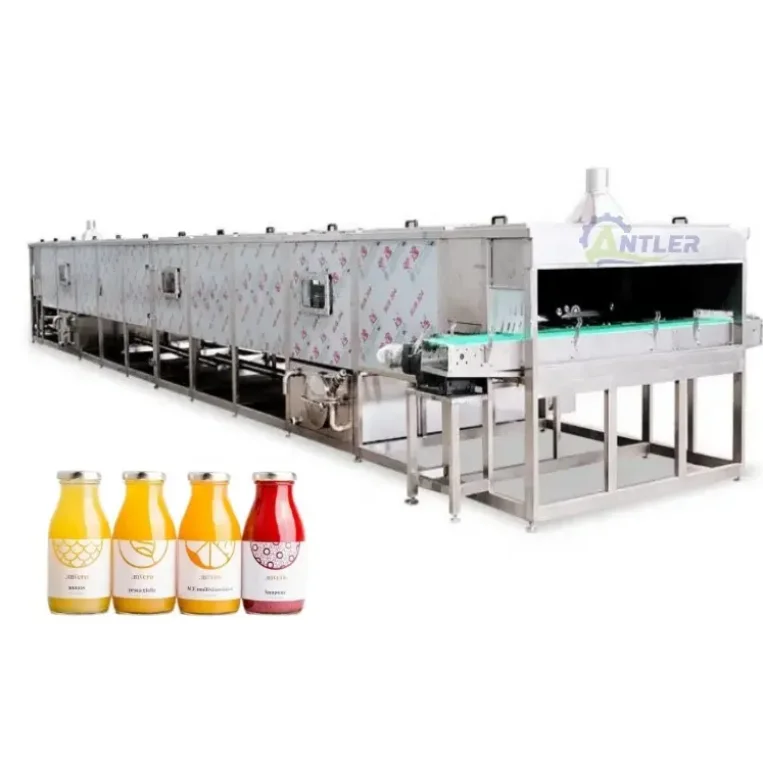

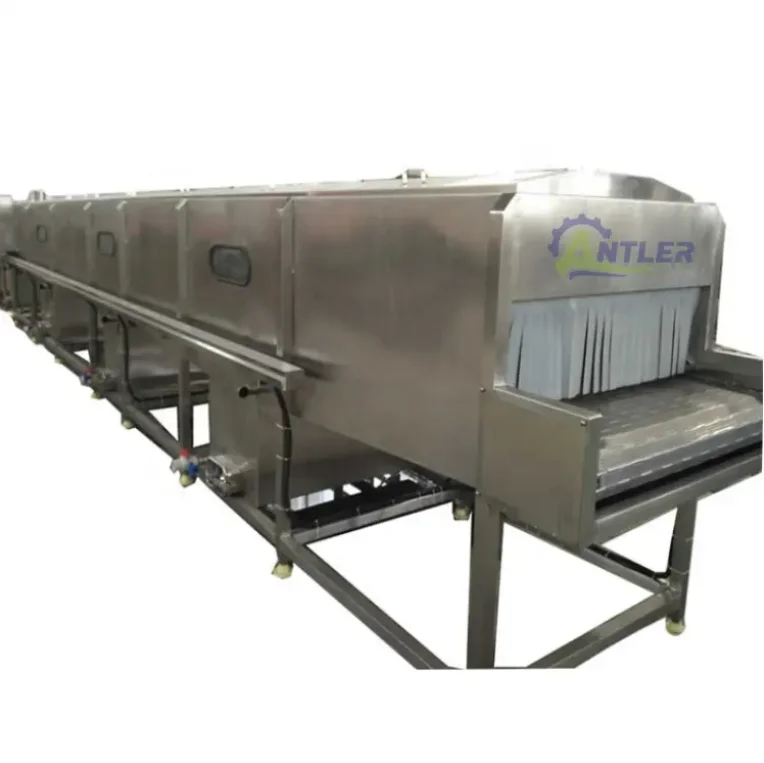

Bottle Or Can Super Heating Water Spray Sterilizer Spray Cooling Tunnel
- Category: >>>
- Supplier: Antler Automation Equipment (suzhou) Co. Ltd.
Share on (1601027690374):
Product Overview
Description
Product Description

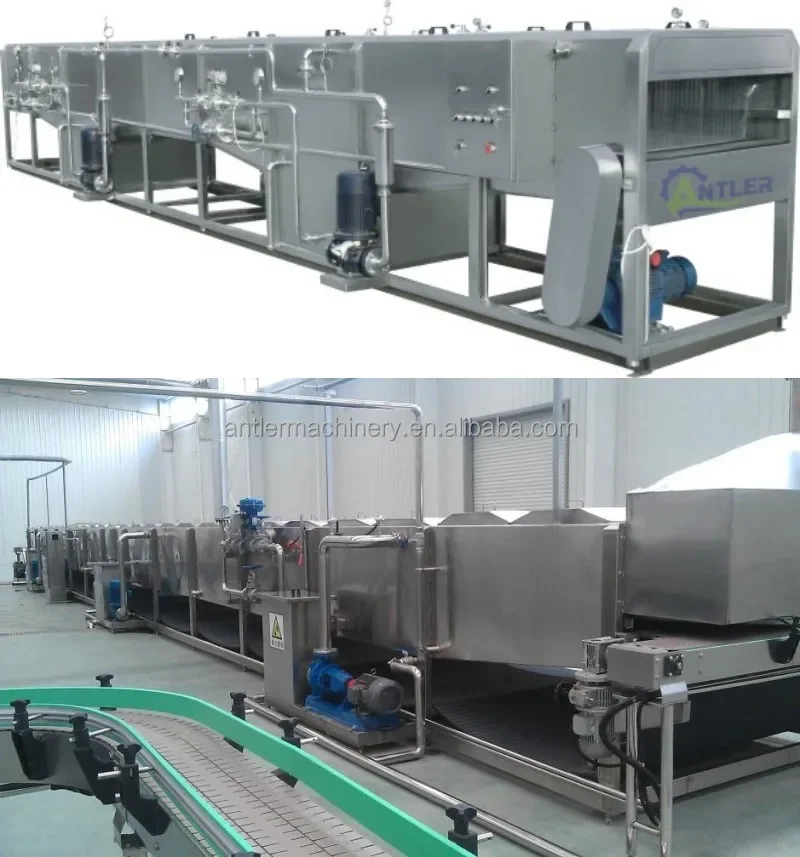

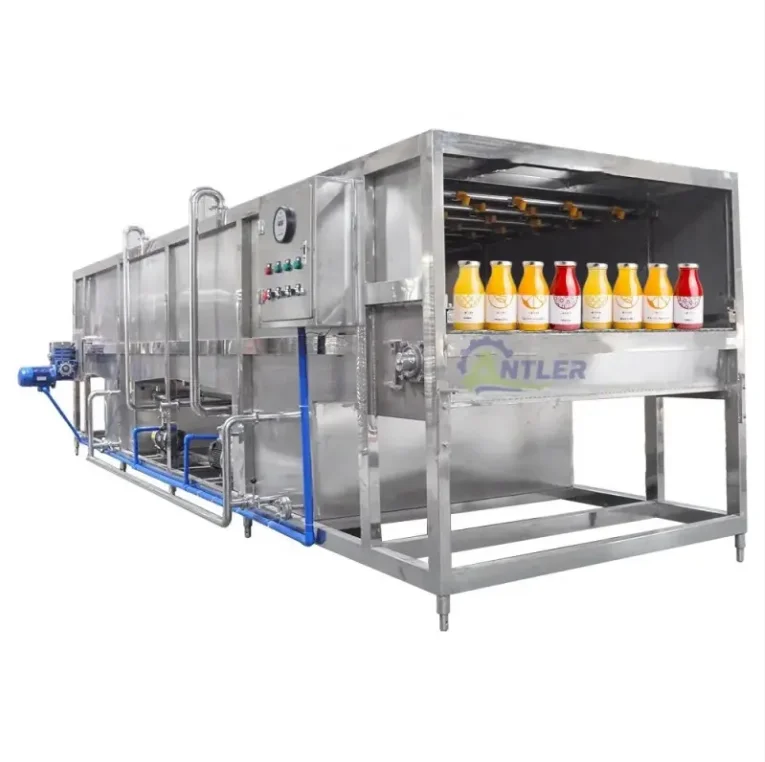

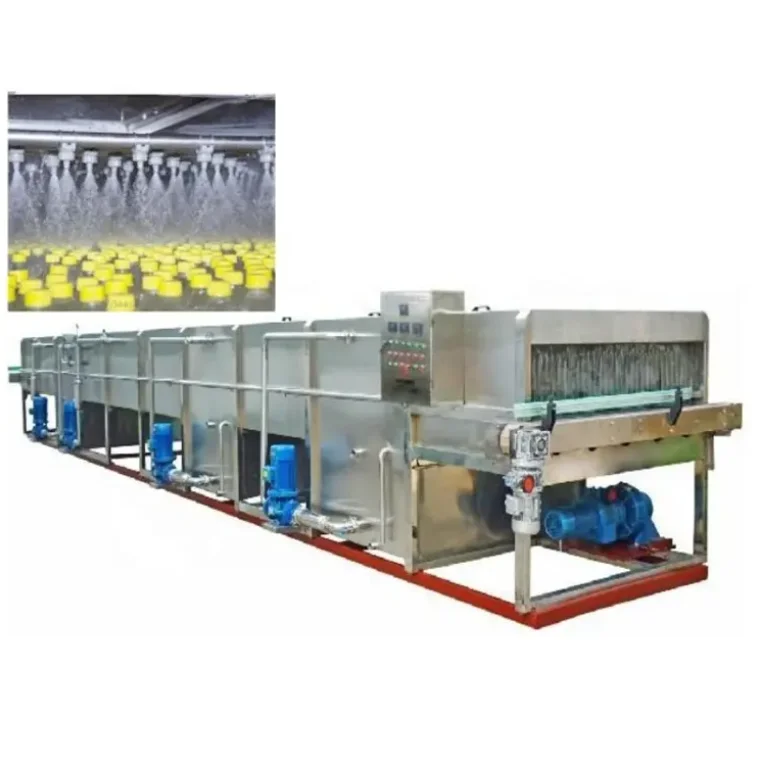

Tunnel spraying type pasteurizer
1. spray sterilizer used in juice (tea) and other beverage filling production line designed and manufactured. It is a kind of
secondary sterilization equipment for processing such as cans and PET bottles filled with beverages. Through the conveyor belt
transmission, into the tunnel spray sterilization, spray cooling, room temperature bottle. In each temperature zone of the
pasteurization and spray cooling machine, the container is sprayed with water of different temperatures, that is, the
sterilization stage and the cooling stage. The water sprayed on the cooler container will become hot, and this part of the hotter
water is used to cool the hotter container that has been sterilized, so that the container is gradually cooled, so that it can
avoid the loss of taste caused by overheating, and prevent the mutation of the thermal stress of the container from breaking the
bottle or bottle deformation. And after the heating and cooling areas are connected to each other, the energy is well recycled -
this is called the principle of energy regeneration. The spray pasteurizer makes full use of this heat balance principle and has
low energy consumption.
2. the equipment adopts preheating - sterilization - precooling - cooling four stages and the items top-down spray sterilization,
different product sterilization temperature is not the same, the temperature of the equipment is arbitrary setting, automatic
control, maintain a constant temperature, automatic record; Sterilization machine in addition to bearings and motors are made of
food grade 304 stainless steel, mesh belt using chain plate equipment.
3. spray sterilization line machine using high quality SUS304 stainless steel, temperature, speed can be set according to the
process requirements, the machine runs smoothly, the conveyor system adopts polymer chain network, with good strength, high
temperature resistance, good water permeability and other characteristics, the main transmission using cycloidal pin gear reducer,
through the sprocket drive equipment operation, can make the equipment more stable and safer operation, Easy maintenance, easy
operation and maintenance, low labor intensity, less manpower, high degree of automation, the temperature can be automatically

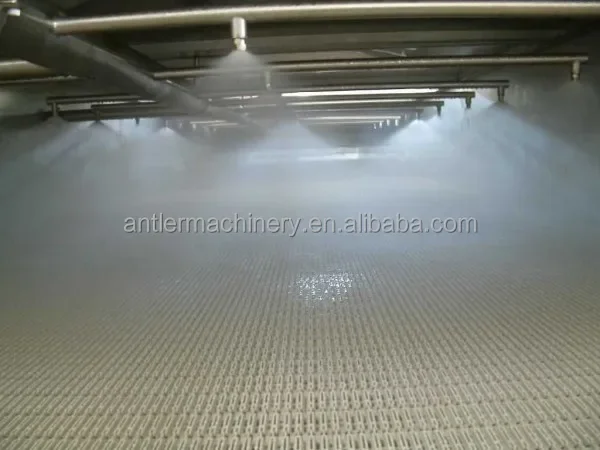

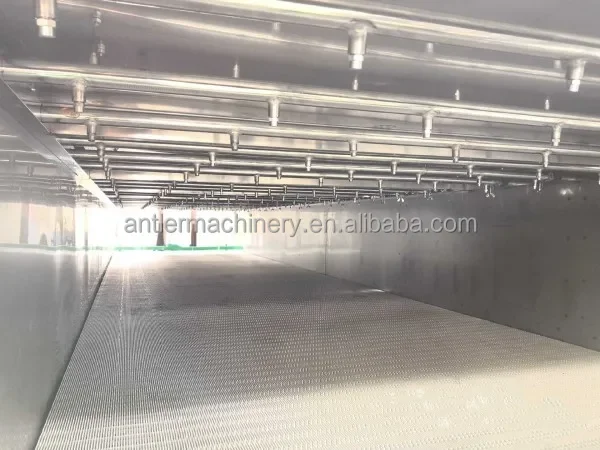

controlled within 98 ° C, the use of spray pipe to evenly spray hot water to the surface of the material, uniform heating, good
sterilization effect, product quality is easy to control.
secondary sterilization equipment for processing such as cans and PET bottles filled with beverages. Through the conveyor belt
transmission, into the tunnel spray sterilization, spray cooling, room temperature bottle. In each temperature zone of the
pasteurization and spray cooling machine, the container is sprayed with water of different temperatures, that is, the
sterilization stage and the cooling stage. The water sprayed on the cooler container will become hot, and this part of the hotter
water is used to cool the hotter container that has been sterilized, so that the container is gradually cooled, so that it can
avoid the loss of taste caused by overheating, and prevent the mutation of the thermal stress of the container from breaking the
bottle or bottle deformation. And after the heating and cooling areas are connected to each other, the energy is well recycled -
this is called the principle of energy regeneration. The spray pasteurizer makes full use of this heat balance principle and has
low energy consumption.
2. the equipment adopts preheating - sterilization - precooling - cooling four stages and the items top-down spray sterilization,
different product sterilization temperature is not the same, the temperature of the equipment is arbitrary setting, automatic
control, maintain a constant temperature, automatic record; Sterilization machine in addition to bearings and motors are made of
food grade 304 stainless steel, mesh belt using chain plate equipment.
3. spray sterilization line machine using high quality SUS304 stainless steel, temperature, speed can be set according to the
process requirements, the machine runs smoothly, the conveyor system adopts polymer chain network, with good strength, high
temperature resistance, good water permeability and other characteristics, the main transmission using cycloidal pin gear reducer,
through the sprocket drive equipment operation, can make the equipment more stable and safer operation, Easy maintenance, easy
operation and maintenance, low labor intensity, less manpower, high degree of automation, the temperature can be automatically
controlled within 98 ° C, the use of spray pipe to evenly spray hot water to the surface of the material, uniform heating, good
sterilization effect, product quality is easy to control.
Equipment advantages:
1. For stable working condition, this machine equip with stepless speed regulation with low noise and stainless steelmesh belt with high strength and small flexibility,which is not easy deformed but easy to maintain.
1. For stable working condition, this machine equip with stepless speed regulation with low noise and stainless steelmesh belt with high strength and small flexibility,which is not easy deformed but easy to maintain.

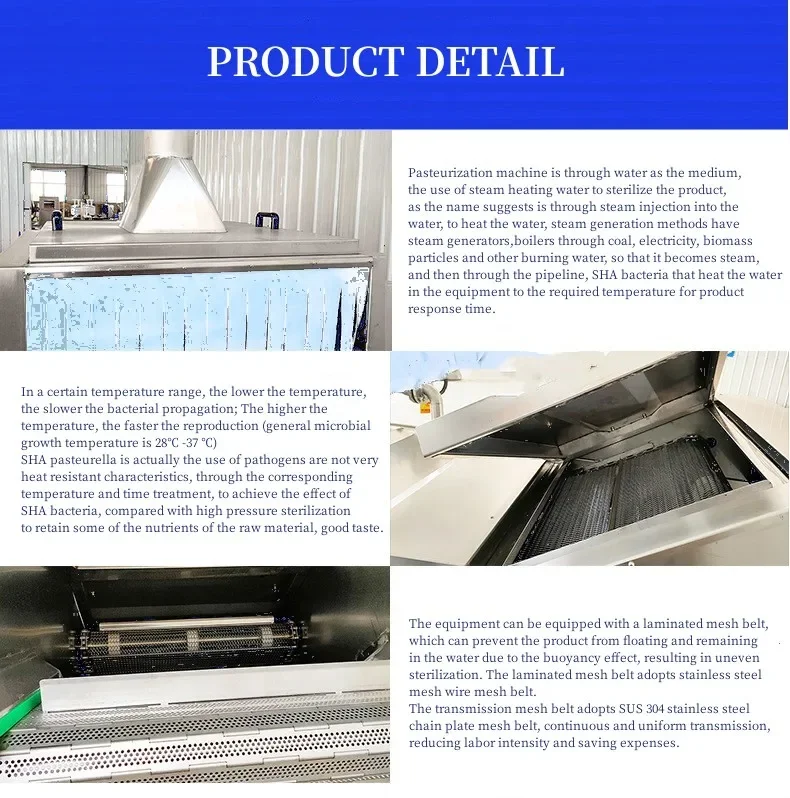

2. The conveyor can be customized according to the product conditions which can be stainless steel chain mesh stainless steel chain plate or pp chain plate.
3. This machine is suitable for continuous blanching or pasteurization process with heating by boiler steam or hotwater.
4. With reasonable design, it takes less area and has a compact structure, which is easy to setup and operate, alsowith convenient maintenance and long service life.
5. The temperature indicator can regular the stear volume to minimize the temperature difference of the water inthe tank in order to balance the sterilization effect.
4. With reasonable design, it takes less area and has a compact structure, which is easy to setup and operate, alsowith convenient maintenance and long service life.
5. The temperature indicator can regular the stear volume to minimize the temperature difference of the water inthe tank in order to balance the sterilization effect.
Specification
Item | Data |
Output | 3000~48000 bottles/hour |
Total processing time of 5 sections | 45 minutes |
The first heating treatment time | 5 minutes (4°C~50°C) |
The second heating treatment time | 10 minutes (50°C~85°C) |
Third insulation treatment time | 20 minutes (85°C) |
Fourth cold bottle handling time | 3 minutes (85°C~60°C) |
Section 5 Cold bottle handling time | 7 minutes (below 45°C) |
Total machine power | about 65Kw |
Overall size | 18000×4300×1750mm Customized size according to process requirements. |
Weight | 16T |
