EEL DIY Box 280Ah 304Ah Lifepo4 Battery Box 280 DIY Kit with JK BMS EU USA Stock 51.2V Metal Box For Lithium Battery Pack
- Category: >>>
- Supplier: Shenzhen Eel Battery Co. Ltd.
Share on (1601027701193):
Product Overview
Description
Product Parameters
Place of Origin | China |
Brand Name | EEL |

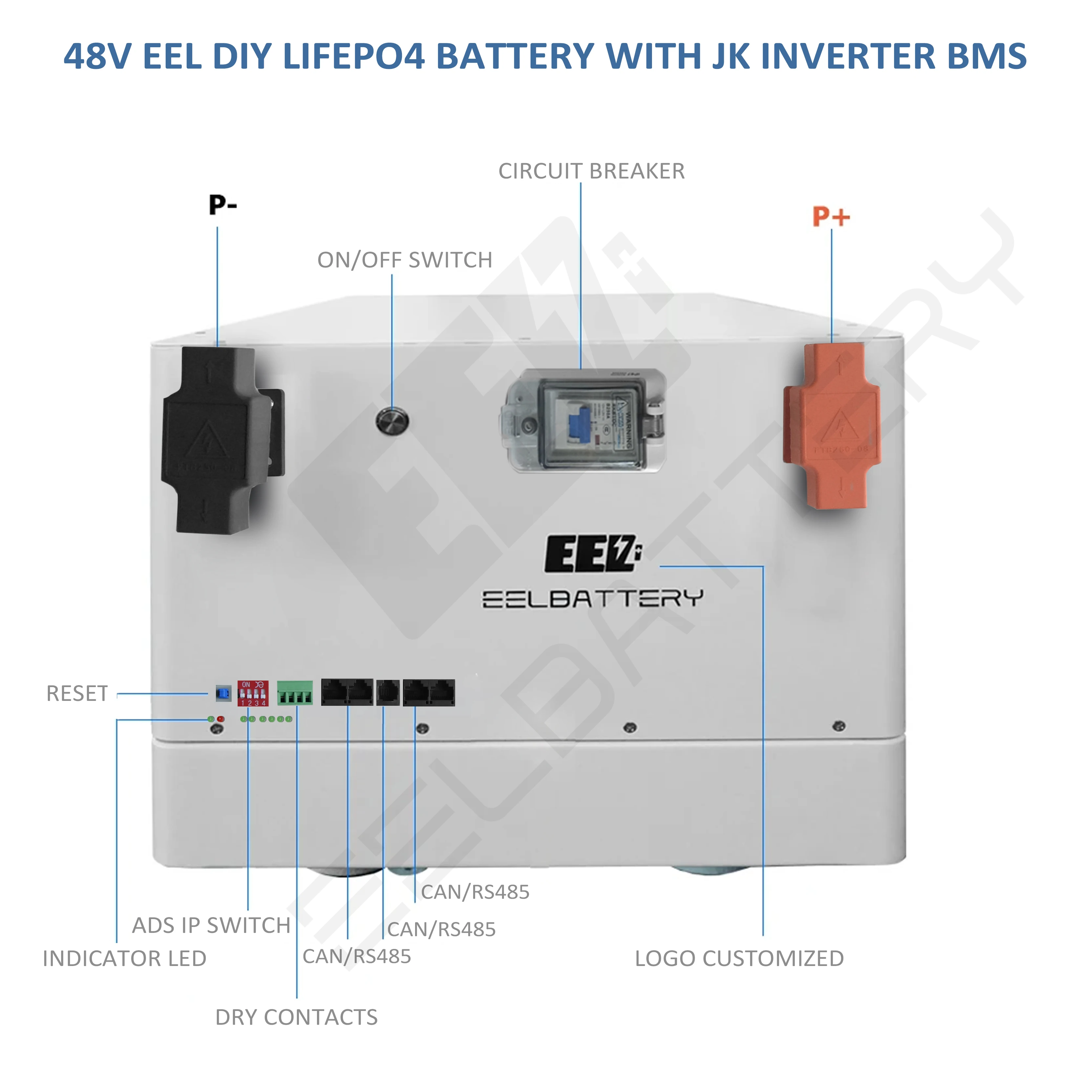

Model | EEL 51.2V 280AH Battery Case with JK Inverter BMS |
Battery Type | UPS RV Electric Boat Household Solar energy storage system |

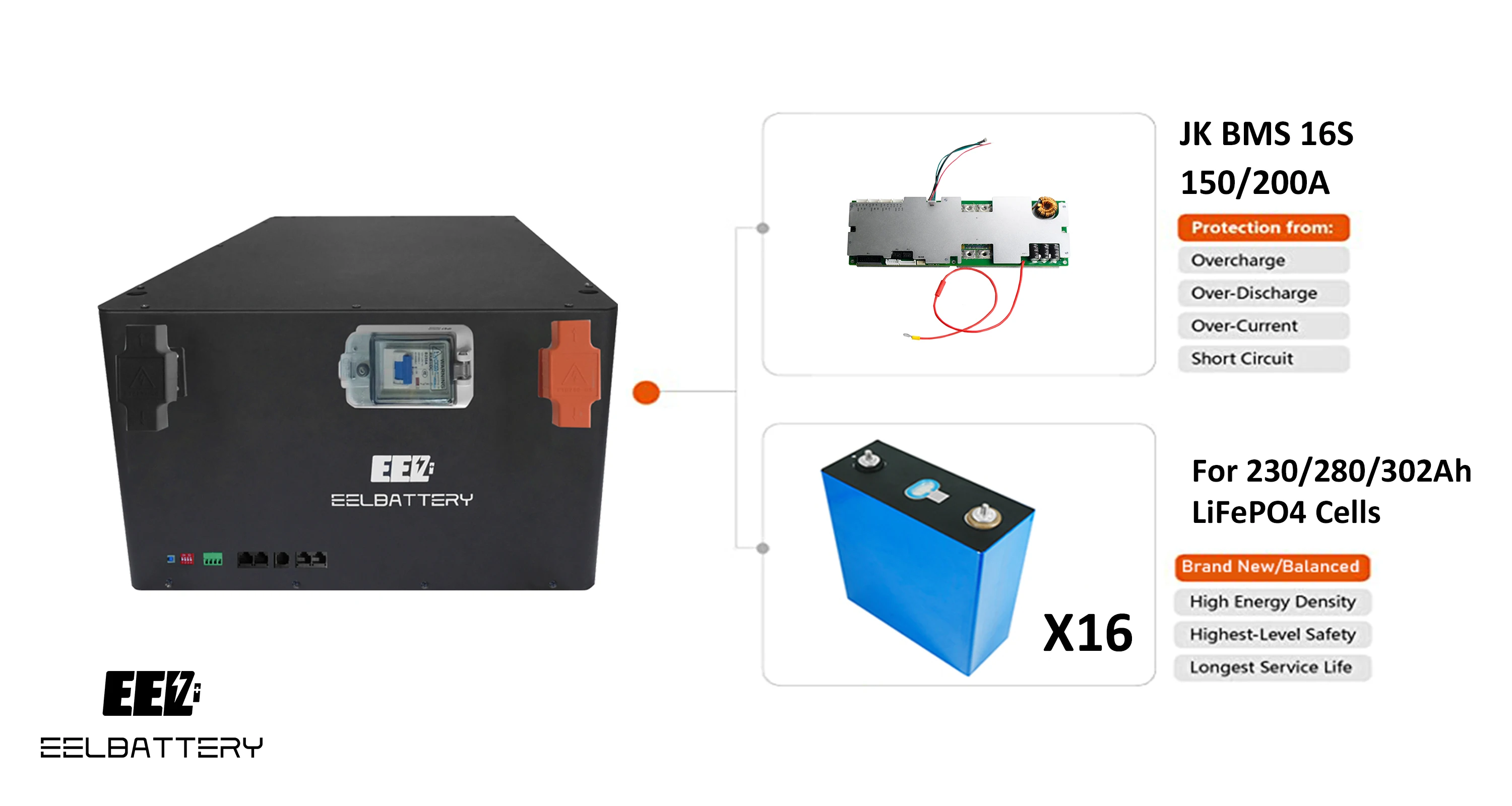

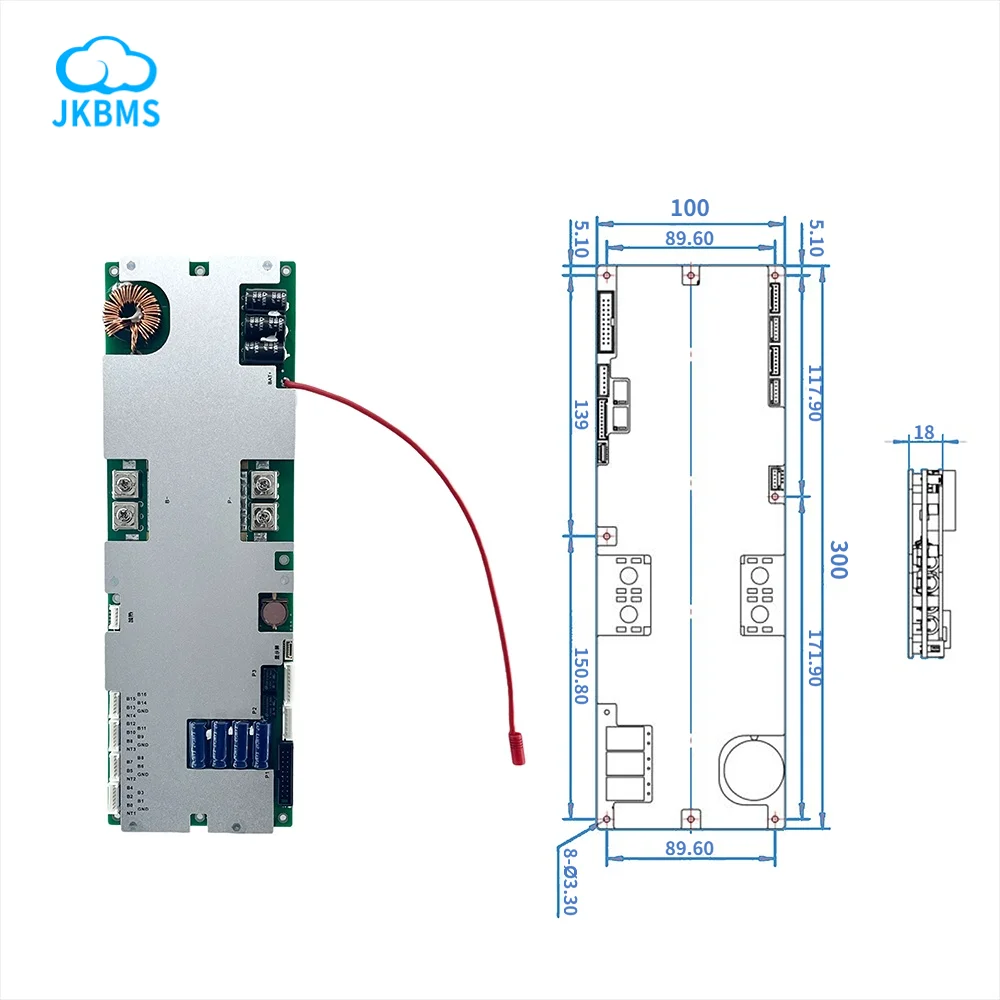

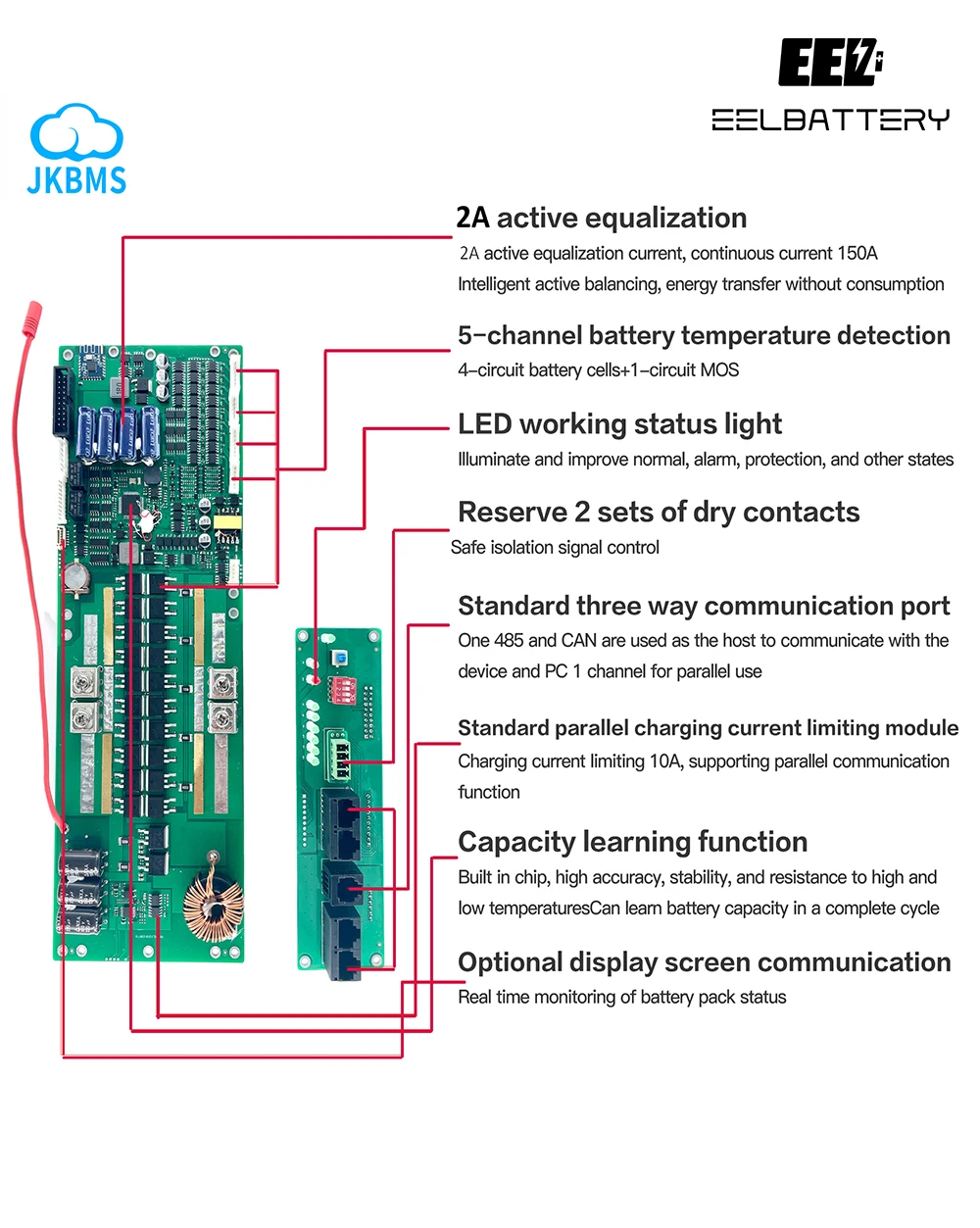

BMS | 48V 16S 150A 200A JK Inverter BMS |
Fuse | 100A bms-125A fuse,150A bms-180A fuse,200A bms-250A fuse |
280/302ah case weight | 29kg |
280/302ah case Size | 415*700*263mm |
Material | iron |
Nominal Voltage | 48V/51.2V |
Continuously charging/discharging current of bms | 100A 150A 200A |
Communication protocol | CANBUS（default）or RS485 |
Compatible inverter brand | Growatt Victron Deye PYLON SMA and others （＞95%) |
Working temperature | -20℃-70℃ |

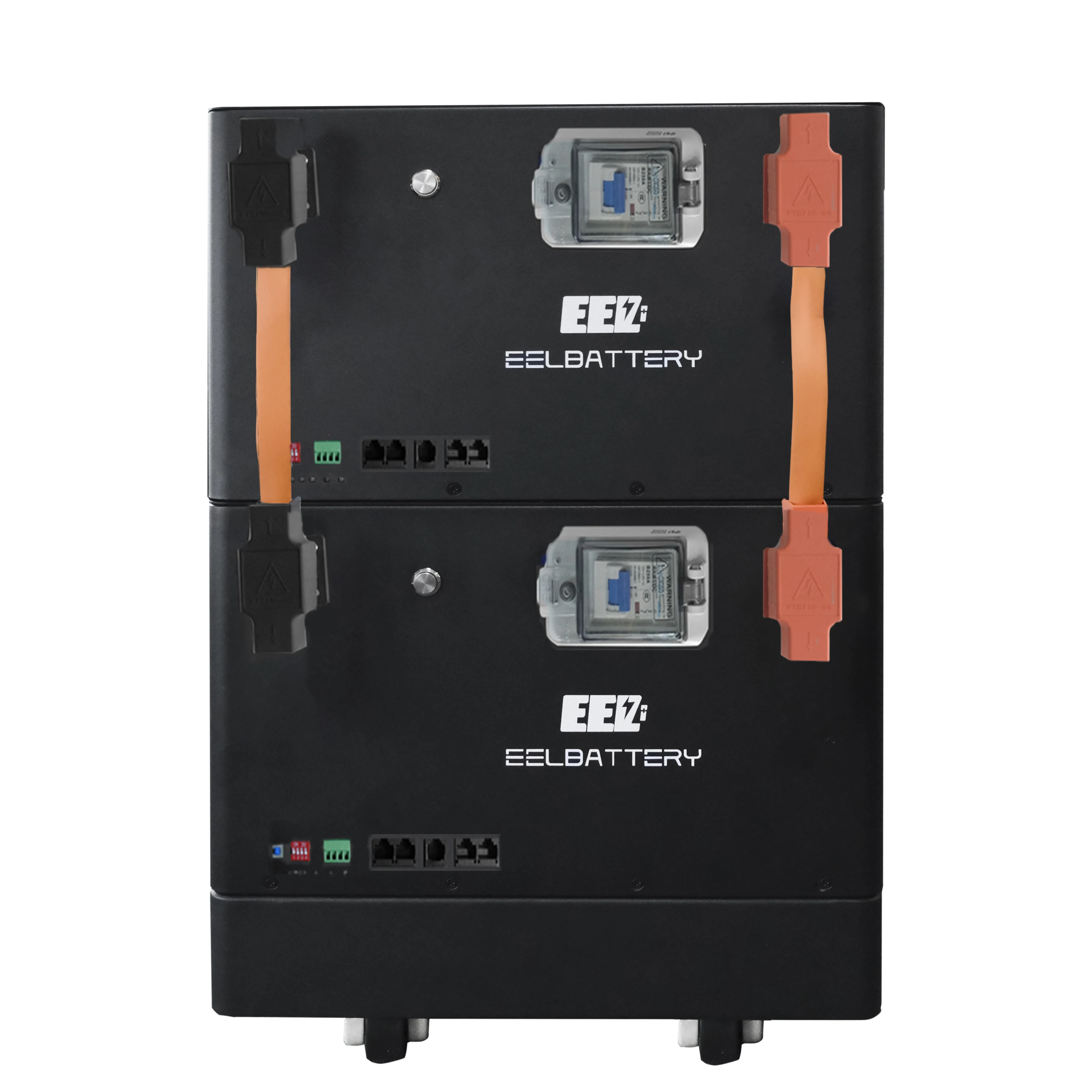

Battery Pack Type | Stackable |
Application | UPS RV Electric Boat Household Solar energy storage system |
OEM/ODM | Support customization |
Warranty | 5 years |

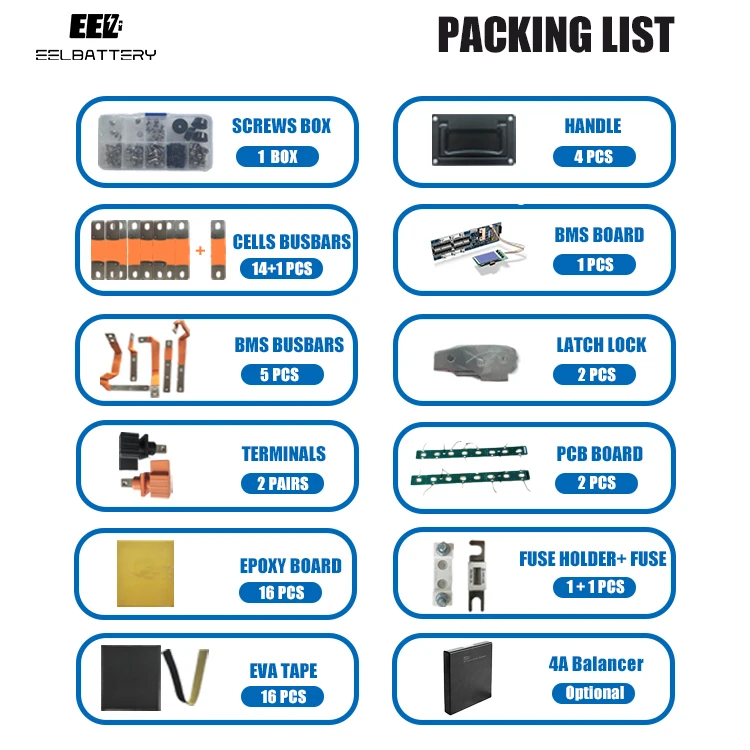

Part List

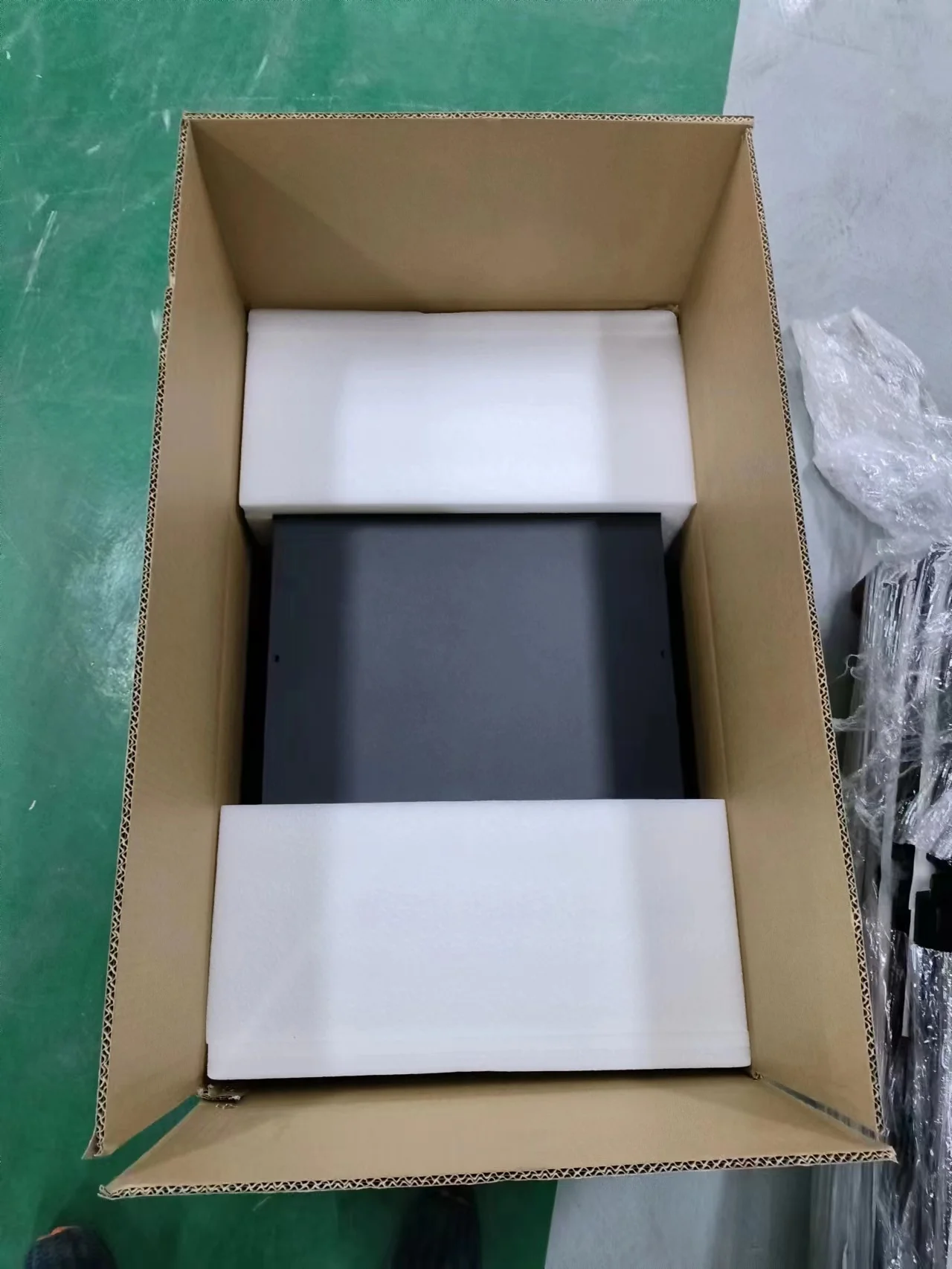

Packing&Shipping
EEL Battery CO.,Ltd is a specialized company which dedicated to R&D,production and marketing of LiFePO4 battery pack,18650 lithium battery pack,ebike battery,LiFePO4 cell,li-ion polymer battery products.After 10years of rapid development,EEL has accumulated core technology and comprehensive solution for power battery products,meanwhile we have obtained the approval and praise of customers from all over the world.Most of our battery models have MSDS,UN38.3,CE,UL1642 certificates.Depending on professional R&D engineers,enthusiastic sales team and reliable after-sales service,our battery products are widely used in the field of off-grid solar power system,solar street light,RV,electric vehicles,golf cart,power tool,backup power,medical device.
Our goal is to provide competitive,safe and superior battery products for customers,we also pay attention to environmental protection and take social responsibility, encourage people to use green new energy.Believe in us,EEL will be your trustworthy partner in battery business!
Certificates
Customer Feedbacks
FAQ
Q：What BMS is in the 48V battery box?
A: We use the 150/200A seplos 10E BMS in the box with CAN/RS485 Communications.
Q: Can I only take the battery box without BMS?
A: We don't recommend this, because the BMS is tailored for our battery case, not using
our BMS will cause a lot of trouble.
our BMS will cause a lot of trouble.
Q: If I want to build a 48V server rack system, what should I choose?
A: It depends on how many capacity you want, our battery box can be stacked up to 15 sets.
Q: Can I buy the completed 48V server rack battery?
A: Sure, we also provide a fully assembled battery kit, cells model are optional, if you want it, please send a message to us.
Q: How to set up the system?
A: The battery system can be connected to PC, and you can set and manage the whole system on your computer.
Q:I have my own logo, can I print my logo in the battery pack?
A: Yes, we accept customizing the logo, but need a large amount(>50 sets), if you like a sample, welcome to contact us.
Q:Does the 48V kit include batteries?
A: Not included, see above for parts list.
Q: What should I do if I don't know how to install the battery box after receiving it?
A: This kit is particularly easy to install and we have a detailed installation video as well as instructions. You can also contact us anytime.
Q:Why has my logistics information not been updated?
A:The goods will be shipped by UPS or a local shipping company, but due to the tedious process of shipping across borders, the logistics information will not be updated for a while until the goods arrive in your country. It is only when the goods are picked up by the local carrier and ready for dispatch that the logistics status will be updated accordingly.
