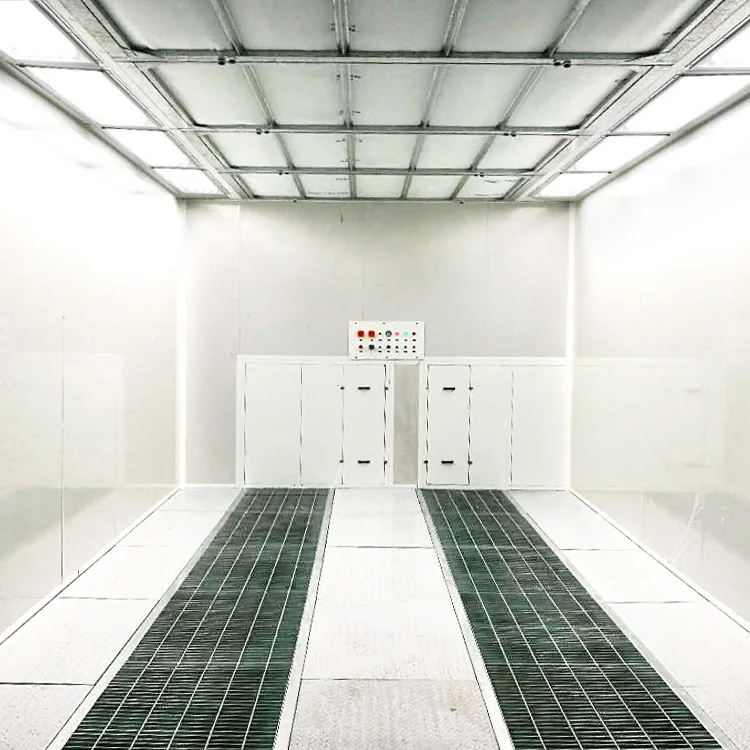

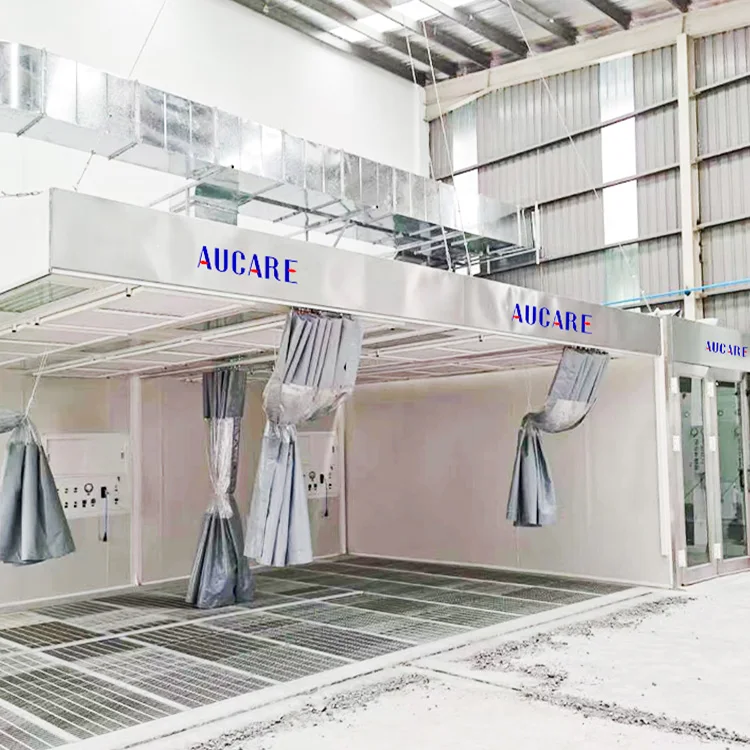

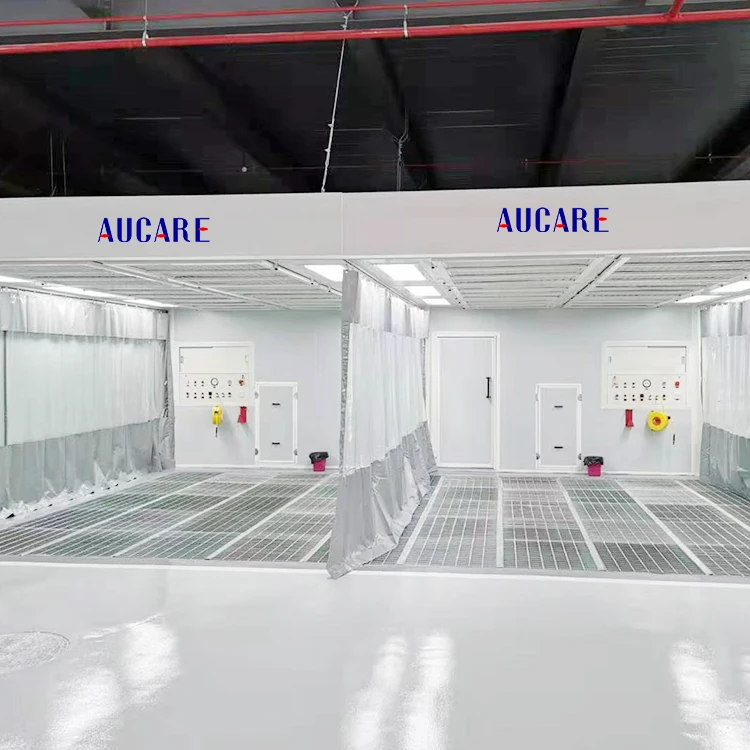

Low noise low vibration heat and moisture resistance Pre painting room Auto Painting and Car Painting Booth
- Category: >>>
- Supplier: Guangzhou Aucare Automobile Technology Co. Ltd.
Share on (1601027785000):
Product Overview
Description
Product Model: 6300A (Full downdraft)
Technical Parameters
RATED POWER | 10KW |
BOOTH DIMENSIONS | Internal：6300 X 3470 X 2800mm |
External：7610 X 3580 X 3610mm | |
BASEMENT | Height：350mm Filter area：21.8m2 |
Size：2000 X 1030 X 320mm | |
Carrying：650kg /wheel，galvanized steel grates | |
PLENUM HEIGHT | 400mm，Suspended ceiling |
WALL PANEL | 50mm dual-skin insulated panels filled with heat resistant rock wool |
PVC SOFT CURTAIN DOOR | Front entry/exit Size：3580 X 2700mm，Side：3650 X 2700mm |
CEILING LIGHTING | LED lamp，protection grade IP55，Brightness > 800Lux |
FILTRATION SYSTEM | Pre-filtration：G3 grade pre-filter plate filter |
Ceiling filter：F5 class filter cotton, Model SP-600G | |
Floor filter：Fiberglass paint arrestor filters | |
EXHAUST SYSTEM | Exhaust fan Power and motor：5.5KW, 970rpm, 380V, 50Hz, CE |
Intake fan：18,000m3/h, 600pa，air speed：+/- 0.23m/s | |
DUCTWORK | Straight ducting：3 pieces，Reducer/90°elbow / 45°elbow/ electric damper：1 piece |
ELECTRICAL AND TOOL CABINETS | Compressed air interfaces, electrical control and storage cabinets |

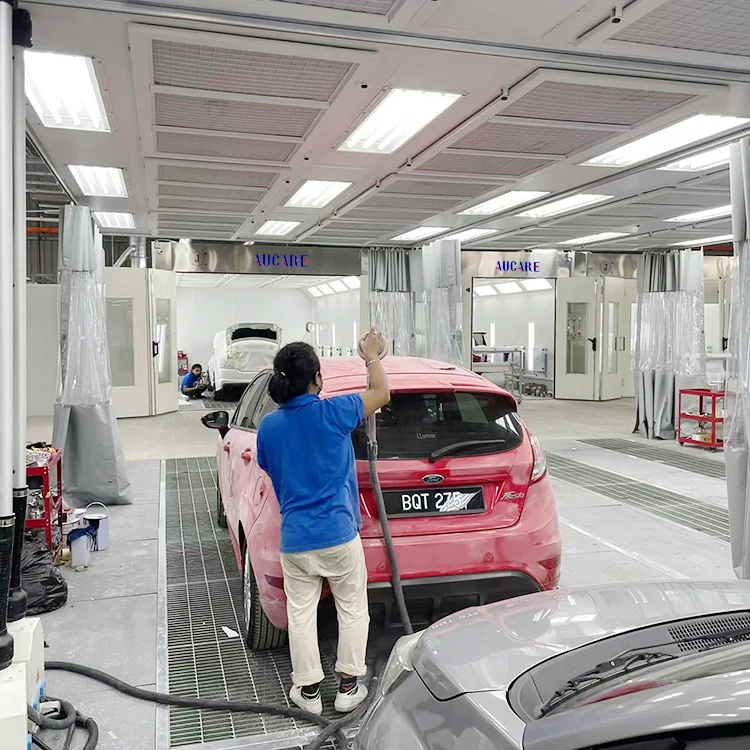

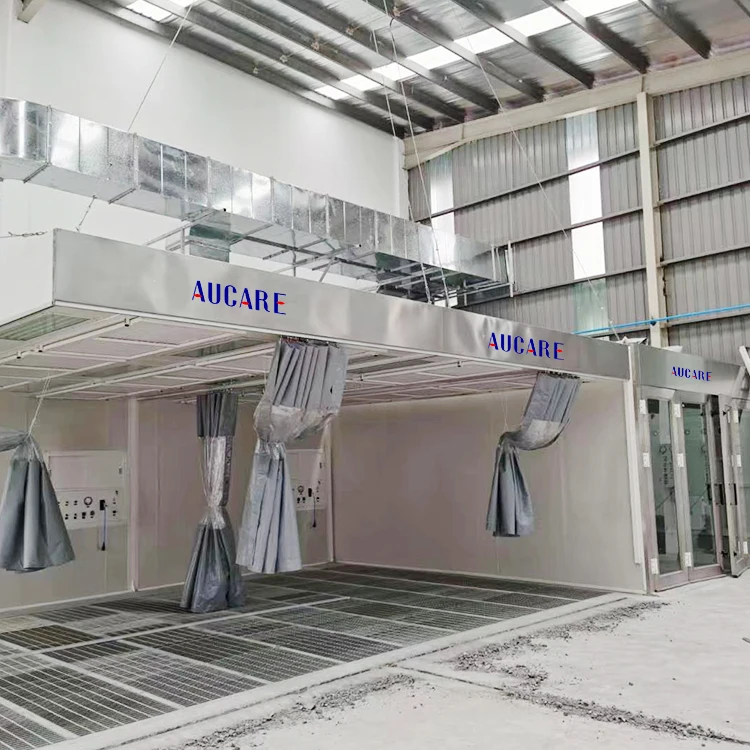

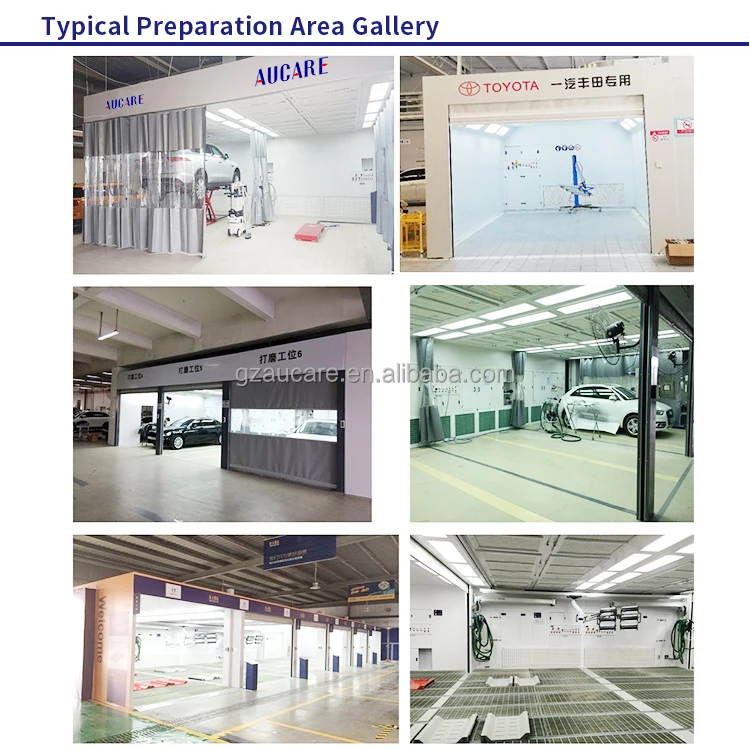

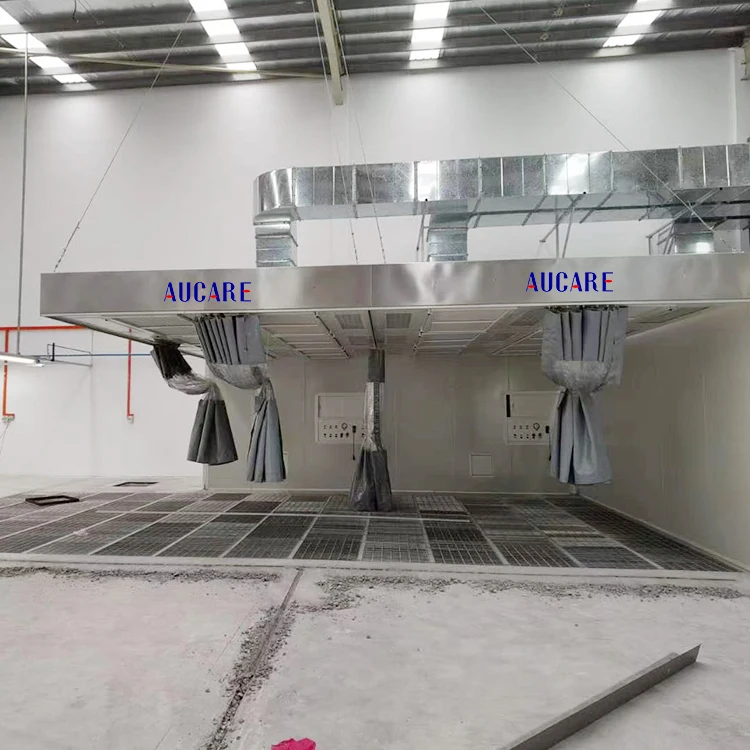

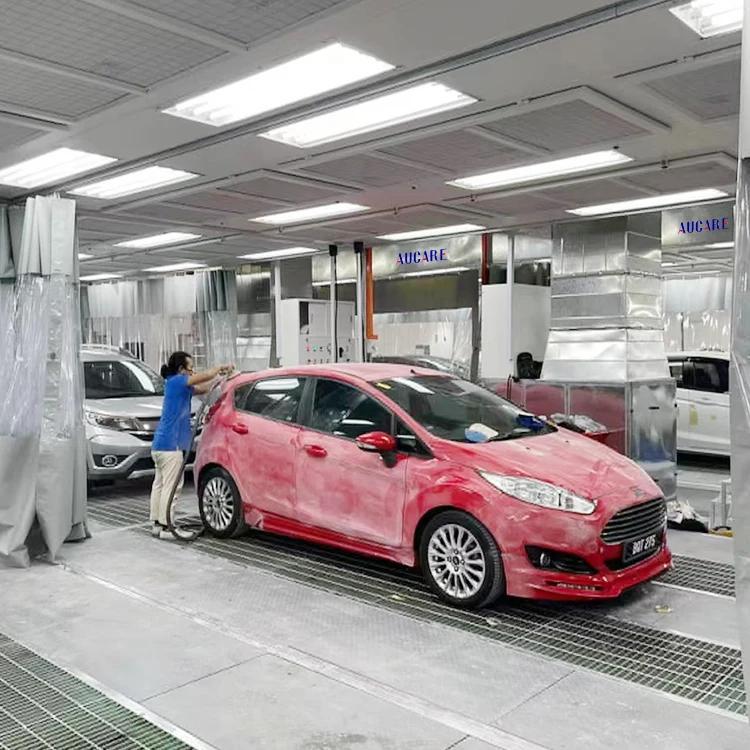

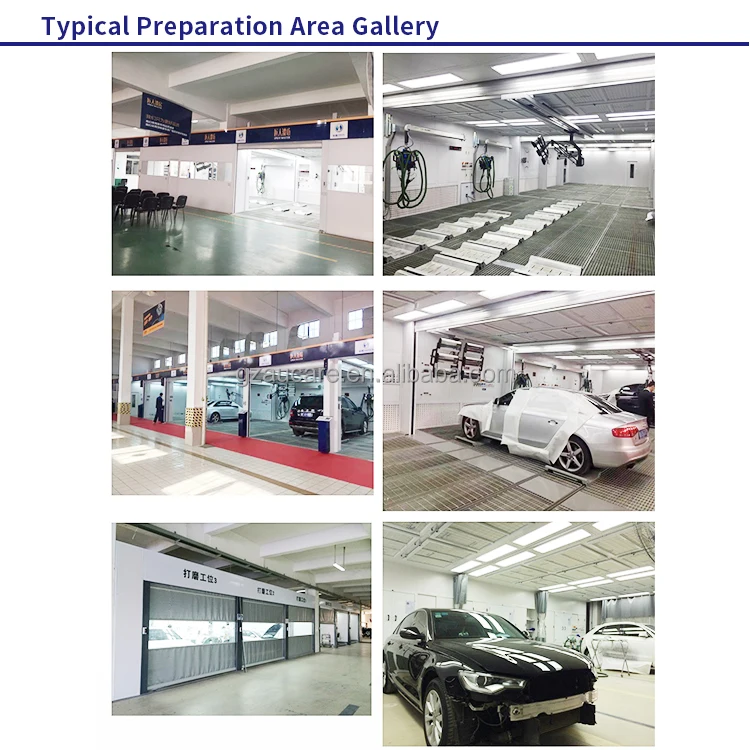

Customer cases
