Product Overview

Description



Products Description




A noise barrier (also called a soundwall, sound berm, sound barrier, or acoustical barrier) is an Sound insulation and noise reductionexterior structure designed to protect inhabitants of sensitive land use areas from noise pollution.


Product Size


Parts list
Items
Product description
Noise barrier panel
Metal material
Galvanized sheet aluminum alloy sheet, color plate
Transparent material
Glass, PC board, acrylic board, etc.
Other material
High strength cement, cement wood chips, glass steel, etc.
Hole pattern
Louver holes; common hole spacing 20*137, 20*182
Micropores; common 3 holes 3 distances, 5holes 2 distances, 2 holes 4 distances
Aperture ratio
Not less than 25%
Common size
500*2000*80(100) mm,500*2000*120 mm,1000*2000*80(100) mm etc.
surface concave groove
Can be customized according to drawings or customer requirements
Surface treatment
Electrostatic powder coating, fluorocarbon spraying
Color
Green 6029, blue5017, gray7042, white 9010, etc. color can be selected according to the national standard color card
H shape post
Material
Q235B
Common size
100*100*6*8 125*125*6.5*9 150*150*7*10 175*175*735*11 etc.
Common height
2m-6m up to12m
Flange
Size tolerance less than 2mm, thickness tolerance less than 0.4mm
Long hole:22*30 24*30 26*40 28*40; round hole:22 24 26 28 30 35
Surface treatment
Hot dip galvanizing-electrostatic powder coating, fluorocarbon spraying
Color
Green 6029, blue5017, gray7042, white 9010, etc. color can be selected according to the national standard color card
Noise absorb material
Glass wool, rock wool, water-repellent, cloth, acoustic felt, foam aluminum fiber etc.


Composition structure




The noise barrier Screen body is mainly composed of shutter metal galvanized sheet, fiberglass mesh, and stone wool

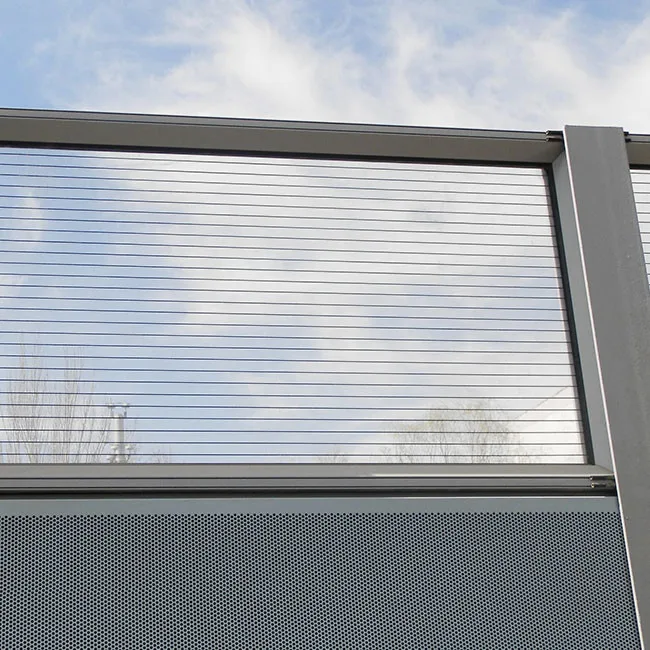

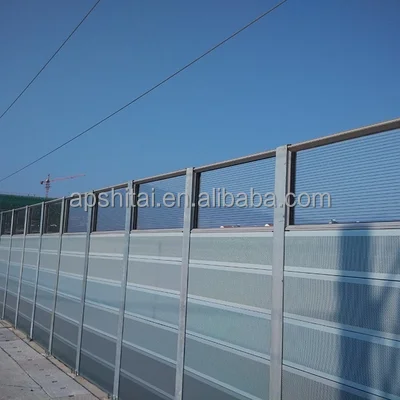

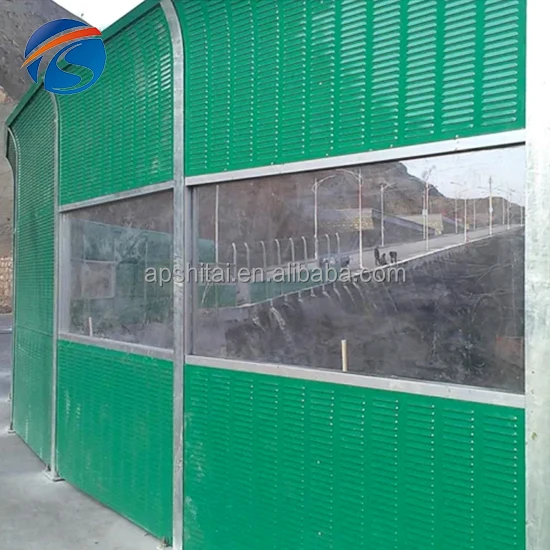

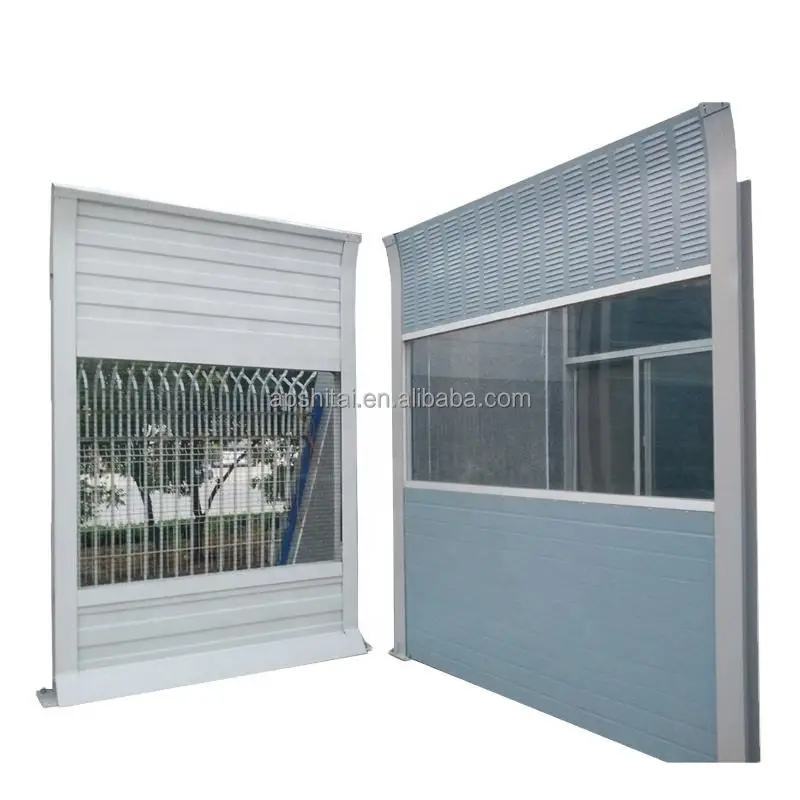

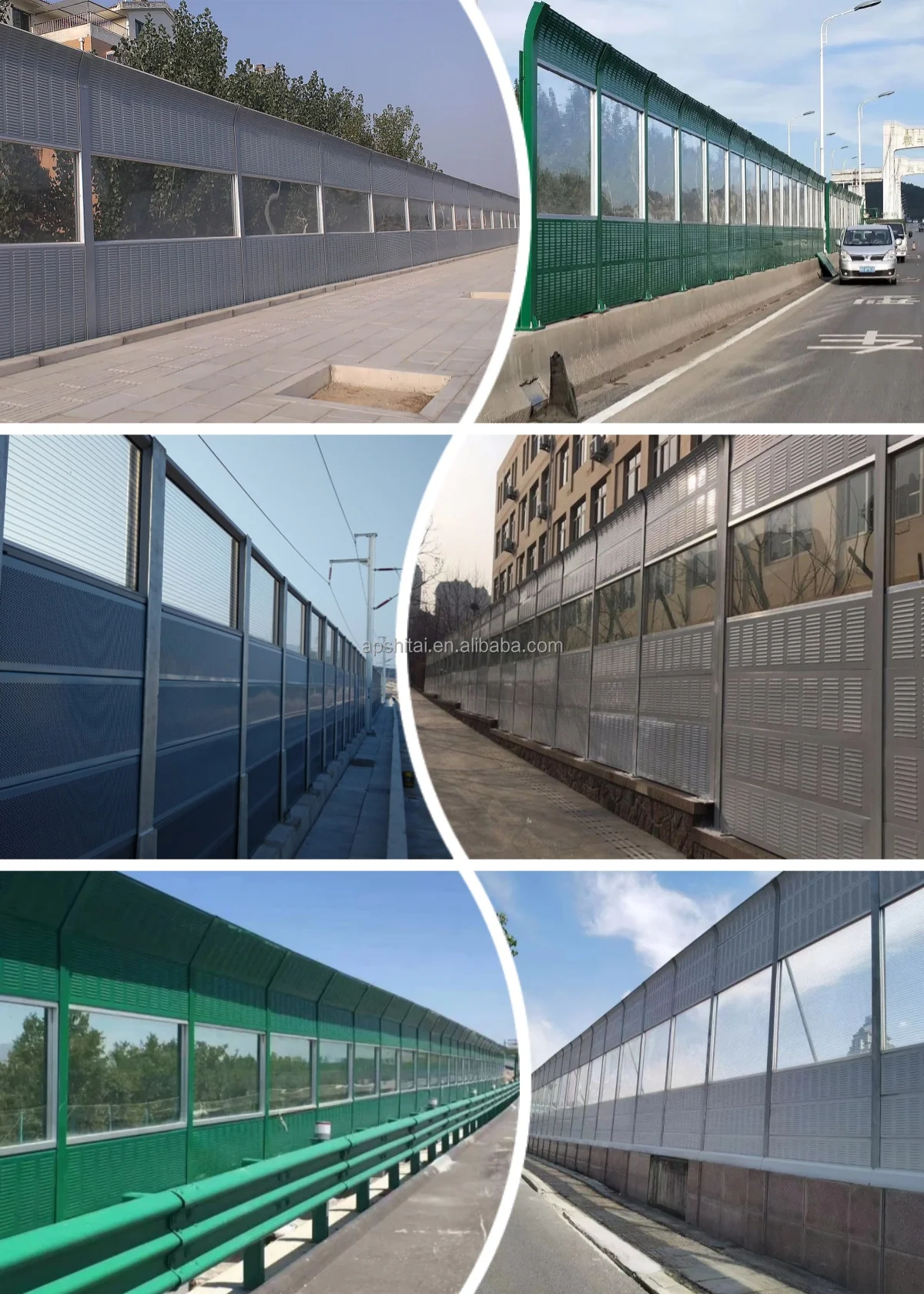

Details Images

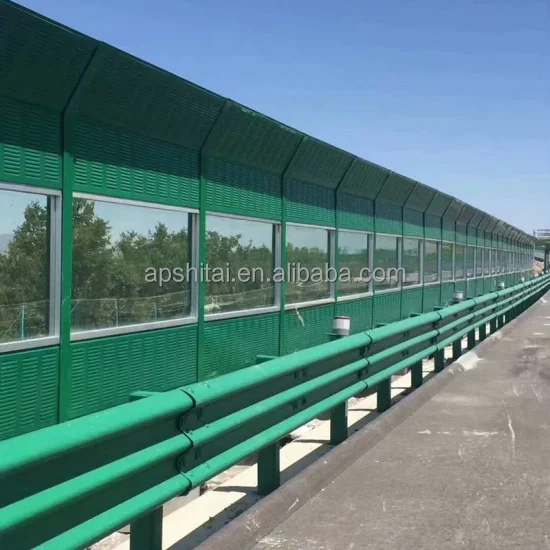

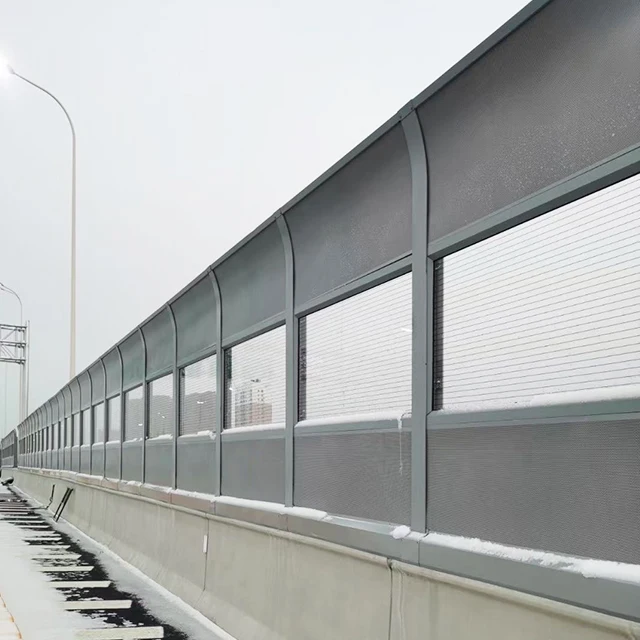

Application


Noise barrier is mainly used for sound insulation and noise reduction in transportation and municipal facilities such as expressways, elevated composite roads, urban light rail and subways, and to control the impact of traffic noise on nearby urban areas. It can also be used for sound insulation and noise reduction in factories and other noise sources.




Packaging & Shipping

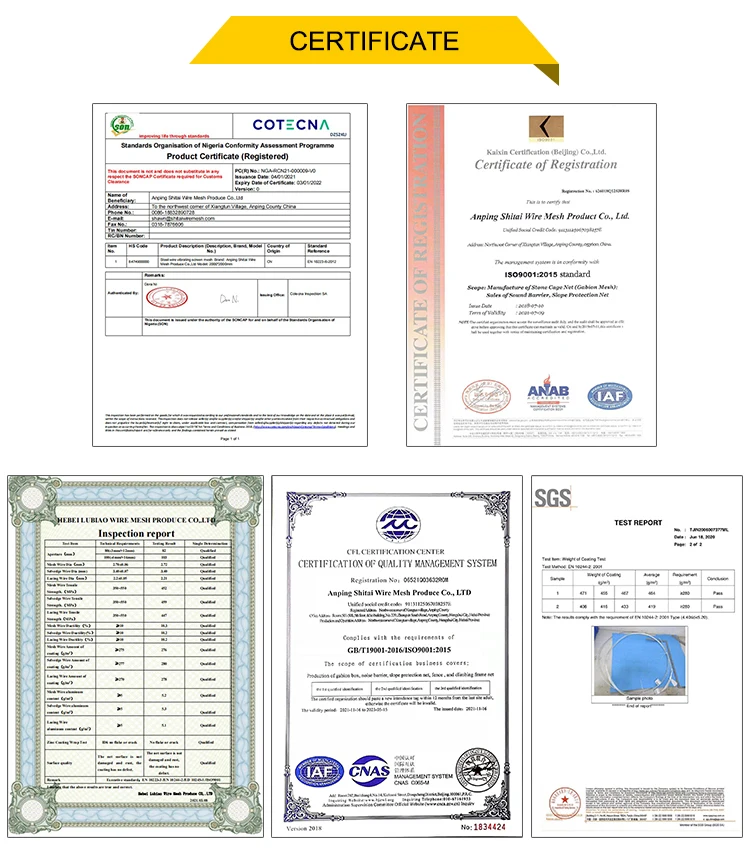

Enterprise Qualification




FAQ


1. who are we?
We are based in Hebei, China, start from 2013,sell to Domestic Market(30.00%),Mid East(13.00%),South Asia(10.00%),Africa(8.00%),Southeast Asia(7.00%),Southern Europe(6.00%),North America(6.00%),Northern Europe(5.00%),Eastern Europe(5.00%),Central America(3.00%),Oceania(3.00%),Western Europe(2.00%),South America(1.00%),Eastern Asia(1.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
gabion basket,welded gabion,vibrating screen mesh,defensive barrier,noise barrier

4. why should you buy from us not from other suppliers?
Anping Shitai Wire Mesh Produce Co.,Ltd. is a professional wire mesh enterprise integrating production and sales. We mainly produce gabion basket, noise barrier, defensive barrier, vibrating screen mesh products, with super high quality and rich experience.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
