Product Overview
Description
Product Description
IP POE 12X SDI IP PTZ Camera HDMI Camera for Broadcasting Video Conferencing Solution from EZOLEN
1080P Full HD | Apply Panasonic's 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum 1920 x 1080 high resolution and achieve quality image. |
Ultra-high Frame Rate | The output frame rate up to 60fps in 1080P. |
AAC Audio Encoding | Support AAC audio encoding, better sound quality and smaller bandwidth. |
Local Storage | Support local storage module, directly recording to local USB flash disk without NVR. |
Low-light | High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce the noise, even under low illumination conditions, picture can still keep clean and clear. |
Abundant & Perfect Interface | Support HDMI output, 3G-SDI interface, effective transmission distance up to 150 meters(under 1080p30). HDMI, SDI, Network can output at the same time. It also support CVBS interface . |
Remote Control | Using RS232/485 interface, all the parameters of the camera can be remote controlled bythe high-speed communications. |
Model No. | HD691 | HD690 | HD693 |
Lens | 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8 | 20x, f4.42mm ~ 88.5mm, F1.8 ~ F2.8 | 30x, f4.42mm ~ 132.6mm, F1.8 ~ F2.8 |
Horizontal Angle of View | 72.5° ~ 6.9° | 54.7° ~ 3.36° | 65.7° ~ 2.34° |
Vertical Angle of View | 44.8° ~ 3.9° | 34.1° ~ 1.89° | 34.1° ~ 1.28° |
Camera Optical Lens Parameter | ||
Sensor | 1/2.8'', CMOS | |
Effective Pixels | Effective Pixel: 2.07M | |
Resolution | HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25, SD: 640x480p/240 480i, 576i | |
Camera Optical Functions | ||
Focus | Auto, Manual | |
Min Illumination | 0.5 Lux @ (F1.8, AGC ON) | |
Shutter Speed | 1/30s ~ 1/10000s | |
AGC | Auto, Manual | |
White Balance | Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual | |
Exposure | Auto, Manual, Shutter Priority, Iris Priority | |
SN Ratio | ≥55dB | |
DNR | 2D/3D | |
BLC | Yes | |

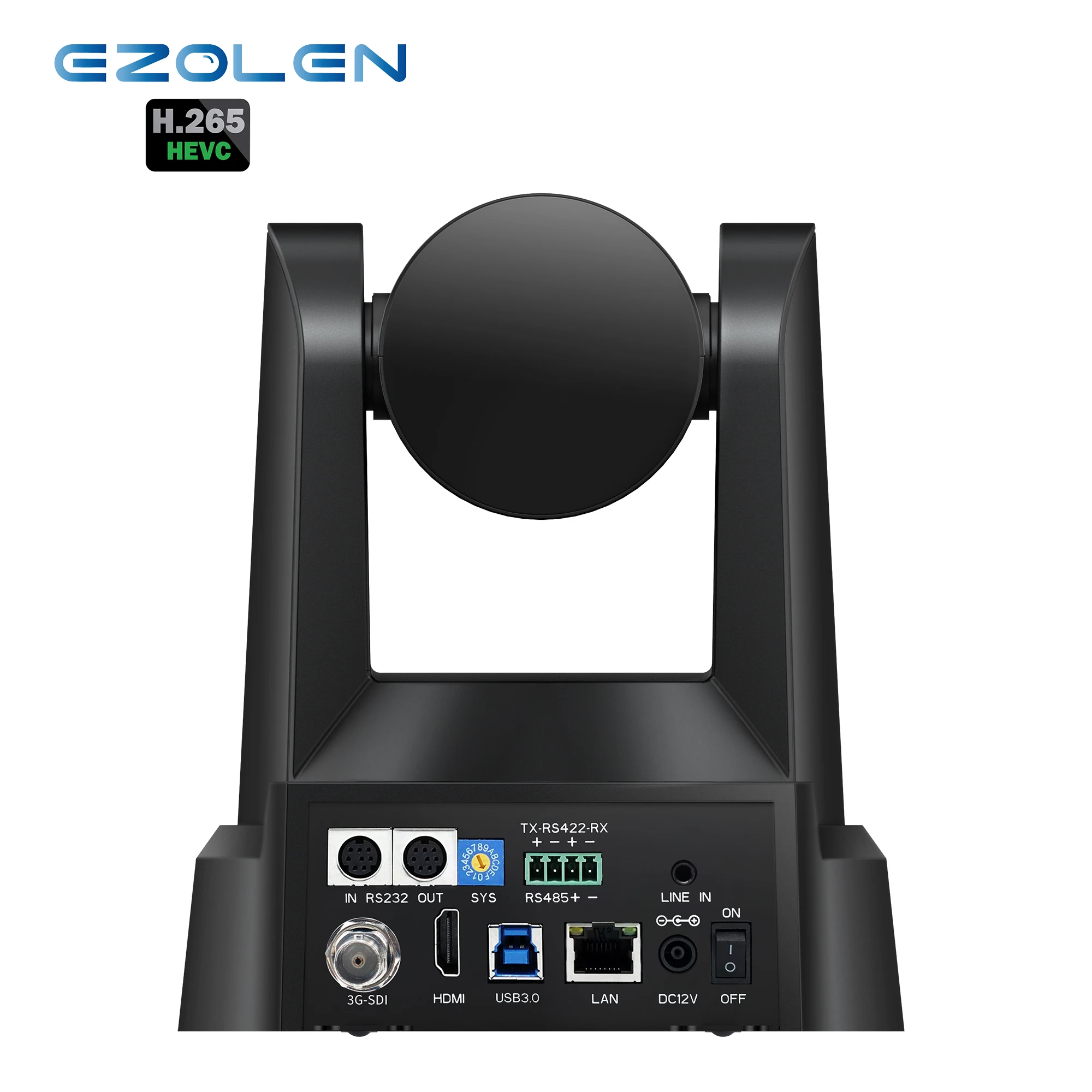

Interface | ||
HD Output | 1xHDMI: Version 1.3 | |
Video Interface | 1x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard | |
SD Output | 1xCVBS: 3.5mm mini jack, 1Vp-p, 75Ω | |
Network Interface | 1xRJ45: 10M/100M Ethernet Interface | |
Audio Interface | 1-ch: 3.5mm Audio Interface, Line In | |
USB | 1xUSB2.0: Type A female jack | |
Communication Interface | 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P | |
1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only | ||
1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P | ||
IPC Features | ||
Video Compression | H.265/H.264/MJEPG | |
Video Stream | Main Stream, Sub Stream | |
Main Stream Resolution | 1920x1080, 1280x720, 1024x576 | |
Sub Stream Resolution | 720x576, 720x480, 320x240 | |
Video Bit Rate (NDI®|HX) | 32Kbps ~ 20480Kbps | |
Video Bit Rate | 32Kbps ~ 20480Kbps | |
Bit Rate Type | Variable Rate, Fixed Rate | |
Frame Rate | 50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps | |
Audio Compression | AAC | |
Audio Bit Rate | 96Kbps, 128Kbps, 256Kbps | |
Support protocols | TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc. | |
Installation Process
Applications
Certifications
Company Information
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-3 days, mass production time needs 5-10 days for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will supply replacement or repair services according to real situation.
