Single phase energy meter calibrator GF112B GFUVE , AC 1mA 120A/300V, 65Hz, lab field portable KWH Watt hour tester
- Category: >>>
- Supplier: Beijing GFUVE Electronics Co. Ltd.
Share on (1601028080708):
Product Overview
Description
Product Description

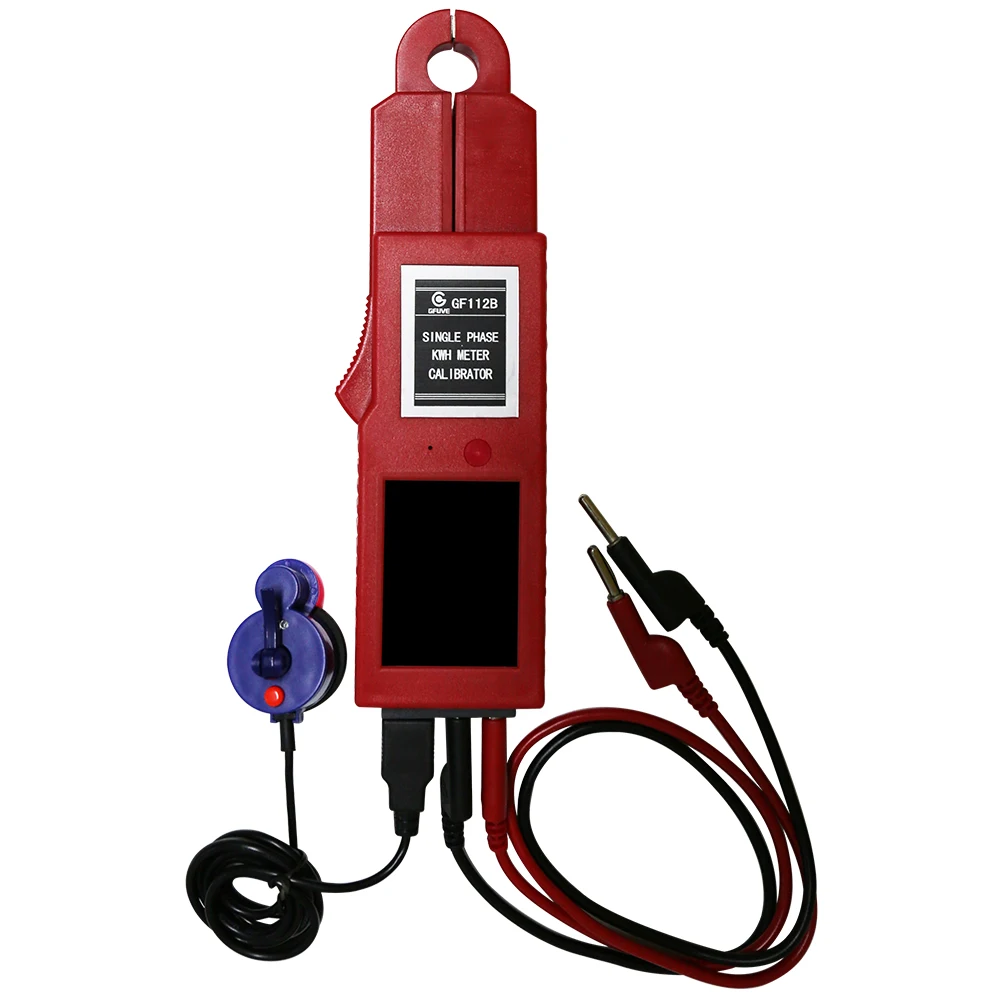

GF112B Single Phase kWh Meter Calibrator is suitable to test various types single phase kWh meters error on site and also can be used to test alternating current parameters - U, I, P, Q, S ,F, E etc.
Specification
item | value |
Warranty | 3 years |
Customized support | OEM, ODM, OBM, Software reengineering |
Place of Origin | Beijing, China |
Brand Name | GFuve |
Model Number | GF112B |
Power | Electronic |
Accuracy class | 0.2% |
Power supply | AAA type, Li rechargeable battery, 1800mAh, 3.6V |
warm-up | <5 min |
Frequency | 45Hz~65Hz |
Input level | 5V |
power measurement | active power test |
Energy pulse output constant | 25000 |
Energy pulse input constant | 25000 |
Dimension | 215x60x30 |
Display | 2.8 inch touch TFT color LCD |

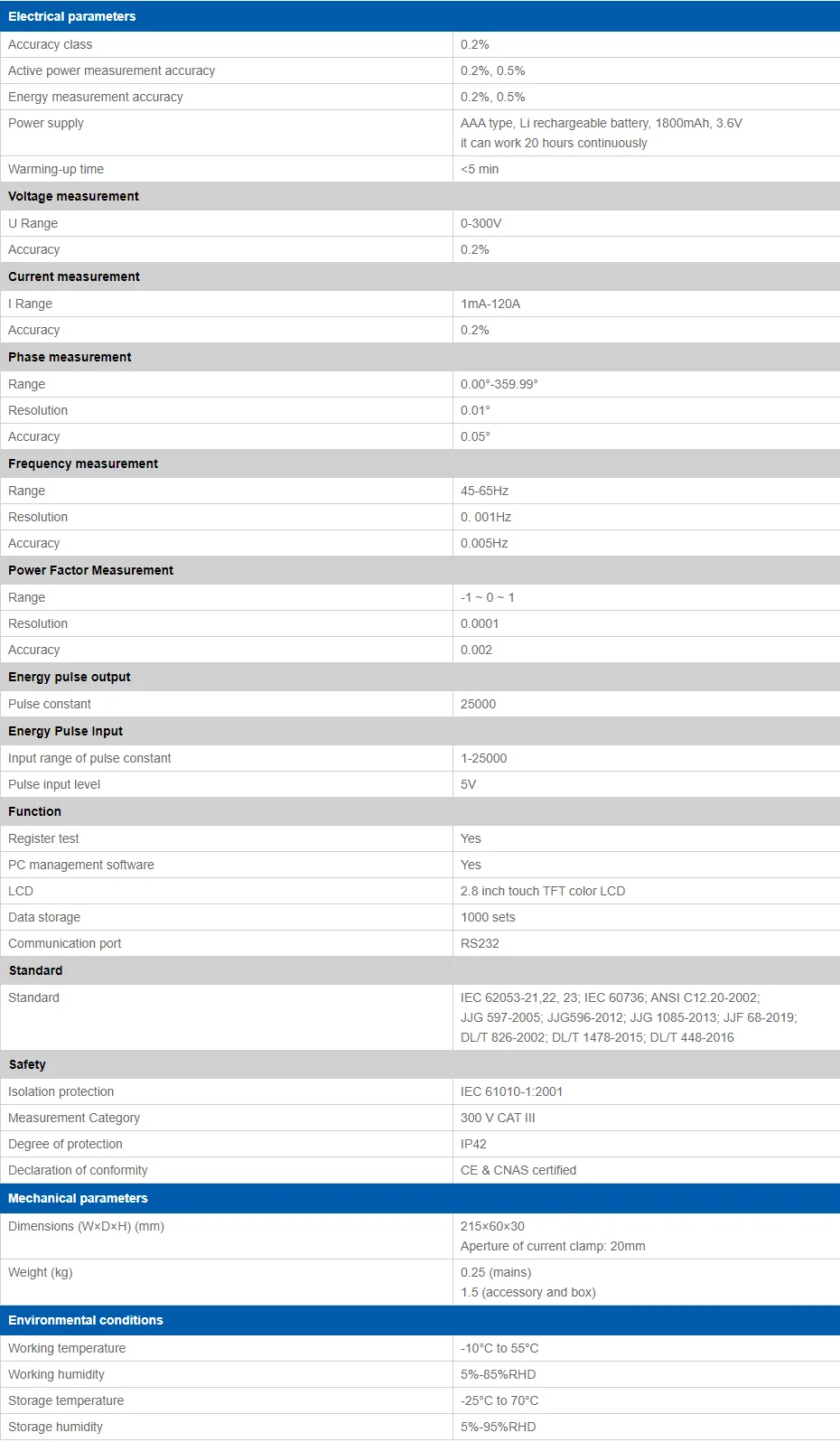

Technical parameters
Features & Applications
FEATURES
■ Easy and user friendly operation;
■ Micro-multifunction optical sampler;
■ Unique long-term and temperature stability;
■ One screen displays all the measured parameters;
■ Displayed by colorful and 2.8 inch touch TFT LCD;
■ The AAA Li-battery can work 20 hours continuously;
■ Oscilloscope function display current & current wave;
■ The meter and current clamp have Integration design;
■ Automatically record and save 1000 groups calibrate data;
■ 16 bit high accuracy AD switch 32 bit ARM processor core;
■ Manually/automatically test electric single phase kWh meters;
■ Manually/automatically test inductive single phase kWh meters;
■ Testing parameters: active power, phase angle of voltage/current and frequency etc;
■ With wide voltage measuring range 0 -300V and current measuring range 0.001-120A;
■ The current clamp has automatic compensation and calibration function with accuracy class 0.2%;
■ Micro-multifunction optical sampler;
■ Unique long-term and temperature stability;
■ One screen displays all the measured parameters;
■ Displayed by colorful and 2.8 inch touch TFT LCD;
■ The AAA Li-battery can work 20 hours continuously;
■ Oscilloscope function display current & current wave;
■ The meter and current clamp have Integration design;
■ Automatically record and save 1000 groups calibrate data;
■ 16 bit high accuracy AD switch 32 bit ARM processor core;
■ Manually/automatically test electric single phase kWh meters;
■ Manually/automatically test inductive single phase kWh meters;
■ Testing parameters: active power, phase angle of voltage/current and frequency etc;
■ With wide voltage measuring range 0 -300V and current measuring range 0.001-120A;
■ The current clamp has automatic compensation and calibration function with accuracy class 0.2%;
APPLICATION
■ Metrological service center;
■ Power engineering company;
■ Distribution power corporation;
■ Electricity power bureau & power company;
■ National Metrology and testing department;
■ Electrical Department of property company;
■ Electricity meter quality supervision department;
■ Electrical Department of industrial and mining enterprises;
■ Power engineering company;
■ Distribution power corporation;
■ Electricity power bureau & power company;
■ National Metrology and testing department;
■ Electrical Department of property company;
■ Electricity meter quality supervision department;
■ Electrical Department of industrial and mining enterprises;
Packing & Delivery
Service
Tel: +86 10 85583577, +86 10 85782698
Phone: +86 18901232181
Email: sales@gfuve.com
Tech Support: support@gfuve.com
Website: www.gfuve.com
Phone: +86 18901232181
Email: sales@gfuve.com
Tech Support: support@gfuve.com
Website: www.gfuve.com
GF112B Single Phase kWh Meter Calibrator is suitable to test various types single phase kWh meters error on site and also can be used to test alternating current parameters - U, I, P, Q, S ,F, E etc.
Company Profile
Beijing GFUVE Electronics Co., Ltd. was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces high voltage ammeter recorder, IEC61850 test suite software, energy meter test equipment, reference standard meter, phantom load power source, relay test set, CT PT analyzer, transformer test equipment, circuit breaker tester, High voltage test set, electrical calibrator, power analyzer and intelligent digital meter, clamp on ct, transducer, current probe, split core ct, current transformer, voltage transformer and handheld terminal etc.
GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, portable energy meter test equipment and related accessory. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including USA, South America, Middle East, Southeast Asia and Africa.
GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, portable energy meter test equipment and related accessory. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including USA, South America, Middle East, Southeast Asia and Africa.
Enterprise Honor
Quality is the life of enterprise, the development of the enterprise, is an eternal theme. Broad rich across the quality
The quality idea: sculpture, quality win!
Customer service: customer satisfaction as the biggest pursuit!
For many years the quality guideline of broad rich get richer people across wide as the purpose and direction of the work. Work strict ISO9001 international quality management standards and, in the design, production, installation and service implementation process control and standardization management, has formed a complete set of quality system documents, make quality managementsystem get continuous improvement and perfection.
management system covers the product design, production, installation and service of products, is widely across the rich sustainable development of solid foundation and reliable guarantee.
The quality idea: sculpture, quality win!
Customer service: customer satisfaction as the biggest pursuit!
For many years the quality guideline of broad rich get richer people across wide as the purpose and direction of the work. Work strict ISO9001 international quality management standards and, in the design, production, installation and service implementation process control and standardization management, has formed a complete set of quality system documents, make quality managementsystem get continuous improvement and perfection.
