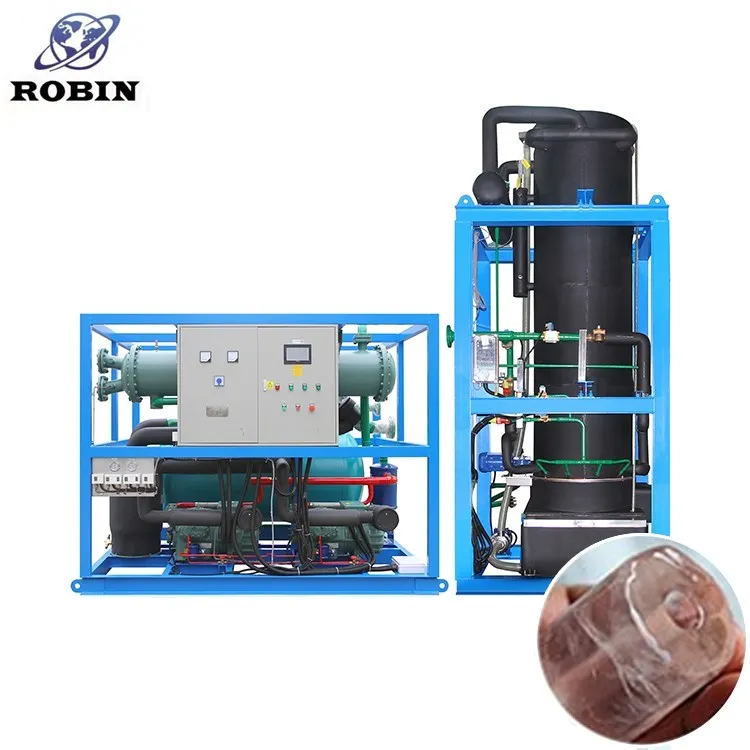

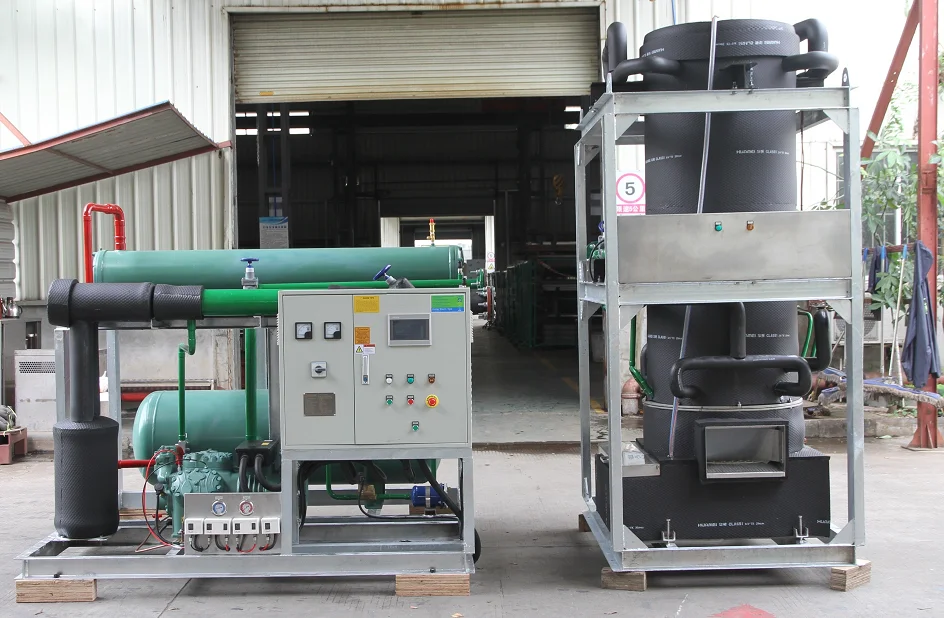

tube ice machine philippines 10 tons per day Bitzer compressor
- Category: >>>
- Supplier: Jinan Robin Machinery Co. Ltd.
Share on (1601028212697):
Product Overview
Description
Product Description

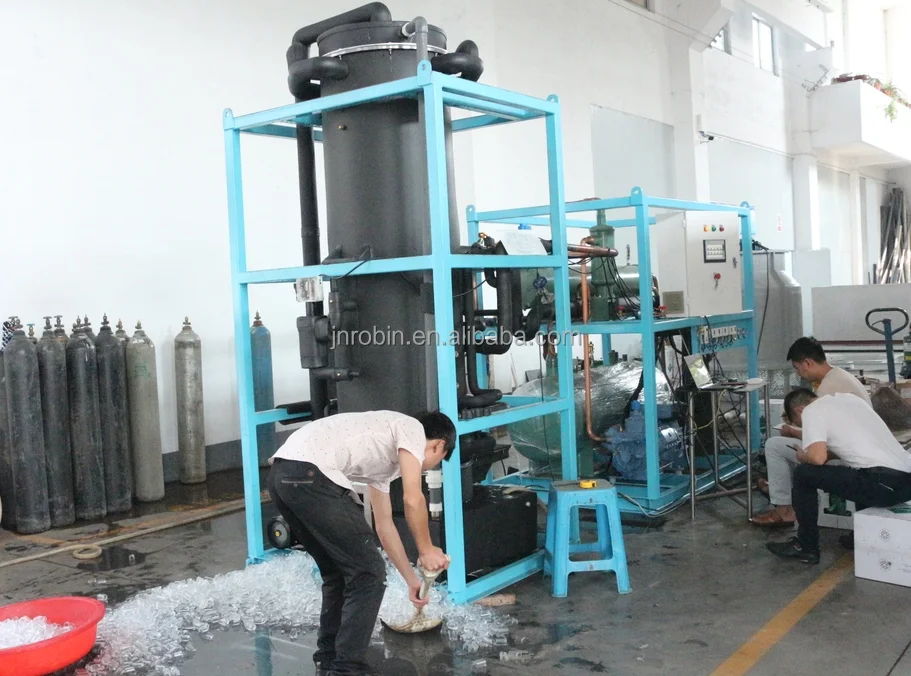

Tube ice machine is a type ice machine, which produces cylinder shape ice with a hole in the middle; it adopts flooded evaporator model, which improves ice making efficiency and capacity. Meanwhile, compact structure design can save installation space. Ice thickness and hollow part size can be adjusted according to customer requirements. Under PLC program control system to work automatically, the machine has high capacity, low-power consumption, and minimal maintenance.
Tube Ice Machine Features
1. The evaporator using high quality stainless steel 304 and other materials processing, meet international health standards;
2. The machine adopts the integrated design, compact structure, easy installation and use;
3. PLC man-machine interface computer module, ice making and ice automatically switches off, save time and effort;
4. All equipment using CAD, 3D simulation assembly, arrangement of equipment parts and accessories, pipe to more
reasonable,compact structure and not crowded, operation, maintenance more human;
5. According to different working condition of customized, non-standard machines can be made.
2. The machine adopts the integrated design, compact structure, easy installation and use;
3. PLC man-machine interface computer module, ice making and ice automatically switches off, save time and effort;
4. All equipment using CAD, 3D simulation assembly, arrangement of equipment parts and accessories, pipe to more
reasonable,compact structure and not crowded, operation, maintenance more human;
5. According to different working condition of customized, non-standard machines can be made.
Parameters of Tube Ice Machine
Capacity | 10 Ton/24hours | |
Refrigerant | R22/R404A | |
Compressor Brand | Bitzer/Bock/Copeland/Franscold | |
Cooling Way | Water Cooling | |
Compressor Power | 46 HP | |
Ice Cutter Motor | 1.1 KW | |
Power of Circulating Water Pump | 1.5 KW | |
Power of Cooling Water Pump | 4 KW | |
Cooling Tower Motor | 1.5 KW | |
Machinery Unit Size(L*W*H) | 2300mm*1600mm*3100mm | |
Machinery Unit Weight | About 2750kg | |
Input Water Temp | 21degrees Celsius | |
Evaporating Temp | 25degrees Celsius | |
Condensing Temp | 40degrees Celsius | |
Supply power | 380V/50Hz(60Hz)/3P; 220V(230V)/50Hz/1P; 220V/60Hz/3P(1P); 415V/50Hz/3P; 440V/60Hz/3P. | |
The above data is subjected to the final design without notice. | ||
Product Details

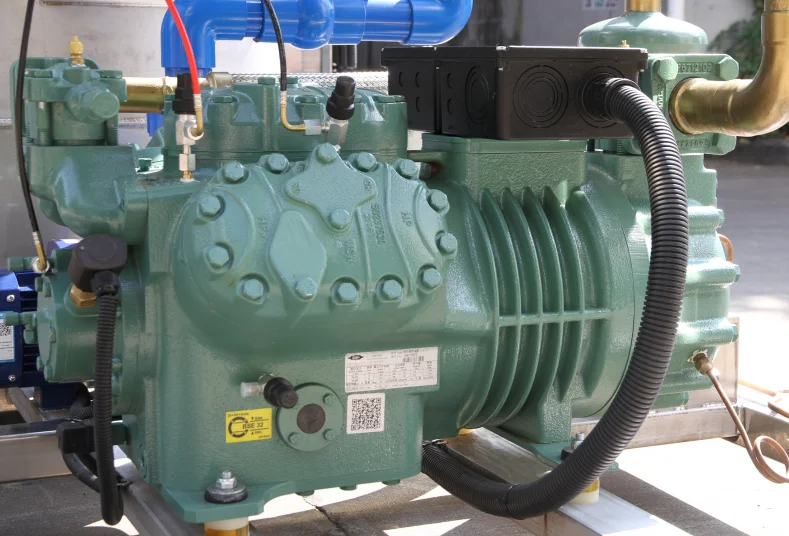

Bitzer Compressor
Bitzer is a world famous brand which has a very good reputation. The quality of its compressor is ensured.
Touch Screen Controller
Touch screen controls the whole system, it is easy to use. And the friendly display mode allows you to monitor the ice machine in a better way.

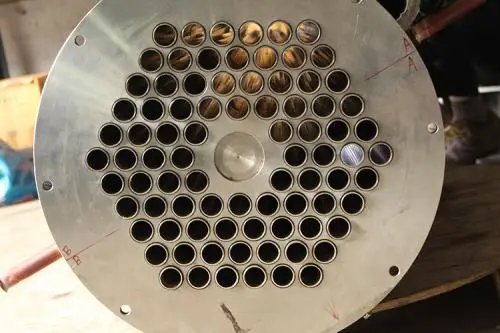

Evaporation barrel
Material using SUS304.PE, aluminum alloy and other materials processing, the use of large rounded corner over set.So that there is no dead Angle of cleaning inside the equipment
Tube Ice Application

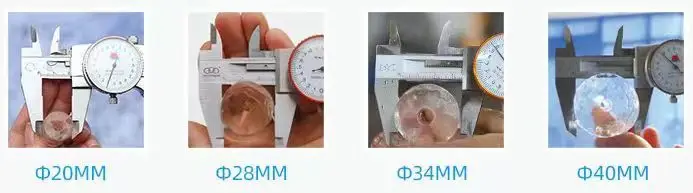

Tube ice is widely used in drink cooling, food processing, fishery, food preservation, supermarket and other areas. There are many different type of tube ice. The ice tube is thick and crystal clear, and it takes a long time to melt or store.
Main brands on Tube Ice Machine

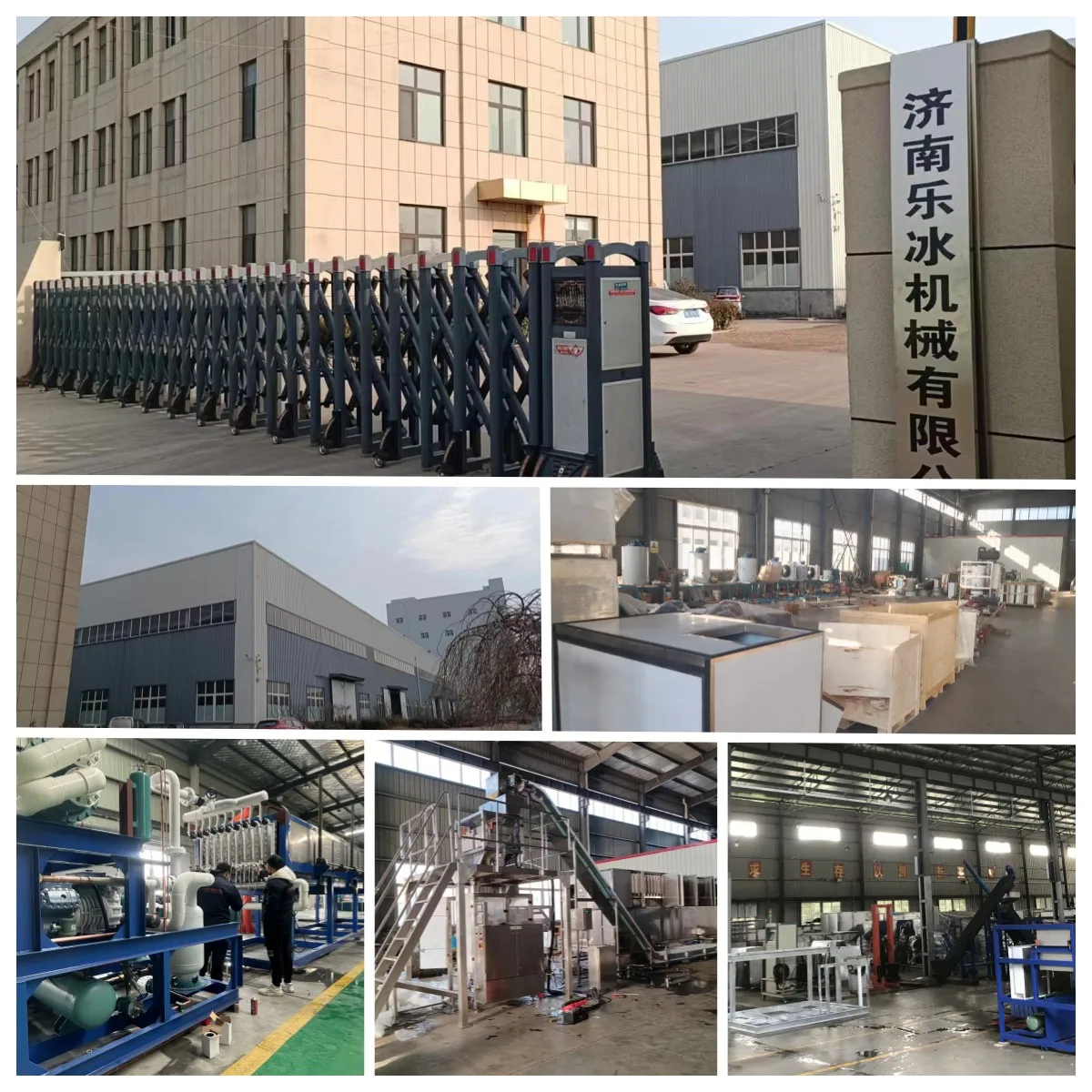

Company Profile
Jinan Robin Machinery CO., LTD is located in Jinan, Shandong, which is an comprehensive enterprise specializing in design,production,technical support and services for ice making machine, such as flake ice machine, seawater machine, block ice machine,tube ice machine, cold room, refrigeration equipment. The large, medium and small sized ice machine can applied to the supermarket, hotel, Marine fishery, aquatic products processing, food processing, chemical industry, concrete cooling and the coalmine cooling etc.
Based on the principle of "Customer First, Credit First", Robin Machinery has established long-term cooperative relationships with many companies. Sincerely welcome friends from all walks of life to visit, inspect and negotiate business.
Based on the principle of "Customer First, Credit First", Robin Machinery has established long-term cooperative relationships with many companies. Sincerely welcome friends from all walks of life to visit, inspect and negotiate business.
Certificate

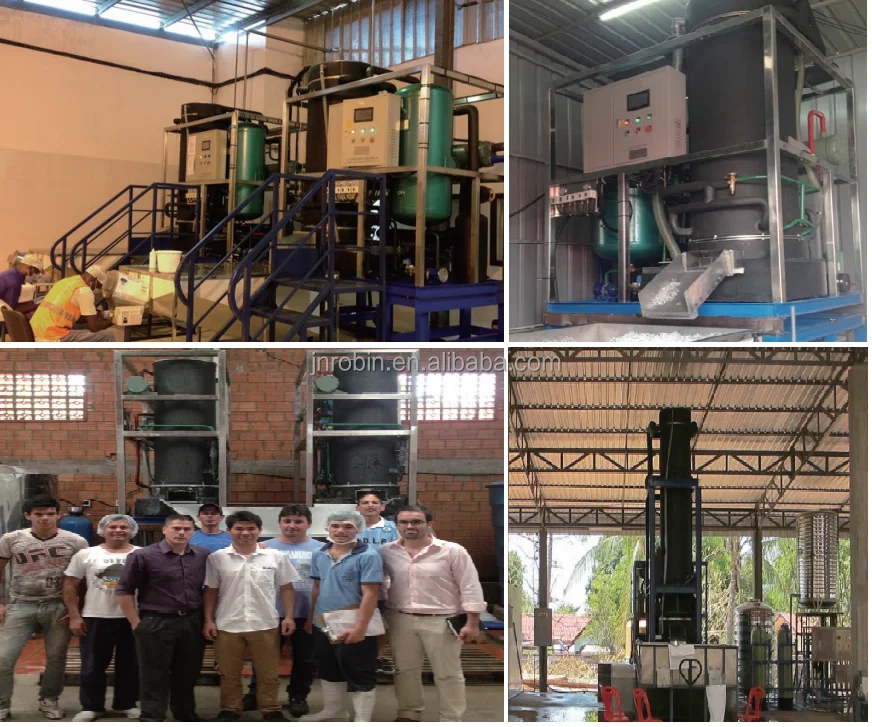

Exhibition and Customer visit
Services
Service before sale
1.One-on-one exclusive customer service staff, 24 hours online.
2.Inquiry, email, message will be replied at first time.
3.Supply professional technical parameters, video picture sharing, project design.
Service on sale
1.Ensure customer payment security.
2.Ensure the customer's price is stable and reasonable.
3.Insist on quality first the production standard, every machine before leave the factory we test it ensure the quality is good.
Service after sale
1.Arrange high-efficiency delivery and safe transport.
2.Supply installation training, direction for use, maintenance instructions, techinical support, all necessary documents you need and oversea service.
1.One-on-one exclusive customer service staff, 24 hours online.
2.Inquiry, email, message will be replied at first time.
3.Supply professional technical parameters, video picture sharing, project design.
Service on sale
1.Ensure customer payment security.
2.Ensure the customer's price is stable and reasonable.
3.Insist on quality first the production standard, every machine before leave the factory we test it ensure the quality is good.
Service after sale
1.Arrange high-efficiency delivery and safe transport.
2.Supply installation training, direction for use, maintenance instructions, techinical support, all necessary documents you need and oversea service.
FAQ
1. Can I customize the machine?
Yes. You can choose output, material, accessories brand, etc.
2. Are the prices on the website accurate?
No. Because the price of the machine is affected by many factors, the price of the website is not very accurate.
3. How do I get a more accurate price?
Tell the salesman your requirements and they will give you a more accurate price.
4. How long will it take to make the machines?
The production time required for machines of different output is different. Peak season requires longer production time.
5. Is there any guarantee for my payment?
In Alibaba, we paid the margin. This is to protect your rights. In addition, After you receive the goods, Alibaba will release your payment to us.
6. How do I receive the goods?
After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods arrive at the port, you can go to the port to pick them up with the bill of lading.
Yes. You can choose output, material, accessories brand, etc.
2. Are the prices on the website accurate?
No. Because the price of the machine is affected by many factors, the price of the website is not very accurate.
3. How do I get a more accurate price?
Tell the salesman your requirements and they will give you a more accurate price.
4. How long will it take to make the machines?
The production time required for machines of different output is different. Peak season requires longer production time.
5. Is there any guarantee for my payment?
In Alibaba, we paid the margin. This is to protect your rights. In addition, After you receive the goods, Alibaba will release your payment to us.
6. How do I receive the goods?
After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods arrive at the port, you can go to the port to pick them up with the bill of lading.
