LH Type Electric Hoist Double Girder Bridge Overhead Cranes
$1,800.00-2,000.00
Top sale Single girder hoist traveling 10 tone swl overhead crane 10t 12m for sale
- Category: >>>
- Supplier: Henan Tiwin Machinery Equipment Co. Ltd.
Share on (1601028213916):
Product Overview
Description
Product Overview

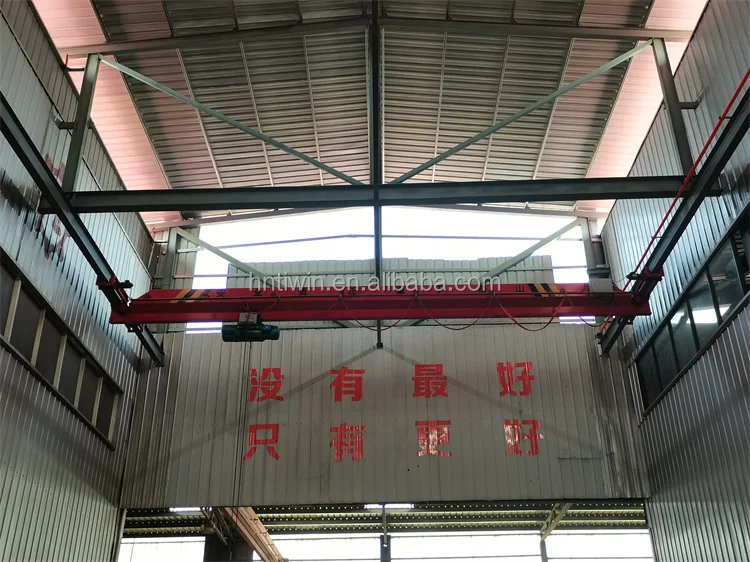

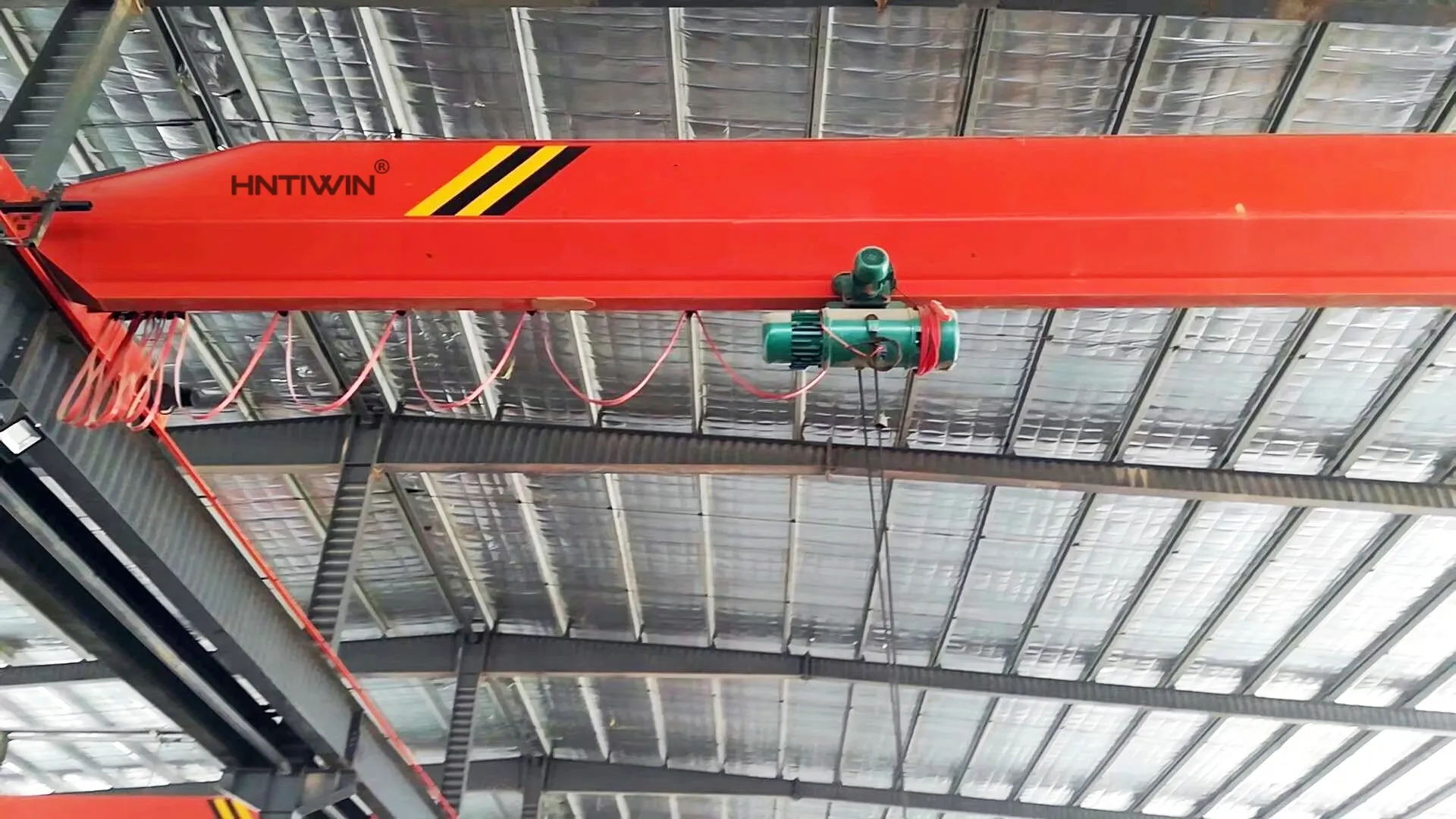

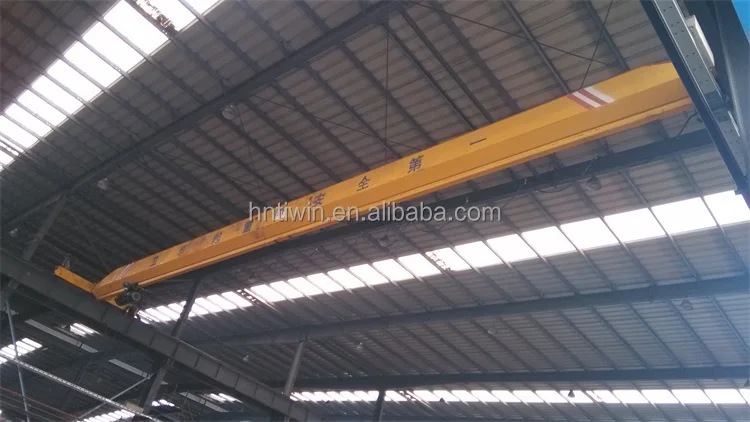

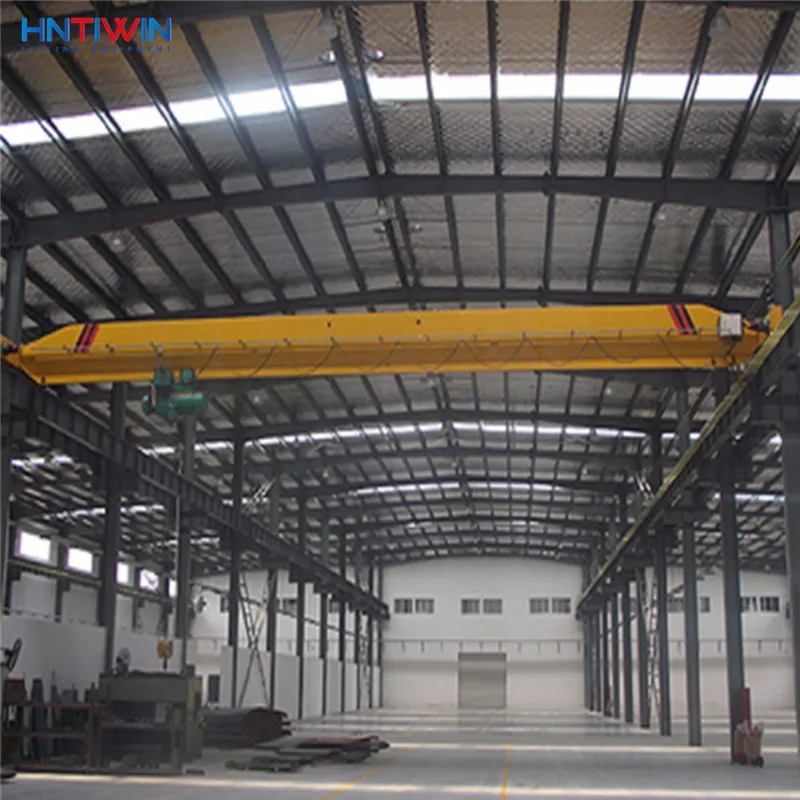

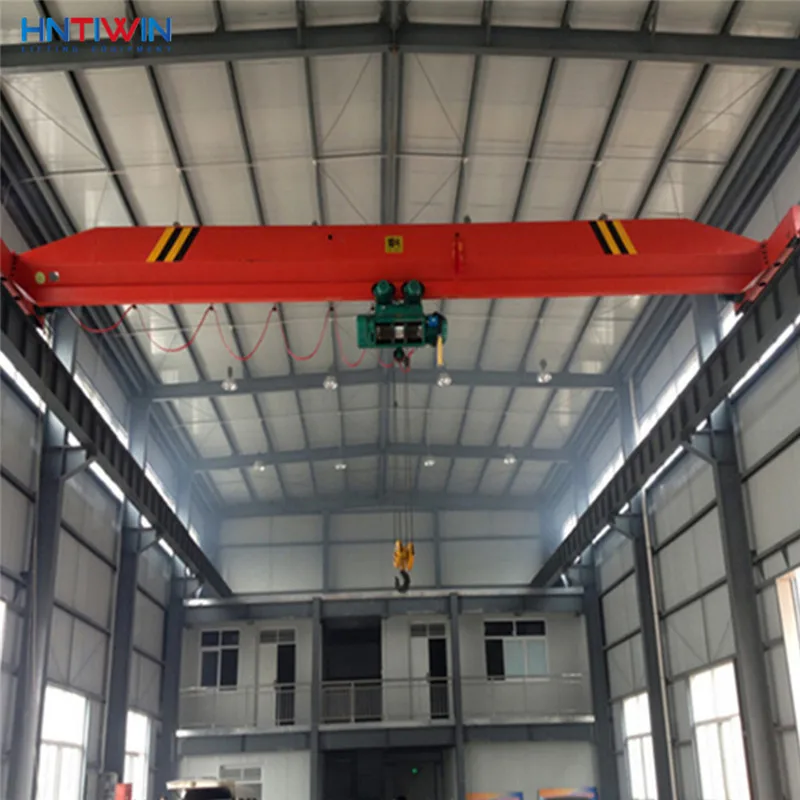

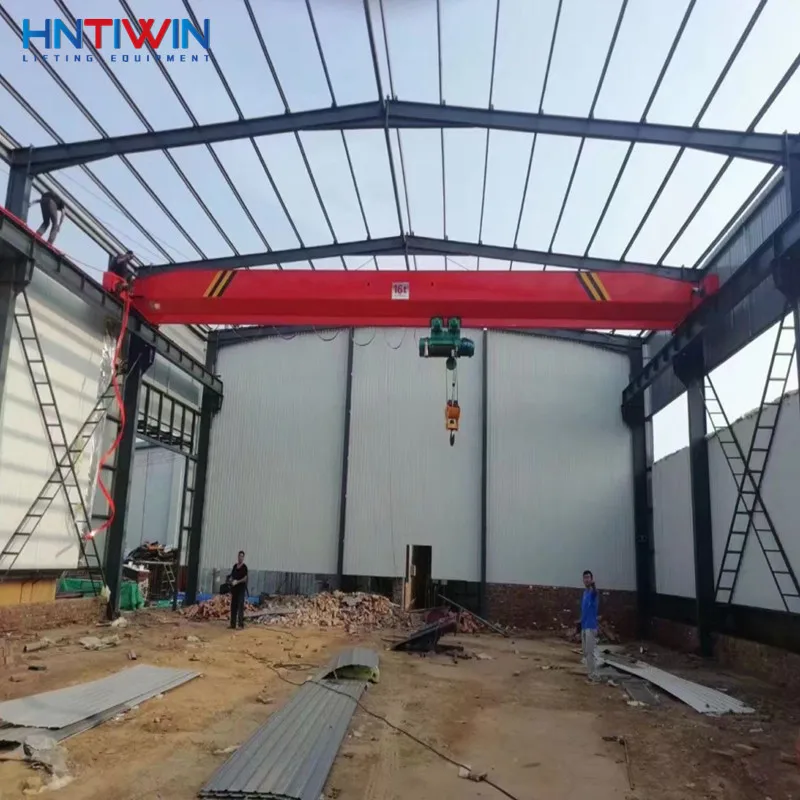

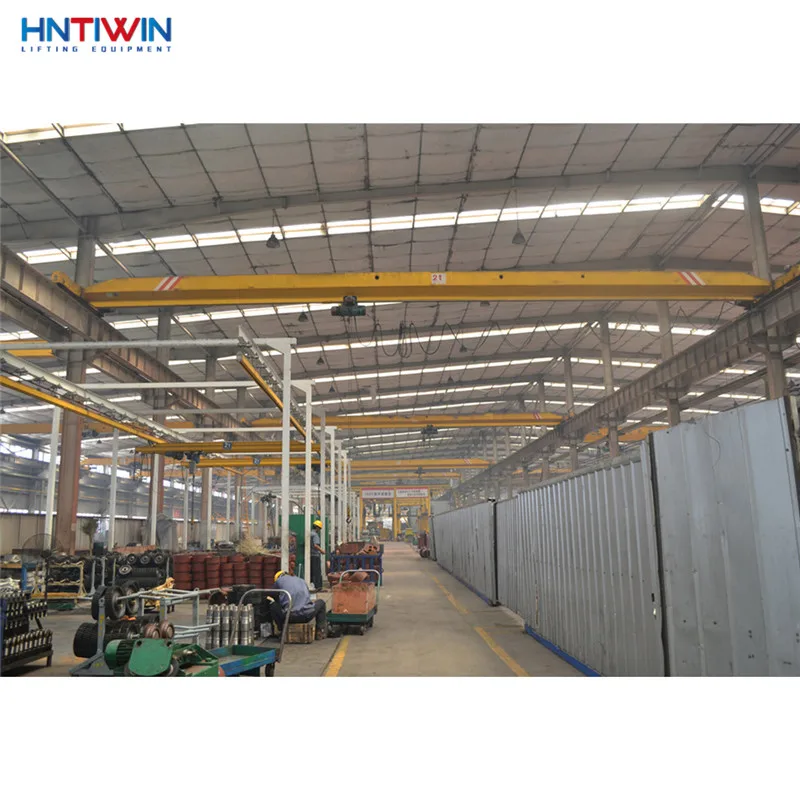

Single girder hoist traveling 10 tone swl overhead crane 10t 12m for sale
1. Single girder hoist traveling 10 tone swl overhead crane 10t 12m for sale is composed of girder weld by steel plate and I-steel,end girder,electric hoist and traveling mechanism
2.The electric hoist runs along the lower flange of the I-steel of the girder to accomplish article hoisting;features light structure and easy is installation and maintenance,and is widely used for different places for hoisting such as factories,warehouse and materials yards
3.High quality single girder hoist traveling overhead crane length 27 mtrs span is prohibited to use in the inflammable,explosive and corrosive media
4.Span:7.5--22.5m (subject to non-standard design according ti user's requirement)
5.Classification group :A3
6.Operating ambient temperature: -25--40℃
7.It has three operation modes:ground handle,wireless remote control and cab.The cab has two types: open and closed cab
8.The traveling motor can be soft start motor and variable-frequency adjustable-speed motor according to user requirements,the crane can start steadily and runs safely and reliably
2.The electric hoist runs along the lower flange of the I-steel of the girder to accomplish article hoisting;features light structure and easy is installation and maintenance,and is widely used for different places for hoisting such as factories,warehouse and materials yards
3.High quality single girder hoist traveling overhead crane length 27 mtrs span is prohibited to use in the inflammable,explosive and corrosive media
4.Span:7.5--22.5m (subject to non-standard design according ti user's requirement)
5.Classification group :A3
6.Operating ambient temperature: -25--40℃
7.It has three operation modes:ground handle,wireless remote control and cab.The cab has two types: open and closed cab
8.The traveling motor can be soft start motor and variable-frequency adjustable-speed motor according to user requirements,the crane can start steadily and runs safely and reliably
FEATURES AT A GLANCE
1.Aviation plug ,free debugging
2.Handle + wireless remote control
3.Schneider electric equipment
4.China famous motor or imported motor
5.Lifting mechanism : wire rope hoist/chain hoist
6. Voltage can be optional
Front elevation
Left elevation
Right elevation
PRODUCT SPECIFICATIONS
Crane traveling mechanism | working speed (m/min) | 20 (ground) | 30(ground) | ||||
speed ratio | 58.78 | 39.38 | |||||
Motor | Type | YSE802-4/YSE90L-4 | ZDR100L-4 | ||||
power | 2*0.8/0*1.5/4*0.8 | 2*1.5/4*1.5 | |||||
rotation speed | 7.5≤S≤22.5 | 7.5≤S≤31.5 | |||||
lifting machanism | Hoist model | CD1 | MD1 | ||||
lifting speed | 3.5~7M/MIN | 0.35~0.7/3.5~7M/MIN | |||||
lifting height | 9~30M | ||||||
traveling speed | 20M/MIN | ||||||
Motor | Cone squirrel-cage model | ||||||
Working Class | Working class | A3 | |||||
Wheel Diameter | power supply | 270mm 370mm | |||||
Width of rail | Width or rail | 37~70mm | |||||
PRODUCT CONFIGURATION

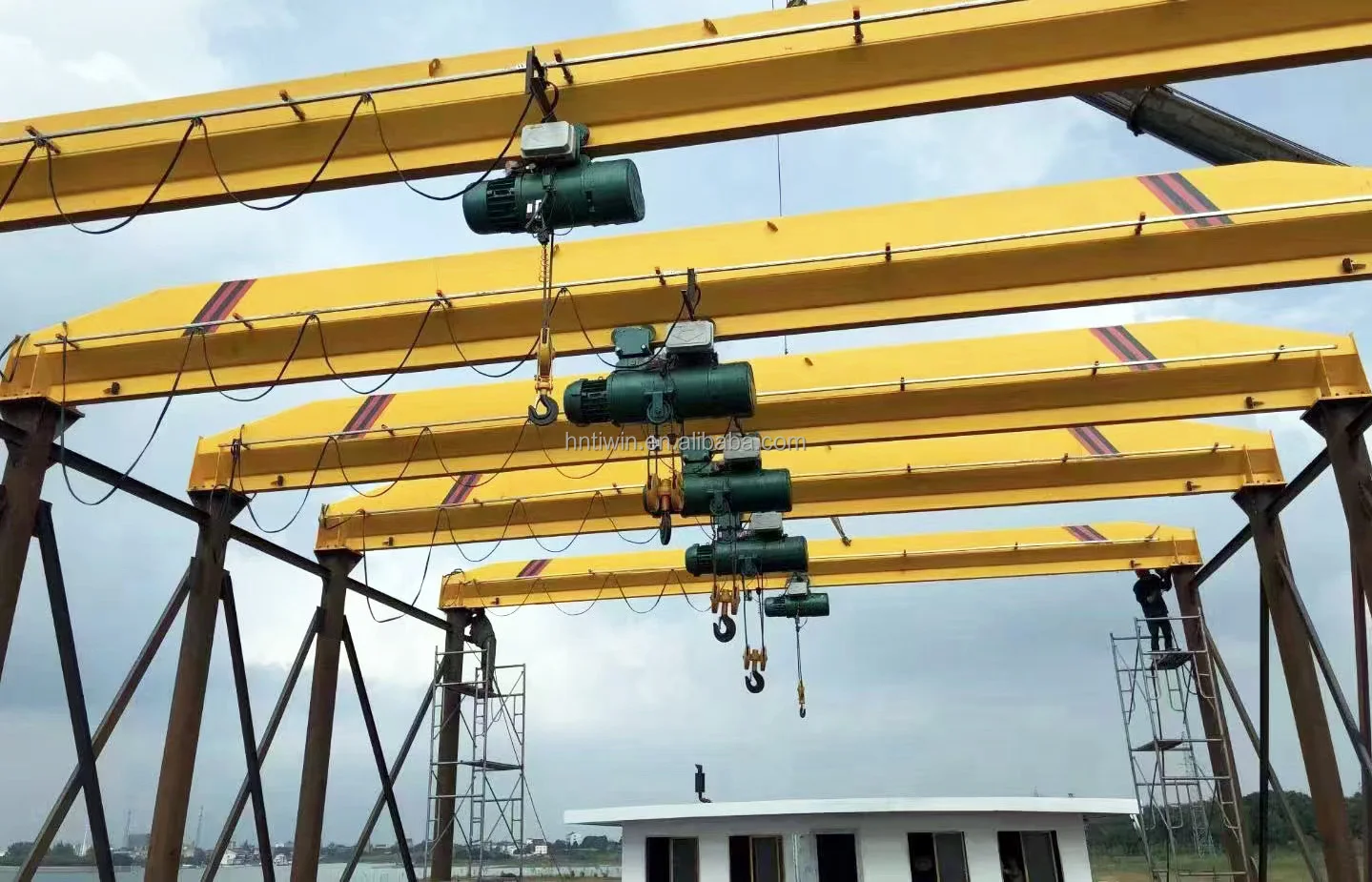

Main girder

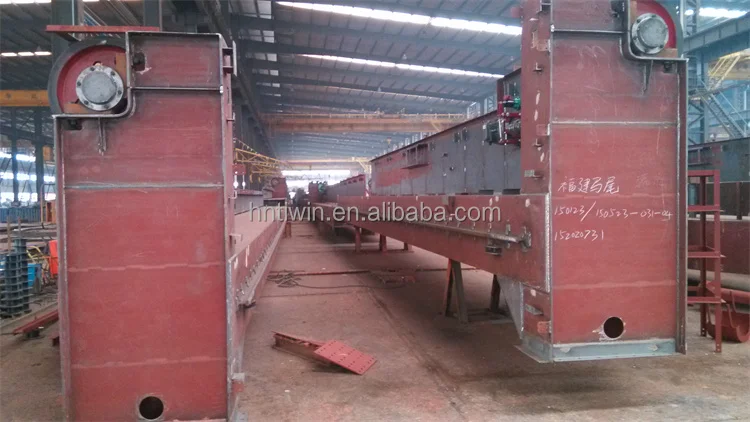

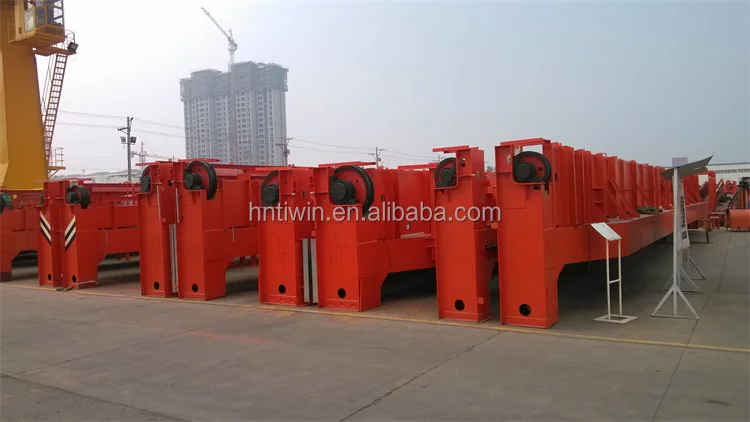

End Girder
Wire rope electric hoist
Seamless bus bar

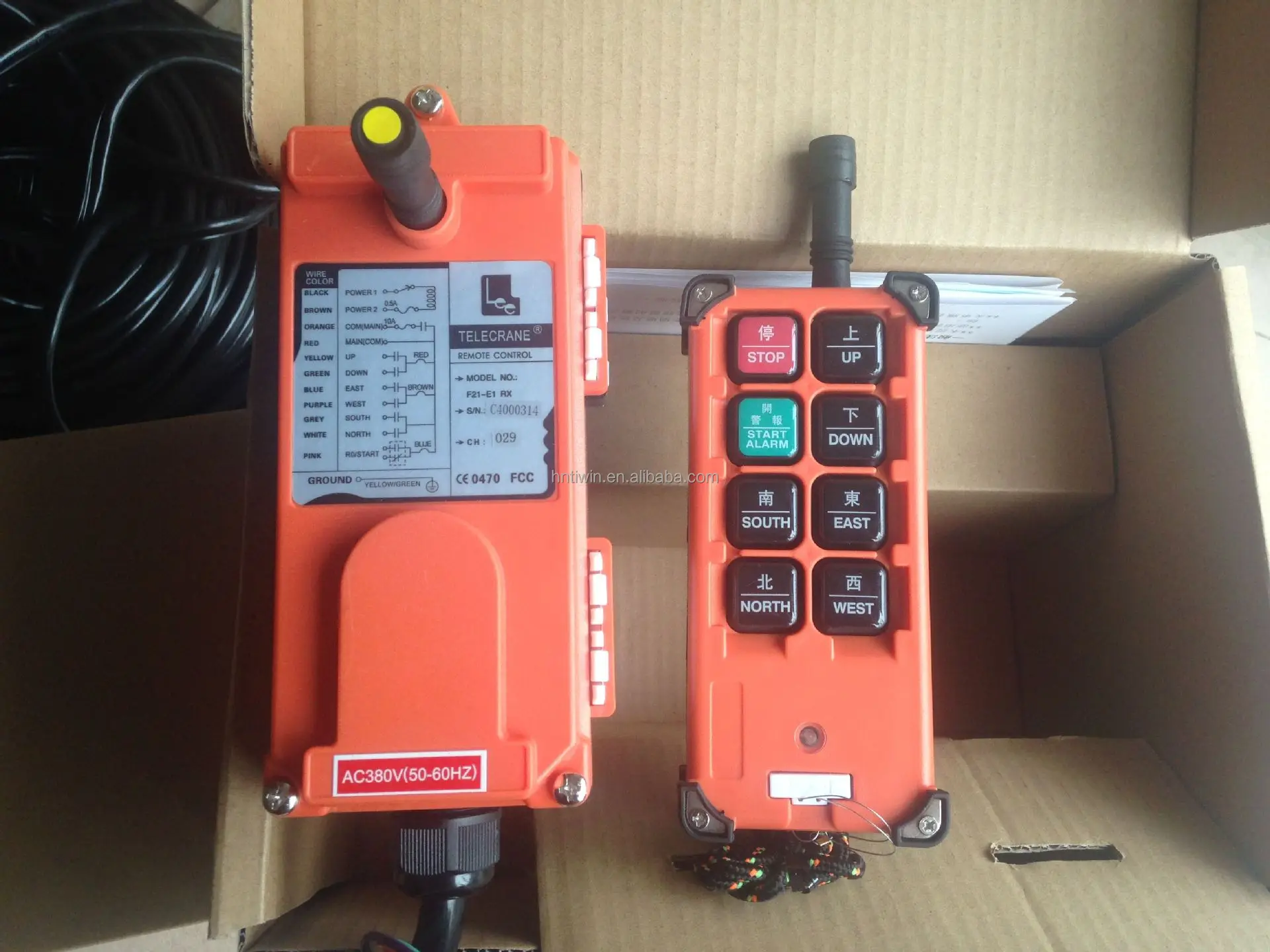

Wireless remote control

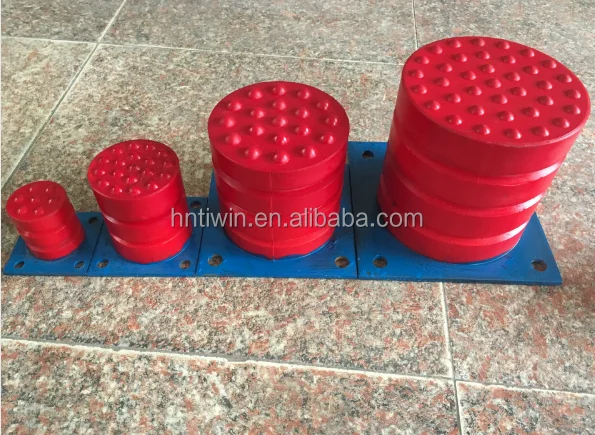

Buffer

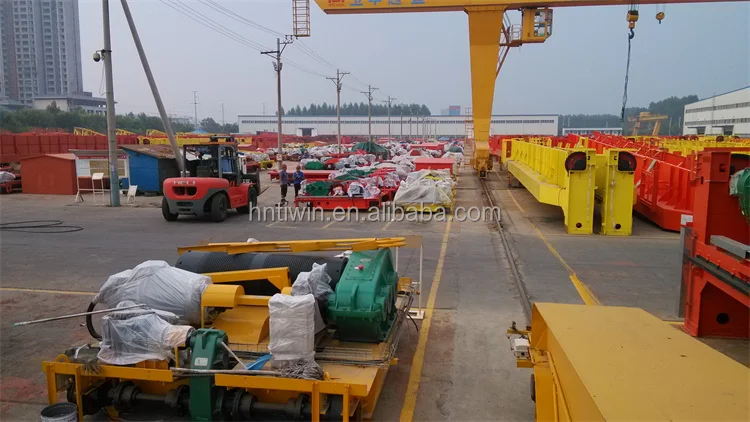

SALES AND SERVICE NETWORK

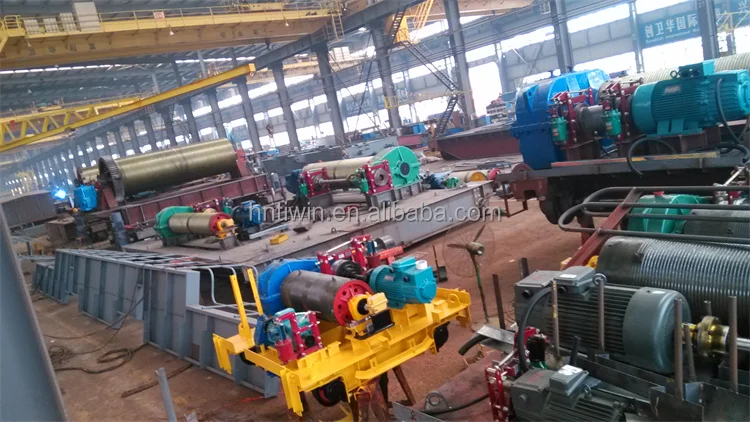

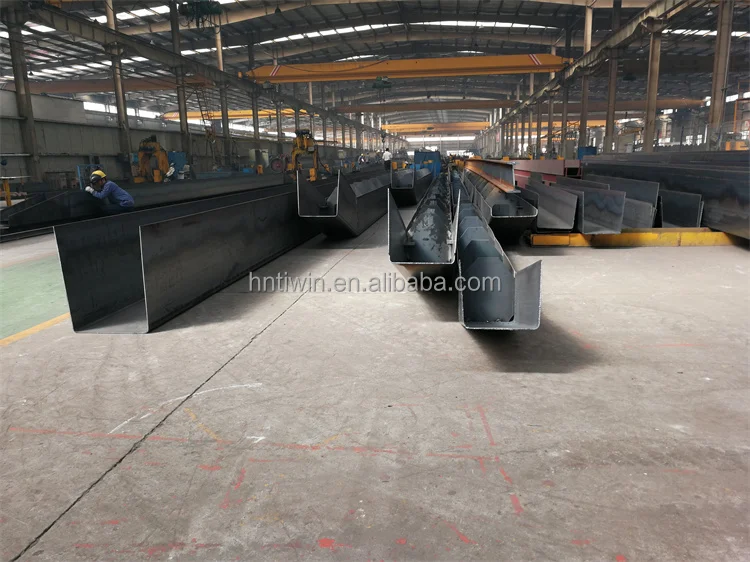

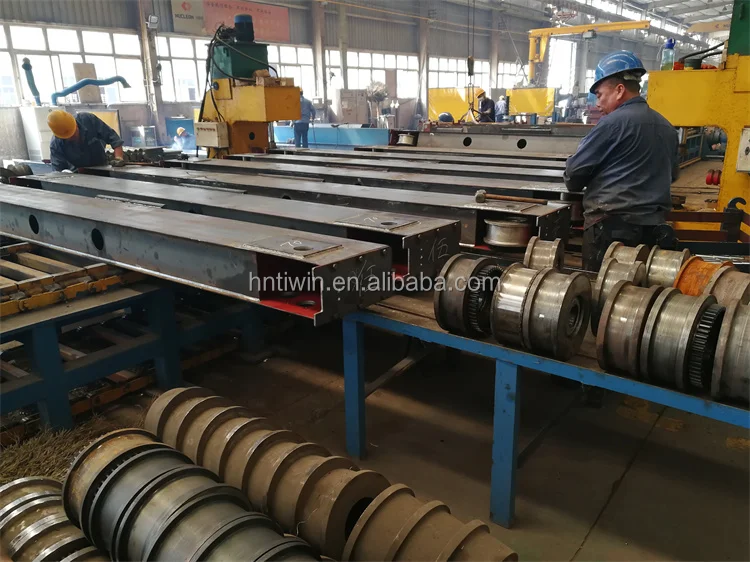

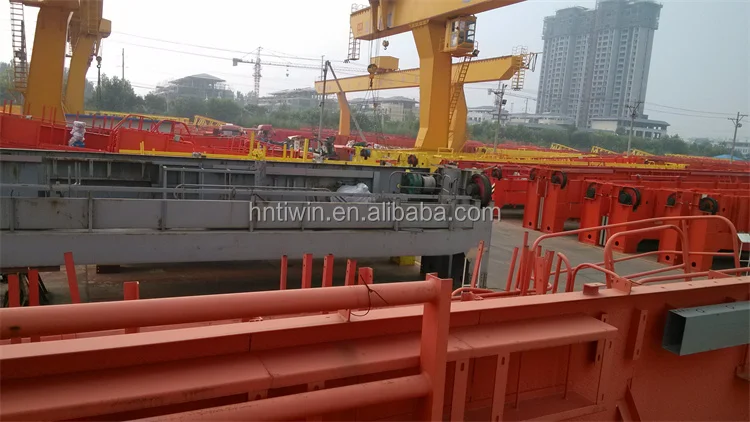

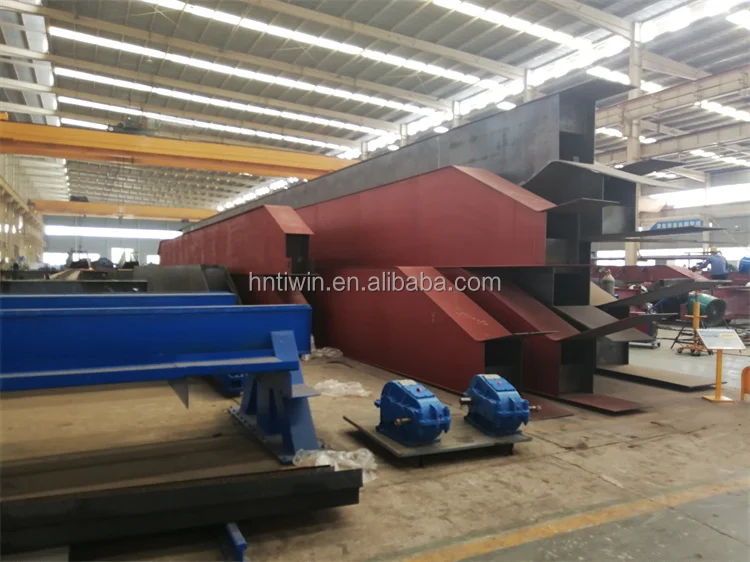

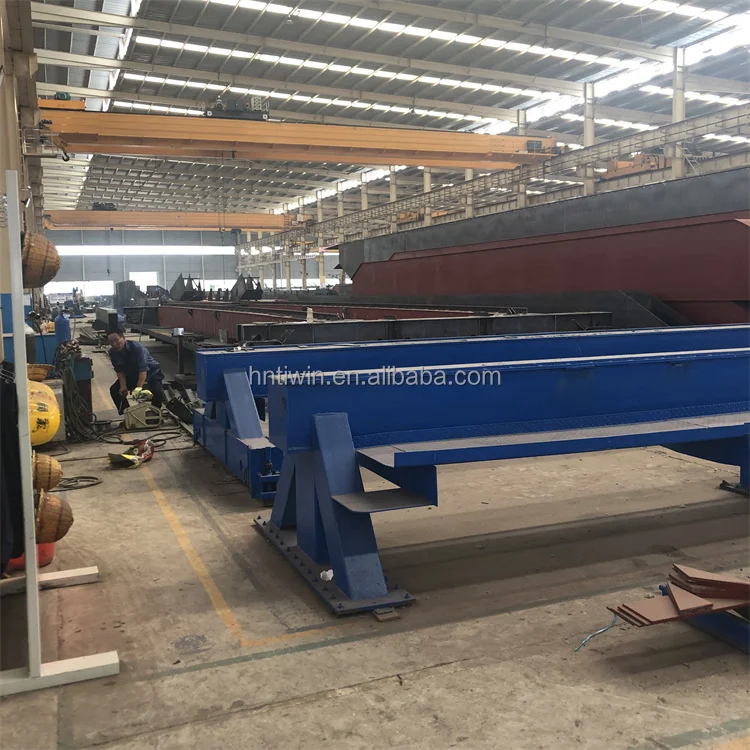

Workshop

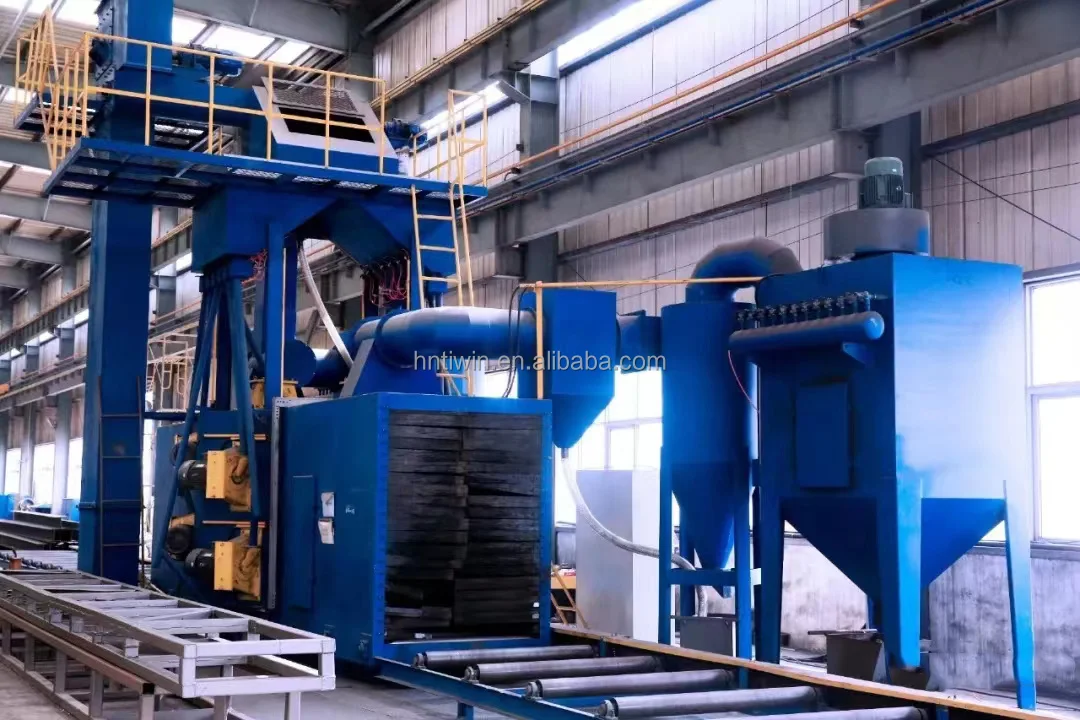

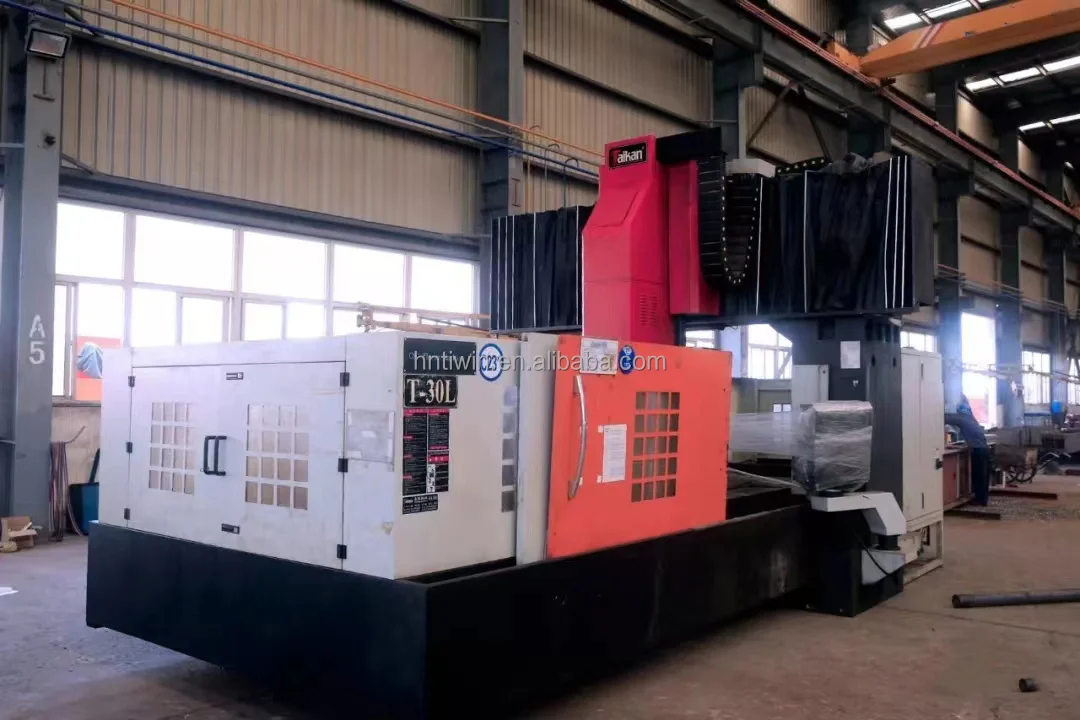

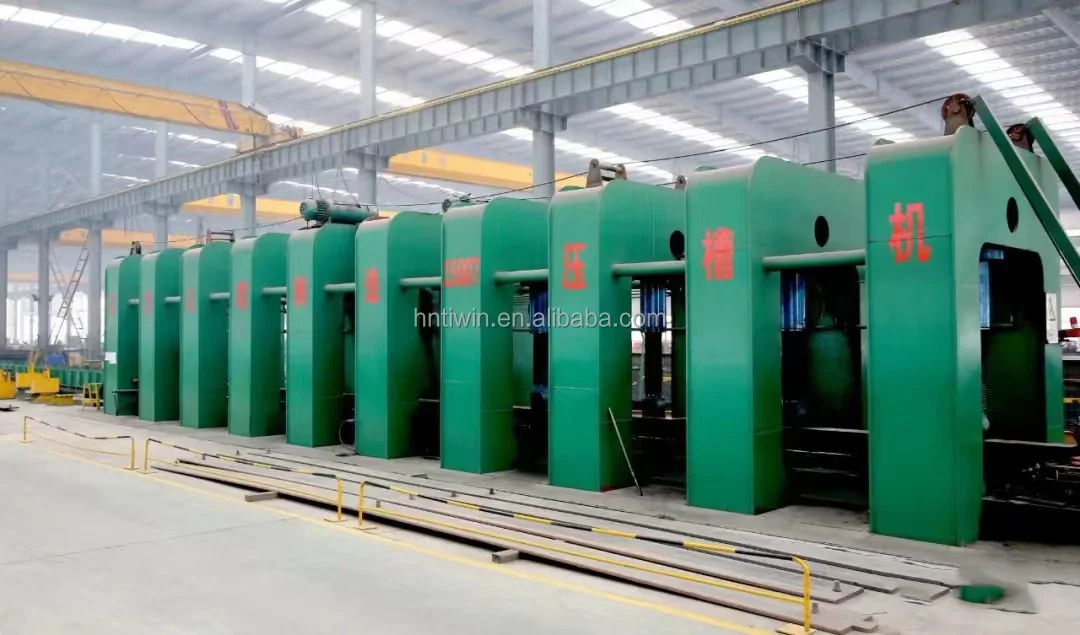

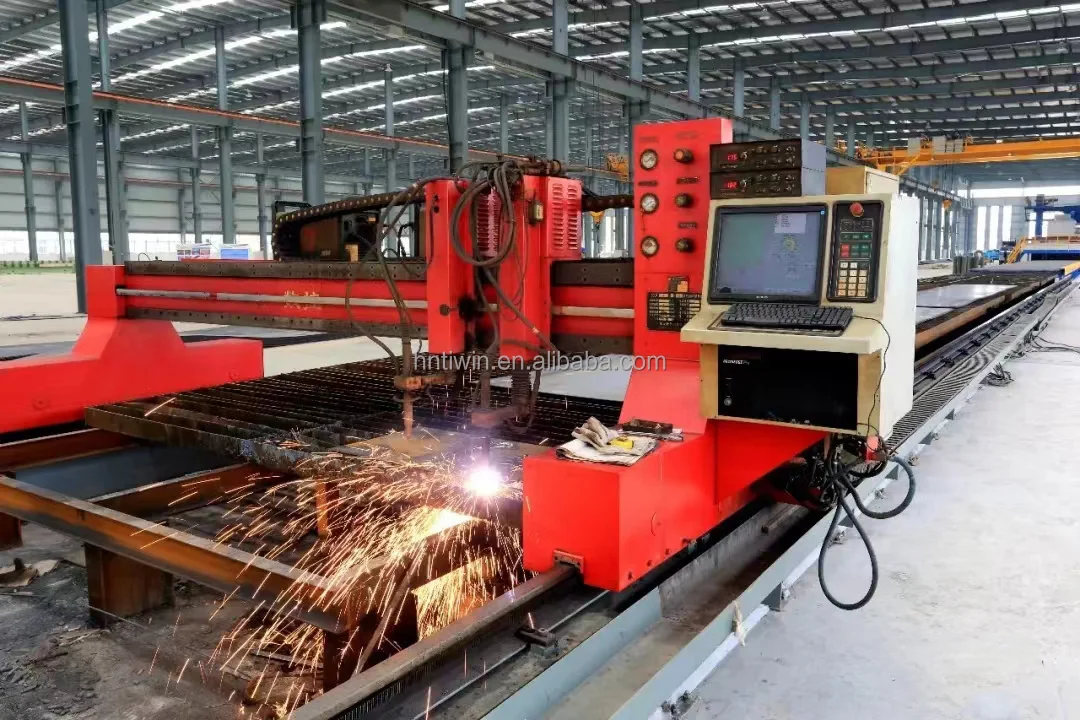

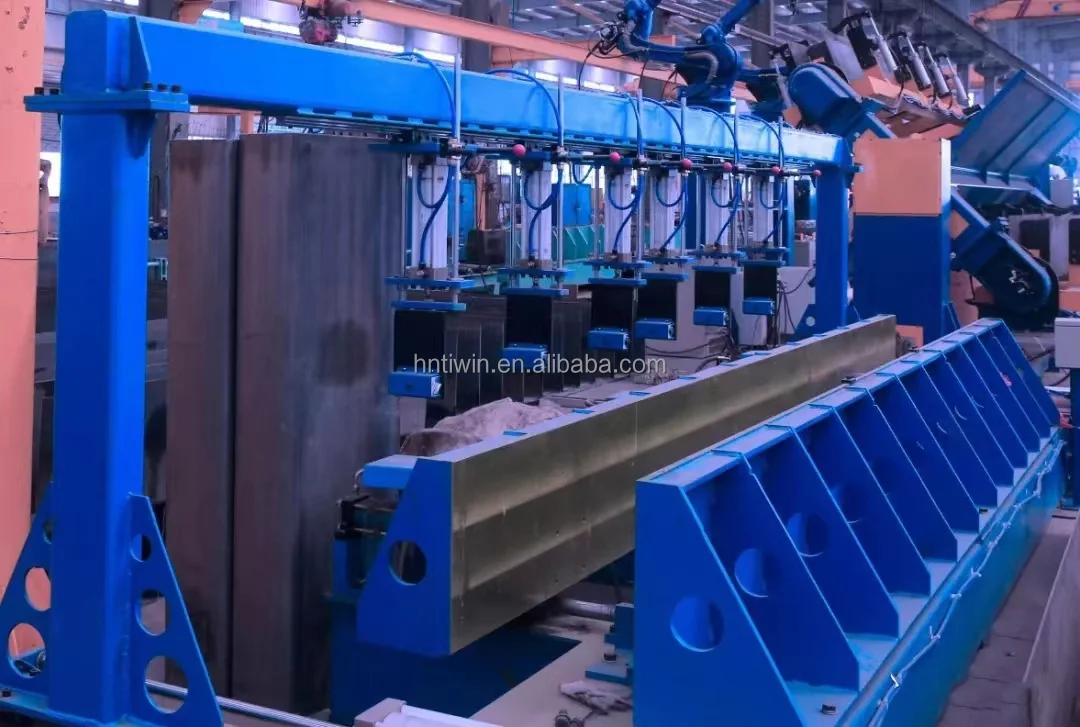

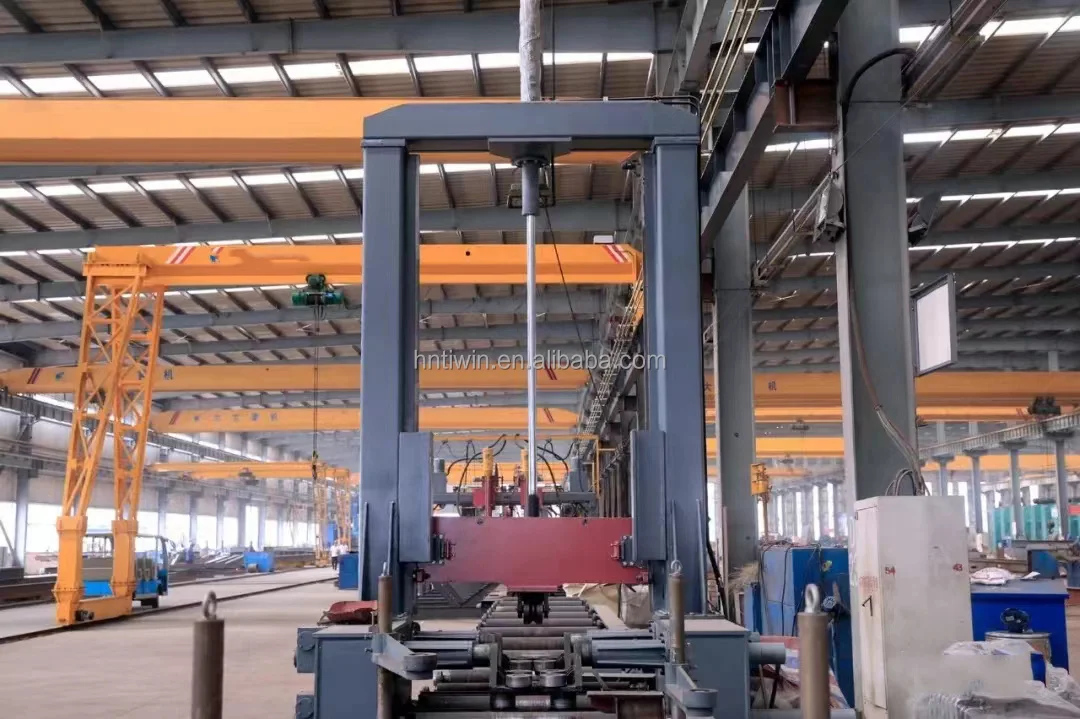

Advanced production equipment
SIMILAR PRODUCTS
Light duty circled bridge crane

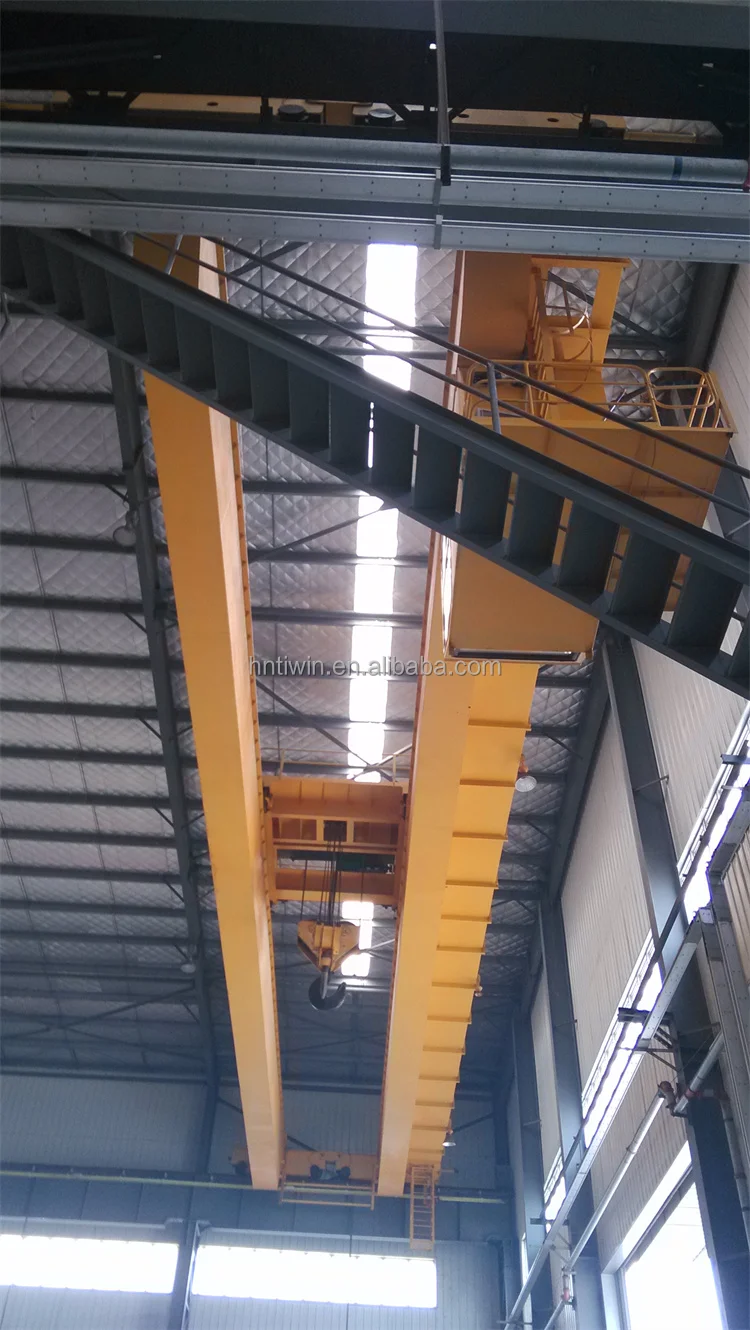

Double girder overhead crane
European Type overhead crane
FAQ
How to get detailed quotation ?
Please provide the followings :
1. lifting capacity
2.Lifting height
3.Span
4.Power supply
5. Working environment
