Intelligent portable solar panel cleaning robot
- Category: >>>
- Supplier: Shanghai Sunyoung Biz-Solution Co. Ltd.
Share on (1601028339647):
Product Overview
Description
Product Description
Product overview

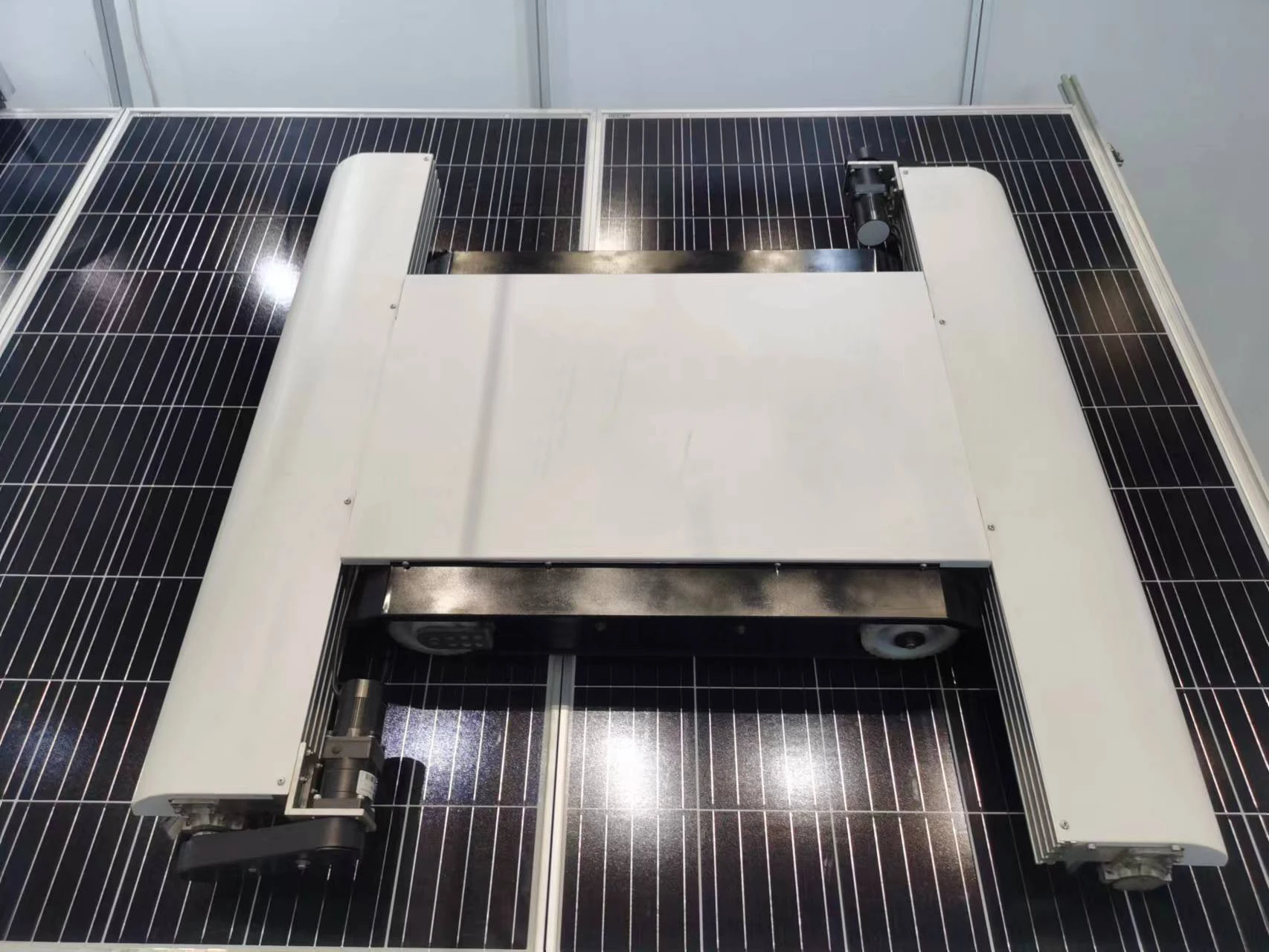

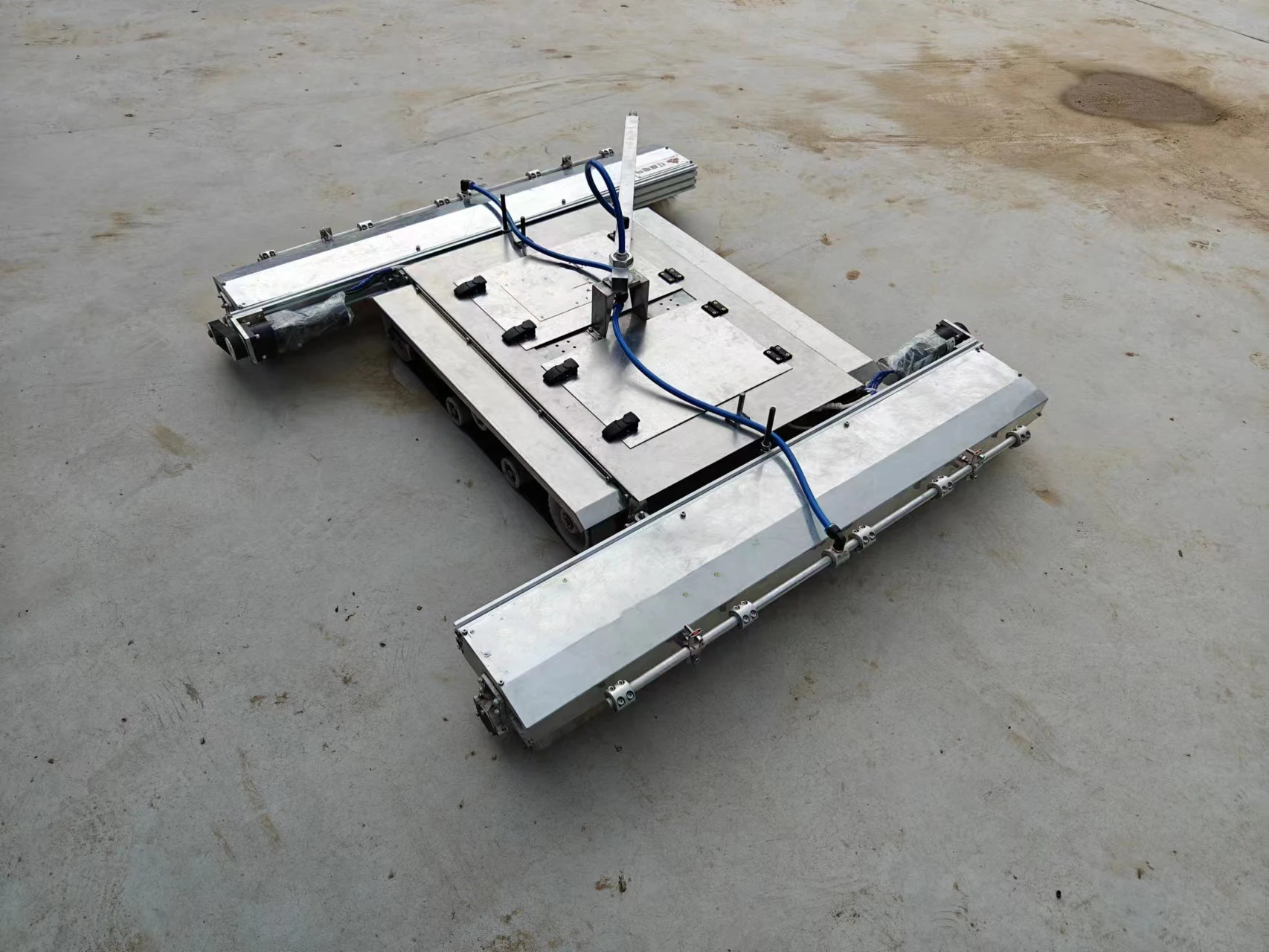

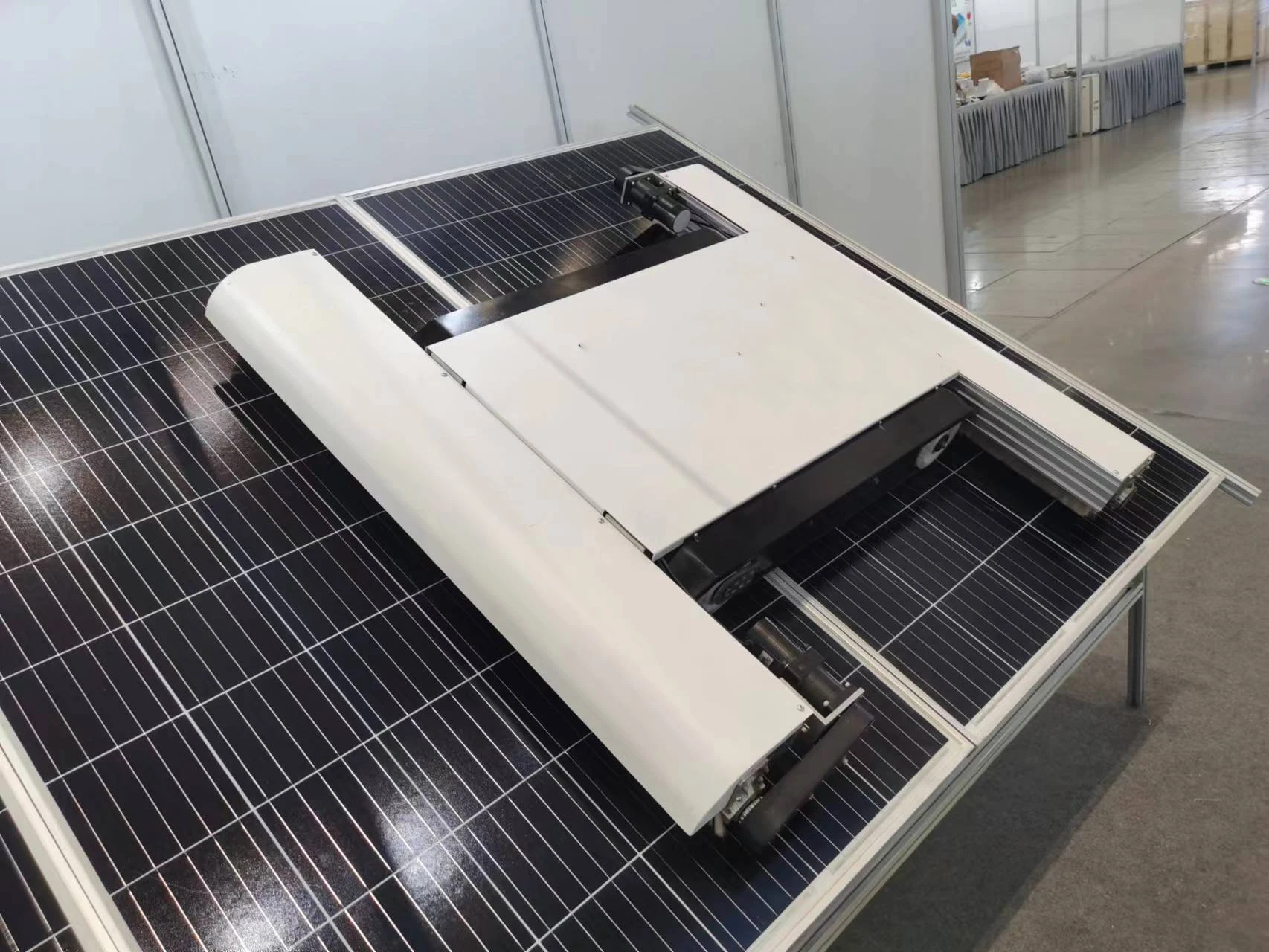

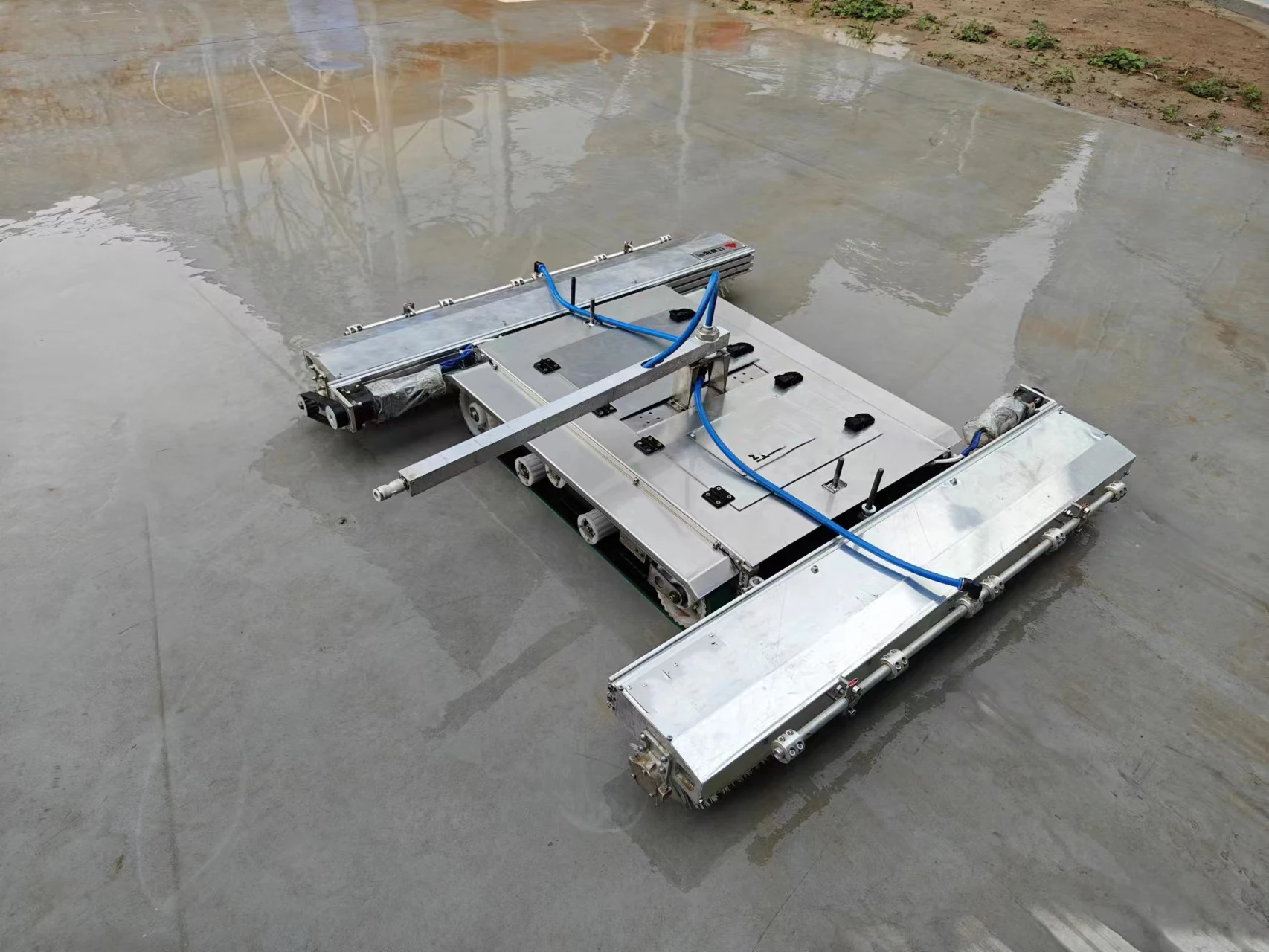

The product is an intelligent portable cleaning robot, the main application scenario is the cleaning and dust removal of photovoltaic modules.
The product uses intelligent walking technology, which can automatically walk and adsorb on the photovoltaic panel. Through the design of waterless autonomous cleaning, the foreign matter such as sand, dust and fallen leaves on the surface of the solar panel is cleaned. It is suitable for many types of power stations such as large ground power station, fish-light complementary power station and distributed rooftop power station.
General scenarioGeneral scenariThe product uses intelligent walking technology, which can automatically walk and adsorb on the photovoltaic panel. Through the design of waterless autonomous cleaning, the foreign matter such as sand, dust and fallen leaves on the surface of the solar panel is cleaned. It is suitable for many types of power stations such as large ground power station, fish-light complementary power station and distributed rooftop power
The portable cleaning robot is powered by a built-in rechargeable lithium battery and has thefollowing features:
High cleaning efficiency
high degree of intelligence
Super ability of incline adsorption, climbing and obstacle crossing
small turning radius, no cleaning dead Angle
High waterproof, dustproof and anti-fog grade
can be adapted to a variety of harsh environments
supports customization and high scalability
Compared with the traditional manual cleaning method, the use of this product can significantly reduce labor intensity, reduce personnel costs, increase the power generation per unit area of photovoltaic panels, and improve the economic benefits of photovoltaic power stations, which is an effective way of intelligent operation and maintenance management of
photovoltaic power stations.
Paramter performance
| Product model | ZTBX-1705 |
| Product name | Portable cleaning robot |
| Overall dimension | 1200*1200*180 mm |
| Weight | 36.5kg |
| Dynamic mode | Lithium battery |
| Battery capacity | 40AH.24V*2 |
| Battery life | 6 hours |
| Controller | Industrial PC (Selfideveloped ) |
| Control mode | Remote control |
| Control distance | <300 m |
| Design life | Six years |
| Dry brush working mode | |
| Clean width | 1100mm |
| Travel speed | 0-50m/min |
| Cleaning efficiency | 1500-2000 m2/h |
| Maximum longitudinal slope | ≤ 20° |
| Maximum laterel slope | ≤15° |
| Component surface coverage | 120 % |
| Span distance | ≤600 mm |
| Night operatioin | support |
| Visual system | optioinal |
Include attachments
| Recharger | A set |
| Remote control with charger) | A set |
| Caterpillar belt | 2piece |
| Product specification | Part |
| Certificate of conformity | Part |
Our Services
To ensure the normal operation of the machine and extend the service life of the machine; The following parts must be lubricated and maintained:
1, the transmission mechanism needs to be checked once every month,
every three months to fill a calcium matrix grease.
2, in order to ensure the safe operation of the equipment, it is
necessary to regularly check whether the bolts in various parts of the
equipment are loose or abnormal sound, and the machine can be operated
after removal.
