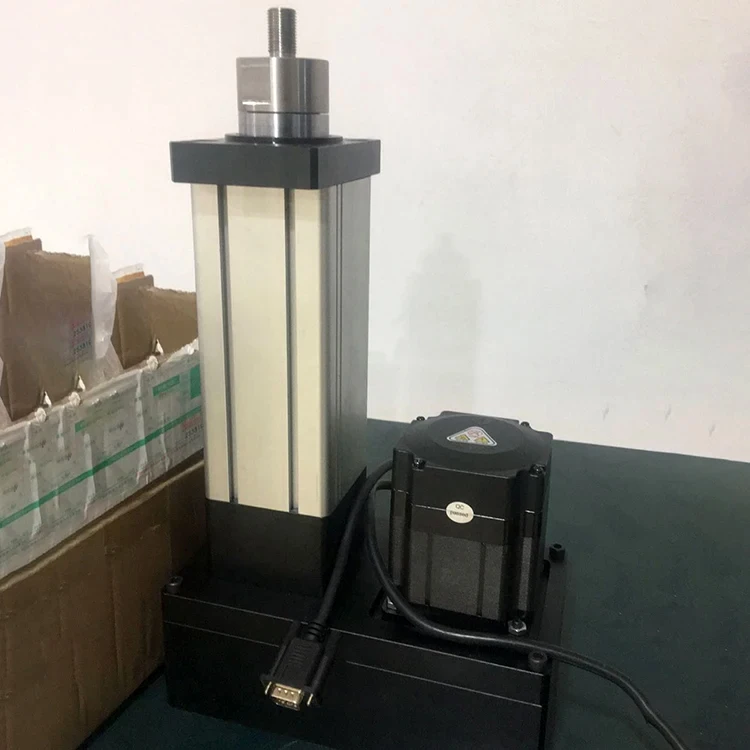

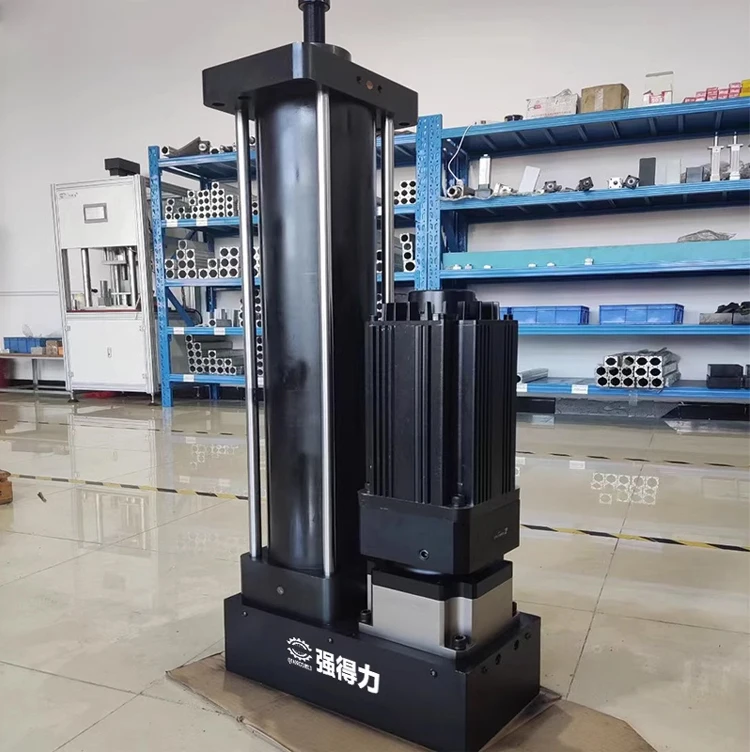

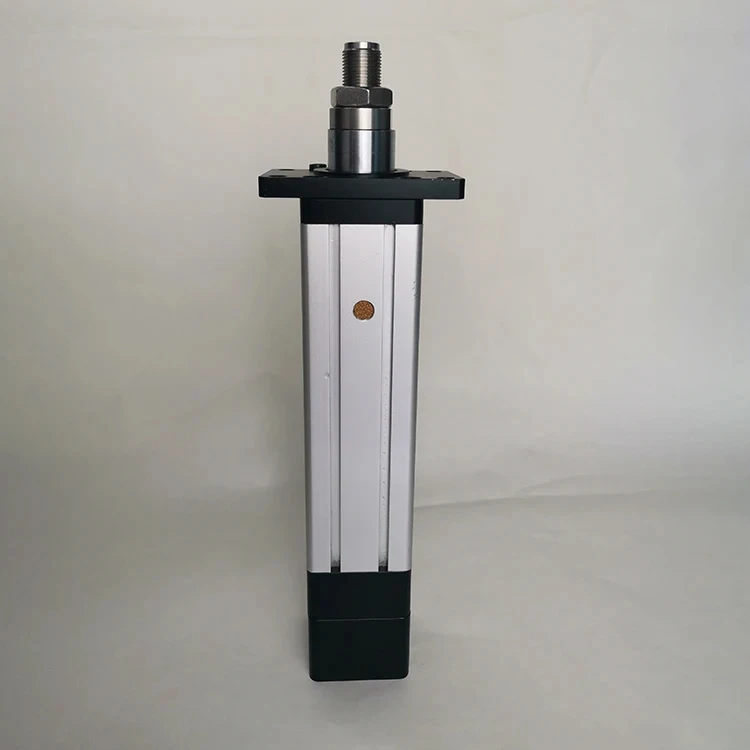

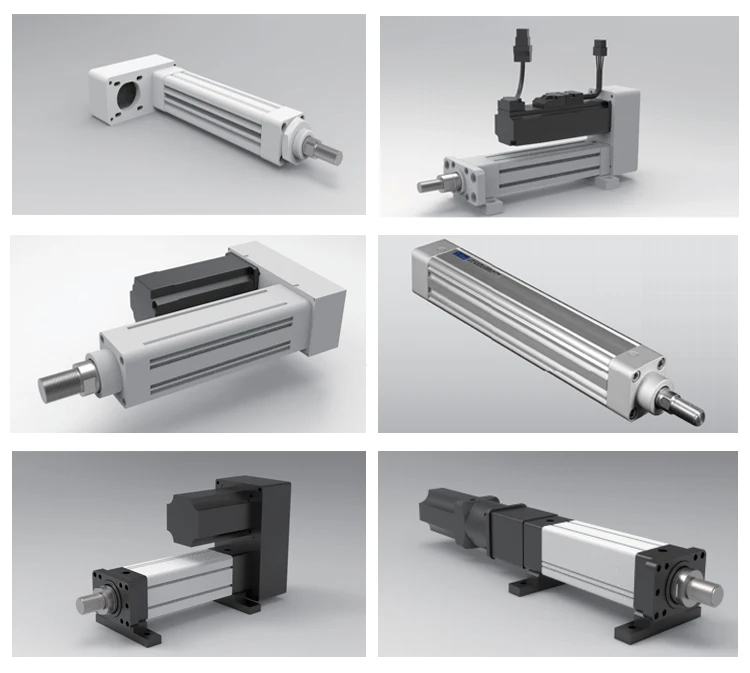

fast linear actuator 48v ac servo motor linear actuator linear actuator
- Category: >>>
- Supplier: Dongguan Guanghong Automation Equipment Co. Ltd.
Share on (1601028434553):
Product Overview
Description
PRODUCT DESCRIPTION
Parameters with electric cylinder:
Thrust Force Range | 30-1700mm Customizable for more |
Speed Range | 0.1-1000mm/s Customizable for more |
Stroke Range | 30-1700mm Customizable for more |
Precision | ±0.02mm |
Working Temperature | -20°C +80°C |
IP Rating | IP65 |

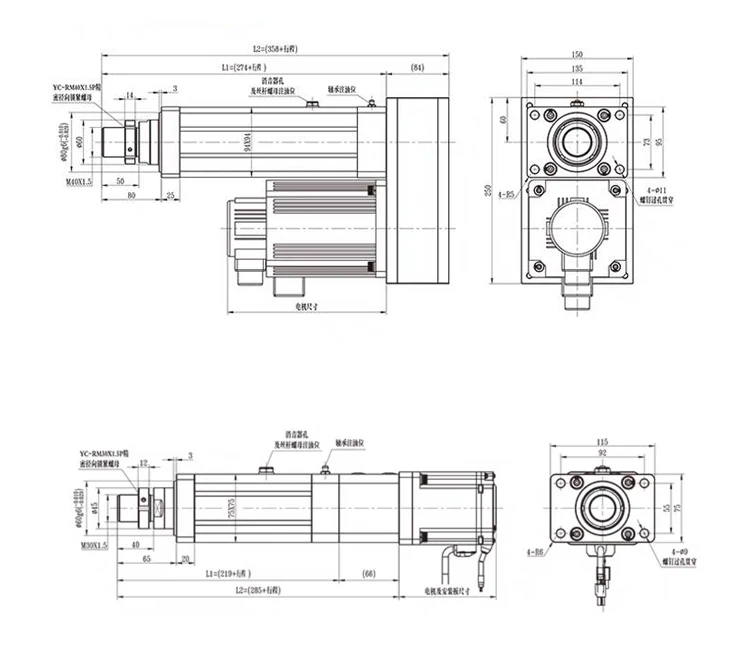

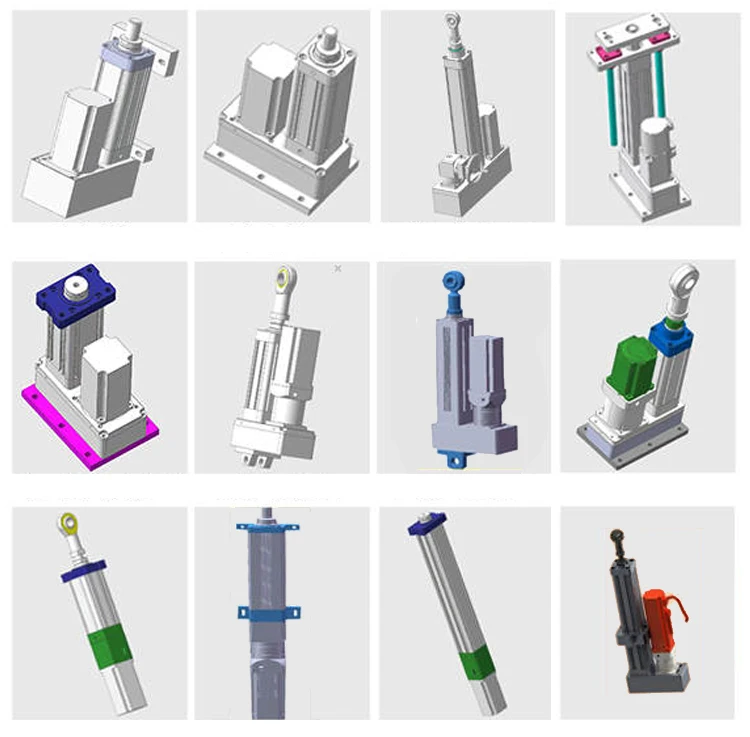

Our team can customize the installation method
of stroke thrust speed according to your requirements.
Advantages of our servo electric cylinder:
1. With high precision, it can realize precise control of pressure and position;
2. Low energy consumption, economic and environmental protection
3. The speed can be controlled in sections
4. It is more efficient than hydraulic press
5. Simple structure and low maintenance cost
1. With high precision, it can realize precise control of pressure and position;
2. Low energy consumption, economic and environmental protection
3. The speed can be controlled in sections
4. It is more efficient than hydraulic press
5. Simple structure and low maintenance cost
Type | Force | Stroke | Speed | Screw Diameter | Push Rod Diameter |
40 | ≤50 | ≤300 | ≤800 | Φ12 | Φ20 |
50 | ≤150 | ≤500 | ≤1000 | Φ12 | Φ25 |
60 | ≤300 | ≤800 | ≤1000 | Φ16 | Φ35 |
75 | ≤800 | ≤1200 | ≤500 | Φ20 | Φ45 |
80 | ≤2000 | ≤1700 | ≤500 | Φ25 | Φ50 |
95 | ≤3500 | ≤1700 | ≤500 | Φ32 | Φ60 |
110 | ≤5000 | ≤2000 | ≤200 | Φ40 | Φ75 |
135 | ≤10000 | ≤2000 | ≤200 | Φ50 | Φ90 |
180 | ≤20000 | ≤2000 | ≤200 | Φ63 | Φ110 |
200 | ≤50000 | ≤2000 | ≤100 | Φ80 | Φ150 |

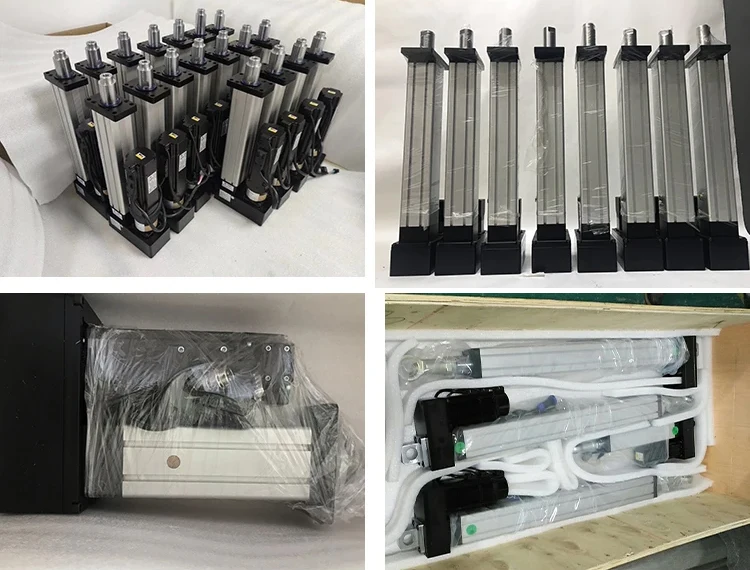

Packing

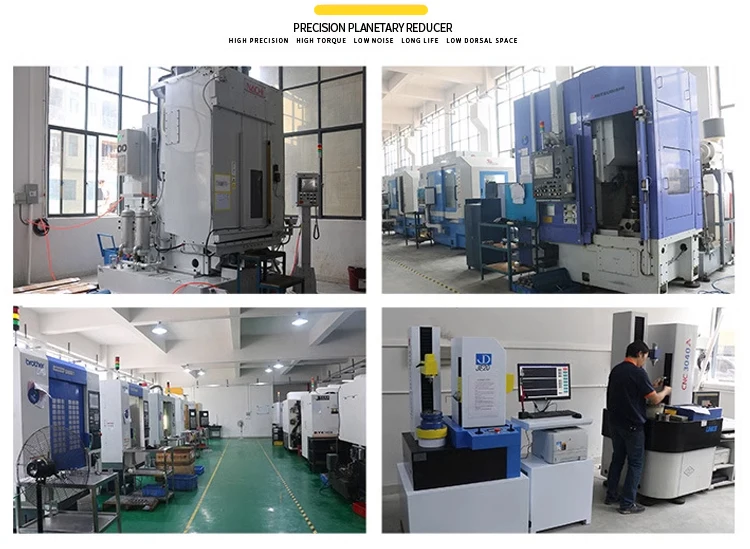

Factory
Dongguan Guanghong Automation Equipment Co., Ltd. is a collection of R & D,
design, manufacturing, sales and service as one of the professional servo electric cylinder,
servo press equipment, etc. development and production of modern enterprises.
The company has a professional design team, processing team, assembly team,
sales and after-sales service team.The company mainly develops and produces servo cylinder,
servo pressing machine, electric push rod, electric sliding platform,
multi-degree-of-freedom platform and other servo pressing equipment.
