Handheld 3d skin management instrument skin layer analyzer skin analyser Diagnostic Analyzer Machine

Product Overview

Description

Product Detail

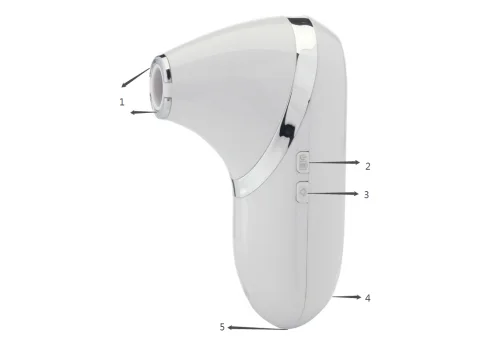

1. The metal directly contacts the skin or scalp surface to read water and oil data.

2. Press and hold for 1 second to turn on, then press and hold for 2 seconds to turn off,

     tap to take a picture and image curing

3. The three lights cycle alternatel.

4. Reset hole, if you can't turn off the machine, please press down with a metal pin to

    shutdown, then press the key to restart;

5. Micro  DC5V, the green light flashes when the power is insufficient, the red light when charging.

    and the light is off when it is full.

This product can be applied to the following scenarios: beauty salons, hair salons, hair care salons,

daily necessities sales companies, scalp care sales, nail pedicure related industries and

personal use! Choose a suitable detector, this product can improve the

scientific basis of testing, the quality of service and the efficiency of work,

while increasing the user's better experience.

It provides powerful help for individual users to understand their skin health in real time.

Technical Parameters

Image Sensor	3.0 MP sensors
Lens specifications	HD microscope lens 5G+ IR CUT
Language	Chinese, English, Japanese (other languages can be added if customized)
Master chip	High-speed video processing chip.
Focus range	Contact fixed focal length
Video resolution	720P,1080P
Snapshot button	Shutter speed: 1 second to 1/1000 second
Lighting mode	Tri-spectrum (white light, UV light, polarized light)
Magnification	50x magnification
Use environment	-20℃~+60℃
Power supply	DC5V, built-in rechargeable lithium battery (1200mAh).
Video compression format	H.264,MP4
Photo compression format	JPEG

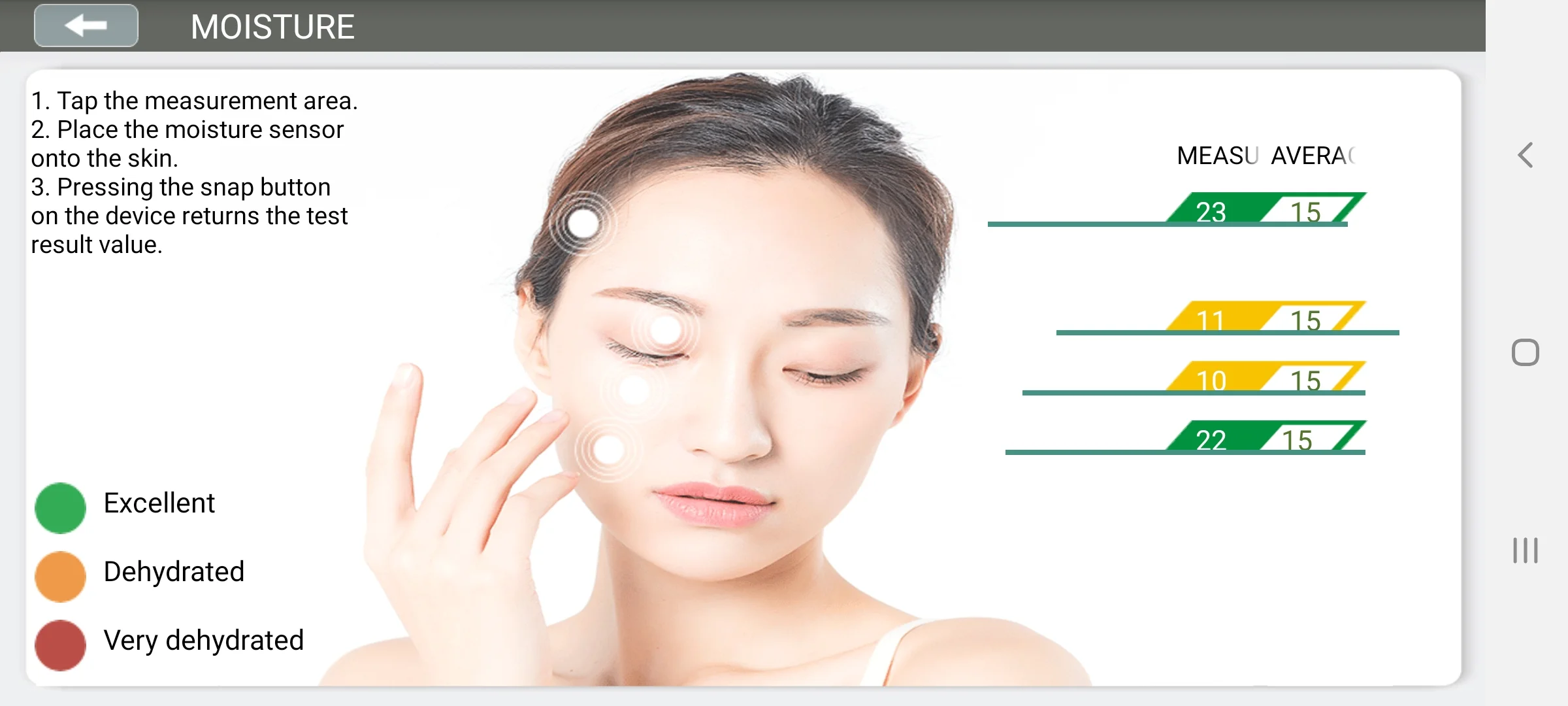

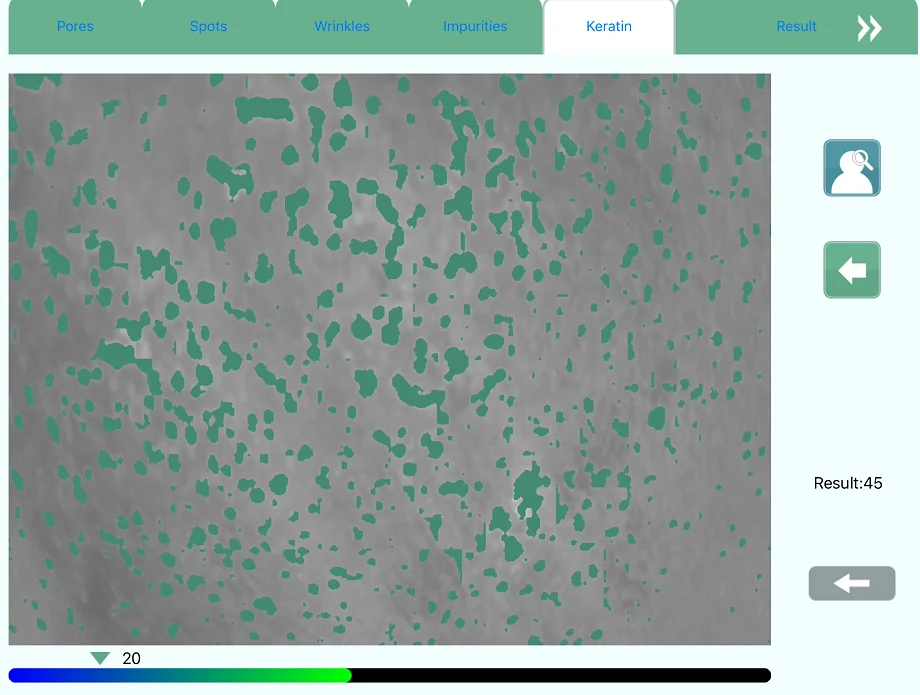

Operating software	MRK Intelligent Analysis Software
Operating system	IOS, Android, Windows
Special function	Physical resistance value detection data
Wireless transmission	High-speed wifi transmission
weight	100g
Product Size	150 mm in length and 45 mm in diameter
