Mechanical Jacks Lifting 25 Ton 30 Ton 50 Ton Hydraulic Tank Jack
$600.00-1,000.00
FCY Model 50150 Single Acting Cylinder Hydraulic Cylinder Jack
- Category: >>>
- Supplier: Dalian Shuhui Mechanical Equipment Co. Ltd.
Share on (1601028490416):
Product Overview
Description
Product Description

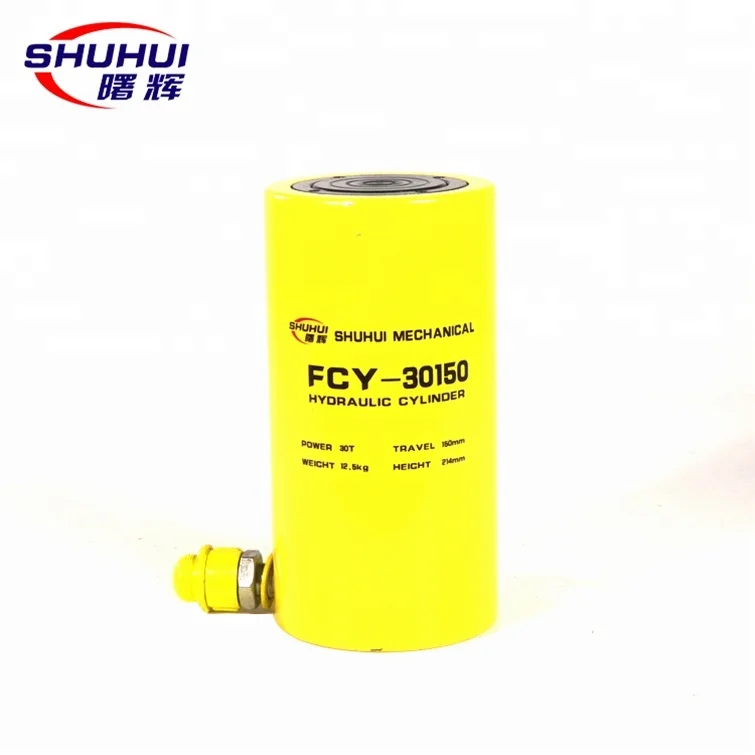

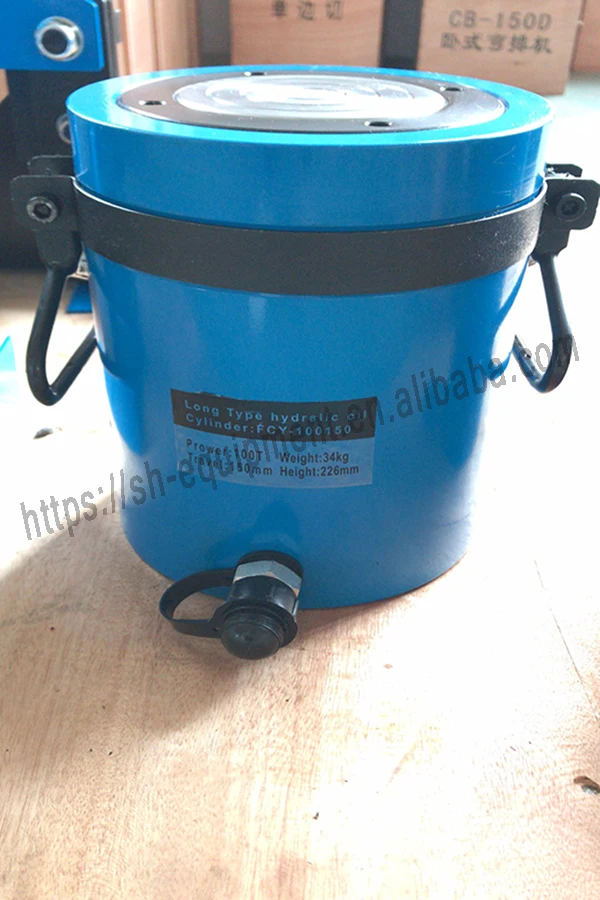

FCY Model 50150 Single Acting Cylinder Hydraulic Cylinder Jack
Product Features:
Good Quality,Craftsmanship ,More Stable Service life
1.Smooth surface :circle marks are obvious fix the cylinder firmly with out bursting

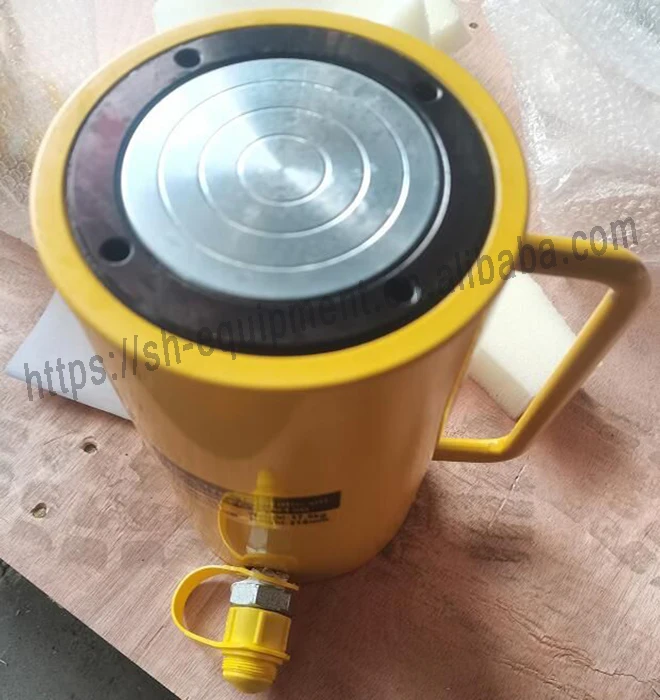

2.Quick conector:the product has a unified quick interface .equipped with dust cover to prevent impurities from entering .
3.Jack up barrier-free:work jacking,no cylinder jam,full tonnage ,full stroke.

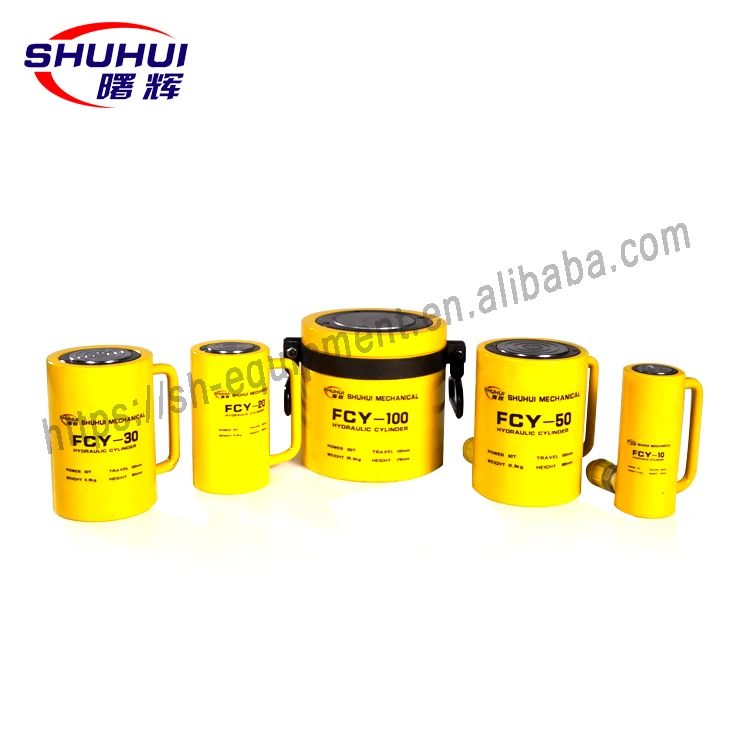

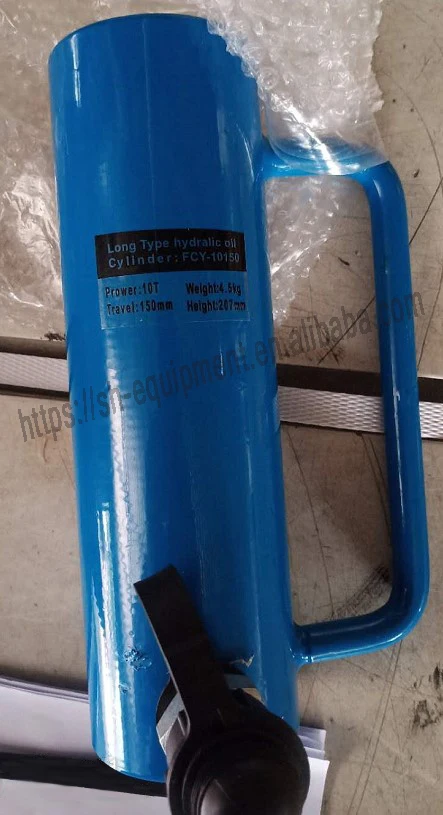

Long Type Hydraulic Oil Cylinder FCY Series
Model NO. | Tons(T) | Cylinder effective area(cm2) | Cylinder inside DIA(MM) | Cylinder Outside dia (mm) | Travel(mm) | Weight(kg) | Collapsed height(mm) | remark (optional manual pump) |
FCY-10 | 10 | 15.89 | 45 | 63 | 100 | 3.4 | 157 | Cp-180 |

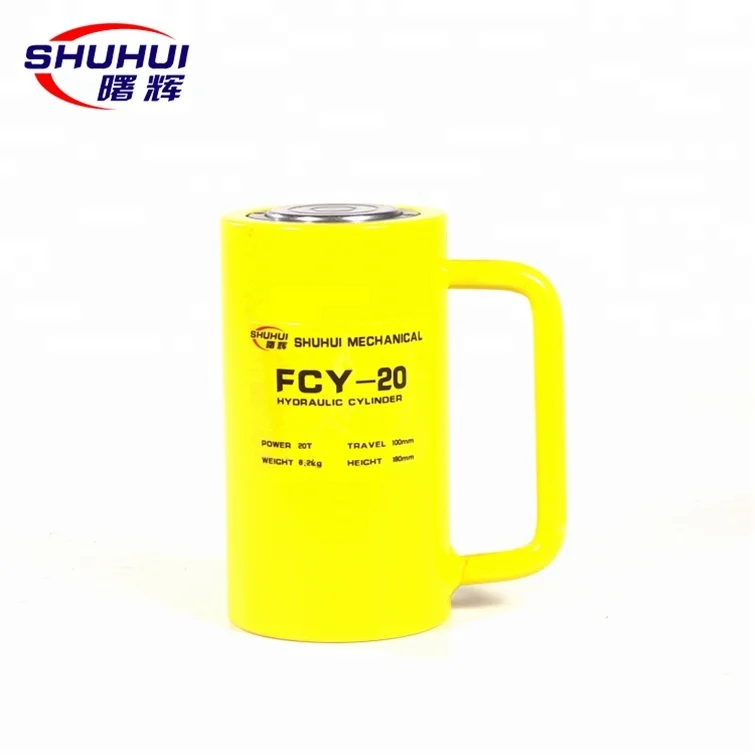

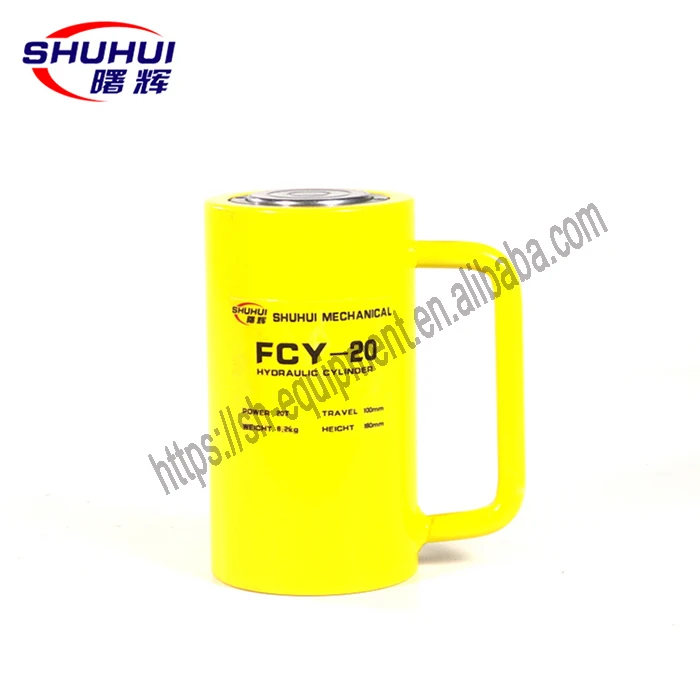

FCY-20 | 20 | 33.16 | 65 | 88 | 100 | 6.2 | 160 | Cp-700 |

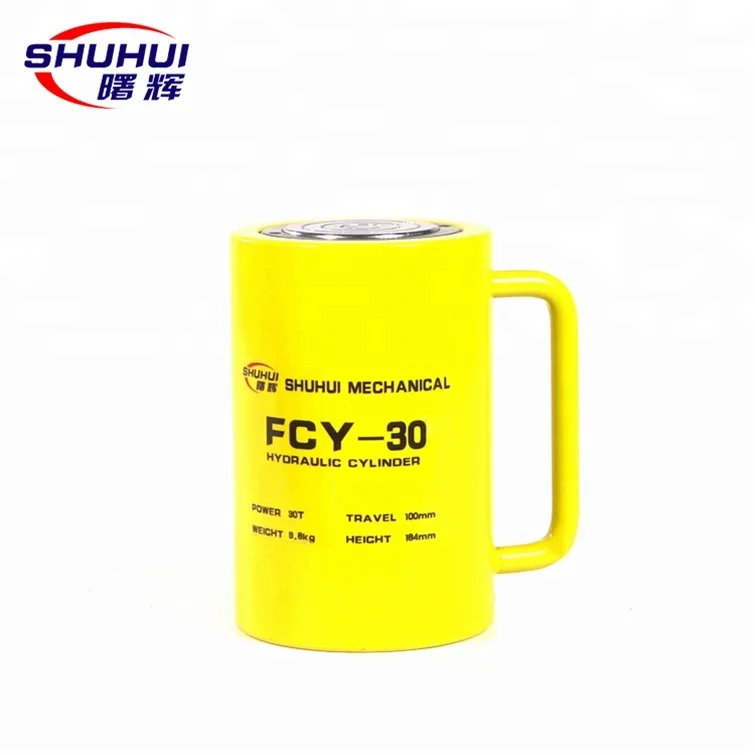

FCY-30 | 30 | 50.24 | 80 | 108 | 100 | 9.6 | 164 | Cp-700-2 |
FCY-50 | 50 | 78.5 | 100 | 128 | 100 | 12.6 | 166 | Cp-700-3 |

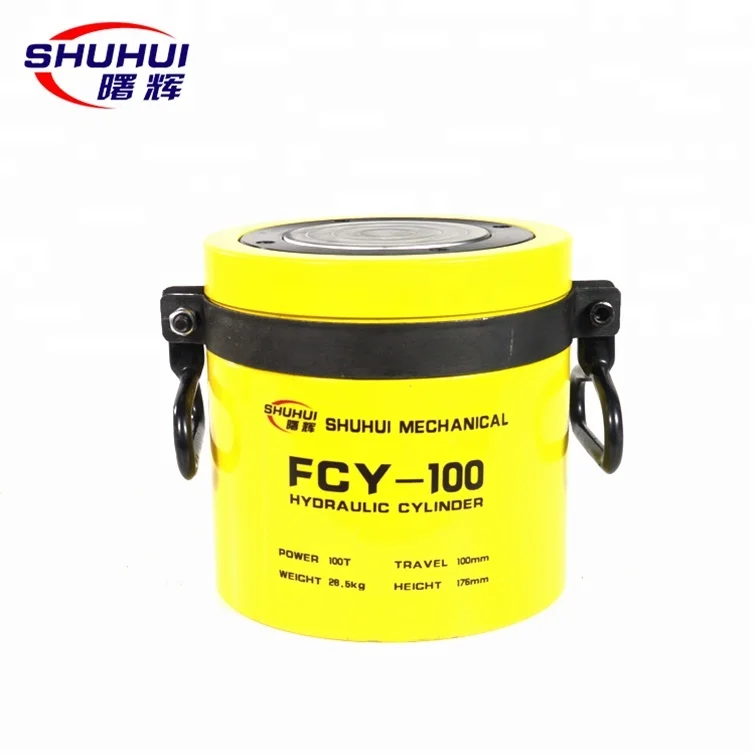

FCY-100 | 100 | 143.06 | 135 | 178 | 100 | 26.5 | 176 | Cp-800 |
FCY-200 | 200 | 302.5 | 196.3 | 247 | 100 | 65 | 181 | ZCP-700A(electric pump) |
Adavantages:
- Light weight and compact design suitable for working in narrow space.
- Baked enamel finished for increased corrosion resistance.
- The dustproof ring reduces pollution and prolongs the service life of hydraulic cylinder.
- Easy to carry,and the cylinder plane is provided with two holes for fixed use.
