Half Cell N Type Bifacial Solar Panel Plate Price 560w 565 Watt 570w 575w 580 Watts Buy Pv Solar Panels Solar Panels For Sale
- Category: >>>
- Supplier: Sichuan Convenient You And I Information Technology Co. Ltd.
Share on (1601028518665):
Product Overview
Description
Product Description
ELECTRICAL DATA(STC) | ||||||||||||

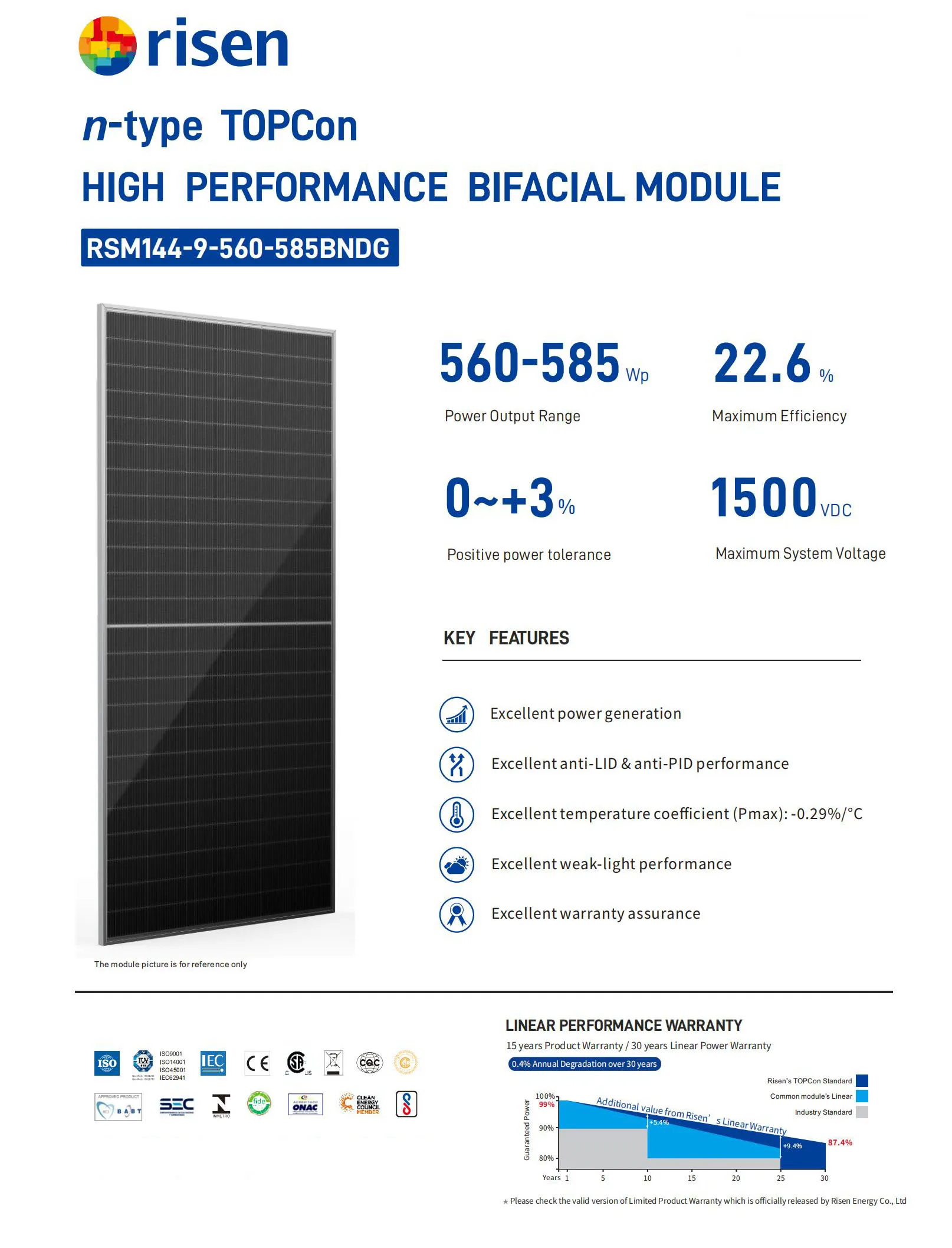

Model Type | RSM144-9-560-585BNDG | |||||||||||
Rated Powerin Watts-Pmax(Wp) | 560 | 565 | 570 | 575 | 580 | 585 | ||||||
Open Circuit Voltage-Voc(V) | 51.37 | 51.57 | 51.77 | 51.97 | 52.17 | 52.37 | ||||||
Short Circuit Current-Isc(A) | 13.89 | 13.95 | 14.01 | 14.06 | 14.12 | 14.18 | ||||||
Maximum Power Voltage-Vmpp(V) | 43 | 43.2 | 43.4 | 43.6 | 43.8 | 44 | ||||||
Maximum Power Current-lmpp(A) | 13.04 | 13.1 | 13.15 | 13.21 | 13.26 | 13.32 | ||||||
Module Efficiency (%) | 21.7 | 21.9 | 22.1 | 22.3 | 22.5 | 22.6 | ||||||
STC: Irradiance 1000W/㎡, Cell Temperature 25°C, Air Mass AM1.5 according to EN 60904-3 | ||||||||||||
Bifacial factor: 70%+5 * Module Efficiency (%): Round-off to the nearest number | ||||||||||||
Electrical characteristics with 10% rear side power gain | ||||||||||||
Total Equivalent power -Pmax (Wp) | 616 | 622 | 627 | 633 | 638 | 644 | ||||||
Open Circuit Voltage-Voc(V) | 51.37 | 51.57 | 51.77 | 51.97 | 52.17 | 52.37 | ||||||
Short Circuit Current-lsc(A) | 15.27 | 15.34 | 15.41 | 15.47 | 15.53 | 15.6 | ||||||
Maximum Power Voltage-Vmpp(V) | 43 | 43.2 | 43.4 | 43.6 | 43.8 | 44 | ||||||
Maximum Power Current-lmpp(A) | 14.35 | 14.41 | 14.47 | 14.53 | 14.59 | 14.65 | ||||||

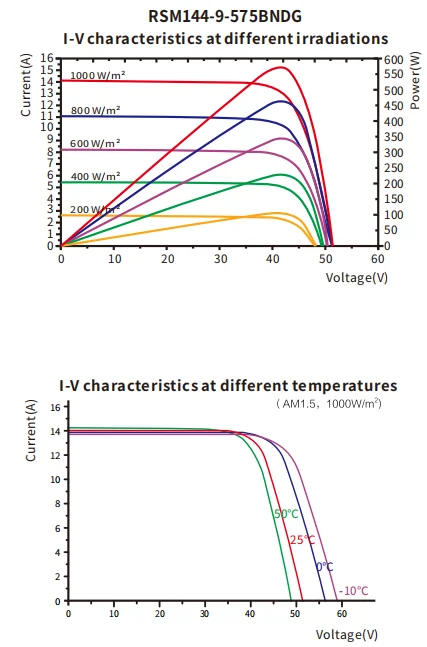

Electrical characteristics with different rear side power gain(refer to700W front) | ||||||||||||
PACKAGING CONFIGURATION | ||||
40ft(HQ) | 20ft | |||
Number of modules per container | 720 | 180 | ||
Number of modules per pallet | 36 | 36 | ||
Number of pallets per container | 20 | 5 | ||
Packaging box dimensions (LxWxH) in mm | 2290×1110×1260 | |||
Box gross weight[kg] | 1170 | |||

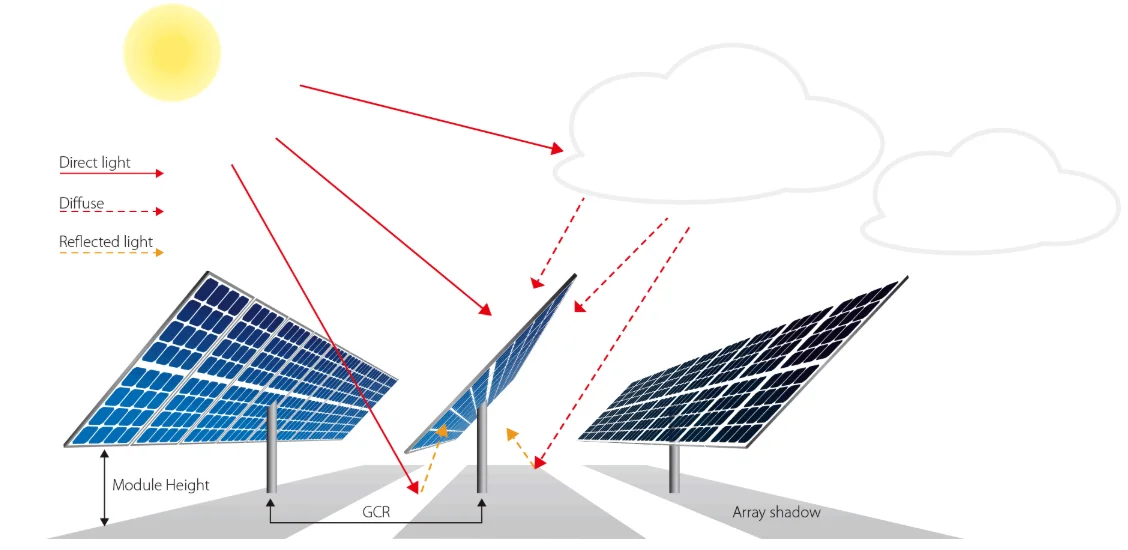

Bifacial Power Generation
The energy yield of bifacial module can be influenced by albedo, height of module, GCR and DHI etc. Installation height of bifacial module is recommended to be higher than 1m. Shading from bracket and junction box should be avoided. At present, the power generation of bifacial module on fixed brackets and single axis tracker can be simulated with PVsyst. Investors can determine the DC/AC ratio of bifacial module system to minimize the LCOE.
Certificate
About Us
Established in 2013, professional pv modules, integrated pv systems manufacturer. Experienced in pv power stations construction and maintenance. 》》

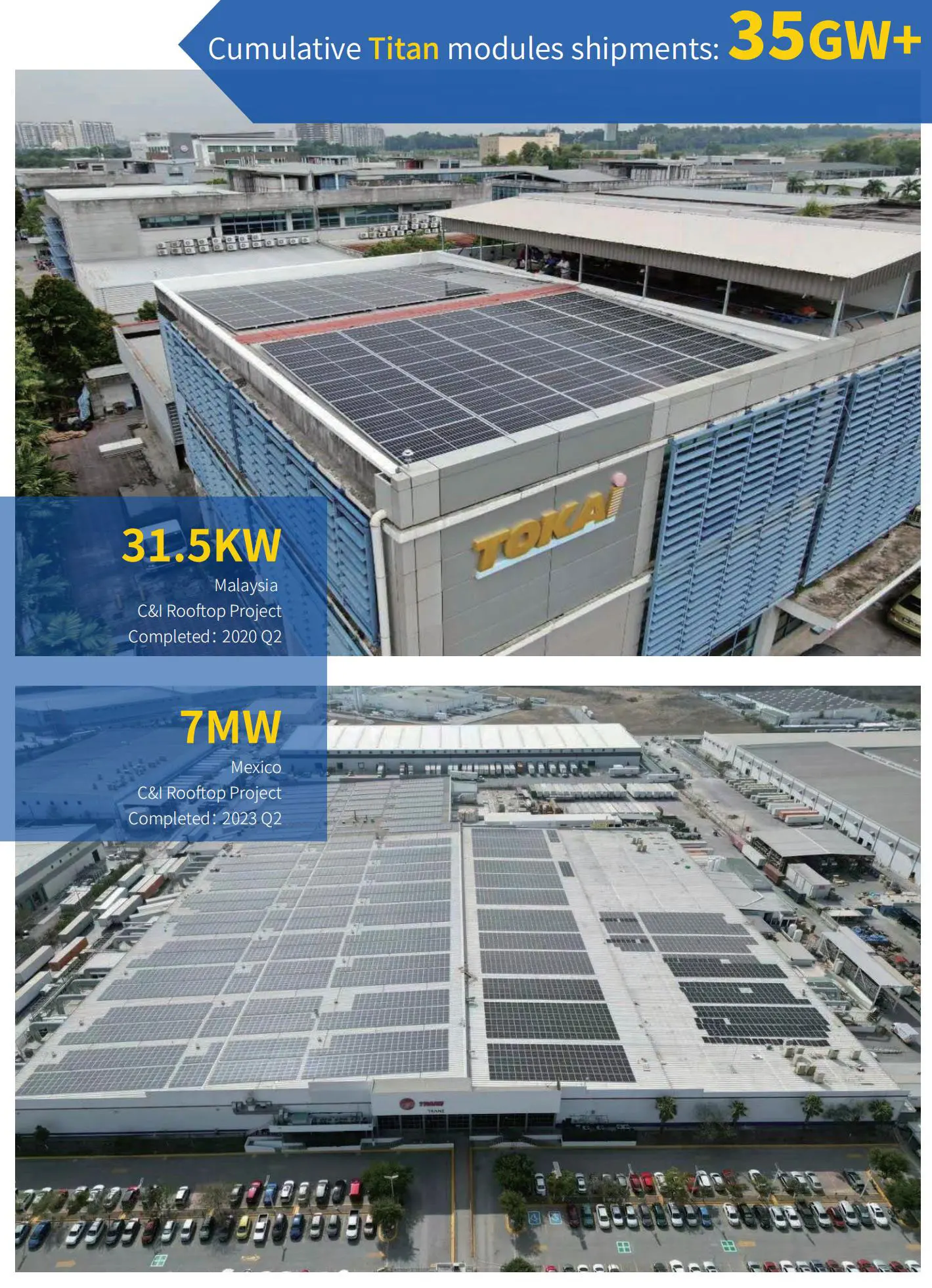

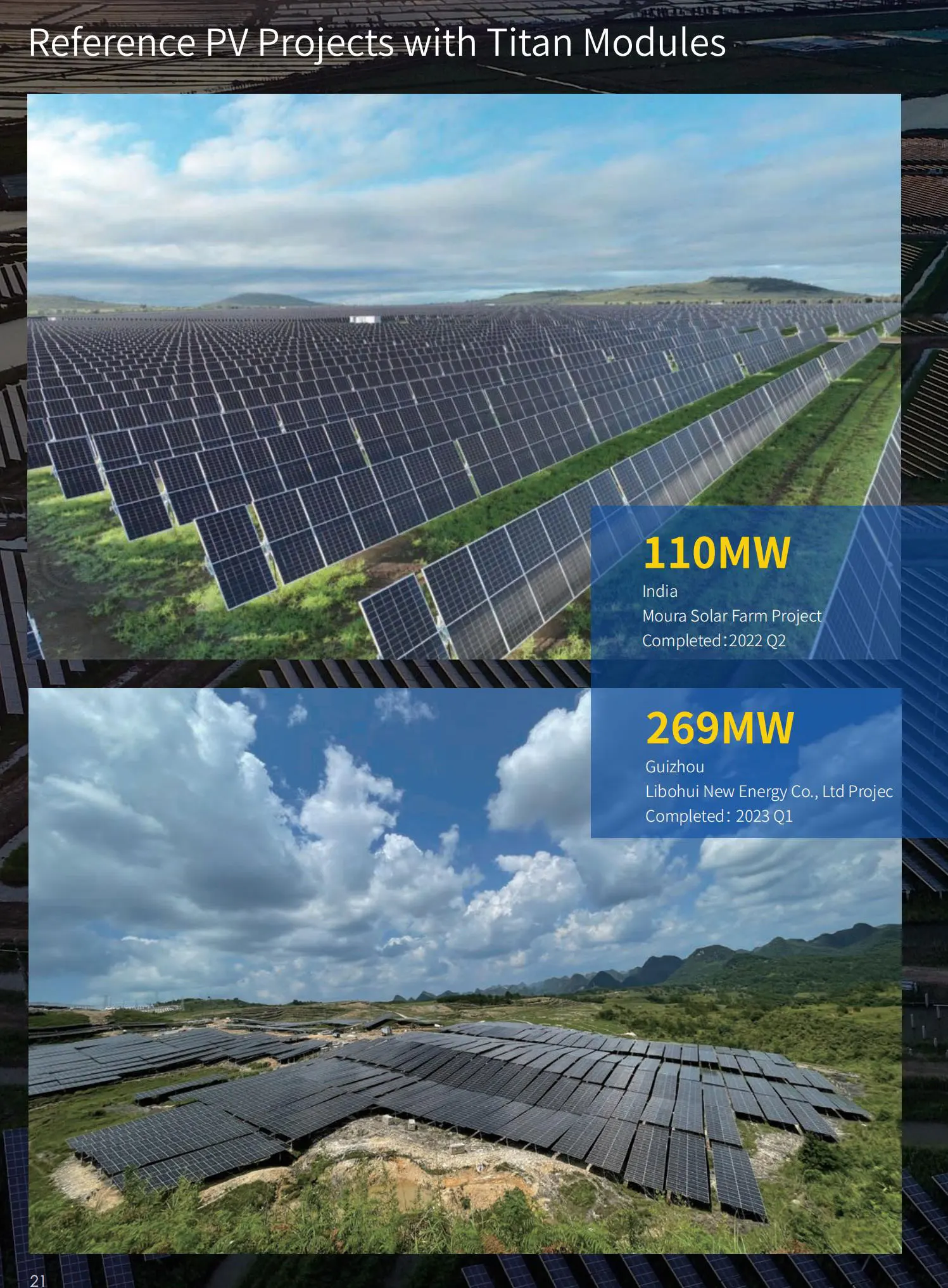

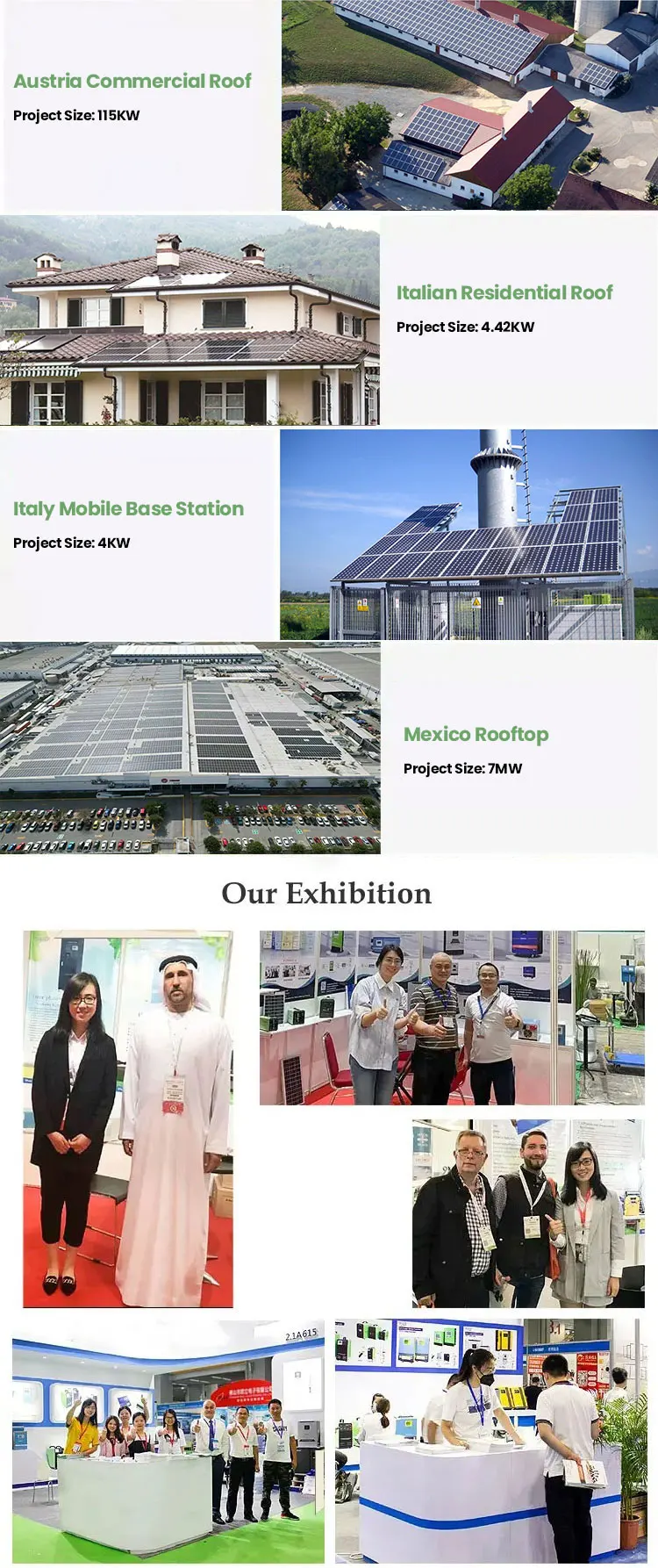

Projects & Exhibition
Our Client And Good Reviews

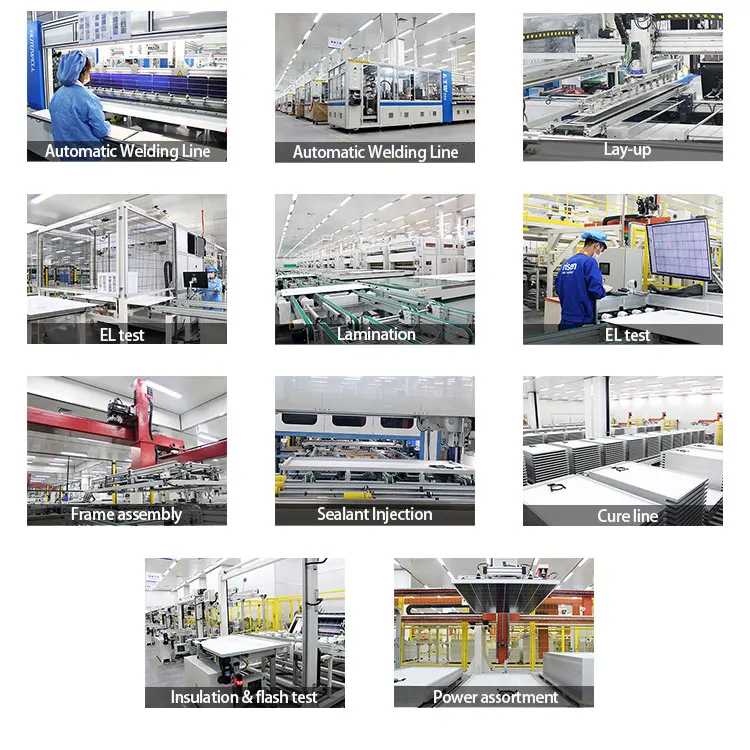

Our Factory
OEM & ODM Services
FAQ
1. How can you guarantee quality?
Quality first. We have professional technical team who can help customer to do the product test and technical trainning. We also can have a sample order first before mass order.
2. Do you support OEM?
Yes, we do support OEM, we can customize your company's LOGO and company name on the product and packaging.
3. Are you manufacturer or trading company?
We are a factory with many years of experience in the production of solar energy series products. You are welcome to visit our factory.
4.What's the payment term?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU.
Accepted Payment Currency: USD, EUR, CNY.
Accepted Payment Type: T/T, L/C, Western Union, Cash.
If you want to know more information, you can send inquiry to our team, we will cover more details.
Quality first. We have professional technical team who can help customer to do the product test and technical trainning. We also can have a sample order first before mass order.
2. Do you support OEM?
Yes, we do support OEM, we can customize your company's LOGO and company name on the product and packaging.
3. Are you manufacturer or trading company?
We are a factory with many years of experience in the production of solar energy series products. You are welcome to visit our factory.
4.What's the payment term?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU.
Accepted Payment Currency: USD, EUR, CNY.
Accepted Payment Type: T/T, L/C, Western Union, Cash.
If you want to know more information, you can send inquiry to our team, we will cover more details.
