Product Overview
Description
Description
TCT-200F transformer comprehensive characteristic tester is a new generation of innovative CT, PT comprehensive tester
developed on the basis of traditional transformer volt-ampere characteristic variable ratio polarity comprehensive tester for voltage regulator, booster and current booster. The equipment adopts high-performance DSP and FPGA technology, metal wire drawing panel design, ultra-light, high-strength, ultra-corrosive titanium alloy screws to ensure product quality and stability. With the advance of high degree of automation, frequency conversion principle and high test efficiency, it becomes an indispensable weapon for the power industry to test the characteristics of transformers.
developed on the basis of traditional transformer volt-ampere characteristic variable ratio polarity comprehensive tester for voltage regulator, booster and current booster. The equipment adopts high-performance DSP and FPGA technology, metal wire drawing panel design, ultra-light, high-strength, ultra-corrosive titanium alloy screws to ensure product quality and stability. With the advance of high degree of automation, frequency conversion principle and high test efficiency, it becomes an indispensable weapon for the power industry to test the characteristics of transformers.

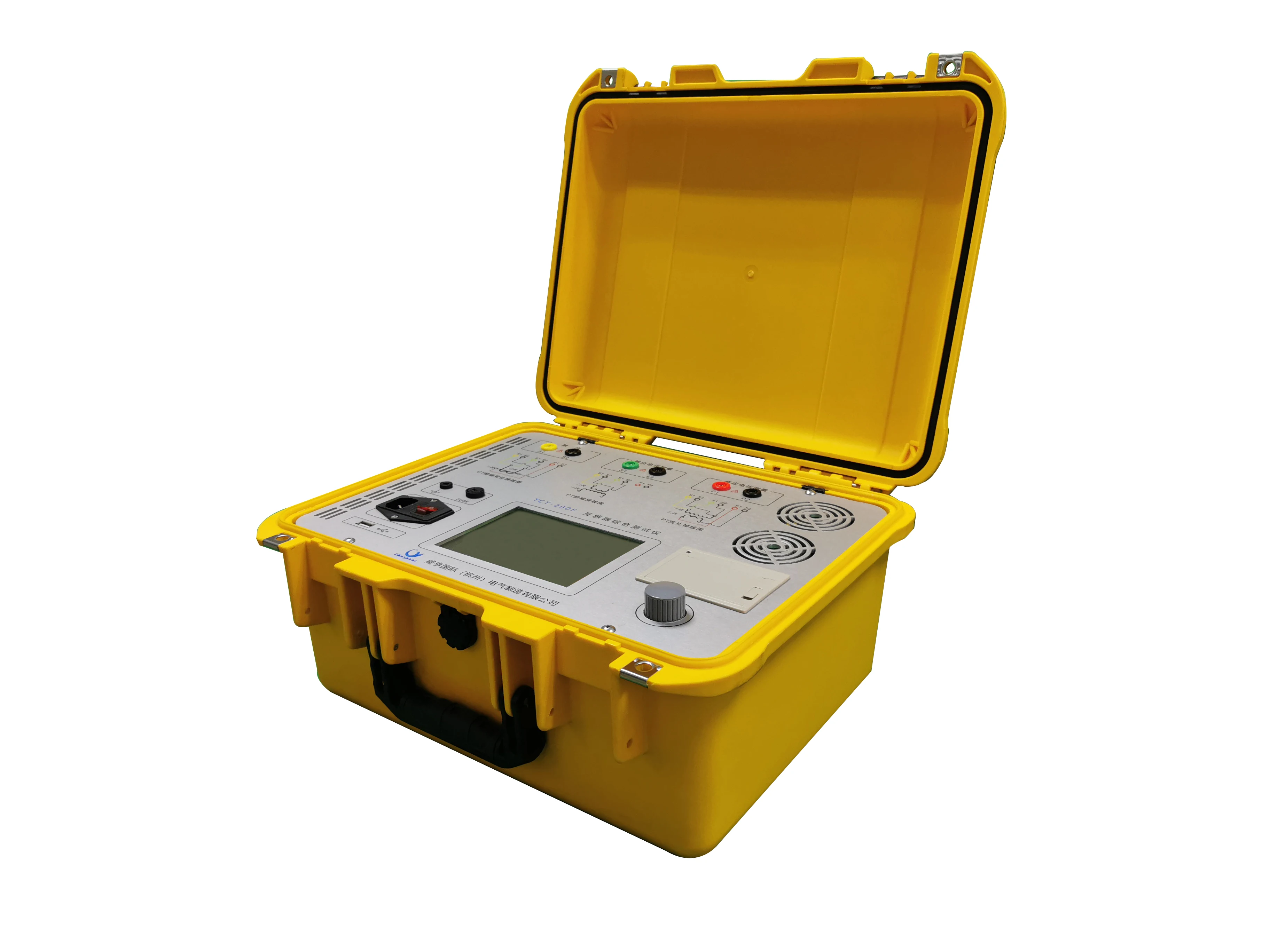

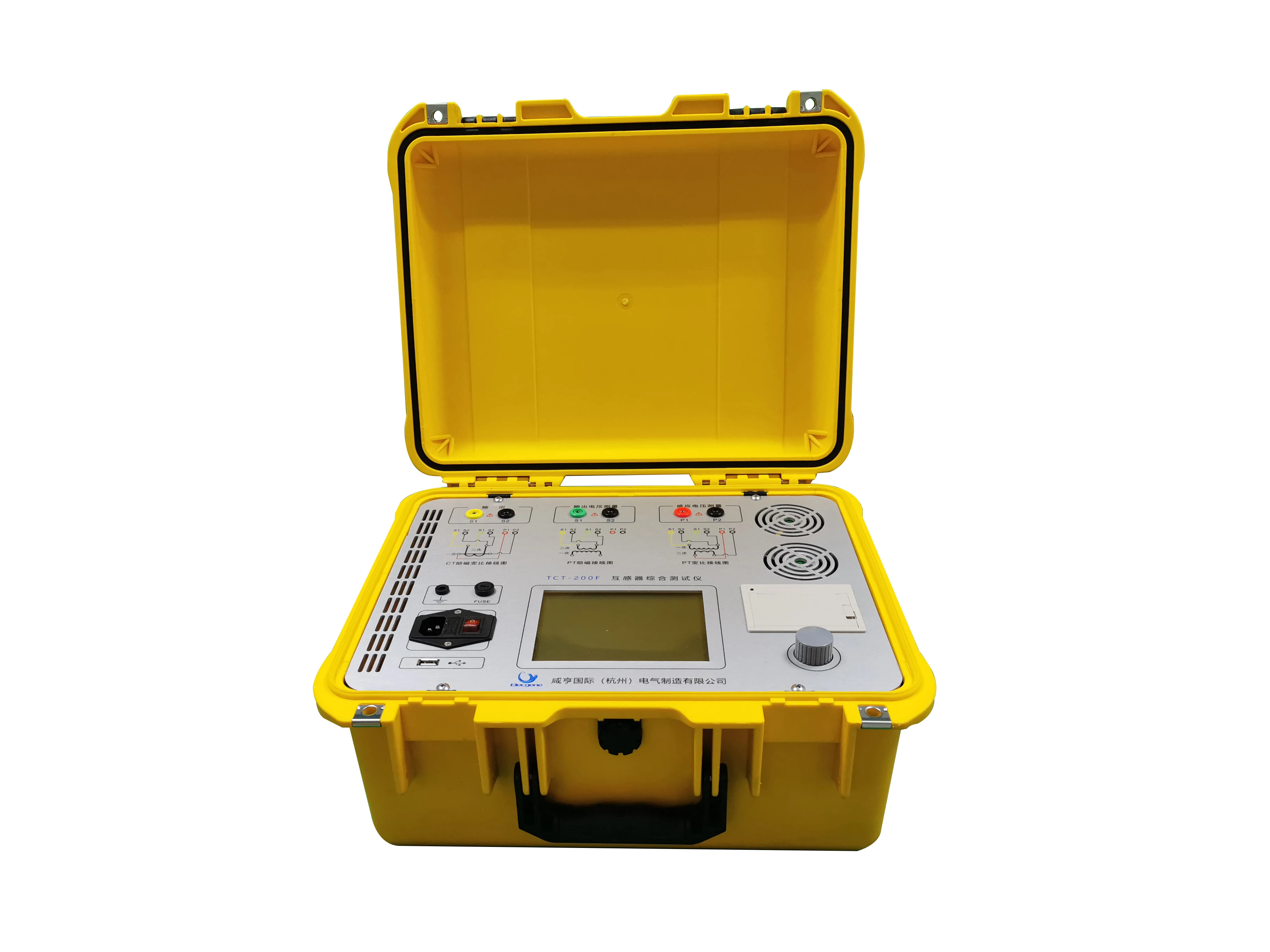

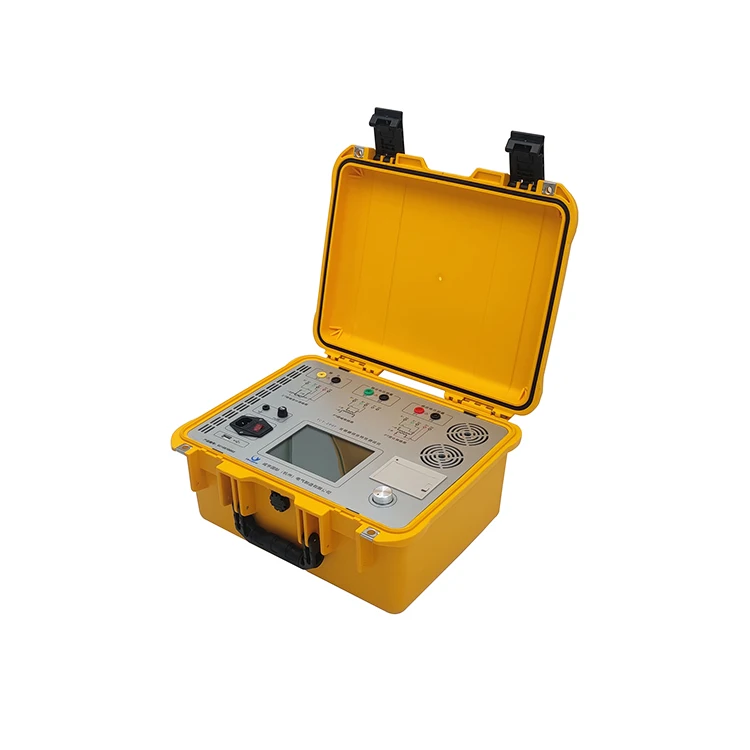

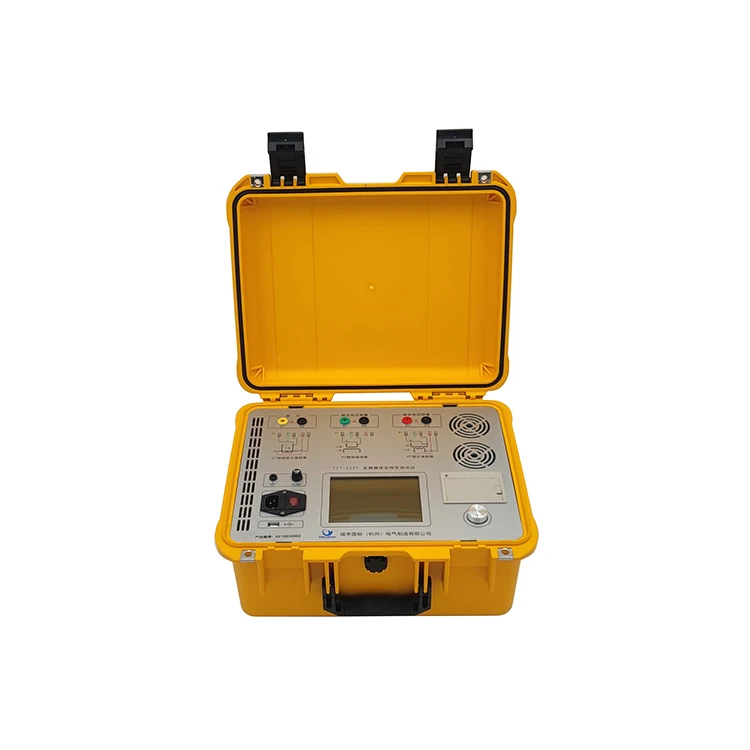

Appearance Design | PELICAN Protector Case, light, portable IP67 |
Processing Design | Imported materials, brushed metal panels, ultra-light, high-strength, ultra-corrosive titanium alloy screws, highlighting the quality |
Screen Display | Large high-brightness LCD screen, still clearly visible in strong sunlight |
Output | 0-120Vrms, 5Arms, 12A（Peak） |
Voltage Test Accuracy | ±0.002 |
CT Turn Ratio Test Range | 1-10000 |
CT Turn Ratio Test Accuracy | ±0.002 |
PT Turn Ratio Test Range | 1-10000 |
PT Turn Ratio Test Accuracy | ±0.002 |
Phase Test | Accuracy: ±5min, Resolution: 0.5min |
Secondary Winding Resistance Test | Range: 0-300Ω Accuracy: 0.005±2mΩ |
AC Load Test | Range: 0-1000VA Accuracy: 0.005±0.05VA |
Store and Print | Built-in thermal printer, real-time printing test results, real-time data storage |
Power Supply | AC220V±10%, 50Hz |
Dimension | 407*342*193mm |
Weight | 4.75kg |
Features
1. Appearance design: light, delicate, portable
1. Appearance design: light, delicate, portable
2. Light: weight only 4.75KG
3. Portable: Adopt the United States PELICAN trolley case integrated design
4. Delicate: Imported material, metal wire drawing design, titanium alloy screw with super corrosion resistance
5. Interface: large LCD screen with high brightness, clearly visible under strong sunlight
Five innovative technologies
1. Humanized interface, English dynamic graphical interface
2. Built-in high-power cooling system, ensure equipment safe and efficient operation
3. Advanced frequency conversion method, using advanced low voltage, low current can
complete the test.
complete the test.
4. With its own intelligent analysis system, test data saved and analyzed in time.
5. One-button intelligent operation, almost complete all the tests.
