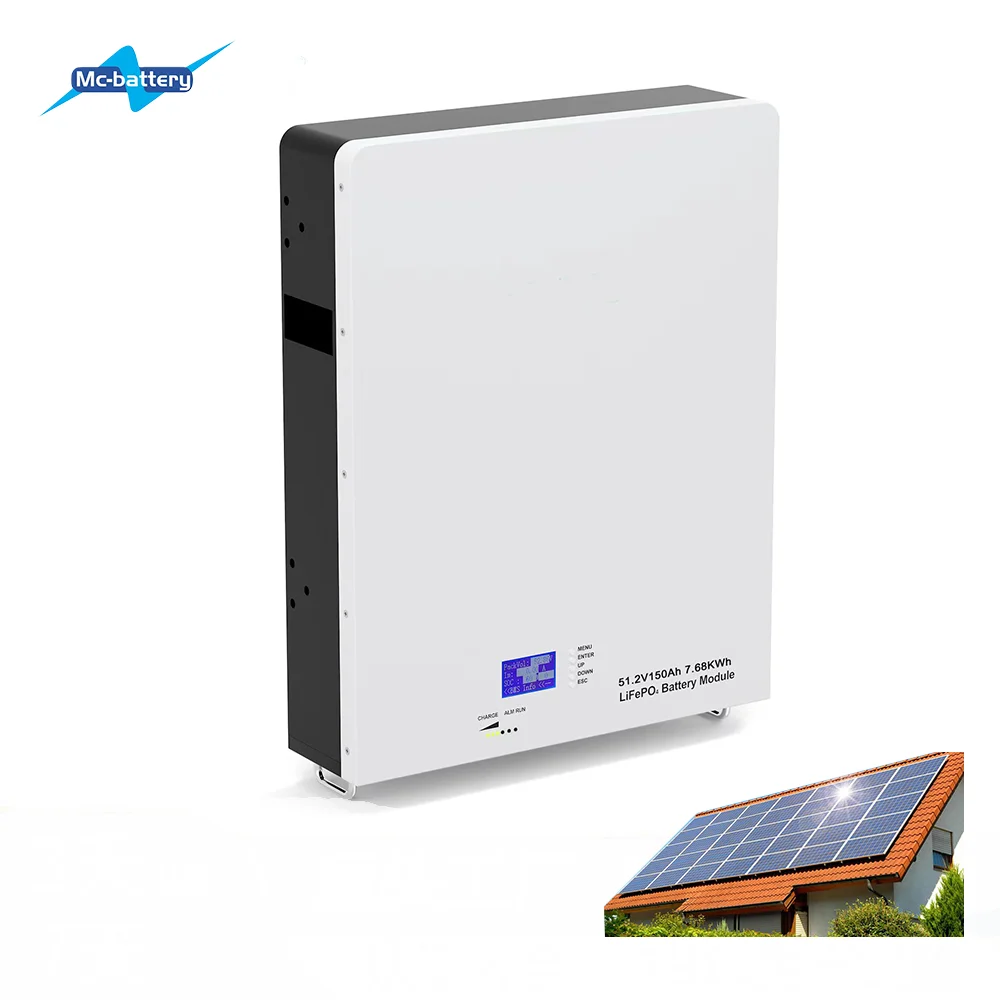

Free shipping Good Cheap Home energy storage Lithium 48v 100ah 200ah 51.2V 5kwh 10kwh wall mounted power wall for solar systems
- Category: >>>
- Supplier: Guangzhou Mingchuan Electronic Technology Co. Ltd.
Share on (1601028542257):
Product Overview
Description
specification
Model Number | MCPW 2000 | MCPW 2400 | MCPW 5000 | MCPW 7500 | MCPW 8000 | MCPW 10000 | ||||||
Norminal Battery Energy | 2.56KWH | 5.12KWH | 5.12KWH | 7.68KWH | 8.96KWH | 10.24KWH | ||||||
Norminal Capacity | 100Ah | 200Ah | 100Ah | 150Ah | 175Ah | 200Ah | ||||||
Norminal Voltage | 25.6V | 25.6V | 51.2V | 51.2V | 51.2V | 51.2V | ||||||
Dimensions | 570x360x140 | 570x360x140 | 570x360x140 | 860x540x160 | 860x540x160 | 860x540 x160 | ||||||
Internal Resistance | ≤30mΩ | |||||||||||
Cycle Life | >6000 | |||||||||||
Months Self Discharge | <3% | |||||||||||
Charge Data | ||||||||||||
DC Normal Charge Voltage | 29.2+1Vdc | 29.2+1Vdc | 58.4±1Vdc | |||||||||
Charge Mode | 0.2C to 58.4V, then 58.4V, charge current to 0.02C(CC/CV) | |||||||||||
Recommended Charger Current | <50A | |||||||||||
Allowed Max.Charge Current | 50A | |||||||||||
Charge Cut-off Voltage | 29.2+1Vdc | 58.4+1Vdc | ||||||||||
Discharge Data | ||||||||||||
Continuous Discharge Current | 50A | |||||||||||
Allowed Max. discharge current | 100A | |||||||||||
Discharge cut-off voltage | 20V | 40V | ||||||||||
Working Condition | ||||||||||||
Continuous Discharge Current | 0°C to 45°C(32°F to113°F) | |||||||||||
Discharge Temperature | -20°C to 60°C(-4°F to 140°F) | |||||||||||
Storage Temperature | 0°C to 40°C(32°F to 104°F) | |||||||||||
Enclosure Protection Level | IP54 | |||||||||||
Mechanical Data | ||||||||||||
Cell&Capacity | LiFePO4 Battery | |||||||||||
Shell material | Iron shell | |||||||||||

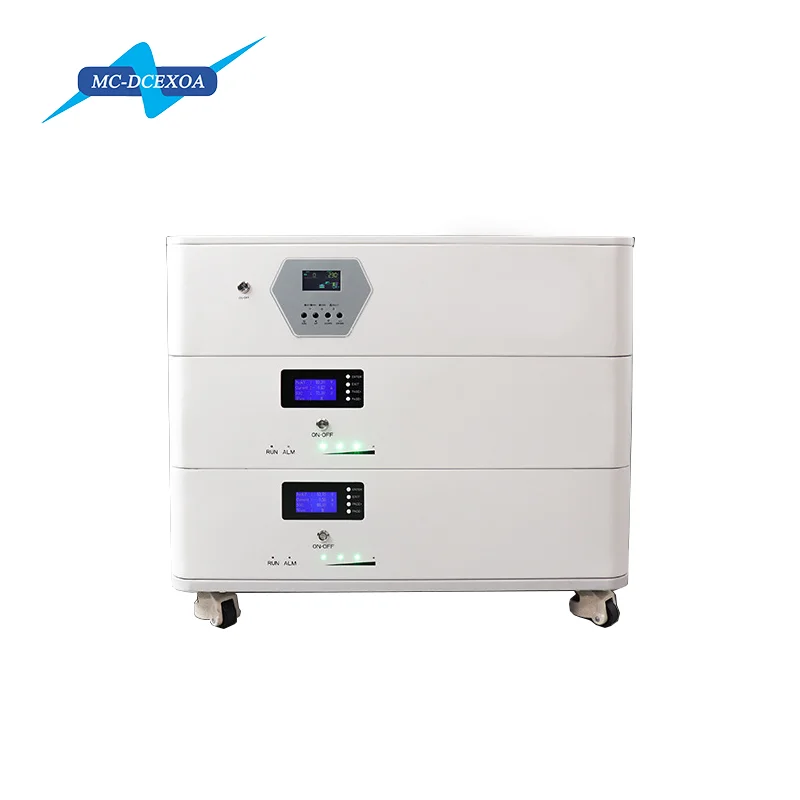

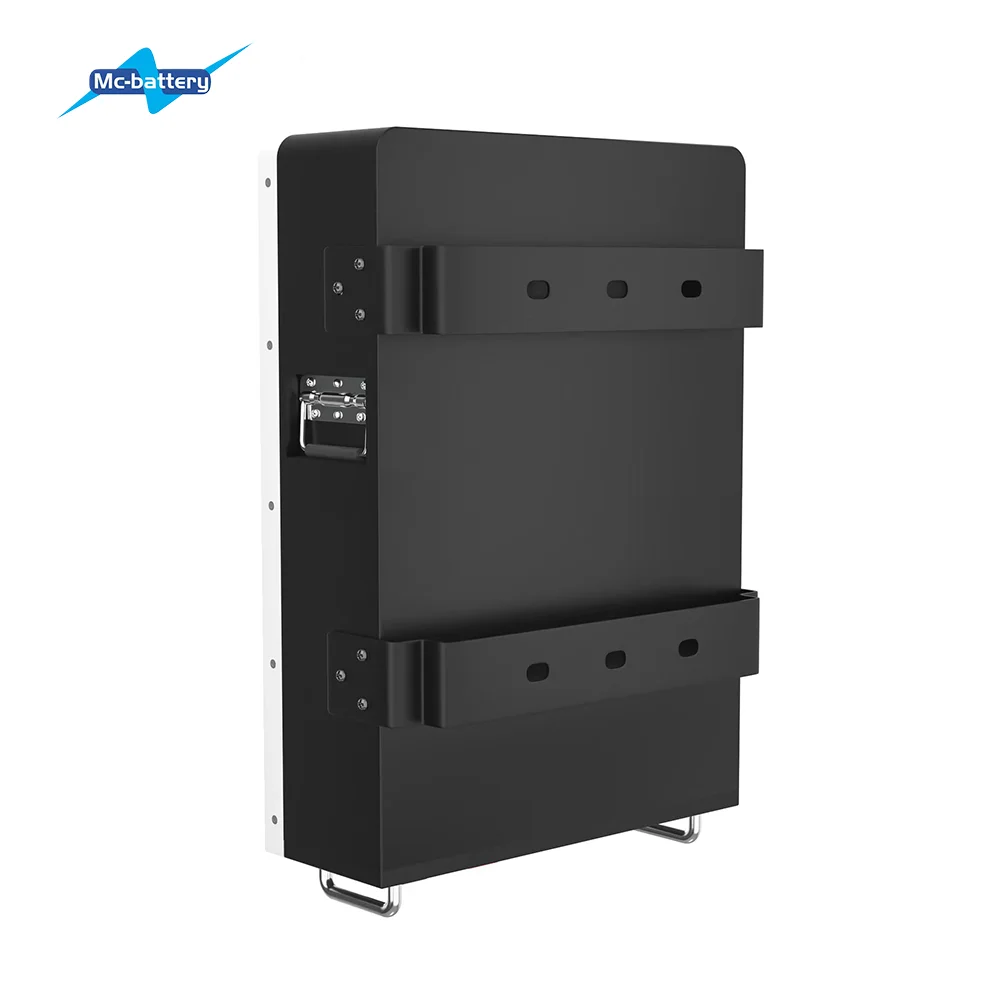

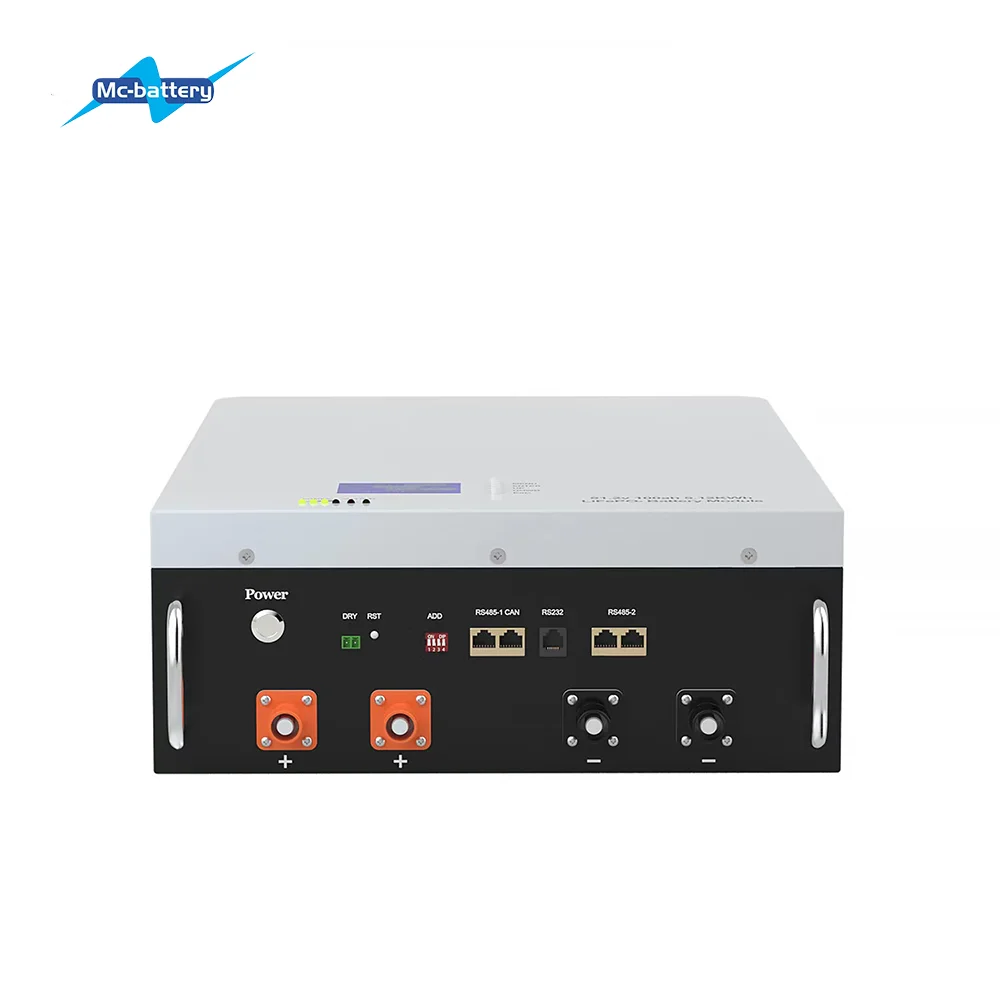

Product details picture

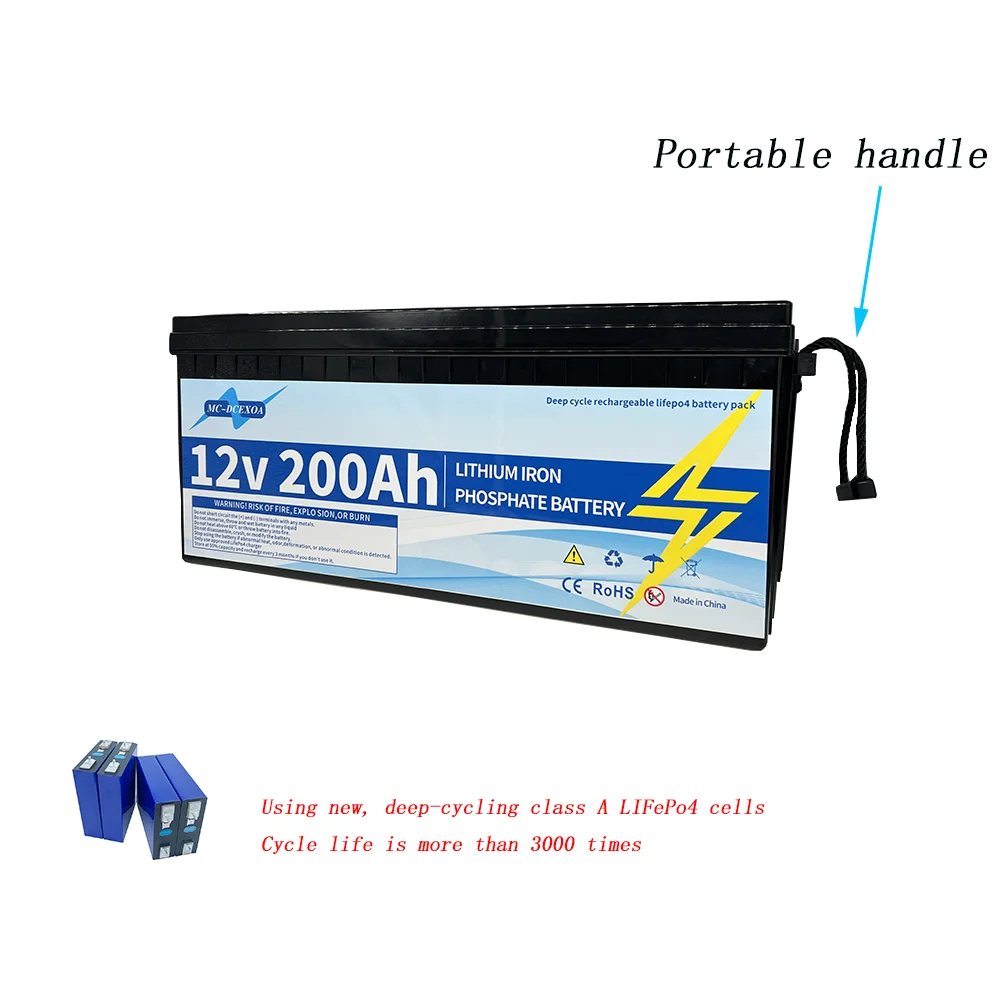

Recommend Products

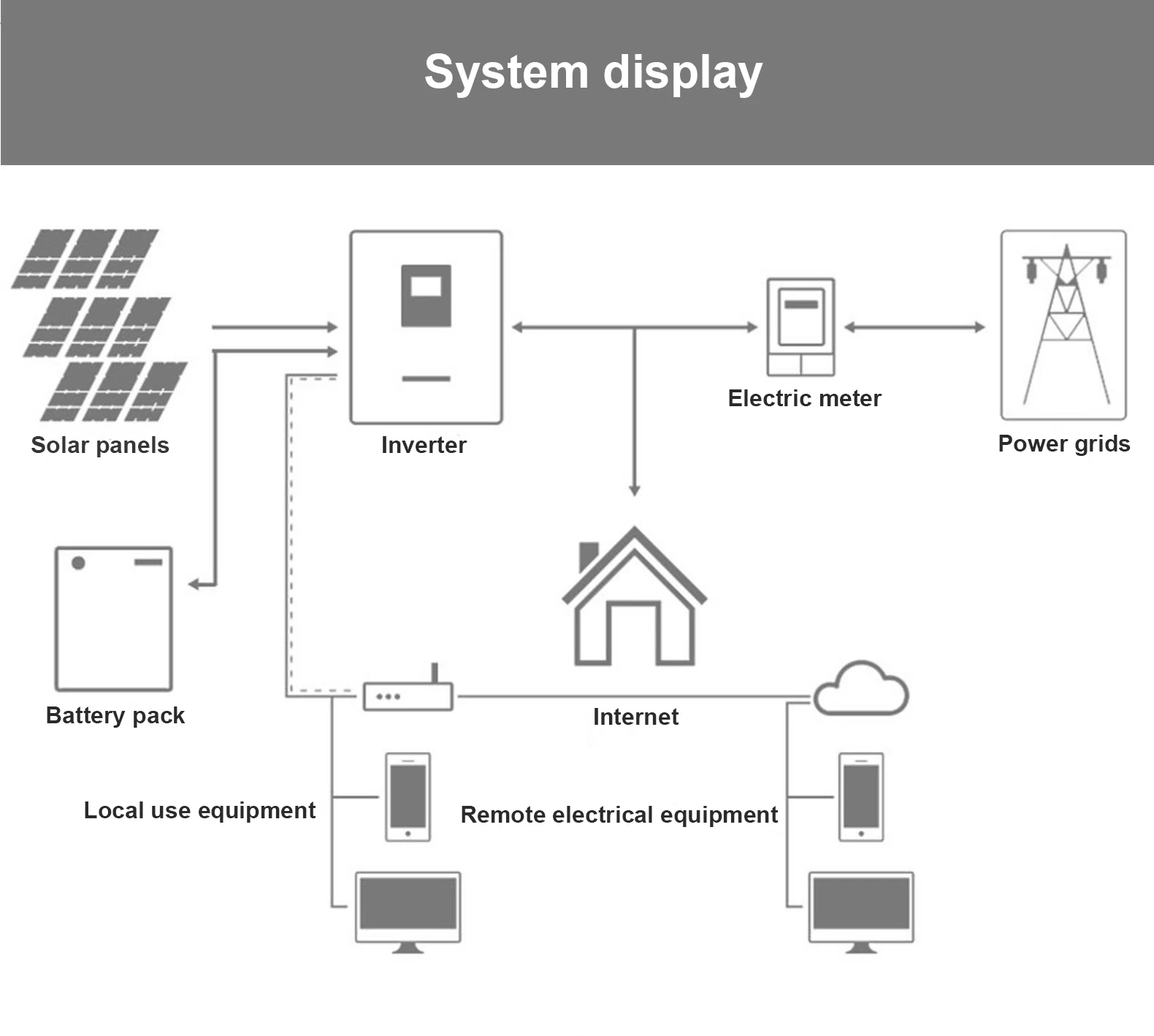

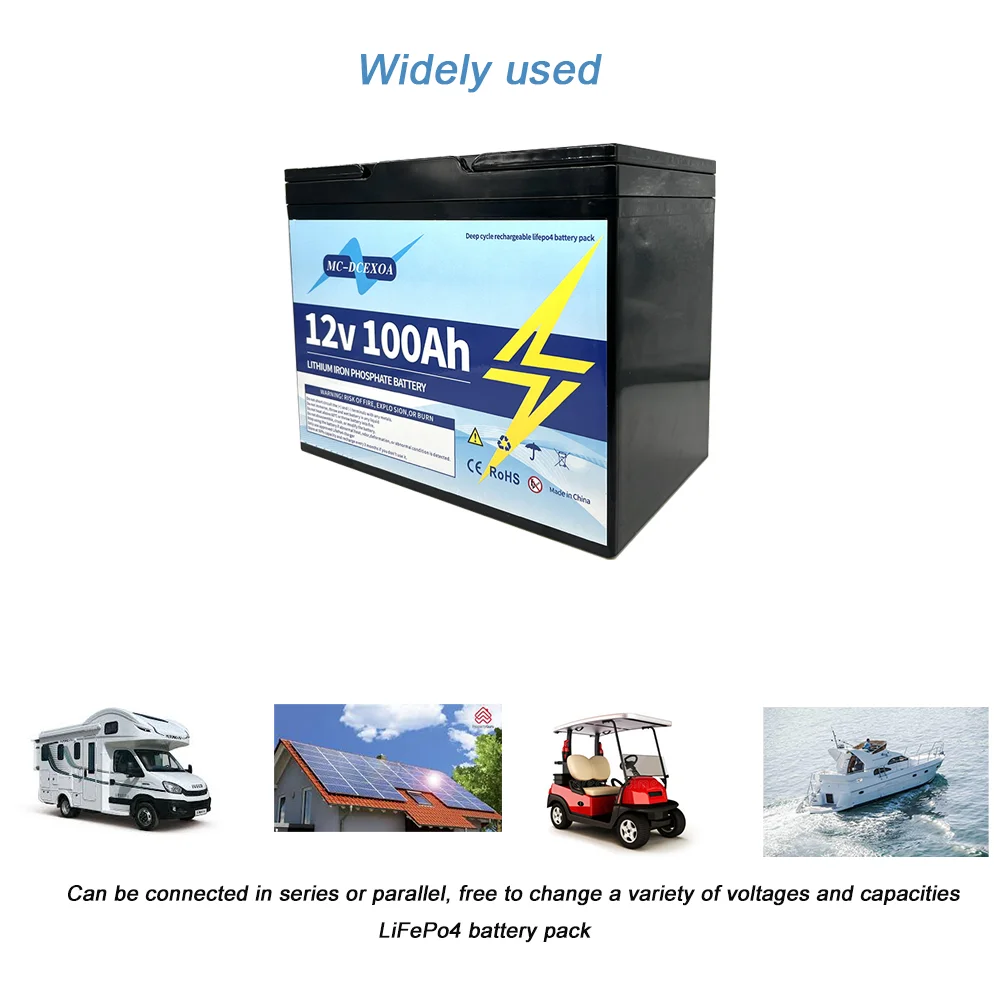

Range of application

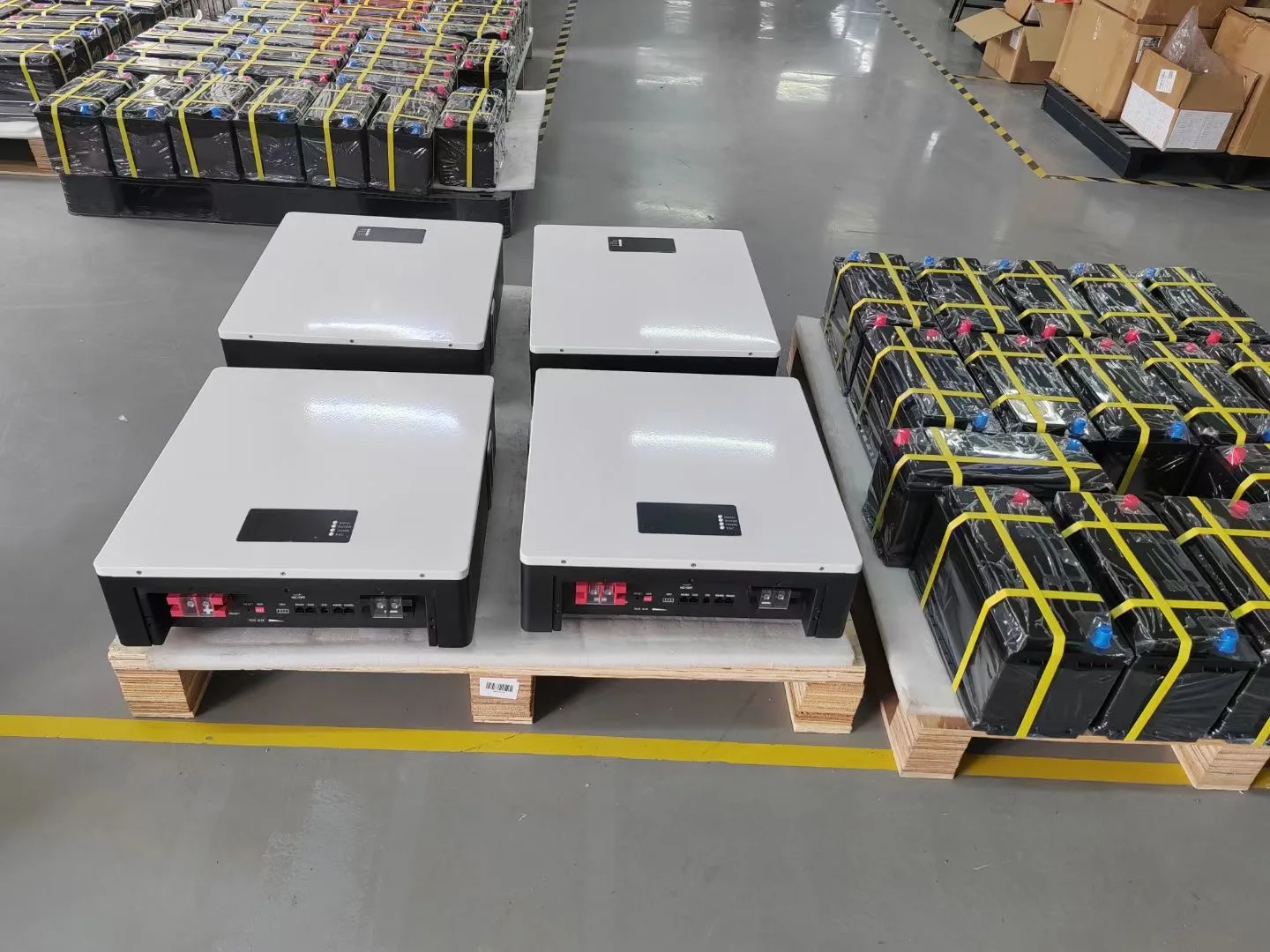

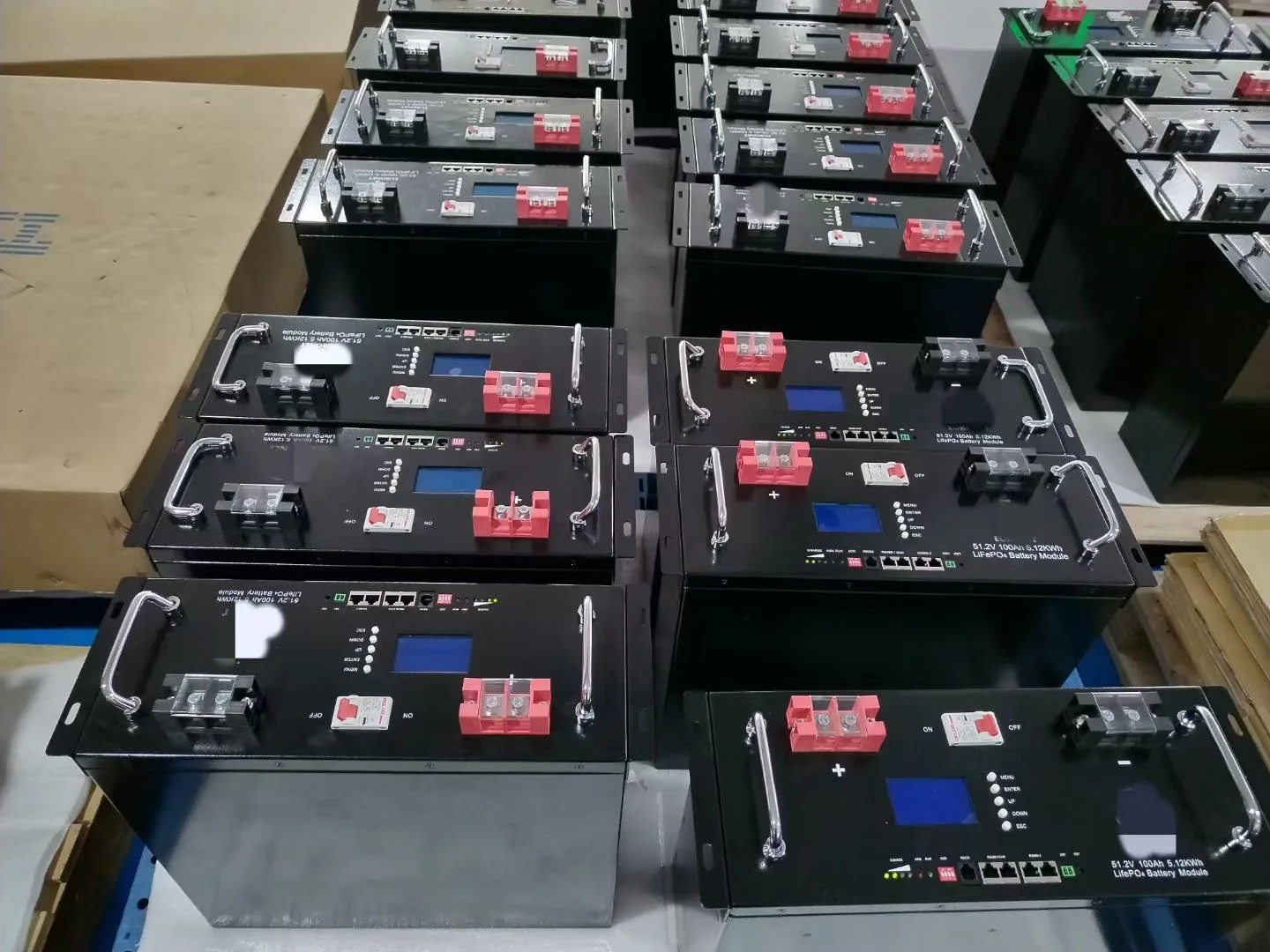

Packaging & Shipping
Company Profile
FAQ
1. Do you provide samples?
Yes, we can provide samples.
2. How do we guarantee quality?
Always have a prenatal sample before measurement;
Final inspection before shipment;
Yes, we can provide samples.
2. How do we guarantee quality?
Always have a prenatal sample before measurement;
Final inspection before shipment;
What can you buy from us?
Lithium battery, battery pack, Lifepo4 battery, Lead acid battery, battery
Lithium battery, battery pack, Lifepo4 battery, Lead acid battery, battery
4. Why do you buy from us instead of another supplier?
We have a professional team, professional technology and many years of production experience, to provide customers with the best
products and services, Guangzhou Mingchuan Electronic Technology Co., LTD. You're welcome
5. What services can we provide?
Accept Delivery terms: FOB, CFR, CIF, EXW, FCA, DDP, DDU, Express Delivery;
Payment currency: US dollar, Euro, Hong Kong dollar, Pound sterling, YUAN;
Acceptable payment methods: TELEgraphic transfer, letter of credit, D/P /A, credit card;
1 year warranty, some products are 2 years warranty, what products do you need to see in detail
We have a professional team, professional technology and many years of production experience, to provide customers with the best
products and services, Guangzhou Mingchuan Electronic Technology Co., LTD. You're welcome
5. What services can we provide?
Accept Delivery terms: FOB, CFR, CIF, EXW, FCA, DDP, DDU, Express Delivery;
Payment currency: US dollar, Euro, Hong Kong dollar, Pound sterling, YUAN;
Acceptable payment methods: TELEgraphic transfer, letter of credit, D/P /A, credit card;
1 year warranty, some products are 2 years warranty, what products do you need to see in detail
