Manufacture Price Detecting Robot Obstacle Avoidance Industrial Short Range Laser Distance Sensor
- Category: >>>
- Supplier: Guangdong Hinson Technology Co. Ltd.
Share on (1601028547328):
Product Overview
Description
Product Description

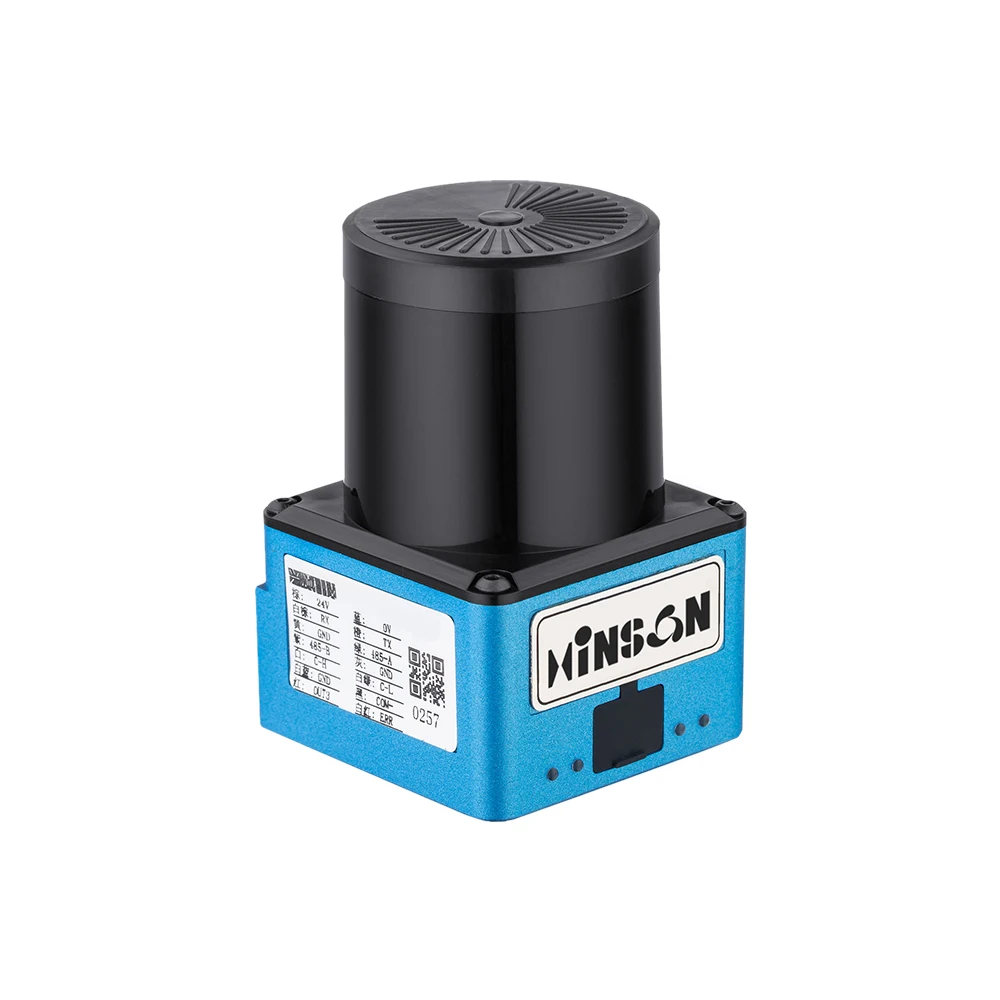

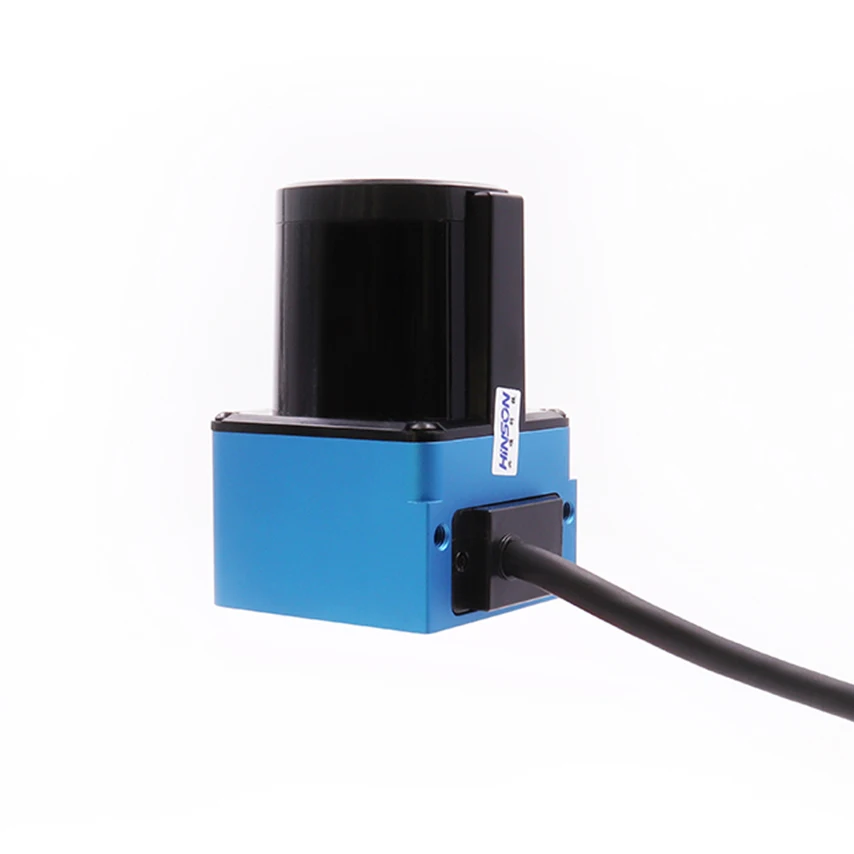

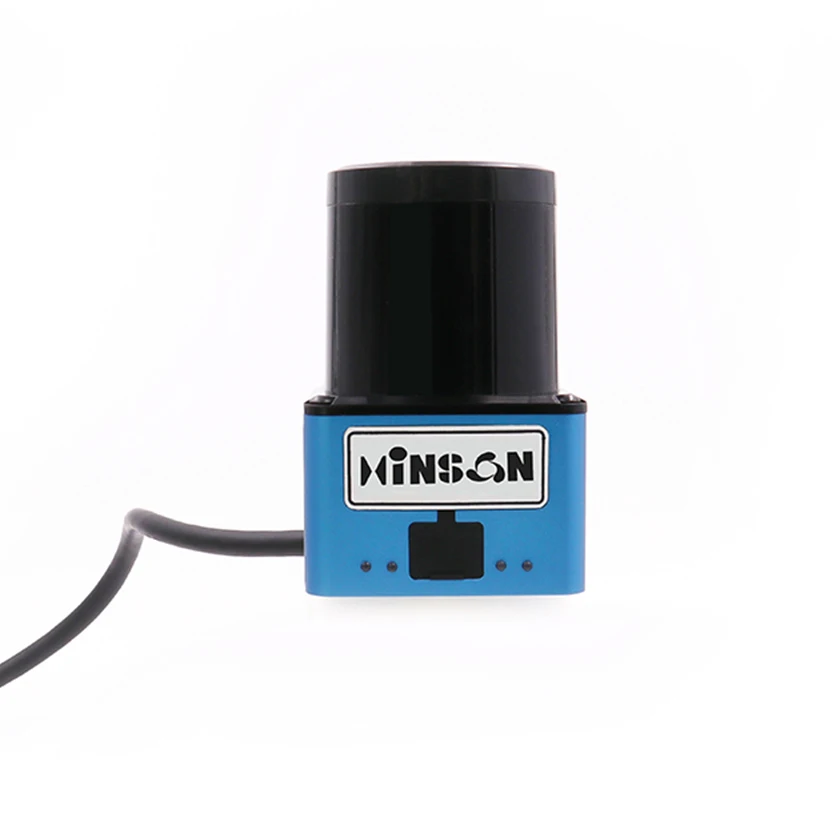

270°laser sensor SE-0522(LS05I)
Features
1.Ranging method based on TOF
2.270°detection for object distance and angle
3.Detection range up to 10m
4.small size
5.Wide voltage supply range
6.customizable data format
2.270°detection for object distance and angle
3.Detection range up to 10m
4.small size
5.Wide voltage supply range
6.customizable data format
Specification
Model Number | SE-0522(LS05I) | |
Product Type | 270°Laser sensor | |
Place of Origin | China | |
Provice | Guangdong | |
Brand Name | Hinson | |
Basic characteristics | ||
Operating voltage | DC18V-32V | |
Rated power | ＜2w | |
Light source | laser wavelength 905nm | |
Laser class | 1(IEC60825-1:2014,EN60825-1:2014) | |
Detection distance | 0.05-5m（Reflectivity 90%） | |
0.025-2m（Reflectivity 10%） | ||
Detection range | 270° | |
Identify object shape | any shape, reflectivity calculated by detection distance | |
Angular resolution | 0.5° | |
Output raw test data | × | |
Protecting areas | 3(Warningzone 1,warning zone 2, protecting zone) | |
Obstacle-avoidance channels | 64 | |
Switch input | 6PNP | |
Switch output | 4NPN | |
Micro-USB configuration port | Support | |
Rs232 port | Do not support | |
Rs485 port | Do not support | |
CAN BUS port | Do not support | |
Ethernet port | Do not support | |
Laser scanning frequency | 20Hz | |
Response time | Typical value 50ms | |
Systematic error | ＜40mm | |
Statistical error | ＜30mm | |
Detection output time-delay | 0ms-500ms can configure within range | |
Detection hold time-delay | 0ms-500ms can configure within range | |
Object reflectivity | 40%-1000% | |
Ambient light strength | < 80000lx | |
Operating environment | indoor,-10℃~+50℃，＜85%RH non-condensation,no dew | |
Company Profile

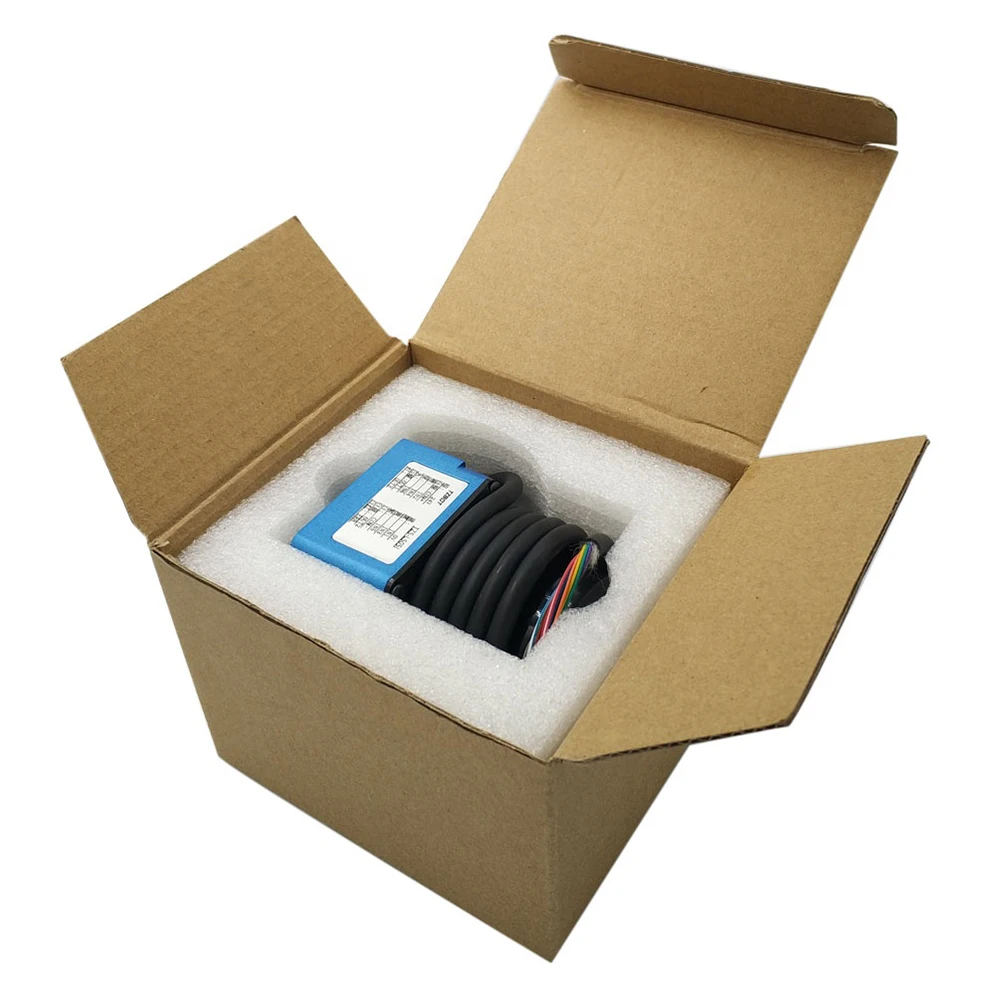

Packing & Delivery
To better ensure the security of your goods, will provide the professional, environmental protection, convenient and efficient packaging service.
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2017,sell to Domestic Market(95.00%),Southeast Asia(5.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Laser sensor,magnetic navigation sensor,optical communication sensor,RFID sensor,servo driver gyroscope encoder and other AGV core components
4. Why should you buy from us not from other suppliers?
Hinson Robot is an independent innovation technology enterprise integrating R&D, production and sales. It not only has more than 10 years of agv experience, but also has rich experience in agv development and application.
5. What services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Cash;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2017,sell to Domestic Market(95.00%),Southeast Asia(5.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Laser sensor,magnetic navigation sensor,optical communication sensor,RFID sensor,servo driver gyroscope encoder and other AGV core components
4. Why should you buy from us not from other suppliers?
Hinson Robot is an independent innovation technology enterprise integrating R&D, production and sales. It not only has more than 10 years of agv experience, but also has rich experience in agv development and application.
5. What services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Cash;
Language Spoken:English,Chinese
