hot sale weld carriage equipment oscillate cnc automatic professional for vessel welding
- Category: >>>
- Supplier: Zhengzhou King Shine Auto Technology Co. Ltd.Zhengzhou Ltd.
Share on (1601028602806):
Product Overview
Description
* Compact design, highly integrated main equipment.
* Convenient transportation and layout.On-site secondary installation, commissioning and recovery time is short.
* lt is convenient to realize the layout of line-like.
* Bodies and carry out automatic material transportationStandard brackets are optional, and the equipment andpipelines are convenient to handle overhead.
Product Parameter
Load performance | 0.5 T | 1T | 3 T | 5 T |
Maximum load | 500kg | 1000kg | 3000kg | 5000kg |
Fccentric torque at maximum load | 100mm | 100mm | 100mm | 100mm |
Maximum torque | 750Nm | 2200Nm | 4300Nm | 1000Nm |
Maximum tipping moment | 2200Nm | 6600Nm | 12000Nm | 25000Nm |
Standard speed of movement | 180 °/s | 65°/s | 45°/s | 17°/s |
Range of motion | ±185° | ±185° | ±185° | ±185° |
Repeatability accuracy | ±0.08 mm Φ350mm | ±0.08mm Φ800mm | ±0.08mm Φ1200mm | ±0.3 mm Φ1400mm |

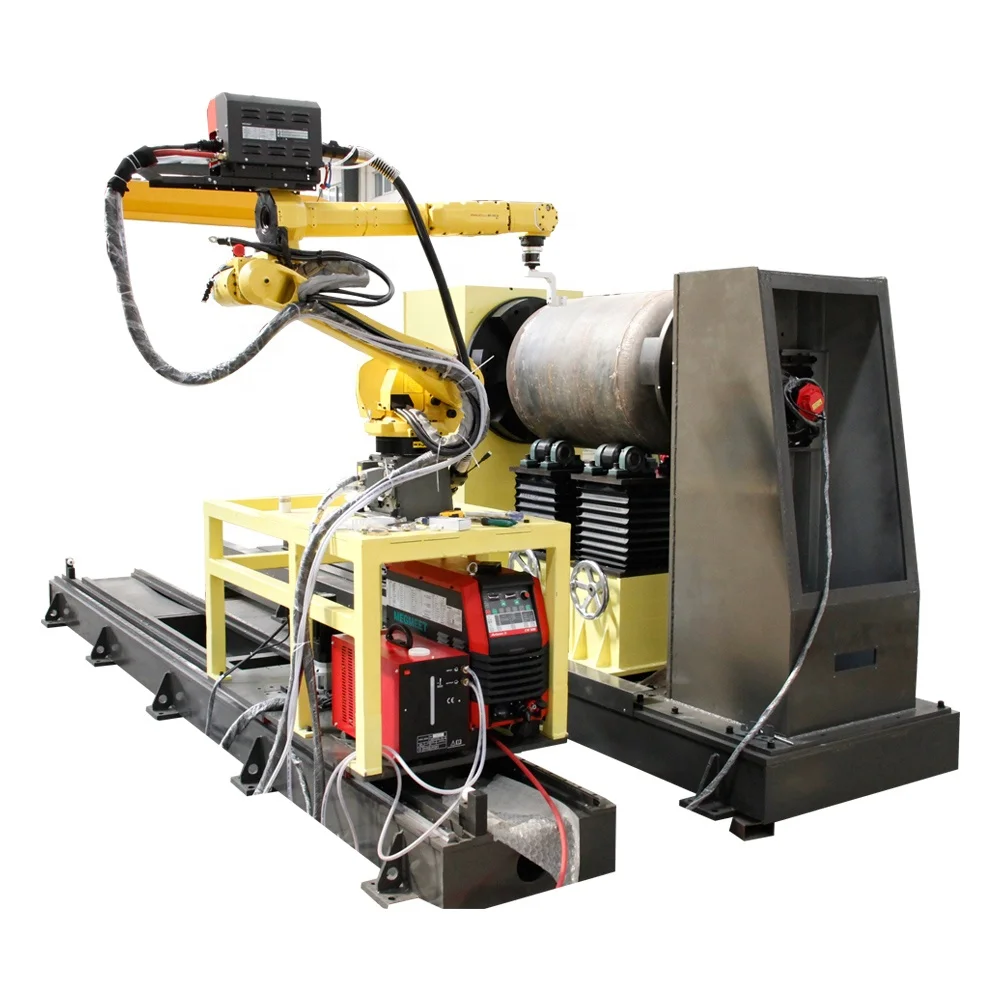

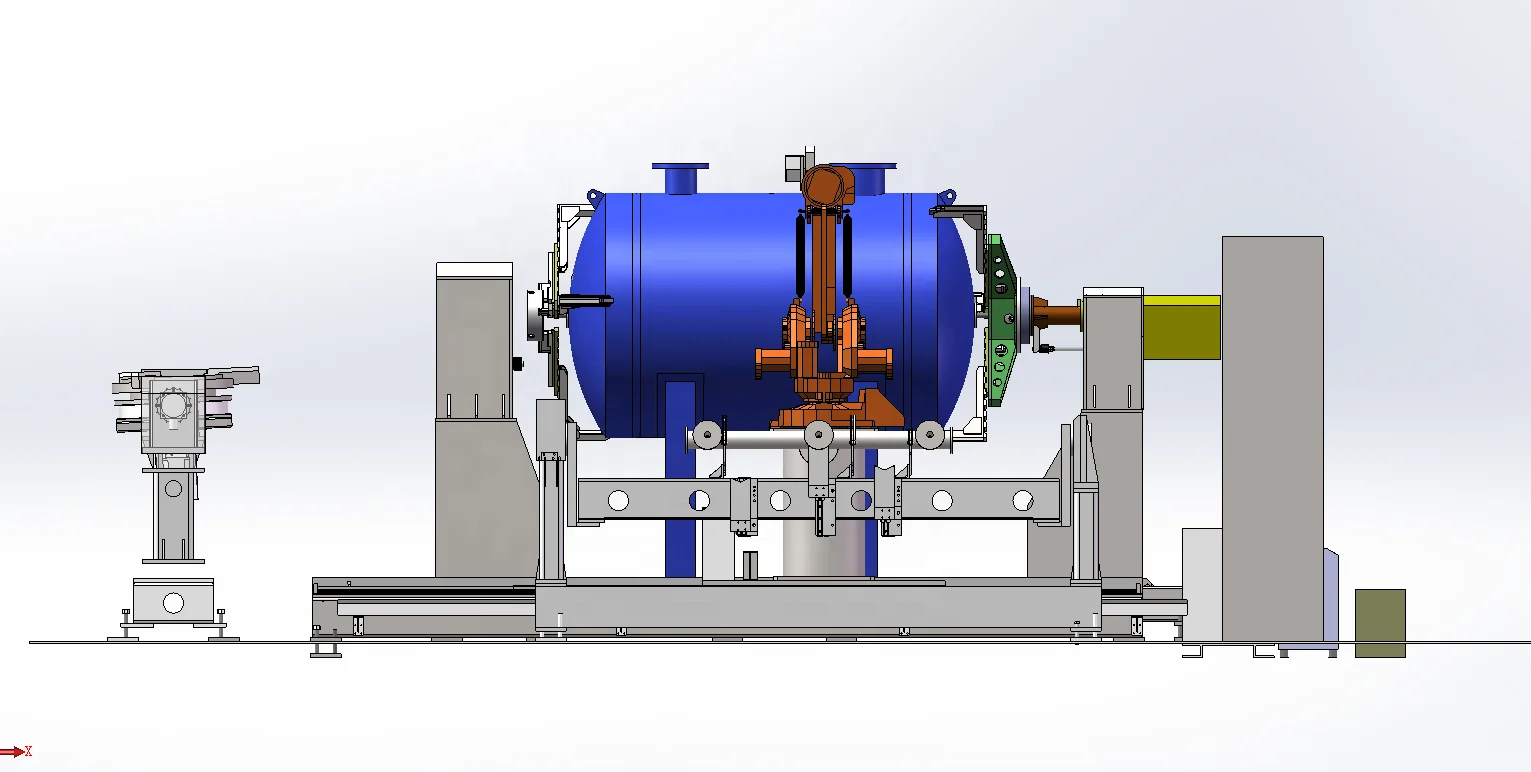

Machine Structure

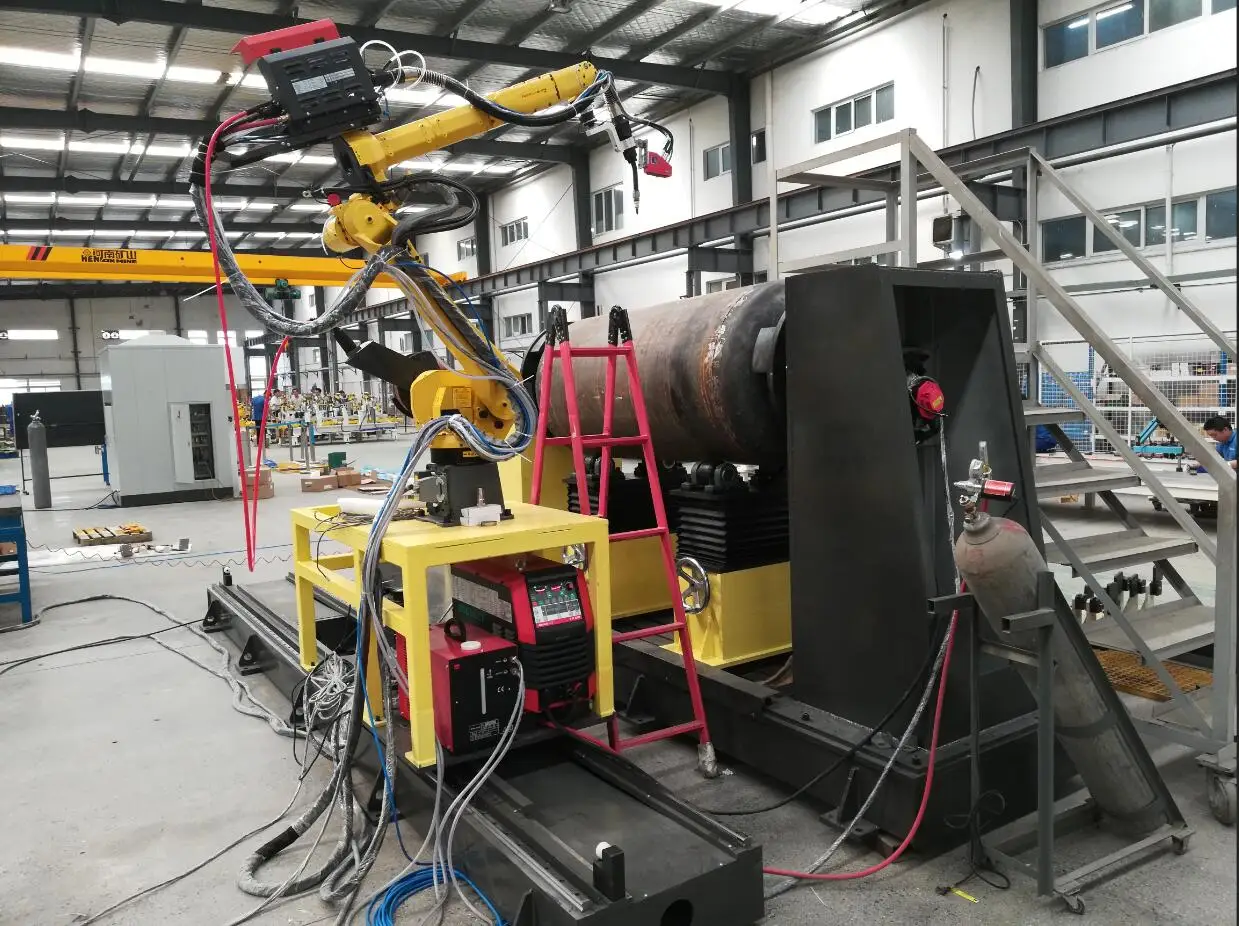

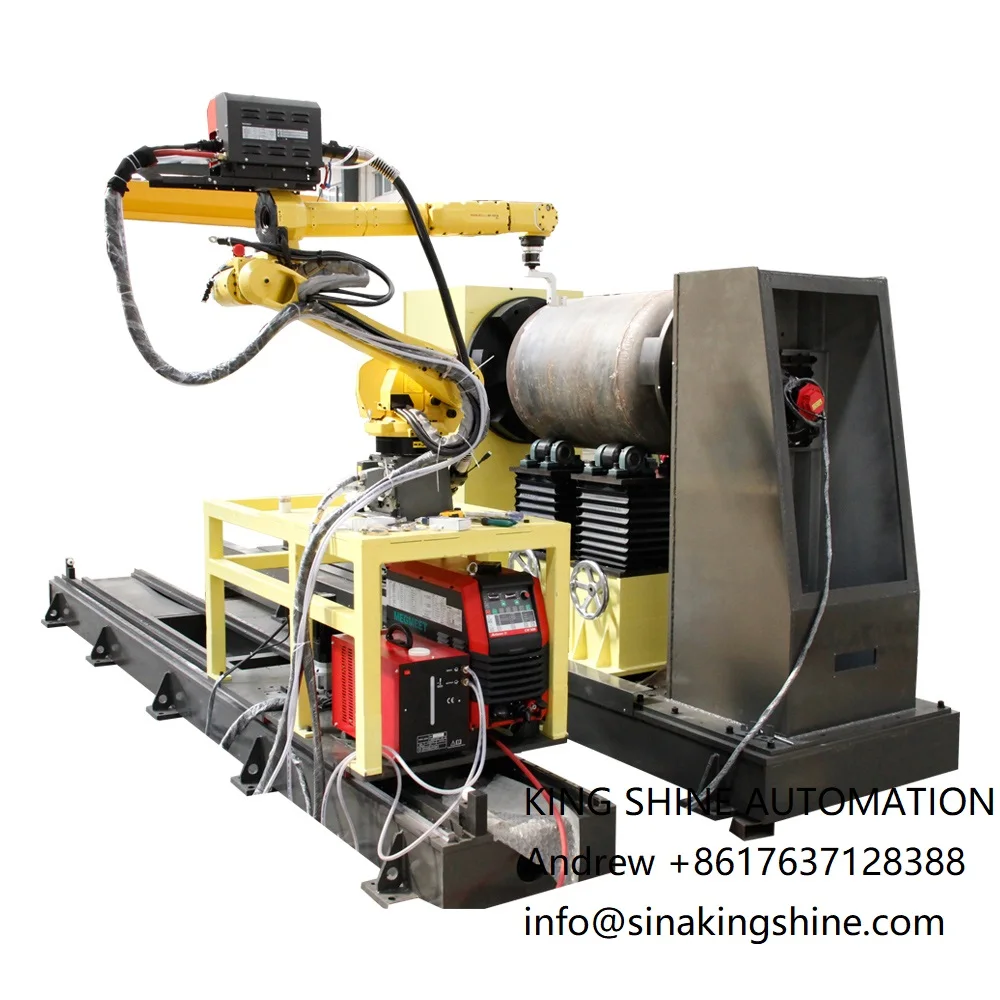

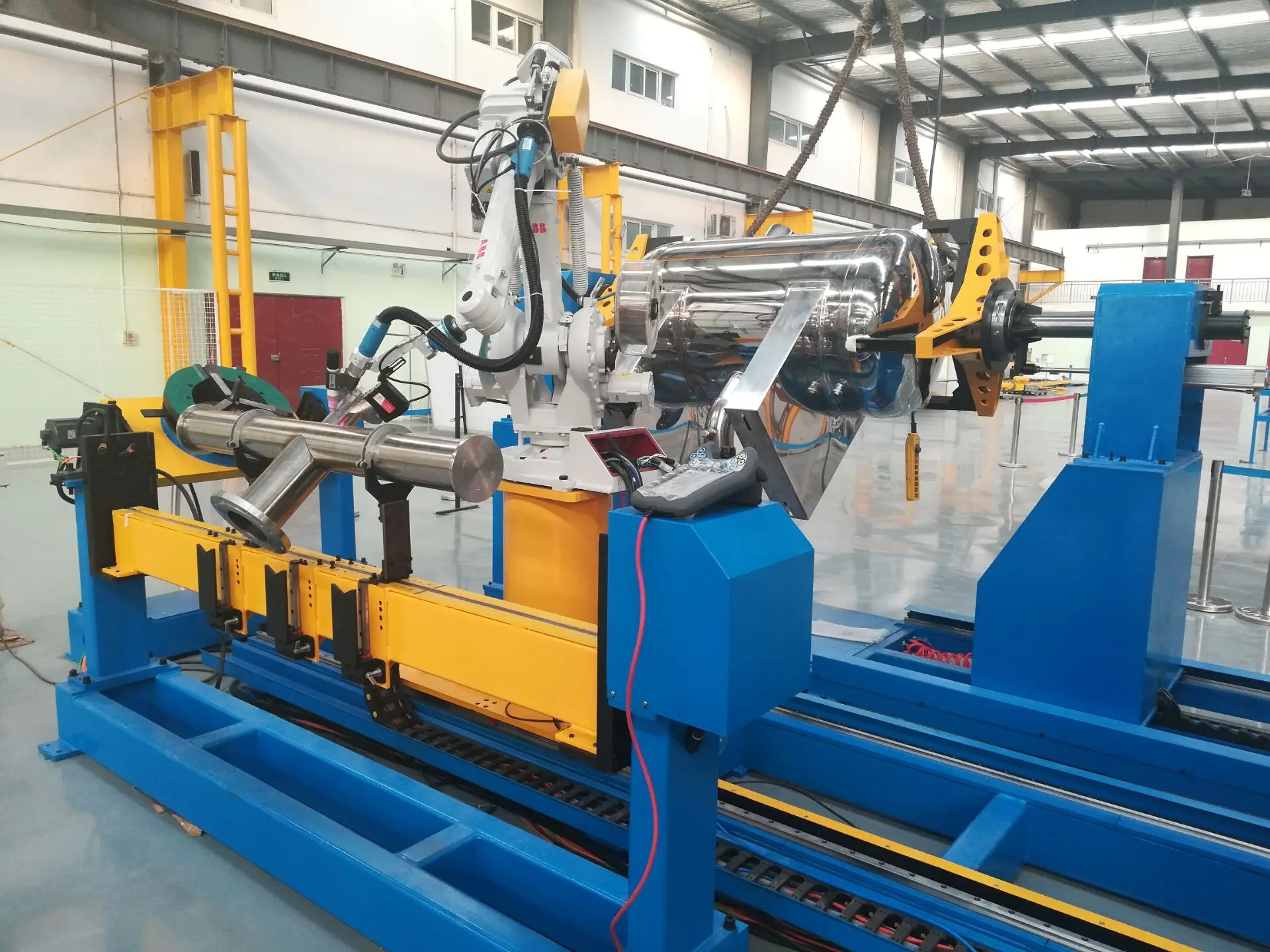

Product Real Shot

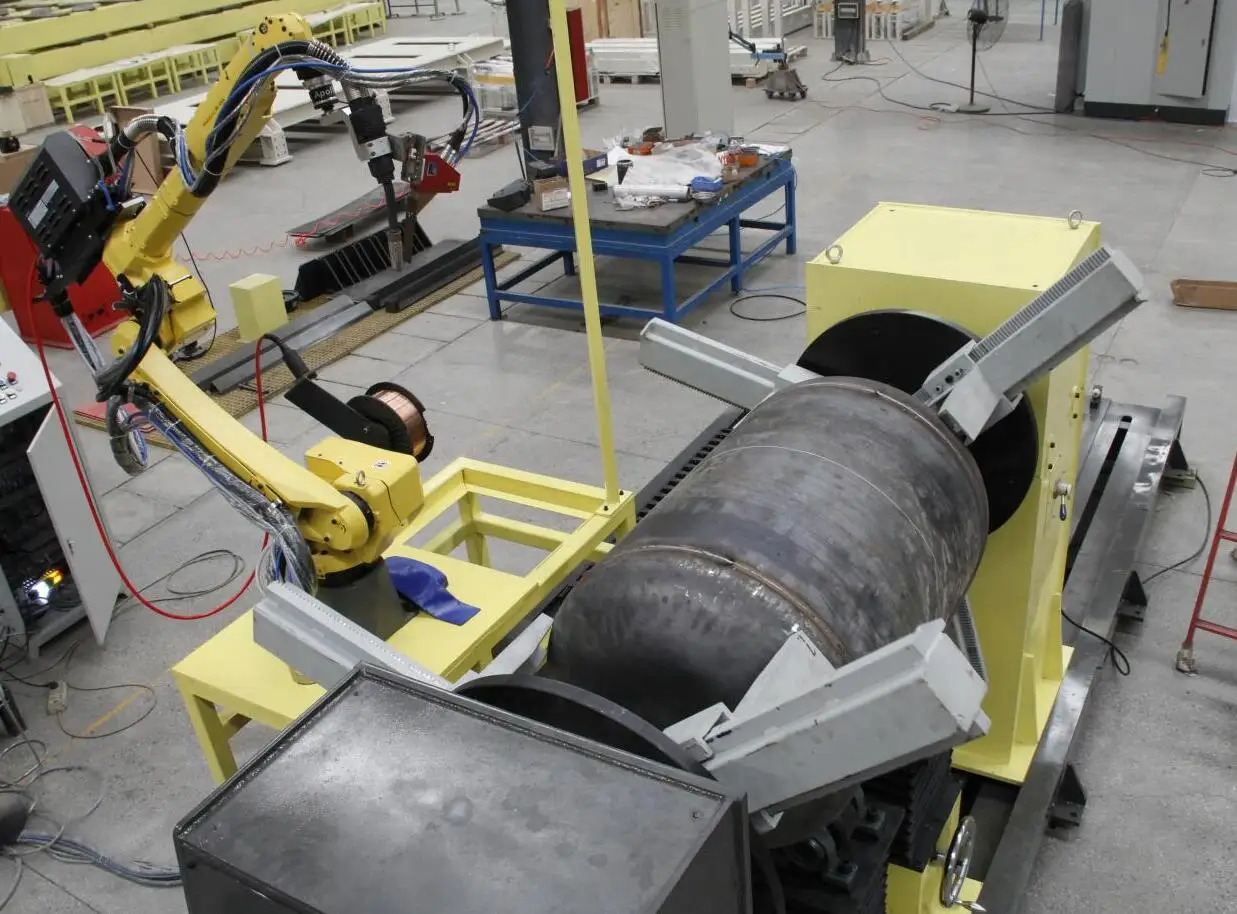

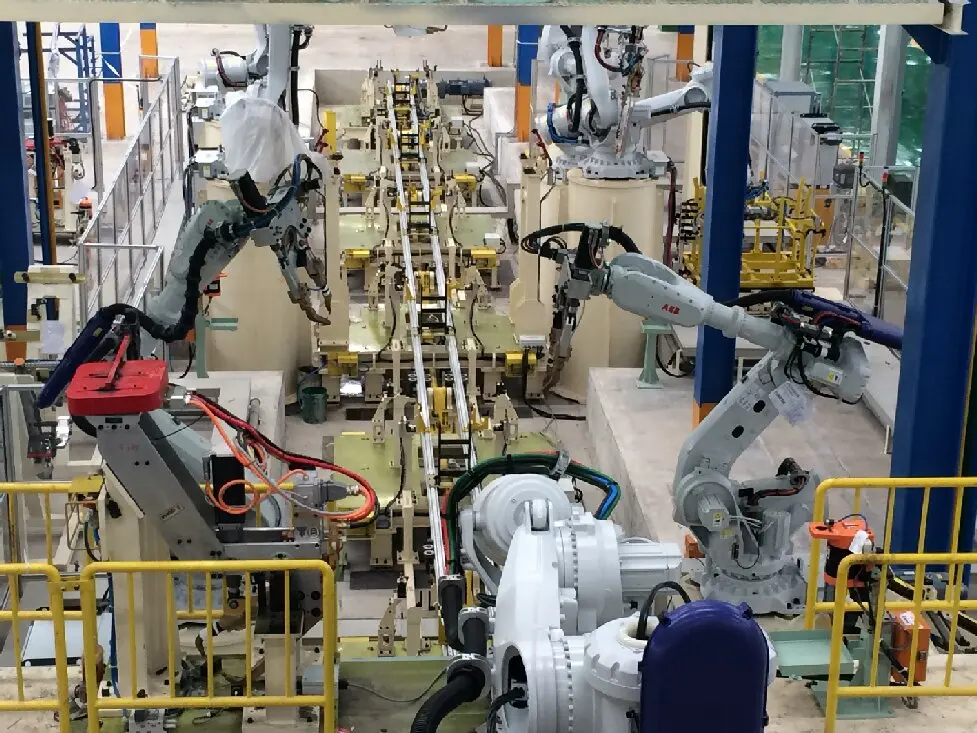

Application

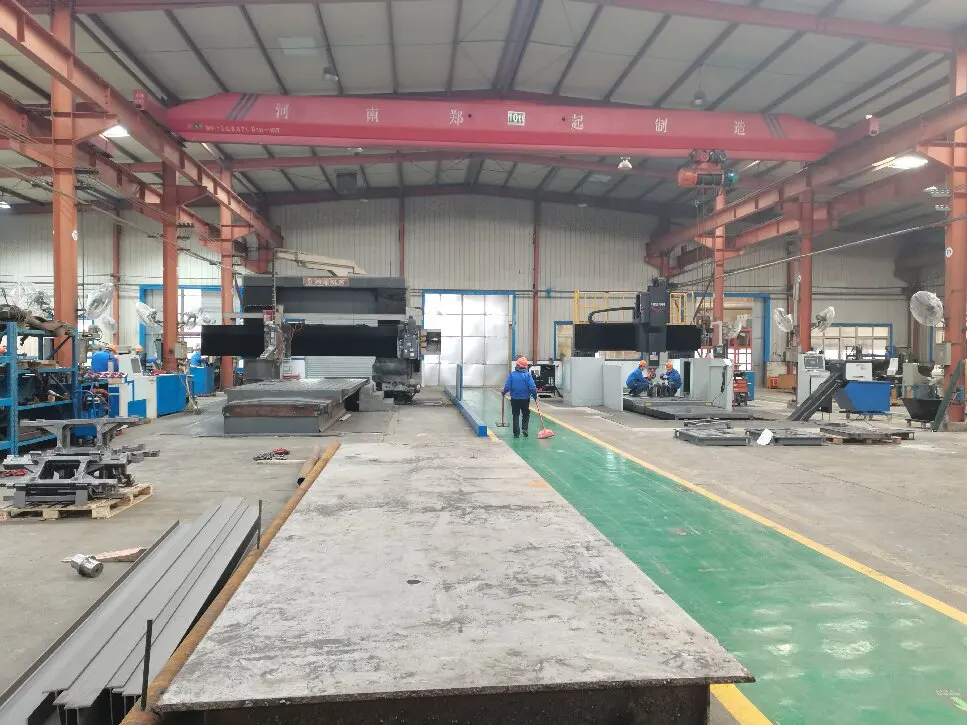

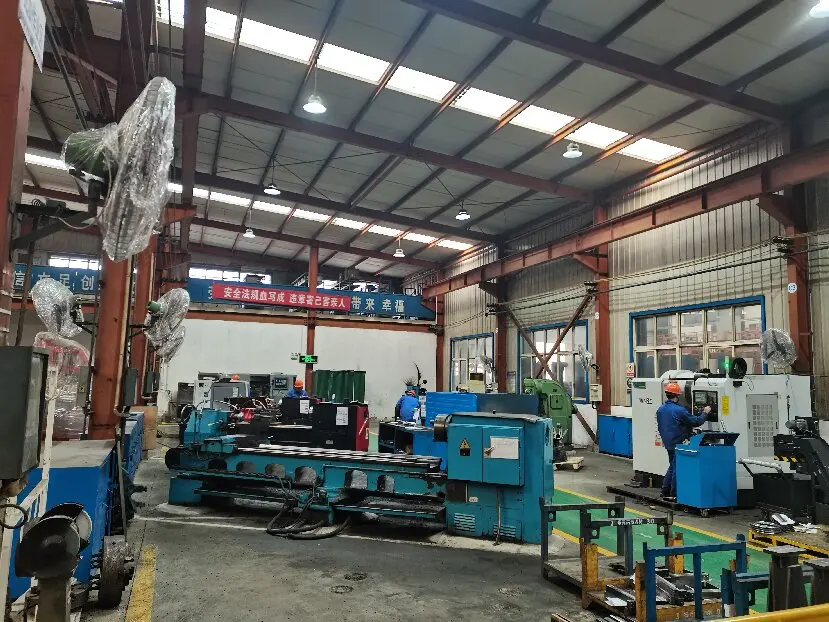

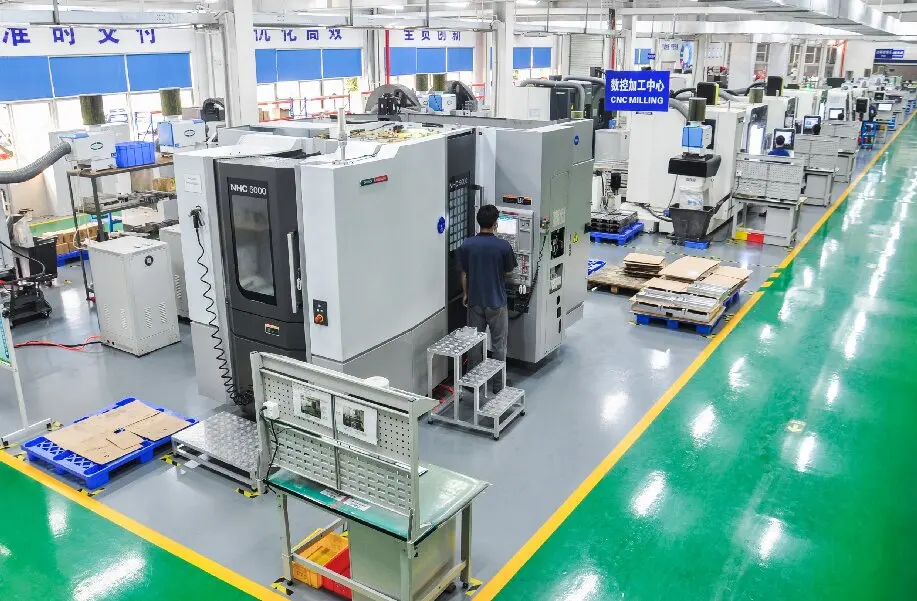

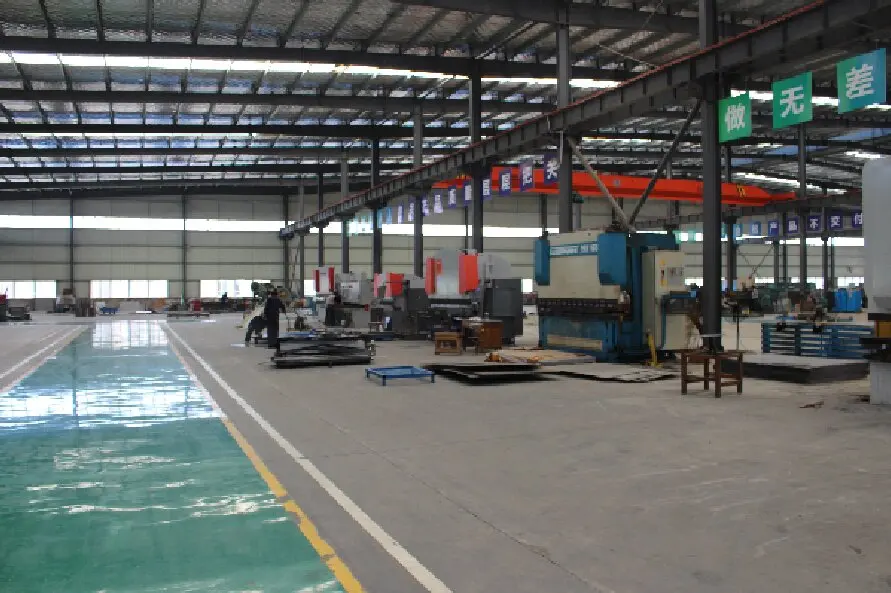

Our Factory

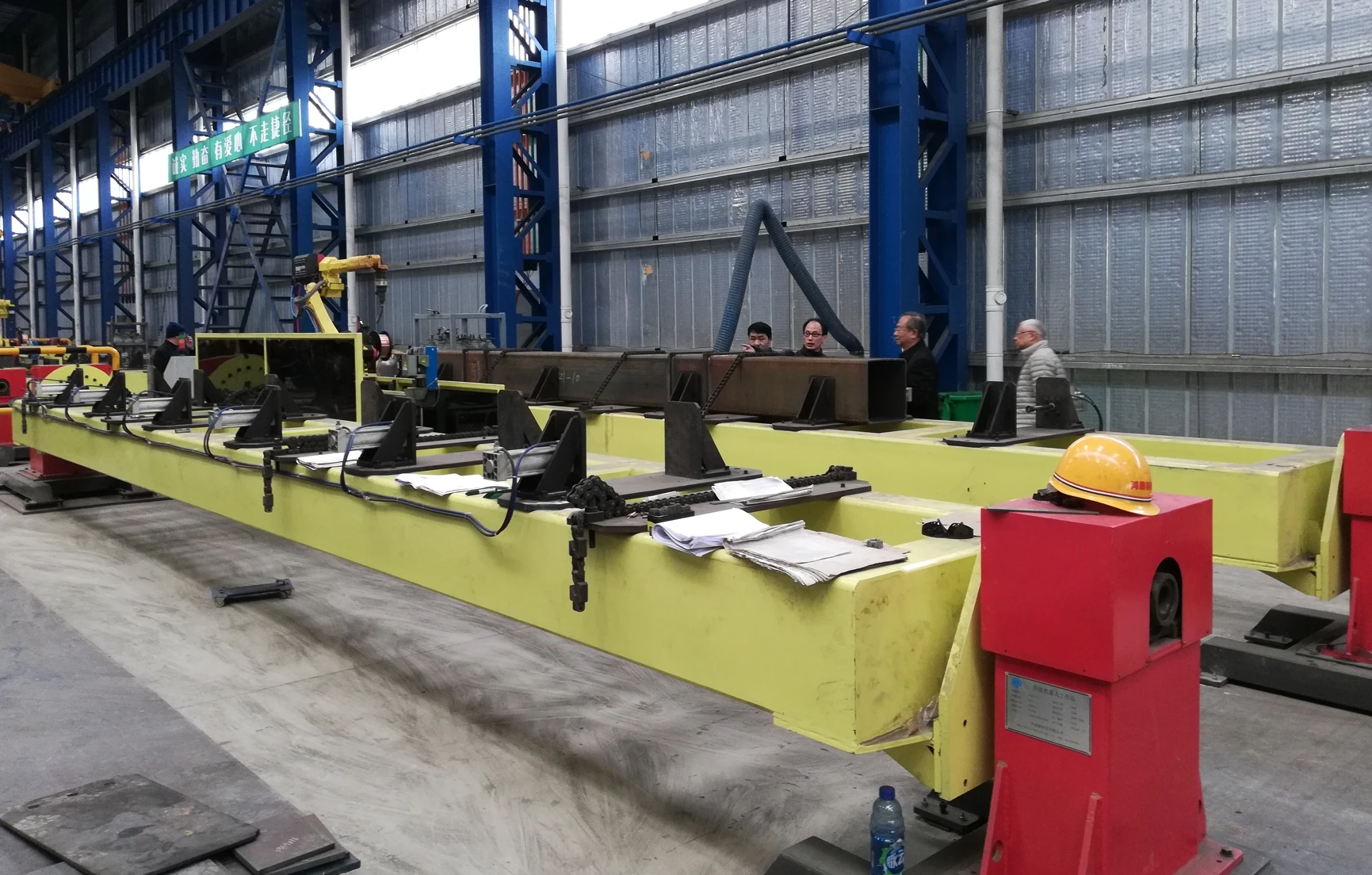

Customer Visit
Certification
Package
