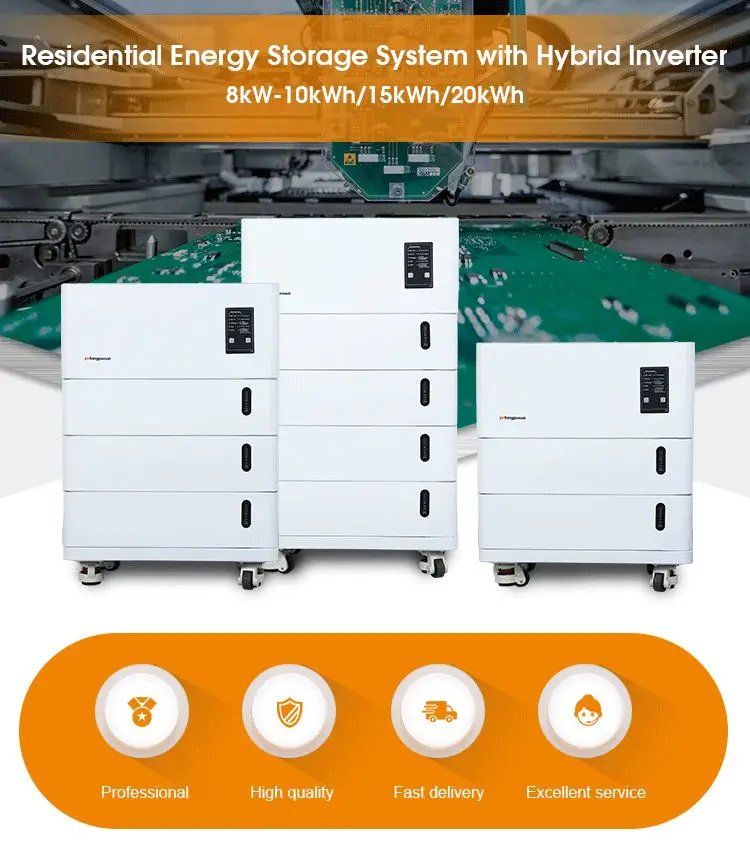

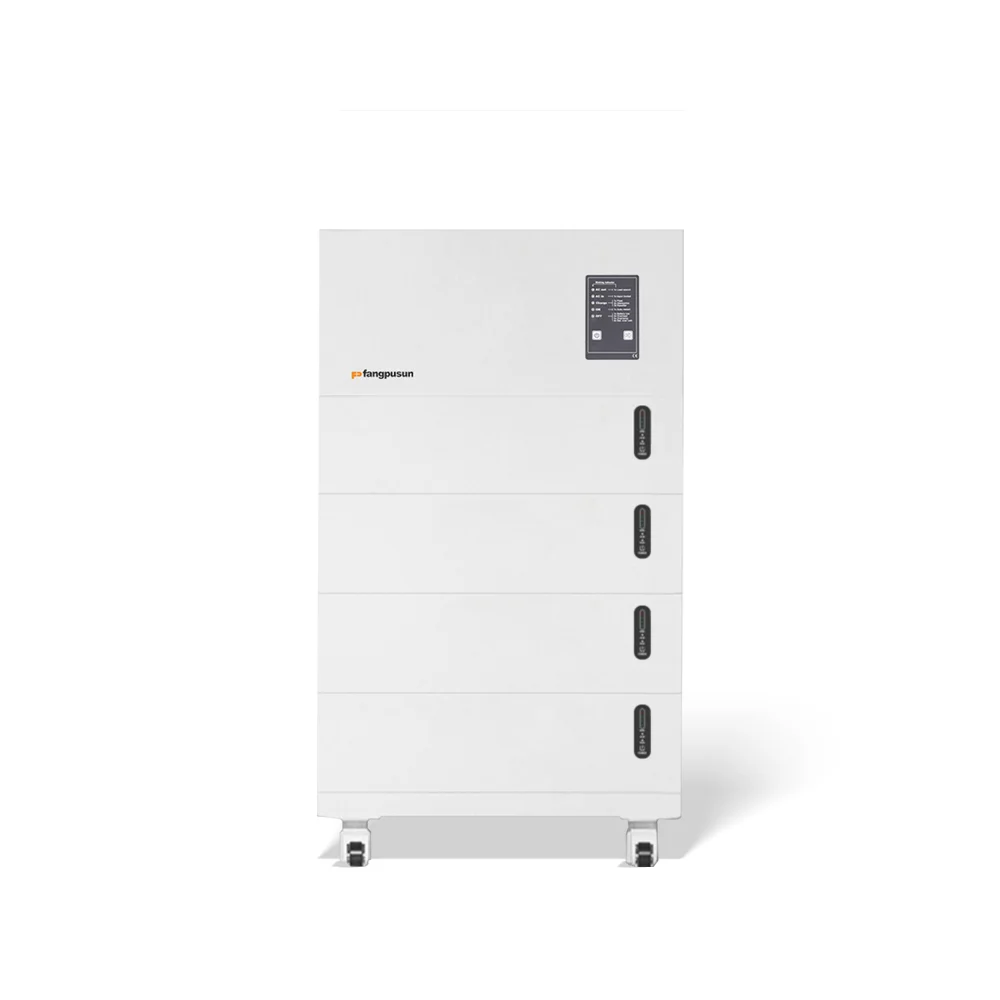

2024 arrival 20KWH All in one lithium Battery Energy Storage System renewable energy solution Hybrid Inverter transfer switch
| Fangpusun Energy Storage System with Hybrid Inverter | ||||
| Ltem | Model | YTH-8000+10KWh | YTH-8000+15KWh | YTH-8000+20KWh |
| Battery Module | Voltage | 51.2V | ||
| Battery capacity | 200Ah | 300Ah | 400Ah | |
| Charge voltage | 58.4V | |||
| Discharge cut-off voltage | 40.0V | |||
| Max charge current | 200A | 300A | 400A | |
| Max discharge current | 200A | 300A | 400A | |
| Max peak current | 300A | 400A | 500A | |
| Communication method | RS485/CAN | |||
| Hybrid Inverter | Continuous Power | 7000VA | ||
| Power 30 min. | 8000VA | |||
| Power 5 sec. | 21KVA | |||
| Own consumption stand by | 2.4W | |||
| Output Voltage | Pure sine wave 230Vac(±2%)/120Vac(1) | |||
| Output Frequency | 45Hz-60Hz(1)±0.05% | |||
| Hamonic distortion | <2% | |||
| Input voltage range(AC) | 150 - 265Vac/50 - 140Vac(1) | |||
| Input Frequency | 45 - 65Hz | |||
| Max charge current | 120A | |||
| Transfer time | <15 ms | |||
| Acoustic level | 45 dB | |||
| Maximum load | Up to short-circuit | |||
| Load detection (stand-by) | 2 to 25 W | |||
| Cos φ | 0.1-1 | |||
| Overload and short-circuit protection | Automatic disconnection with 3 time restart attempt | |||
| Overheat protection | Warning before shut-off-with automatic restart | |||
| Parameter | Material/Colour | Metal/White | ||
| Size | 565*460*610mm | 565*460*790mm | 565*460*970mm | |
| Weight | 138KG | 184KG | 230KG | |
| Temperture | Charge:0℃-50℃ | |||
