Handheld Diy Metal Sheet Welding Aluminium Gun Manual Cars Car Portable Spot Welder Welding Machine
- Category: >>>
- Supplier: Chengdu Xinwei Welding Technology Co. Ltd.
Share on (1601028606961):
Product Overview
Description
Product Display

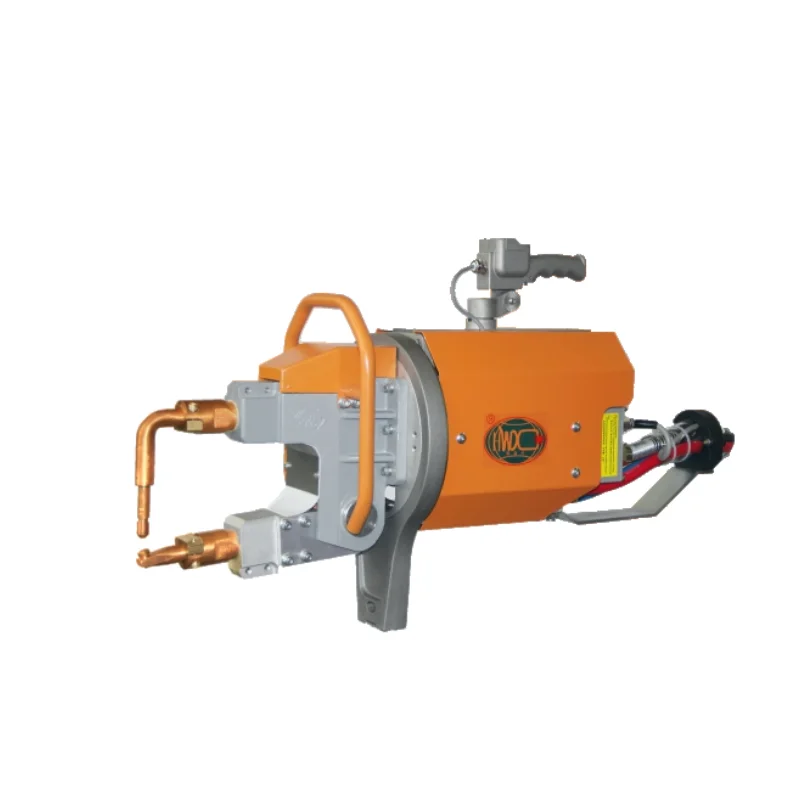

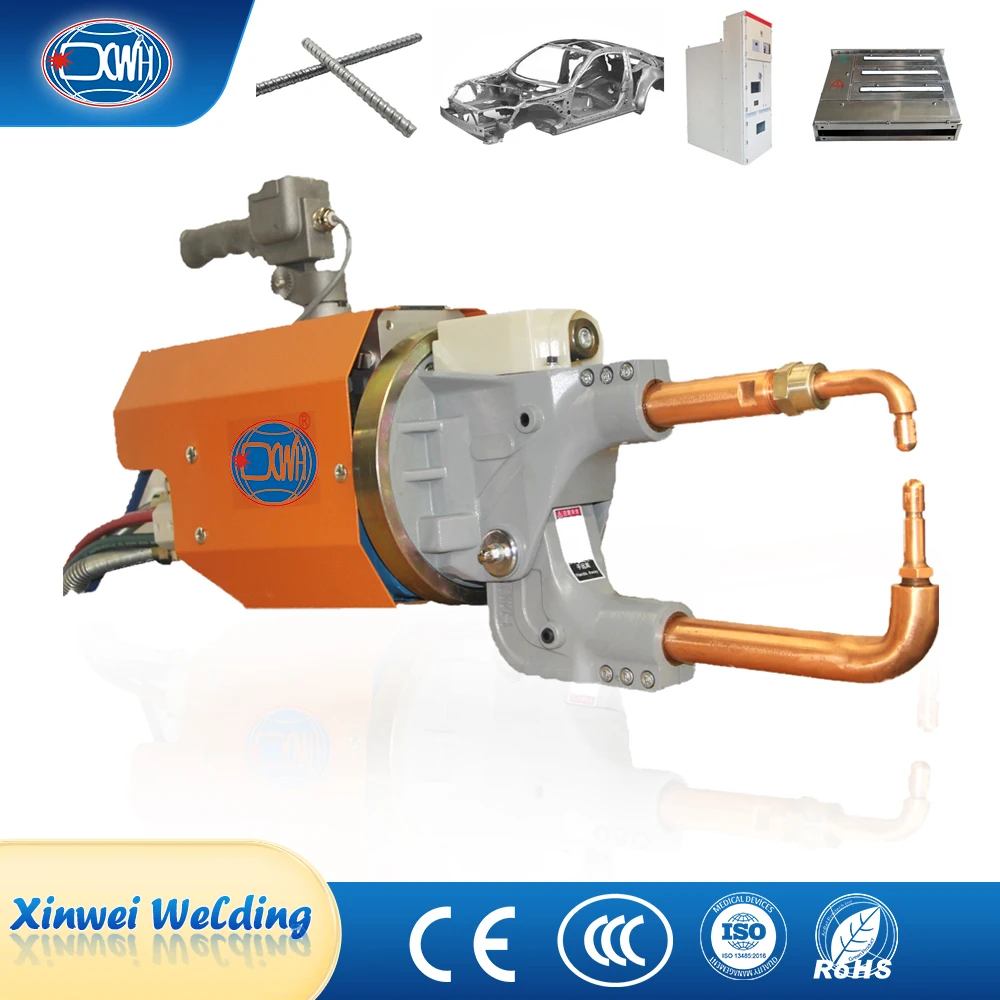

Product Description
The portable spot welding machine uses the resistance heat generated by the current flowing through the weldment as a heat source for welding under pressure. Mainly used for spot welding of low-carbon steel parts of thin plate structures.
Portable spot welding machines are generally suspended in the air and connected to the welding tongs through flexible cables. The welding tongs of the portable spot welding machine have various structural forms to choose from, so the portable spot welding machine has a strong adaptability for large workpieces that are inconvenient to move, workpieces with complex shapes, or workpieces that must be stuck on the fixture for spot welding. In automobile body spot welding, the spot welding process for large sheet metal boxes has a wide range of applications and is an indispensable welding equipment.
Portable spot welding machines are generally suspended in the air and connected to the welding tongs through flexible cables. The welding tongs of the portable spot welding machine have various structural forms to choose from, so the portable spot welding machine has a strong adaptability for large workpieces that are inconvenient to move, workpieces with complex shapes, or workpieces that must be stuck on the fixture for spot welding. In automobile body spot welding, the spot welding process for large sheet metal boxes has a wide range of applications and is an indispensable welding equipment.
Technic Parameter
Models / Item | DN2-31X | DN2-31C | DN2-40X | DN2-40C | DN2-63X | DN2-63C |
Power at 50% (KVA) | 31 | 31 | 40 | 40 | 63 | 63 |
Transformer turns ratio | 70 | 70 | 56 | 56 | 48 | 48 |
Maximum short circuit current (KA) | 14 | 14 | 18 | 18 | 20 | 20 |
Secondary unload voltage (V) | 5.58 | 5.58 | 6.8 | 6.8 | 7.9 | 7.9 |
Voltage at 50Hz/60Hz (V) | 380 | 380 | 380 | 380 | 380 | 380 |
Distance between the arms (mm) | 168-288 | 100 | 168-328 | 100 | 168-428 | 100 |
Min. length of arms (mm) | 220 | 200 | 300 | 200 | 400 | 200 |
Max. strength at electrodes (N) | 3000 | 3000 | 3500 | 3000 | 3500 | 3000 |
Working stroke (mm) | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
Max. stroke of cylinder (mm) | 70 | 50 | 100 | 50 | 100 | 50 |
Max. arm length (mm) | 750 | 350 | 1000 | 450 | 1100 | 500 |
Compressed Air supply (MPa) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Max.thickness of mild steel sheet with min. length s arm (mm) | 3+3 | 3+3 | 4+4 | 4 +4 | 5+5 | 5+5 |
With 500mm arms (mm) | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
With maximum length arms (mm) | 1.2+2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
Cross wire maximum (mm) | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
Cooling water pressure (MPa) | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 |
Cooling water flow (L/min) | 4 | 4 | 4 | 4 | 4 | 4 |
Mian Features
1. The portable spot welding machine combines a welding transformer with a welding clamp, and has an aluminum body, featuring small size, high output, high efficiency, energy conservation, and portability. During operation, the portable spot welder can easily achieve 360 degree rotation in both horizontal and vertical directions.
2.The portable spot welding machine consists of welding tongs, welding transformer, welding controller, water cooling system, pneumatic pressurization system, (and suspension device), etc. Compact structure, convenient maintenance, small size, light weight, greatly reducing the labor intensity of workers and greatly saving energy consumption.
3.The electrode arm of the portable spot welding machine adopts high-quality chromium zirconium copper (CuCrZr-1), ensuring the stability of welding performance, the service life of the welding machine, and the strength of the electrode arm.
4.During welding, the heating time is short, the heat is concentrated, and there is no electric arc, spark splash, welding slag, fusion welding accumulation, and thermal deformation of the weldment. In addition, after the innovation of the welding machine, the diameter of the gas path system is increased, so not only the welding productivity is high, but also the appearance of the weldment is beautiful and the quality is good.
5. Welding is accomplished using the proper combination of resistance heat and mechanical force, so it is possible to obtain high-strength high-quality solder joints for the weld nuggets of the weldment.
5.Due to the simple welding process, without the need for filler materials, solvents, and shielding gas, the cost is low.
6.Due to the high current density and high temperature of the solder joint of the weldment, the precise control of the power-on time by the welding machine controller allows the solder joint to obtain a reproducible nugget size, which can adapt to the welding of multiple types of the same or different metals and coated steel plates.
2.The portable spot welding machine consists of welding tongs, welding transformer, welding controller, water cooling system, pneumatic pressurization system, (and suspension device), etc. Compact structure, convenient maintenance, small size, light weight, greatly reducing the labor intensity of workers and greatly saving energy consumption.
3.The electrode arm of the portable spot welding machine adopts high-quality chromium zirconium copper (CuCrZr-1), ensuring the stability of welding performance, the service life of the welding machine, and the strength of the electrode arm.
4.During welding, the heating time is short, the heat is concentrated, and there is no electric arc, spark splash, welding slag, fusion welding accumulation, and thermal deformation of the weldment. In addition, after the innovation of the welding machine, the diameter of the gas path system is increased, so not only the welding productivity is high, but also the appearance of the weldment is beautiful and the quality is good.
5. Welding is accomplished using the proper combination of resistance heat and mechanical force, so it is possible to obtain high-strength high-quality solder joints for the weld nuggets of the weldment.
5.Due to the simple welding process, without the need for filler materials, solvents, and shielding gas, the cost is low.
6.Due to the high current density and high temperature of the solder joint of the weldment, the precise control of the power-on time by the welding machine controller allows the solder joint to obtain a reproducible nugget size, which can adapt to the welding of multiple types of the same or different metals and coated steel plates.

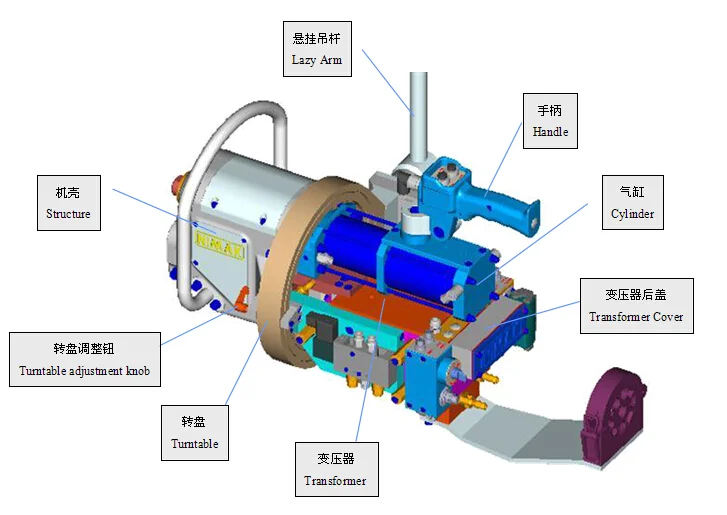

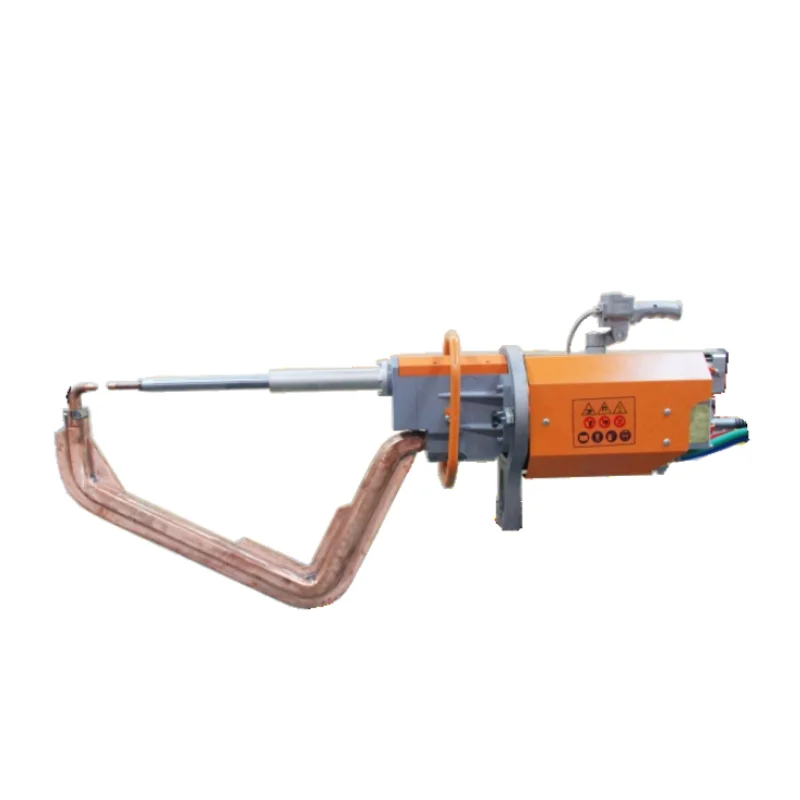

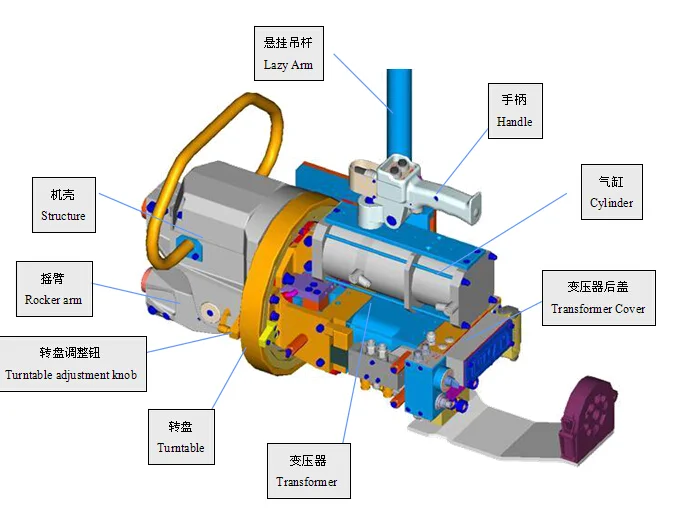

General Structures

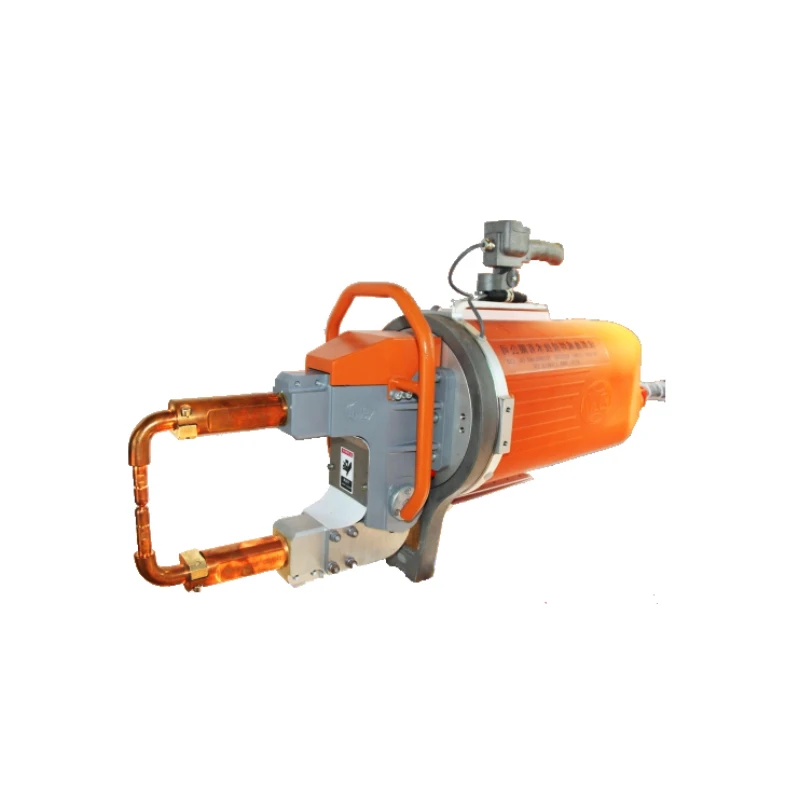

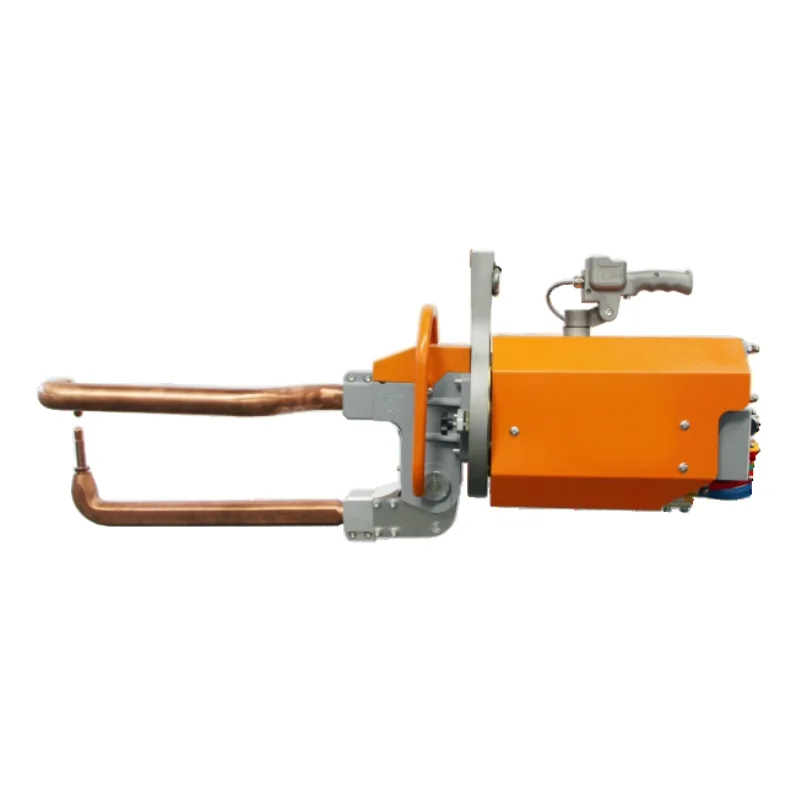

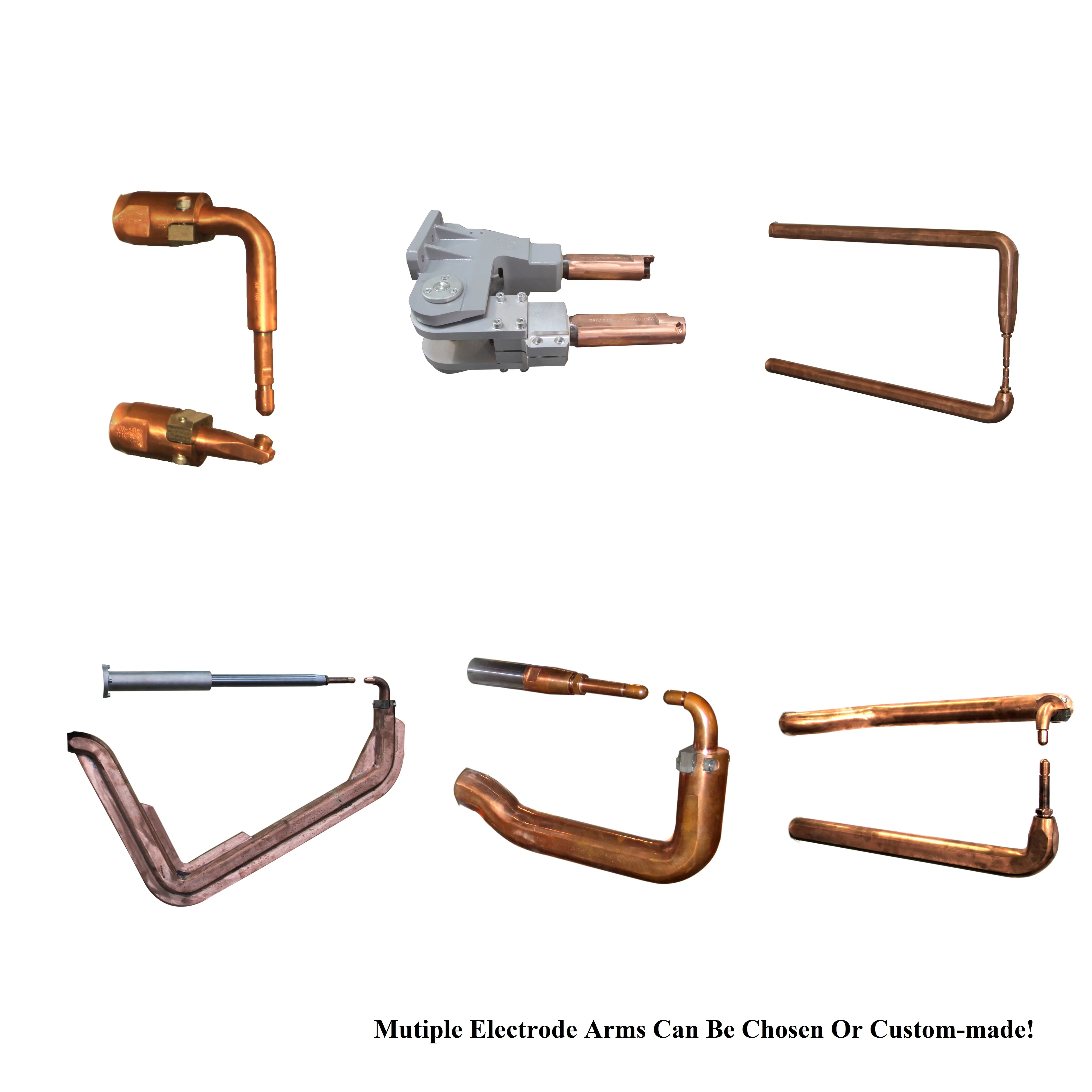

Different Styles With Mutiple Electrode arms
Application
Dedicated, so professional! More details, please contact!
Company Information
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.
Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.
Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance Spot Welding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.

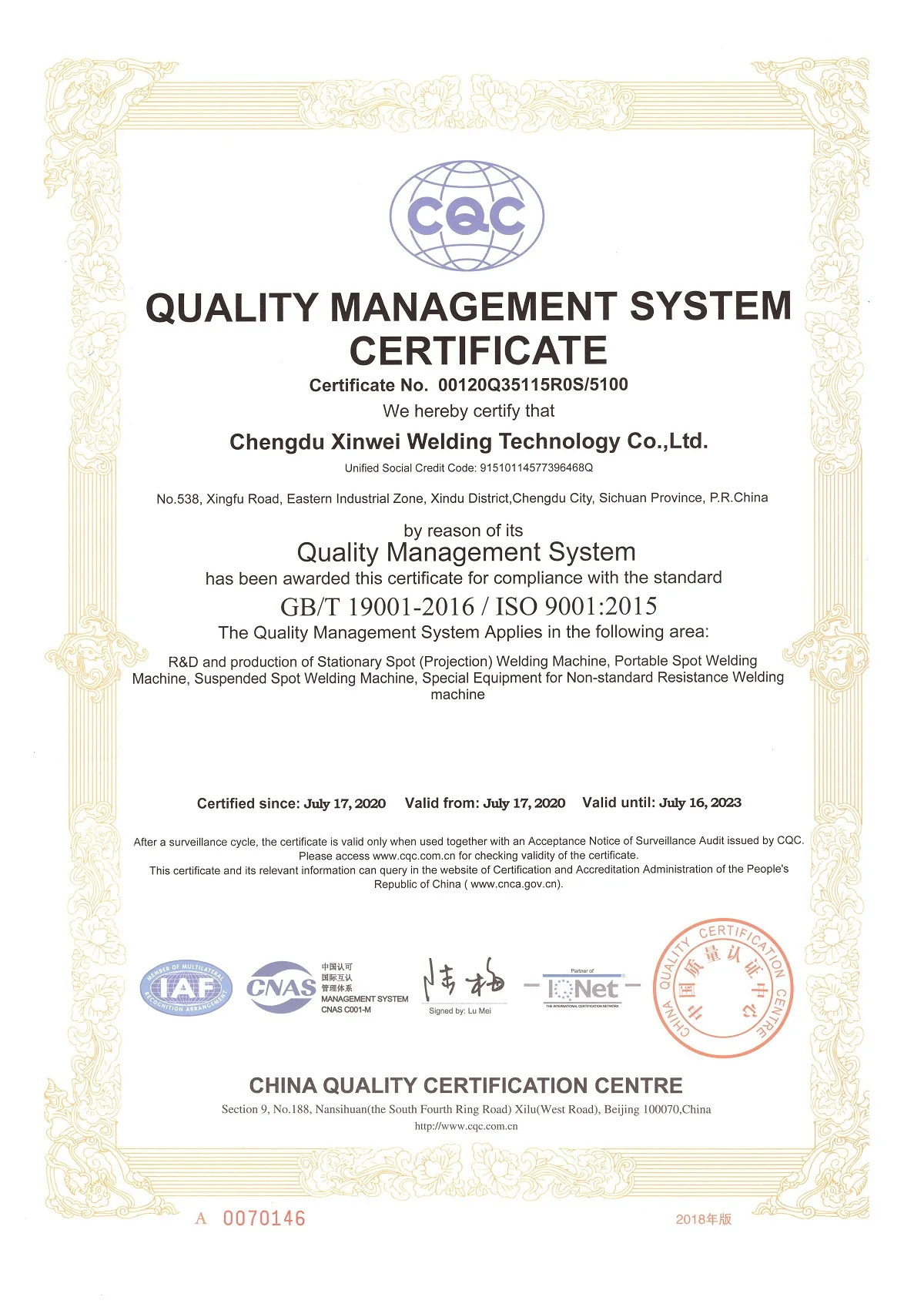

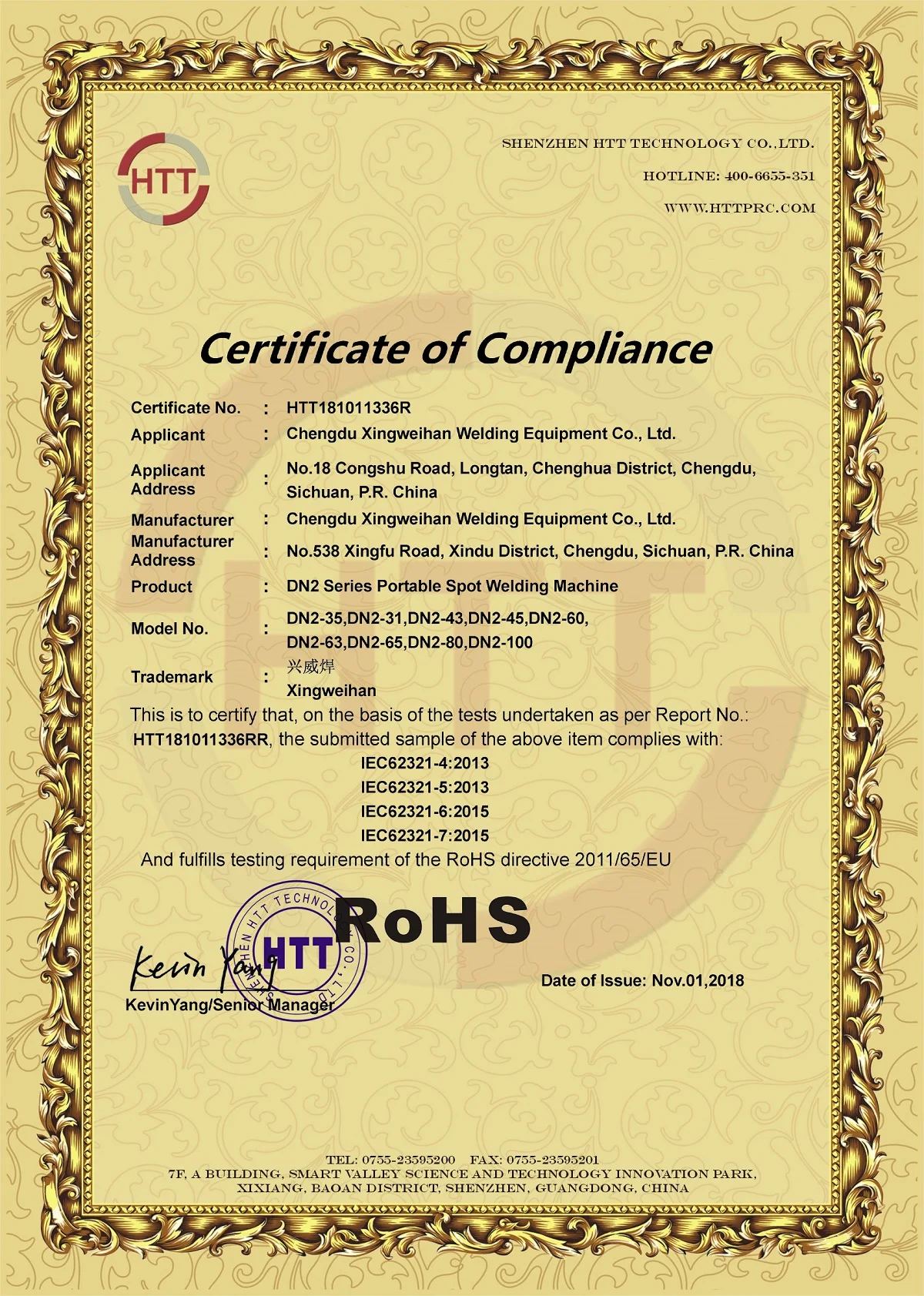

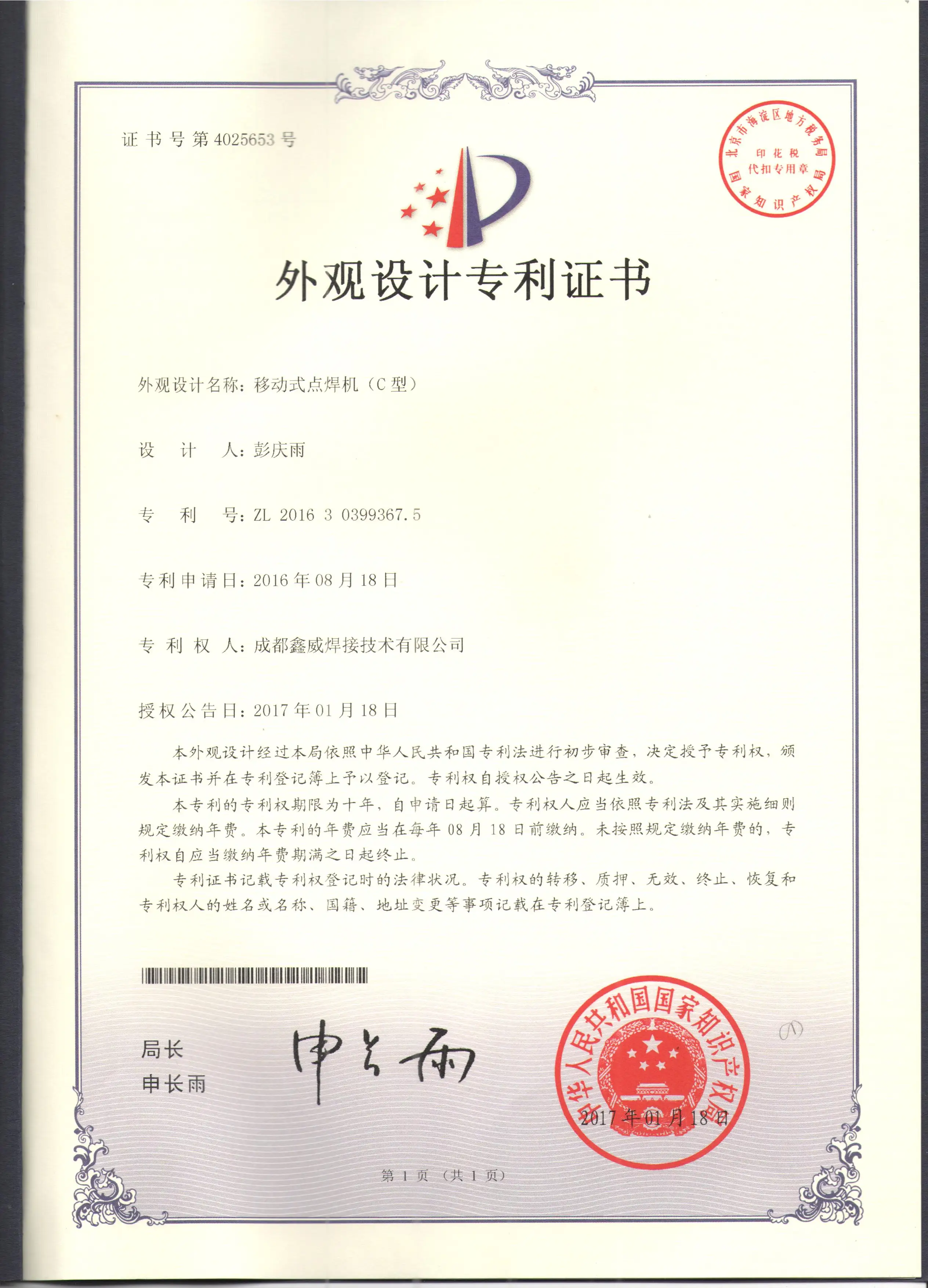

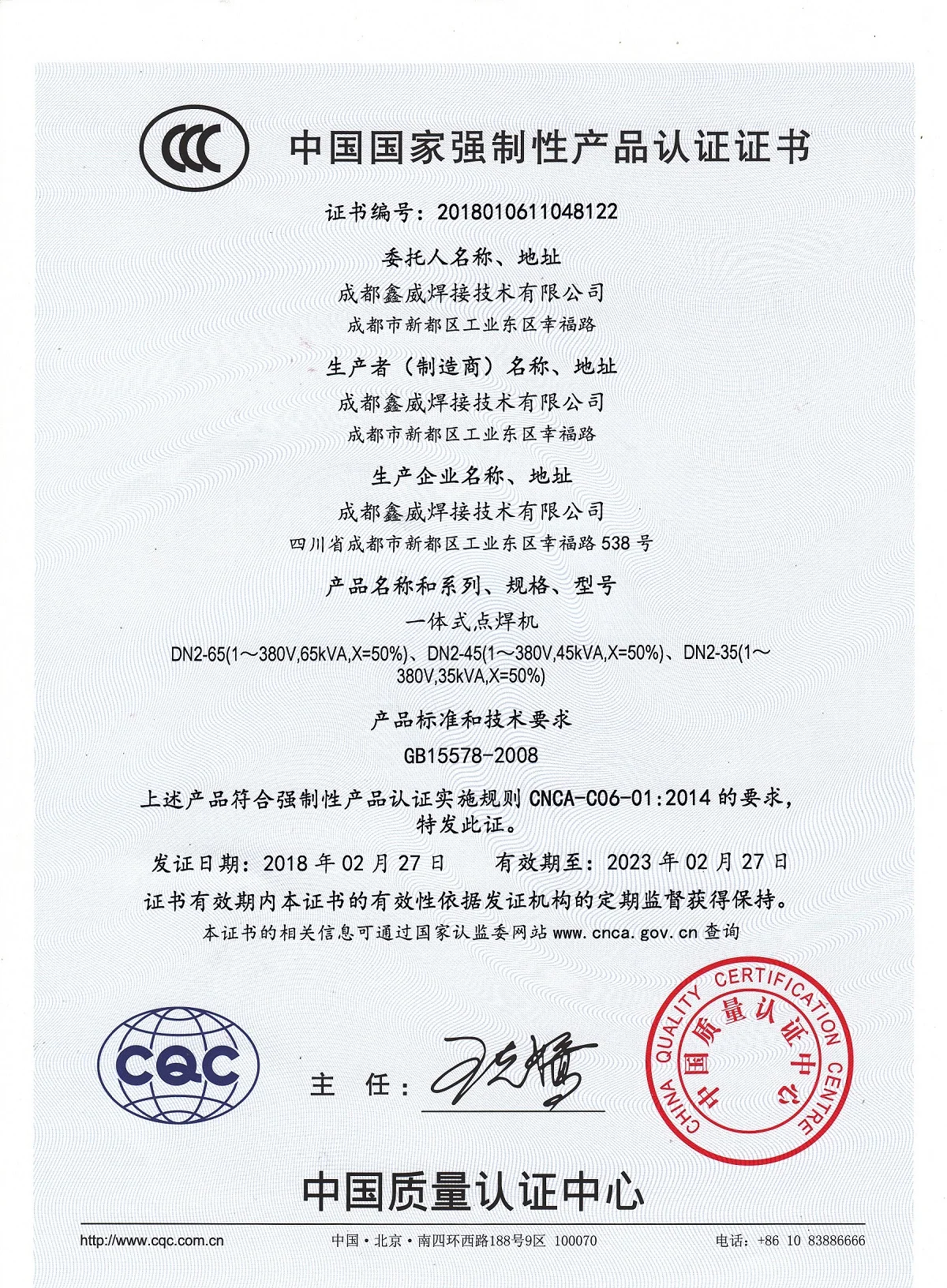

Certifications
Exhibition Pictures
Service
Our engineers were intalling portable spot welding machine in car manufacturer's workshop oversea.
Our engineers will train customer how to operate, repair and maintaining machines and so on.
