Tanbos T20 TDR 0 35KV Cable Location System Tdr Cable Fault Locator Underground

Price:

Quantity:

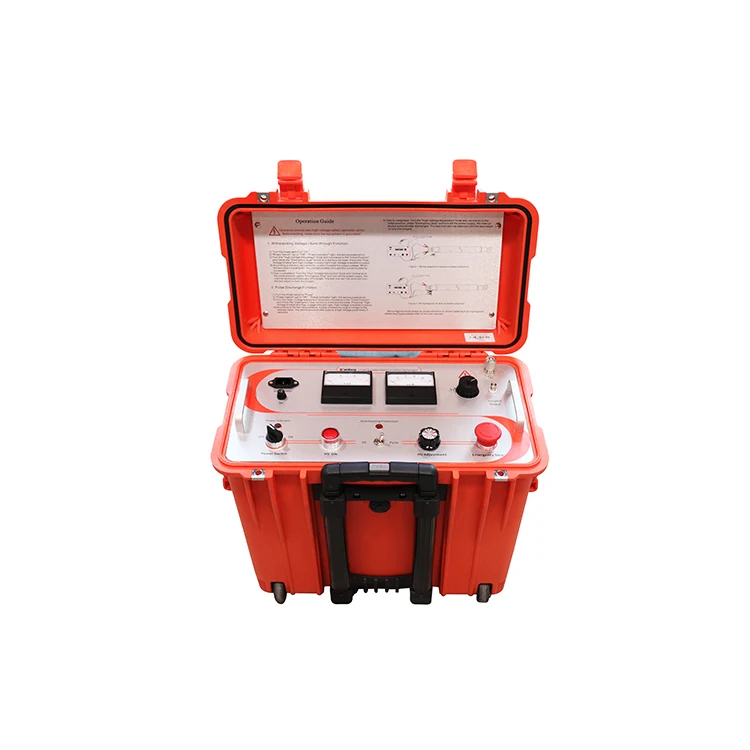

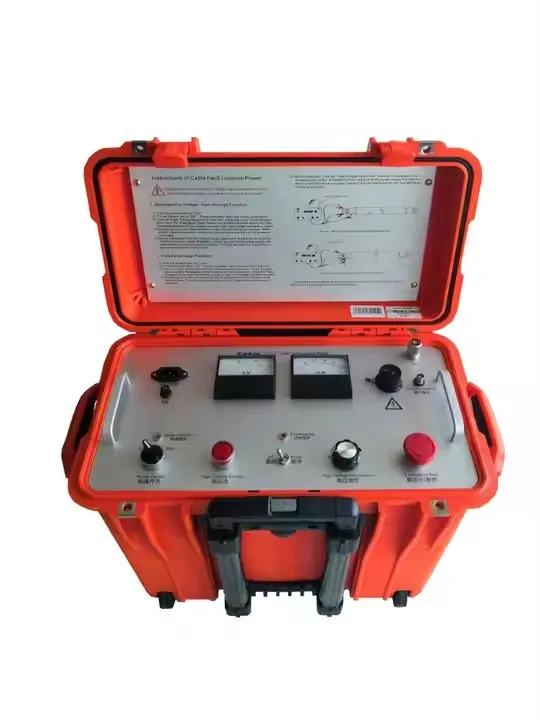

DC voltage output	0-30 kV continuously adjustable
Max charging current	30mA
Max discharge energy	900J
HV mode	Fixed 5s
Impulse period	4s, not adjustable (to guarantee charging time)
Polarity of output voltage	Negative polarity
Power supply	AC 220~240V
LED Lighting	Providing illumination for dark environments
Max output Power	300W
Capacity	1kVA
Safety	Temperature detection, automatic protection loop,double grounding system
Arc delay voltage output	1600V
Arc delay time	50ms
Allowable impact voltage	0-35kV
Allowable impact energy	2000J
Outer sheath DC test	0-10kV
Size	500×300×400(mm)
Weight	32kg
Operation temperature	-25℃~ 50℃

Impulse voltage	30V
Test range	20m-100km @ v/2=80m/μs
Wave speed regulation	150-300m/us
Impulse width	70ns ~ 15us, automatic regulation
Impulse amplitude	10V … 60 V
Resolution	0.4m
Time domain accuracy	< 50 ppm
Sampling frequency	200MHz
Output impedance	50Ω
Working mode	Low voltage pulse method, pulse current method
Waveform transient comparison	Up to 4 waveforms can be compared
Screen display	7” color 480x800, backlight touch screen
Screen brightness	800cd/m2, anti-glare capacitive touch screen
Storage	> 10000 test data
Interface	USB2.0
Power consumption	3.5W
Power supply	Lithium battery, 7.4V, 5200mAh
Continuous working time	≥5h
Protection level	IP53
Weight	3.0kg
Size (L x W x H)	270×250×125mm

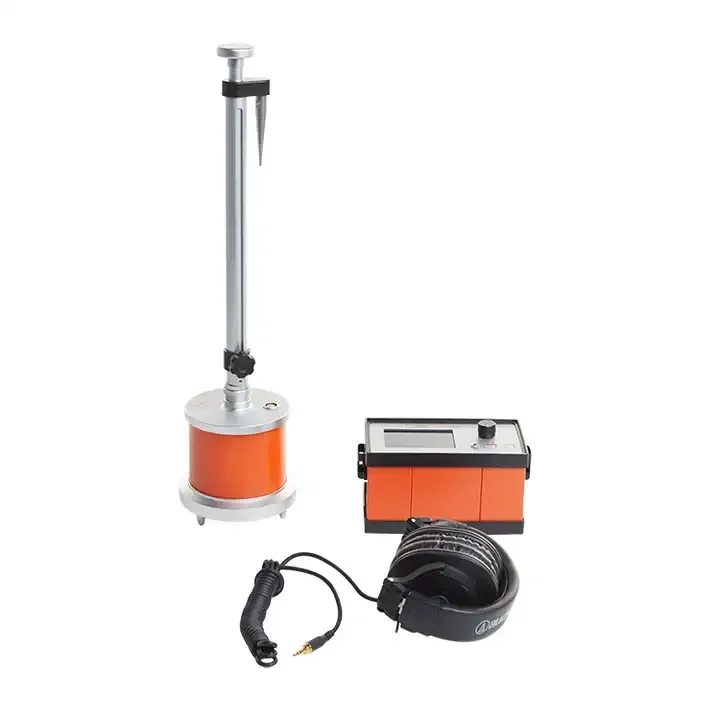

Display	3.5 ", TFT color display
Resolution	480 x 320
Backlight	LED
Dynamic range	Magnetic channel > 99dB; Sound channel > 99dB
Acoustic amplifification	99dB, free adjustment
Acoustic magnetic time difffference display	1ms—60ms，synchronous display of historical records
Auditory protection	Touch mute sound, sound intensity limit
Positioning accuracy	0.1m
Space sensing function	Compass guidance, direction indication, cable position identifification
Filtering range	Full pass: 100Hz—1500Hz, Low-pass: 100Hz—400Hz, Band-pass: 400Hz—800Hz, High-pass: 800Hz—1500Hz
Noise processing	Intelligent background noise reduction technology
Pinpoint mode	Intelligent time difffference method, acoustic method, electromagnetic patrol method
Interface language	English
Interface	Acoustic and magnetic pinpoint and audio pinpoint interface; 3.5mm jack
Power Supply	DC 7.4V/5200mAh lithium battery
Continuous working time	≥8h
IP	Handset IP43, Radar IP64
Packing weight	5.5kg (including plastic case)
Packing size (L x W x H)	420×320×150mm
