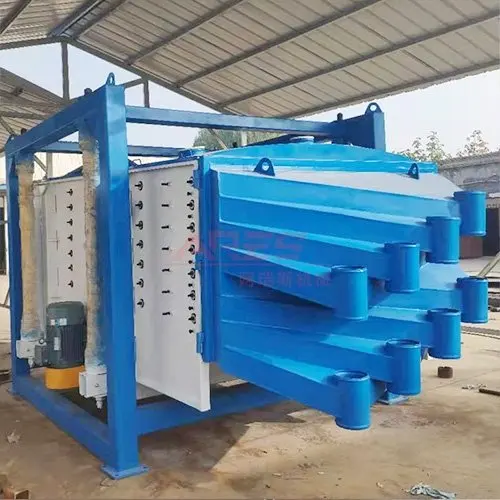

ce xxsx 2024 Large Capacity Multi layer Square Gyratory Sifter Square Swing Sieve
- Category: >>>
- Supplier: Henan Yuanzhen Machinery Equipment Co. Ltd.
Share on (1601028630683):
Product Overview
Description
Products Description

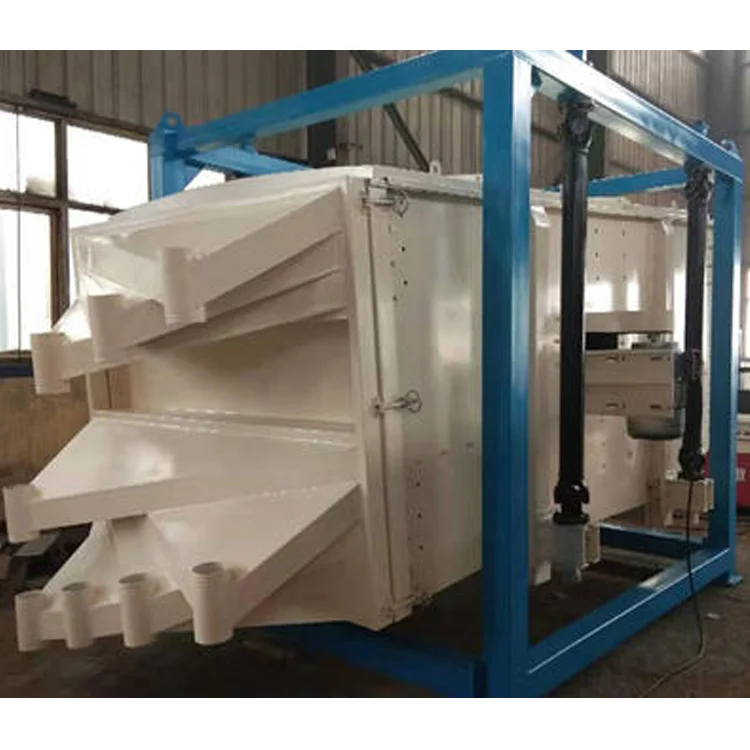

Brittle material screening equipment - Square swing sieve
The square swing sieve designed by Henan Yuanzhen Machinery is a kind of artificial screening equipment. It has the advantages of reasonable design, simple structure, stable operation, fully enclosed structure, dust-free, anti-blocking hole, and anti-sticking net. In the screening process, the original physical characteristics of the material are not destroyed, and it is suitable for screening operations of brittle materials.
The square swing sieve is widely used in the classification of fine materials in the quartz sand, silica fume, foundry sand, fracturing sand, and dolomite industries.
Structural principle

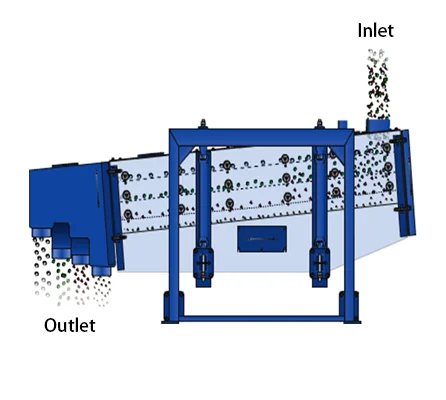

In terms of the trajectory of the screen box, the square swing sieve is an improved model of the reciprocating screen, the essence of which is the reciprocating inertia force formed by the eccentric wheel rotating around the fixed axis, and the screen surface is generally arranged horizontally or slightly inclined.
The basic rotary motion of the square swing screen is similar to that of manual screening. The eccentricity and belt drive are adjustable. The residence time of the product can be adjusted.
The basic rotary motion of the square swing screen is similar to that of manual screening. The eccentricity and belt drive are adjustable. The residence time of the product can be adjusted.
Horizontal and throwing three-dimensional tumbling motion is established. The material is evenly dispersed over the entire screen surface from the center to the outer edge, thus propagating axially with a spiral motion. The material smaller than the aperture of the screen surface falls to the lower layer through the screen aperture and becomes under the screen, and the material larger than the aperture of the screen surface is discharged from the discharge port through continuous tumbling and jumping motion to complete the screening work.
1. The quality of the screen is good, and the cleaning device can be installed, the utilization rate of the screen is high, and the service life is long.
2. Strong airtightness, closed design of the whole secret, no dust leakage phenomenon in production.
3. Stable operation. The square swing screen uses inertial force to work, does not have strong vibration characteristics, and has low noise.
4. The screening output is large, and the screening output per unit area is 3-10 times that of the ordinary rotary vibrating screen (different materials have different screening results).
2. Strong airtightness, closed design of the whole secret, no dust leakage phenomenon in production.
3. Stable operation. The square swing screen uses inertial force to work, does not have strong vibration characteristics, and has low noise.
4. The screening output is large, and the screening output per unit area is 3-10 times that of the ordinary rotary vibrating screen (different materials have different screening results).
Common Model
Model | Effective sieving area(m2) | Power(kW) | Inclination of sieve surface(°) | Number of layers | Rotation frequency(r/min) | Sieve box stroke(mm) | ||||||
YZYB1030 | 3 | 3 | 5~8 | 1—10 | 180—260 | 25—60 | ||||||
YZYB1036 | 3.6 | 3 | 5~8 | 1—5 | 180—260 | 25—60 | ||||||
YZYB1230 | 3.6 | 4 | 5~8 | 1—5 | 180—260 | 25—60 | ||||||
YZYB1236 | 4.32 | 4 | 5~8 | 1—5 | 180—260 | 25—60 | ||||||
YZYB1530 | 4.5 | 5.5 | 5~8 | 1—5 | 180—260 | 25—60 | ||||||
YZYB1536 | 5.4 | 5.5 | 5~8 | 1—5 | 180—260 | 25—60 | ||||||
YZYB1830 | 5.4 | 7.5 | 5~8 | 1—5 | 180—260 | 25—60 | ||||||
YZYB1836 | 6.48 | 7.5 | 5~8 | 1—5 | 180—260 | 25—60 | ||||||
YZYB2030 | 6 | 7.5 | 5~8 | 1—5 | 180—260 | 25—60 | ||||||
Support customized production（Click here to get accurate quotation） | ||||||||||||
How to select the right type?
Attention:
The selection of screening equipment and your use of demand has a lot to do with the following information you need to provide.
Ⅰ.If you have ever used the screen machine
Kindly please tell us its DIAMETER,LAYERS,MESH SIZES,MATERIALS.
Ⅱ. If never use the machine until now
Please offer us the info about material as below:
1.the name of the material.
2.Material characteristics (e.g. specific gravity, bulk density, water content, fluidity, adhesion, electrostatic properties, etc.)
3.the purpose of use (sieving / debris / liquid filtration / media separation)
4.How many layers do you need? Mesh size of each layer?
5.expected processing capacity per hour (Kg/h)
In this way,we can precisely choose the matching model for you to meet your use requirements.
6.Voltage(V),Frequency(Hz),Phase(P)
Ⅰ.If you have ever used the screen machine
Kindly please tell us its DIAMETER,LAYERS,MESH SIZES,MATERIALS.
Ⅱ. If never use the machine until now
Please offer us the info about material as below:
1.the name of the material.
2.Material characteristics (e.g. specific gravity, bulk density, water content, fluidity, adhesion, electrostatic properties, etc.)
3.the purpose of use (sieving / debris / liquid filtration / media separation)
4.How many layers do you need? Mesh size of each layer?
5.expected processing capacity per hour (Kg/h)
In this way,we can precisely choose the matching model for you to meet your use requirements.
6.Voltage(V),Frequency(Hz),Phase(P)
---------------------------------------------------------------------------------------------------------
In order to make it more convenient for you, you can compare the following table to clear your machine configuration
General requirements | Model | YZYB1030/1036/1230/1236/1530/1536/1830/1836/2030 | ||||
Rotation frequency(r/min) | 180-260 | |||||
Main Material | Stainless Steel（304/316L）·Carbon Steel（Q235）·PP | |||||
Sieve box stroke(mm) | 25-60 | |||||
Transducer Installation Method | Built-in / External | |||||
Sealing Strip | Silica gel / Rubber | |||||
Special requirements | Overall height of the fuselage | Please communicate specifically | ||||
Feed inlet | Angle / Size and so on | |||||
Outlet | Angle / Size /Add valve | |||||
Observation port | Silicone cover / Rubber cover / Glass cover | |||||
spring | You can choose whether to add a silicone protective cover | |||||
Internal spray（mm） | PTFE / ePTFE / WC / Al2O3 | |||||
Equipment surface treatment | Polishing / Sandblasting | |||||
Body metal material requirements | For example: require no Cu and Zn (except electrical parts) | |||||
Vibration motor | Ordinary motor / Explosion-proof motor | |||||
other | ||||||
Show Details
Product Show
We provide you with quality products and services.
---------------------------------------------------------------------------------------------------------
Please click on the pictures below to learn about related products
Application
Application Scenario Description
The square swing screen is a kind of artificial screening equipment. It has the advantages of reasonable design, simple structure, stable operation, fully enclosed structure, dust-free, anti-blocking hole, and anti-sticking net.
Common screening materials are:
Common screening materials are:
chemical industry, new materials, metallurgy, metal powder, mineral powder, food, salt, sugar, abrasive, feed and other industries. Especially suitable for quartz sand, fracturing sand, glass sand, white sugar, plate sand, ceramsite sand, recarburizer, pearl sand, microbeads and other materials.
