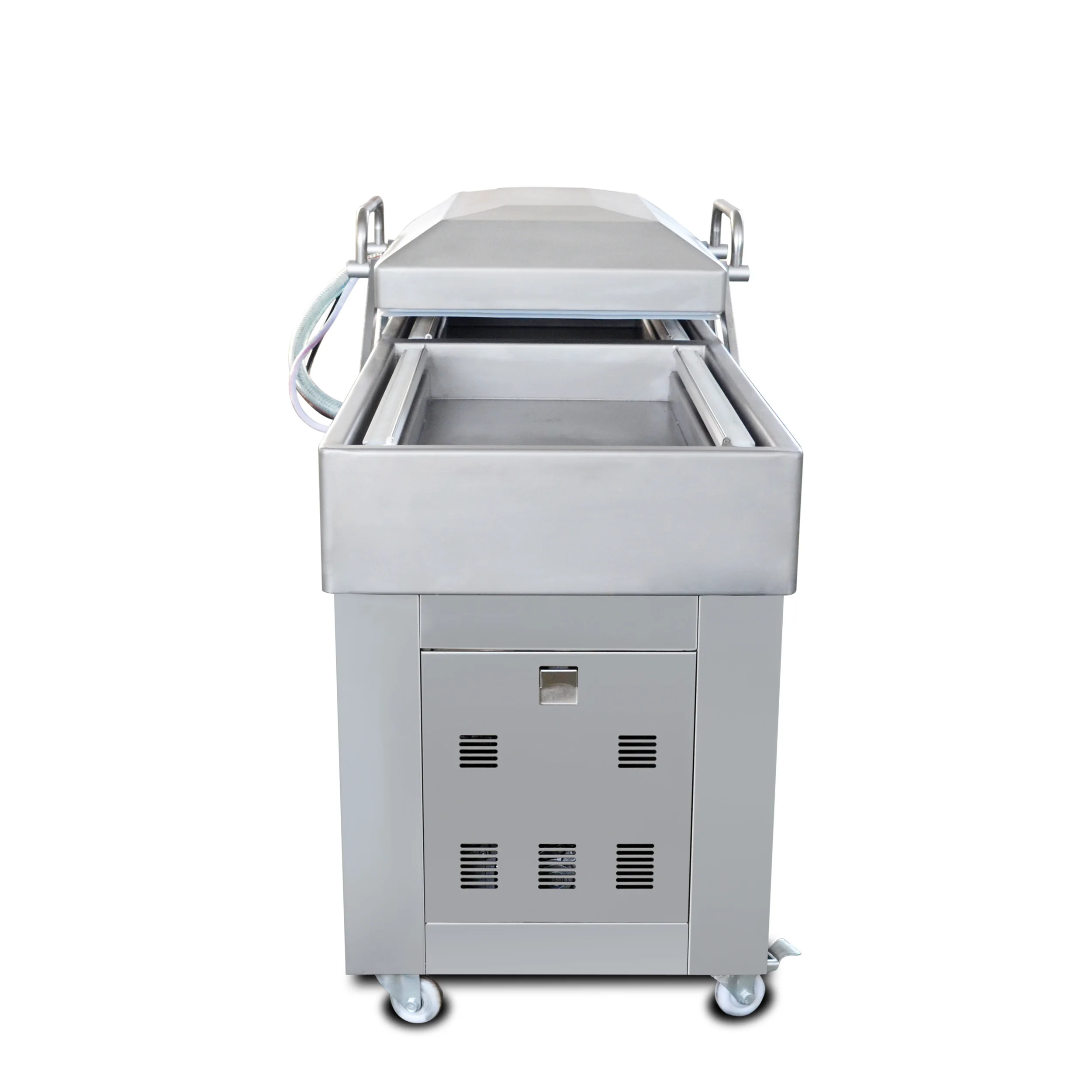

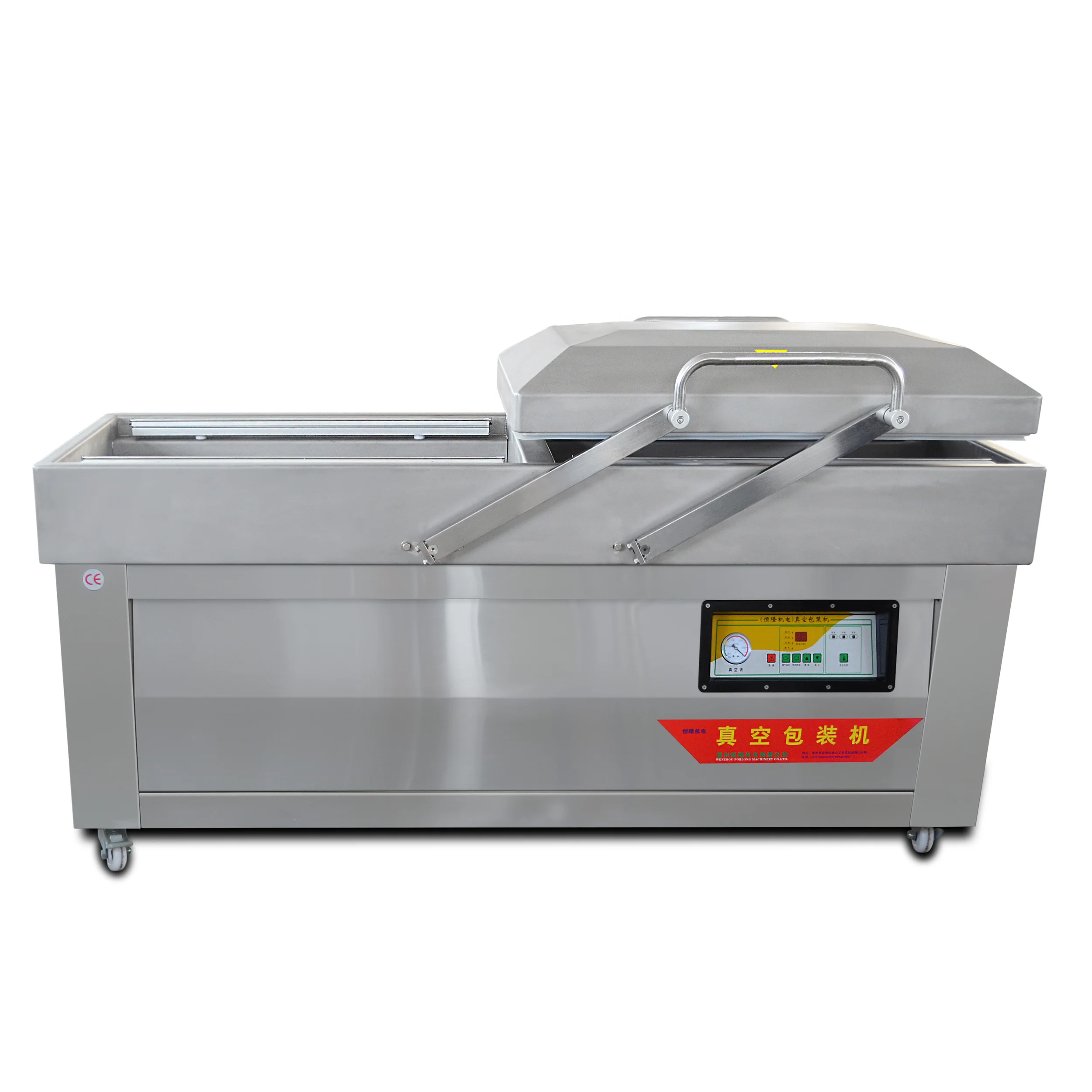

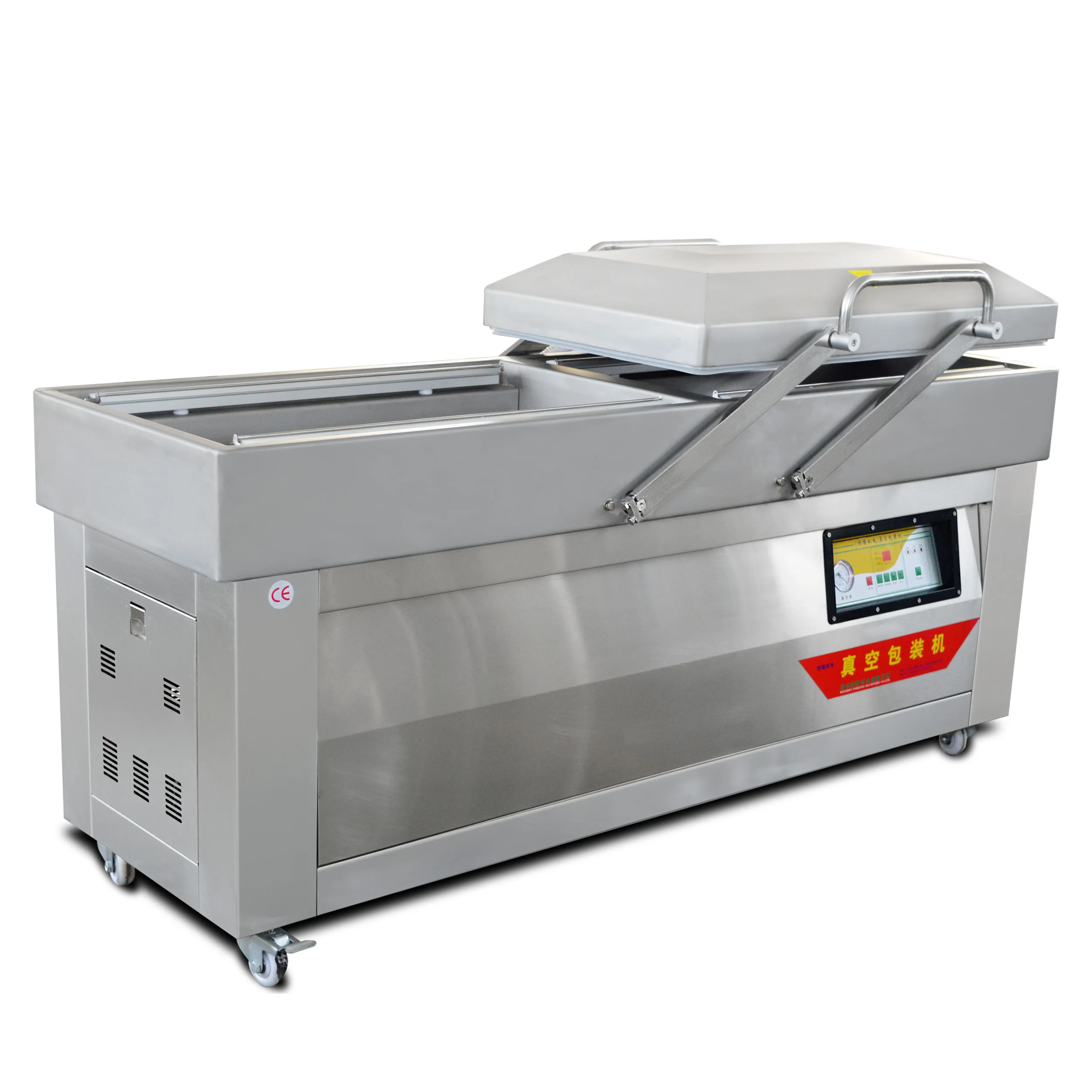

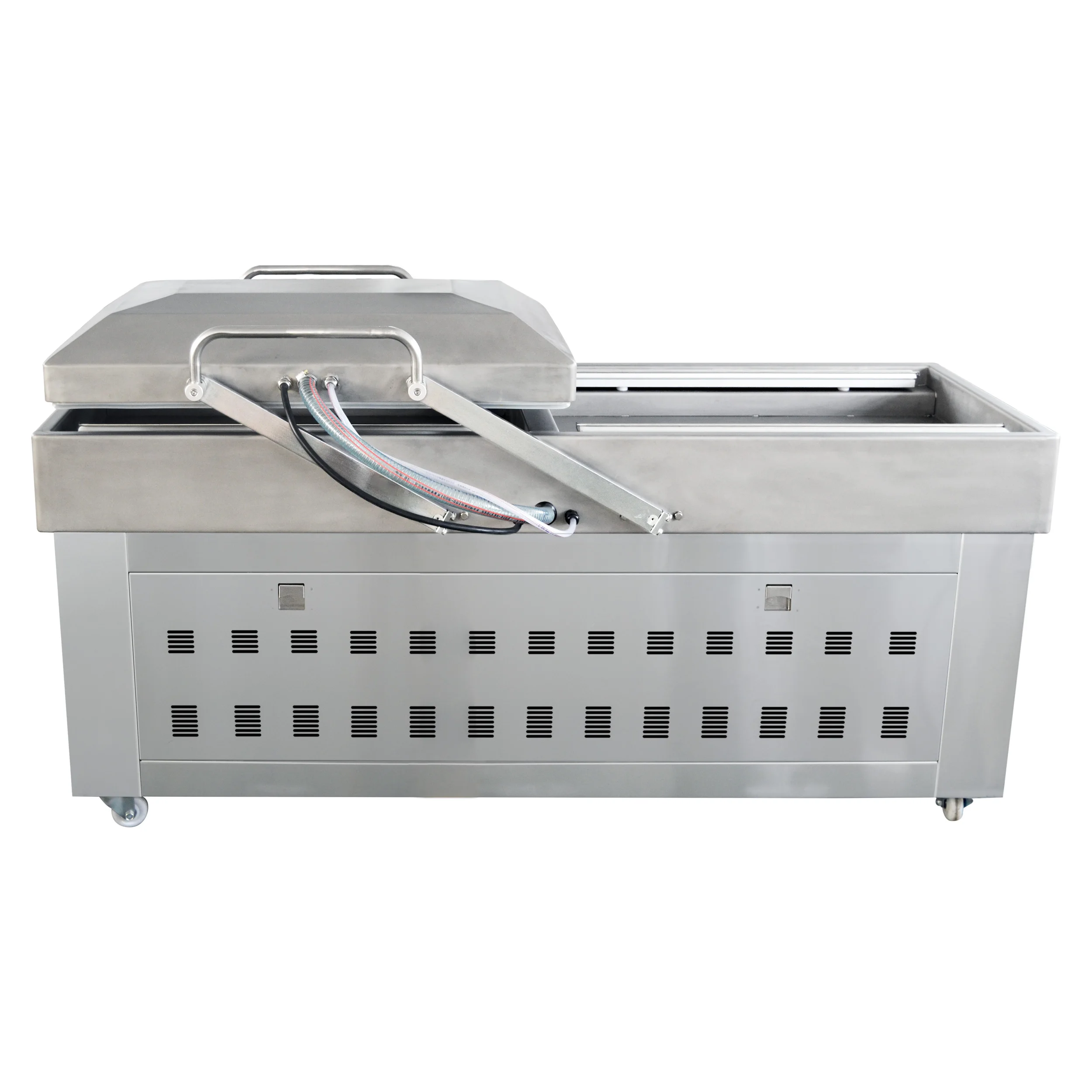

DZQ Series Double Chamber Vacuum Aeration Packaging Machine with Sealing Printing Cooling Exhausting Air Function

Share on (1601028664624):


Price:$650.00 - $685.00

Quantity:


Product Overview

Description


DESCRIPTION


DZ(Q) series single chambers vacuum (aeration) packaging machine, As long as you press the vacuum case's lid, the machine will automatically complete the orderly assumed processes of vacuum extraction or aerate the orderly assumed processes of vacuum extraction or aerate the inner gas,sealing, printing, cooling and aeration. The packed products can be prevented from oxidation, going mould, insects or getting damp, thus can be kept fresh in a prolonged storage period. we can Make machine base on your requirement.





FEATURE

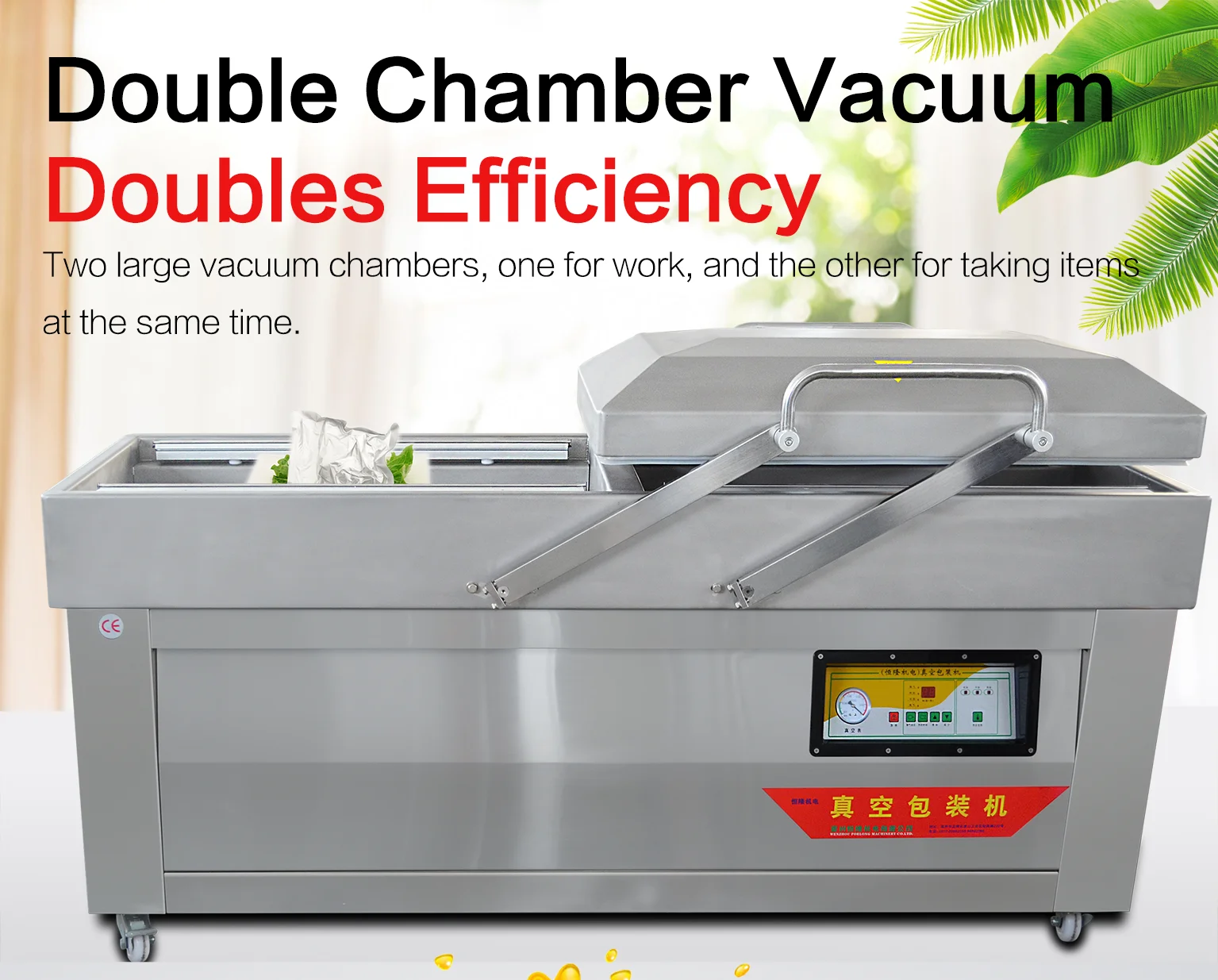

DZ(Q) series vacuum packsging machine is very easy to operate, just put down the vacuum chamber lid and the machine will complete the whole progress, i.e vacuuming, filling, inactive, gas, sealing, printing, cooling and exhausting the air. The vacuum-packed items prevent from oxidation, mildew, insects and moisture, thus will proling the shelf life of product. The double chambers can work bu turns, greatly improve the efficiency of work.











TECHNOLOGY   PATAMETERS






















































































 Model



DZ(Q)-400/2SB



DZ(Q)-500/2SB



DZ(Q)-600/2SB



DZ(Q)-800/2SB



DZ(Q)-1000/2SB



 Voltage



Three Phase 380V/50Hz


OR Single Phase 200V/50Hz



 Power of Pump



0.9kw



1.8Kw



2.7Kw



3.6Kw



3.6Kw



 Heat-sealing Power



0.6kw



0.75Kw



1Kw



1.5Kw



1.75Kw



 Lowest Absolute Pressure



1.33Kpa






 Volume of Vacuum  Case   (mm)



550*450*115



560*540*115



610*540*115



710*650*250



1100*800*205



 Sealing Strip Size (mm)



410*10



510*10



610*10



820*10



1020*10



 Number of Heater



2 each chamber






 Exhaustment of Vacuum   Pump



20m3/h



40m3/h



63m3/h



80m3/h



 Material of Vacuum Case   and Hull



Stainless Steel



 Dimension (mm)



1200*520*850



1260*610*850



1450*610*860



2050*910*1150



2300*900*1200



 Weight (KG)



180



220



250



380



450












DETAILED PICTURE

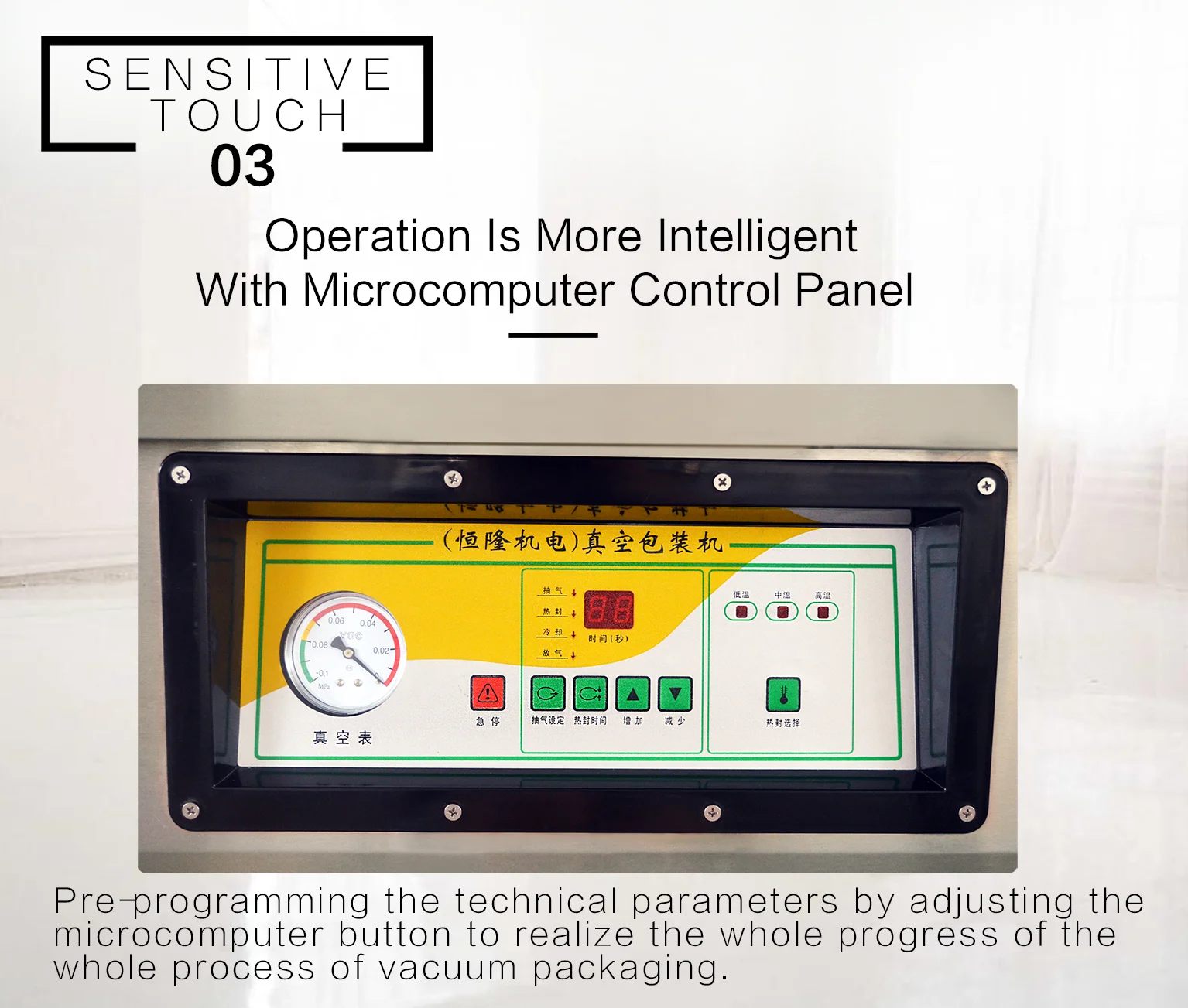

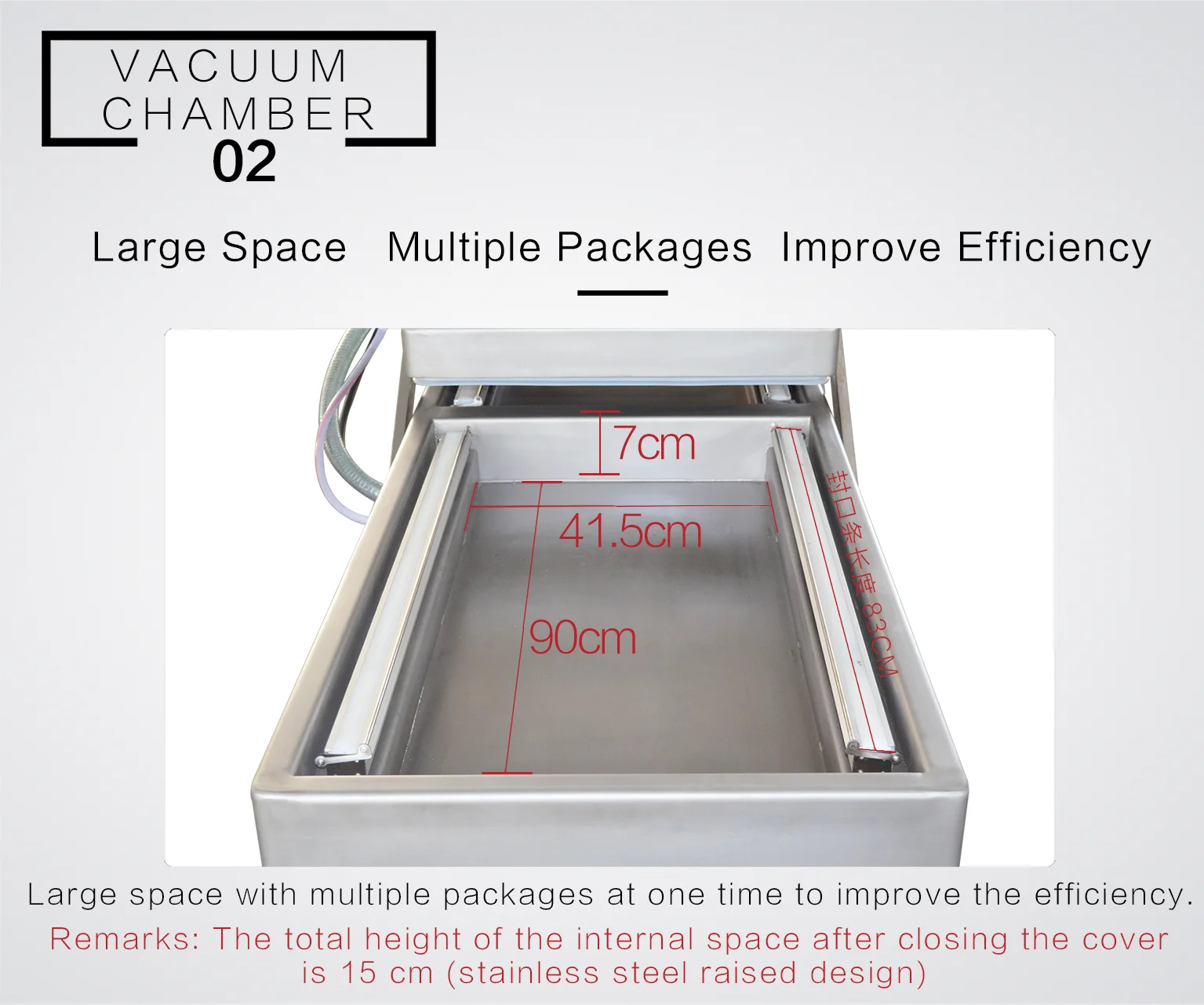

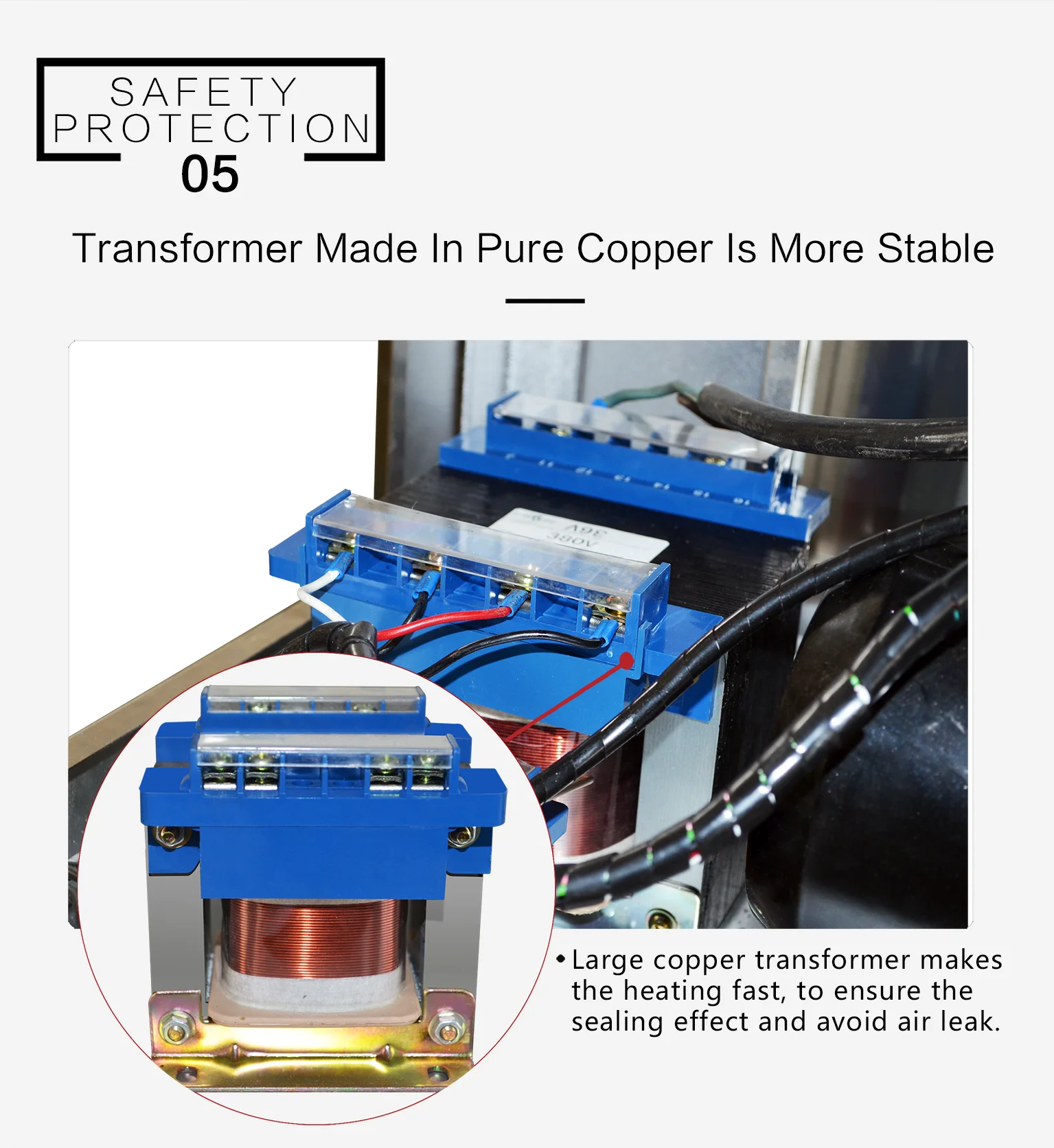

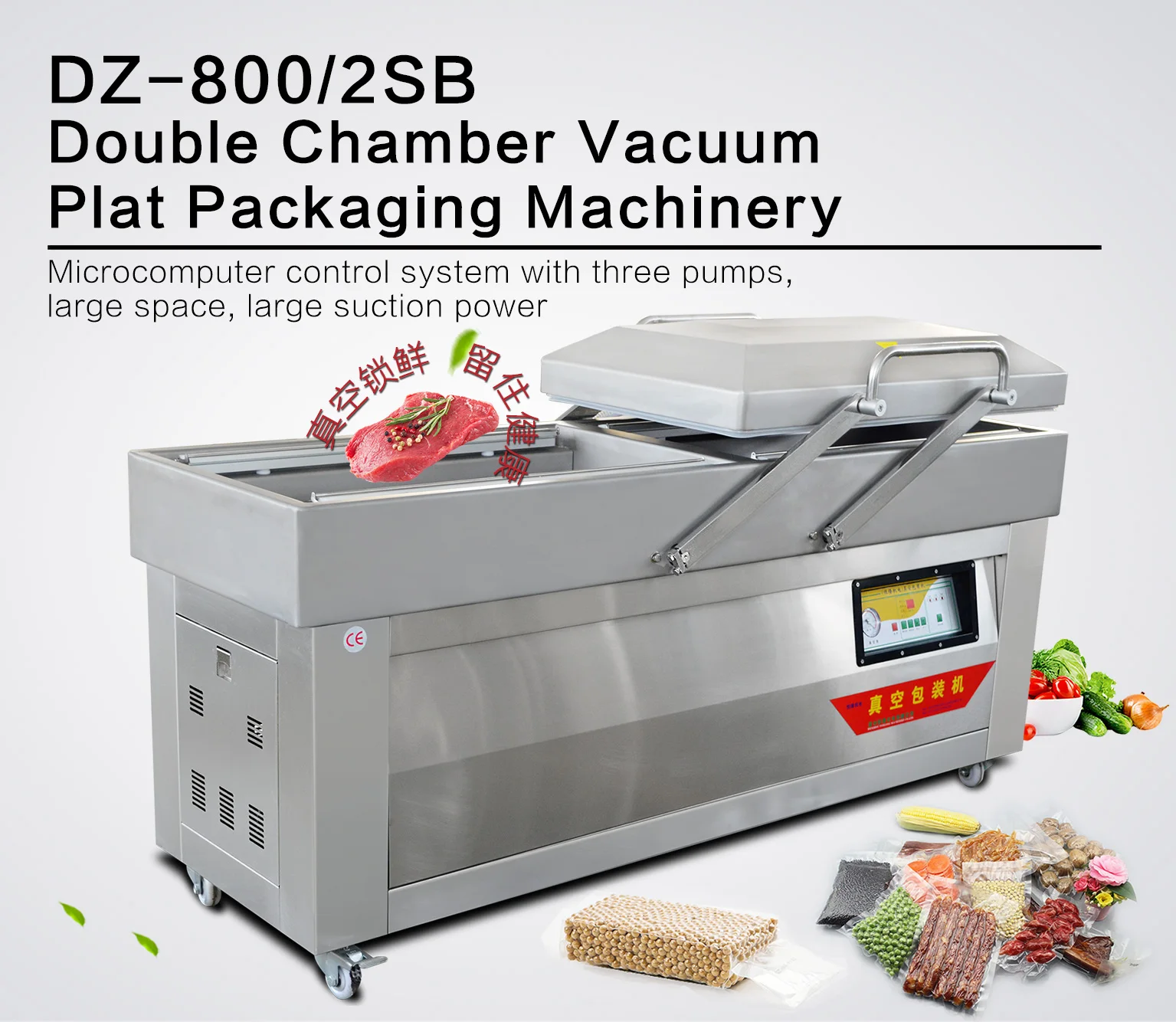

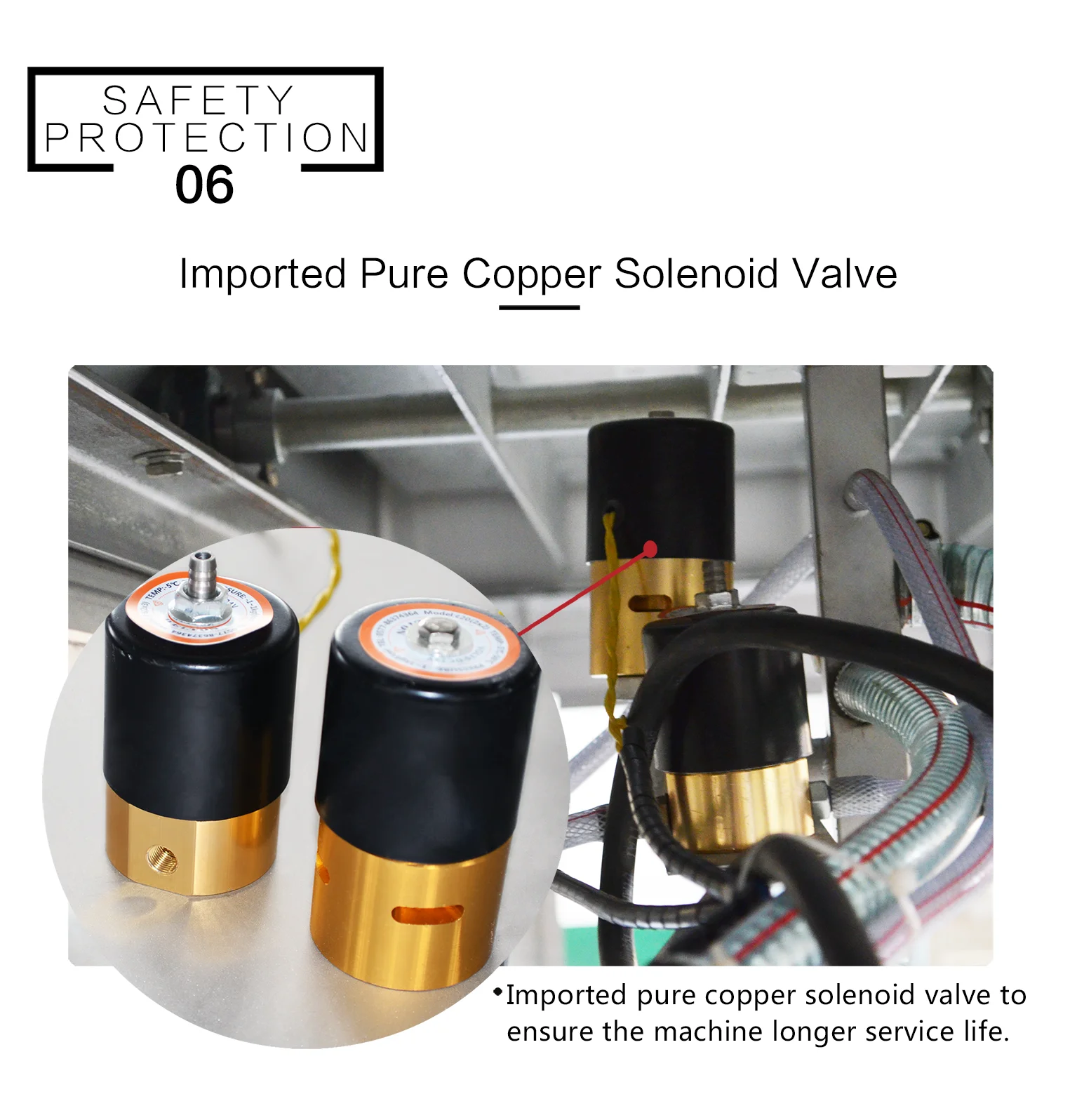

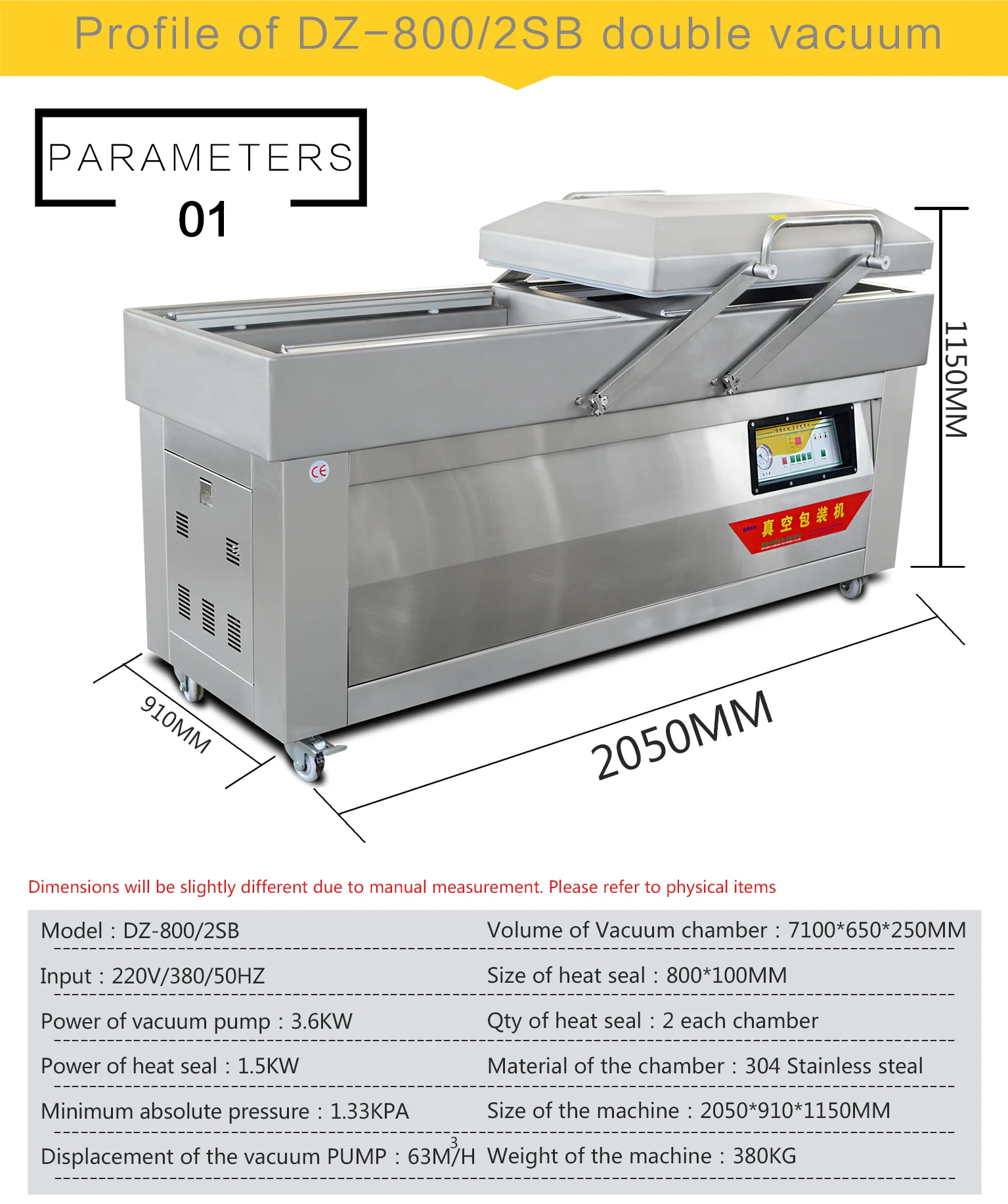

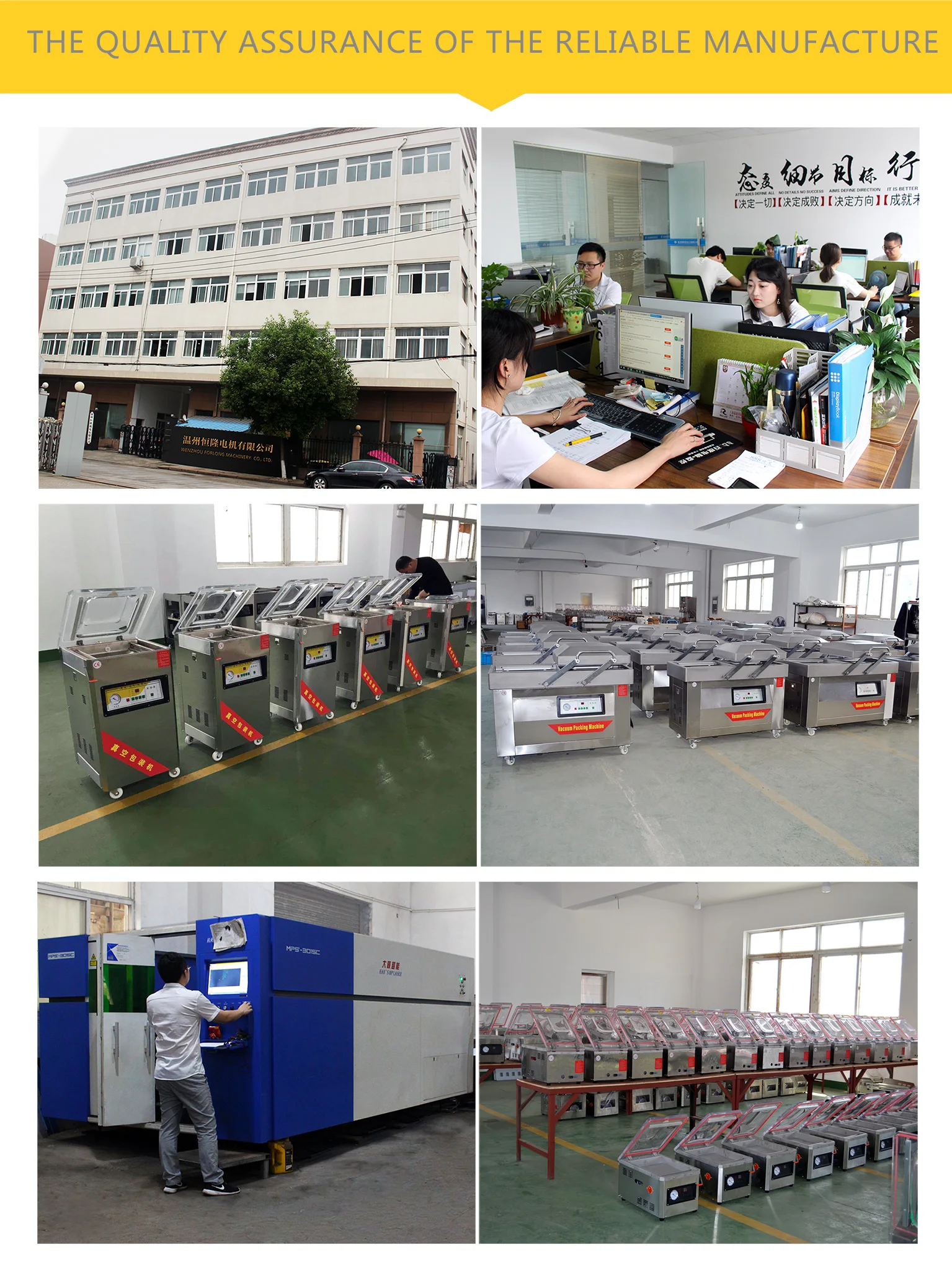

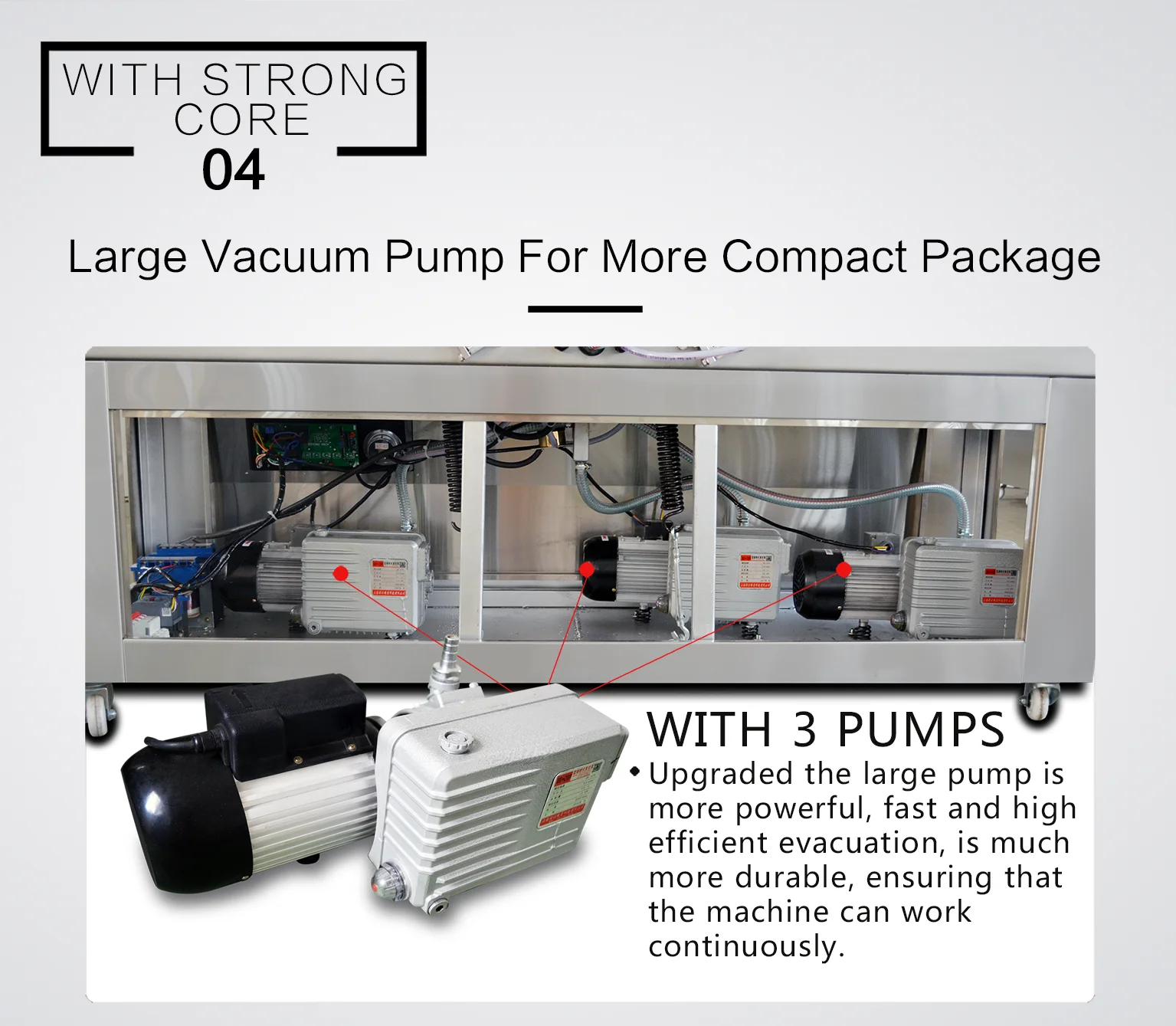

800()_01.jpg800()_02.png800()_04.png800()_06.png800()_07.png800()_08.png800()_09.png800()_10.png800()_11.png800()_12.png800()_13.jpg
