HaiYue Factory good quality double membrane biogas holder tank
- Category: >>>
- Supplier: Qingdao Haiyue Memberane Structure Engineering Co. Ltd.
Share on (1601028699044):
Product Overview
Description
China Haiyue 50m3 biogas digester biogas anlage 5kw zur stromer biogas digester in nigeria
Products Description
Qingdao Haiyue usable voloume 50 m³ Floor Mounted biogas holder equipmeng list | ||||||||
No | Accessories | Unit | Quantity | Remark | ||||
1 | Biogas holder | set | 1 | Base diameter: 4700mm,Spheroid diameter：5011mmm,Height:3500mm | ||||
1.1 | inner membrane | pcs | 1 | Usable voloume 50 m³ | ||||
1.2 | outer membrane | pcs | 1 | Voloume 70m³ | ||||
1.3 | Antiwear layer | pcs | 1 | Tensile strength:3200N/5cm | ||||
2 | Constant pressure Air blower system | set | 1 | |||||
2.1 | Air blower | set | 1 | Explosion-proof air blower:750W | ||||
2.2 | Blower box and accessories | set | 1 | 304 stainless steel box with check valve and rigid pipe | ||||
2.3 | Outer membrane Air relief valve | set | 1 | 304 stainless steel DN80 | ||||
2.4 | Inner membrane safety valve | set | 1 | 304 stainless steel | ||||
3 | Electric control system | set | 1 | |||||
3.1 | Pressure sensor | set | 1 | Explosion-proof and waterproof | ||||
3.2 | Level meter | set | 1 | Ultrasonic Wave Explosion-proof and waterproof | ||||
3.3 | Control cabinet | set | 1 | Explosion-proof and waterproof | ||||
3.4 | Control cabinet support | pcs | 1 | 304 stainless steel | ||||
3.5 | cable | m | 2 | |||||
4 | Other attachments | set | 1 | |||||
4.1 | Inspection window | pcs | 1 | 304 stainless steel with acrylic sheet | ||||
4.2 | Air scoop | set | 1 | 304 DN80 | ||||
4.3 | Sealant | tube | 15 | |||||
4.3 | Air hose | m | 5 | Steel wire hose | ||||
Six core advantages
1. 12 years of manufacturing experience
2. More than 1000 nationwide cases
3. Germany technology
4. Free measurement on site
5. Professional customization by factory
6. Professional after-sales service
1. 12 years of manufacturing experience
2. More than 1000 nationwide cases
3. Germany technology
4. Free measurement on site
5. Professional customization by factory
6. Professional after-sales service
Applicable industry
1. Industrial wastewater disposal (distillery, pharmaceutical factory, paper mill, chemical plant, etc.)
2. Animal husbandry
3. Straw and other biomass material fermentation and gasification
4. Rubbish splitting , landfill
5. Kitchen garbage treatment, landfill leacate treatment
6. Municipal sewage treatment
7. Storage of other non flammable and explosive gases
1. Industrial wastewater disposal (distillery, pharmaceutical factory, paper mill, chemical plant, etc.)
2. Animal husbandry
3. Straw and other biomass material fermentation and gasification
4. Rubbish splitting , landfill
5. Kitchen garbage treatment, landfill leacate treatment
6. Municipal sewage treatment
7. Storage of other non flammable and explosive gases

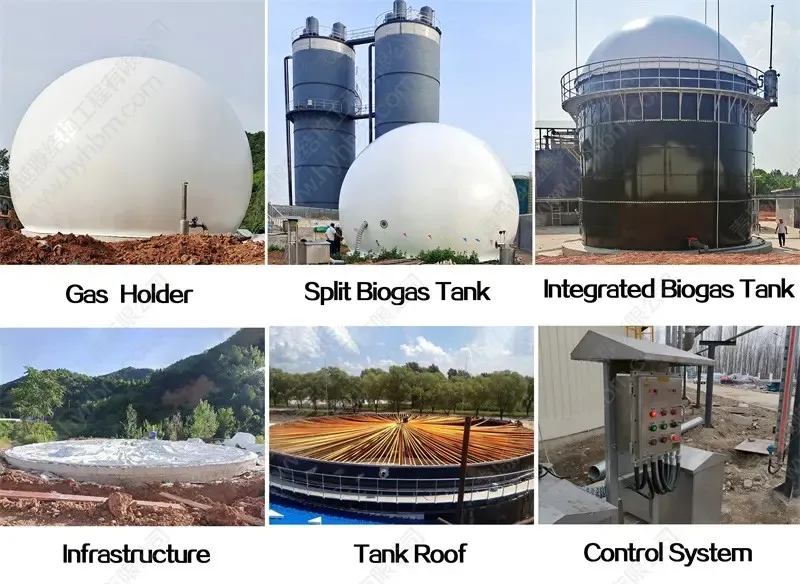

Main Products
Company Profile
Qingdao Haiyue Membrane Structure Engineering Co., Ltd. was established in April 2012, focusing on the design, R & D and production of biogas membrane structure. At present, it has more than 50 employees, including 12 technical management personnel. It has its own large double membrane structure of biogas storage and biogas holder manufacturing workshop. The advanced flexible gas holder design scheme ,production technology of Germany and professional production equipment are adopted to produce biogas holders with excellent performance. It takes double membrane biogas holder as its core product and produces related equipment for biogas project, wastewater treatment and other projects. The core products are: double membrane biogas holder, anaerobic assembly tank (enamel assembly tank and electrophoresis assembly tank), and reverse hanging membrane covering of wastewater pool. Other supporting products include: biogas purification equipment, mixer, condenser, safety protector, biogas generator, biogas boiler, biogas torch, etcSince its establishment, the company has installed and operated nearly 2000 sets of double membrane biogas holders for different cities and provinces all over the country. It is widely used in biomass biogas projects, wastewater treatment projects, biomass gas projects, waste pyrolysis, aquaculture biogas projects, etc."Embracing all rivers and surpassing ourselves" is the common goal of Haiyue people. The company has always adhered to the purpose of "customer first", constantly improving and innovating products, tailored to the needs of customers. Put quality and service first, and take "customer satisfaction" as the cornerstone of enterprise survival and development. With excellent environmental protection membrane product quality and fast and high-quality pre-sales and after-sales service, Qingdao Haiyue company has established a good reputation in the customer base and has a good brand value in the environmental protection membrane industry. It has gradually become a benchmark enterprise in the filed of membrane biogas holder and environmental protection membrane structure processing industry.Haiyue always thinks what customers think and worry what customers worry to do perfect quality and do serve with care.
Certifications
Exhibition
Packaging And Shipping
FAQ
Q1.What's your advantage?
A: Honest business with competitive price and professional service on export process.
Q2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
Q3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
Q4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
Q5.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.
6.what kind of payment does your company support?
A: T/T, L/C .
A: Honest business with competitive price and professional service on export process.
Q2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
Q3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
Q4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
Q5.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.
6.what kind of payment does your company support?
A: T/T, L/C .
