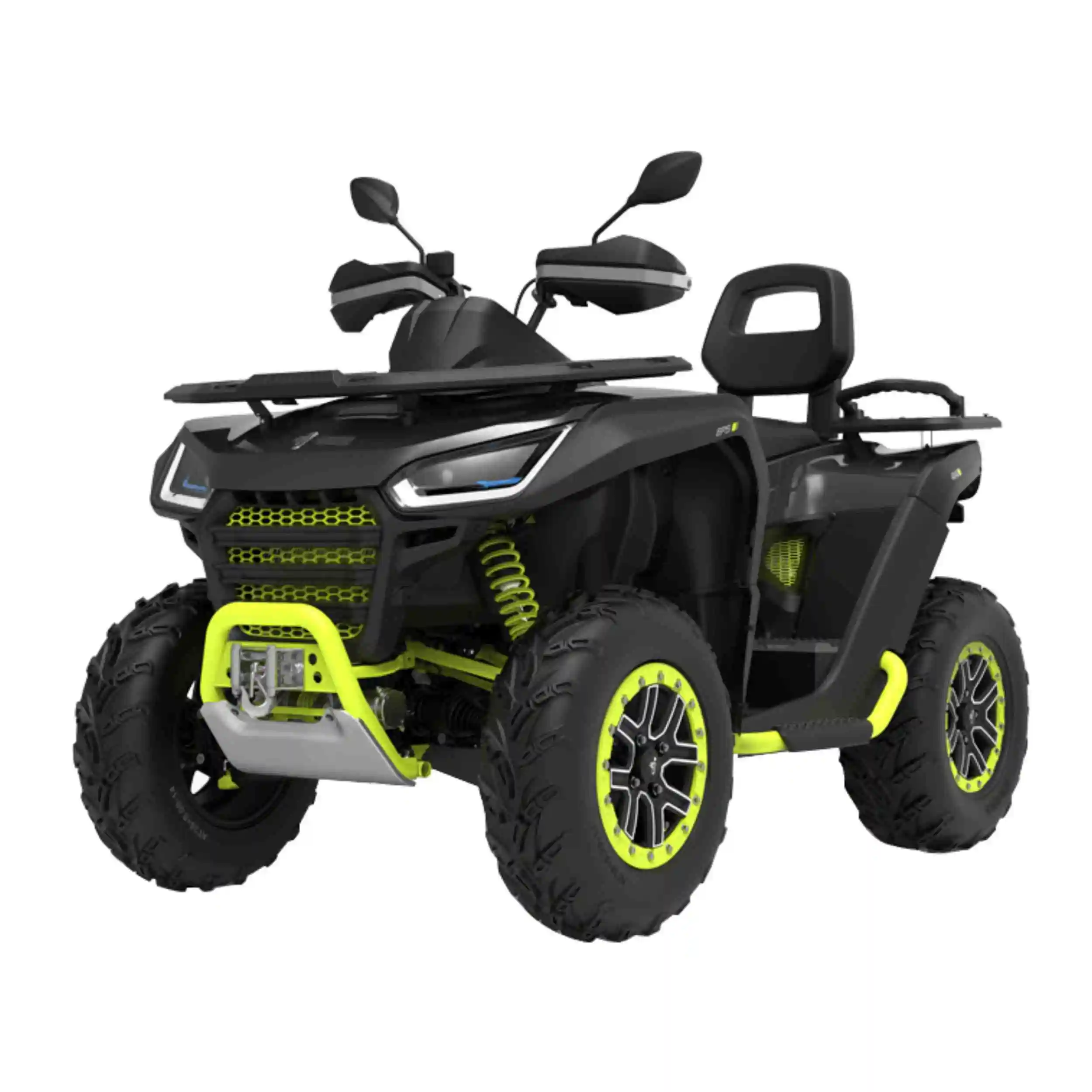

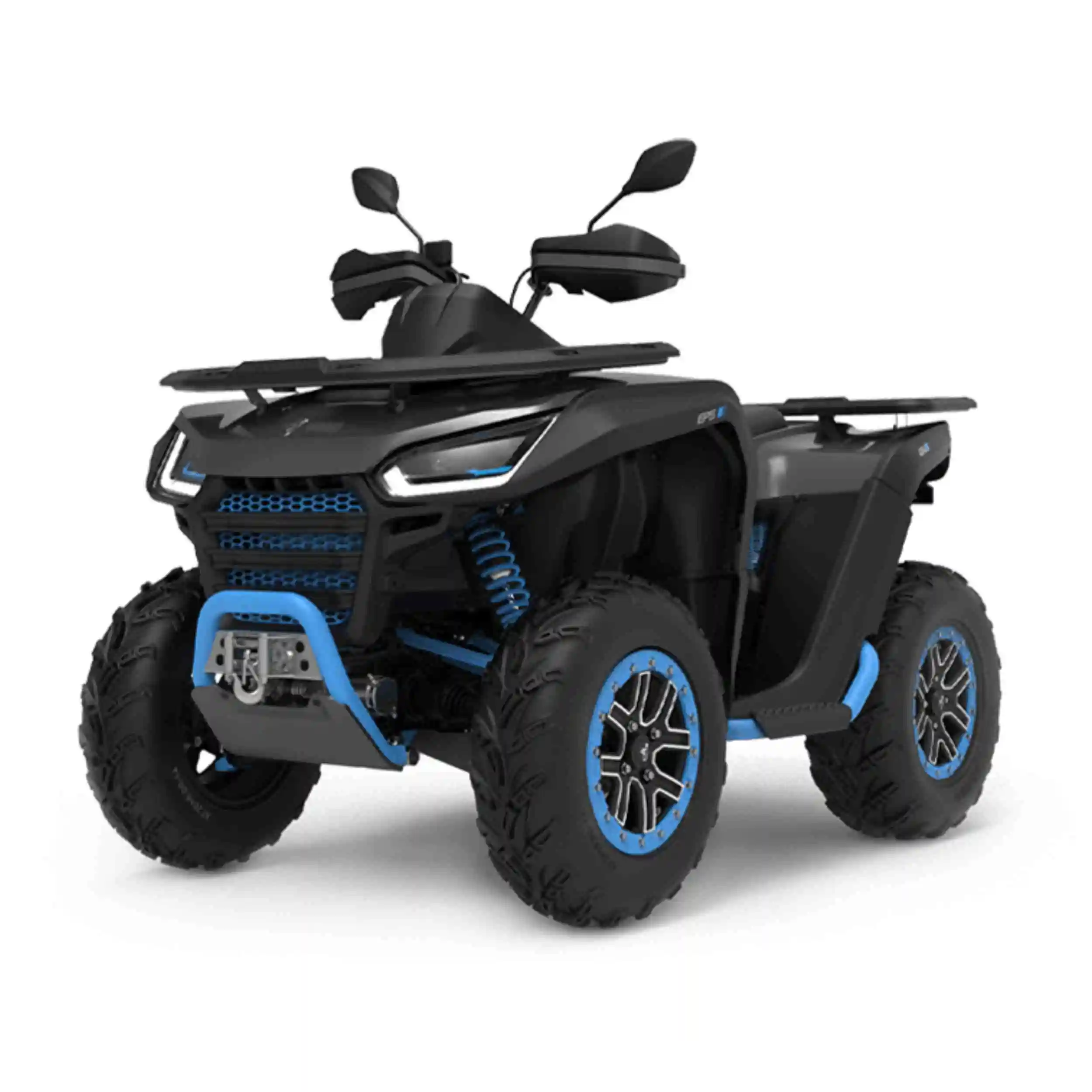

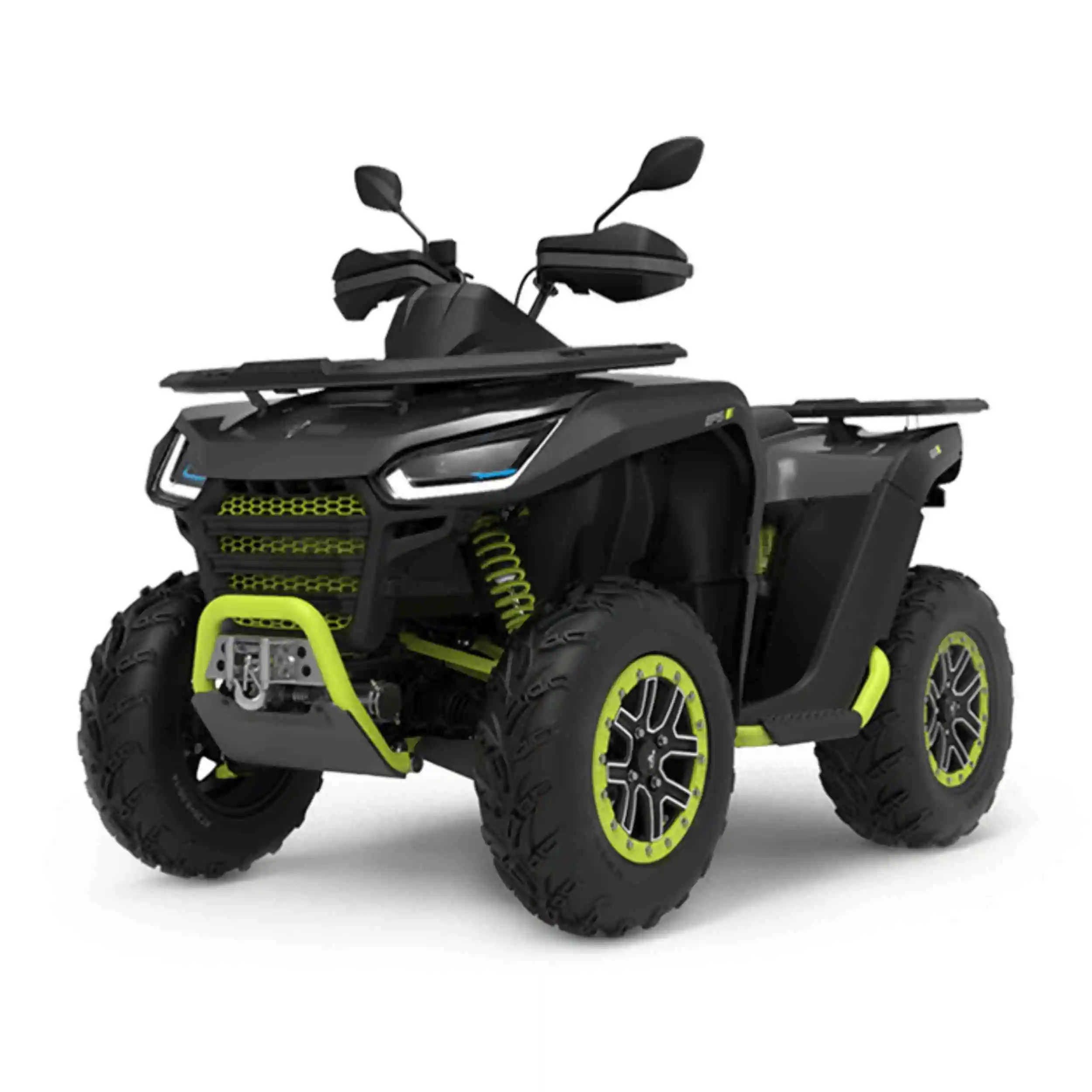

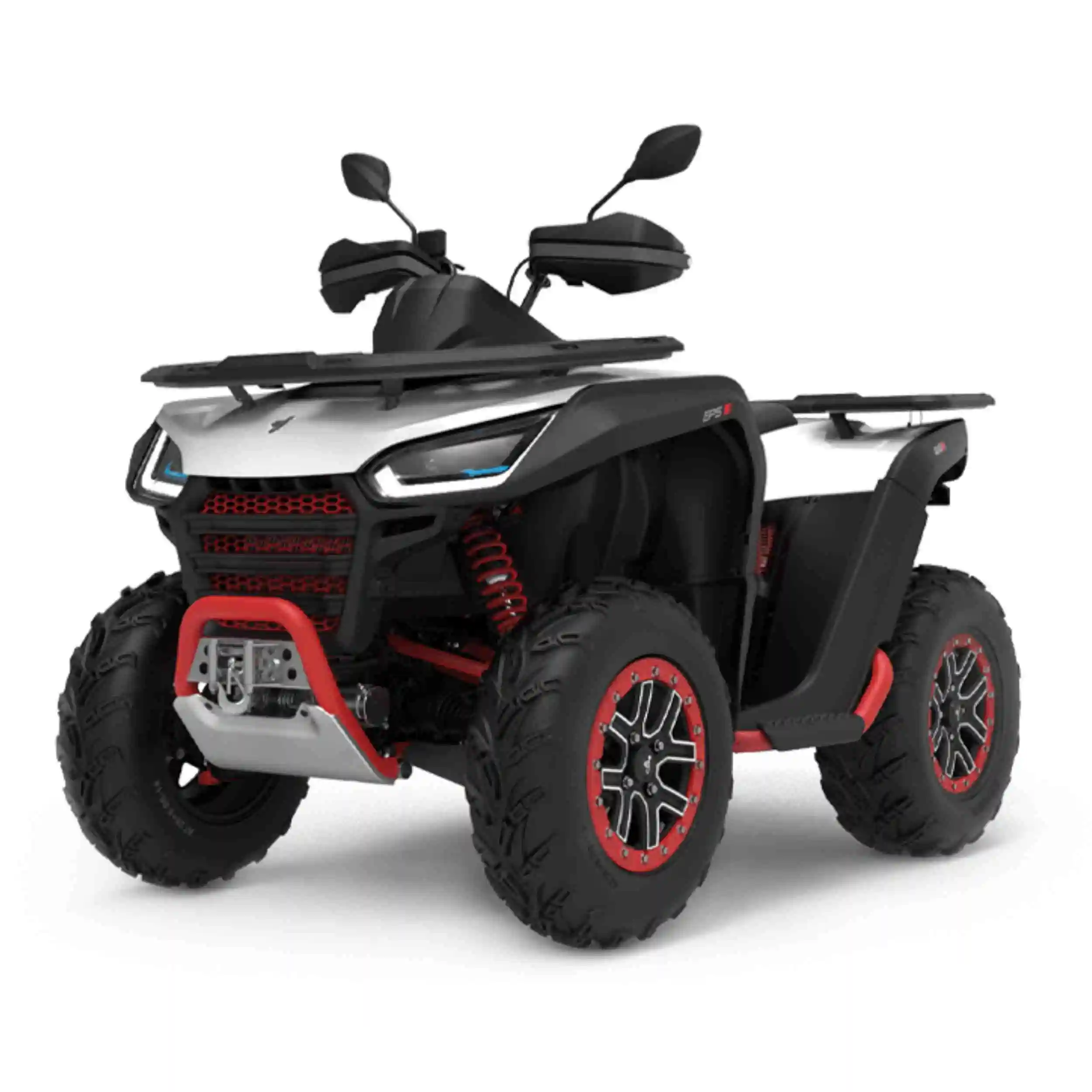

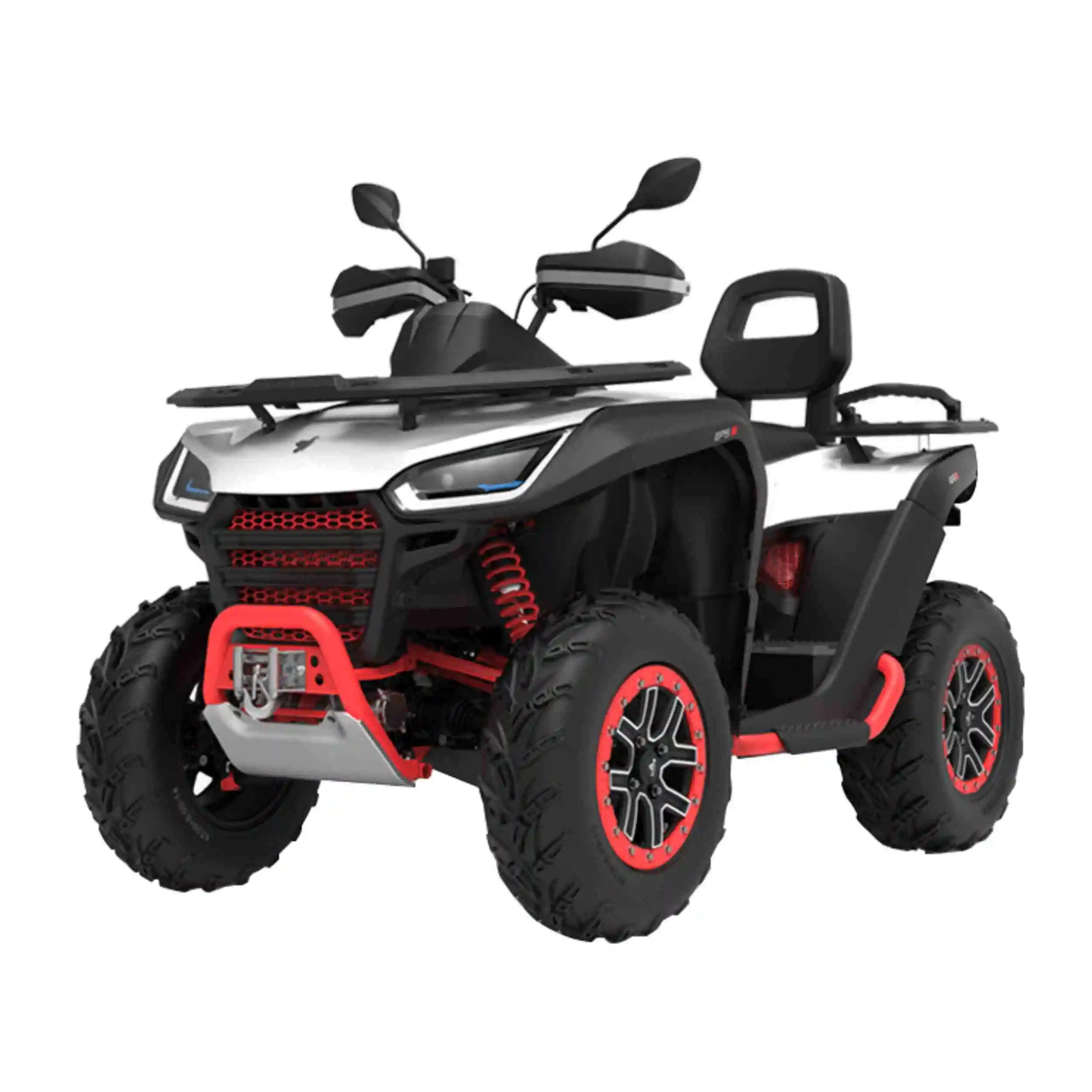

2024 Factory Supply Direct ATV 4x4 500cc MOTOs SEGWAY AT6 Off Road Quad Can am Competitor
- Category: >>>
- Supplier: Ningbo Fomen International Trading Co. Ltd.
Share on (1601028708579):
Product Overview
Description
Overview
SEGWAY AT6
Explore the new Snarler lineup that is pushing the boundaries and setting the standard for off road innovation. We don't just deliver the ultimate riding experience - we define it. Engineered with industry-leading technology, unlock an unprecedented riding experience with the Segway Smart Moving Mobile App.
Exhibition
Specification
Powertrain&Drivetrain | ||
Engine Braking System（EBS） | Standard | |
Compression Ratio | 10.6 | |
Rear Axle | Rear Diff-Lock (Optional) | |
Front Axle | Differential Steering | |
Drive System | On-Demand 2WD / 4WD | |
Torque | 48 N.m | |
Horsepower | 44 hp | |
Engine/Motor Type | 570cc, 4-Stroke Single-Cylinder,DOHC Engine | |
Powertrain | Fuel Engine | |
Suspension System | ||
Rear Suspension&Travel | Dual A-Arm; Rear Travel: 8.3" (21cm) | |
Front Suspension&Travel | Dual A-Arm; Front Travel:7" (18cm) | |
Shock | Oil Shock/ Air Shock(Optional) | |
Wheels&Tires | ||
Tires | Front Tires 25 x 8-12 / 26 x 8-12 / 26 x 8-14 (Optional) Rear Tires 25 x 10-12 / 26 x 10-12 / 26 x 10-14 （Optional） | |
Wheels | Steel(12 inch) / Aluminum(14 inch) with Beadlock Device（Optional） | |
Overall Dimensions | ||
Towing Capability | 350kg(771lb)(L) 300kg(661lb)(S) | |
Payload Capacity | 269kg(594Ib)(L) 195kg(429Ib)(S) | |
Front/Rear Rack Capacity | Front: 40kg(88lb) / Rear: 60kg(132lb) | |
Fuel Capacity | 23L(6.1gal) | |
Dry Weight | 384kg(847lb)(L) 359kg(792lb)(S) | |
Wheelbase | 145cm(57.1")(L) 130cm(51.2")(S) | |
Seat Height | 93cm(36.6") | |
Ground Clearance | 27cm(10.6") | |
Vehicle Size（Length/Width/Height） | 92.5 x 50.4 x 56.3" 235 x 128 x 143cm(L) 86.7 x 50.4 x 52" 220 x 128 x 132cm(S) | |
Other Features | ||
Seats | 2 Seats(L) 1Seat(S) | |
Colors | ◎ Electric White & Tensive O&R ◎ Bold Black & Dream Green ◎ Innovative Grey & Smart Blue ◎ Prairie Camo | |
Lights | LED | |
Break | Four-wheel Hydraulic Disc Brake | |
Cooling System | Duel Oil Column Piston Cooling System + Liquid & Oil Heat Exchanger Cooling System | |
Frame | High-strength chromium-molybdenum steel frame | |
Smart Electronic Power Steering(EPS) | Three Modes: Standard / Comfort / Sport(L) Three Models: Standard / Comfort / Sport(S) | |
Function And Application
Dynamic Powertrain Tech Design
570CC liquid cooled, single cylinder, 4-stroke, DOHC engine，delivers max 44HP and 48N·m of torque. The 570CC engine adopts the optimal design of insulator spark plug and optimized CAM. With the addition of electronic fuel injection system, the powertrain has good adaptability in high/low temperature and high altitude environment.
Dual Oil Column Piston Cooling System
The Dual Oil Column Piston cools the cylinder temperature rapidly. Let the speed blood continue to boil.
Liquid & Oil Heat Exchanger Cooling System
Water and oil heat exchanger cooling system improves the reliabilty of power output under tough off-road conditions.
Lead Time
QUANTITIES | 0-10 | 10-20 | >20 |
LEAD TIME | 60 | 90 | TO BE NEGOTIATED |
Buying Illustration
Quality Assurance
We will provide samples on demand in advance and conduct standard quality inspections during the production period.
Shipping Time
The delivery period for products of 10-20 pieces is 60-90 days, and the delivery period for products with larger quantities is about 100 days. The delivery situation depends on the actual supply situation of the factory. In any case, we will arrange it asap.
After-sale Warranty
We will provide a one-year warranty from the date the user receives the product. If you have any questions, you can consult at any time.
