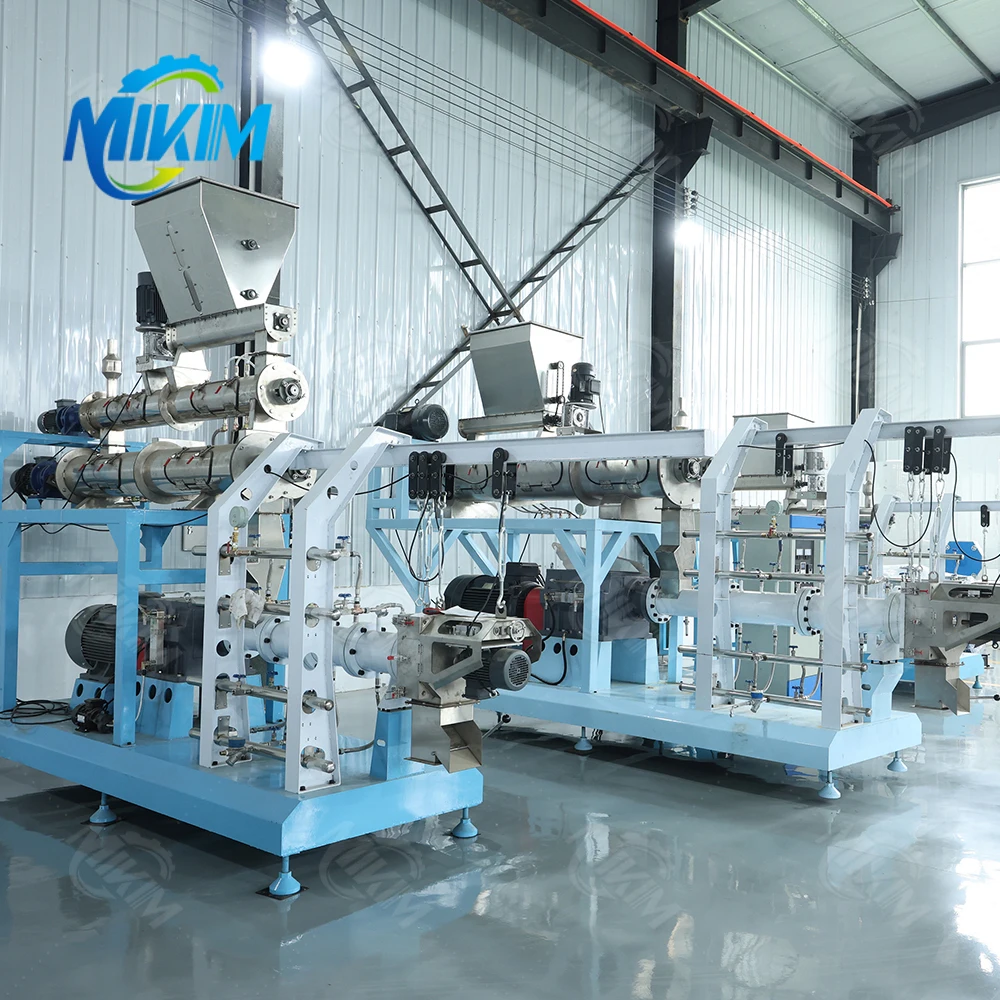

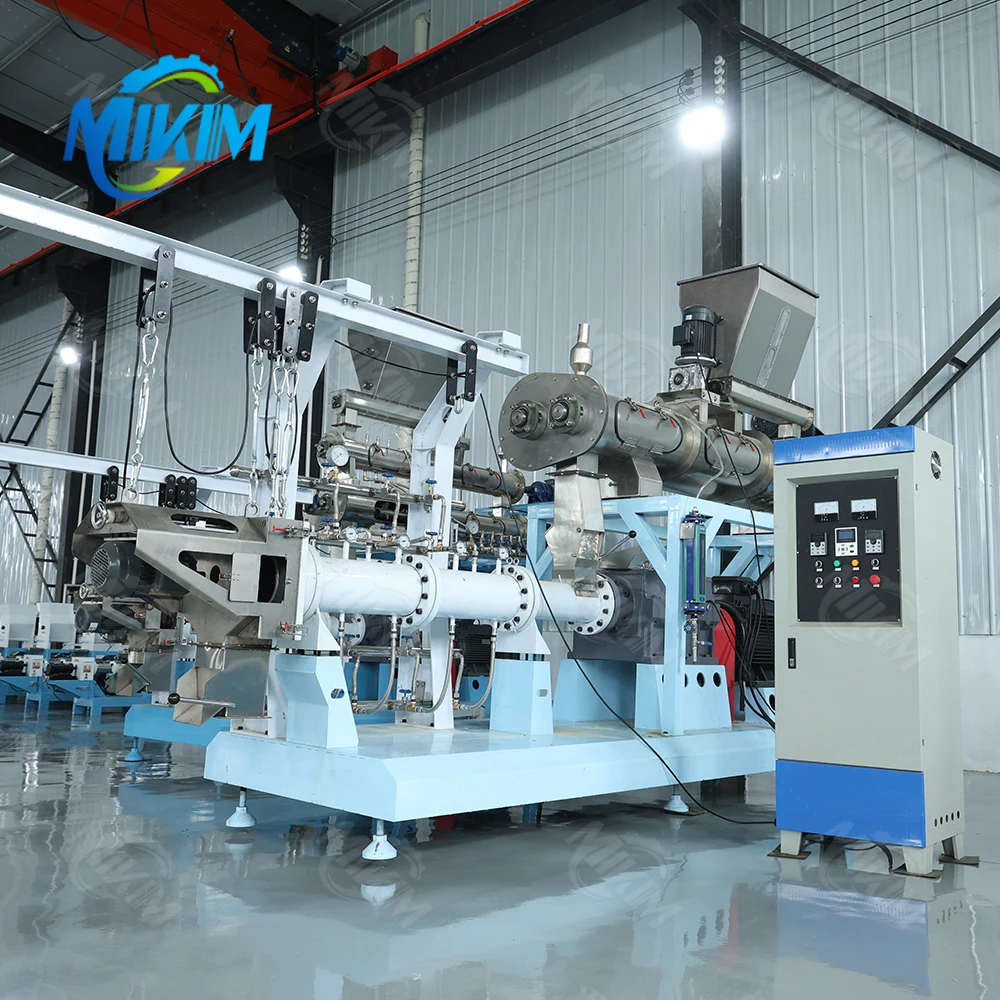

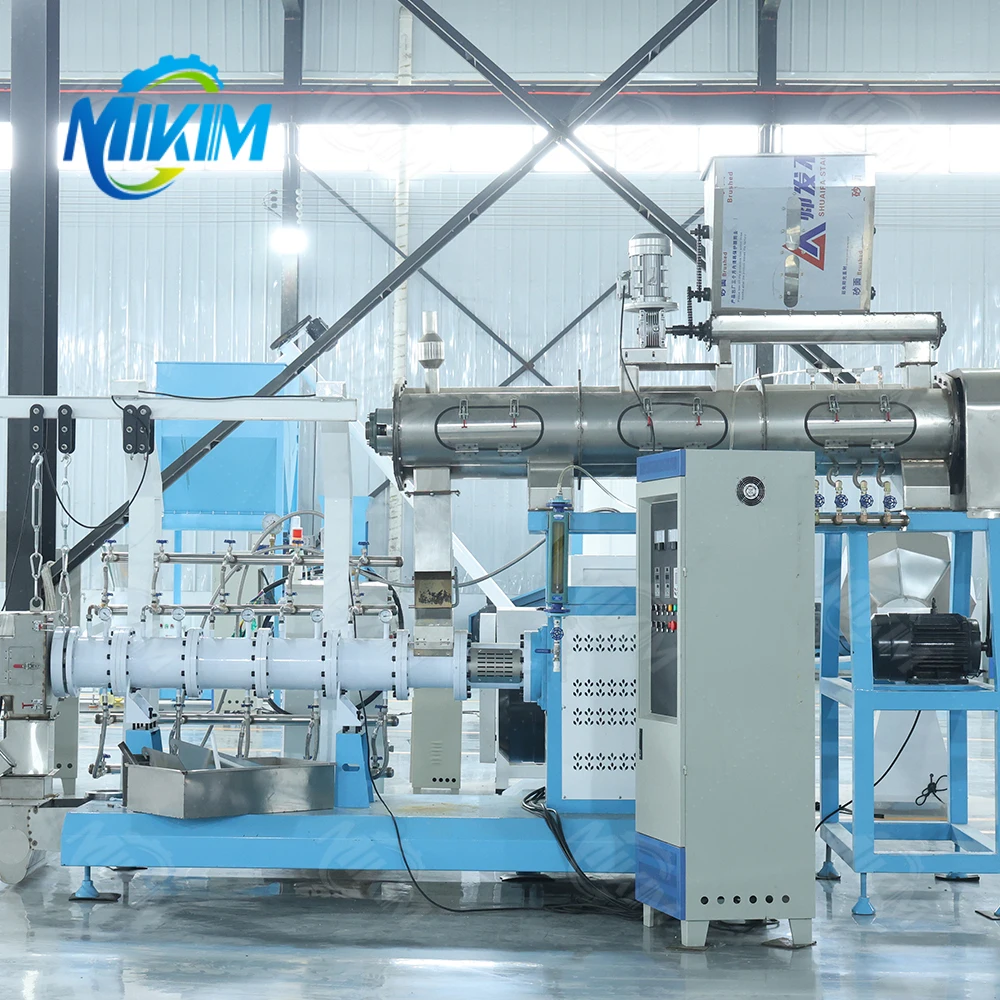

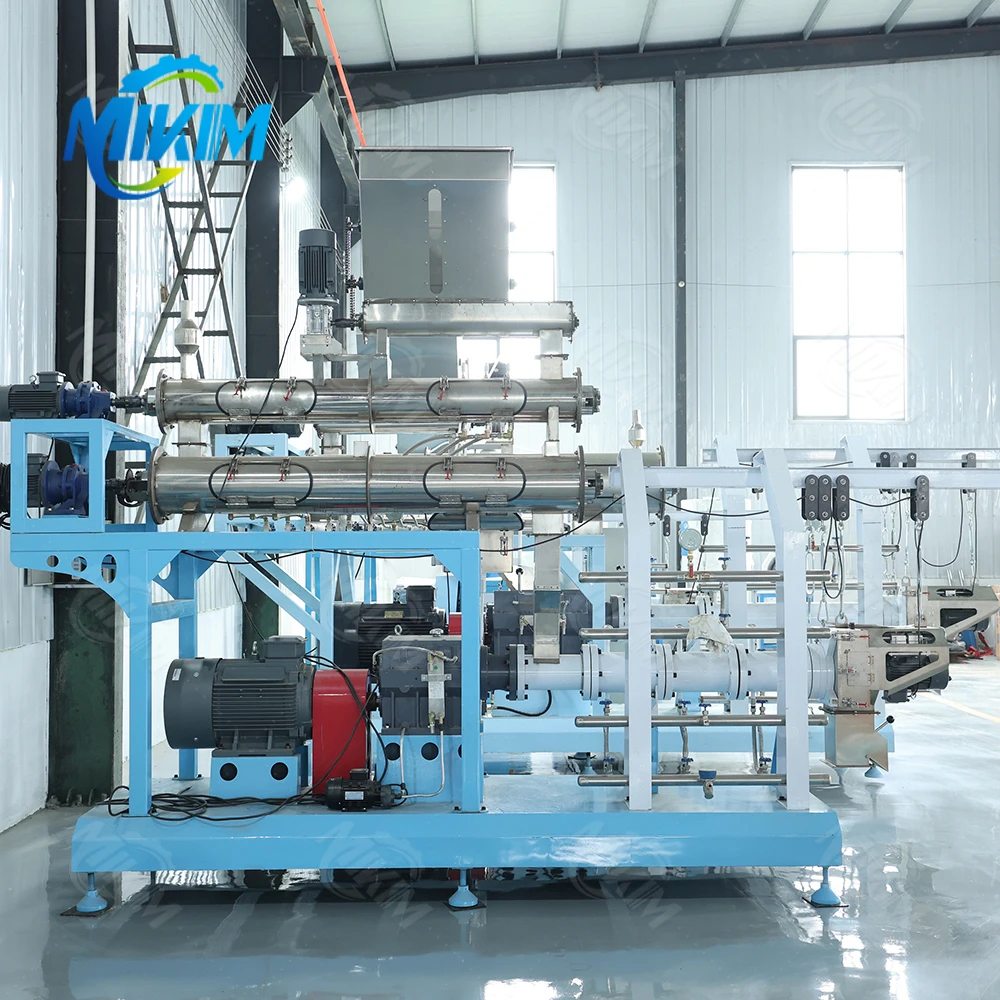

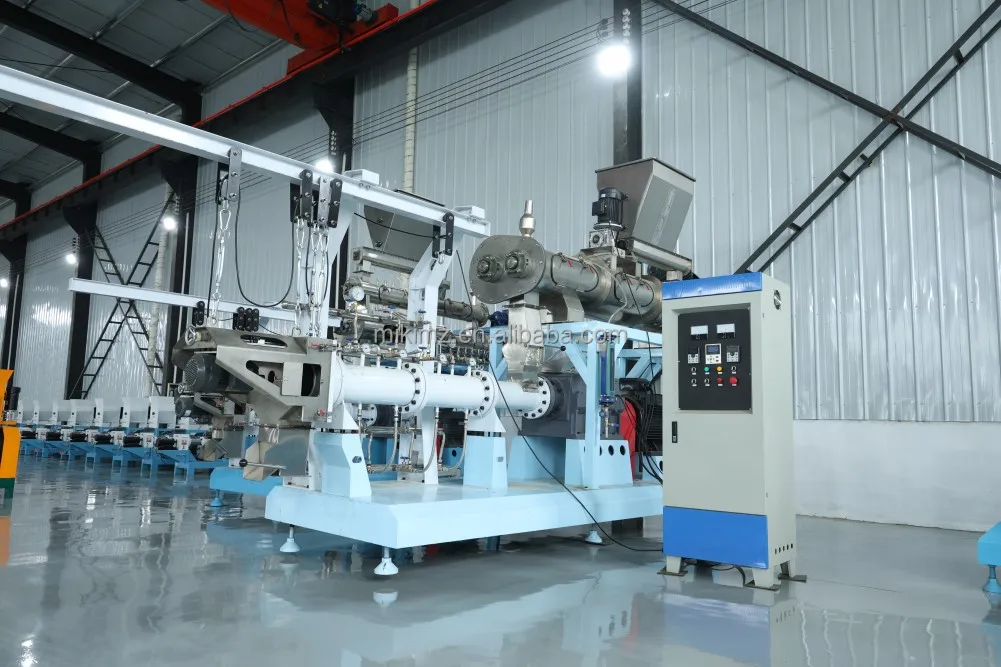

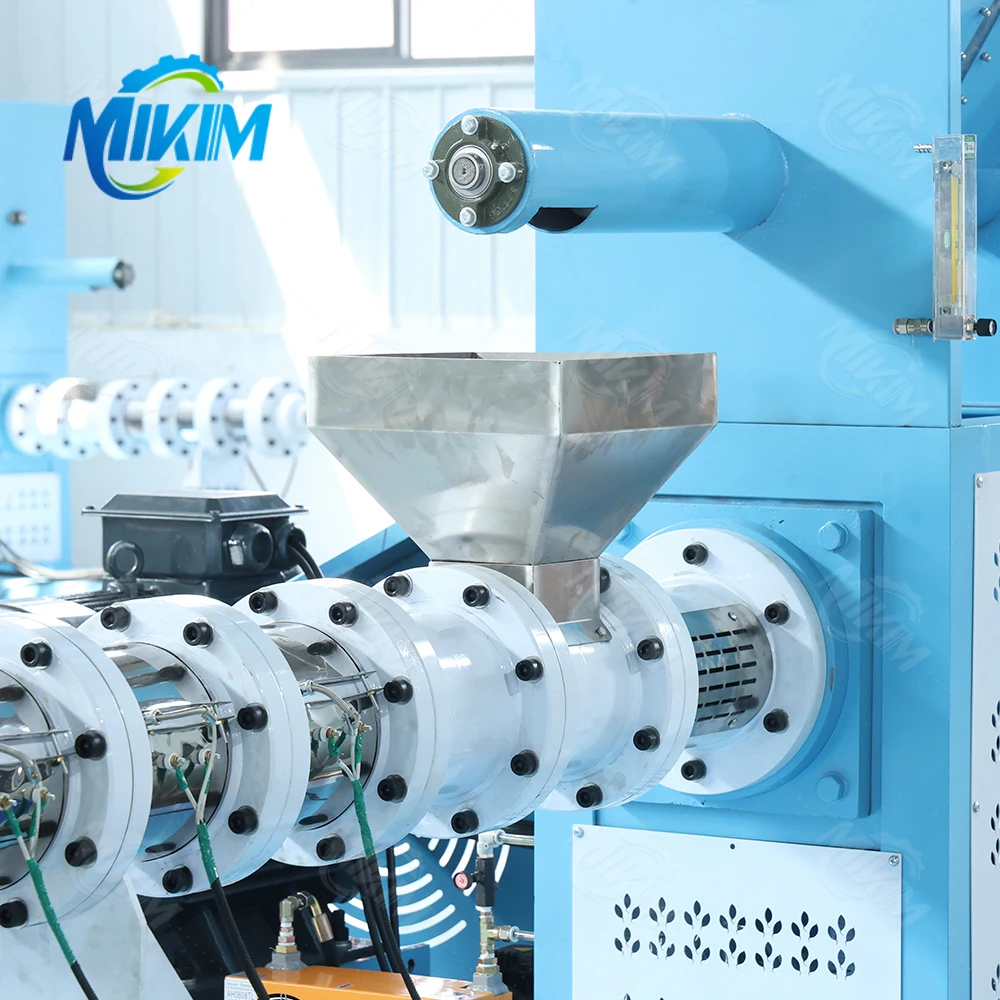

Wet twin screw Extruder machine and can be customized Processing pellet Machine
- Category: >>>
- Supplier: Tianjin Mikim Technique Co. Ltd.
Share on (1601028789767):
Product Overview
Description
Product Description
Wet Type Automatic Floating Fish Feed Pellet Extruder Machine fish food production machines
This Small Animal Pet Catfish Shrimp Food Feed Meal Making Extruder Floating/ Sinking Fish Feed Pellet Production Machine is widely used for producing maize
flour, soybean flour or compound powder, wheat bran into high grade aquatic feed pellets for fish, catfish, shrimps, dog, cat, etc. The puffing fish feed pellets can float on the water for over 12 hours without water polution.
flour, soybean flour or compound powder, wheat bran into high grade aquatic feed pellets for fish, catfish, shrimps, dog, cat, etc. The puffing fish feed pellets can float on the water for over 12 hours without water polution.
Wet Type Feed extruder Features
---Fish feed pellet machine adopting international advanced technology, the pellets are very even. ---We can get the different
size and length of pellet diameter( fish feed diameter is from 1 mm to 8 mm)
---The electric heating device improve the feed expansion tate.
---High temperature and high pressure can kill the salmonellosis and bacterial infections.
---Fish feed machine can get the higher-protein animal feed and easy to digest.
---Fish feed pellet machine adopting international advanced technology, the pellets are very even. ---We can get the different
size and length of pellet diameter( fish feed diameter is from 1 mm to 8 mm)
---The electric heating device improve the feed expansion tate.
---High temperature and high pressure can kill the salmonellosis and bacterial infections.
---Fish feed machine can get the higher-protein animal feed and easy to digest.
Model | Capacity t/h | Main Power | feeding power | screw diameter | cutting power | conditioner power | Weight |
DSP85 | 0.35-0.4 | 22kw | 1.1kw | 80 | 0.75kw | 1.5kw | 1000kg |
DSP90 | 0.5-0.6 | 30kw | 1.1kw | 90 | 1.1kw | 2.2kw | 2000kg |
DSP100 | 0.6-0.7 | 37kw | 1.1kw | 100 | 1.1kw | 3kw | 2100kg |
DSP120 | 0.7-0.8 | 55kw | 1.1kw | 120 | 1.5kw | 3kw | 2200kg |
DSP135 | 1.0-1.5 | 75kw | 1.5kw | 135 | 2.2kw | 5.5kw | 3200kg |
DSP145 | 2.0-3.0 | 90kw | 2.2kw | 145 | 2.2kw | 7.5kw | 4000kg |
DSP160 | 3.0-4.0 | 110kw | 2.2kw | 160 | 3kw | 11kw | 4500kg |
DSP175 | 4.0-5.0 | 132kw | 3.0kw | 175 | 3kw | 15kw | 5000kg |
Raw materials:
wheat meal, maize powder, soybean meal, cottonseed meal, fish meal, bone meal, corm meal, meat, meal, etc.
Moisture of raw materials: 20%-25%
Oil content: below 10 %
Starch content: over 30%
Raw materials: Power
Final Products:
Moisture of raw materials: 20%-25%
Oil content: below 10 %
Starch content: over 30%
Raw materials: Power
Final Products:
fish feed, dog food, shrimp feed, frog feed, poultry feed, fox feed, textured soybean protein, etc.

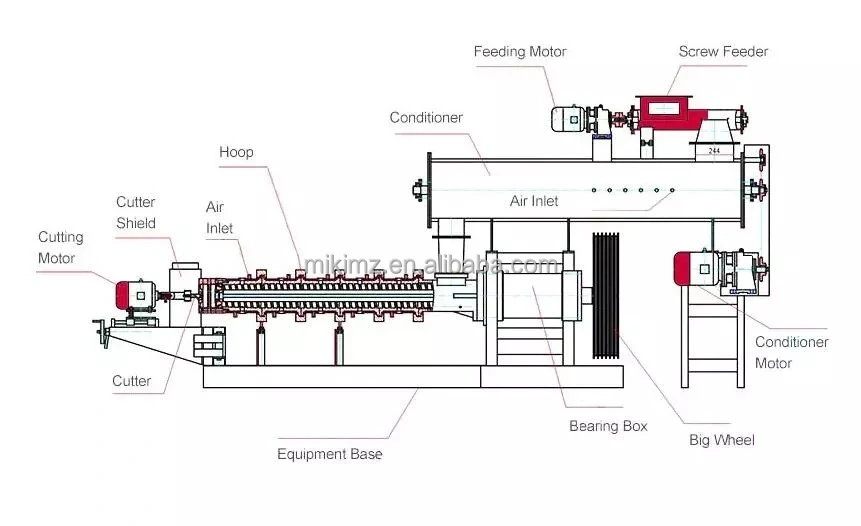

Details Image
Feature：

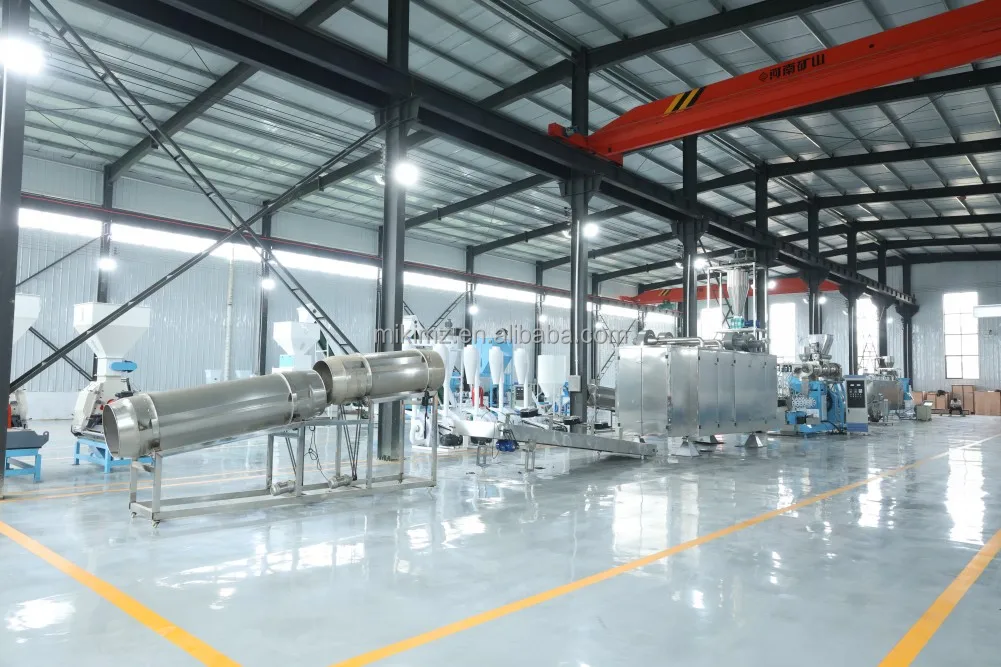

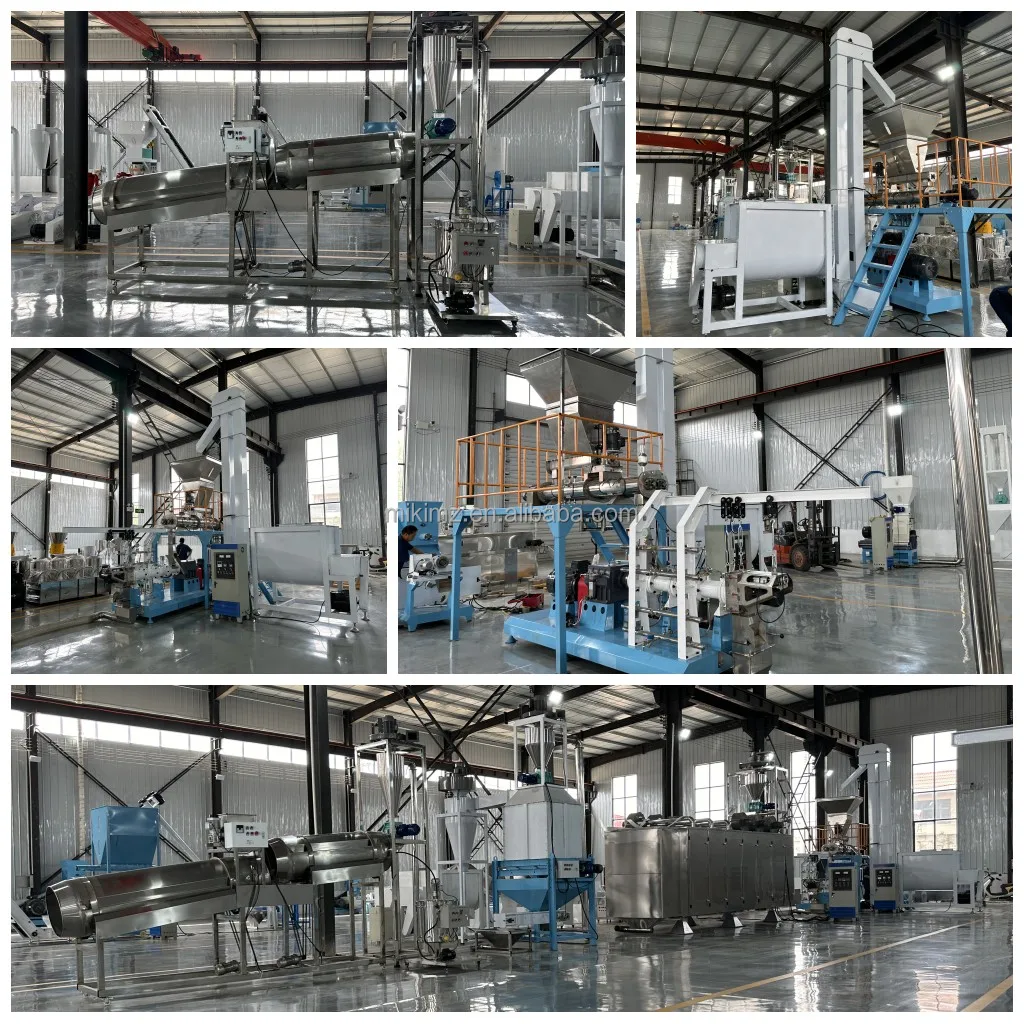

1.Control box control the whole production line operation, the whole machine can be operated by one person
2. Put the raw materials into the mixing machine, add the proportion of water, mixing and stirring evenly.
3. Send the stirred raw materials to the hopper of feed puffer through screw elevator for puffing.
4. The feed puffing machine for puffing granulation, puffed semi-finished products of uniform size, full of grains.
5. Puffed semi-finished products are sent to the multi-layer drying box through pneumatic conveyor for drying.
6. The dried semi-finished products will be conveyed to the roller seasoning machine by pneumatic conveying machine for oil seasoning, and then can be packed and sold.
2. Put the raw materials into the mixing machine, add the proportion of water, mixing and stirring evenly.
3. Send the stirred raw materials to the hopper of feed puffer through screw elevator for puffing.
4. The feed puffing machine for puffing granulation, puffed semi-finished products of uniform size, full of grains.
5. Puffed semi-finished products are sent to the multi-layer drying box through pneumatic conveyor for drying.
6. The dried semi-finished products will be conveyed to the roller seasoning machine by pneumatic conveying machine for oil seasoning, and then can be packed and sold.
