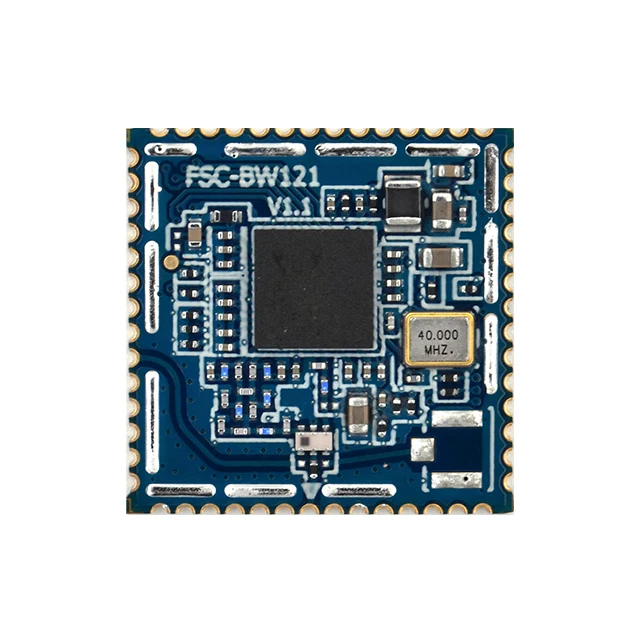

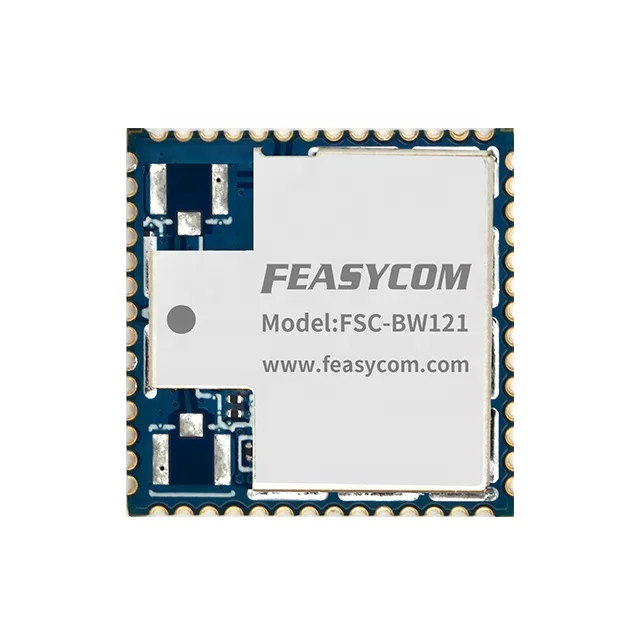

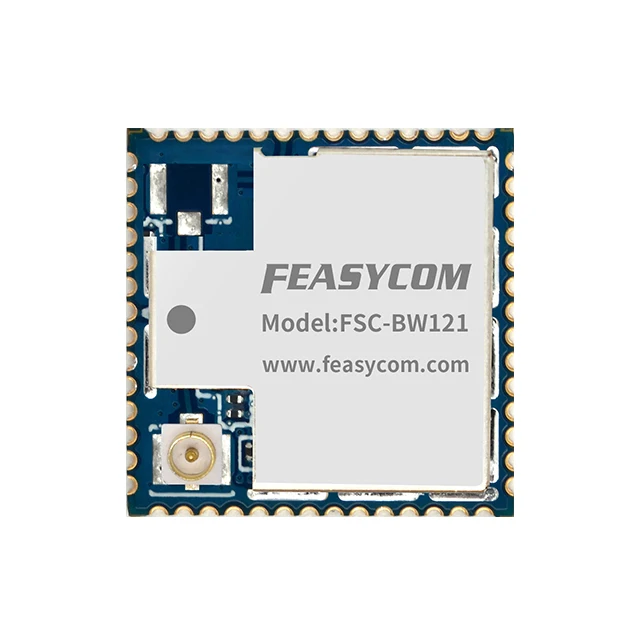

Feasycom FSC BW121 Realtek RTL8821 802.11 a/b/g/n/ac Bluetooth 5.3 & Wi Fi 5 SDIO/UART/PCM Interfaces 2.4G/5G WIFI Modules
- Category: >>>
- Supplier: Shenzhen Feasycom Co. Ltd.
Share on (1601028846200):
Product Overview
Description
Products Description
The Feasycom FSC-BW121 is a Bluetooth WiFi combo module with an SDIO interface that supports Bluetooth 5.0 dual mode and Wi-Fi 802.11 a/b/g/n/ac standards. It requires an external MCU to handle the Bluetooth protocol stack.
The module also supports both 2.4GHz and 5GHz frequencies, SDIO/UART interfaces, and offers LE/BR/EDR and TCP/UDP/HTTP profiles. It provides reliable wireless connectivity for various applications such as audio, automotive, and smart home.
Features
* Bluetooth 5.3 Dual Mode
* CMOS MAC, Baseband PHY and RF in a single chip for IEEE 802.11a/b/g/n/ac compatible WLAN
* Support 802.11ac 1x1, Wave-2 compliant with MU-MIMO STA mode
* Complete 802.11n MIMO solution for 2.4GHz and 5Ghz band
* UART, SDIO Interfaces
* Small size 17mm x 17mm x 2.4mm
* Cost down solution
* Support WPA3 network security
* CMOS MAC, Baseband PHY and RF in a single chip for IEEE 802.11a/b/g/n/ac compatible WLAN
* Support 802.11ac 1x1, Wave-2 compliant with MU-MIMO STA mode
* Complete 802.11n MIMO solution for 2.4GHz and 5Ghz band
* UART, SDIO Interfaces
* Small size 17mm x 17mm x 2.4mm
* Cost down solution
* Support WPA3 network security
Specification
Wi-Fi BT Module | FSC-BW121 |
Chipset | Realtek RTL8821 |
Wi-Fi Standard | 802.11 a/b/g/n/ac |
Wi-Fi Frequency | 2.4 GHz & 5 GHz |
Wi-Fi Protocols | TCP, UDP, HTTP |
Bluetooth Standard | Bluetooth V5.3 (Dual Mode) |
Profiles | HFP, A2DP, PBAP, SPP, GATT |
OTA | Supports |
Interface | UART, SDIO |
Power Supply | 3.0V~3.6V |
Dimension (mm) | 17 × 17 × 2.4 |
Operating Temperature | -40℃ to +85℃ (default), -20℃ to +70℃ for FSC-BW121D and FSC-BW121DI |
Storage Temperature | -40℃ to +85℃ |
Company Profile
Feasycom focuses on the researching and developing of IoT (internet of things) products, including Bluetooth Modules
,Bluetooth&Wi-Fi modules and beacons. With more than 10-year experiences in the wireless connectivity, which ensure us have the ability of R&D, manufacturing, QC and shortening product customization cycle to thousands of diverse customer worldwide.
Feasycom's engineering and design services include:
,Bluetooth&Wi-Fi modules and beacons. With more than 10-year experiences in the wireless connectivity, which ensure us have the ability of R&D, manufacturing, QC and shortening product customization cycle to thousands of diverse customer worldwide.
Feasycom's engineering and design services include:
* SDK
* APP Support
* PCB Design
* Development Board
* Firmware Development
*Depth Customization
* Certification Request
* Turn-Key Production Testing & Manufacturing
Our products and services mainly apply to Automotive, Point of Sale, Home Automation, Healthcare and Engineering, Banking, Computing, Vending Business, Location,
Lighting and more. Aiming at "Make Communication Easy and Freely", Feasycom is dedicated to design and develop high-quality products, efficient services to customers, for today, and all days to come.
Exhibition
Certifications
Customer Evaluation
Packing & Delivery
FAQ
Q1.Are you a manufacturer or a trading company?
A1: We are a manufacturer.
Q2.Can you do ODM or OEM for us?
A2: We are glad to offer custom service for you, we have an experienced engineers team who will provide you with a complete
solution according to your requirements.
Q3.What is Bluetooth 5.0?
A4:Two times transmission speed compare with Bluetooth V4.2,Max Trans Speed can reach to 24Mbps.
Effective work distance can be 300m, 4 times of Bluetooth V4.2.
Q4.What is Bluetooth Dual Mode Module?
A5:Bluetooth Dual Mode Module is a Single-Module Bluetooth Solution with Built-in Bluetooth Basic Rate (BR)/Enhanced Data Rate
(EDR)/Low Energy (LE) Functions.
Q5.What payment mothods do you accept?
A6:Paypal,T/T,W/U,Bank Transfering,Credit Card,Trade Assurance Payment,etc.
Q6.Lead time for sample orders/mass production orders?
A7:Samples,within 3 working days; Mass production,within 15 working days usually.
Q7.What shipping methods do you use?
A8:For samples,DHL/UPS/FEDEX/TNT,etc; For bulk orders,Air shipping and others.
A1: We are a manufacturer.
Q2.Can you do ODM or OEM for us?
A2: We are glad to offer custom service for you, we have an experienced engineers team who will provide you with a complete
solution according to your requirements.
Q3.What is Bluetooth 5.0?
A4:Two times transmission speed compare with Bluetooth V4.2,Max Trans Speed can reach to 24Mbps.
Effective work distance can be 300m, 4 times of Bluetooth V4.2.
Q4.What is Bluetooth Dual Mode Module?
A5:Bluetooth Dual Mode Module is a Single-Module Bluetooth Solution with Built-in Bluetooth Basic Rate (BR)/Enhanced Data Rate
(EDR)/Low Energy (LE) Functions.
Q5.What payment mothods do you accept?
A6:Paypal,T/T,W/U,Bank Transfering,Credit Card,Trade Assurance Payment,etc.
Q6.Lead time for sample orders/mass production orders?
A7:Samples,within 3 working days; Mass production,within 15 working days usually.
Q7.What shipping methods do you use?
A8:For samples,DHL/UPS/FEDEX/TNT,etc; For bulk orders,Air shipping and others.
