JY X6 Specification 8 CH All in One AI BOX DSM System Anti Nap Distraction Smoking Calling Audio Alarm in Spanish Portuguese Tur
- Category: >>>
- Supplier: Shanghai Joyroad Technology Co. Ltd.
Share on (1601028872052):
Product Overview
Description

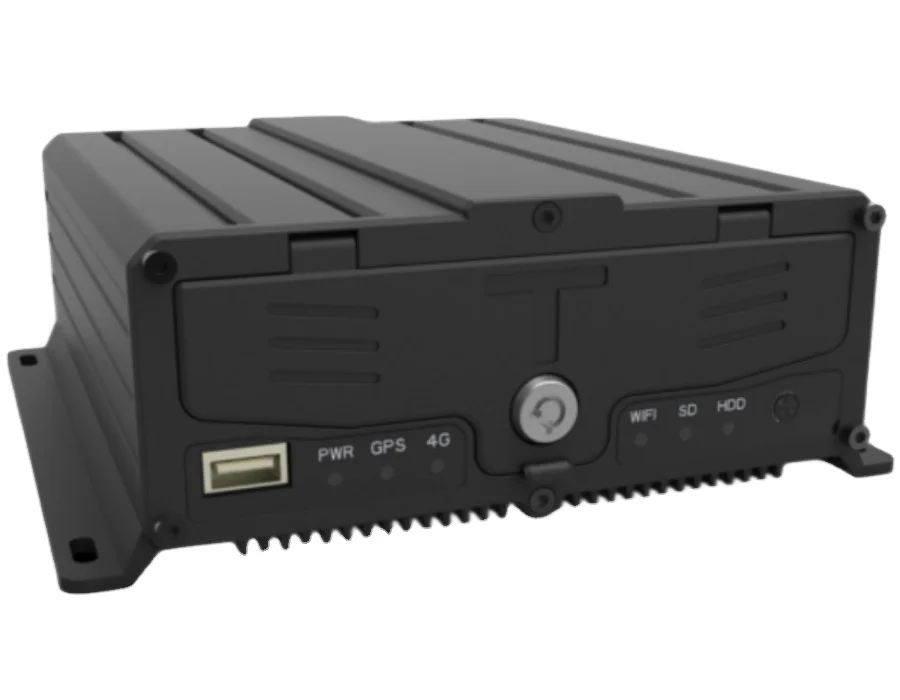

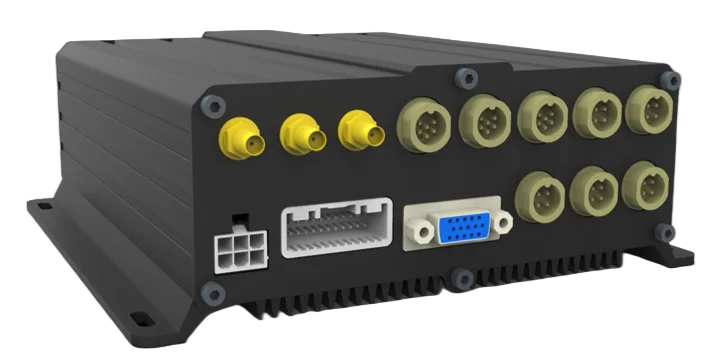

1,Product appearance
2,Product features
H.265 & H.264 codec is adopted to save storage space and transmission flow;
High resolution: support 8-way 1080p * 15fps / 4-way 1080p * 30fps, 720p, D1 encoding and decoding;
Support one SATA hard disk, easy to access, meet the requirements of mass storage;
One SD card and one USB interface are supported;
One SIM card can be used to dial the Internet;
It supports 6-channel IO alarm input and RS232 and RS485 functions;
Optional support WiFi, 4G, GPS and other functions;
Support mobile app, client, platform software preview video and parameter configuration;
Special file system, improve the efficiency of disk reading and writing, video more stable;
Built in AI intelligent algorithm, support ADAS, DMS, BSD detection;
Industrial appearance design, aluminum alloy shell, light and tight products, good heat dissipation;
3,Product specifications
ITEM | PARAMETER | |||
4CH | 8CH | |||
OS | Language | Multi Language | ||
OS | Linux | |||
Operation interface | Graphic menu operation interface (OSD menu), character superposition function; | |||
GUI | Support mouse and remote control operation to set system parameters | |||
Processor and CPU | CPU | ARM Cortex CA9 Duel Core 1.4GHz | ||
Memory | 2GB DDR4 | |||
Video System | Video input | 4 CH CVBS,1.0Vp-p, 75Ω | 8 CH CVBS,1.0Vp-p, 75Ω | |
Support camera resolution:1080P,720P,D1 | ||||
Video output | 1 CH VGA,1CH CVBS, 1.0Vp-p, 75Ω, Support full screen and 4 / 9 channel segmentation | |||
Video standard | PAL Standard,NTSC Standard | |||
Video compression format | H.264/H.265 Compressed format | |||
Preview function | Single CH,4 / 9 picture mosaic Preview,Support manual / event triggered full screen display function | |||
Video resolution | Support 1080P,720P,D1,HD1, CIF option, The total encoding resource is 1080p 150 frames | |||
Video quality | Level 1 to 8, best level 1, lowest level 8 | |||
Video rate | PAL: 100 frame/s , CCIR625 line,50 NTSC: 120frame/s, CCIR525 line,60; CIF: 256Kbps ~ 1.5Mbps, Multi level image quality HD1: 600Kbps ~ 2.5Mbps, Multi level image quality D1: 800Kbps ~ 3Mbps, Multi level image quality 720P: 1Mbps-4Mbps, Multi level image quality 1080P: 1Mbps~8Mbps, Multi level image quality | |||
Video recording mode | Default automatic recording, support ignition recording, alarm recording, etc | |||
Audio System | Audio input | 4-channel analog audio | 8-channel analog audio | |
Audio output | 1 channel, built-in power amplifier, optional built-in and external | |||
Compressed format | G. 711a compression format | |||
Recording mode | Simultaneous recording of sound and video | |||
Alarm input | 6-CH input | |||
Alarm output | 1-way output, linkage sound and light alarm, oil and power cut, etc | |||
communication interface | 1 USB interface | |||
1 RS232 interface,Expandable connection card reader, oil sensor, etc | ||||
1 RS485 interface,Scalable connection PTZ | ||||
1 10M/100M Adaptive network interface,Support TCP / IP, FTP, DDNS network protocol | ||||
Extension interface | 1 voice intercom interface, which can be connected to microphone | |||
Multi function control panel can be connected (support 12V power supply and RS232 communication) | ||||
Wireless transmission | Built in 4G wireless transmission function, tdd-lte, fdd-lte | |||
WiFi: wireless 802.11b/g/n communication module | ||||
GPS location | Support built-in GPS / BD module | |||
G sensor | Built in 3-axis acceleration and 3-axis gyroscope sensor | |||
Storage | HDD | Built in hard disk with SATA interface, supporting up to 4T | ||
SD card | 1 large capacity SD card video, maximum support 512g, can support synchronous sub stream video | |||
Upgrade mode | Support u disk upgrade, SD card upgrade, FTP remote automatic upgrade | |||
Storage mode | Proprietary bare disk storage mode | |||
USB | Front USB interface, U disk can be used to upgrade backup data; Support USB mouse | |||
SIM slot | 1 SIM slot | |||
Video replay | Video search | Video data can be searched by recording time, recording method, etc | ||
Replay | Support 4-way synchronous playback, support 2, 4, 8, 16x fast forward or backward | Support 8-way synchronous playback, support 2, 4, 8, 16x fast forward or backward | ||
AI Functions | ADAS | Lane departure, pedestrian, vehicle distance detection, etc | ||
DSM | Fatigue driving test, smoking, and unsafe driving habit test | |||
BSD | Left blind area, right blind area detection | |||
Power supply and power consumption | Power management | Adaptive wide power input, with overload, undervoltage, short circuit, reverse connection and other protection functions; Support timing on-off, delay shutdown function. | ||
input voltage | DC:+9V ~ +36V | |||
output voltage | +12V@1A,+5V@1A | |||
power consumption | Normal working state < 8W (without peripherals) | |||
work environment | temperature | -10℃ to +70℃ | ||
humidity | 20% to 80% | |||
security management | Password access | Two level management of user password and administrator password | ||
Platform access | JT/T808-2011, JT/T808-2019 | |||
JT/T1076-2016, JT/T1078-2016 | ||||
TTX private protocol, gb28181, RTMP optional | ||||
Appearance size | 195mm*183mm*60mm | |||
Net weight | 1.6kg | |||
