Factory Heavy Machine 2ton Hydrostatic Transmission Use Farm Front End Wheel Loader
- Category: >>>
- Supplier: Qingzhou Hongyuan Vehicles Co. Ltd.
Share on (1601028970070):
Product Overview
Description
Products Description

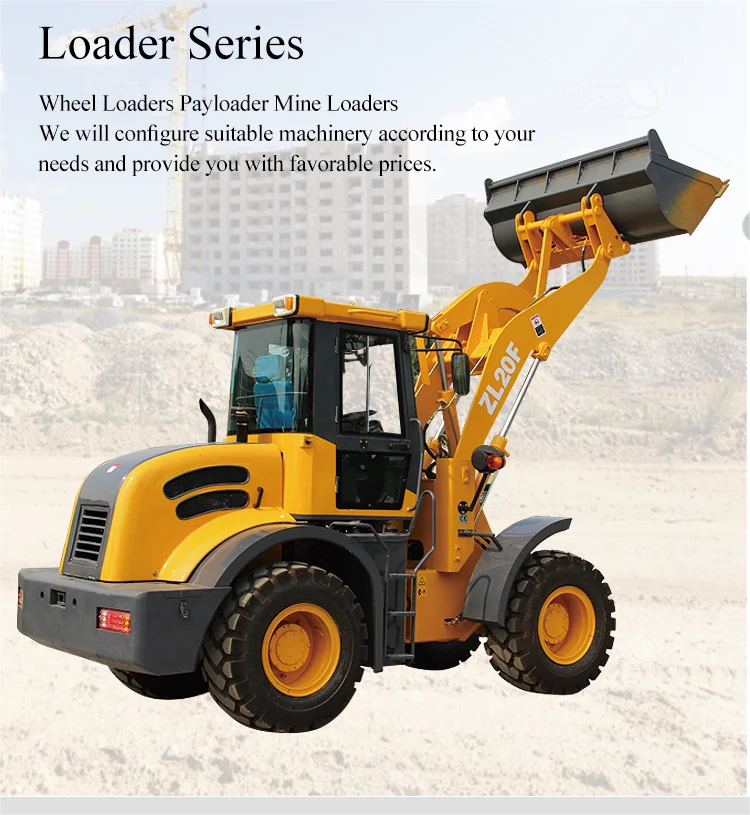

THE TECHNICAL PARAMETERS OF ZL20F CE CERTIFICATE MINI WHEEL LOADER | ||||||
Item | Specifications | Item | Specifications | |||
Rated loading weight | 2000kg | Operating weight | 5900kg | |||
Rated bucket capacity | 1.0m3 | Overall dimensions (LxWxH) | 5800x2000x2750mm | |||
The minimum circle diameter | 310mm | Engine model | YTO YT4B2-24 | |||
Track base | 1500mm | Engine type | In-line arrangement, water cooled, four-cycle diesel engine | |||
Wheel base | 2350mm | Engine starting mode | Electric | |||
Min. turning radius(outside of rear wheels) | 4600mm | Rated power/Rated speed | 60KW/2400rpm | |||
Min. Ground clearance | 350mm | Brake mode | Four-wheel hydraulic spread-shoed brake | |||
Dump height fully raised | 2800mm | Warranty | 12 months after received the goods | |||
Reach fully raised | 1050mm | Color | According to the requirements of customers | |||
Lifting time | 5.0S | Tyre type | 16/70-20 | |||
Max. Tilt angle | 300 | Shipping port | Qingdao port, China | |||
Max. Bucket breakout, lift cylinder | 60KN | Packing details | Nude package, 1Unit/20' GP withdisassembled cabin, 2Units/40' HQ | |||
Driving mode | Four-wheel full hydraulic drive | Delivery time | 15 days after confirm the order | |||
Maximum Speed | 25km/h | Supply ability | 100 units per month | |||

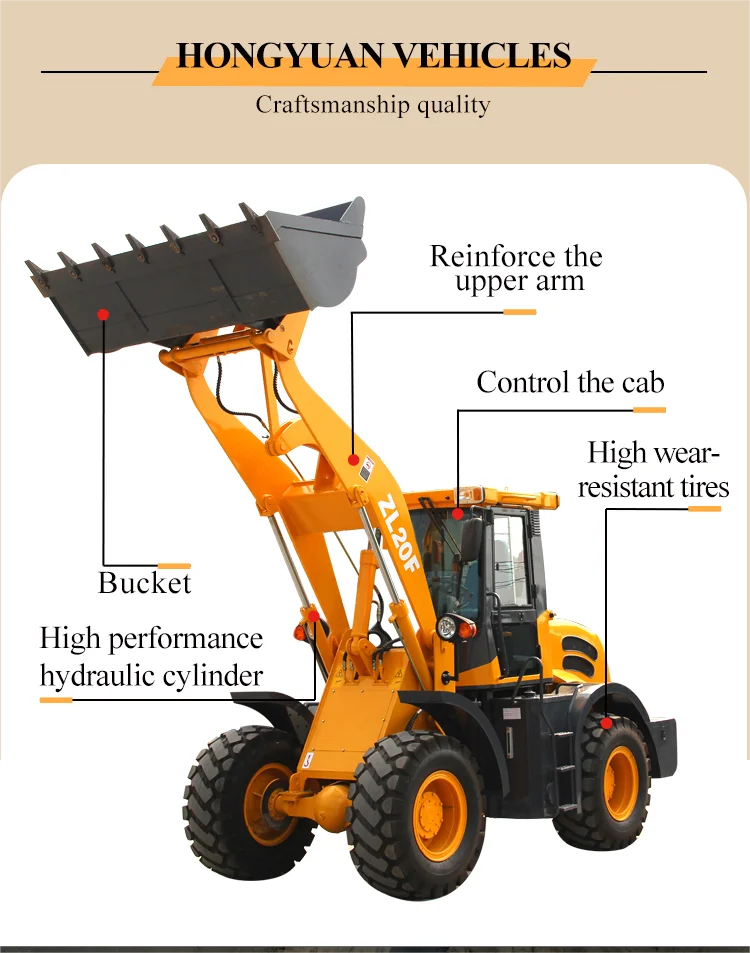

Details Images
Major Feature:
1.Front/Rear Axle
Planetary transmission is equipped with a compact structure and big torque.
Friction sheet and antiskid transmission ensure strong cross-country and climbing capacity.
2.Cab
With new steel frame, the cab features wider view field, reliable safety and low noise.
Spacious cab is provided with instruments and control devices in reasonable arrangement for convenient operation.
Noise-absorbing, thermal insulation, and high class decoration materials are used for internal decoration.
The low vibration suspending seat is designed specially for the operators and improves human feeling.
The air conditioner is optional.
3.Humper
Supporting device for lifting operation to prevent sudden falling and ensure safety and reliability.
4.Welding Structure
New-style articulated front/rear frames, small turning radius, good through and climbing capacity. Good carrying capacity and stability.
5.Hydraulic System
The variable plug pump motor is adopted in the traveling system which leads to simple operation, stable traveling and reliable performance.
The high-pressure gear pump is adopted in the working system which leads to quick lifting speed and high efficiency.
All the hydraulic parts are well-known brands in China, with perfect and reliable performance.
6.Wide Thread Steel Radial Tyre
Excellent cutting proof and wearproof performance, wide antiskid groove, good heat dispersion and self-washing performance, big adhesive to ground, and nice traction.
Widely applied for mining, earth-moving, loading and digging operation.
7.Electric System
The cable and jacket are made of anti-flaming material.
High-grade battery and electric parts are applied to ensure more reliable and stable system.
Planetary transmission is equipped with a compact structure and big torque.
Friction sheet and antiskid transmission ensure strong cross-country and climbing capacity.
2.Cab
With new steel frame, the cab features wider view field, reliable safety and low noise.
Spacious cab is provided with instruments and control devices in reasonable arrangement for convenient operation.
Noise-absorbing, thermal insulation, and high class decoration materials are used for internal decoration.
The low vibration suspending seat is designed specially for the operators and improves human feeling.
The air conditioner is optional.
3.Humper
Supporting device for lifting operation to prevent sudden falling and ensure safety and reliability.
4.Welding Structure
New-style articulated front/rear frames, small turning radius, good through and climbing capacity. Good carrying capacity and stability.
5.Hydraulic System
The variable plug pump motor is adopted in the traveling system which leads to simple operation, stable traveling and reliable performance.
The high-pressure gear pump is adopted in the working system which leads to quick lifting speed and high efficiency.
All the hydraulic parts are well-known brands in China, with perfect and reliable performance.
6.Wide Thread Steel Radial Tyre
Excellent cutting proof and wearproof performance, wide antiskid groove, good heat dispersion and self-washing performance, big adhesive to ground, and nice traction.
Widely applied for mining, earth-moving, loading and digging operation.
7.Electric System
The cable and jacket are made of anti-flaming material.
High-grade battery and electric parts are applied to ensure more reliable and stable system.
Application Introduction

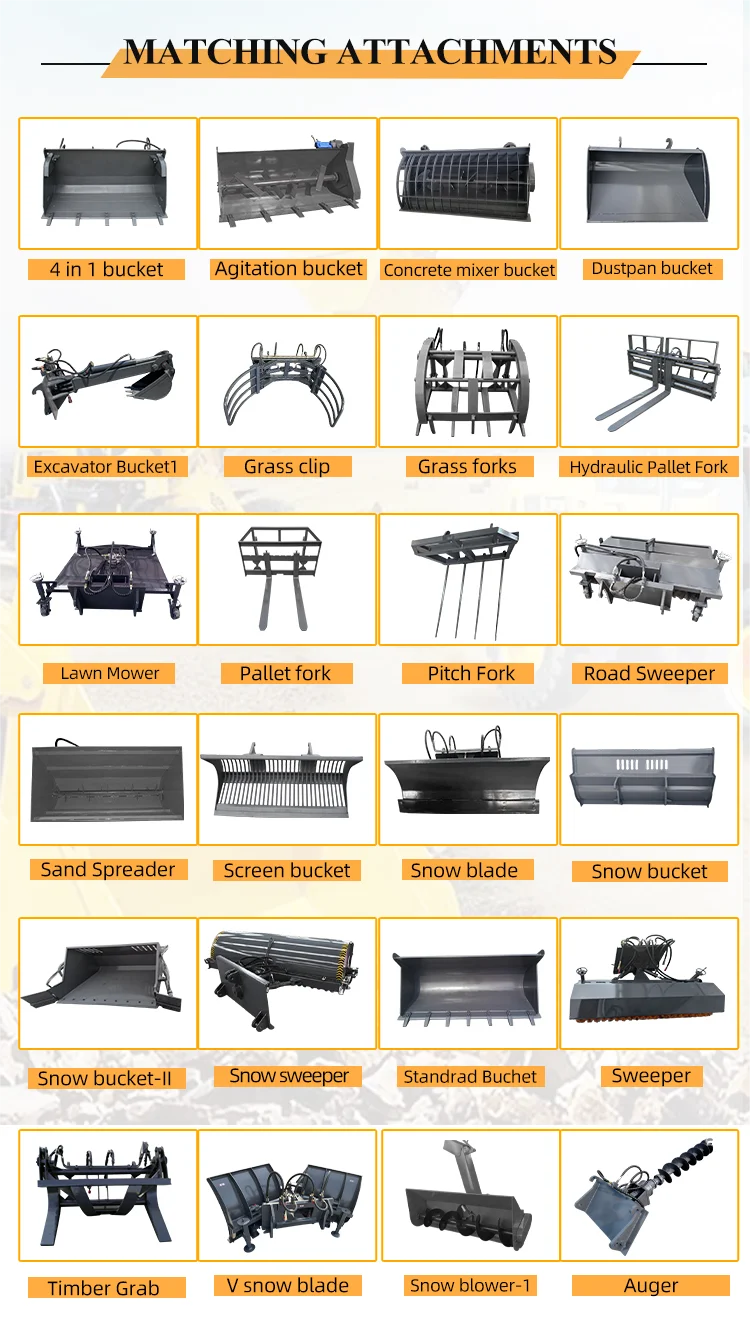

Appurtenance
The general warranty for new products is one year from the customer reveived the machines, don't include the shipping periods. We will pack some Spare parts for free, we afford to the charges of new spare parts and the express within one year. Now, we are planning to build some spare parts warehouse in Europe. We also can send the repair worker to abroad for the after service if the customers need.

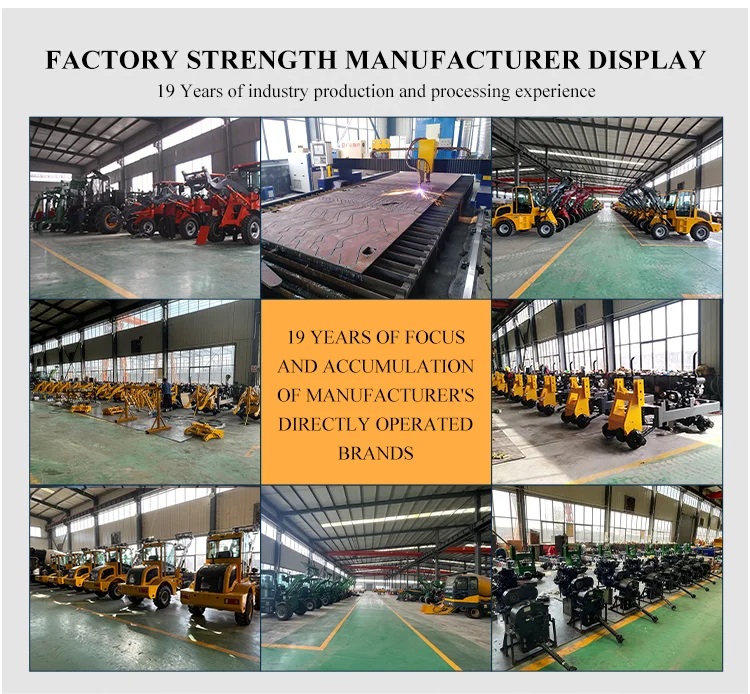

Company Profile
Certifications
FAQ
Q:All Of Hongyuan Wheel Loader Has CE Certification?
A:Yes.They all Have CE Certications.
Q:What Products Dose Hongyuan Machinery Company Has?
A:We Are Mainly Specializing In Producting and Exporting Of Wheel Loader From 0.6 Ton to 5 Ton.Also We Focus On Export Other Machine Like Offroad Forklift, Site Dumper, Backhoe Loader, Telescopic loader, Sugarcane machine etc. Agricultural and Enginnering Machinery.
Q:Dose the Hongyuan Machinery Has Their Own Factory?
A:Yes,We Have Our Own Production Workshop and Experienced Engineers In Qingzhou Hongyuan Factory. More Products Can Be Developed and Improved According to Our Customers' Requirements.
Q:Dose the Hongyuan Machinery Has Good Service?
A:Yes,of course. We Have a Professional Sale and After-Sales Service Team. We require all the personnel of the service must be within 24 back to all customer inquiries.
A:Yes.They all Have CE Certications.
Q:What Products Dose Hongyuan Machinery Company Has?
A:We Are Mainly Specializing In Producting and Exporting Of Wheel Loader From 0.6 Ton to 5 Ton.Also We Focus On Export Other Machine Like Offroad Forklift, Site Dumper, Backhoe Loader, Telescopic loader, Sugarcane machine etc. Agricultural and Enginnering Machinery.
Q:Dose the Hongyuan Machinery Has Their Own Factory?
A:Yes,We Have Our Own Production Workshop and Experienced Engineers In Qingzhou Hongyuan Factory. More Products Can Be Developed and Improved According to Our Customers' Requirements.
Q:Dose the Hongyuan Machinery Has Good Service?
A:Yes,of course. We Have a Professional Sale and After-Sales Service Team. We require all the personnel of the service must be within 24 back to all customer inquiries.
