5 inch touch screen 720*1280 HMI display capacitive touch screen lcd panels
- Category: >>>
- Supplier: Shanghai Top Display Optoelectronics Co. Ltd.
Share on (1601029018997):
Product Overview
Description
Product Description
5 inch touch screen 720*1280 HMI display capacitive touch screen lcd panels
| Feature | Specifications | |
| Display Spec. | LCDtype | 5.0 inch |
| Resoution(H*V) | 720(RGB)*1280 | |
| Technology Type | a-SiTFT | |
| Pixel Coniguration | R.G.B. Vertical Stripe | |
| Display Mode | Normally Black | |
| Viewing Direction | ALL | |
| Gray Scale Inversion Direction | ALL | |
| Mechanical Characteristics | OutineDimensions (W*H*D) (mm) | 70.7*130.2*3.02 |
| Active Area(mm) | 62.1*110.4 | |
| WithWithout Touch screen | With TP | |
| Match Connector Type | 0.3 Pitch 25 Pin | |
| Backlight Type | White LED | |
| Electrical Characteristics | Interface | MIPI |
| Number of color | 16M | |
| Driver IC | IL19881C | |

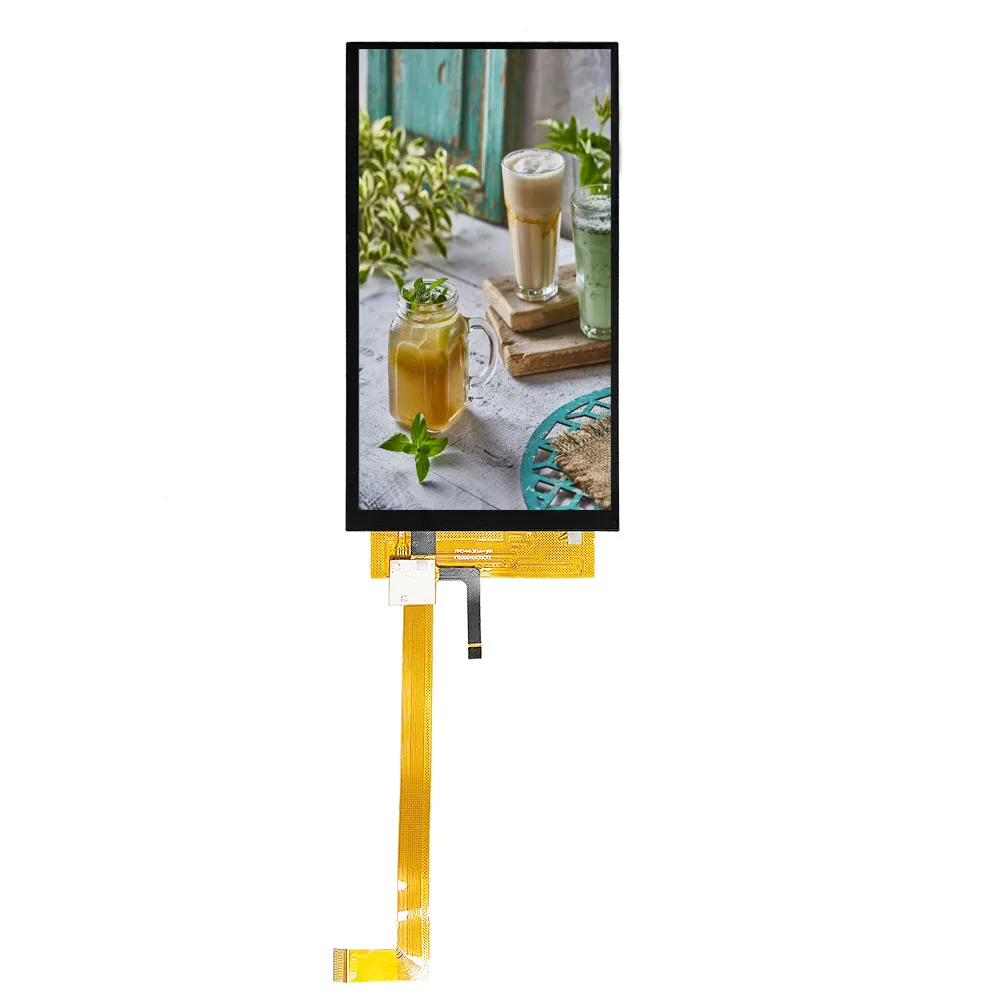

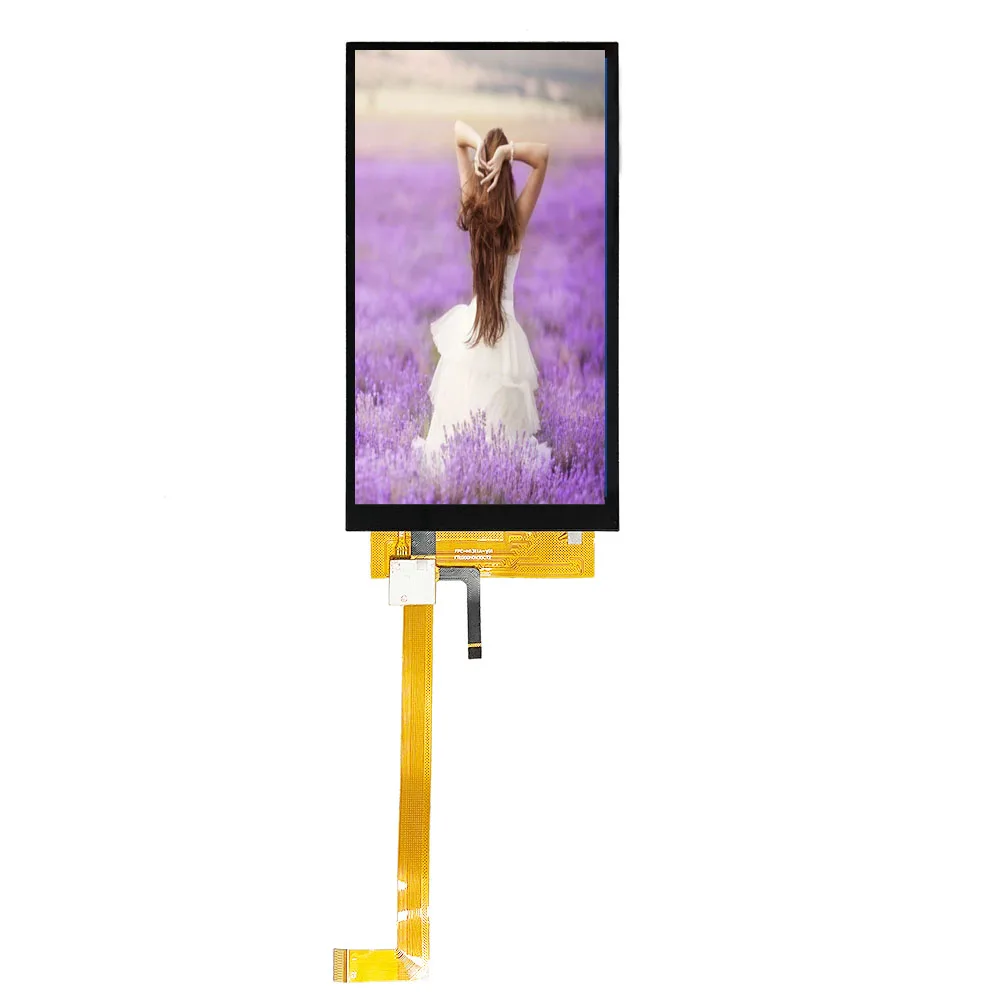

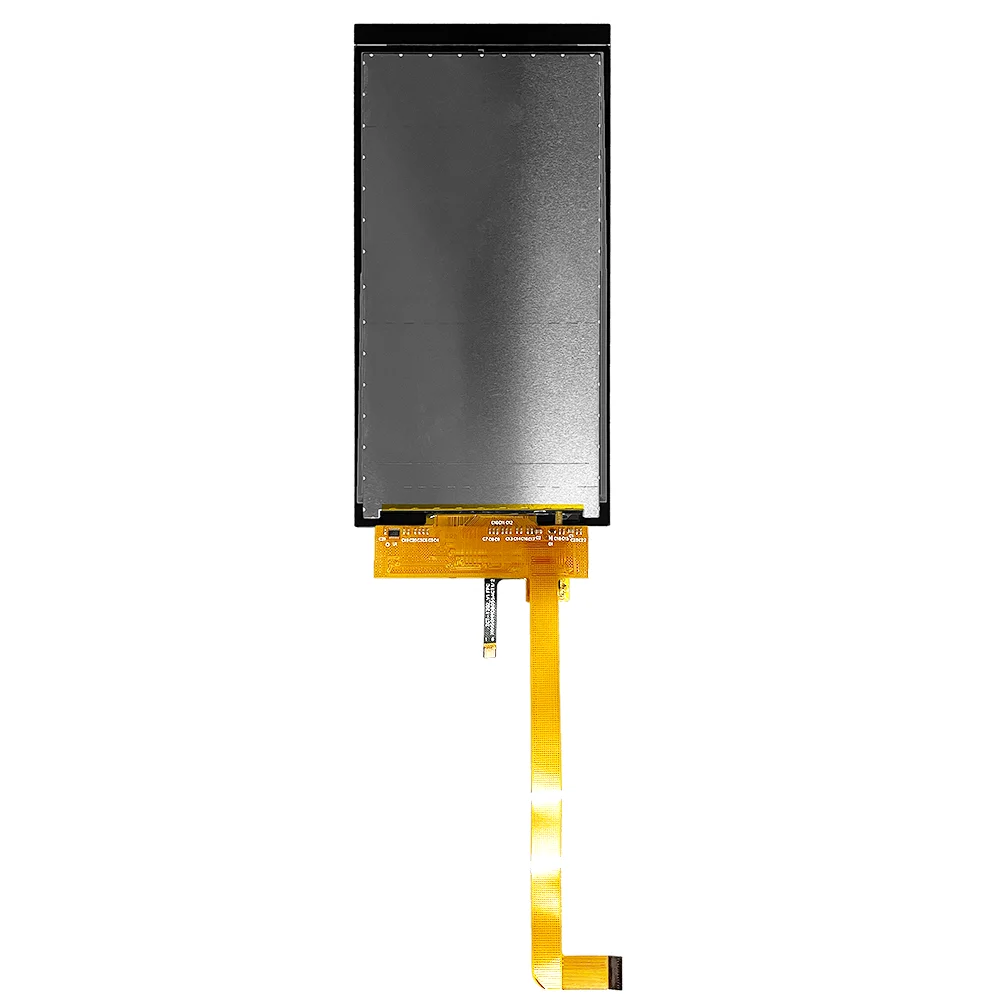

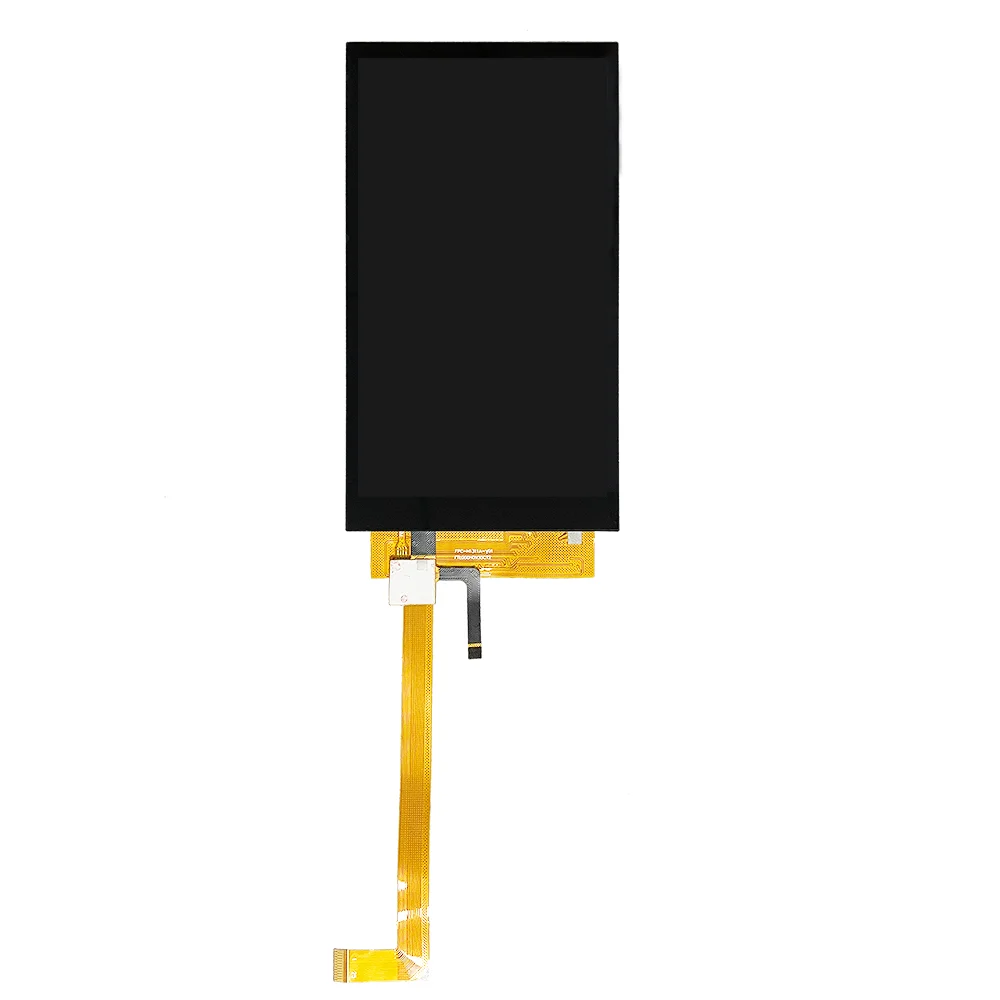

Product picture

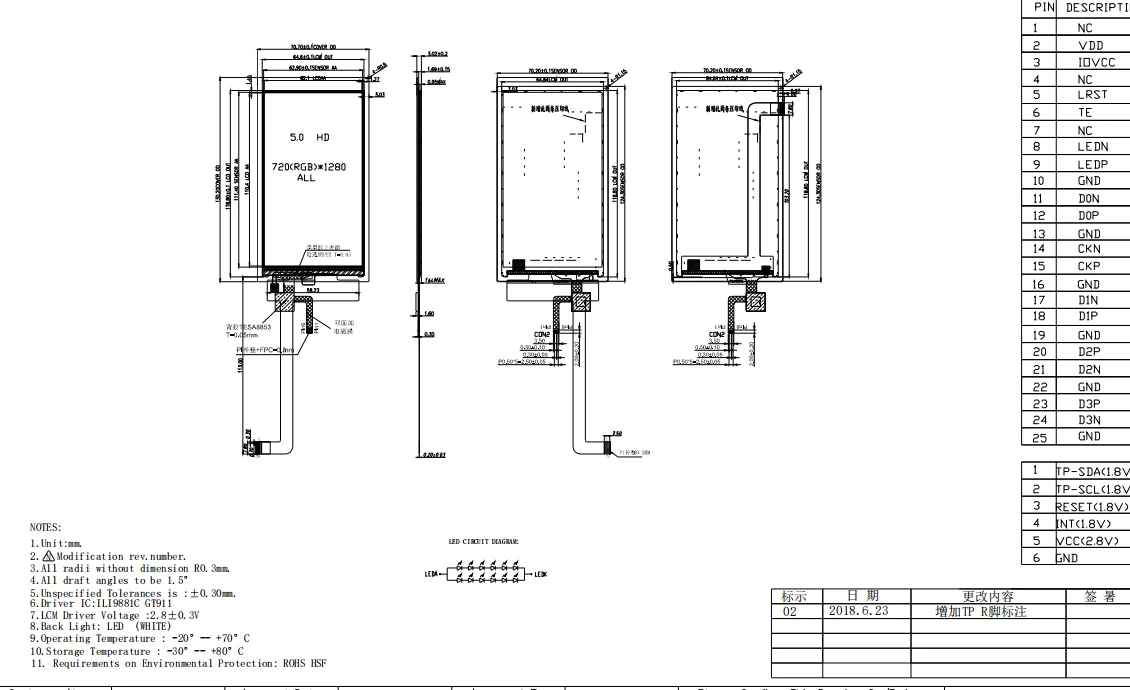

Structure diagram
lcd production proce

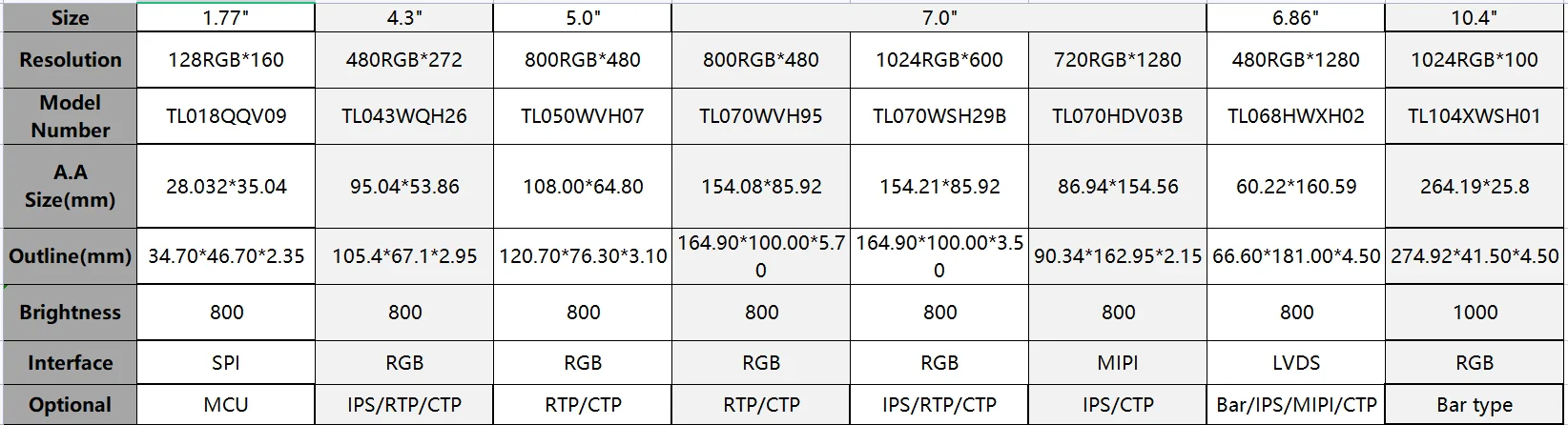

Related TFT display
Special TFT lcd display

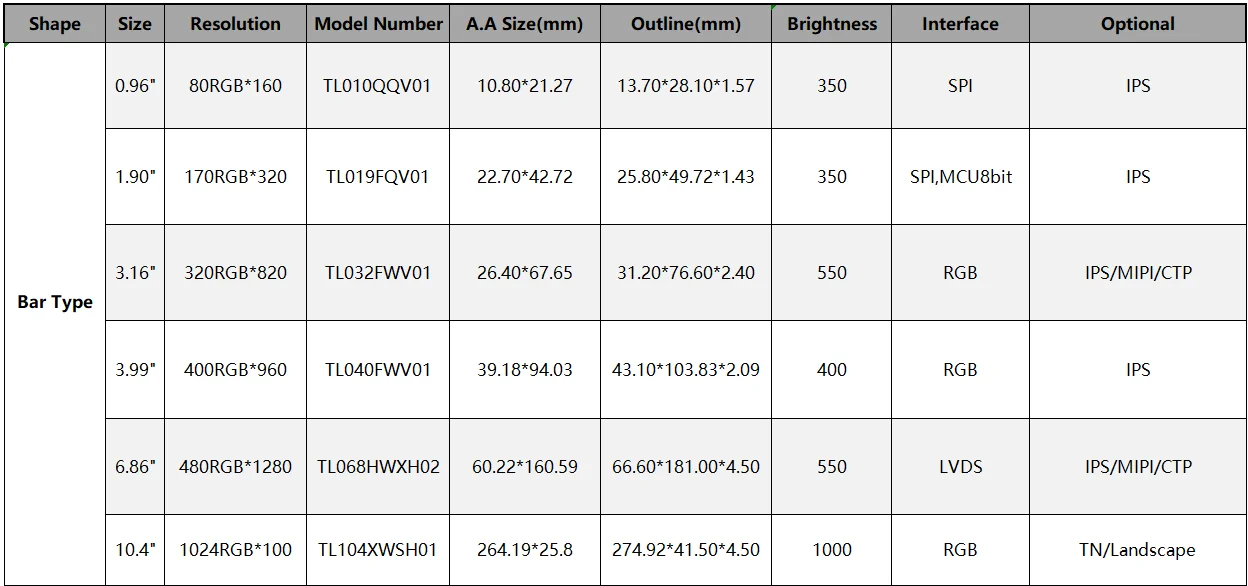

Bar type TFT-LCD Display Module list
For more detail, pls contact us:+8613751704468 (skype/whatsapp/wechat)

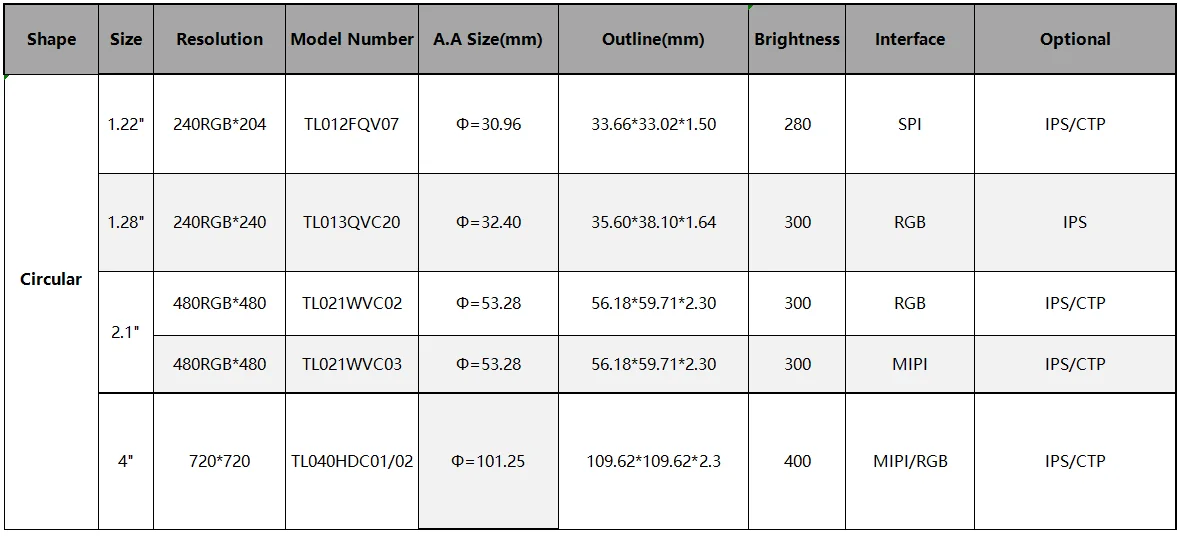

Round TFT-LCD Display Module list
For more detail, pls contact us:+8613751704468 (skype/whatsapp/wechat)

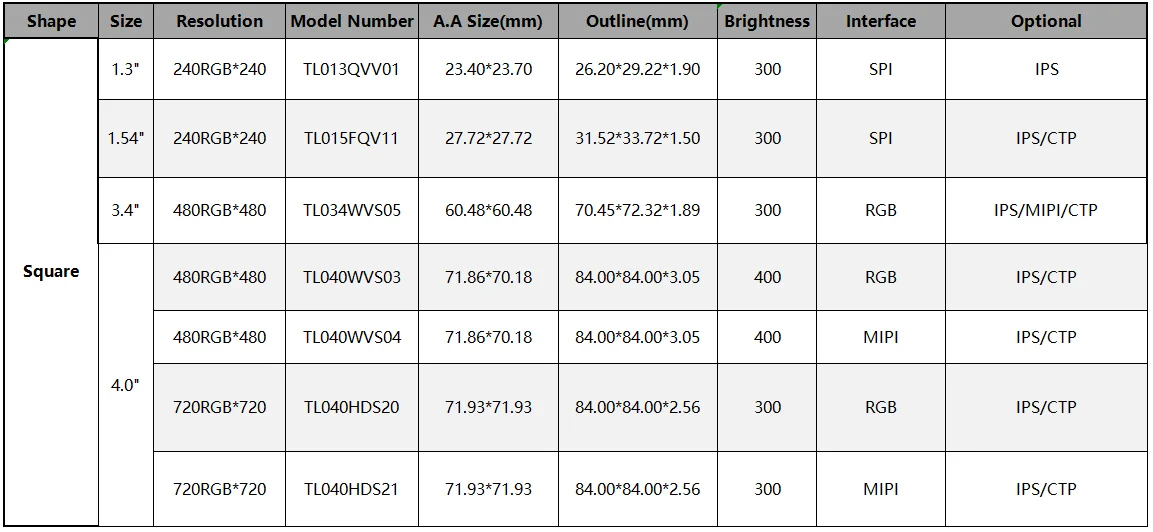

Square TFT-LCD Display Module list
For more detail, pls contact us:+8613751704468 (skype/whatsapp/wechat)
Sunligh readable lcd display list
For more detail, pls contact us:+8613751704468 (skype/whatsapp/wechat)
