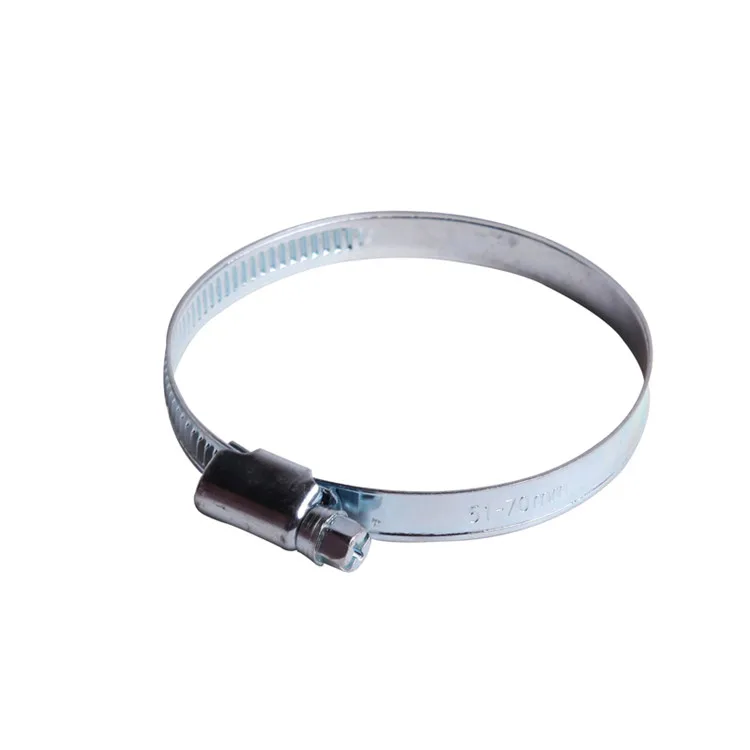

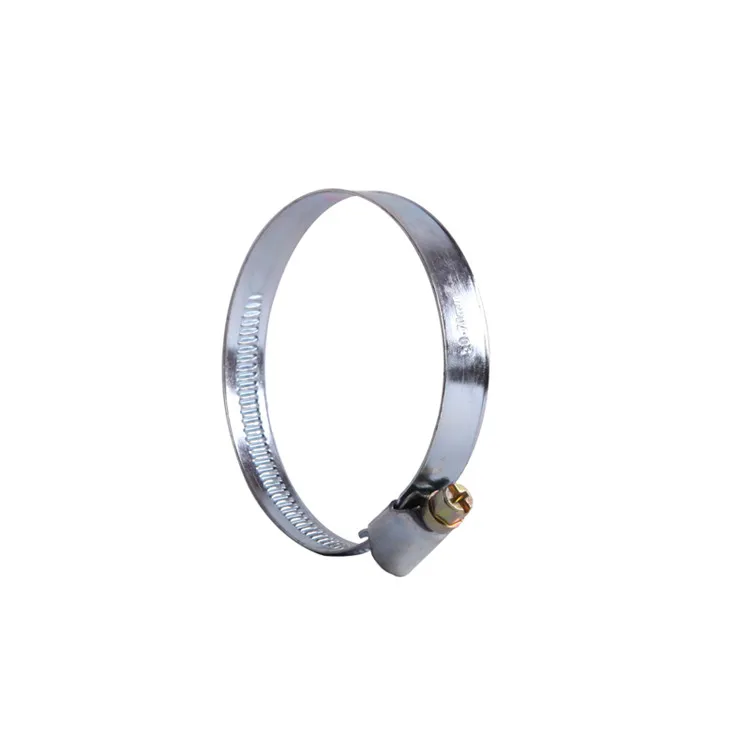

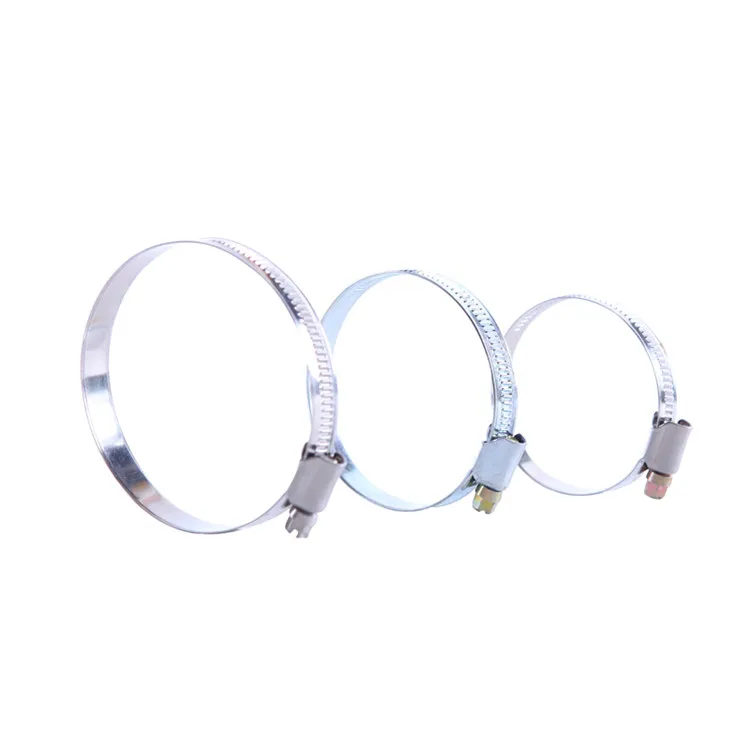

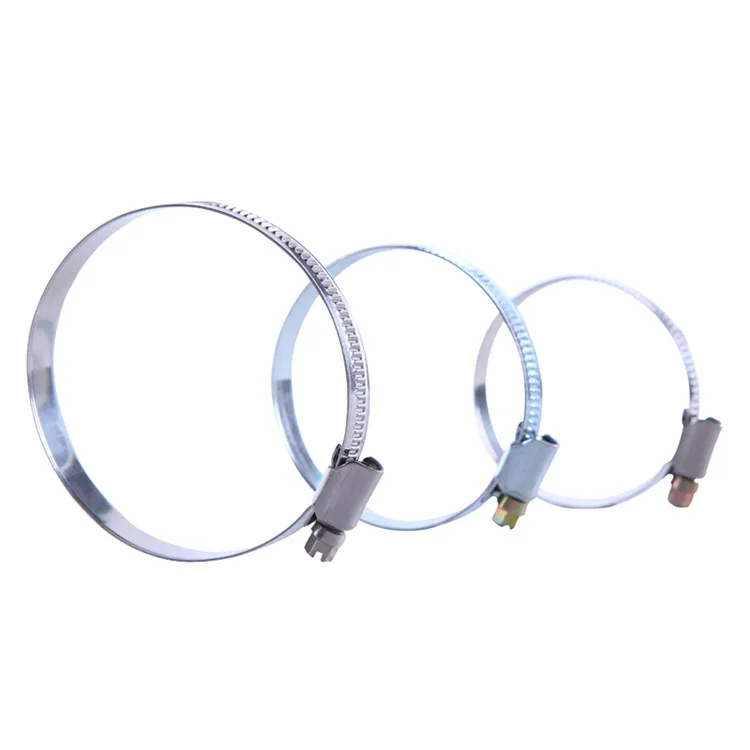

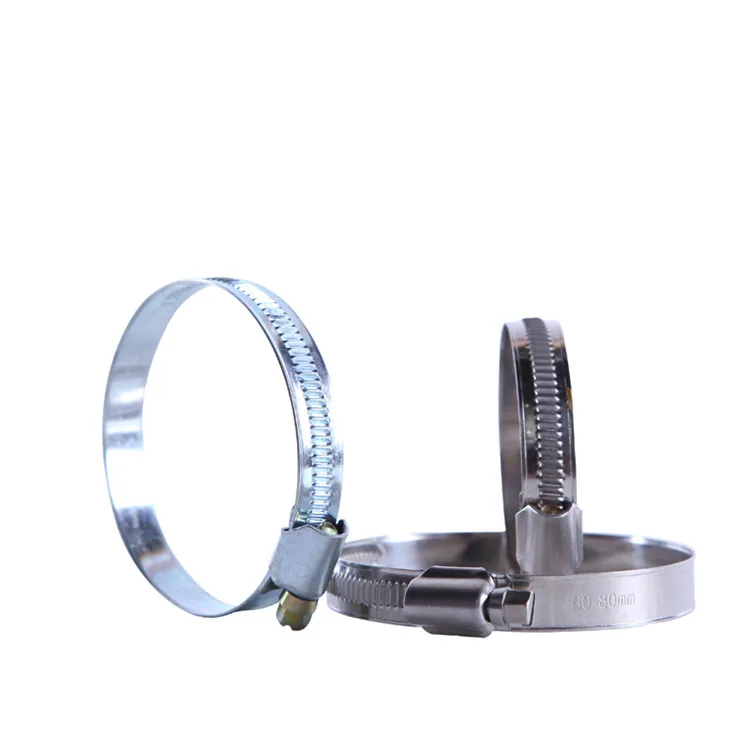

Good Price with High Quality German Type Blue White Galvanized Non Perforated 9mm and 12mm Band Hose Pipe Worm Gear Pipe Clamps

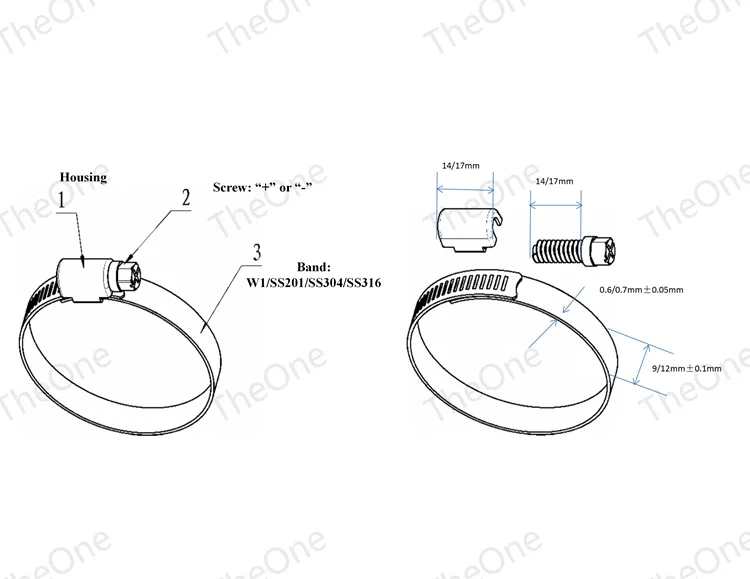

Band material

Galvanized iron ,stainless steel 201,stainless steel 301,stainless steel 304,stainless steel 316

Band Thickness

Galvanized iron

Stainless steel

0.7mm

0.6mm,0.65mm

Band width

9mm/12mm

Wrench

7mm

Housing Material

stainless steel or galvanized iron

Screw style

W1

W2

W5/W4

Head crossed(or as you request)

Hesd crossed

Solt type screw

Connection

welding

Model number

As your requirement

Structure

Swivel clamp

Product feature

Volt-endurance;torque balance;large adjustment range

Certificate

ISO9001:2008

MOQ

1000

Supply ability

1200000 pieces per month

Payment terms

30%T/T Before production and 100% before shipment

Delivery time

10-35days afer T/T at sight

package

Plastic bag,carton

Company website

www.theonemetal.cn

Feature:

1.Use the open internal and external circle structure,and with screw fixed.It is effectively to solve the problem that when small diameter solft tube connect the hared tube,it is easy appear dead angle,and liquid or gas leakage problem.Easy structure,Easy maked.

2.Edge is no burrfree,it is ability to prevent the tube damaged

3.By a  efficiently hydrogen relief treatment,long-term use needn't to worry fracture and other problems

4.Accord with DIN3017 Standard.By 48 hours salt and fog test,it has a good corrosion resistance

5.By last 36 hours elastic test,to insure a high strength mechanical properties.

6.Easy to fix.
