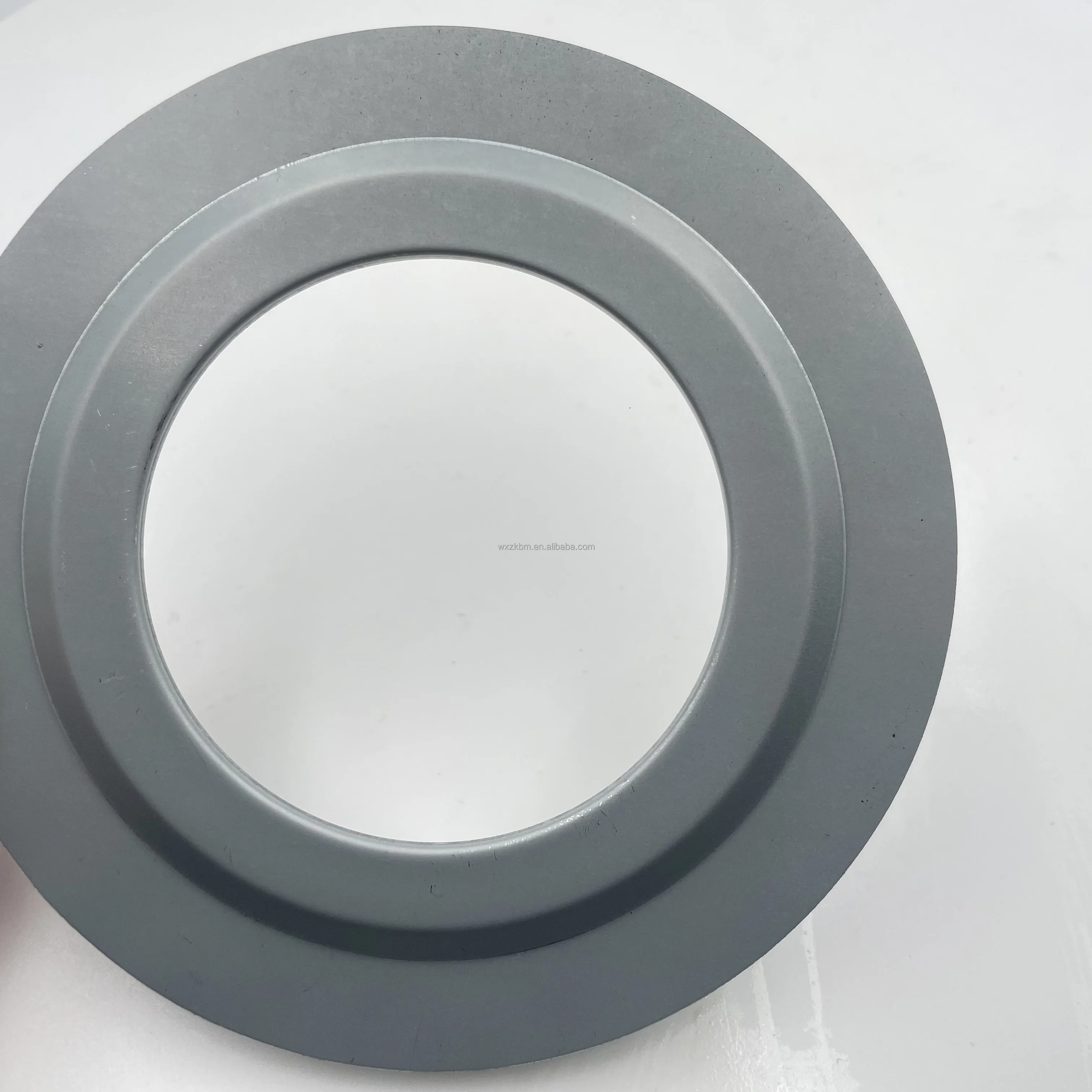

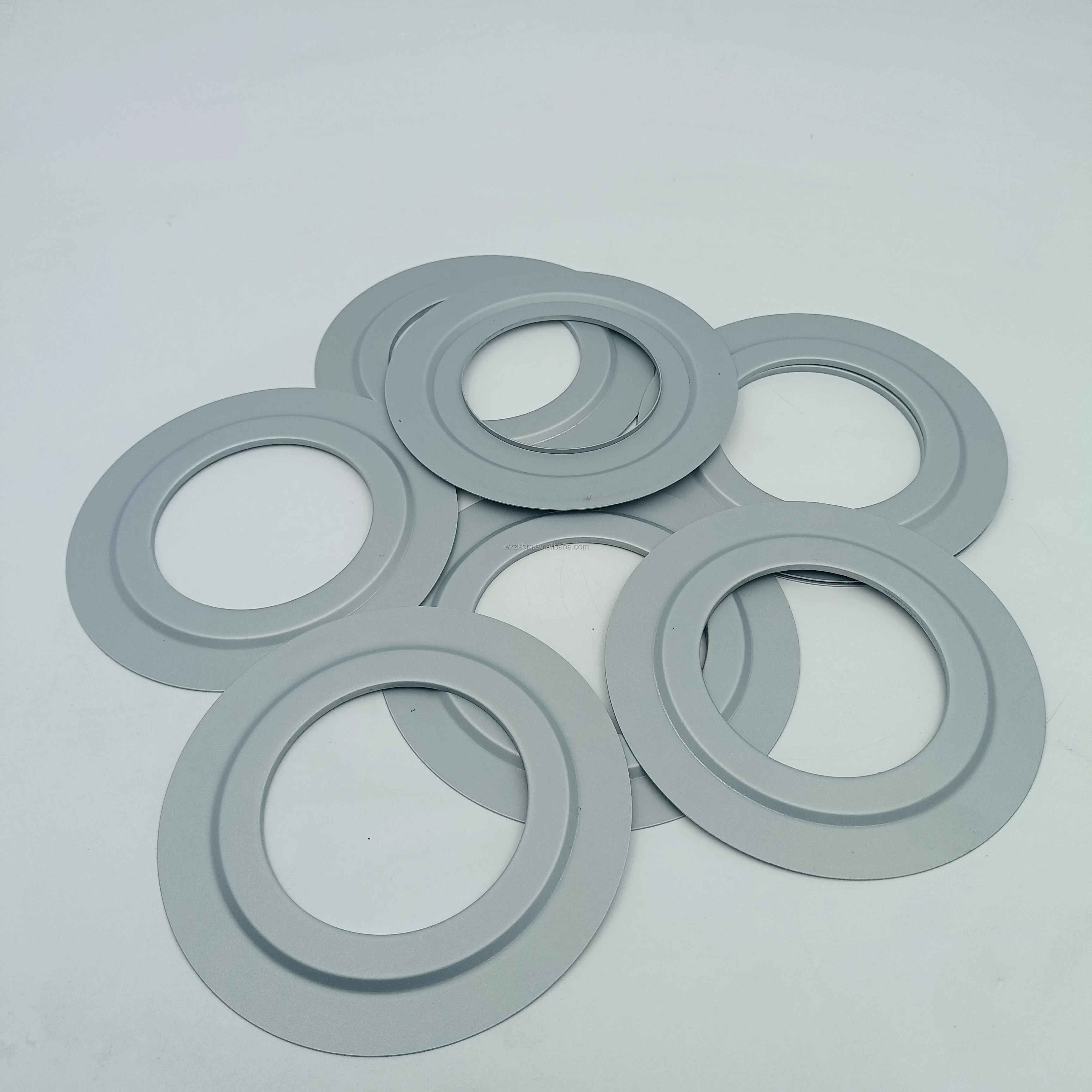

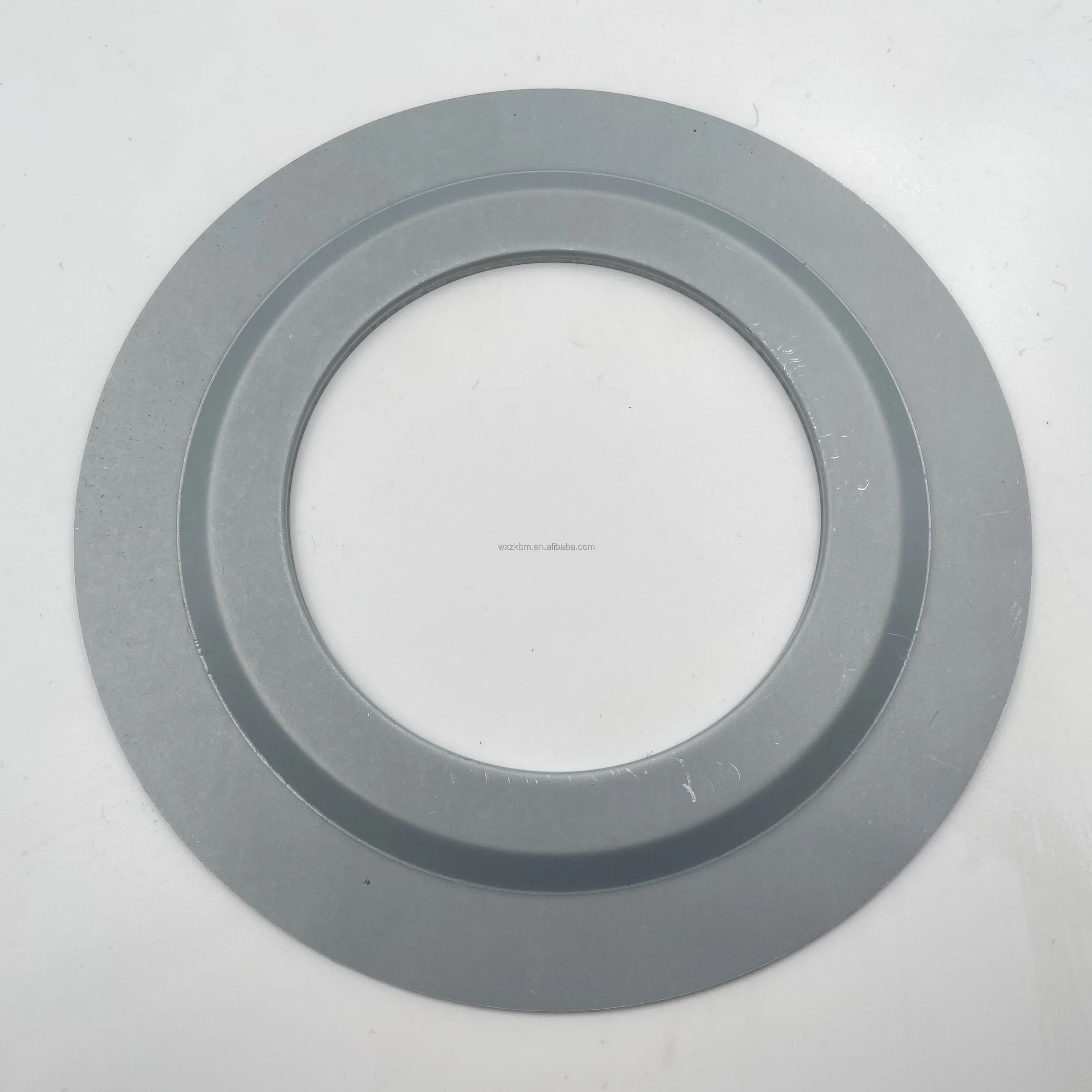

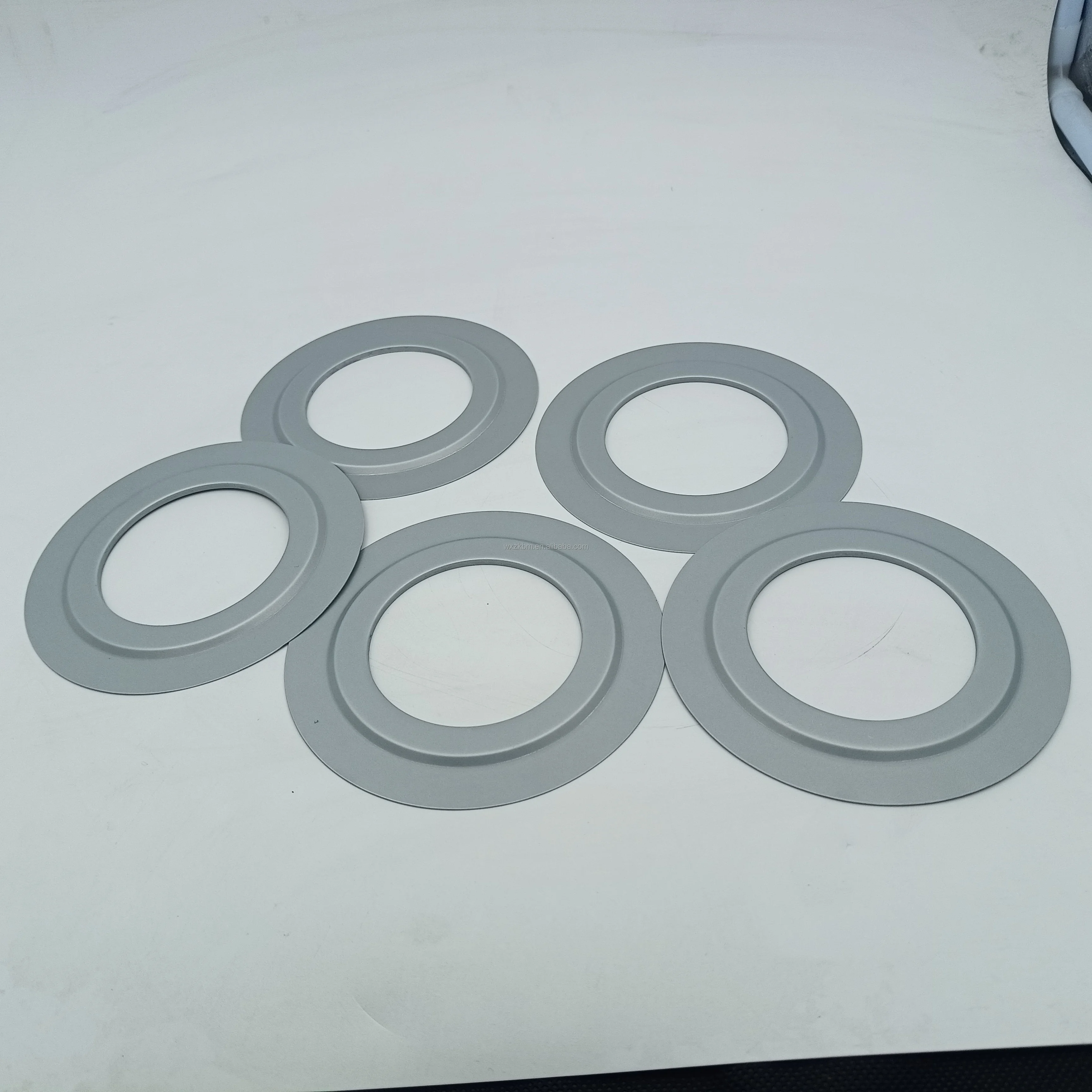

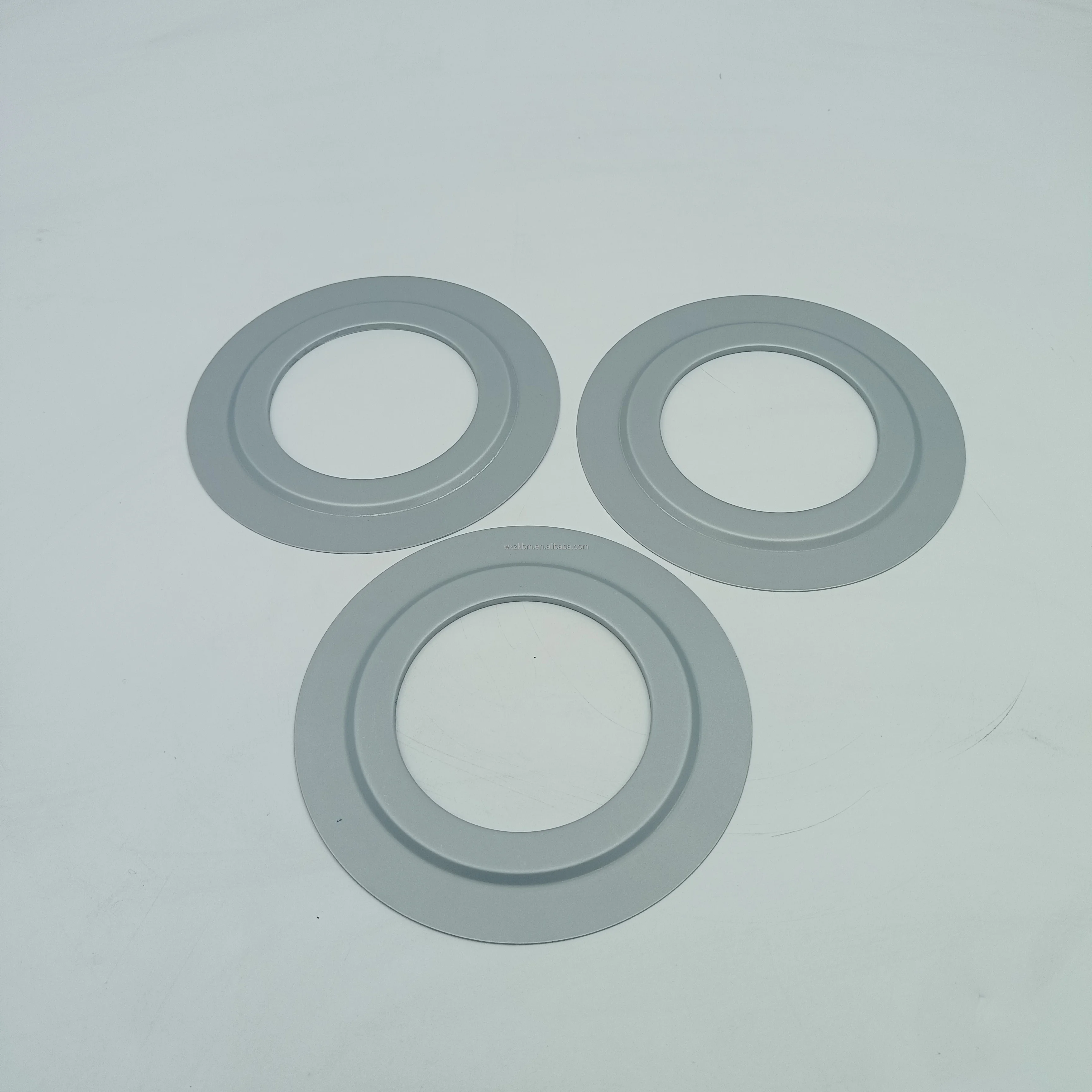

6228AV Nilos, Externally sealing Nilos Ring 6216AV 6205AV 32024AV 6306AV 6209AV NILOS RING metal seal cover
- Category: >>>
- Supplier: Ukl Bearing Manufacturing Co. Ltd.
Share on (1601029100722):
Product Overview
Description
Products Description
Product Name | UKL Metal Seals |
Material | Standard UKL metal seals are made of galvanized steel. Stainless steel, brass, and other specialized seals are also available. |
Used For | Automated machine tools, engineering machinery, mining machinery, machinery design technology, agricultural machinery, food machinery, medical machinery, lifting machinery, ventilation machinery, variable speed machinery, electric tools, motors,elevators, vehicles, ships, etc. |
Warranty | 1 year |
Brand | UKL,OEM or DFN |
Packing | According to the buyer requests for packaging |
UKL metal seal is a metal seal specifically designed for grease lubricated bearings to protect bearings from contaminants. The all-metal seal is designed to prevent dirt, dust, debris, and other abrasive contaminants from entering ball and roller bearings, helping to extend the normal operation time of bearings in harsh operating environments and industries.
UKL ZAV series: The sealing of bearings already equipped with protective covers or seals is completed by NILOS rings of other sizes, so that the seals clamped in the bearings are completely sealed by the sealing rings.
UKL ZJV series: In design, priority is given to sealing the sealing ring onto the inner roller bearing ring, which is known as the "ZJV" type.
UKL AV series: It is one of the commonly used versions of UKL sealing rings. It is available as a standard version with a circumferential speed of up to 6 meters per second; Higher circumferential speed is required when ordering.
UKL JV Series: In design work, the type of sealing ring that seals the inner roller bearing collar should be used as much as possible. The corresponding sealing ring of the JV type is preferred.
UKL ZJV series: In design, priority is given to sealing the sealing ring onto the inner roller bearing ring, which is known as the "ZJV" type.
UKL AV series: It is one of the commonly used versions of UKL sealing rings. It is available as a standard version with a circumferential speed of up to 6 meters per second; Higher circumferential speed is required when ordering.
UKL JV Series: In design work, the type of sealing ring that seals the inner roller bearing collar should be used as much as possible. The corresponding sealing ring of the JV type is preferred.

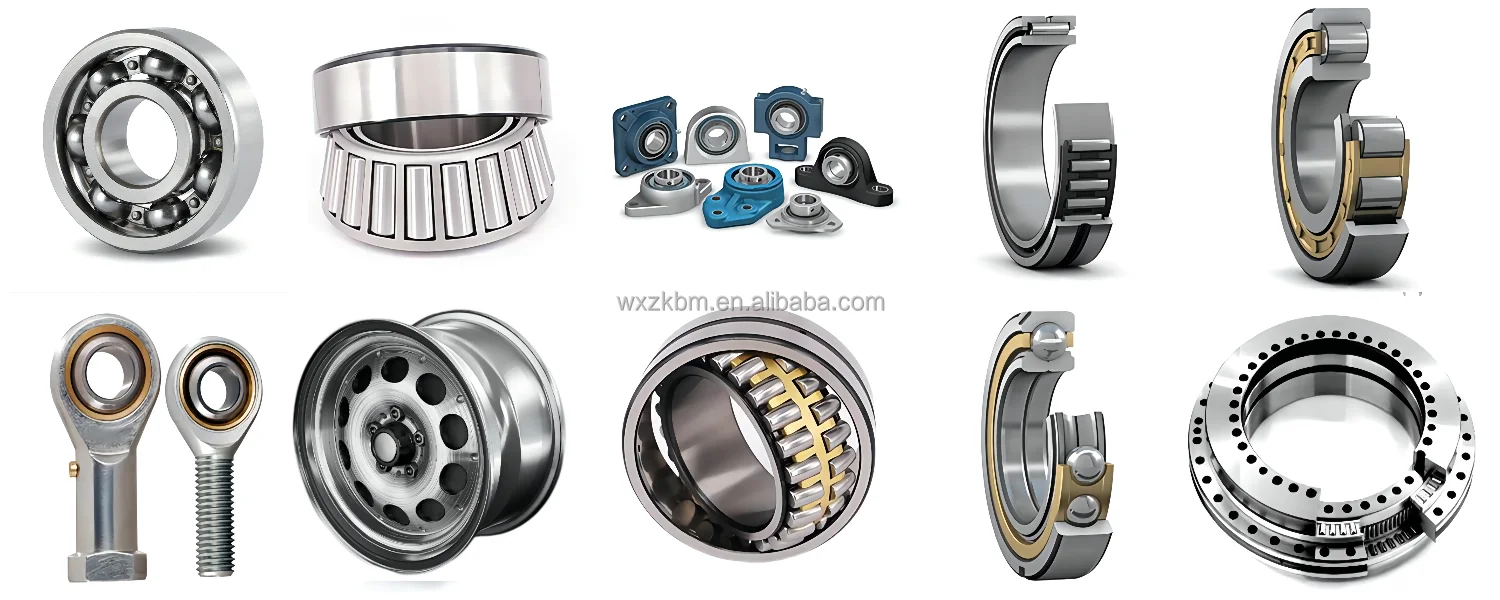

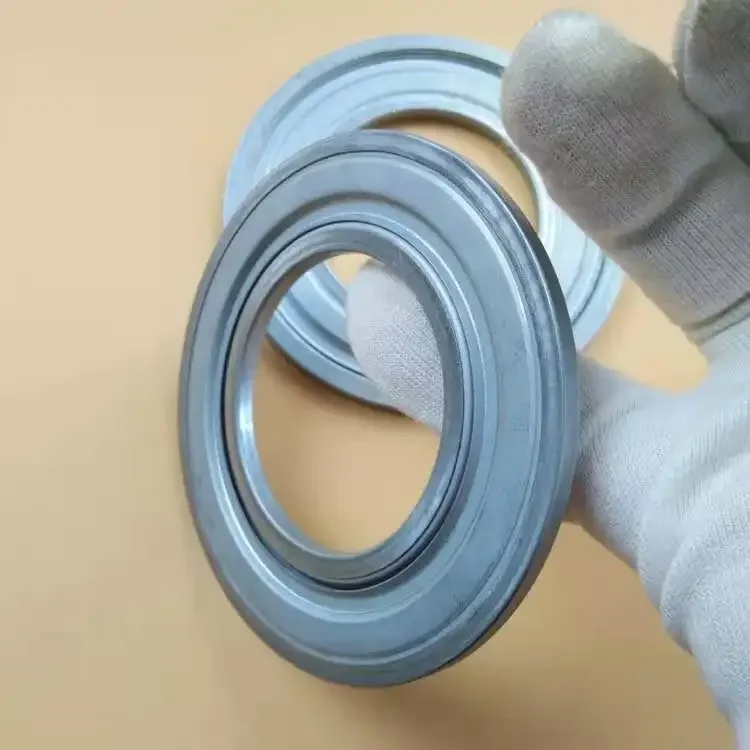

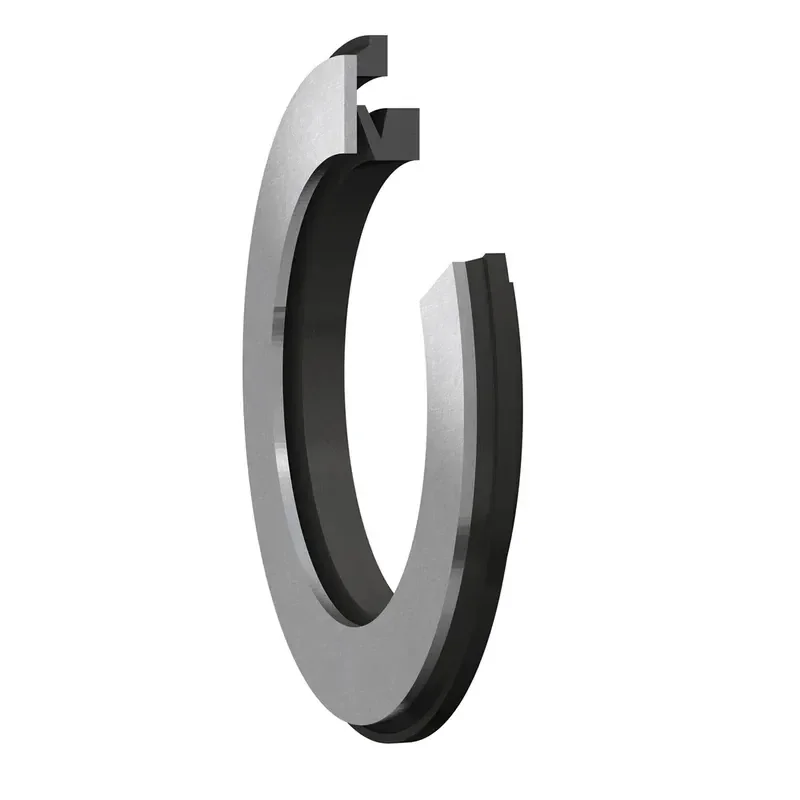

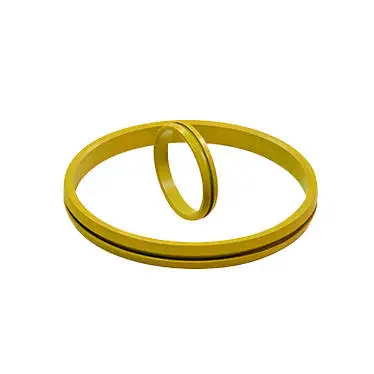

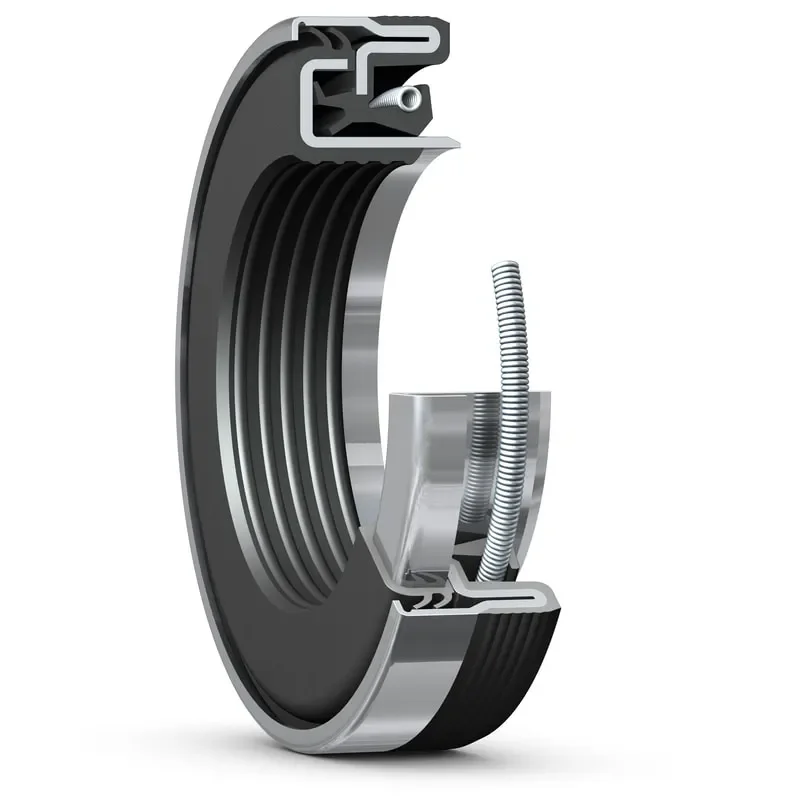

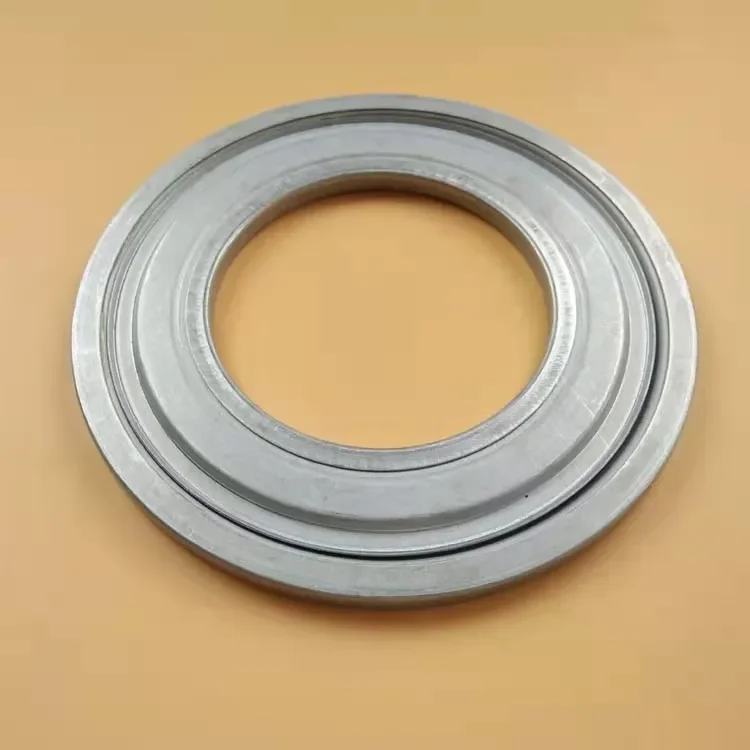

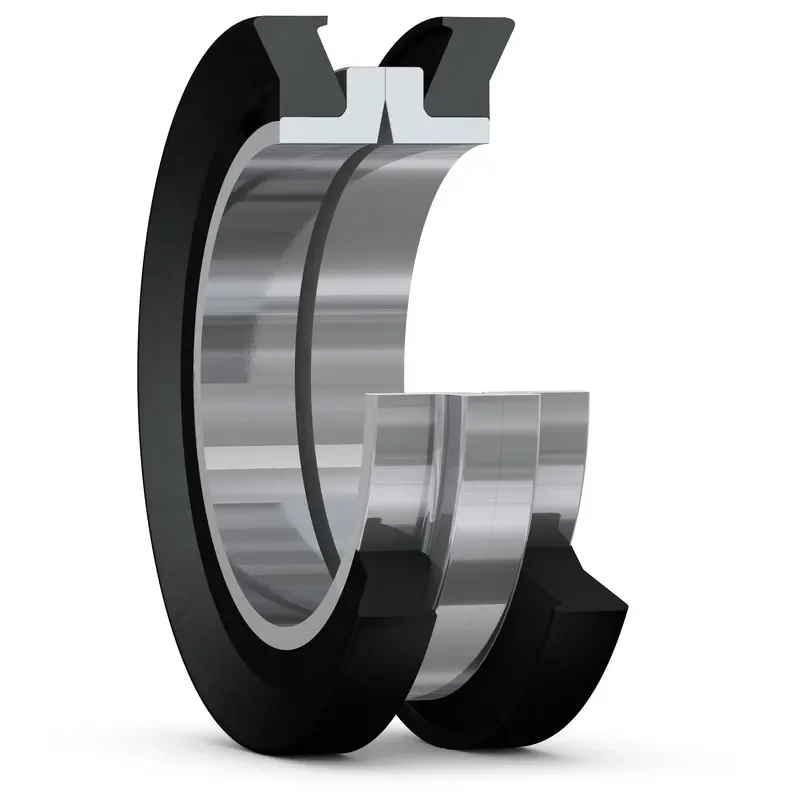

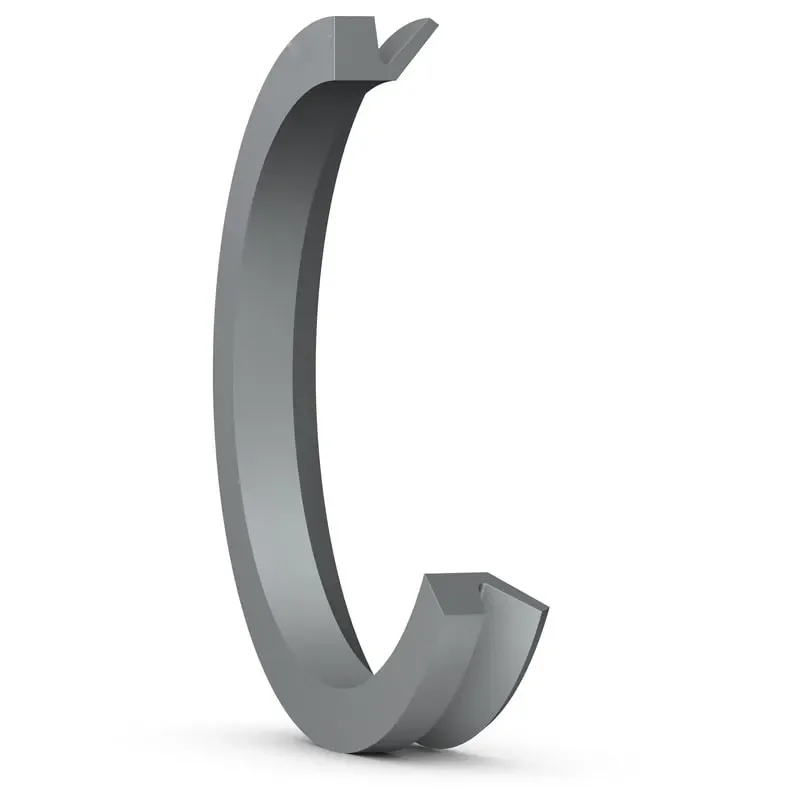

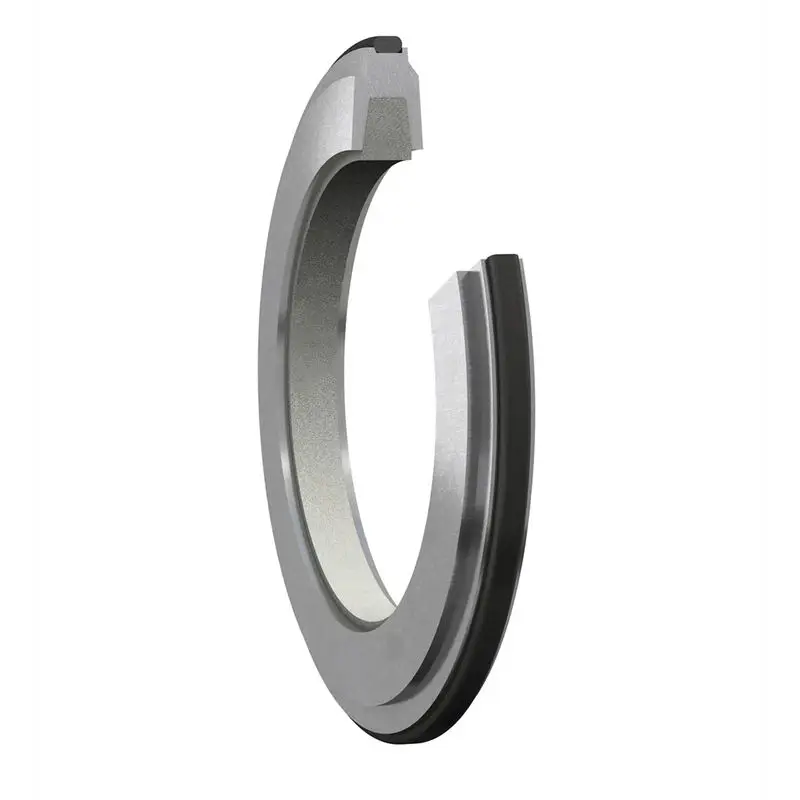

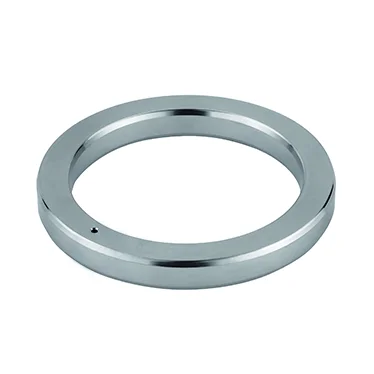

Product Display
UKL Metal Seal Material
Standard UKL metal seals are made of galvanized steel. Stainless steel, brass, and other specialized seals are also available.

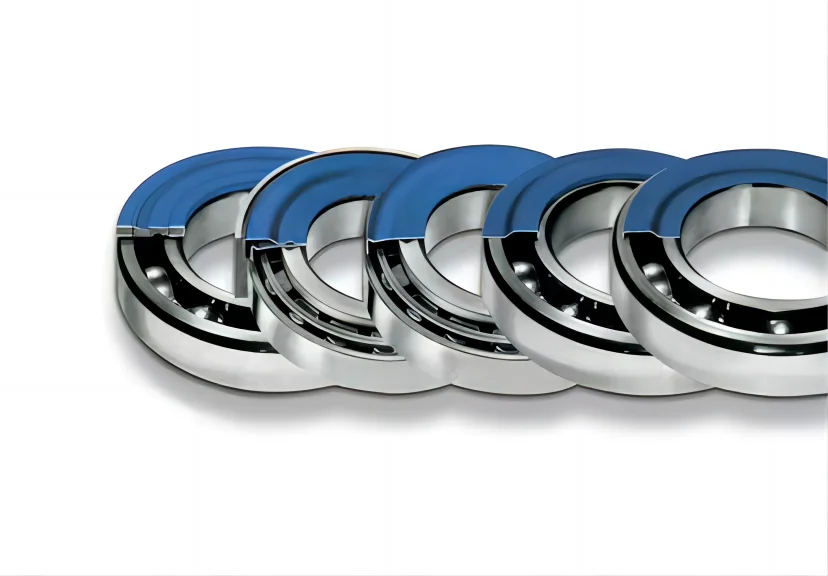

UKL metal seals can accommodate a range of single and double row bearing types, including:
Self aligning ball bearings, deep groove ball bearings, angular contact ball bearings, cylindrical roller bearings, self aligning roller bearings, self aligning roller bearings, tapered roller bearings, etc
Self aligning ball bearings, deep groove ball bearings, angular contact ball bearings, cylindrical roller bearings, self aligning roller bearings, self aligning roller bearings, tapered roller bearings, etc
Features Of UKL Metal Seals
The installation space is small, and the thickness is only between 1.2 and 8mm;
Due to the small space occupied by the thickness of UKL metal seals, they can be directly installed and used in many existing product structures without special changes;
Stable material characteristics, strong protective ability, exquisite workmanship, high accuracy level: surface 3 μ The zinc plating layer is matt, and the transition layer is brass; The seals made of CrNi material meet the German chemical classification - food grade standard;
UKL metal seals can be used at - 40 ° C to+400 ° C;
Different types of NILOS RING combinations can be selected at the same time
Due to the small space occupied by the thickness of UKL metal seals, they can be directly installed and used in many existing product structures without special changes;
Stable material characteristics, strong protective ability, exquisite workmanship, high accuracy level: surface 3 μ The zinc plating layer is matt, and the transition layer is brass; The seals made of CrNi material meet the German chemical classification - food grade standard;
UKL metal seals can be used at - 40 ° C to+400 ° C;
Different types of NILOS RING combinations can be selected at the same time

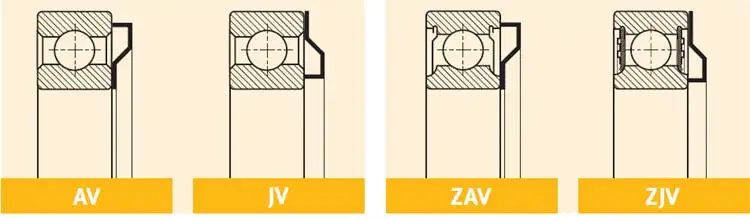

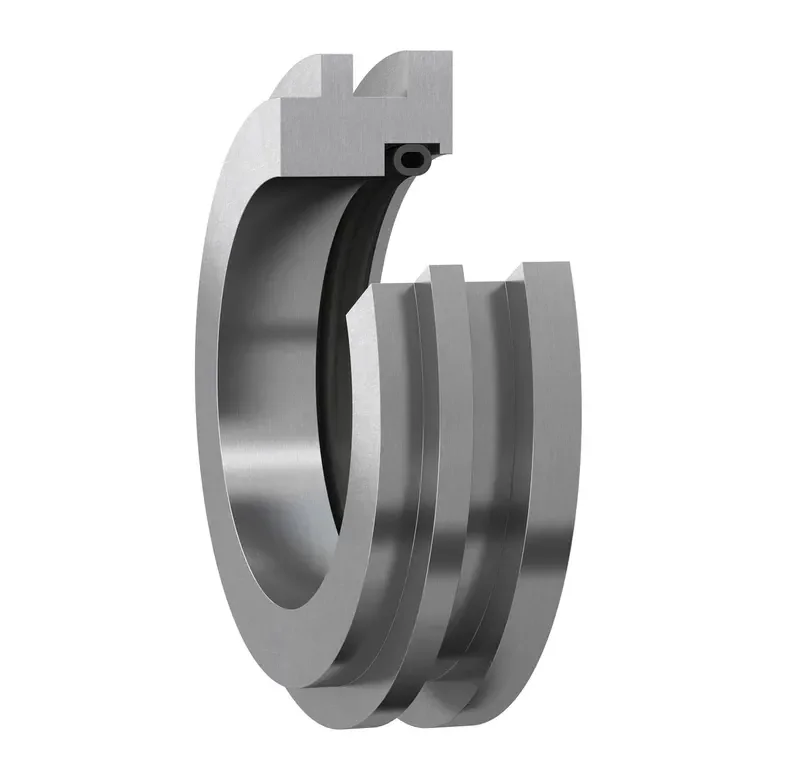

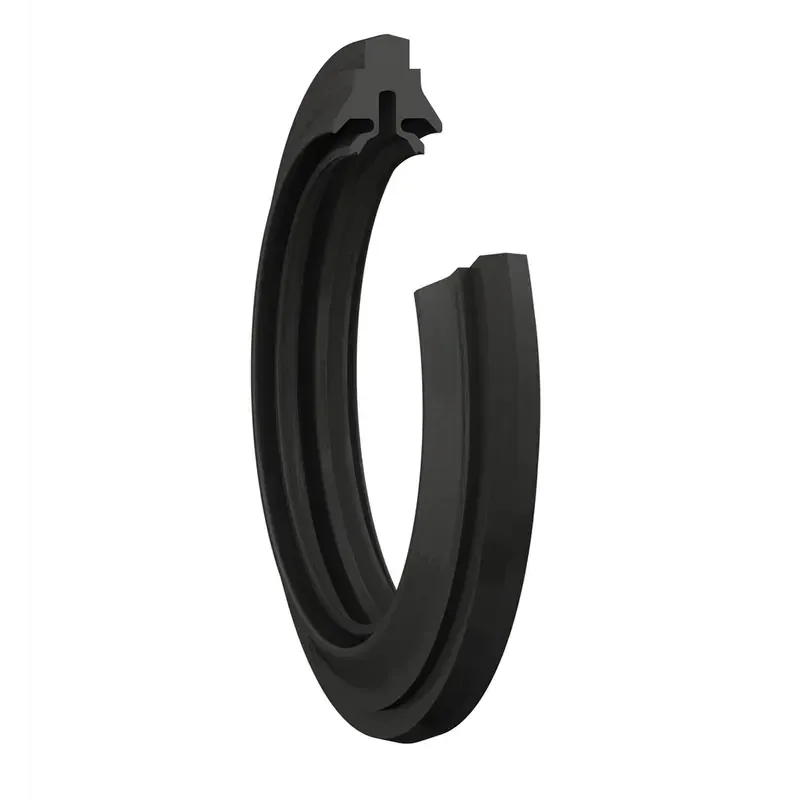

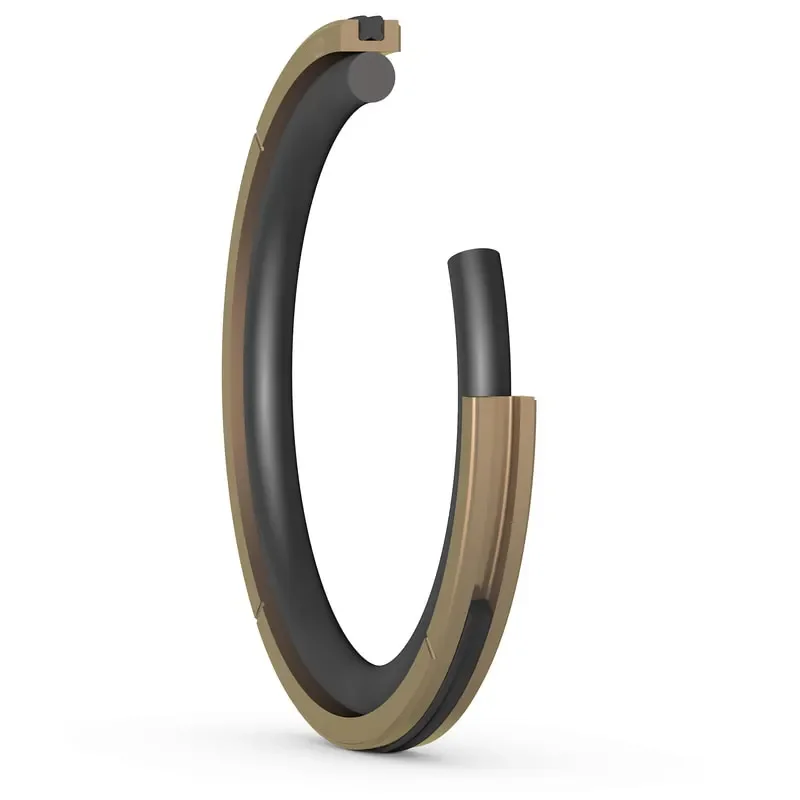

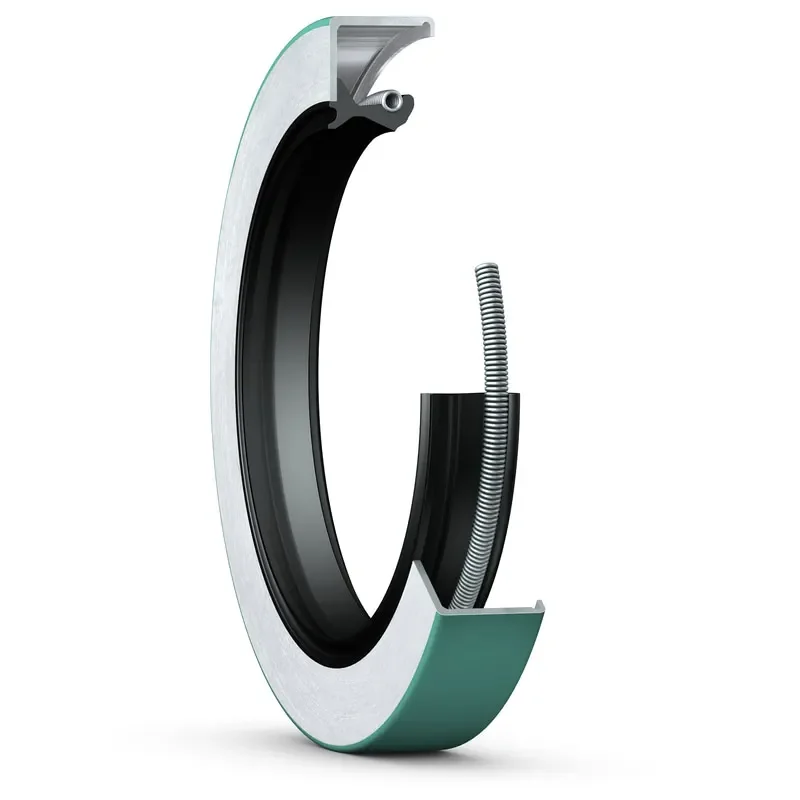

Type Of UKL Metal Seal
Sealing Principle Of UKL Metal Seals
After installing the UKL metal seal and operating for a short period of time, relying on its sealing lip, under slight pressure, the contact friction with the inner or outer ring of the bearing creates a shallow groove on the ring surface, resulting in a zigzag gap. Due to this zigzag gap, grease cannot flow out, while also preventing dust and moisture from entering the bearing. When this zigzag gap occurs, the pressure disappears, and naturally there is no friction.
Main Application Fields Of UKL Metal Seals
Automated machine tools, engineering machinery, mining machinery, mechanical design technology, agricultural machinery, food machinery, medical machinery, lifting machinery, ventilation machinery, variable speed machinery, electric tools, motors, elevators, vehicles, ships, etc

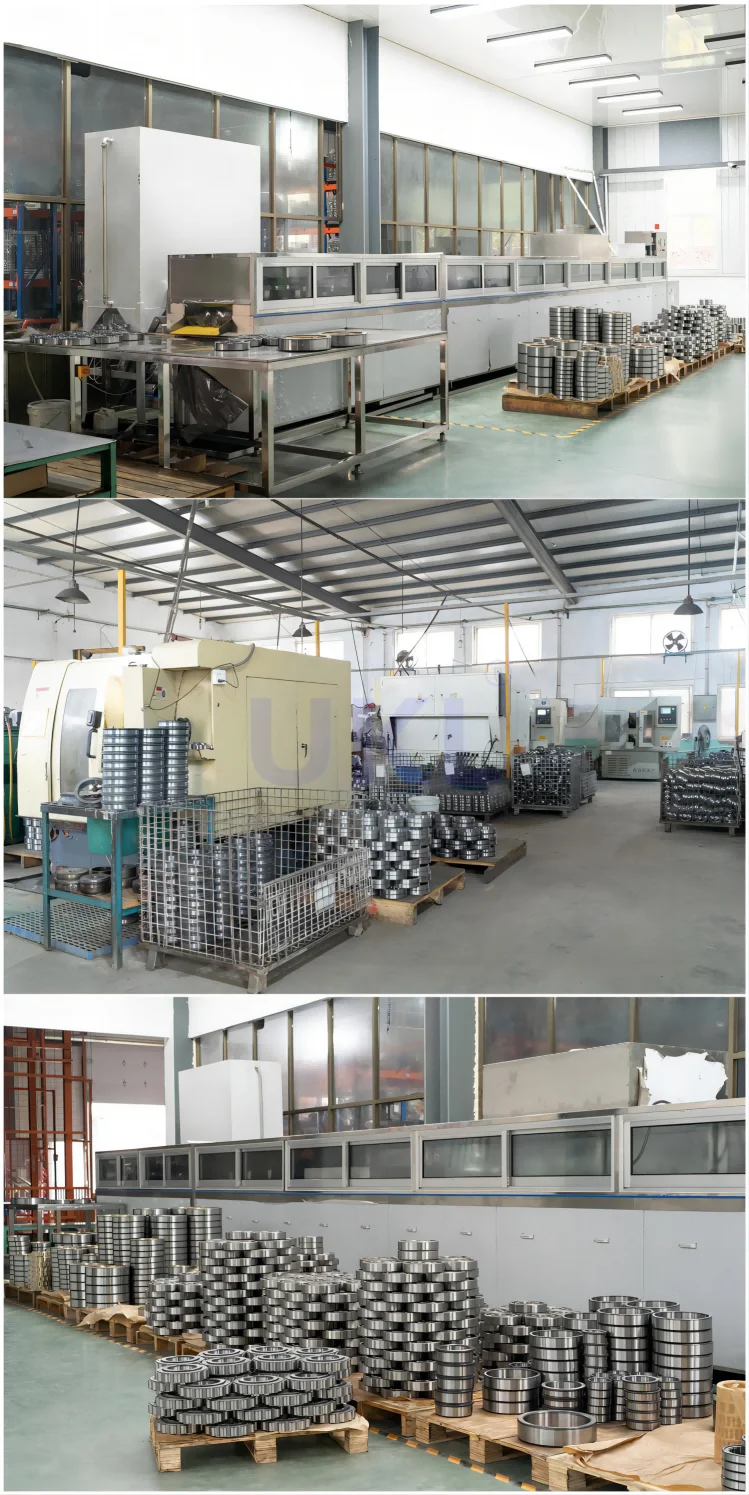

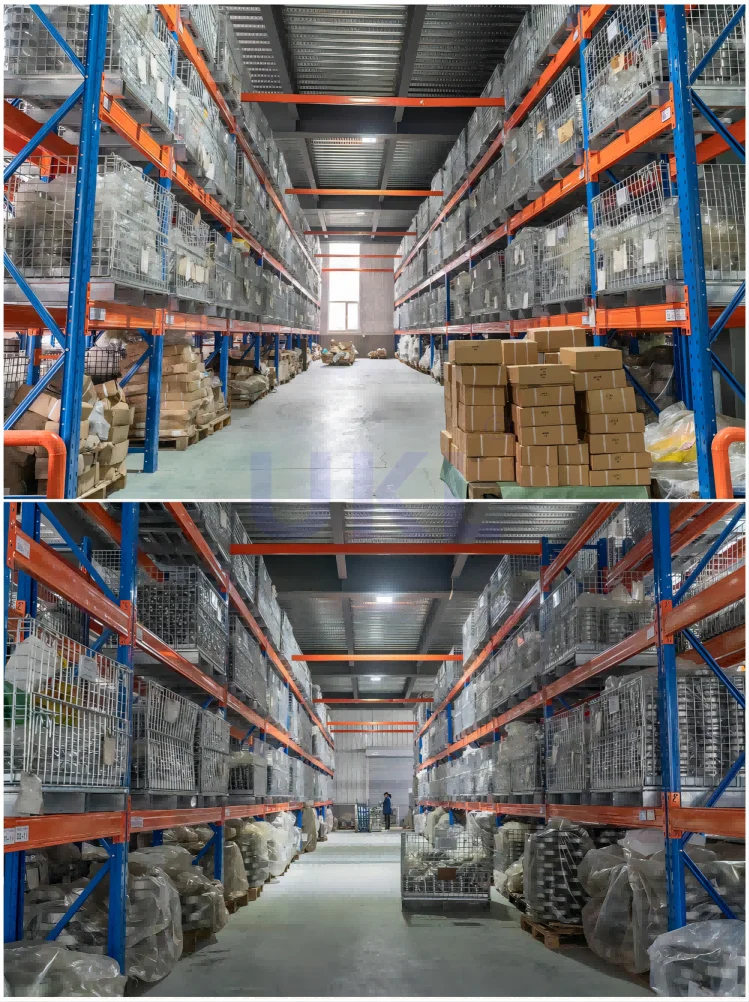

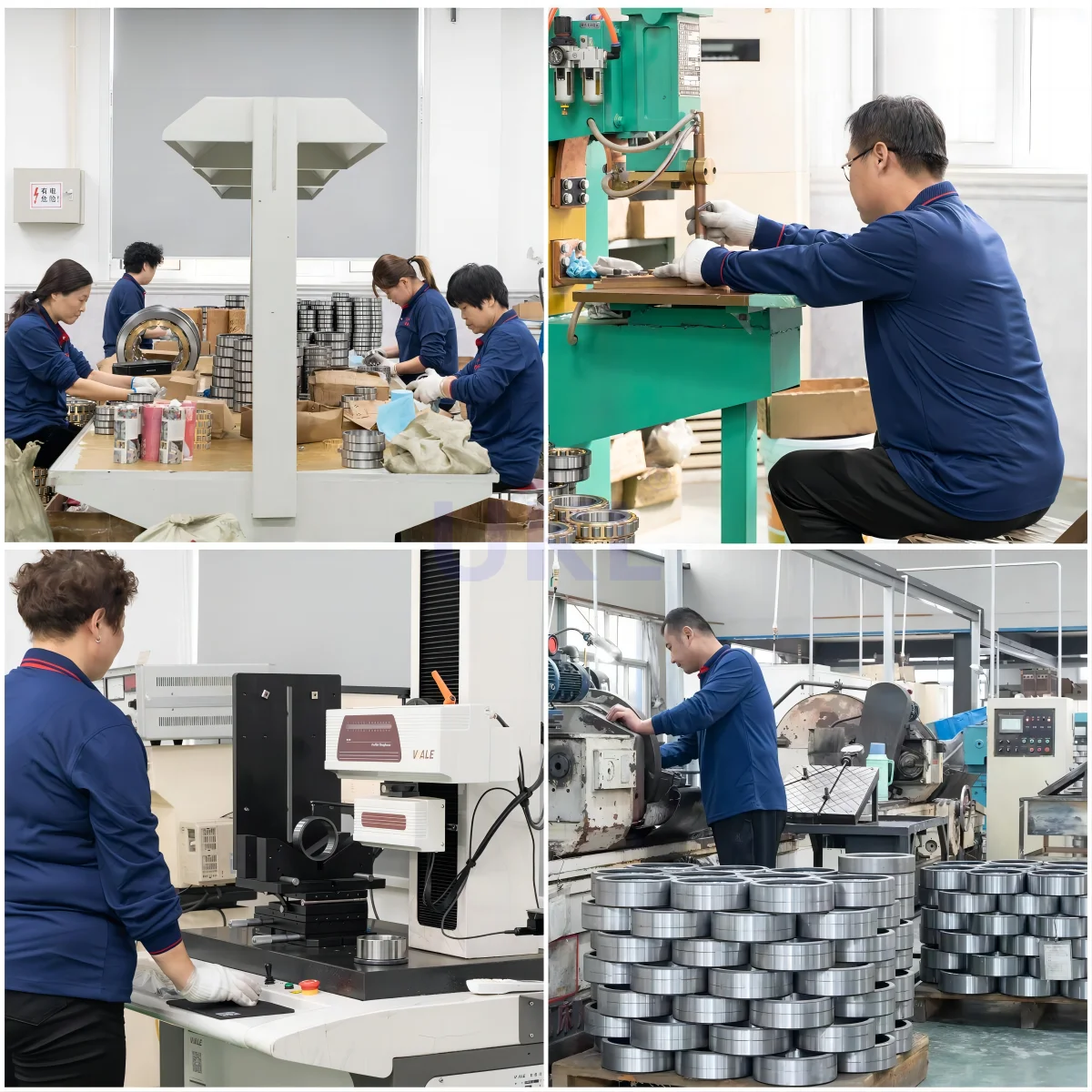

Factory & Equipment

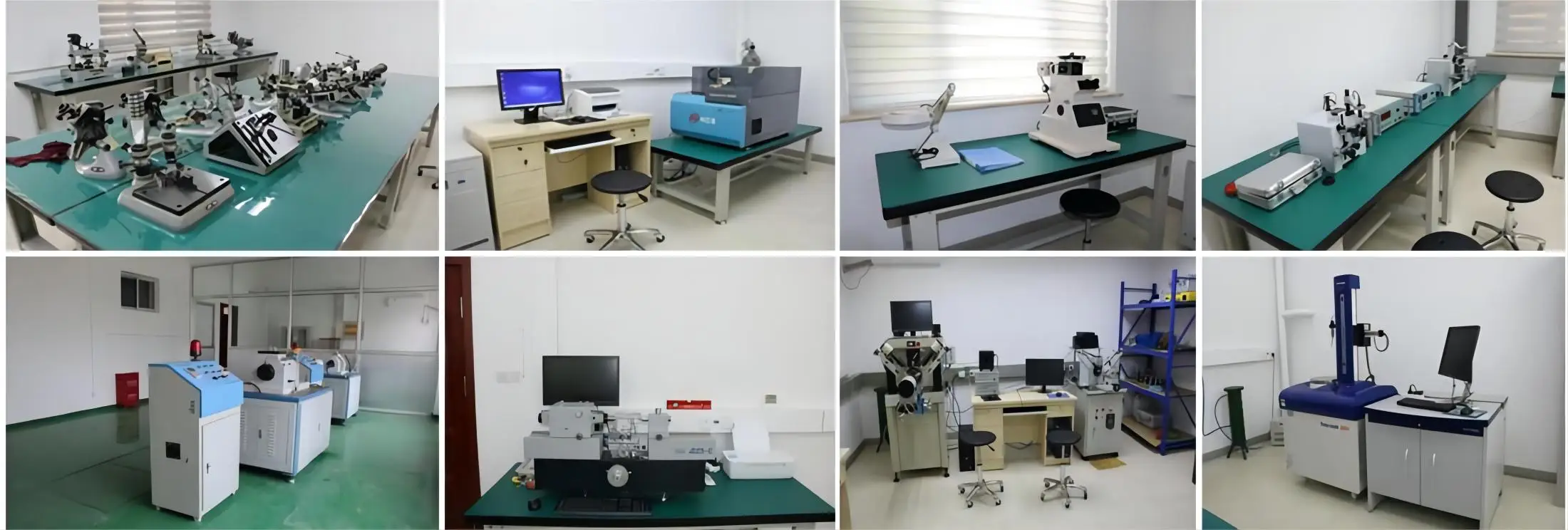

Inspection & Packaging
Why Choose Us
1.FREE SAMPLES:
Contact us by email or trade manager, we will send the free sampls according to your request.
2. World Class Bearing:
Contact us by email or trade manager, we will send the free sampls according to your request.
2. World Class Bearing:
We provide our customers with all type of indigenous bearing with world class quality.
3. OEM or Non Stand Bearings:
3. OEM or Non Stand Bearings:
Any requirement for Non standard bearings is Easily Fulfilled by us due to its vast knowledge and links in the industry.
4. Genuine products With Excellent Quality:
4. Genuine products With Excellent Quality:
Company has always proved the 100% quality products it provides with genuine intent.
5.After Sales Service and technical Assistance:
5.After Sales Service and technical Assistance:
Company provides after sales service and technical assistance as per the customers requirement and needs.
6. Quick Delivery:
6. Quick Delivery:
The company provides just-in-time delivery with its streamlined supply chain.
7. Cost Saving:
7. Cost Saving:
We provide long-life, shock-resistant and high reliability bearings with excellent quality and better performance.
8.Attending customer queries promptly:
We believe that if customer are satisfied then it proves our worth well. Customers are always given quick support.
Certifications
FAQ
1.Q:What the MOQ of your company?
A:MOQ is 1pc.
2.Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.
3.Q:Could you supply sample for free?
A:Yes,we can supply sample for free,do you mind to buy her a ticket?
4.Q:IS you company factory or Trade Company?
A:We have our own factory ;our type is factory +trade.
5.Q:Could you tell me the material of your bearing?
A:We have chrome steel,carbon steel and staninless steel,ceramic and plastic material.
6.Q:Could you offer door to door service?
A:Yes,by express(DHL,FEDEX,TNT,EMS,4-10 days to your city.)
7.Q:Coould you tell me the payment term of your company can accept?
A:T/T.L/C,Western Union,PayPal
8.Q:Could you tell me the delivery time of your doods?
A:If stock,in 7days or base on your order quantity.
A:MOQ is 1pc.
2.Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.
3.Q:Could you supply sample for free?
A:Yes,we can supply sample for free,do you mind to buy her a ticket?
4.Q:IS you company factory or Trade Company?
A:We have our own factory ;our type is factory +trade.
5.Q:Could you tell me the material of your bearing?
A:We have chrome steel,carbon steel and staninless steel,ceramic and plastic material.
6.Q:Could you offer door to door service?
A:Yes,by express(DHL,FEDEX,TNT,EMS,4-10 days to your city.)
7.Q:Coould you tell me the payment term of your company can accept?
A:T/T.L/C,Western Union,PayPal
8.Q:Could you tell me the delivery time of your doods?
A:If stock,in 7days or base on your order quantity.
