LH Type Electric Hoist Double Girder Bridge Overhead Cranes
$1,800.00-2,000.00

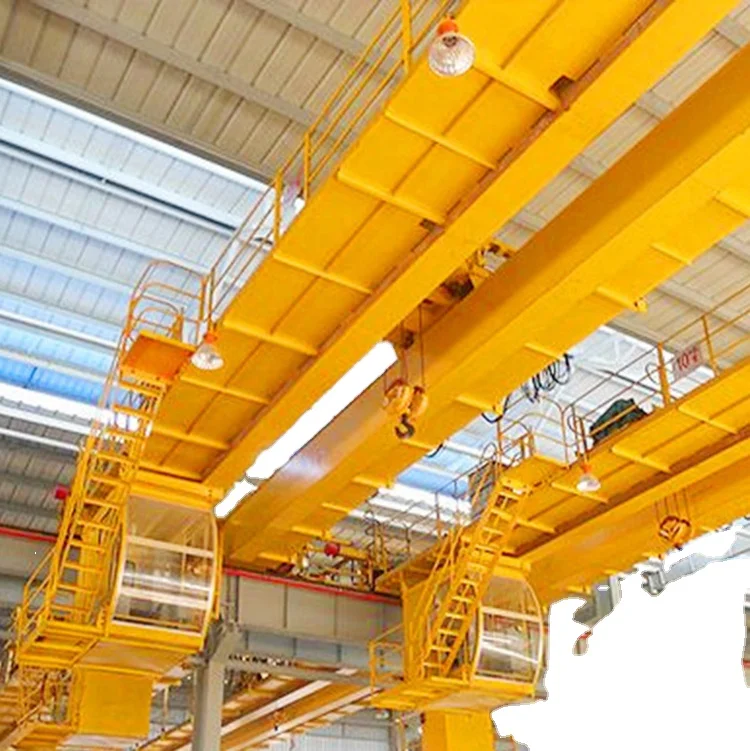

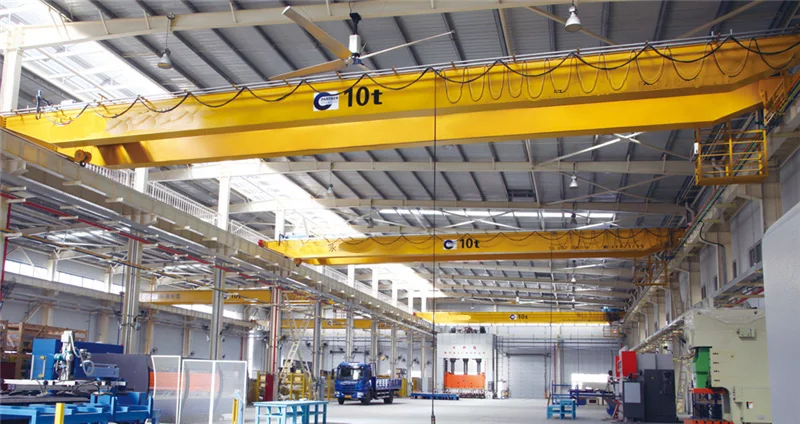

European Standard Low headroom 5ton 10ton 20ton Top Travelling Double Girder Overhead Crane
- Category: >>>
- Supplier: Henan Sinoko Cranes Co. Ltd.
Share on (1601029123629):
Product Overview
Description
Product Description
1.The mechanical system of the crane is mainly composed of main mechanical mechanisms such as trolleys and long traveling mechanism.
2.The components used in the mechanical system of the crane, such as gear boxes, brakes, couplings, reels, wheels, pulleys, hooks, bearings, etc. The crane specifications and corresponding standards are designed and manufactured to fully comply with EU standards. The overall hoist, end beam, electric control box, and cable drive are all imported from Europe.
3.The crane adopts advanced compact design scheme, small self-weight, low height, reasonable configuration, high transmission efficiency, low energy consumption, modular manufacturing process, high maintenance-free rate and less wearing parts.
2.The components used in the mechanical system of the crane, such as gear boxes, brakes, couplings, reels, wheels, pulleys, hooks, bearings, etc. The crane specifications and corresponding standards are designed and manufactured to fully comply with EU standards. The overall hoist, end beam, electric control box, and cable drive are all imported from Europe.
3.The crane adopts advanced compact design scheme, small self-weight, low height, reasonable configuration, high transmission efficiency, low energy consumption, modular manufacturing process, high maintenance-free rate and less wearing parts.
Advantages
1. It has the characteristics of compact dimensions, low building headroom height, light weight and small wheel pressure.
2. Small space occupation, small limit distance between the hook and both sides, large working range, small height above the track surface, effective use of plant space.
3. Low maintenance cost, smooth operation and low noise.
4. High working performance, shorten working time, save time and effort.
2. Small space occupation, small limit distance between the hook and both sides, large working range, small height above the track surface, effective use of plant space.
3. Low maintenance cost, smooth operation and low noise.
4. High working performance, shorten working time, save time and effort.
Specification
Lifting capacity | ton | 5-320ton |
lifting height | H(m) | 18-26m |
Span | m | 10.5-31.5m |
hook speed | m/min | 9.5-14.5 |
trolley speed | m/min | 67-101.8 |
Working grade | A7 | |
Working environment temperture | °C | -25~40 |
power source | three-phase 380V 50HZ | |
Control mode | cabin control/remote control |

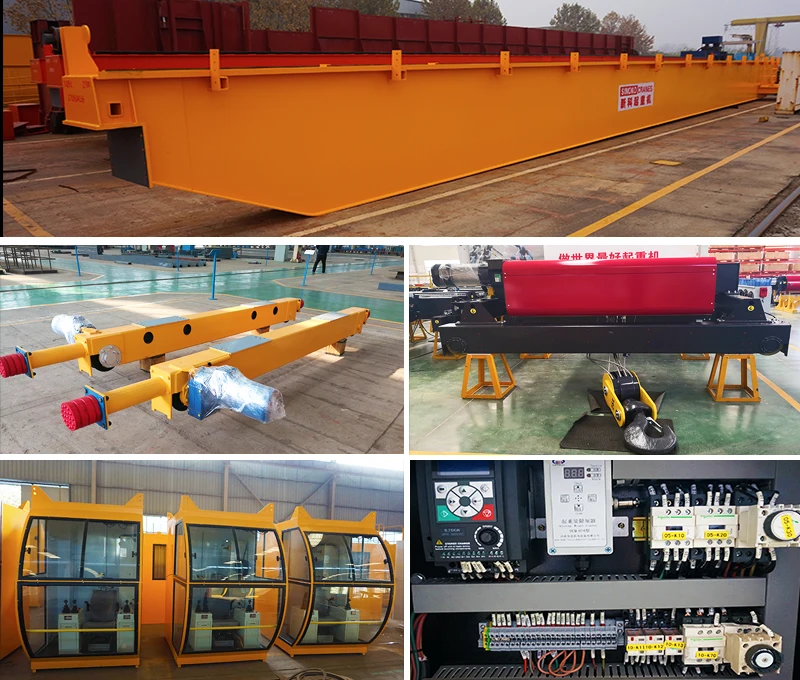

Product Details
Related Products

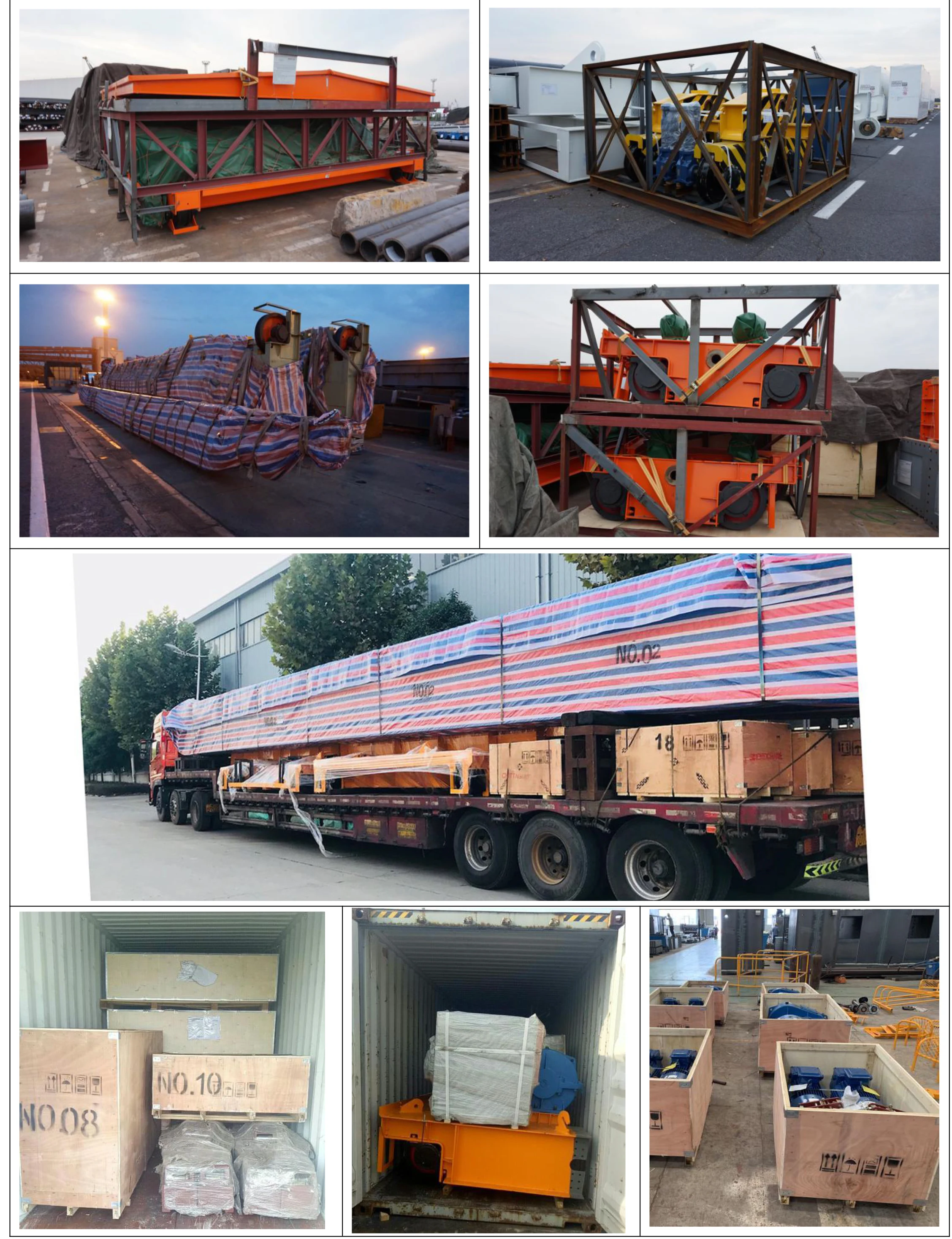

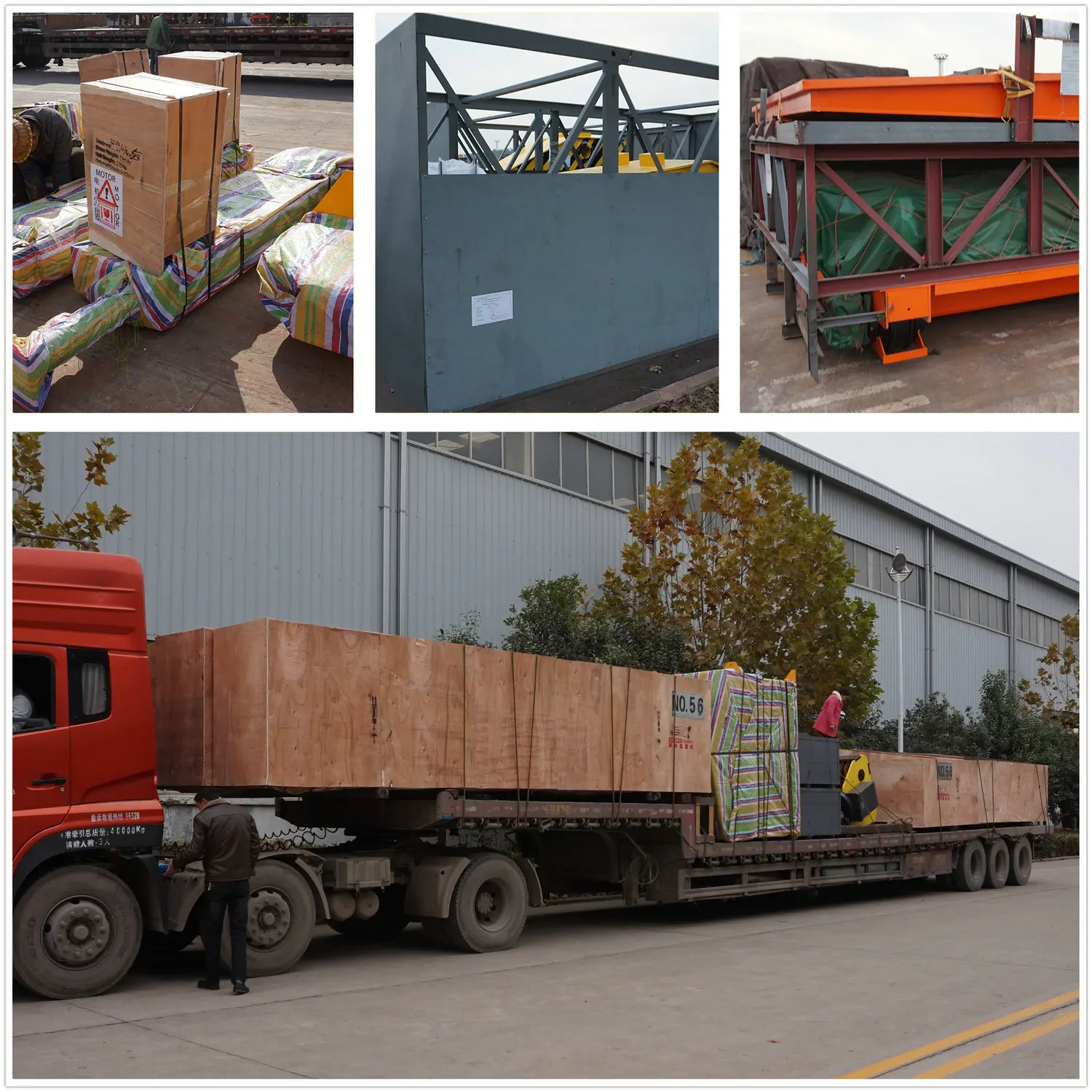

Packing & Delivery
