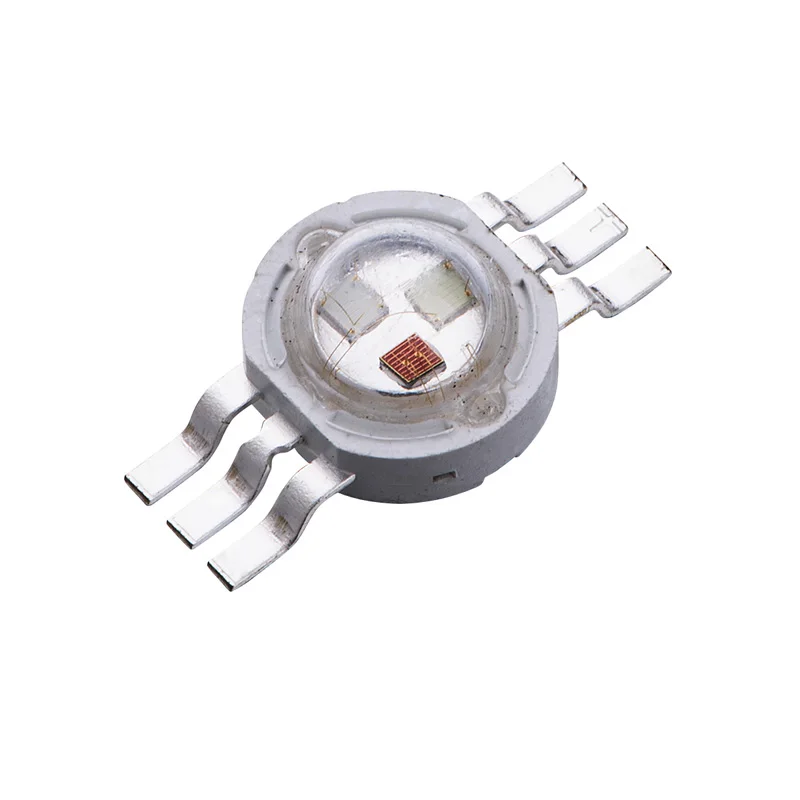

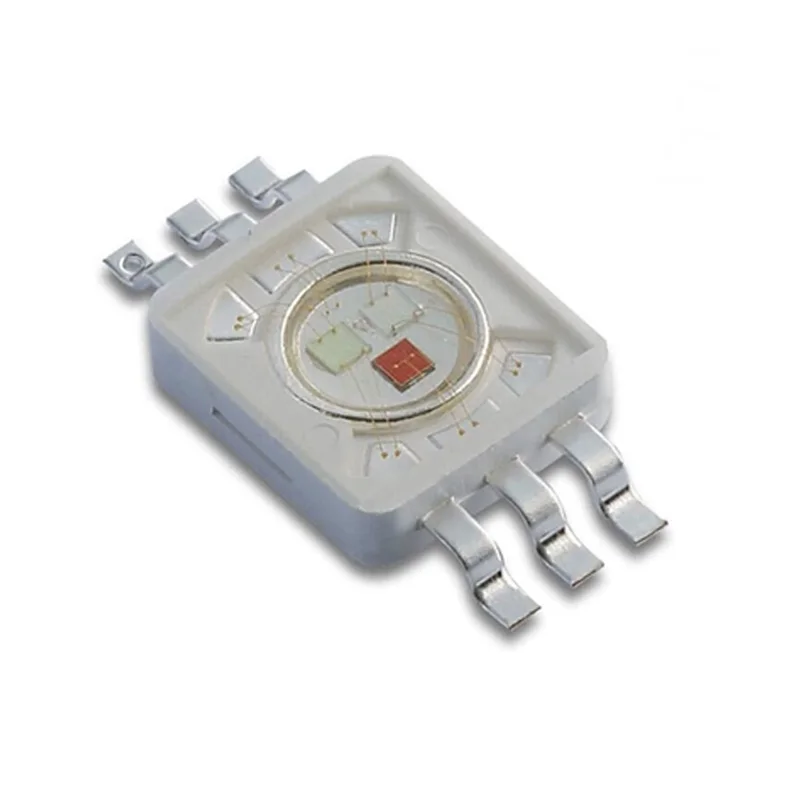

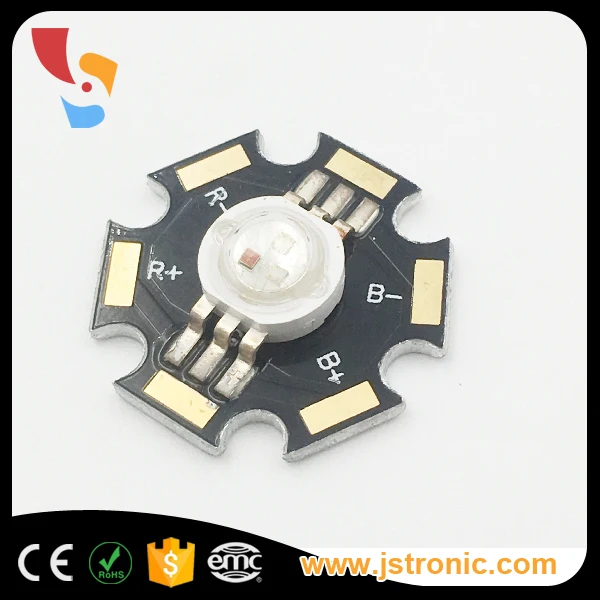

Epileds chip led 3w rgb 6 pin high power led diode
- Category: >>>
- Supplier: Ningbo Junsheng Electronics Co. Ltd.
Share on (1601029133678):
Product Overview
Description
Product Description

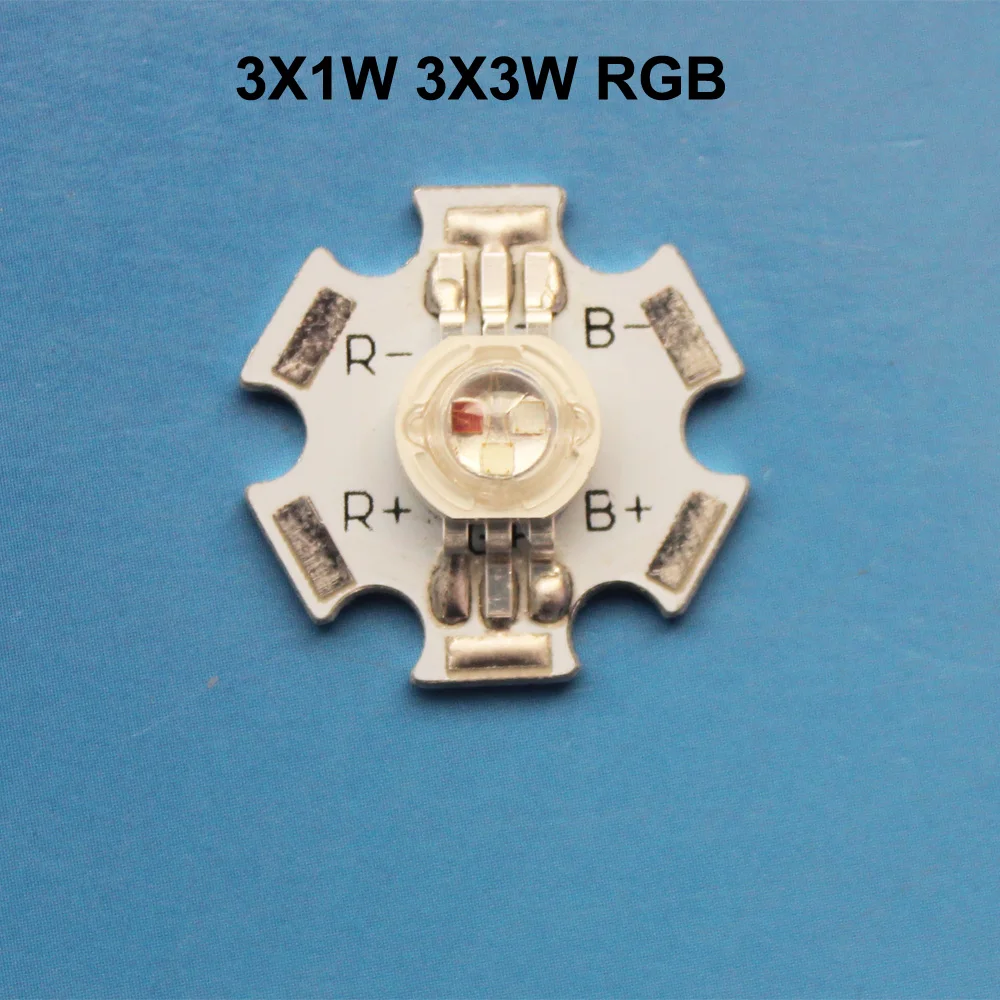

6 pins 3X1W RGB High Power Led
Specification
Parameter | Symbol | Test Condition | R | G | B | Unit | ||||||||
Min | Max | Min | Max | Min | Max | |||||||||
Forward Voltage | VF | IF = 350mA | 2.0 | 2.4 | 3.0 | 3.4 | 3.0 | 3.4 | V | |||||
Luminous Flux | Φv | IF = 350mA | 40 | 60 | 70 | 90 | 15 | 30 | lm | |||||
Dominate Wavelength | λd | IF = 350mA | 620 | 630 | 520 | 530 | 460 | 470 | nm | |||||
Reverse Current | IR | VR=5V | 10 | μ A | ||||||||||
Viewing Angle | 2θ1/2 | IF = 350mA | 140 | Deg | ||||||||||

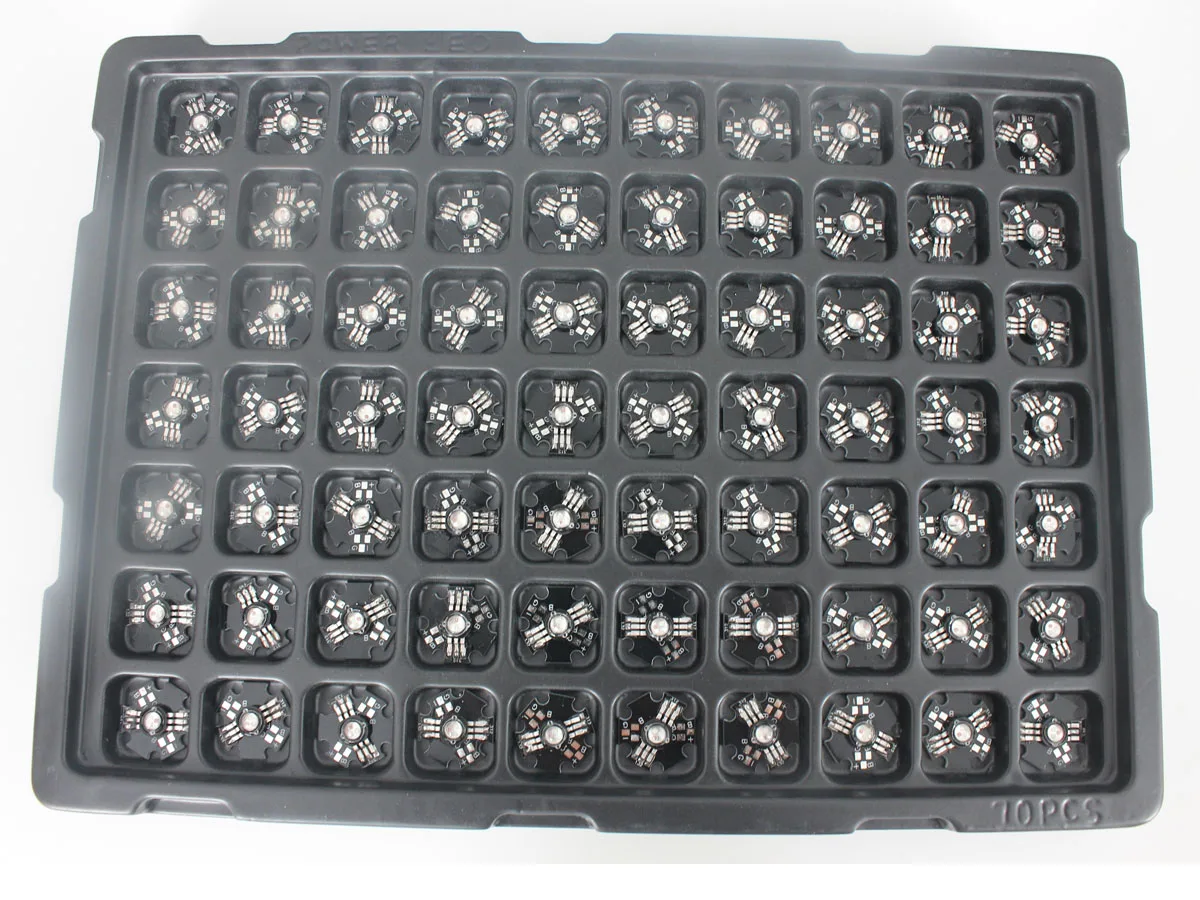

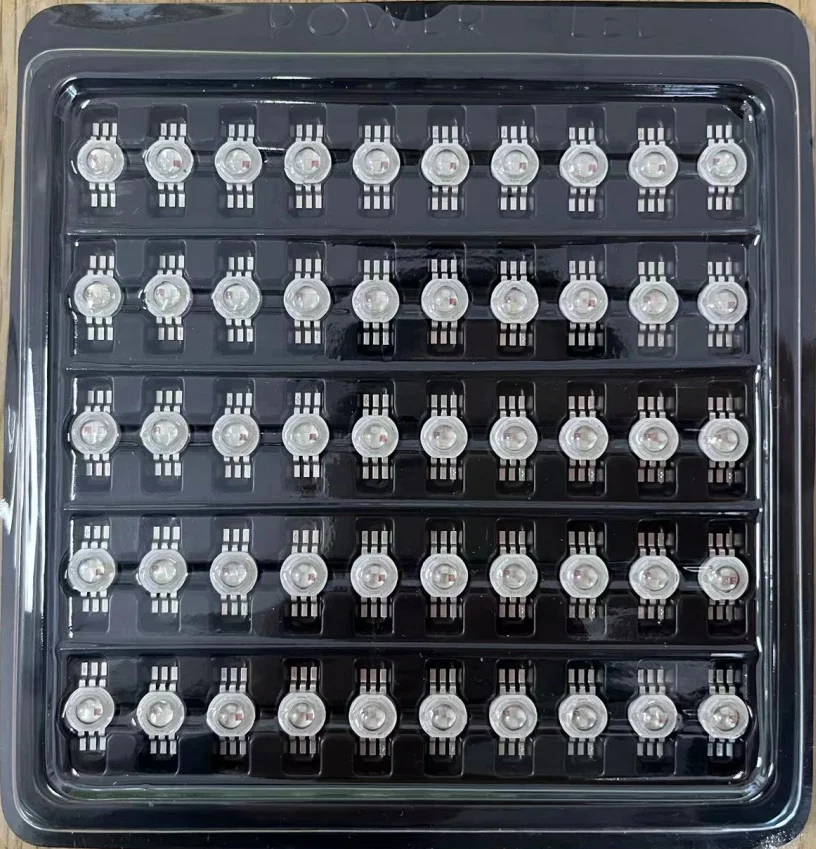

Packing & Delivery
