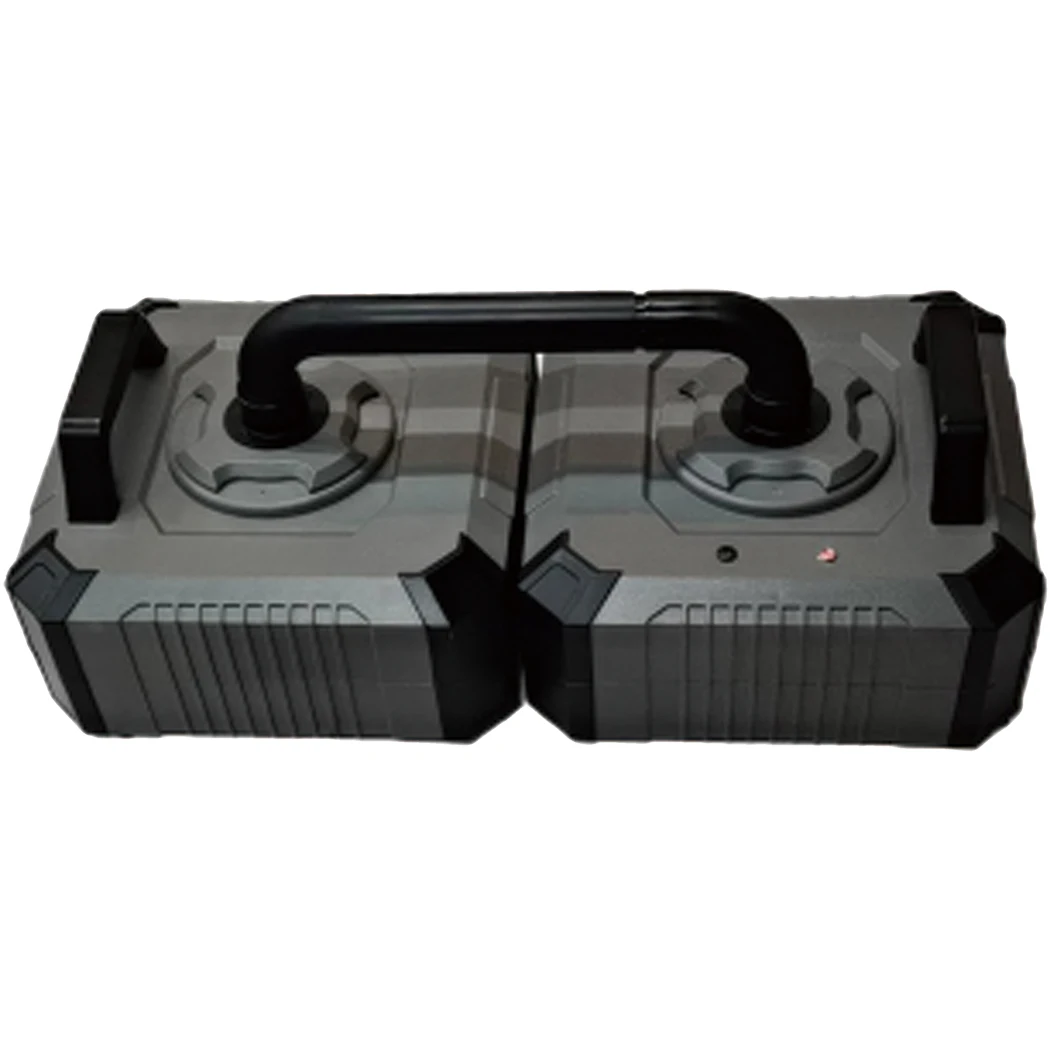

MIMO Radar Life Detector for Anti Terrorism and Earthquake Rescue
- Category: >>>
- Supplier: Beijing Zhongan Ruidun Technology Development Co. Ltd.
Share on (1601029205266):
Product Overview
Description
Product Introduction
Based on multi-channel antenna system, beamforming, multi-path propagation, frequency modulation and complex signal processing, the MIMO Radar Life Detector is designed to detect and position human targets buried in ruins, which is used for emergency search and rescue. MIMO Radar can detect multi targets by real time, greatly improving rescue efficiency.
Product Parameter
Band Width | 100~2500 MHz |
Detection Range | ≥ 30 m |
Accuracy | ±10cm |
Detection Angle | ±60° (120°) |
Medium Material | Concrete, soil, rock, wood and other non-metallic, low water content objects |
Remote control distance | ≥120 |
Radar Weight/Size 10kg (Including Battery) | 725*360*270mm |
Radar Working time | >8 hour/battery |
Radar Battery Type | Rechargeable lithium hydroxide battery |
Working Temperature | -20︒C～60︒C |
Storage Temperature | -40︒C～70︒C |
