2024 Best Seller Wholesale Smt Stencil Laser Cutting Machine For Stainless Steel Sheets 304 SMT Stencil laser cutting machine

Product Overview

Description

This is a  high-precision SMT laser  cutting machine. It adopts the fiber laser with long-life air cooling technology imported from abroad. Its beam quality is good, its luminous life is long, and its photoelectric conversion efficiency is high. There is no need to replace the lamp tube, and it is free of maintenance costs. The use of air cooling technology greatly saves power consumption. The minimum spot diameter can be focused to 0.016mm, making the hole wall more smooth and flat. During the cutting process, a small amount of industrial oxygen is used to assist the cutting, which has no impact on the environment.

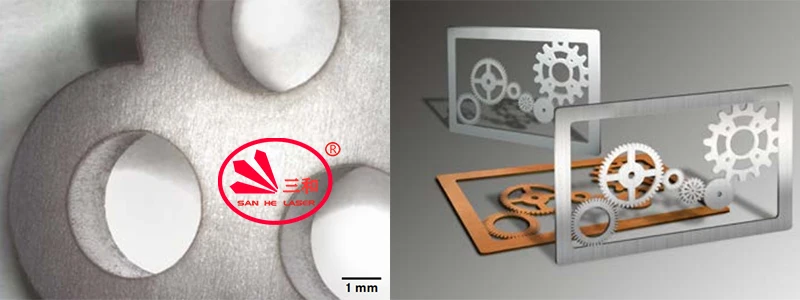

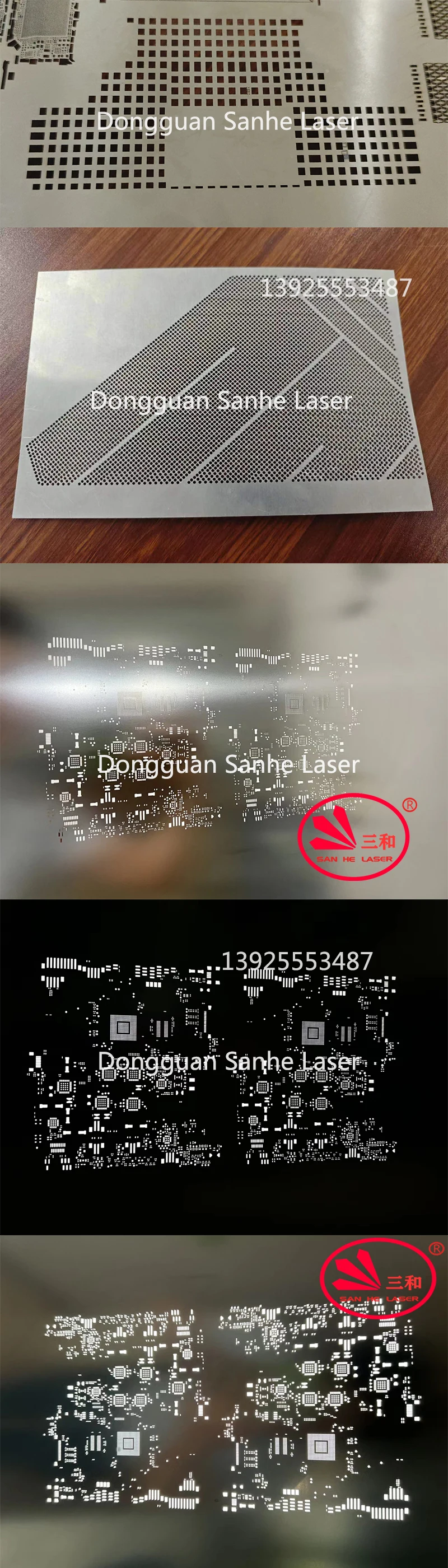

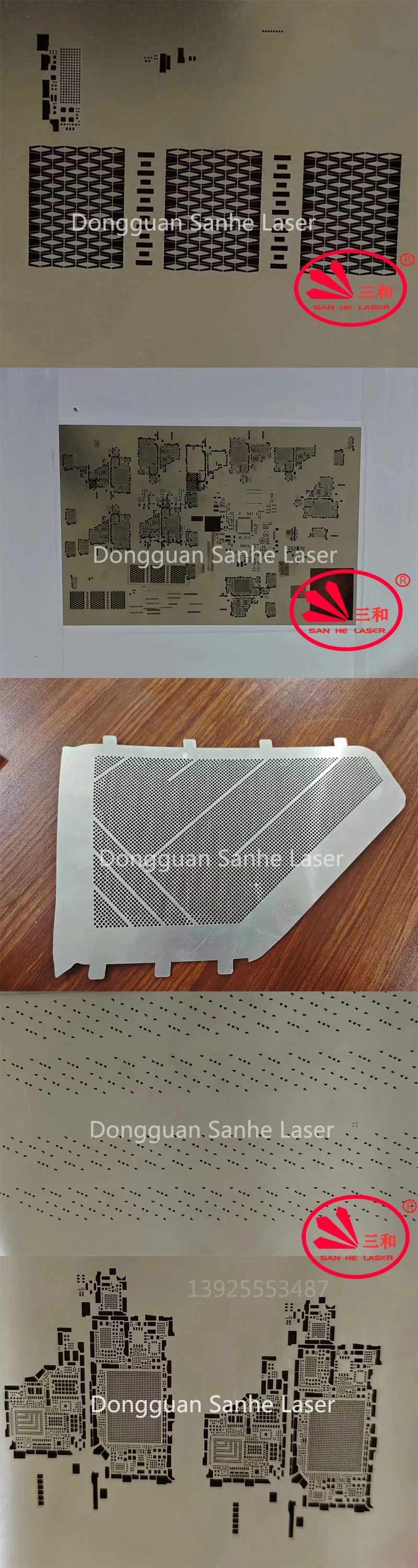

Specific stencil openings are essential for perfect solder paste printing, and SANHE stencil cutters are capable of cutting steel sheets with thicknesses between 20 μm and 1 mm. The picture below shows the aperture opening of a virtually burr-free stainless steel (30 μm stencil), with a cutting accuracy of ±0.005 mm and smooth cut hole walls for optimal processing results.



Equipment Model	3HE-GW200W
Laser type	fiber-optic laser(IPG)
Laser working medium	optical fiber
Laser wavelength	1060-1080 nm
RATED OUTPUT POWER	200W
Beam quality	<0.373mrad
X-axis distance	800mm
Y-axis distance	800mm
Effective cutting range	600*700mm(customizable)
Positioning accuracy	±1um
Repeat positioning accuracy	±1um
Max. Moving speed	120m/min
Support graphic format	PLT,Al,BMP,DST, DXF format(support for CORELDRAW,Al,PHOTOSHOP, AUTOCAD)
Power Supply	220V50Hz/16A
cooling way	air cooling
cutting accuracy	±0.005mm

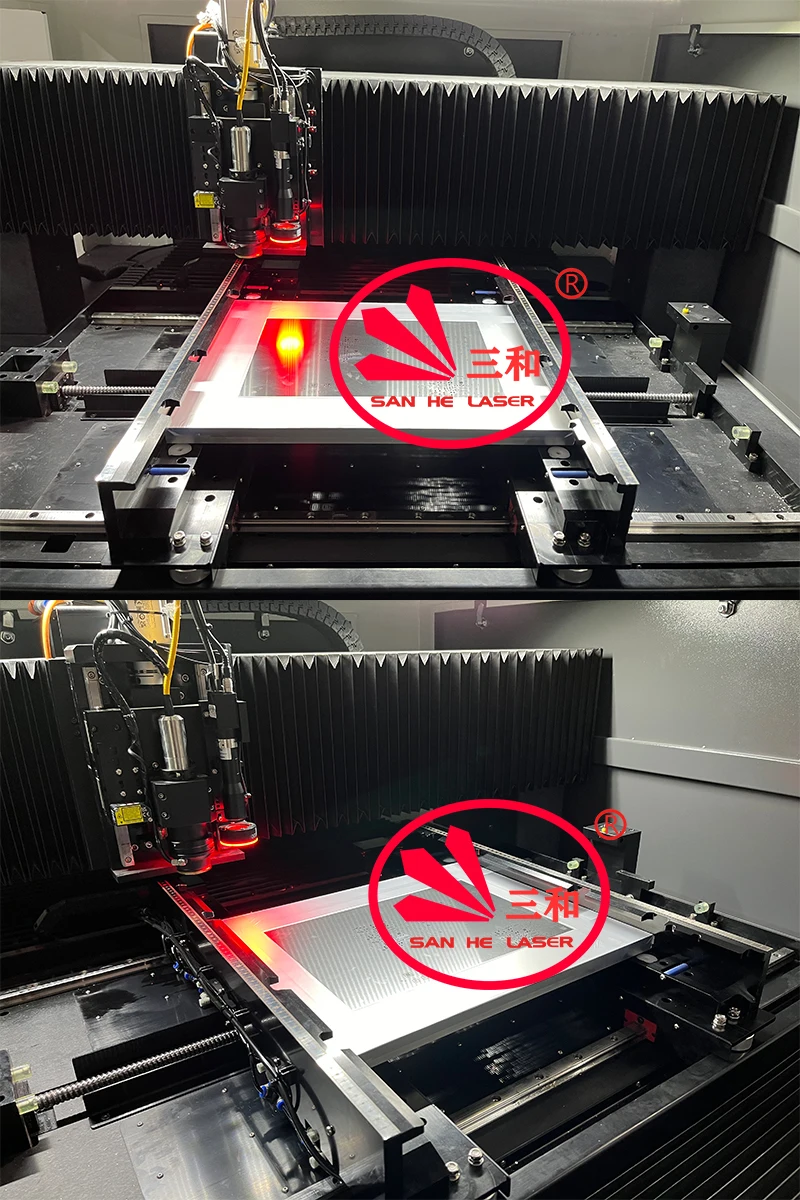

The special frame has a working area of 600 mm x 700 mm (23.6” x 27.6”),The cutting area can also be customized according to the product; easy and rapid sheet mounting by means of adhesive strips provides for minimal setup time. With the sheet mounted, the flatbed frame can be inserted into and removed from the laser system in the usual effortless way.

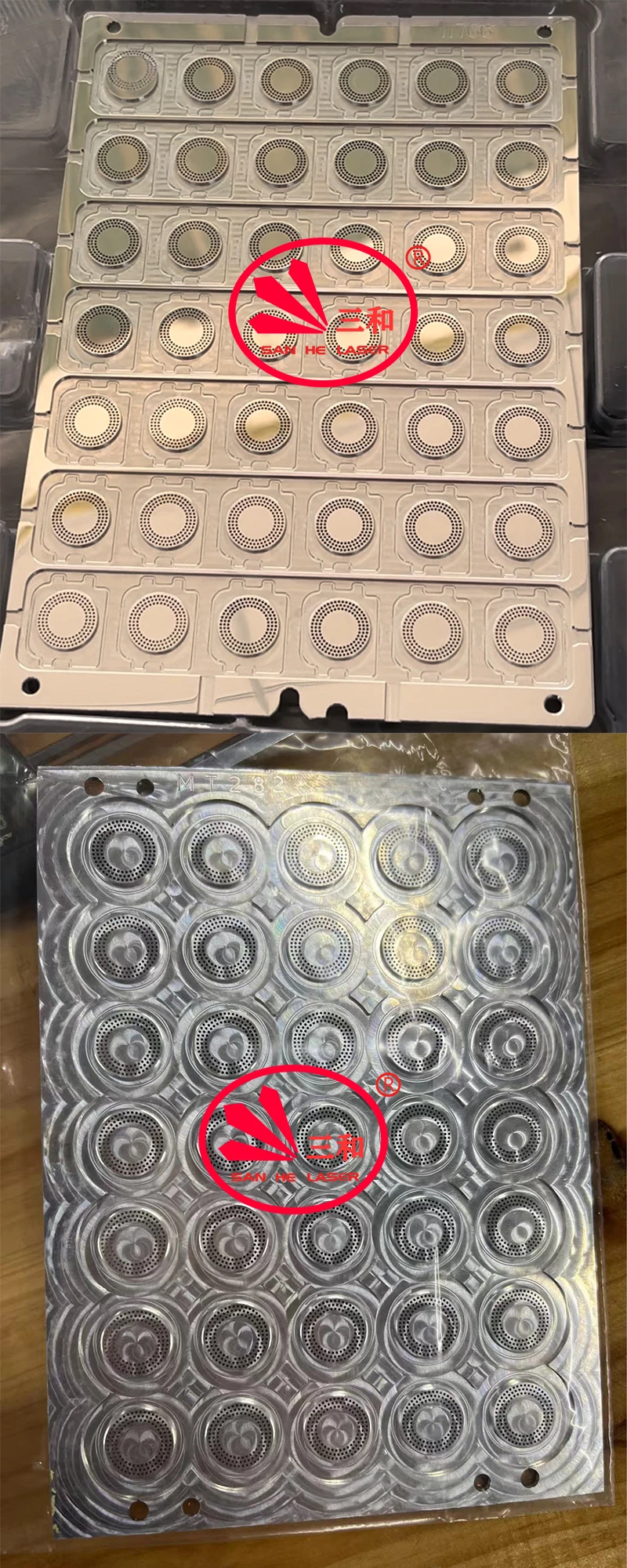

Parts cutting:Precision cutting of metal up to 4mm thick

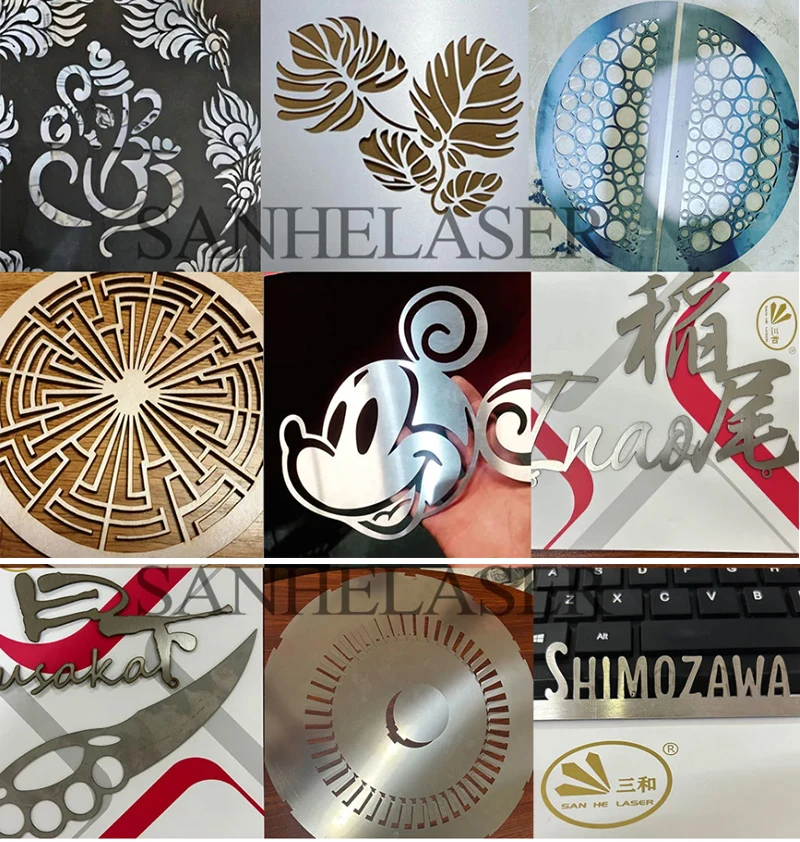

Application Materials: Fiber Laser Cutting Equipment is suitable for metal cutting like stainless steel sheet, mild steel plate, carbon steel sheet, alloy steel plate, spring steel sheet, iron plate, galvanized iron, galvanized sheet, aluminum plate, copper sheet, brass sheet, bronze plate, gold plate, silver plate, titanium plate, metal sheet, metal plate, etc.

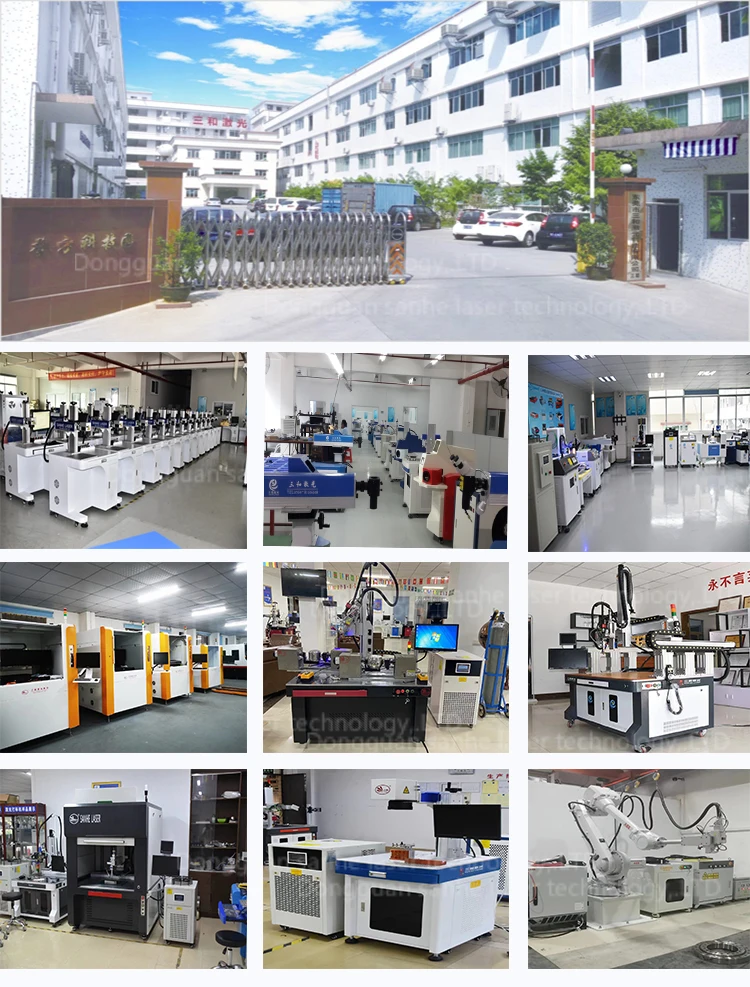

Our company has 18 years of experience in laser welding, laser marking, laser cutting, laser cleaning and laser engraving. We have the ability to independently develop, produce, supply and sell laser machines. We can provide customers with customized services, and provide an efficient and advanced laser production chain, which improves customers' production efficiency and production capacity. SanHe Laser continuously strives to improve quality, technological innovation and production improvement, and enjoys a high reputation in the international market. Our customers are all over the world, such as: Australia, Pakistan, the United States, Singapore, the Philippines, Italy, India, Brazil, Egypt..

Many customers visit our factory to learn how to use the machines. Our after-sales service manager goes to the customer's country to help debug the machine. Our machines are exported to USA, UK, Canada, Brazil, Mexico, Russia, Spain, Korea, Netherlands and other countries.

Warranty and after-sales service
1) Free Pre-Sales Consulting / Free Sample Marking
2) Strict Quality Control of Production
3) 15-30 Days Quick Delivery
4) 1 Year Quality Guarantee
5) 12 hours Quick Feedback & After-Sales Service
6) Quick Back-up Parts Available & Technical Assistance
7) Free Training Service
8) Special Designing, Customized, OEM Order is accepted
FAQ
1)Q:Are you a factory or trading company?
A: We are a factory with 18 years experience
2) Q:Where is your factory located? How can I visit there?
A: Our factory is located in Duangdong Province(Dongguan city),China.You can fly to Shenzhen /Guangzhou airport directly.All our clients,
from home or abroad, are warmly welcome to visit us!
3) Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO, CE certificate.
4) Q:Do you give any discount ?
A:I'll surely try my best to help you get those by the best price and good service at the same time.
5) Q:I would like to ask you if it's possible to have my logo on the product.
A:We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an extra service,so a little bit extra service fee is needed.
