Electric Bike Fat Tire Motor Kit 48V 1500W Rear Wheel Hub Motor 20 24 26 Inch 4.0Tire 170mm/190mm For Snow Ebike Conversion Kit
- Category: >>>
- Supplier: Nanning Bernee Machinery Technology Co. Ltd.
Share on (1601029290842):
Product Overview
Description
Product Description
Product Name | EBike Conversion Kit |
Motor characteristics:
✅[Simple installation] Easy to convert, DIY front wheel electric bicycle conversion kit, suitable for bicycles with a rear drop
size "170/190mm", easily convert your pedal bicycle to motorized bicycle within 1 hour.
✅[Complete Accessories] Equipped with all necessary accessories. Front wheel and motor, controller, display (optional), brake
lever, thumb throttle, PAS, extension cable, controller package.
✅[Not recommended] We do not recommend that you install a motor kit on a carbon fiber bicycle

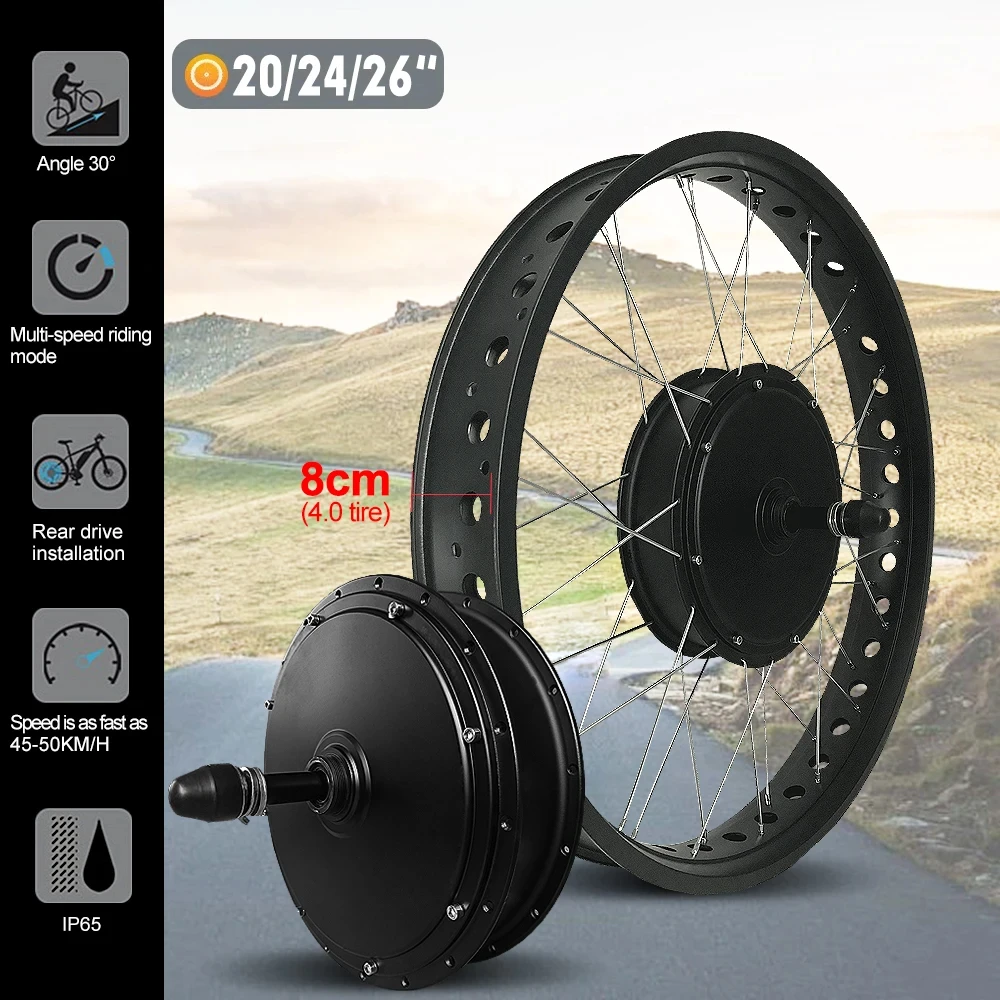

1500W Rear Rotate Hub Motor
* Construction:Gearless drive
* Rated Voltage (DCV): 48V
* Rated Power (W): 1500W
* Rated Speed(KM/H): 45-50km/h
* Rated Speed(rpm): 414-487RPM
* Torque(N.m): 71-74.6N.M
* Fork size(mm):170/190mm
* Installation: Rear
* Certification: CE
* Wheel Diameter (Inch): 20/24/26inch---Optional

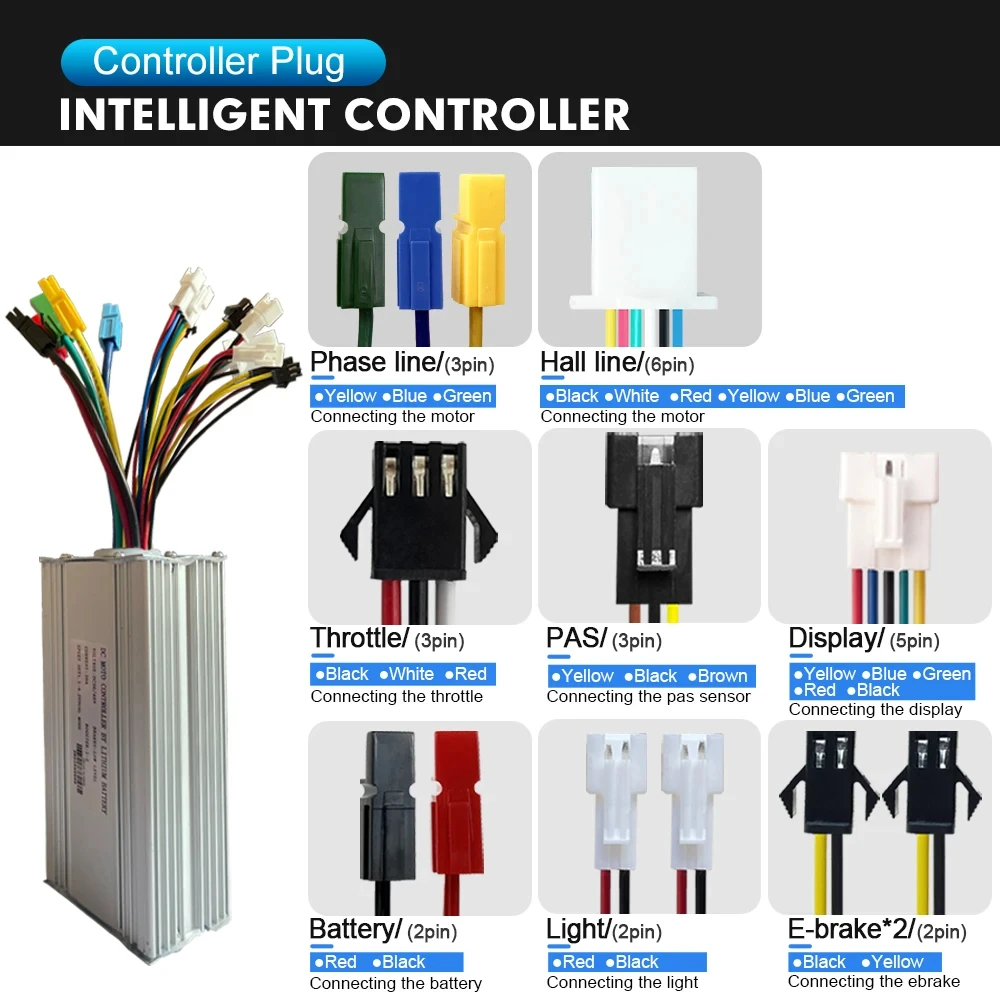

Controller detail:
* Maximum current: 35±1A
* Dimension: 170*88*42 mm
* Mosfets: 12 mosfets
* Weight: 537g
* Rated current: 17A
* Rated voltage: DC36/48V
* Speed set: 1-4.2V
* Brake input: Low-Level

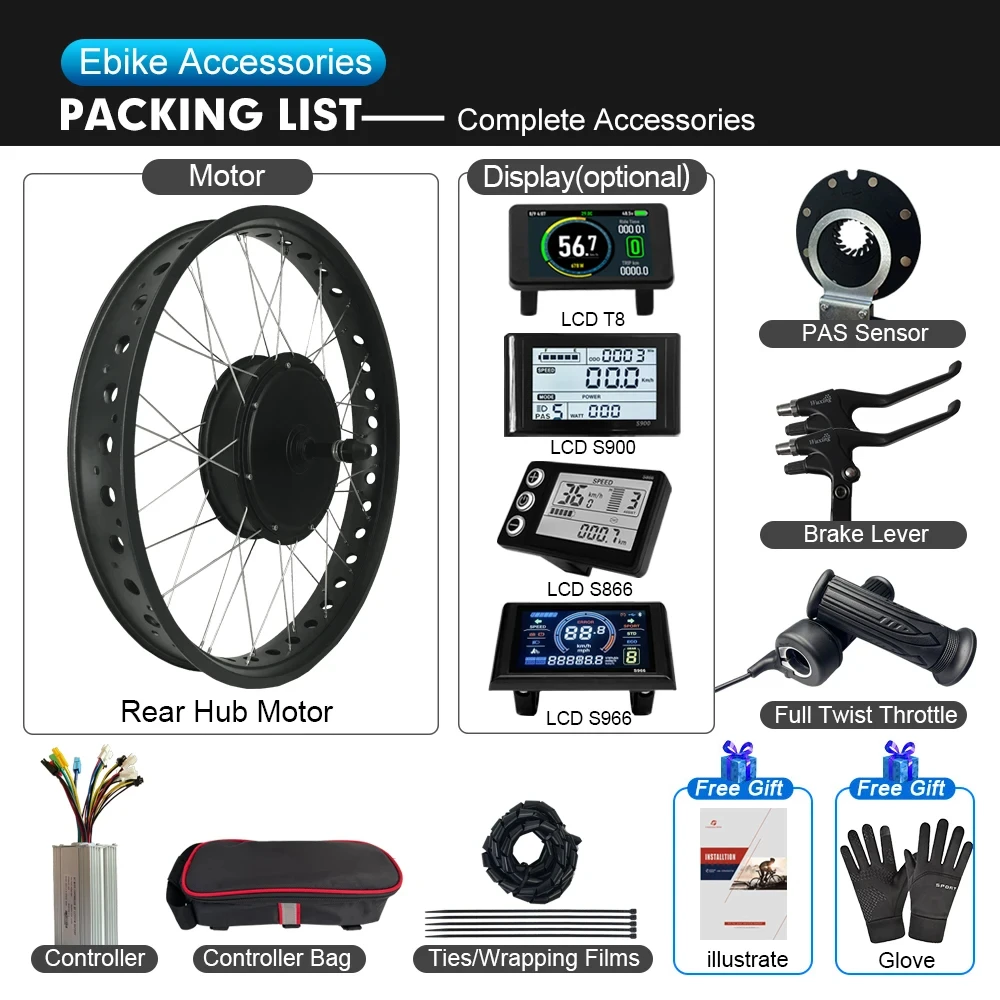

Packaging List
* 1 PCS * 1500W Rear Hub Motor with Rim and Spokes
* 1 PCS * Motor Controller

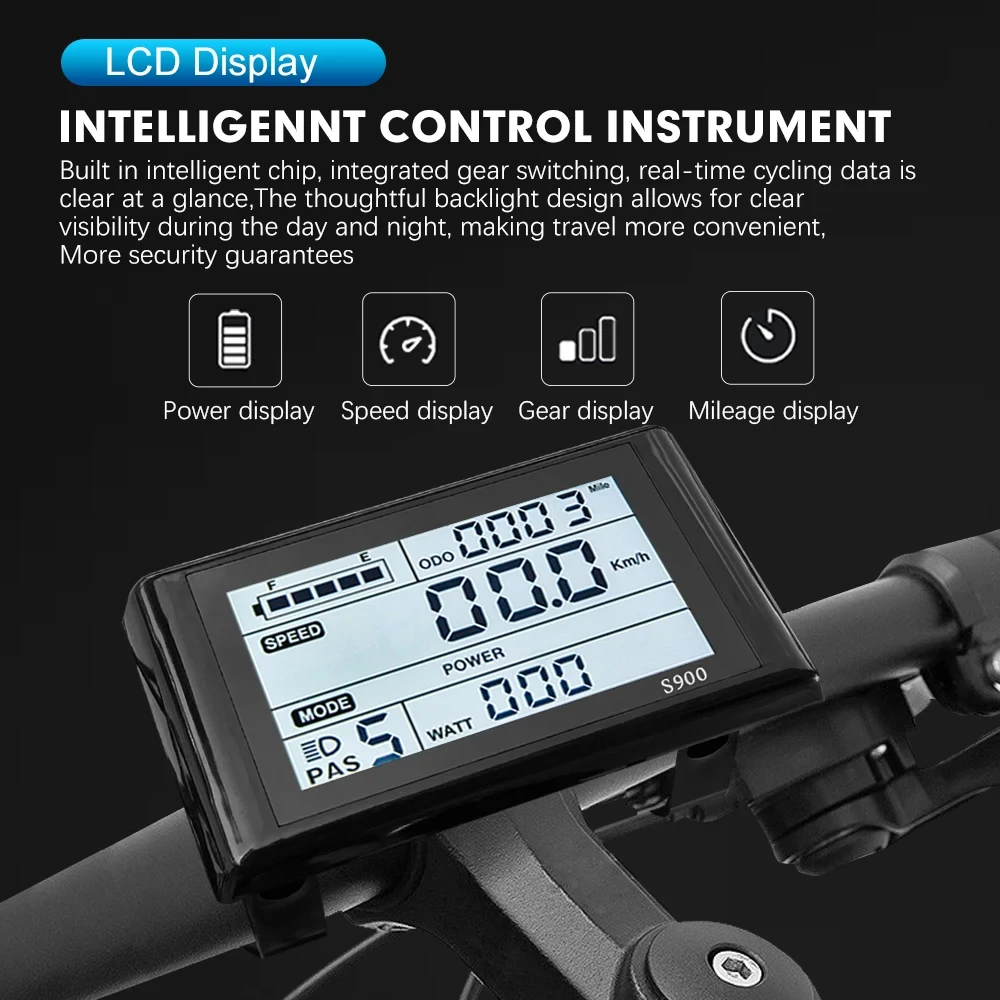

* 1 PCS * Display(option)
* 1 PCS * Twist Throttle (We default to ship thumb throttle, it can be changed to twist throttle if you need)
* 1 PCS * PAS Sensor
* 1 Pair * Brake Levers(We default to shipBrake Levers, it can be changed to Brake Sensors if you need)
Gifts: 1 * Controller Bag( not battery) +1*Install cable ties and stretch film+1*Installation Manual
✅[Simple installation] Easy to convert, DIY front wheel electric bicycle conversion kit, suitable for bicycles with a rear drop
size "170/190mm", easily convert your pedal bicycle to motorized bicycle within 1 hour.
✅[Complete Accessories] Equipped with all necessary accessories. Front wheel and motor, controller, display (optional), brake
lever, thumb throttle, PAS, extension cable, controller package.
✅[Not recommended] We do not recommend that you install a motor kit on a carbon fiber bicycle
1500W Rear Rotate Hub Motor
* Construction:Gearless drive
* Rated Voltage (DCV): 48V
* Rated Power (W): 1500W
* Rated Speed(KM/H): 45-50km/h
* Rated Speed(rpm): 414-487RPM
* Torque(N.m): 71-74.6N.M
* Fork size(mm):170/190mm
* Installation: Rear
* Certification: CE
* Wheel Diameter (Inch): 20/24/26inch---Optional
Controller detail:
* Maximum current: 35±1A
* Dimension: 170*88*42 mm
* Mosfets: 12 mosfets
* Weight: 537g
* Rated current: 17A
* Rated voltage: DC36/48V
* Speed set: 1-4.2V
* Brake input: Low-Level
Packaging List
* 1 PCS * 1500W Rear Hub Motor with Rim and Spokes
* 1 PCS * Motor Controller
* 1 PCS * Display(option)
* 1 PCS * Twist Throttle (We default to ship thumb throttle, it can be changed to twist throttle if you need)
* 1 PCS * PAS Sensor
* 1 Pair * Brake Levers(We default to shipBrake Levers, it can be changed to Brake Sensors if you need)
Gifts: 1 * Controller Bag( not battery) +1*Install cable ties and stretch film+1*Installation Manual
