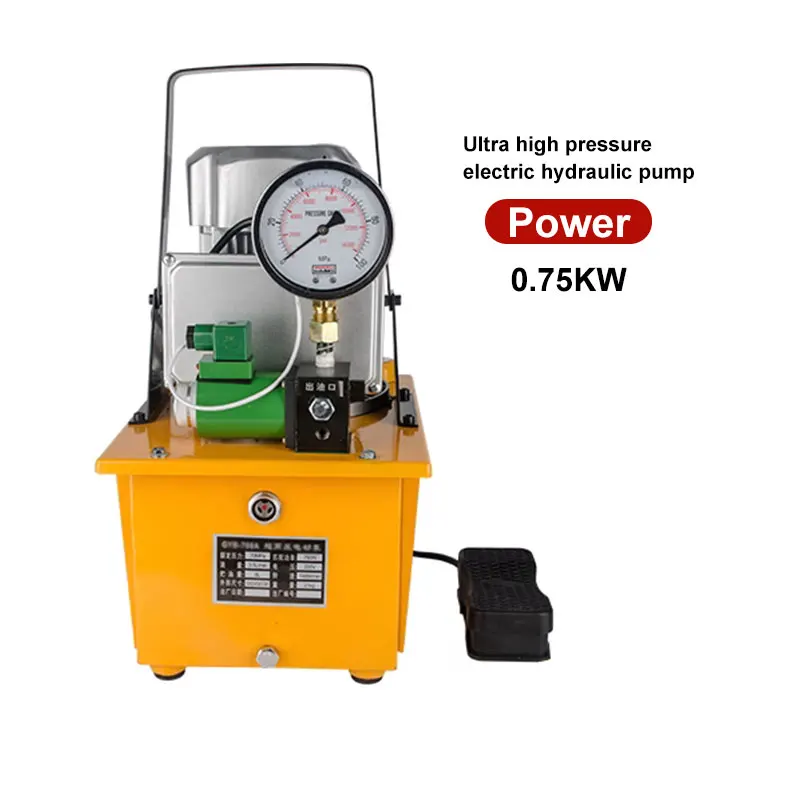

HHB 700A High Pressure Hydraulic Pump Electric Oil Pump 700 Bar Portable Oil Pump
- Category: >>>
- Supplier: Jinan Deshang CNC Equipment Co. Ltd.
Share on (1601029319717):
Product Overview
Description
Product Description

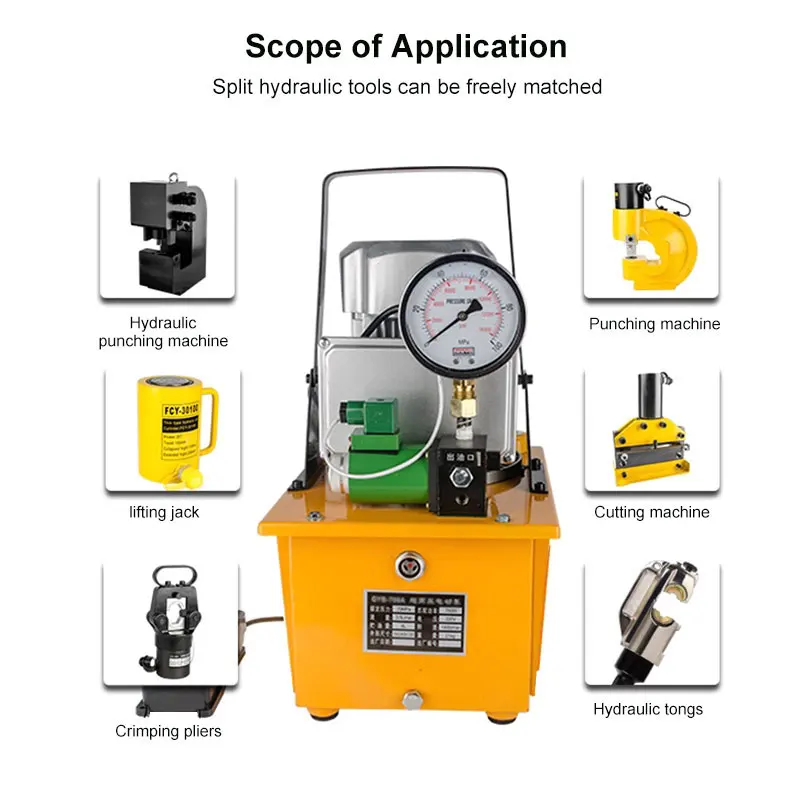

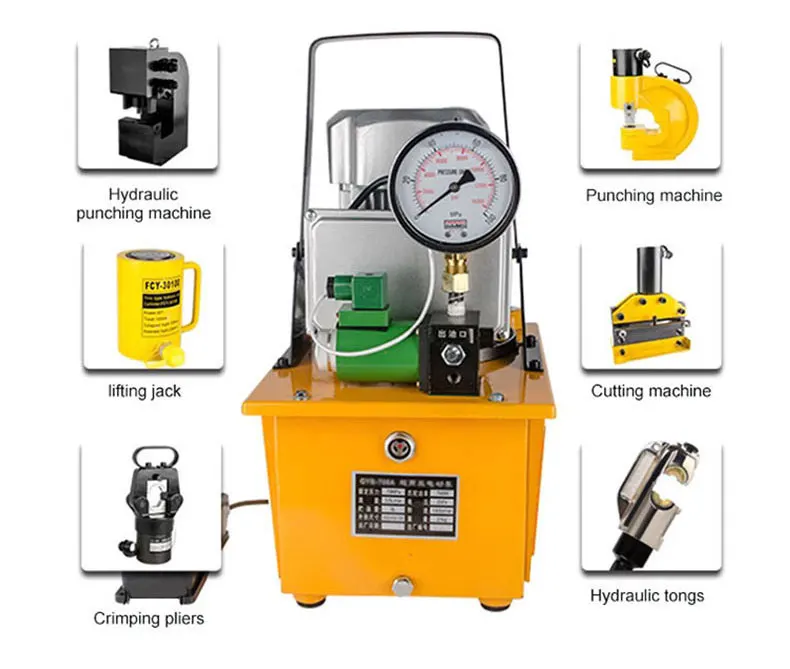

Product applicability
Single loop electromagnetic valveElectric Powered Hydraulic Driven PumpsEasy to operate and widely us,Hydraulic pump can be equipped with thefollowing split type hydraulic tools.

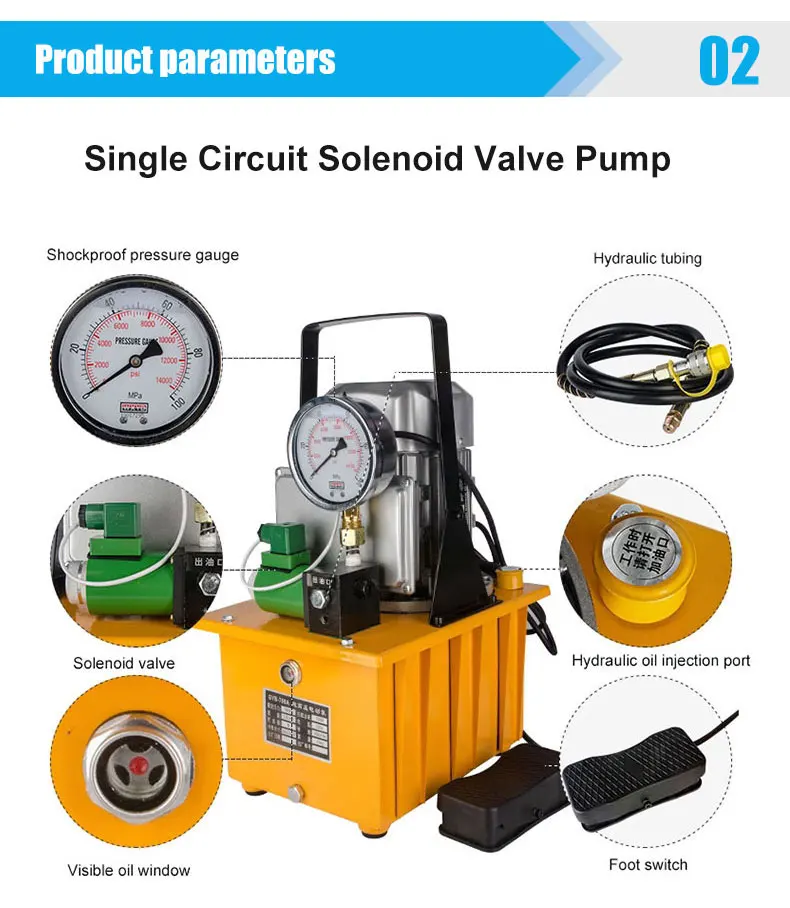

Technical Parameters
Product name | Portable electric pump（HHB-700A） | Rotate Speed | 1400r/min | ||
High Pressure | 70Mpa | Capacity of Oil | 7L ( Can be customized) | ||
High Pressure Flow | 0.9L/min | product type | Single circuit type | ||
Low Pressure | 7Mpa | Net Weight | 25kg | ||
Low Pressure Flow | 5L/min | Gross Weigh | 30kg（(including packaging)） | ||
Motor Power | 750W | Frequency | 50HZ | ||
voltage | 220V | package | Wooden case | ||
Oil storage capacity | 7L (can increase the fuel tank, use 15 # hydraulic oil for the oil pump, and the thinner the oil below 15 #, the better) | ||||
oil types | Oil that can be directly added: Great Wall, Mobil, 32-15 anti-wear hydraulic oil, 7-15 hydraulic transmission oil. Oil that can be directly added: 46 hydraulic oil needs to be blended with one-third of diesel (or added with automotive brake oil) | ||||
Product features | 1.Suitable for split hydraulic clamp, punching, bending, cutting tools, jacks and other split hydraulic products； 2.The pressure is set to 70Mpa when leaving the factory, and the upper pressure limit can be adjusted according to customer requirements, with an adjustable range of 20-70Mpa; | ||||

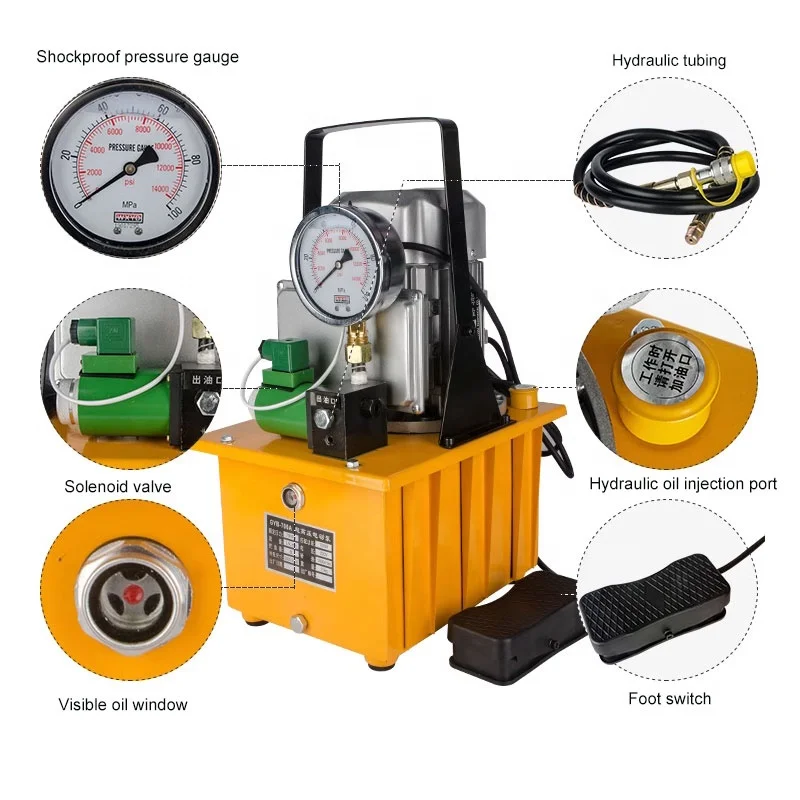

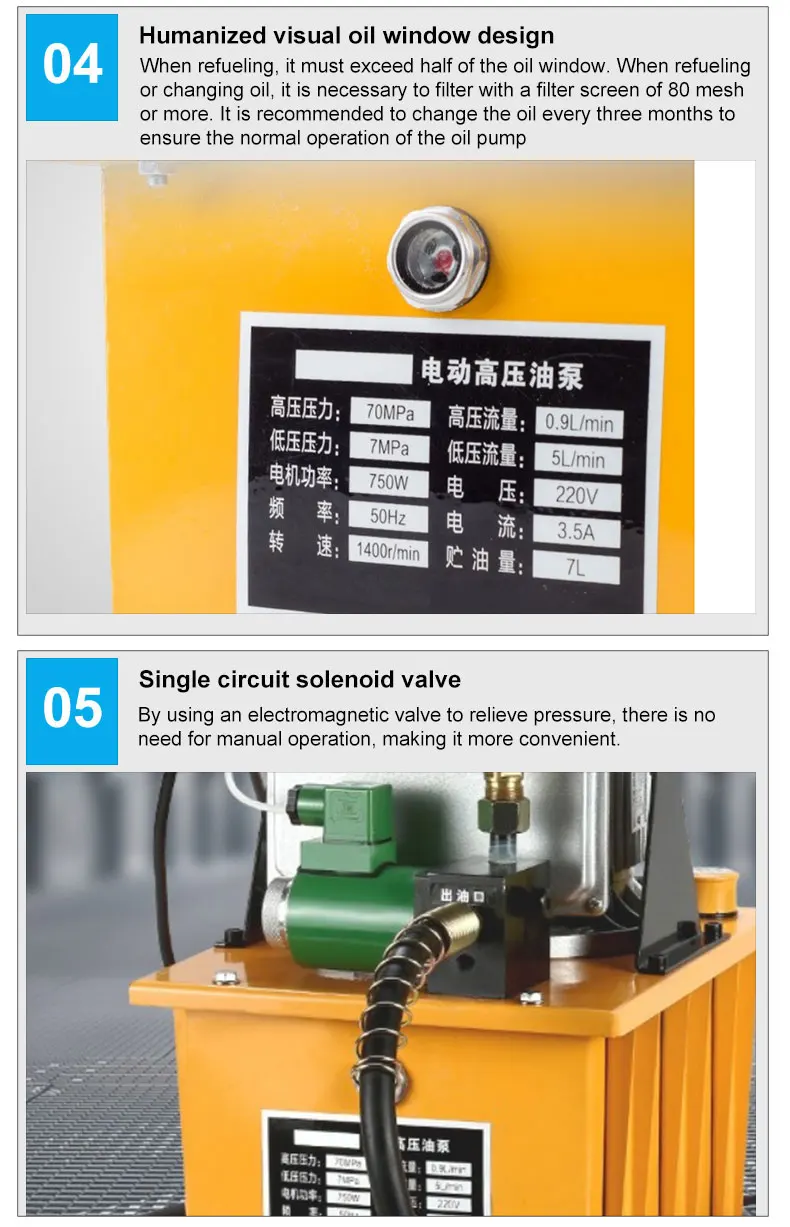

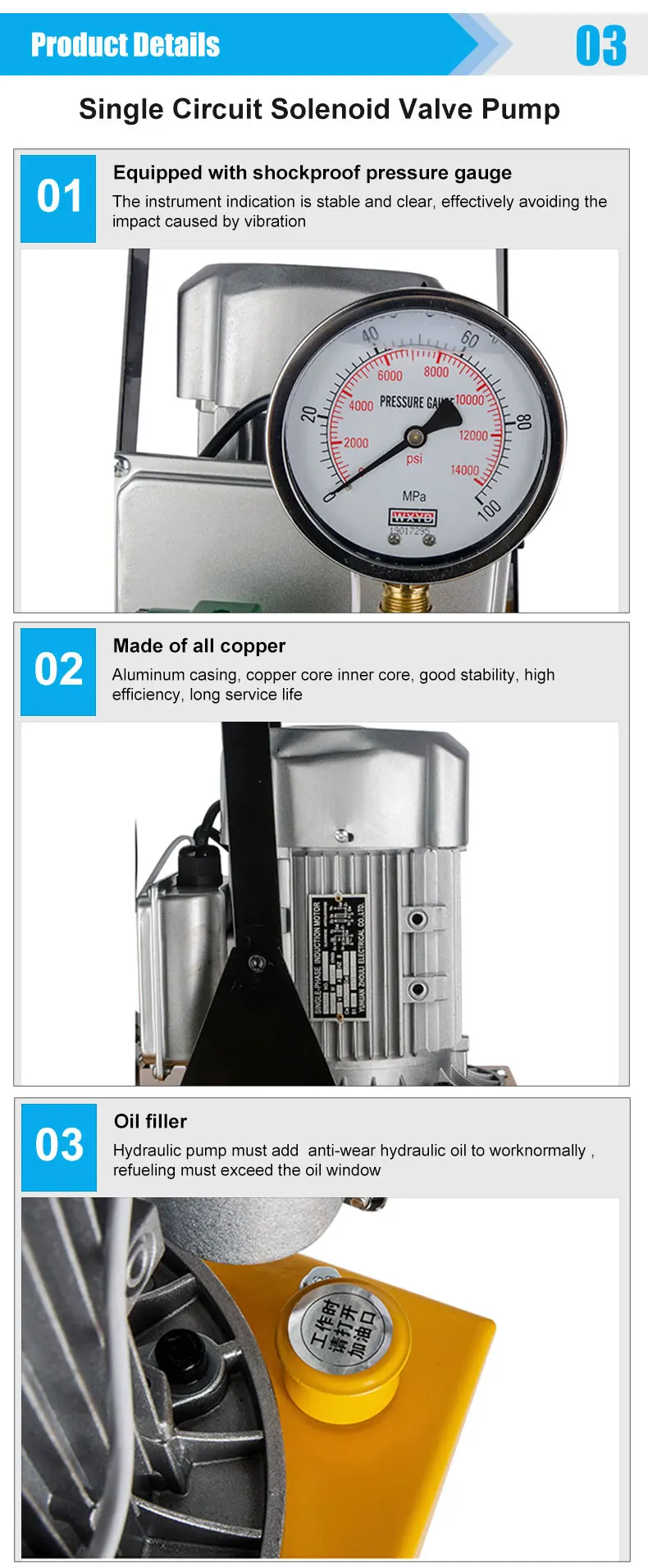

Product Details

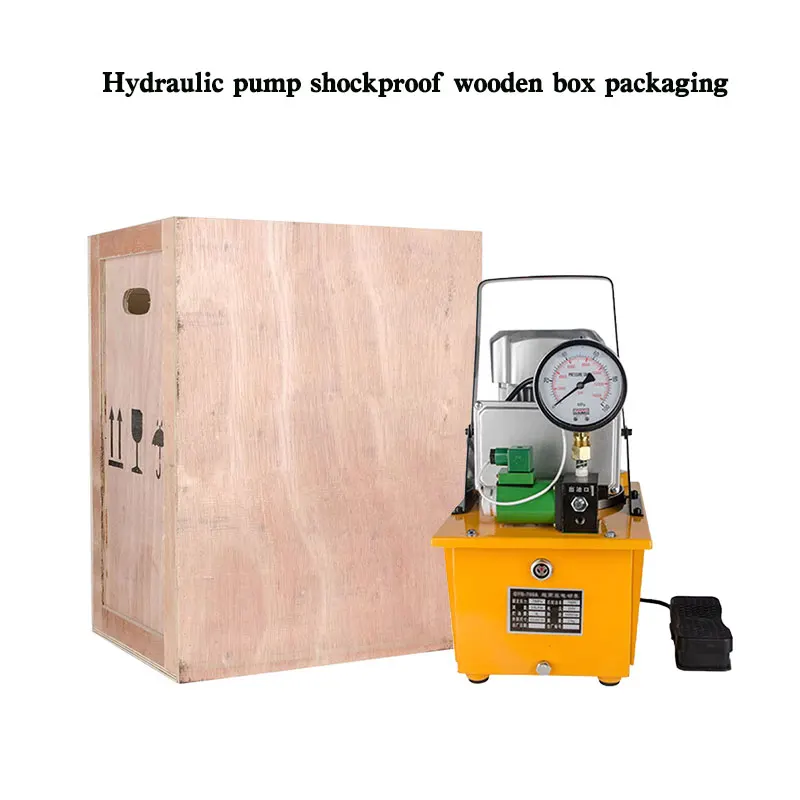

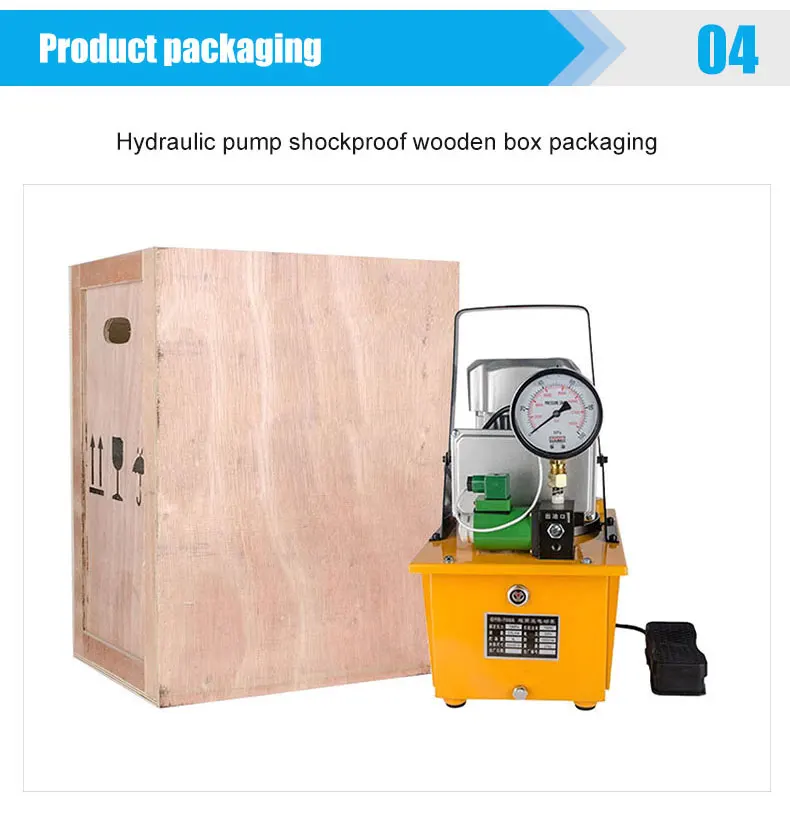

Product packaging
Company Profile
The company currently has 92 employees, including 23 professional and technical personnel with intermediate and senior technical qualifications, and 54% of employees have a university degree or above. Dechang CNC equipment includes CNC bus bar processing machine, CNC bus bar punching and shearing machine, CNC bus bar Press brake, standard copper bar processing machine, economic copper bar processing machine, bus bar leveling machine, CNC copper aluminum bar processing machine, bus bar machine, copper bar machine, etc. The products are widely used in high and low voltage complete sets, switchgear, box type substation, transformer, Bus duct, communication equipment, air conditioning and refrigeration, sheet metal, chassis and cabinet and other industries. We can also design and customize according to different customer processing ranges and color requirements.
Company Certificate
The company integrates R&D, production, sales and service. It has successively obtained many certificates such as service and credit unit, integrity management demonstration unit, quality and credit unit, CE certification and ISO9001 certification, and has obtained appearance patents and utility model patents.
FAQ
1.What is your payment terms?
40% T/T deposit, 60% balance be paid before loading after good ready.
2. What is your delivery time?
Within 5working days after your deposit.
3. What is your power supply?
We could customized it according to your countries power supply.
4. What is your Min order quantity?
One set.
5. Are all the labels and instuctions of the machine in English?
Yes. The labels on the machine and the manual books are Write in English .
6. What other busbar processing related machines do we provide?
We provide you with multiple options: Busbar winding machine, busbar chamfering machine, copper plate leveling machine, portable busbar processing machine,busbar cutting tools, busbar bending tools, busbar punching tools,hydraulic pump, hand pump, etc.
2. What is your delivery time?
Within 5working days after your deposit.
3. What is your power supply?
We could customized it according to your countries power supply.
4. What is your Min order quantity?
One set.
5. Are all the labels and instuctions of the machine in English?
Yes. The labels on the machine and the manual books are Write in English .
6. What other busbar processing related machines do we provide?
We provide you with multiple options: Busbar winding machine, busbar chamfering machine, copper plate leveling machine, portable busbar processing machine,busbar cutting tools, busbar bending tools, busbar punching tools,hydraulic pump, hand pump, etc.
