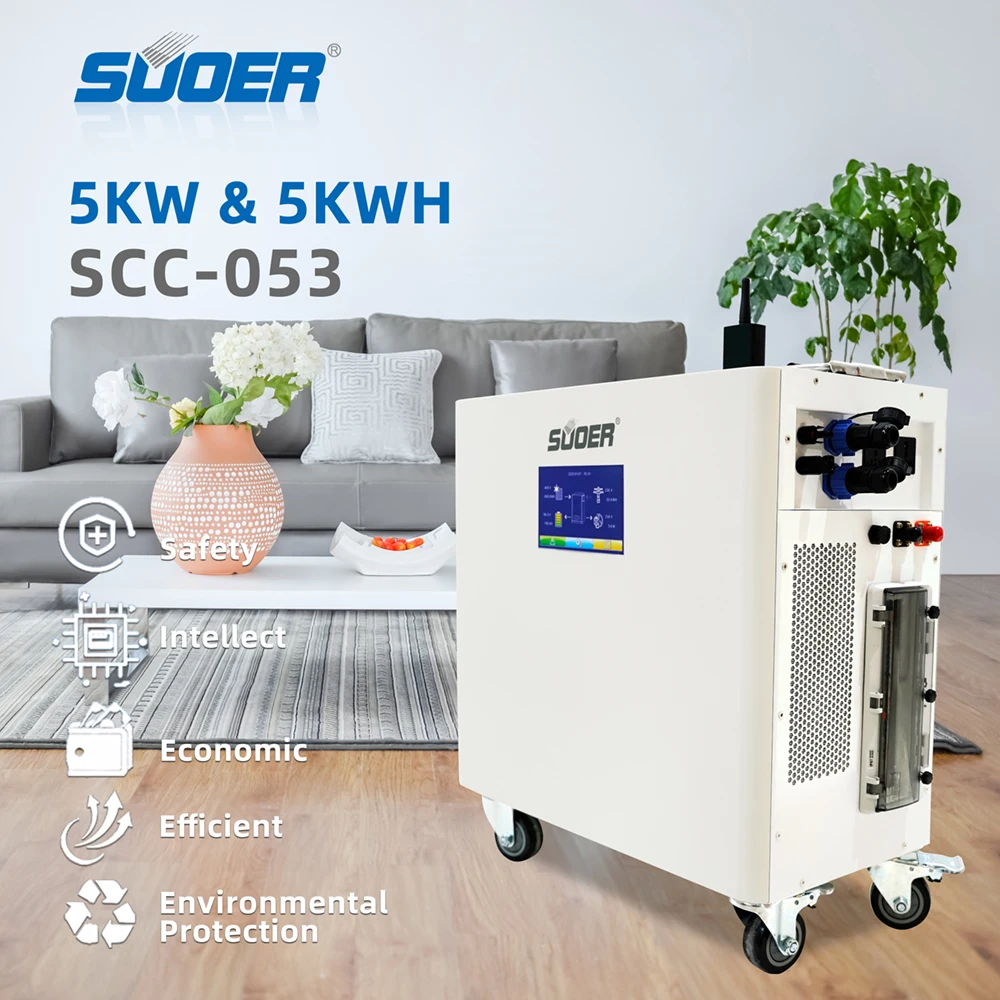

SUOER 5KW Solar Energy Storage Systems Lithium Batteries Home Energy Storage Systems Energy
- Category: >>>
- Supplier: Foshan Suoer Electronic Industry Co. Ltd.Foshan Ltd.
Share on (1601029360917):
Product Overview
Description
Product Description
Specification
System model | SCC-053 | ||||
Number of batteries | 1 | 2 | 3 | ||
Battery Energy | 5KWH | 10KWH | 15KWH | ||
Battery Capacity | 100AH | 200AH | 300AH | ||
Weight | 81KG | 149KG | 190KG | ||

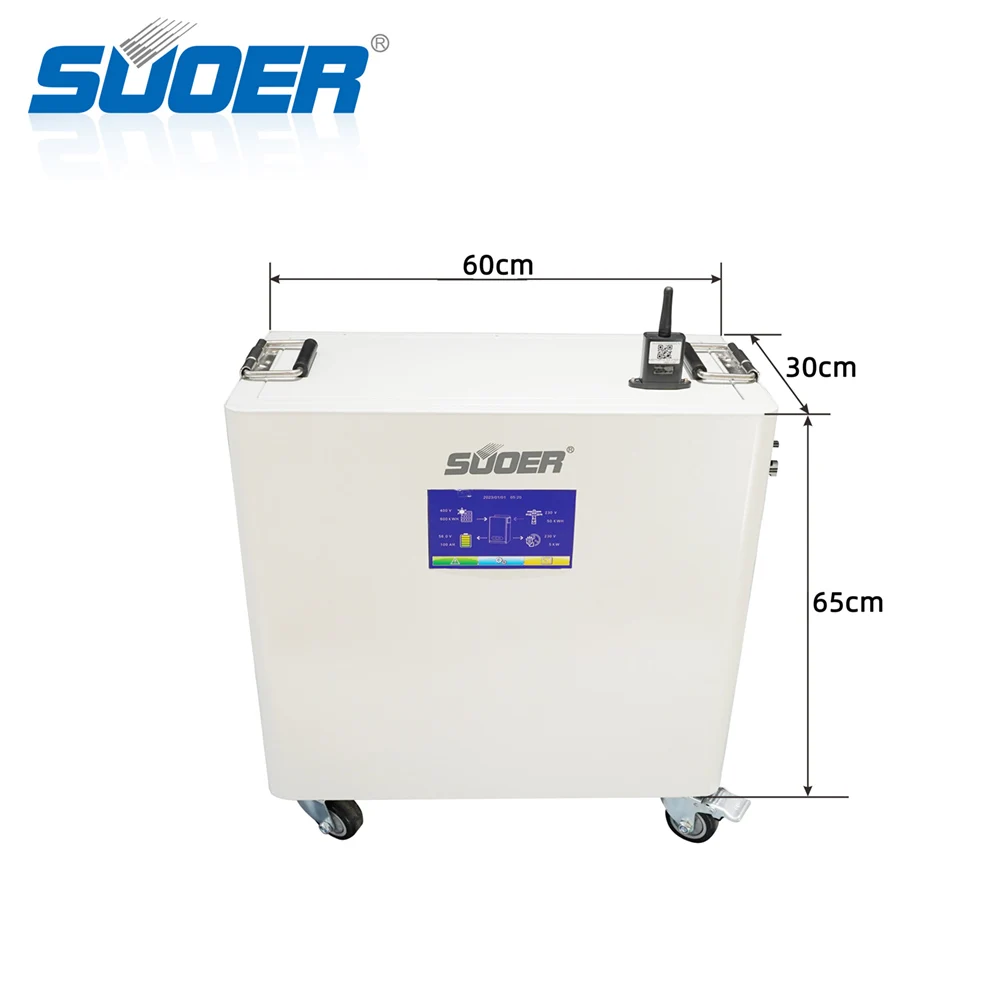

Dimension (LxDxH) | 650*600*300MM | (650*600*300MM)*2 | (650*600*300MM)*2 | ||
Battery Type | LiFePO4 | ||||
Battery Rated Voltage | 51.2V | ||||
Battery Working Voltage Range | 42-58Vdc | ||||
Maximum Charging Current | 80A | ||||
Maximum Discharging Current | 100A | ||||
Designed Life-span | 6000 | ||||
Solar Charge Type | MPPT | ||||
Maximum Output Power | 5000 | ||||
PV Charging Current Range | 0~80A | ||||
PV Operating Voltage Range | 120~450V | ||||
MPPT Voltage Range | 120-450V | 240-480V | 120-240V | ||
Maximum Charge Power | 4000w | ||||
AC Charging Current Range | 60A | ||||
Rated Input Voltage | 220/230Vac | ||||
Input Voltage Range | 90~280Vac | ||||
Rated Output Power | 5000w | ||||
Maximum Output Current | 30A | ||||
Overload Current | 63A | ||||
Maximum Peak Power | 10000w | ||||
● Photovoltaic, mains, battery complementary power supply, maximum power 5KW, leading the world's power density level

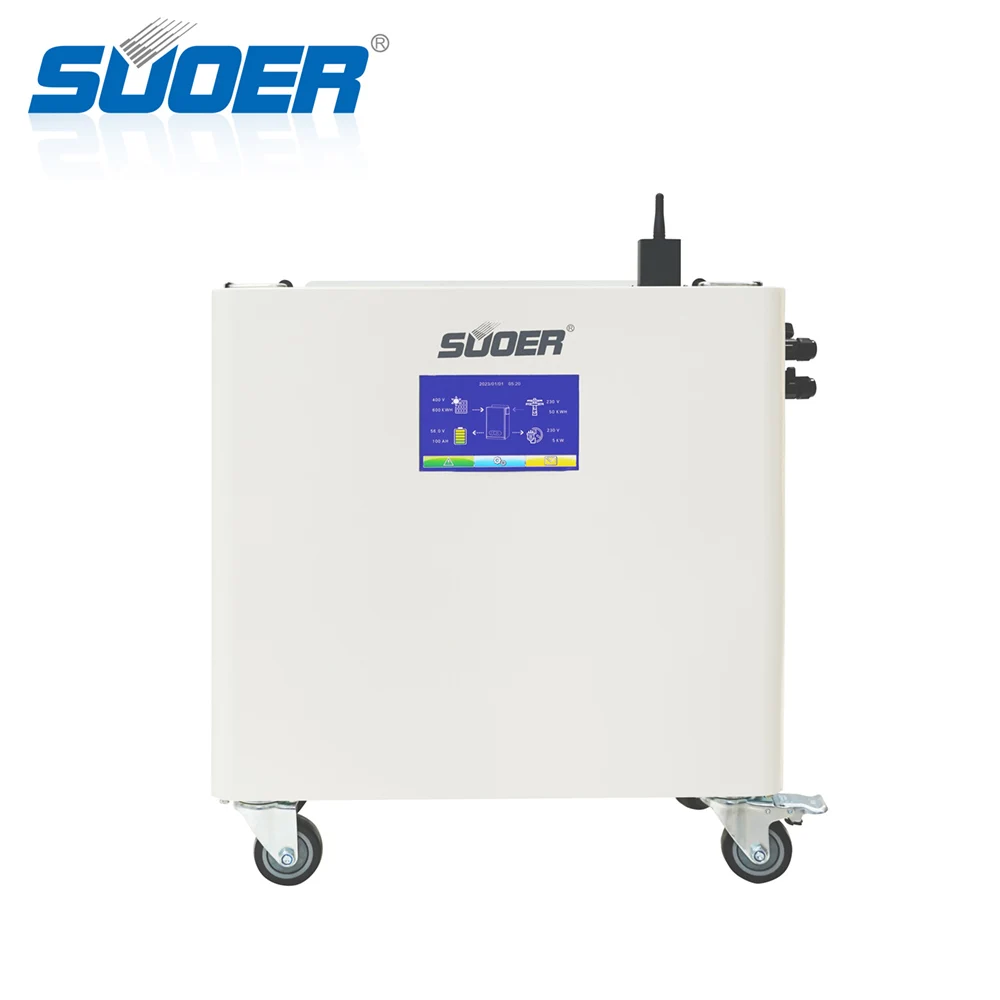

● Independent of the inverter monitoring unit, using 7 inch color touch screen, world leading

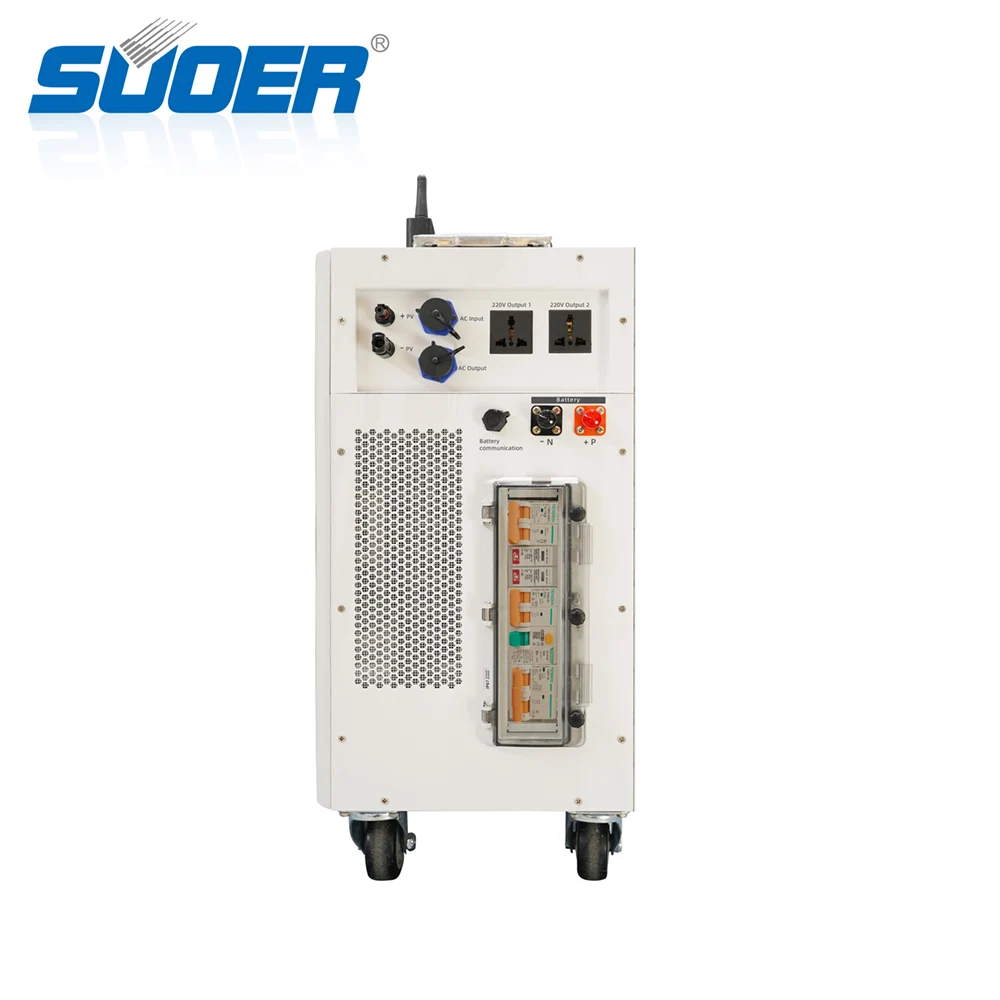

● Built-in AC/DC distribution protection switch, photovoltaic lightning protection, inverter output leakage protection
● 5 minutes to complete the installation and wiring of the Converged cabinet; Replace the inverter and battery module in 1 minute. 3 minutes Install and connect cables to the battery cabinet
● Provide cloud platform web pages and mobile apps that can log in and view system data worldwide

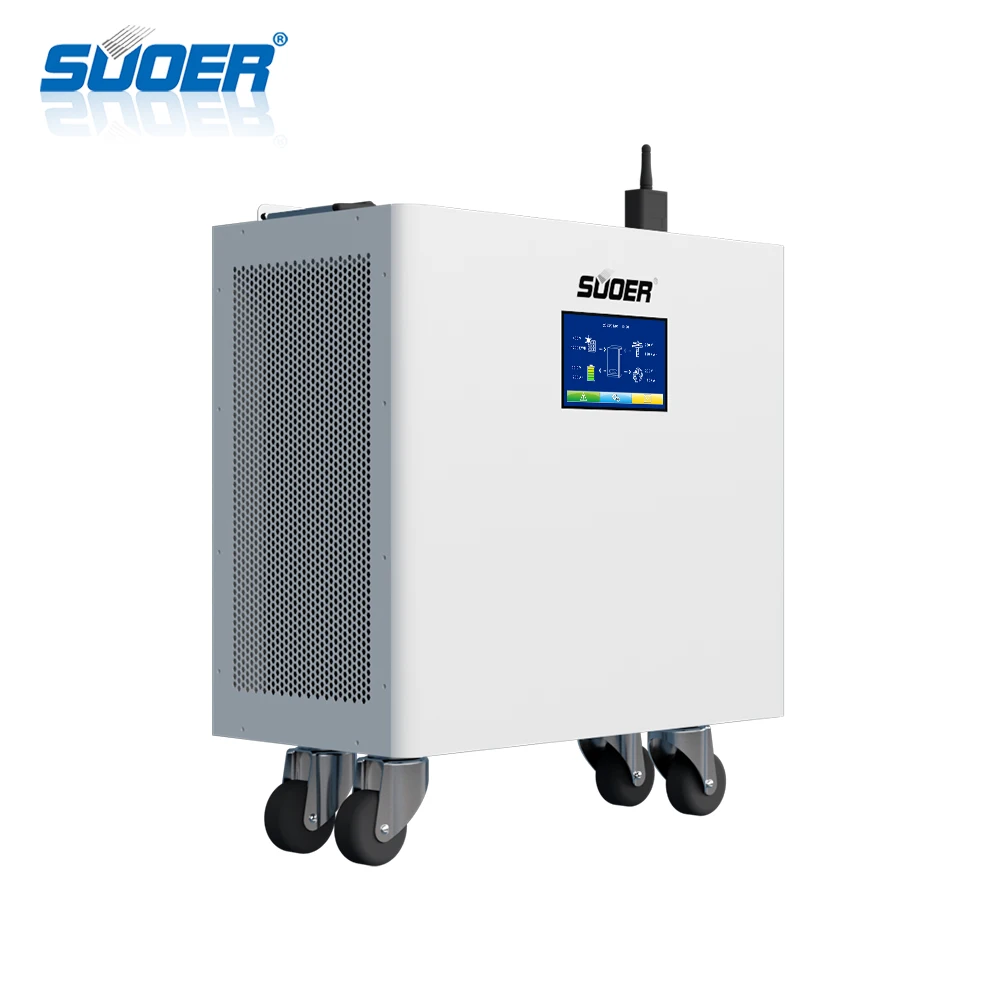

● With pulley, can be freely moved and placed; Optional wall hanging
● Independent of the inverter monitoring unit, using 7 inch color touch screen, world leading
● Built-in AC/DC distribution protection switch, photovoltaic lightning protection, inverter output leakage protection
● 5 minutes to complete the installation and wiring of the Converged cabinet; Replace the inverter and battery module in 1 minute. 3 minutes Install and connect cables to the battery cabinet
● Provide cloud platform web pages and mobile apps that can log in and view system data worldwide
● With pulley, can be freely moved and placed; Optional wall hanging
Recommend Products
Company Profile

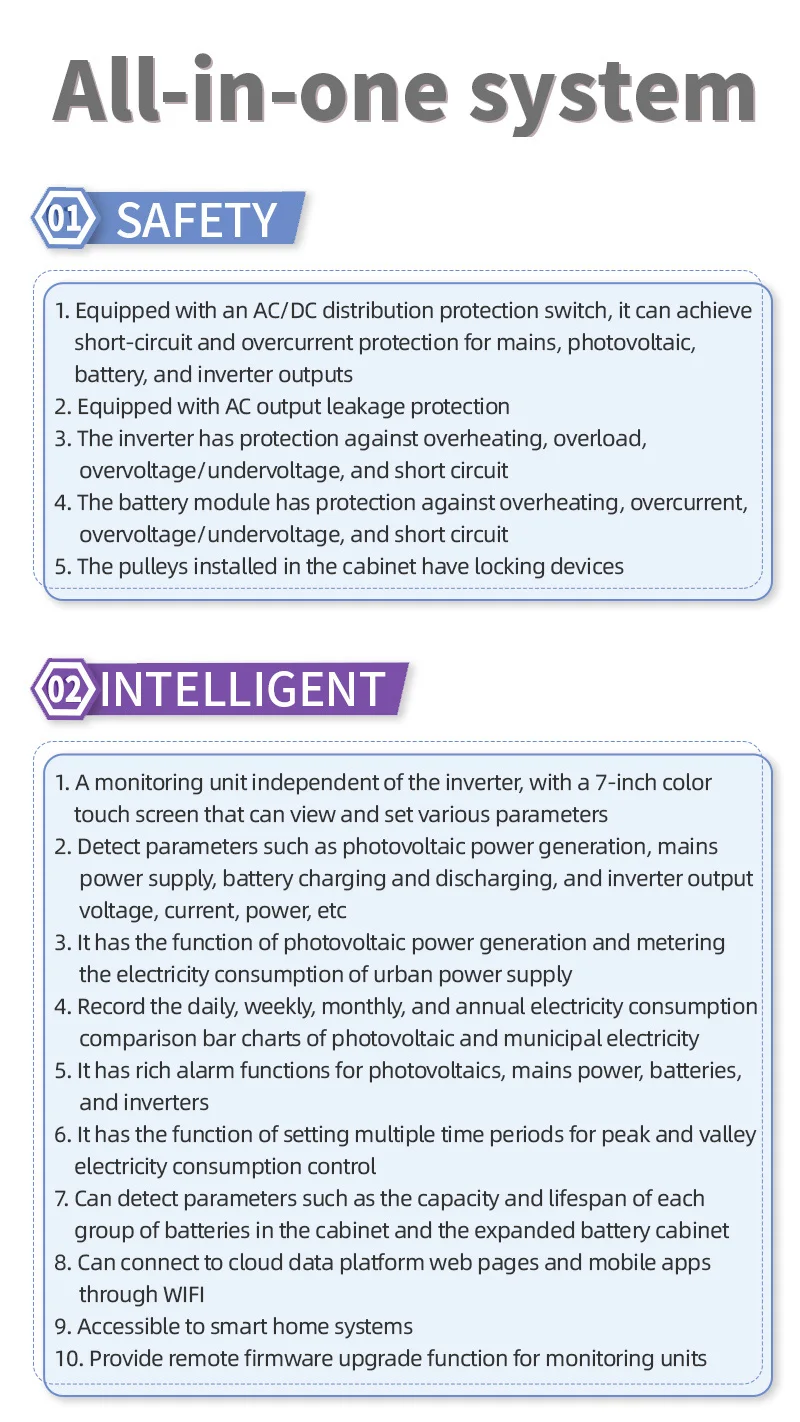

secure | ● Built-in AC/DC distribution protection switch, which can realize short circuit and overcurrent protection of mains, photovoltaic, battery and inverter output ● With photovoltaic lightning protection and AC output leakage protection ● Inverterequipped with over temperature, overload, over/under voltage and short circuit protection ● The battery module has over temperature, over current, over/under voltage and short circuit protection ● The cabinet has a mounting plate, which can be fixed on the wall and will not tip over ● Comply with EU LVD and EMC directives |
Brain power | ● Independent of the inverter monitoring unit, with a 7-inch color touch screen, you can view and set the parameters ● Detection of photovoltaic power generation, mains power supply, battery charging and discharging and inverter output voltage, current, power and other parameters ● With photovoltaic power generation, mains power supply metering function ● Record the daily, weekly, monthly and annual power comparison bar chart of photovoltaic and mains ● With a wealth of photovoltaic, mains, battery and inverter alarm functions ● It has the function of setting multi-time peak and valley power control ● Can detect the battery capacity and life of each group in the cabinet and the expanded battery cabinet ● Can connect to the cloud data platform web page and mobile App through WIFI ● Can access smart home system ● Provide monitoring unit firmware remote upgrade function |

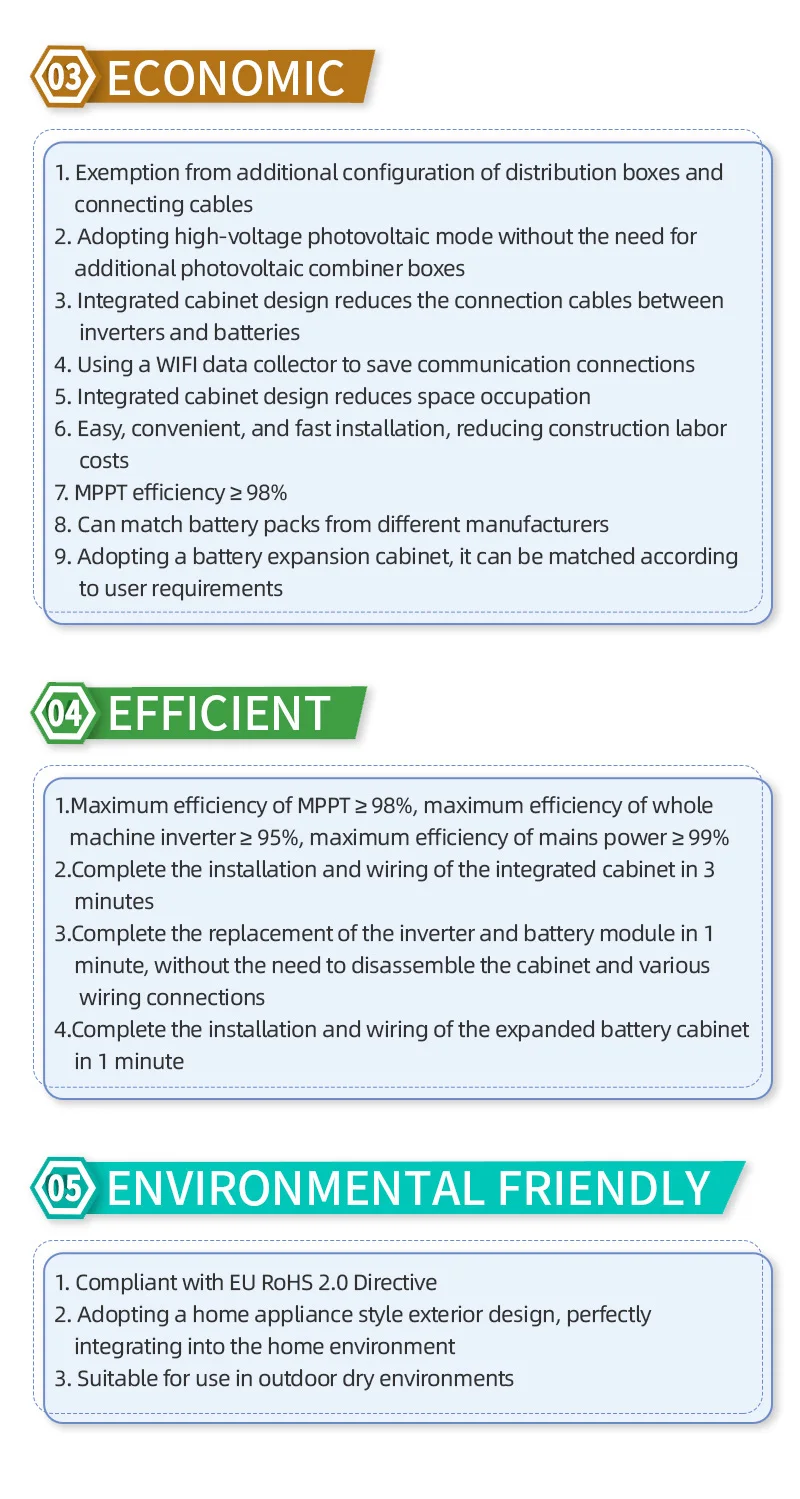

economy | ● No additional distribution boxes and connection cables ● High voltage photovoltaic mode, no additional configuration of photovoltaic junction box ● Integrated cabinet design to reduce the connection cable between the inverter and the battery ● WIFI data collector is used to save communication connection ● Integrated cabinet design to reduce space occupation ● Easy to install,reduce construction labor costs ● MPPT efficiency ≥98% ● Can match different manufacturers of battery packs ● Modular combination cabinet and battery expansion cabinet can be matched according to user requirements |
efficient | ● MPPT maximum efficiency ≥98%, inverter maximum efficiency ≥95%, mains maximum efficiency ≥99% ● Install and connect cables to the Converged cabinet in 10 minutes ● Replace the inverter and battery module in 1 minute without disassembling cabinets and connecting cables ● Install and connect cables to the battery cabinet in 10 minutes |
Environmental protection | ● Comply with the EU RoHS 2.0 directive ● Appliance design, perfect integration into the home environment |
FAQ
1. who are we?
We are based in Guangdong, China, start from 2005,sell to Southeast Asia(40.00%),Mid East(30.00%),Africa(15.00%),South
America(5.00%),Eastern Asia(5.00%),South Asia(5.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Energy Storage System,Solar Energy System,Solar Pump Inverter,Solar Power Inverter,Battery Charger,Solar Controller,Grid Tie Inverter
4. why should you buy from us not from other suppliers?
1.26 years experience in home power supply industry; 2.10 Professional Sales Teams; 3.Specialization enhances quality; 4.Products has passed CAT,CE,RoHS,ISO9001:2000 Quality System Certificate.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；Accepted Payment Currency:USD,HKD,CNY;Accepted Payment Type: T/T,Cash; Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2005,sell to Southeast Asia(40.00%),Mid East(30.00%),Africa(15.00%),South
America(5.00%),Eastern Asia(5.00%),South Asia(5.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Energy Storage System,Solar Energy System,Solar Pump Inverter,Solar Power Inverter,Battery Charger,Solar Controller,Grid Tie Inverter
4. why should you buy from us not from other suppliers?
1.26 years experience in home power supply industry; 2.10 Professional Sales Teams; 3.Specialization enhances quality; 4.Products has passed CAT,CE,RoHS,ISO9001:2000 Quality System Certificate.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；Accepted Payment Currency:USD,HKD,CNY;Accepted Payment Type: T/T,Cash; Language Spoken:English,Chinese
