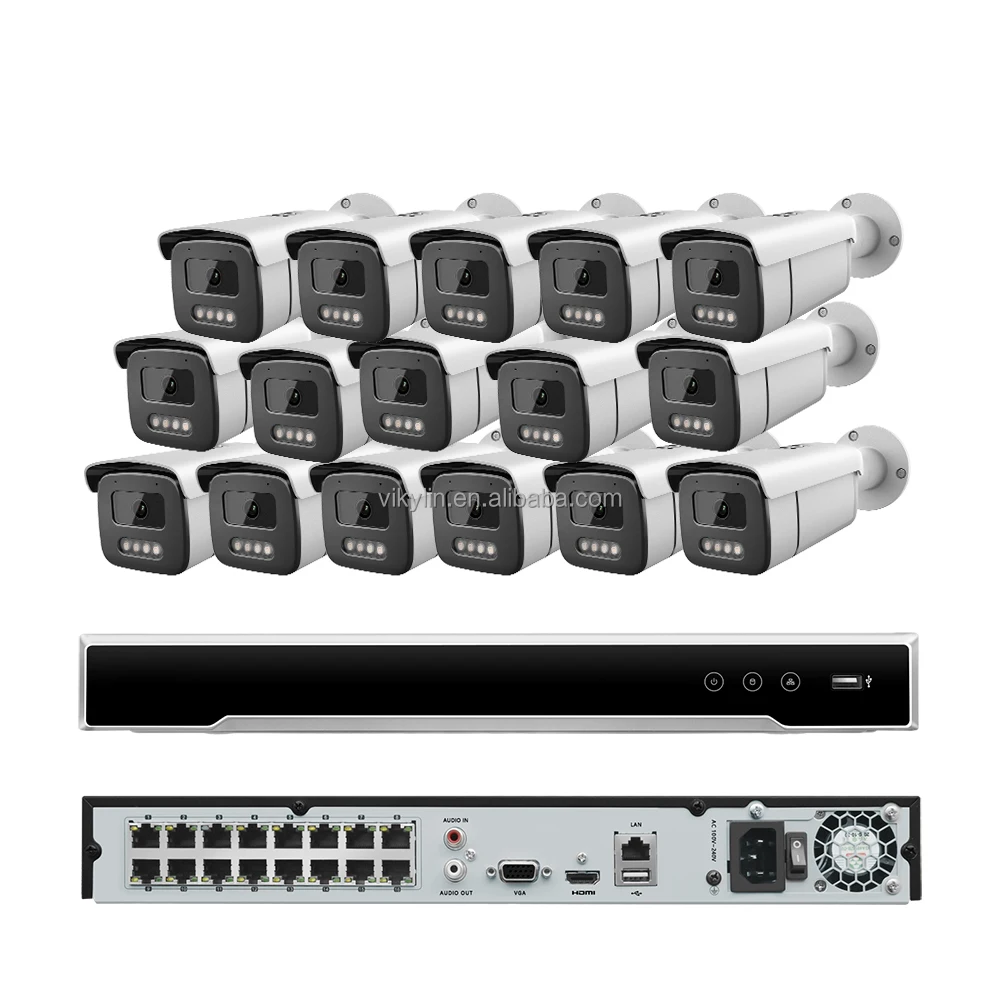

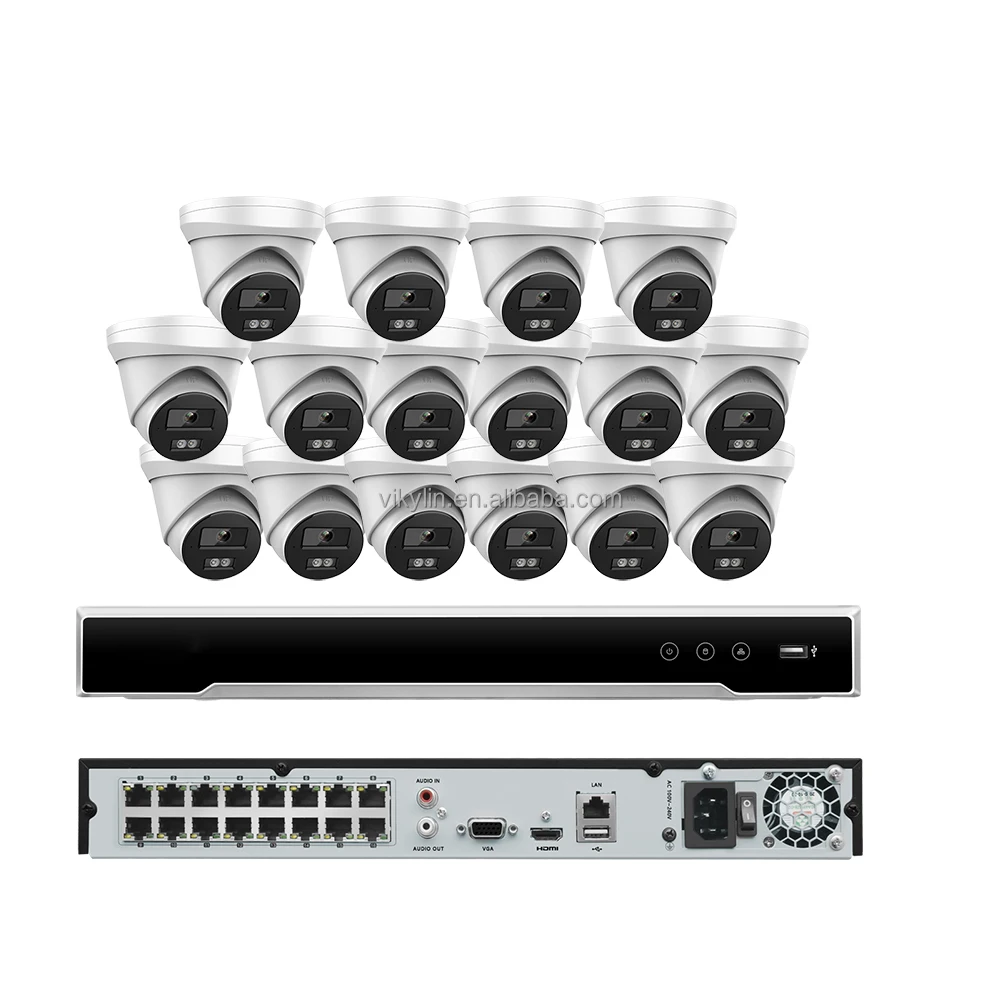

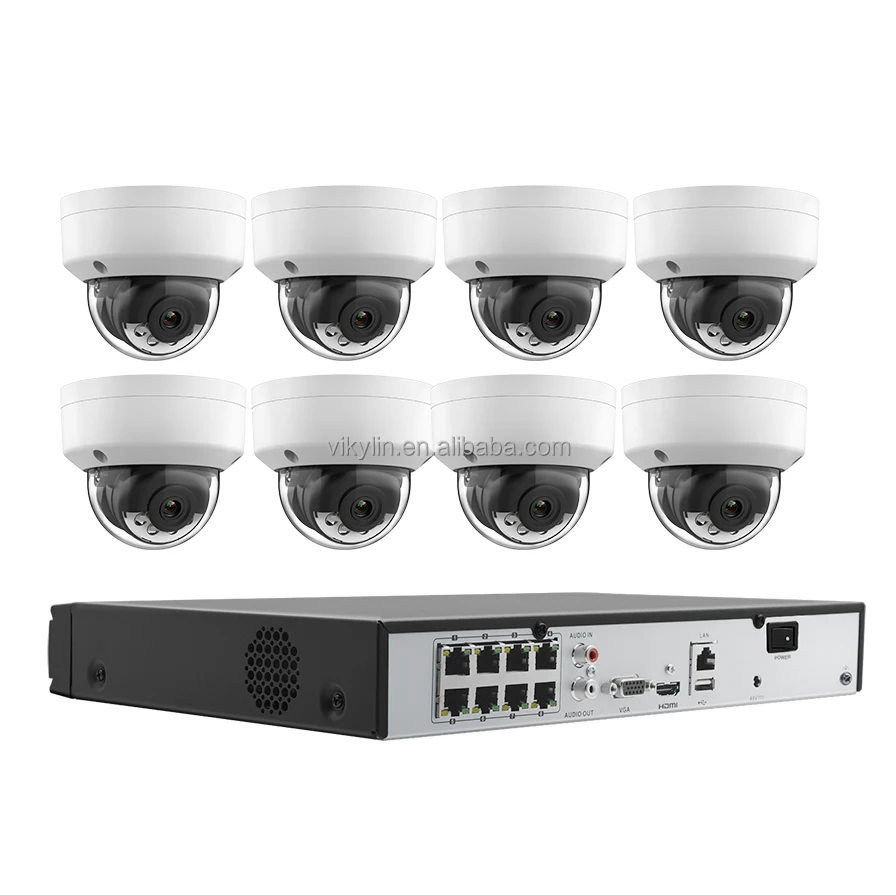

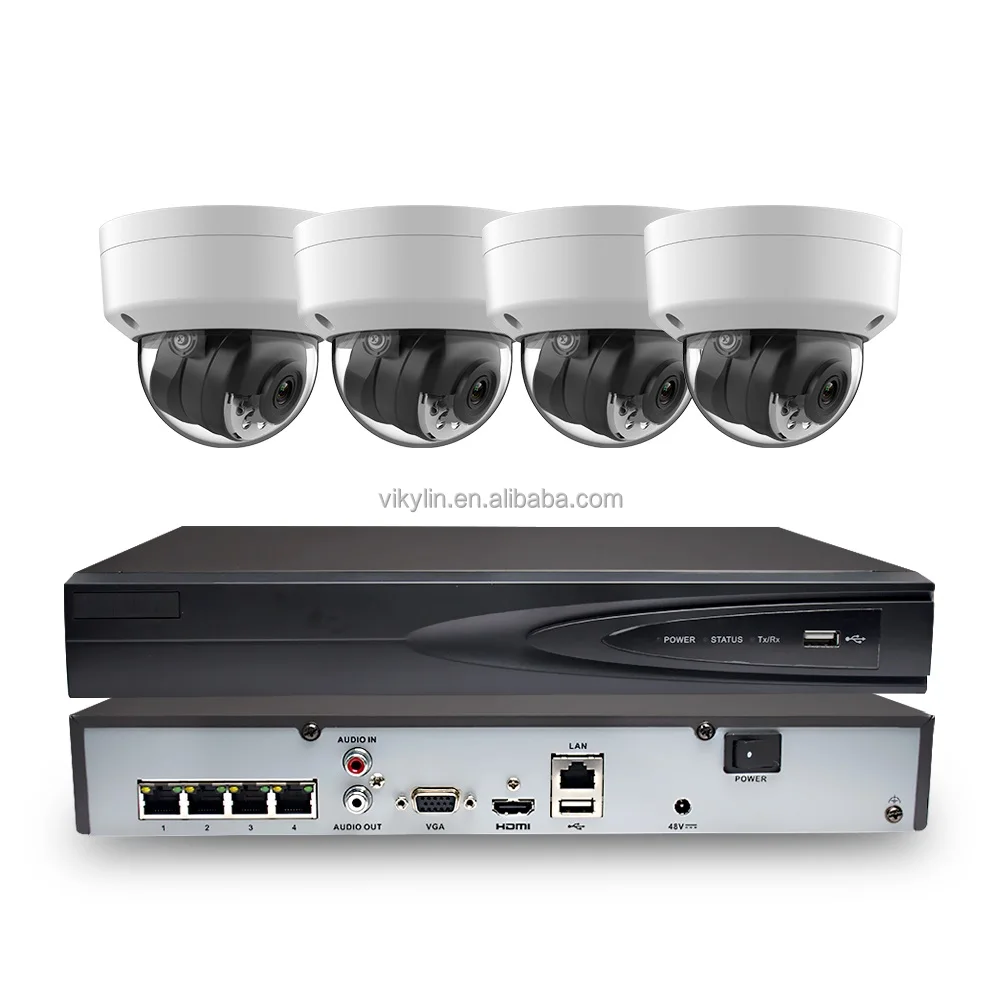

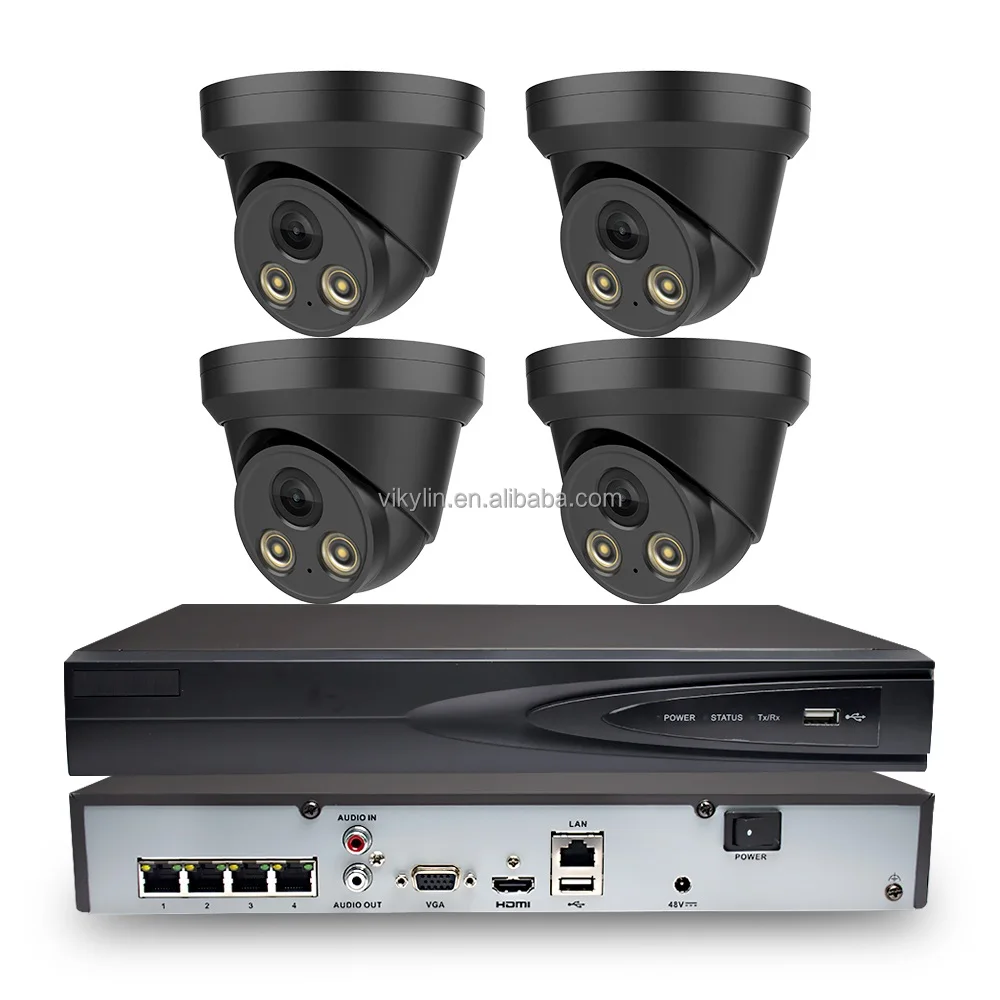

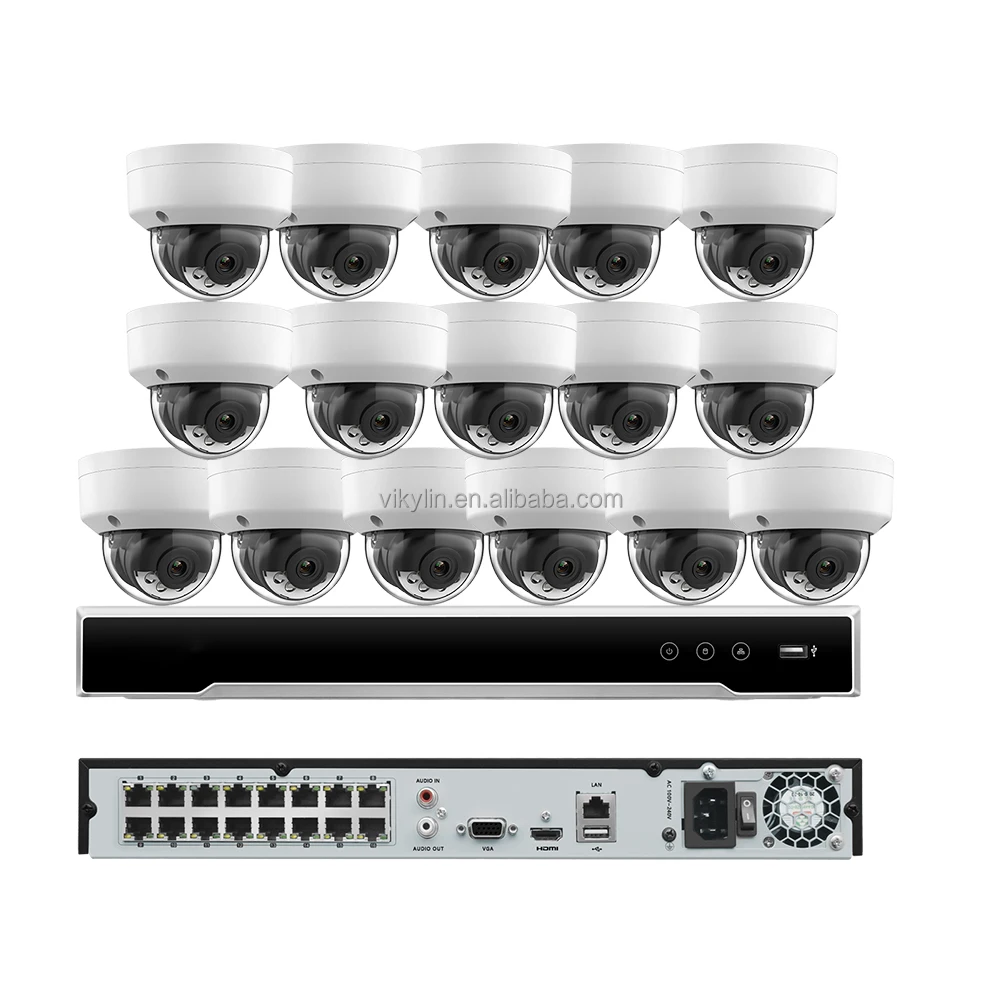

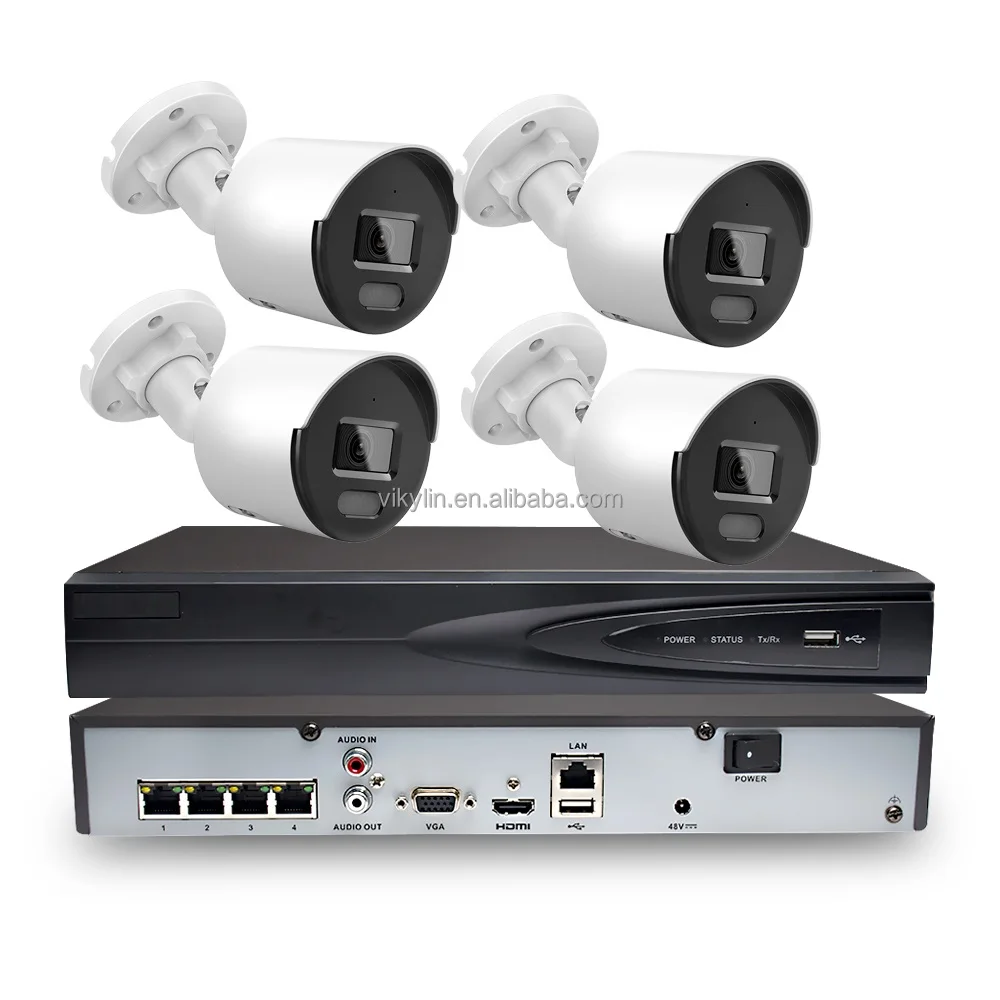

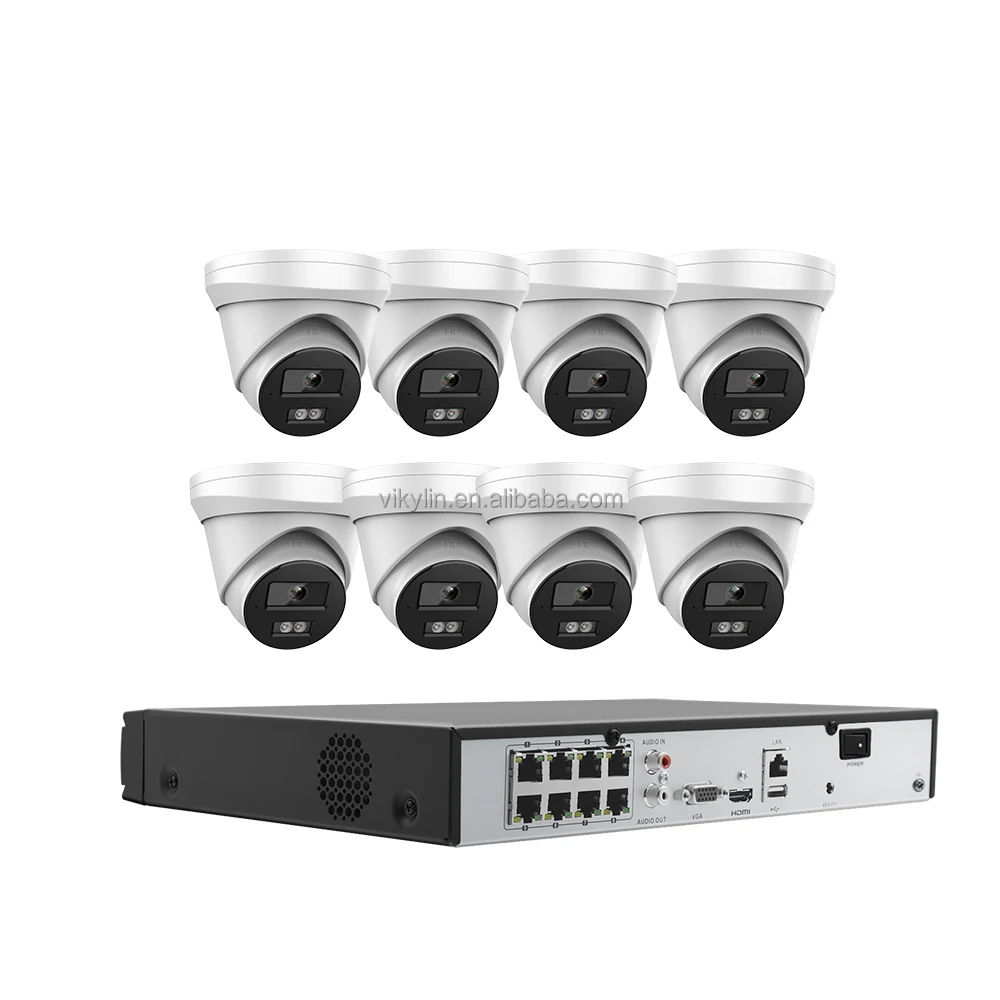

HIK Conect app 5mp 4k 8mp 4ch 8ch 16 Channel HD AI Ip Poe Nvr Home Outdoor Security Camera Surveillance Cctv System Kit
- Category: >>>
- Supplier: Shenzhen Lin Wei Ke Xun Technology Co. Ltd.
Share on (1601029370704):
Product Overview
Description
Product Description

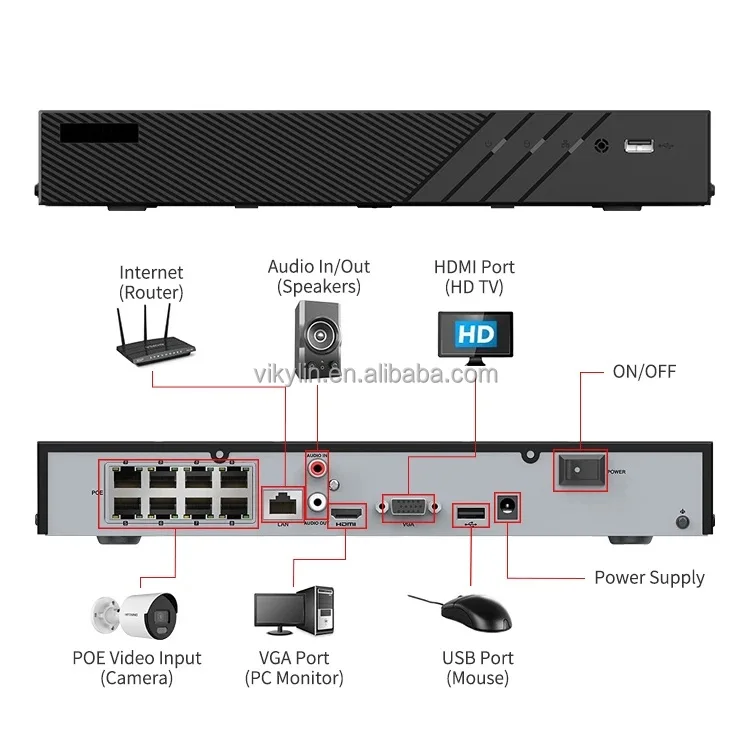

What NVR WILL YOU GET
Video/Audio input | IP video input | 8-ch |
Up to 8 MP resolution | ||
Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) | |
Network | Incoming bandwidth | 80 Mbps |
Outgoing bandwidth | 80 Mbps | |
Video/Audio output | Recording resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
HDMI output resolution | 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
VGA output resolution | 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
Audio output | 1-ch, RCA (Linear, 1 KΩ) | |
Decoding | Decoding format | H.264/H.264+/MPEG4 |
Live view / Playback resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF | |
Synchronous playback | 8-ch | |
Capability | 1-ch @ 8 MP / 4-ch @ 1080p | |
Network management | Network protocols | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
Hard disk | SATA | 1 SATA interface |
Capacity | Up to 6TB capacity for each disk | |
External interface | Network interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
USB interface | 2 × USB 2.0 | |
POE Interface | Interface | 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
Power | ≤ 75W | |
Standard | IEEE 802.3 af/at | |
General | Power supply | 48 VDC |
Power | ≤ 90 W | |
Consumption(without hard disk) | ≤ 10 W (without enabling PoE) | |
Working temperature | -10 to +55º C (+14 to +131º F) | |
Working humidity | 10 to 90 % | |
Chassis | 1U chassis | |
Dimensions(W × D × H) | 315 × 240 × 48 mm (12.4" × 9.4" × 1.9") | |
Weight(without hard disk) | ≤ 1 kg (2.2 lb) |
4MP Colorvu Camera Spec
Camera | ||
Image Sensor | 1/2.7" Progressive Scan CMOS | |
Min. Illumination | Color: 0.001 Lux @ (F1.0, AGC ON) | |
Shutter Speed | 1/3 s to 1/100,000 s | |
Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° | |
Slow Shutter | Yes | |
P/N | P/N | |
Wide Dynamic Range | 120 dB | |
Lens | ||
Lens Type & FOV | 2.8 mm, horizontal FOV 102°, vertical FOV 54°, diagonal FOV 121° 4 mm, horizontal FOV 80°, vertical FOV 43°, diagonal FOV 95° | |
Aperture | F1.0 | |
Lens Mount | M12 | |
Aperture Type | Fixed | |
Depth of Focus | 2.8 mm: 3.1 m to ∞ 4 mm: 3.6 m to ∞ | |
Illuminator | ||
Smart Supplement Light | Yes | |
Supplement Light | White | |
White Light Range | Up to 30 m | |
Video | ||
Main Stream | 50Hz: 20 fps (2560 × 1440) 25 fps (2304 × 1296，1920 × 1080, 1280 × 720) 60Hz: 20 fps (2560 × 1440) 30 fps (2304 × 1296，1920 × 1080, 1280 × 720) | |
Sub Stream | 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) * Note: The frame rate of the sub-stream cannot exceed the maximum frame rate of the current main stream. | |
Video Bit Rate | 32 Kbps to 8 Mbps | |
H.264 Type | BaseLine Profile/Main Profile/High Profile | |
Region of Interest (ROI) | 1 fixed region for main stream | |
Network | ||
Simultaneous Live View | Up to 6 channels | |
API | ONVIF (PROFILE S), ISAPI, SDK | |
Protocols | TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS | |
User/Host | Up to 32 users. 3 user levels: administrator, operator and user | |
Our Factory
FAQ
Q. Who manufactory the products ?
A: Our Kits is made by Hik factory with vikylin logo. all the function is same as the Original HIK spec.
Q. What's ETA time and stock status?
Q. Do you provide warranty for your products?
A: Yes, we promise 2 years warranty for all our products, OEM products are with 3 years.
Q.What is your method of payment?
A: T/T, Western Union, Paypal, credit card is welcomed.
Q.What is Minimum Order Quantity?
A: Sample order is welcomed, while the price is more competitive for big quantity .
Q: How to ship the goods?
A: For small parcels, we recommend to use the express, such as Fedex, DHL, Fedex, TNT, UPS etc. For bulk order, we can ship the products to your forwarder or will find a best shipping way for you.
Q. What's the actual products I can get?
A:we have 8mp with 8 Ch ,and 4mp with 8ch .choose what you need.
Q. What's ETA time and stock status?
A: if stock products, the ETA is about 3-5 days, and for products with bulk quantity, the delivery time is about 2-4 weeks.
Q. Do you provide warranty for your products?
A: Yes, we promise 2 years warranty for all our products, OEM products are with 3 years.
Q.What is your method of payment?
A: T/T, Western Union, Paypal, credit card is welcomed.
Q.What is Minimum Order Quantity?
A: Sample order is welcomed, while the price is more competitive for big quantity .
Q: How to ship the goods?
A: For small parcels, we recommend to use the express, such as Fedex, DHL, Fedex, TNT, UPS etc. For bulk order, we can ship the products to your forwarder or will find a best shipping way for you.
