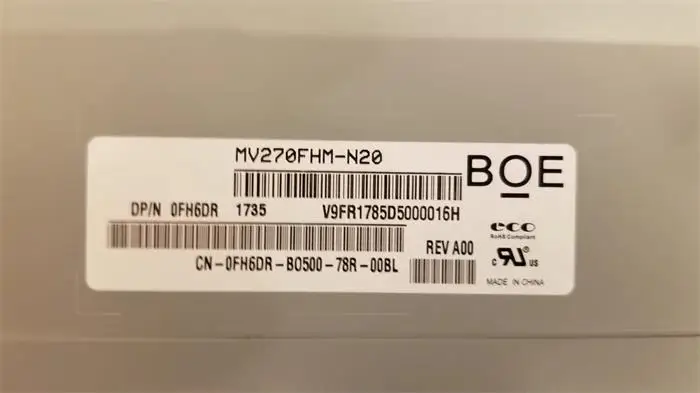

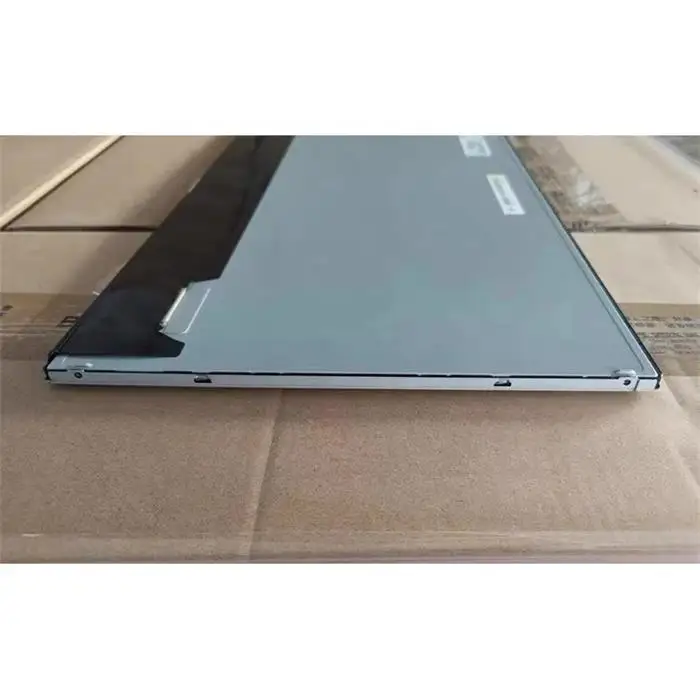

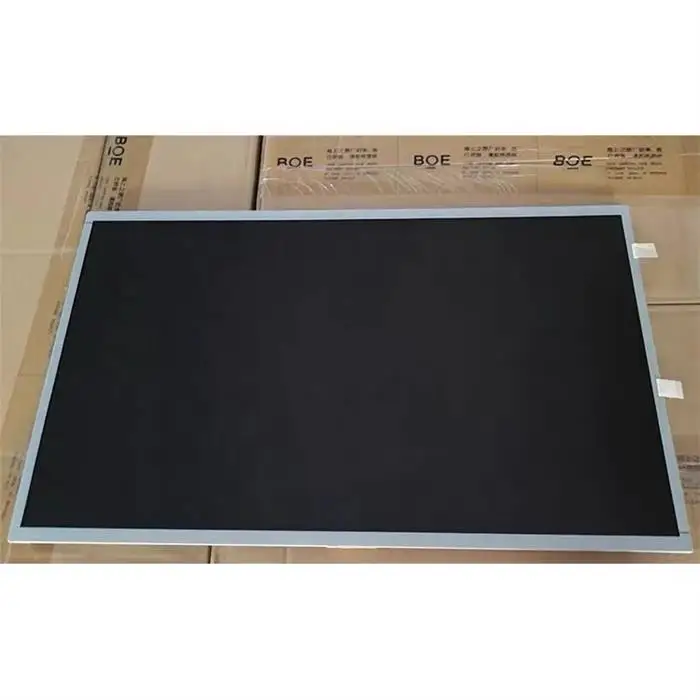

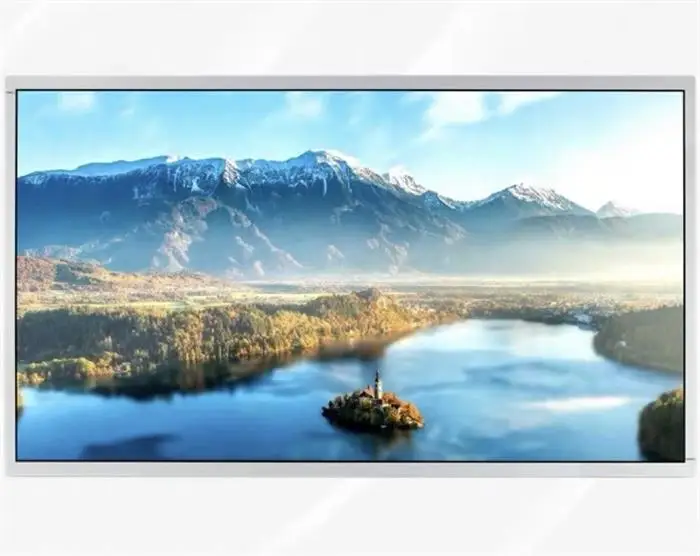

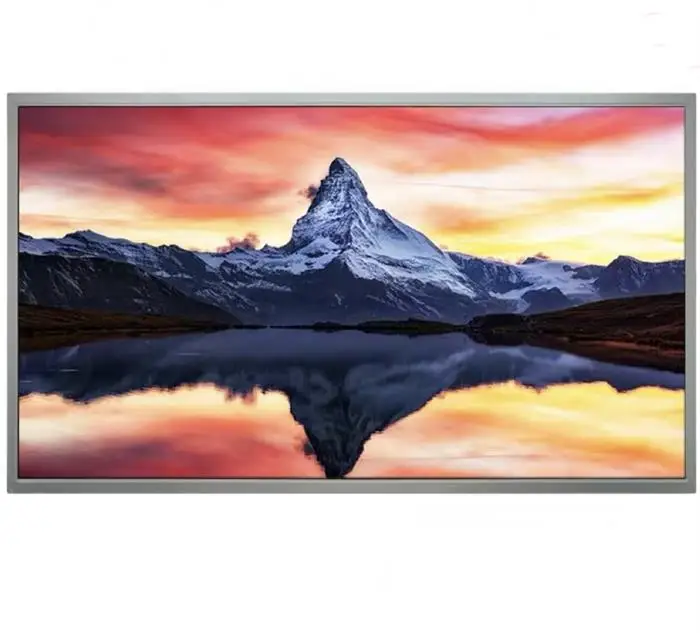

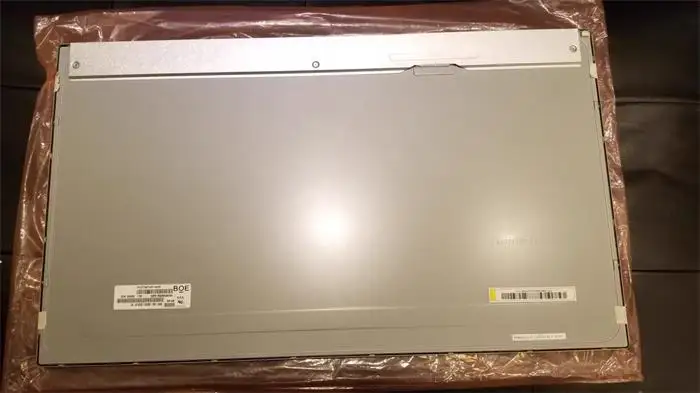

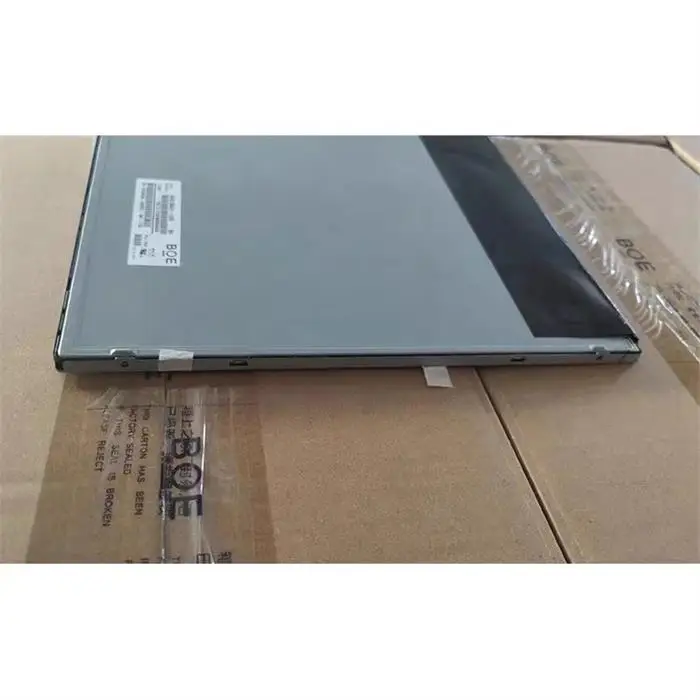

MV270FHM N20 BOE 27 inch IPS TFT LCD panel HD display 1920*1080 Optional touch screen and circuit board
- Category: >>>
- Supplier: Shenzhen Shun Chuangrong Technology Co. Ltd.
Share on (1601029422182):
Product Overview
Description
Product description
LCD argument
| Brand | BOE |
| Model name | MV270FHM-N20 |
| Screen | a-Si TFT-LCD,Liquid crystal module |
| resolving power | 1920(RGB)*1080,FHD |
| Pixel configuration | RGBVertical strip |
| Display size(W*H) | 597.8*336.3mm |
| Visual size(W*H) | 601.9*340.4mm |
| Appearance dimension(W*H*D) | 611.5*355.8*13.5mm |
| Surface treatment | Fog surface,Hard coating(3H) |
| Brightness | 300(Typ.) |
| Contrast radio | 1000:1(Typ.)(TM) |
| Viewing angle(L/R/U/D) | 89/89/89/89 |
| Reaction time | 14(Typ.)(Tr+Td)ms |
| Display color | 16.7M,72%NTSC |
| Light source type | 17S4P WLED,30K hours,Drive free |
| Refresh rate | 60Hz |
| Weight | 3.49Kgs(Typ.) |
| Signal type | LVDS(2 ch,8-bit) |
| Voltage input | 5.0V(Typ.) |
| Use environment | work:0-50℃ storage:-20-60℃ |
Our Services
We have a huge team to serve customers,with 15 years of expenriencde in commercial display and customization,can provide free solutions and technical support according to your requirements.
Company Information
1.Shenzhen Shunchuangrong Technology Co.,Ltd.was founded in 2011.Is engaged in liquid crystsl display product development,design,producition,sales in one of the professional companies.
2.Our products have been exported to more than 100 countries such as the Unitde States,Russia and Sout Korea.
3.Advantages for customers the company has its own production workshop of 6000 square meters.All liquid crystall display products from sheet metal shell to the company,the whole machine are independently produced by the company,the cost is comtrolled to the minimum,and difference between middiemen is given to customers.
4.Company Services
The company always follows the business purpose of “intimate service,customer first.”
The never-ending pursuit of product quality,improve product competitiveness,and meticulously meet customer needs.

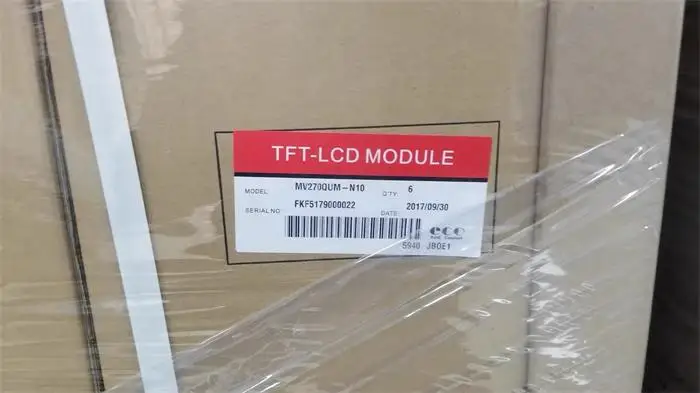

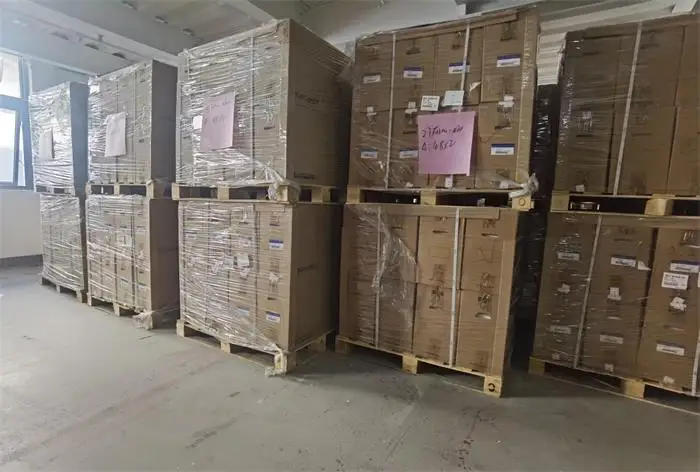

Packaging & Shipping
Q&A
1.Why choose us?
Products from sheet metal shell to production and assembly are completed in factory’s own production workshop,there is no processing outside the factory,the cost of the product is controlled to the lowest and the most favorable price to the customer.
2.Are you a trader or a manufacturer?
We are a physical factory with 6000 suare metirs.Provide OEM/ODM service.
3.How about the quality of the product?
Adopt intermational standard A-level display panel,strictly control the quality.All product are subjected to aging tests and seismic tests with continuous power supply for 48 hours.
4.What about the price of the product?
The different functions and appearance of the product are directly related to the price,so if you have any requirements and questions,please contact us as soon as possible.
5.When can I get the quotation I need?
We will reply to your quotation within 12 hours after receiving your inquiry.
6.How long is the product warranty period?
The default warranty is at least one year,but it can be extended at your request.
7.What is the minimum order quantity?
A minimum order,the more the price will be cheaper oh.
