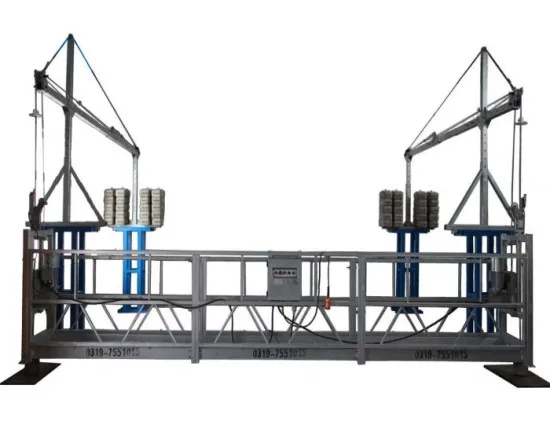

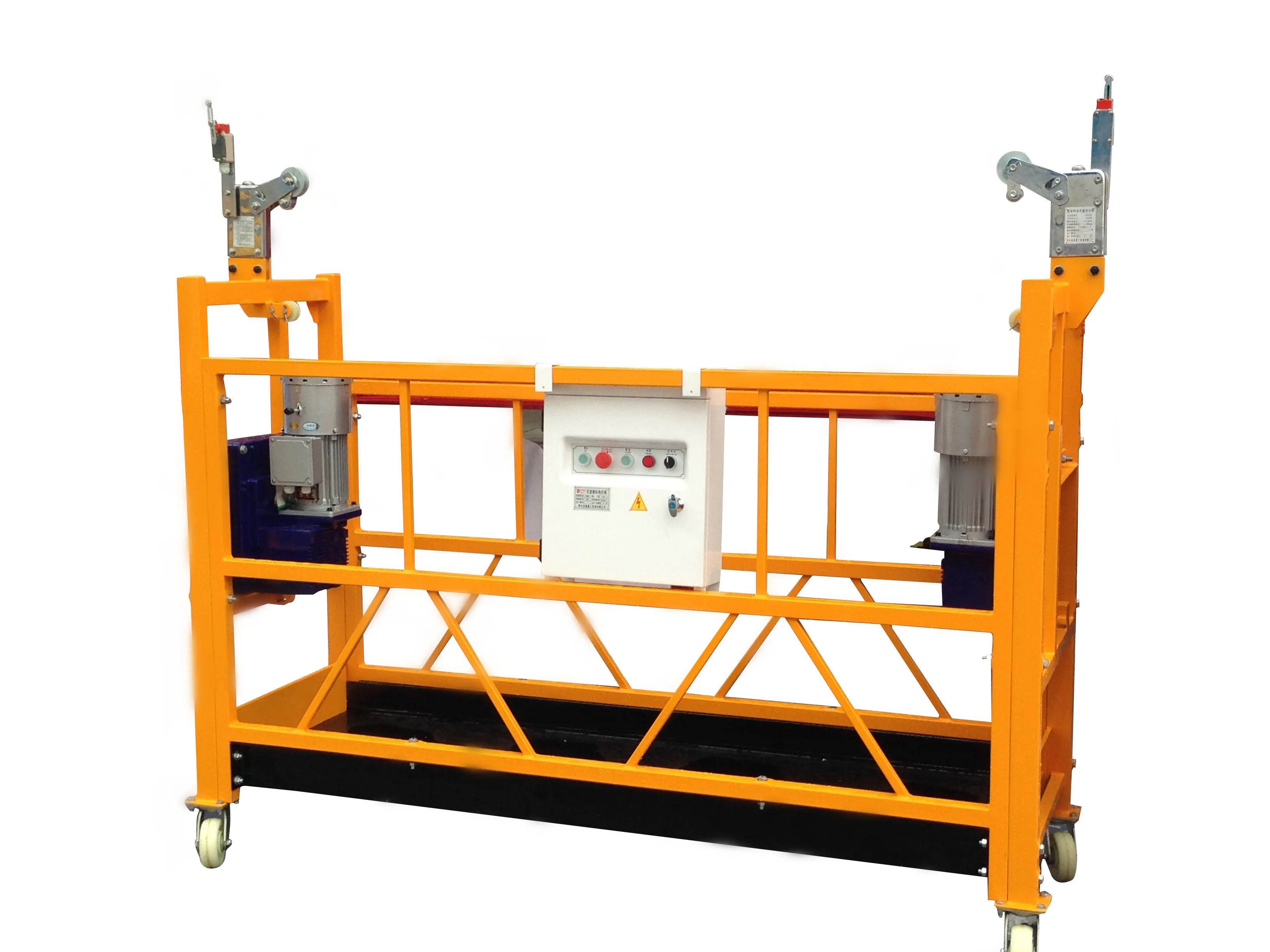

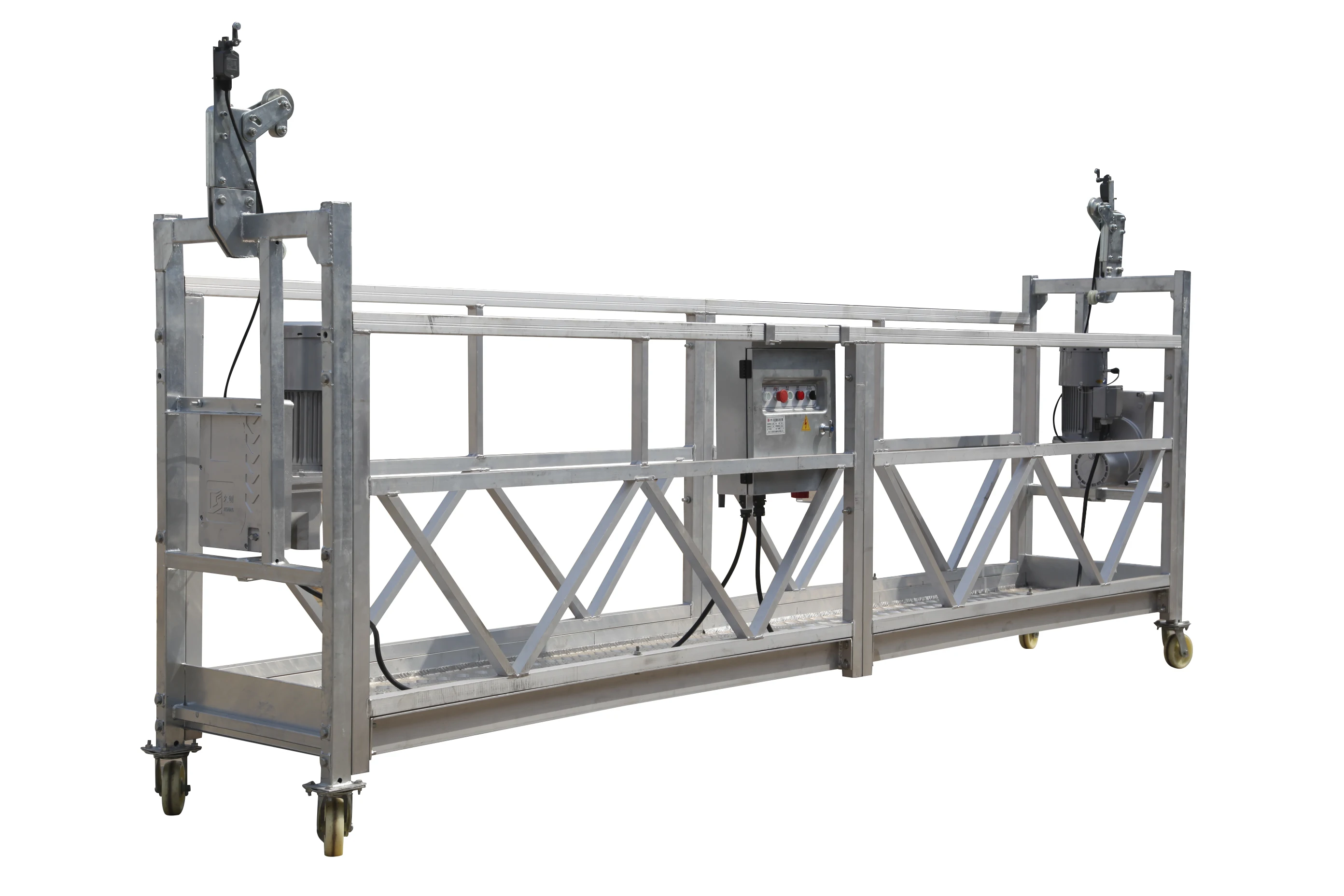

Gondola Hoist For Windows In High Rise Buildings Cleaning Electric Gondola Swing Stage Scaffold
- Category: >>>
- Supplier: Hebei Jiuchuang Construction Machinery Technology Co. Ltd.Hebei Ltd.
Share on (1601029448410):
Product Overview
Description
Product Description
ZLP Series gondola is an ideal working access for facade works of high-rising buildings as facde construction, decoration,maintenance and so on ,And it is also widely used into elevator installation,ship building and repair,or in other works such as big-size tank,bridge,embankment and chimney.

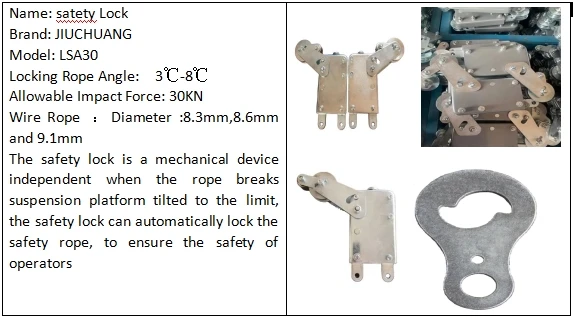

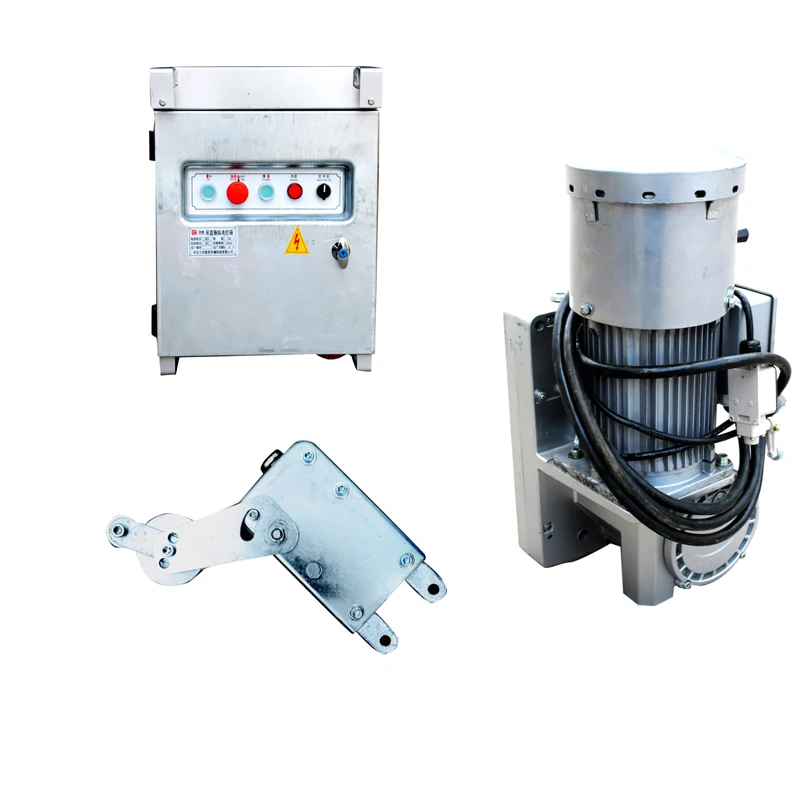

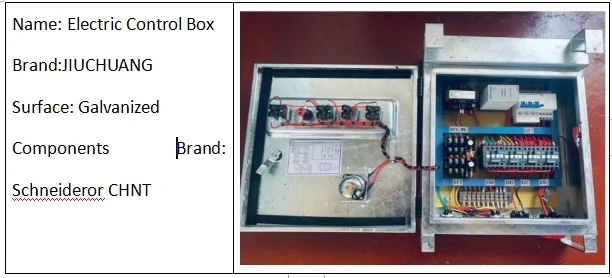

consists of the components as below: hoists, safety locks, electric control system, suspend platform, suspension mechanism, counter weight, steel rope, etc

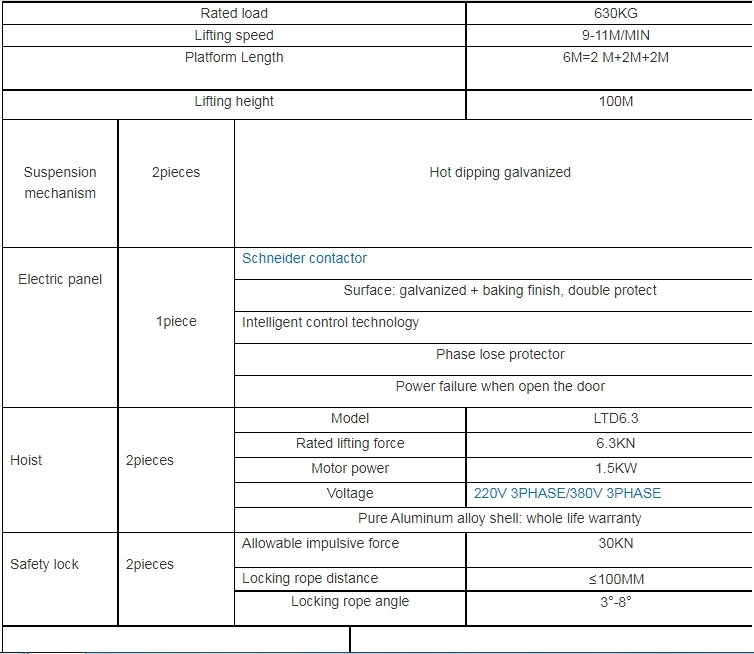

Technical dates:
| Type | ZLP500 | ZLP600 | ZLP800 | ZLP1000 |
| Rate load | 500 | 630 | 800 | 1000 |
| Lifting seed | 9-11 | 9-11 | 8-10 | 8-10 |
| Voltage-3phase | 380V/415V/220V | 380V/415V/220V | 380V/415V/220V | 380V/415V/220V |
| Frequence | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| Power | 1.1*2 | 1.5*2 | 1.8*2 | 2.2*2 |

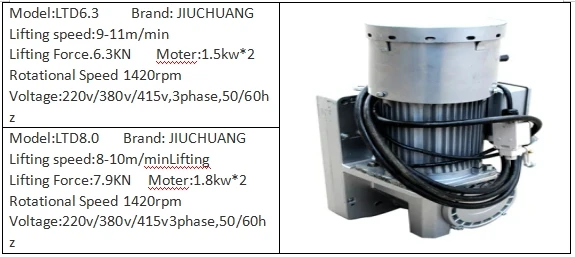

| Hoist | LTD5.0 | LTD6.3 | LTD8.0 | LTD8.0 |

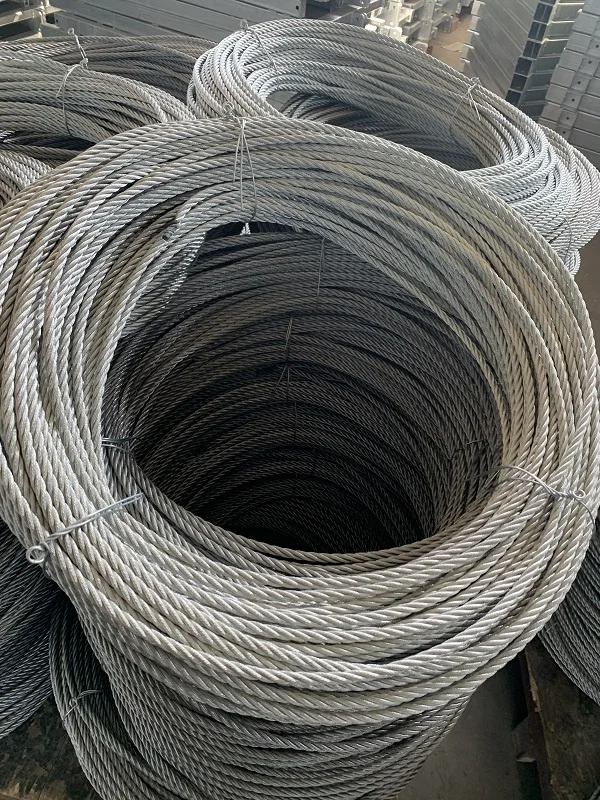

| Wire rope | 4*31SW+NFΦ8.3 | 4*31SW+NFΦ8.3 | 4*31SW+NFΦ8.6 | 4*31SW+NFΦ9.1 |
| Platform size(m) | 5.0*1.0*0.7 | 6.0*1.0*0.7 | 7.5*1.0*0.7 | 7.5*1.0*0.7 |
| Weight of upperassembly(kg) | Aluminum-290 Steel-410 | Aluminum-340 Steel-450 | Aluminum-410 Steel-520 | Aluminum-410 Steel-520 |
| Counter weight(kg) | 900 | 1000 | 1000 | 1200 |

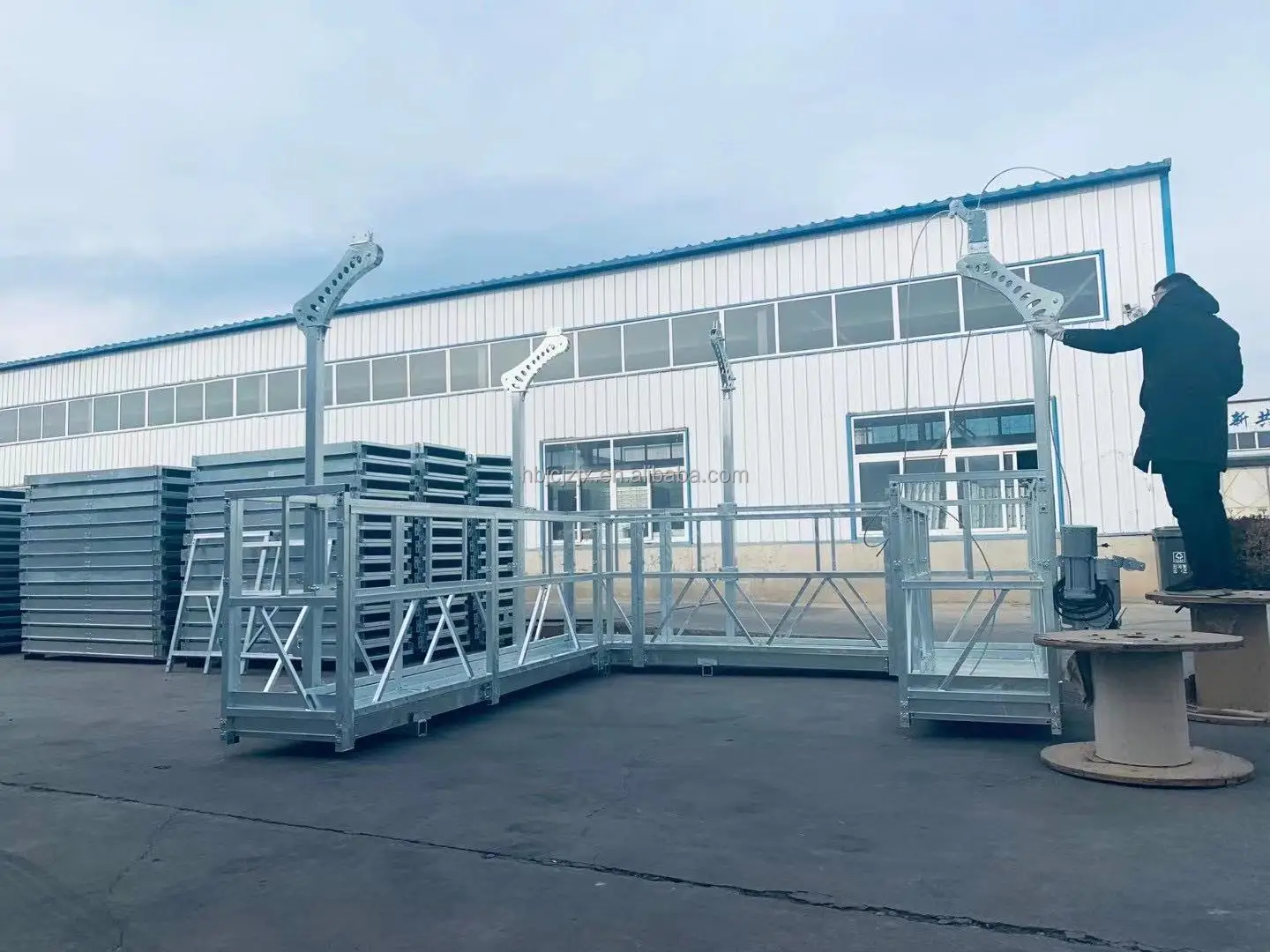

Suspension Mechanism and Platform:
Surface treatment with hot galvanized craft,the steel is not easy to rust.The service life can be as long as 15 years,more durable than spraying process
Product Application

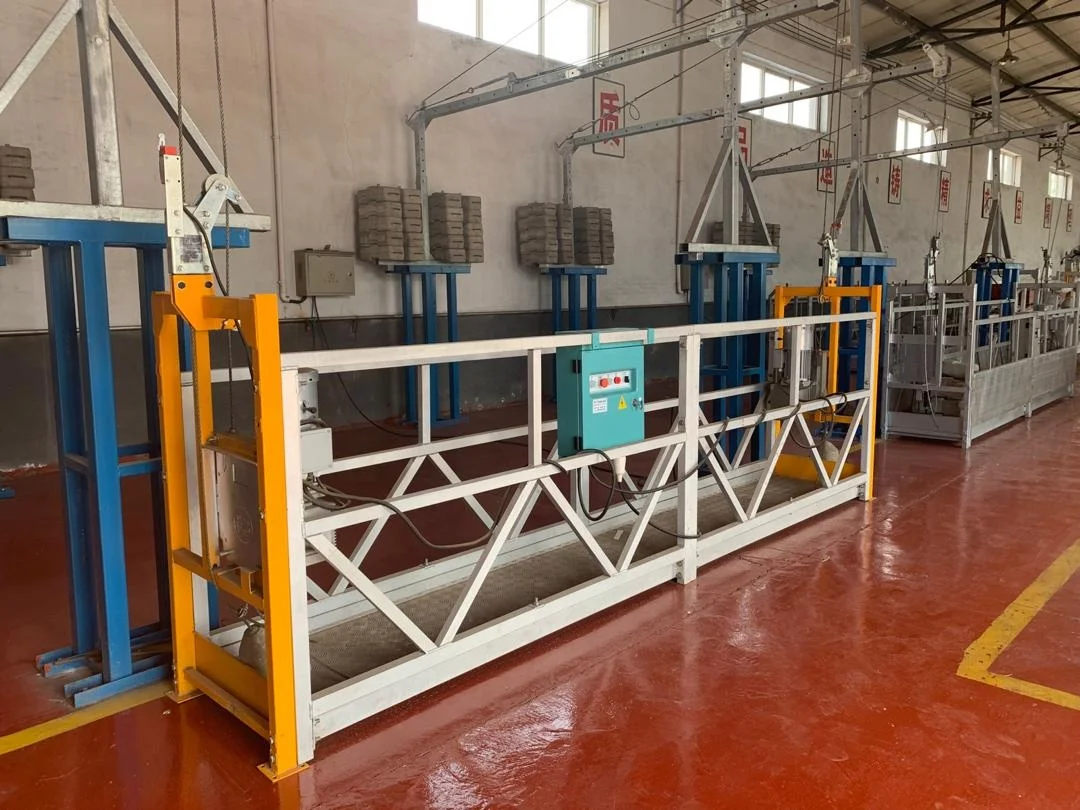

Suspended platform consists if suspension mechanism,hoist,safety lock,electric control box and platform.They have resonable structure and they are easy to operate.According to the actual needs,they are arbitrarily assembled and disassembled.Suspended platfrom applies to exterior wall construction,decoration,cleaning and maintance of high-rise buildings.
Specification of suspended platform:
1.The length of platform can be adjusted within 1m-10m.
2.The working height can be adjusted with customers' need.
3.The voltage can be adjusted with customer's requirement.
4.Materials 3 Types :1)Aluminum alloy 2)steel 3)steel with dipping zinc or galvanized
