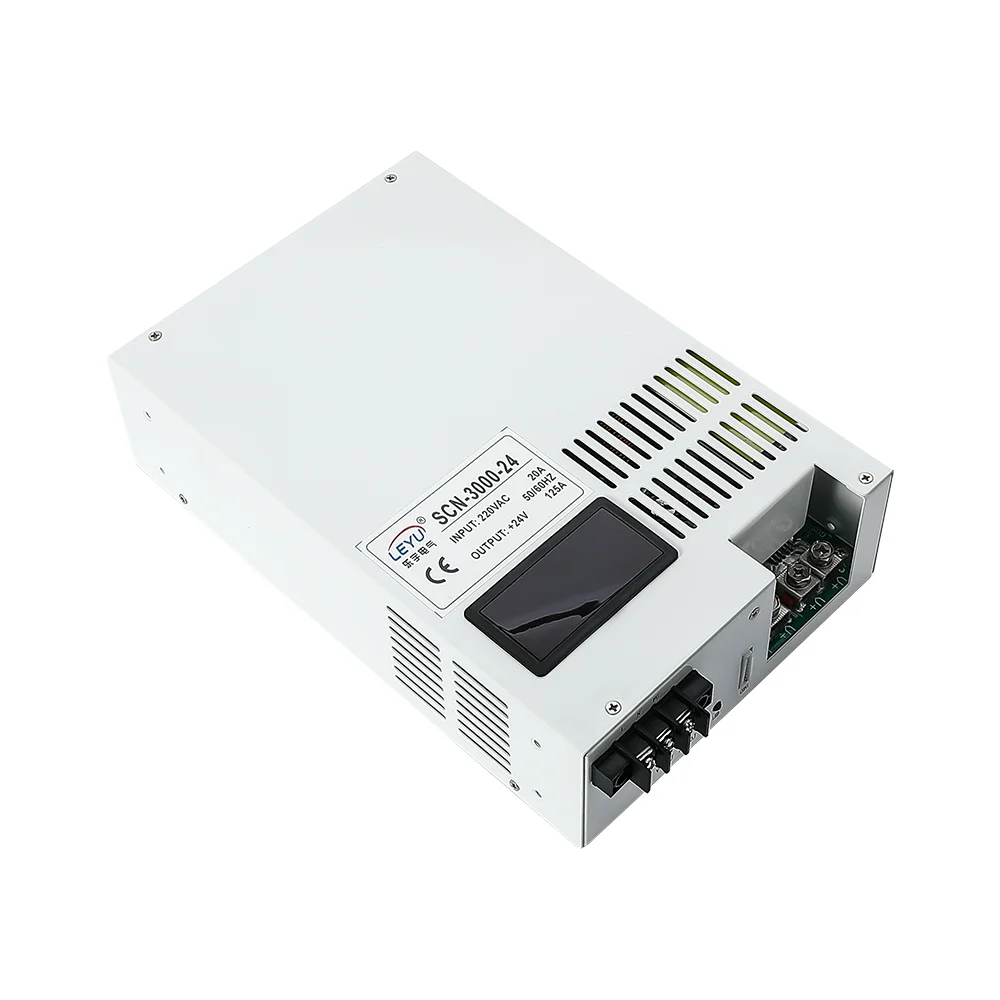

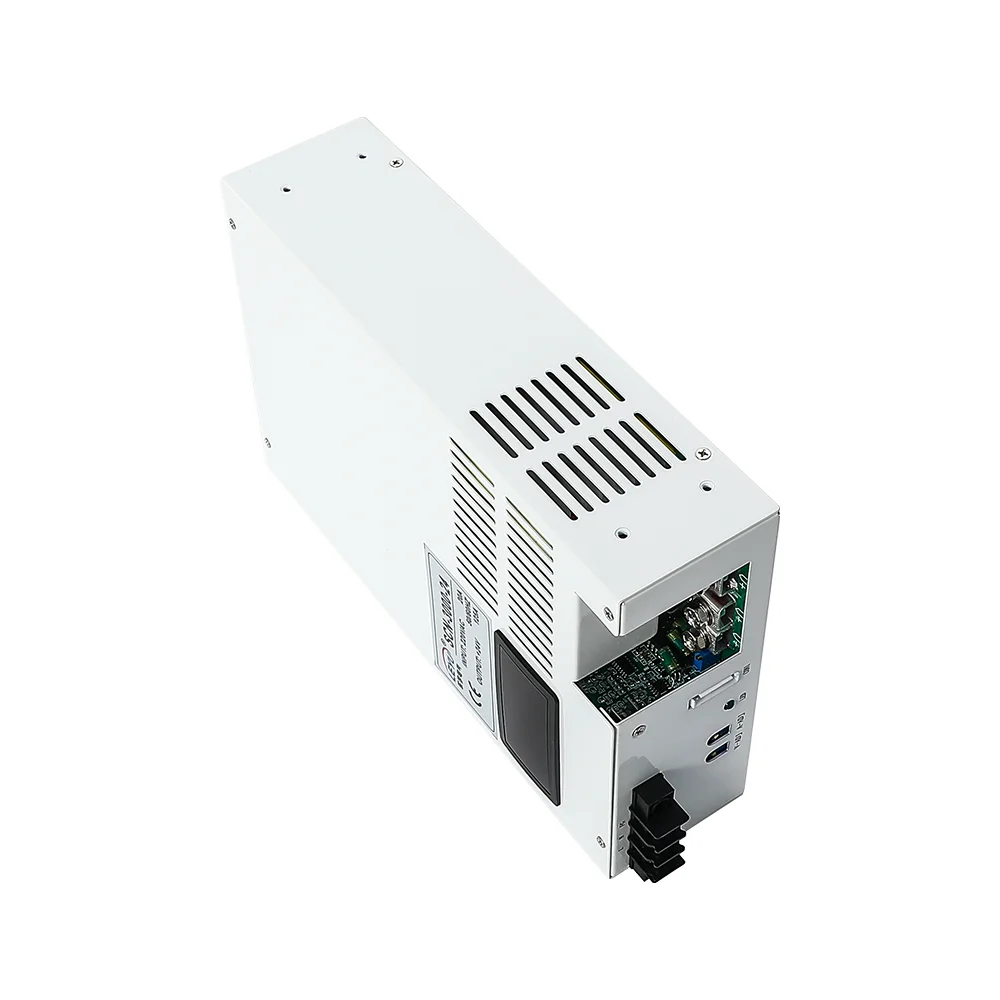

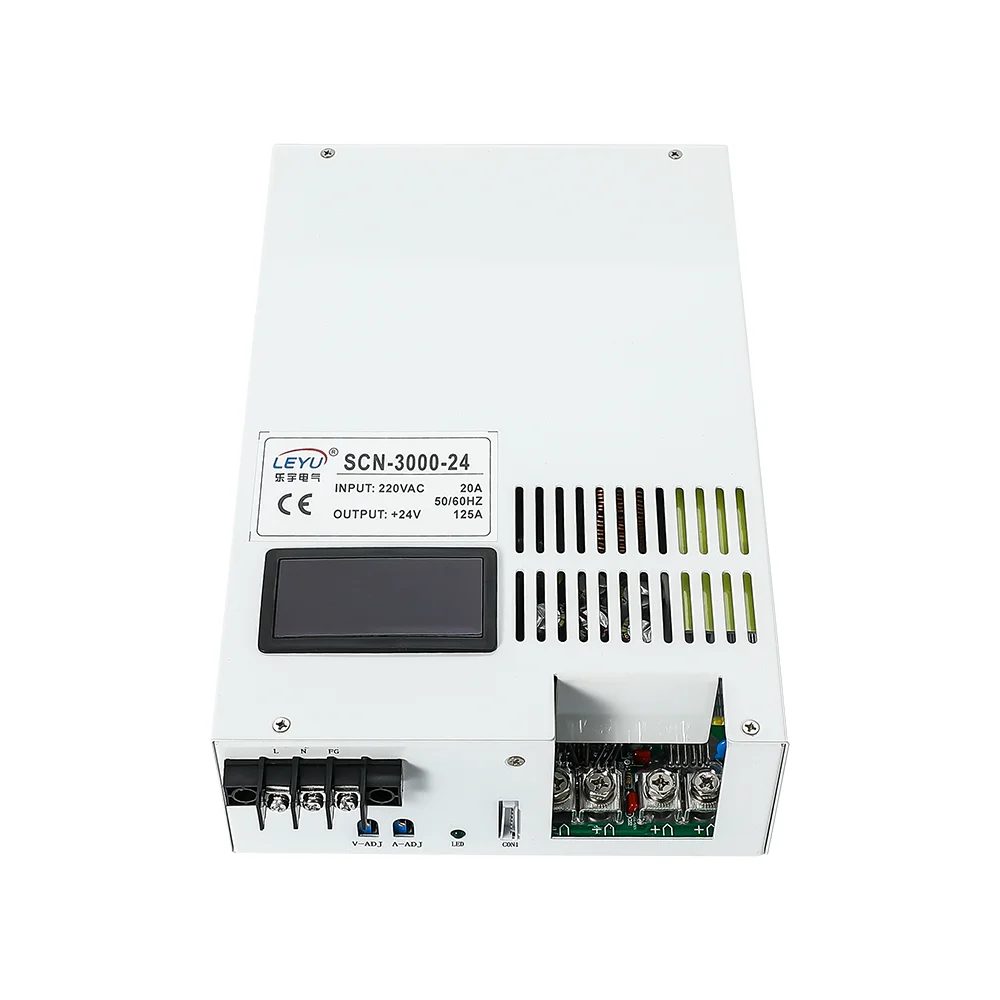

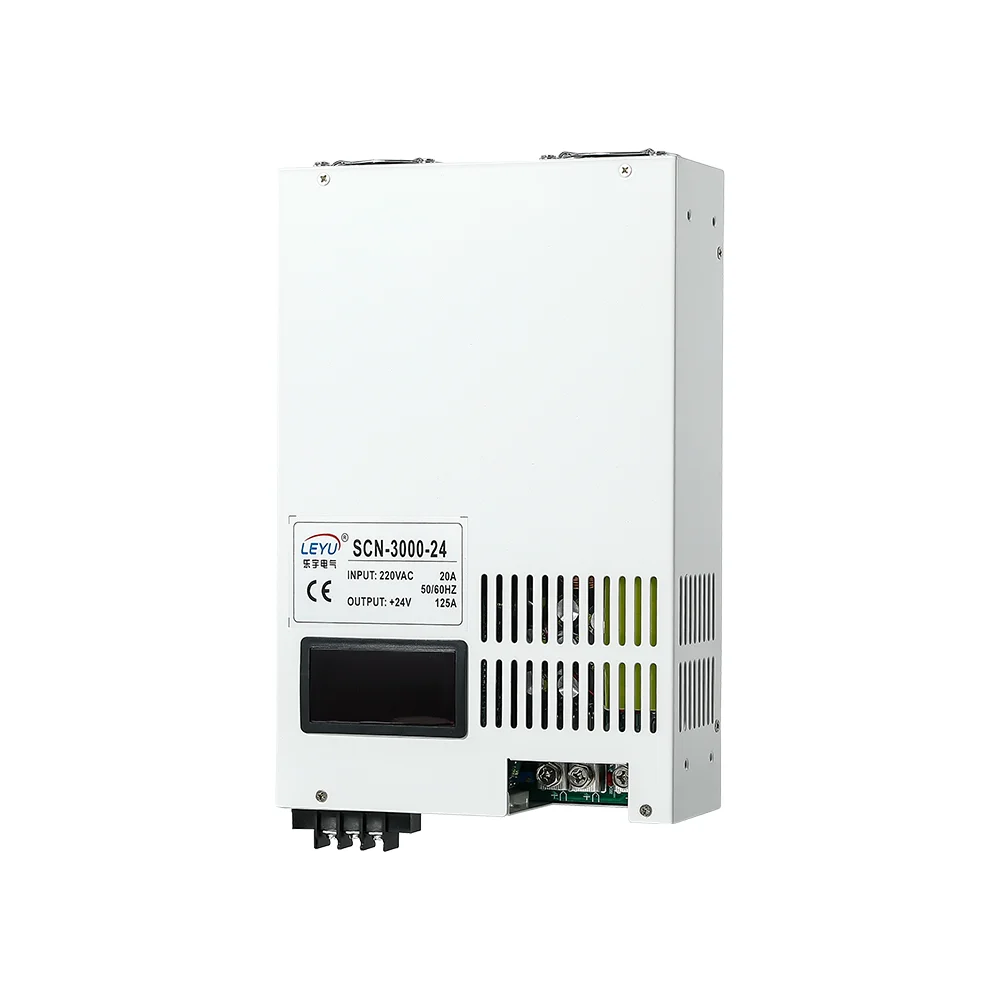

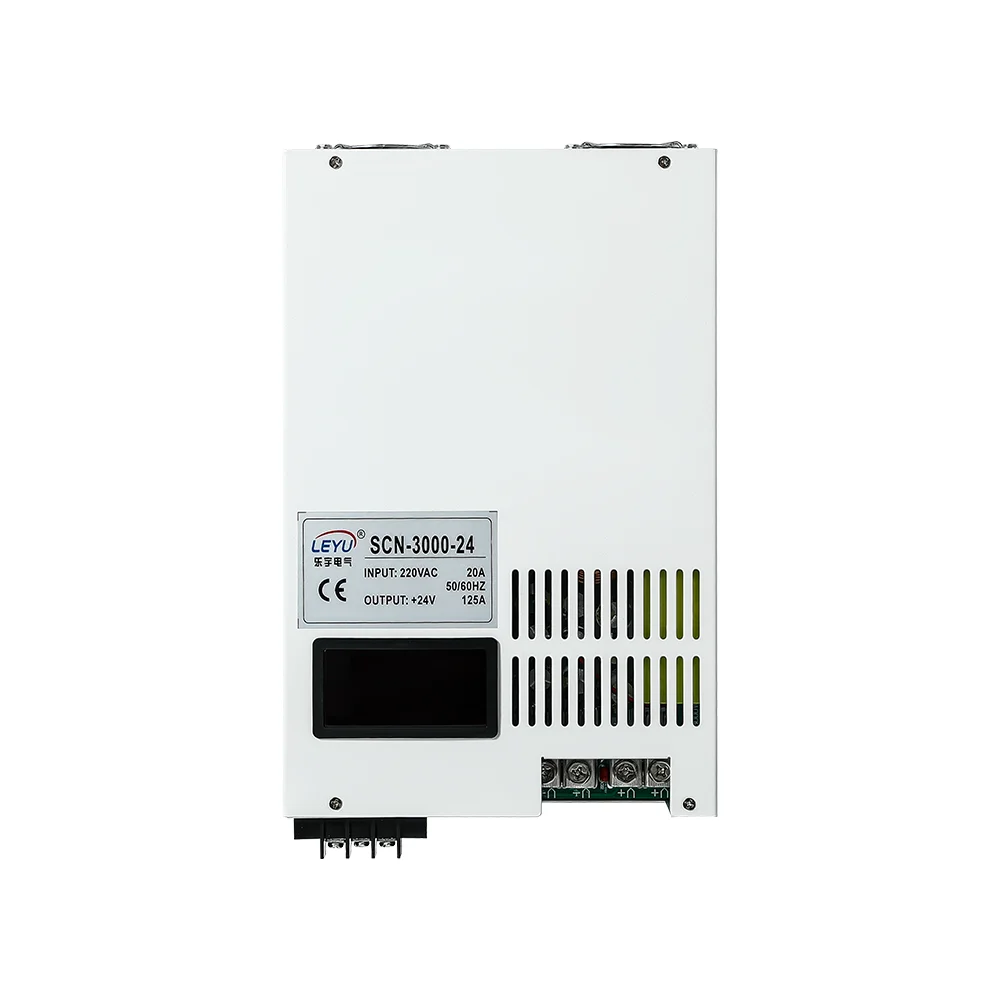

Power supply with display 3000W 12v 24v 36v 48v adjustable output voltage single output switching power supply
- Category: >>>
- Supplier: Yueqing Okey trade Co Ltd
Share on (1601029486325):
Product Overview
Description
Product Description
Specification
Model | SCN-3000-12 | SCN-3000-24 | SCN-3000-36 | SCN-3000-48 | |||
Dc voltage | 12V | 24V | 36V | 48V | |||
Rated current | 250A | 125A | 83.3AA | 62.5A | |||
Current range | 0-250A | 0-125A | 0-83.3A | 0-62.5A | |||
Rated power | 3000W | ||||||
ripple | 200mV | 200mV | 260mV | 350mV | |||
Constant current range | 6-12V | 12-24V | 18-36V | 24-48V | |||
Voltage accuracy | ±1.0% | ||||||
Linear adjustment rate | ±1.0% | ||||||
Load adjustment rate | ±1.0% | ||||||
Start & rise time | 150mS，100m5/230VAC (Full load) | ||||||
Voltage range | 180-264VAC / 245-370VDC | ||||||
Frequency range | 45Hz - 66Hz | ||||||
Power factor | PF2 0.65/2307AC(Full load) | ||||||
Efficiency | 85% | 86% | 87% | 89% | |||
Alternating current | ＜30A | ||||||
Leakage current | ＜3.0mA/ 240VAC | ||||||
Short-circuit | Entry constant current | ||||||
Overtemperature | Turn off the output and automatically recover or restart after the temperature drops | ||||||
Output voltage regulation | 0-13.2V | 0-26.4V | 0-39.6V | 0-52.8V | |||
Output constant current adjustment | 0-250A | 0-125A | 0-83.3A | 0-62.5A | |||
External potentiometer | External potentiometer control (voltage, current) | ||||||
Analog voltage control | 0- 57/ 0- 10V Control (voltage, current) | ||||||
Auxiliary power supply | 12V 0. 5A | ||||||
Remote control switch | Default power on, high power off (3V-12V) | ||||||
Operating temperature | -20 - +50C | ||||||
Working humidity | -20 - 90% RH non-condensing | ||||||
Storage temperature and humidity | -40 - +85C，10- 95% RH non-condensing | ||||||
Vibration resistance | 10-500Hz, 2G 10 minutes/cycle, X, Y, Z axis 60 minutes each. | ||||||
Insulation impedance | Input to output: 100Mhms/500VDC/25C/ 70%FH | ||||||
Withstand voltage | I/P -O/P:1. 2KVAC I/P -FG: 1.2KVAC O/P -FG: 0.5KVAC . | ||||||
Electromagnetic compatibility emission | GB 9254 | ||||||
Electromagnetic compatibility immunity | GB 9254 | ||||||
Dimension | 285*185*70mm(L*W*H) | ||||||
Net weight | 3.75Kg | ||||||
Note | 1. All parameters are measured at 230VAC voltage input, rated load and 25℃ when not specified. | ||||||
2. The ripple and noise voltage are measured when the oscilloscope with a 12-inch twisted pair end is added with 0.1μ and 47μ capacitors, and are measured at 20MHz bandwidth. | |||||||
3. Accuracy: including setting error, linear adjustment rate and load adjustment rate. | |||||||
4. If the input voltage is low, the output needs to be derated. For details, see the static characteristic diagram. | |||||||
5. The starting time is measured when the cold machine is started, and frequent switching of the machine may increase the starting time. | |||||||
